- Químico Hign-em causa: Nenhum
- Fonte de alimentação: DC

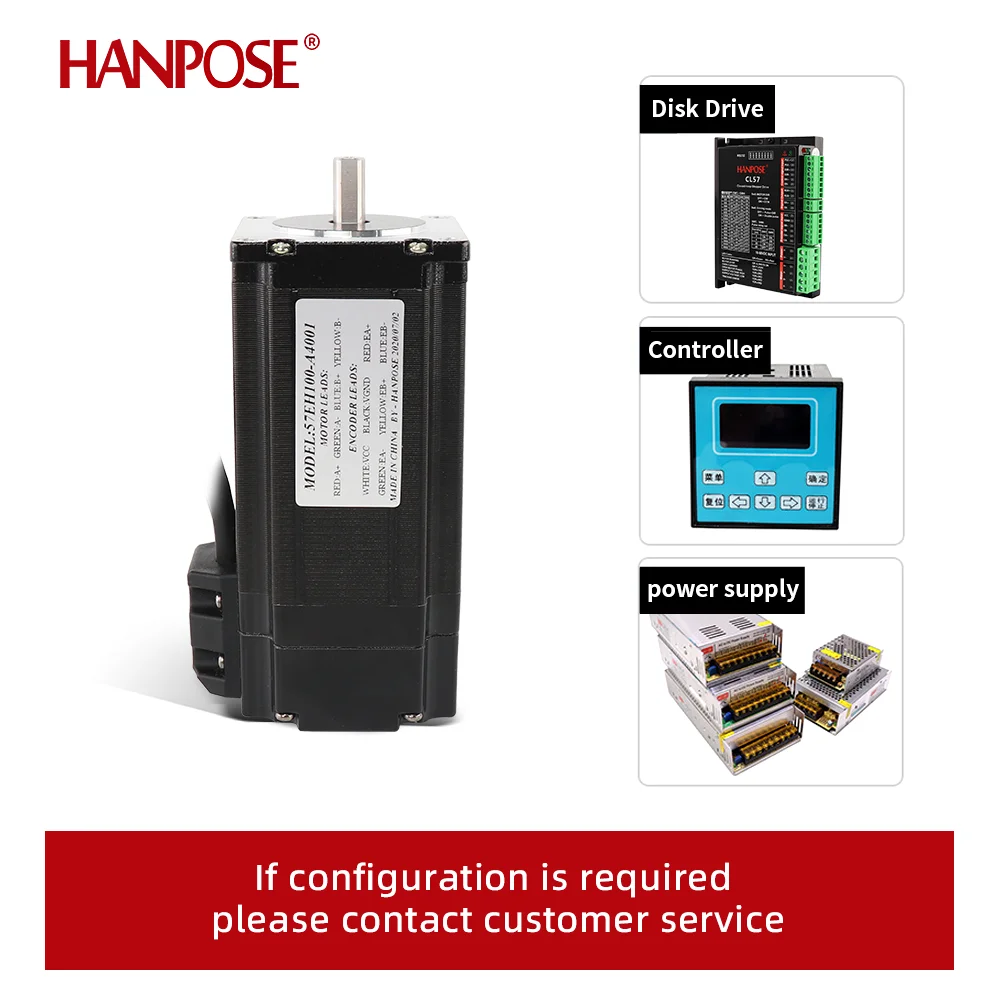

- Número do modelo: 57EH100A4001
- Tipo de motor: Motor de passo
- Nome da marca: HANPOSE
- Motor: Motor de passo
- Origem: CN (Origem)
- Certificado: CE,FCC
- is_customized: Yes
57 closed loop motor
57CME13 current 4A, 57EH56 torque: 1.3N.m shaft diameter: 8mm
57CME22 current 4A, 57EH76 torque: 2.2N.m shaft diameter: 8mm
57CME26 current 4A, 57EH83 torque: 2.6N.m shaft diameter: 8mm

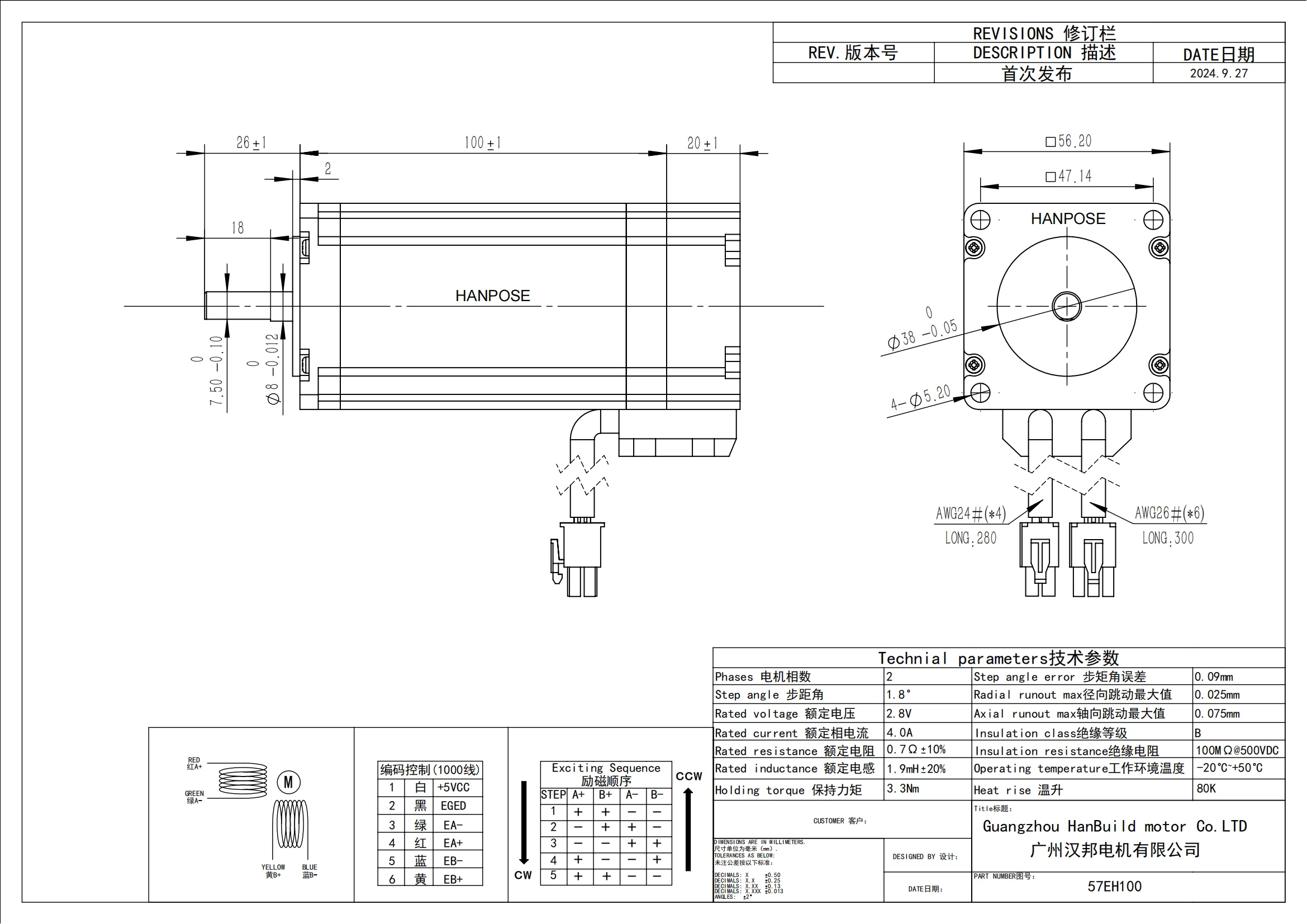

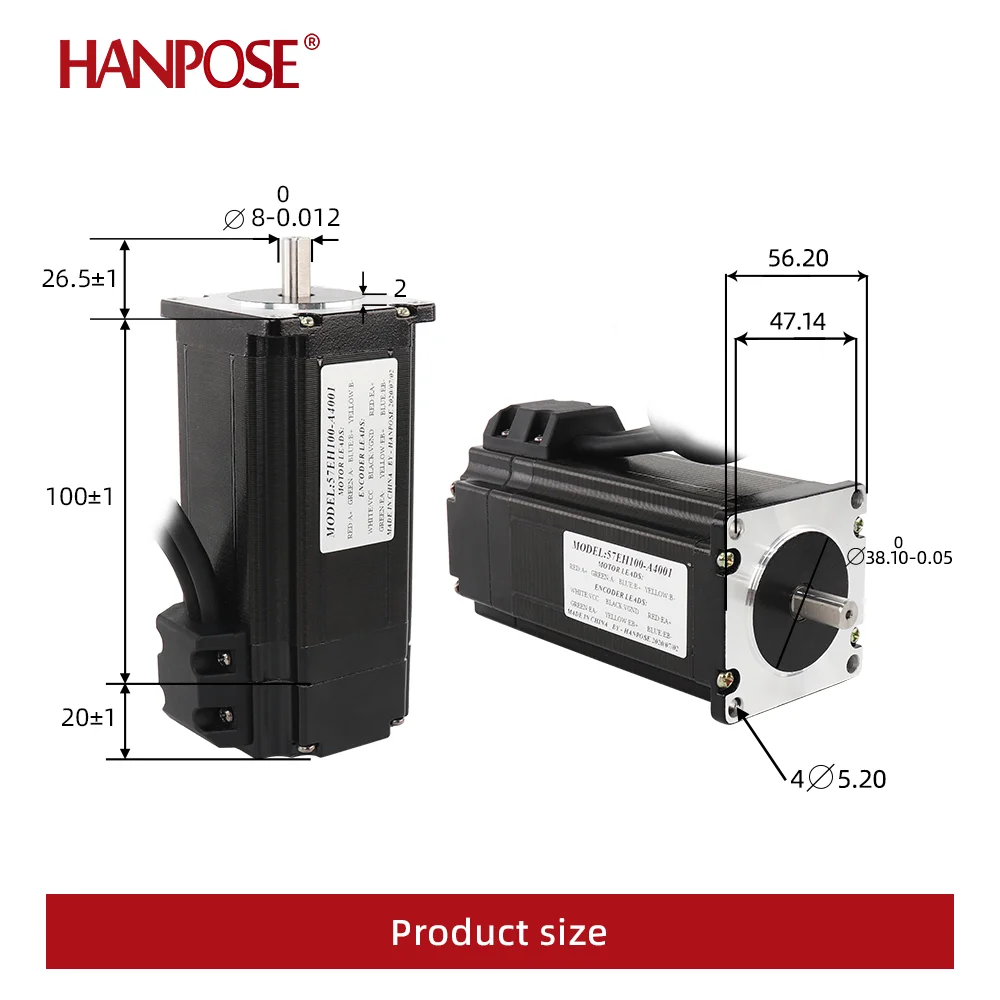

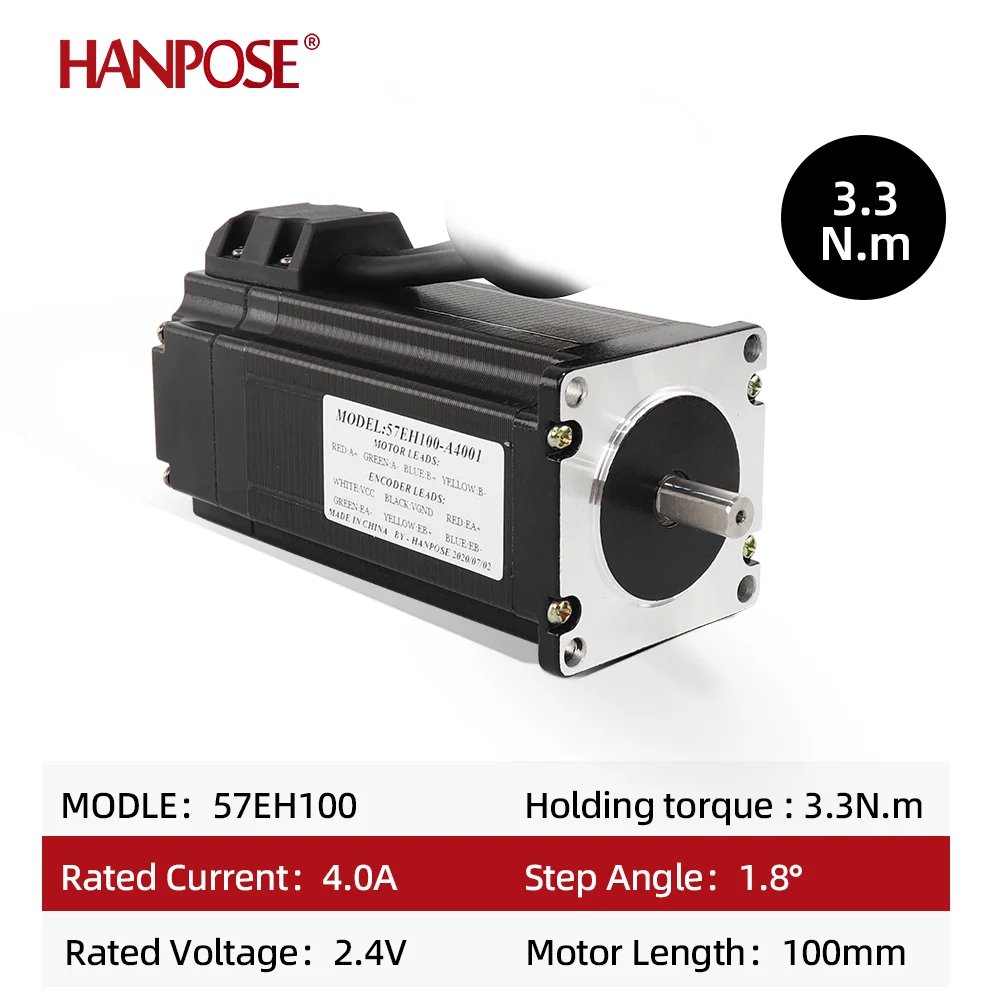

57CME33 current 4A, 57EH100 torque: 3.3N.m shaft diameter: 8mm
Rated speed: 1000 rpm, idling speed 3000 rpm
The motor line outlet and encoder outlet default to 1 meters.
Motor line and encoder line are extended by 1 meter = 3USD, which is sold at a low price.
Both the motor line and the encoder line use high-end super-soft towline cables, which are resistant to cold, water, oil and bending. 10 million TRVVP.

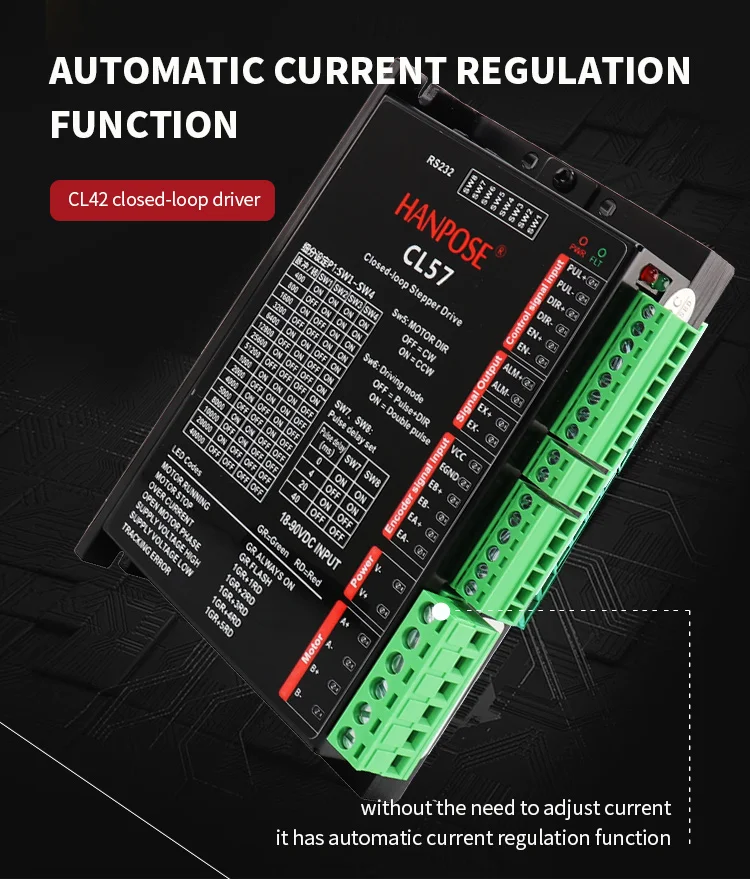

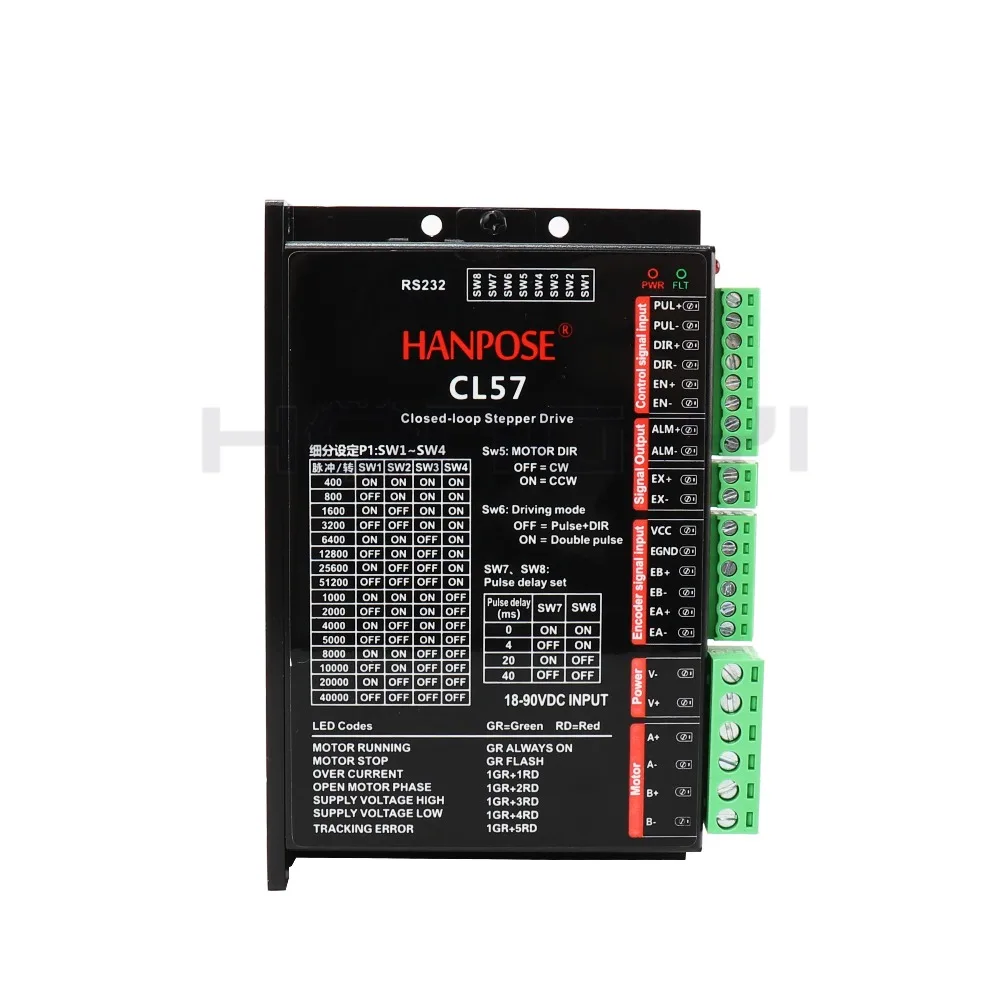

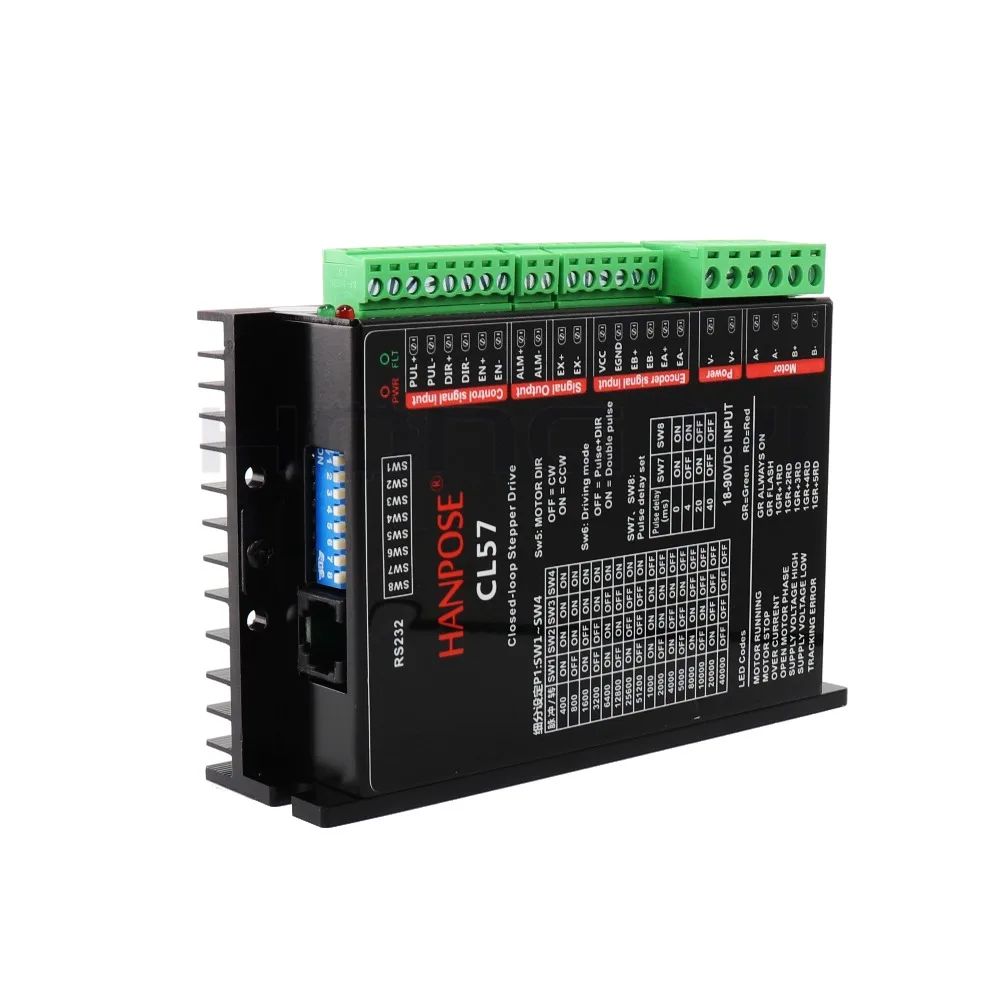

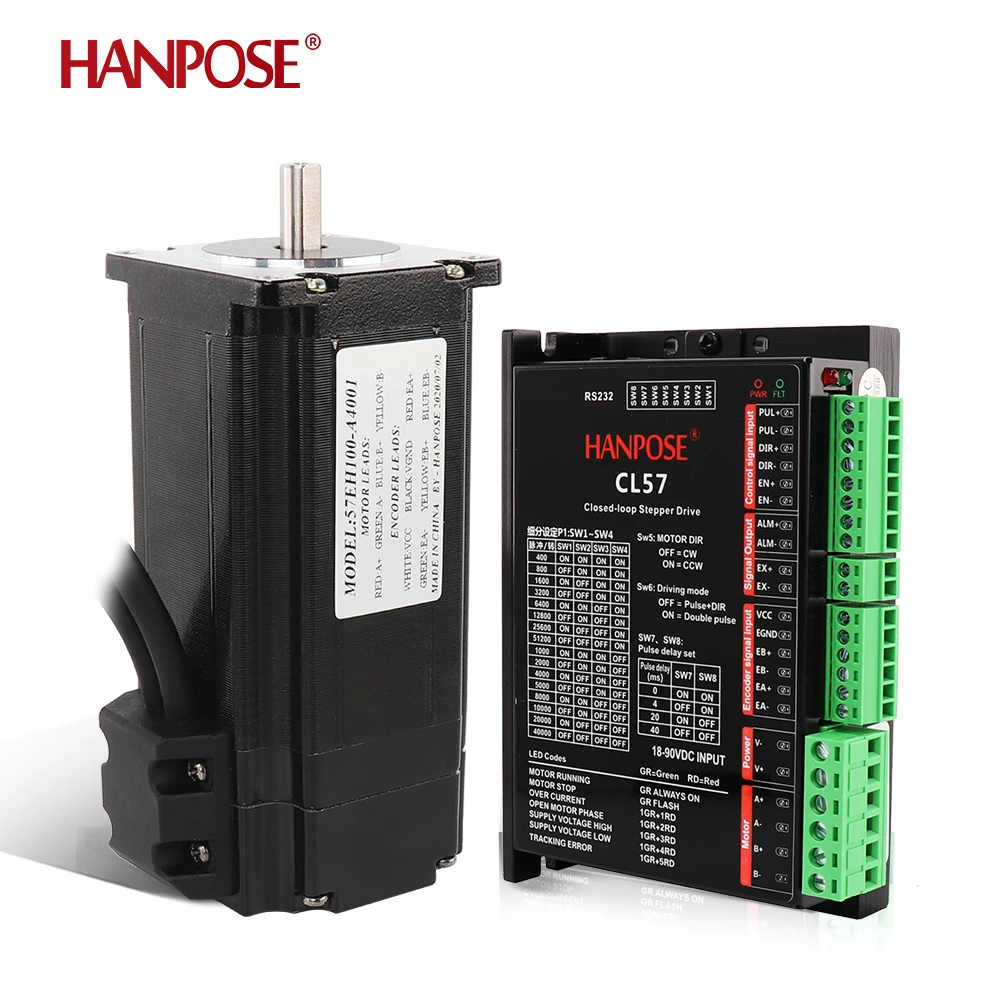

CL57 Driver

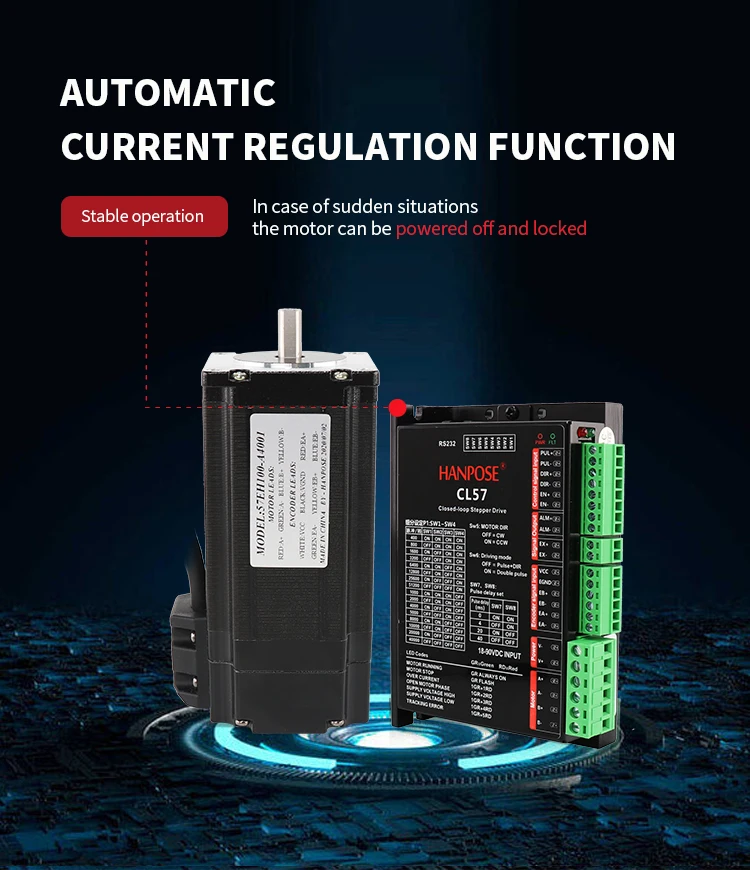

New 32-bit DSP digital 57 closed-loop stepper motor driver, engraving machine, CNC
equipment available. PWM current control, low noise, high speed torque is 40% larger
than ordinary drives.

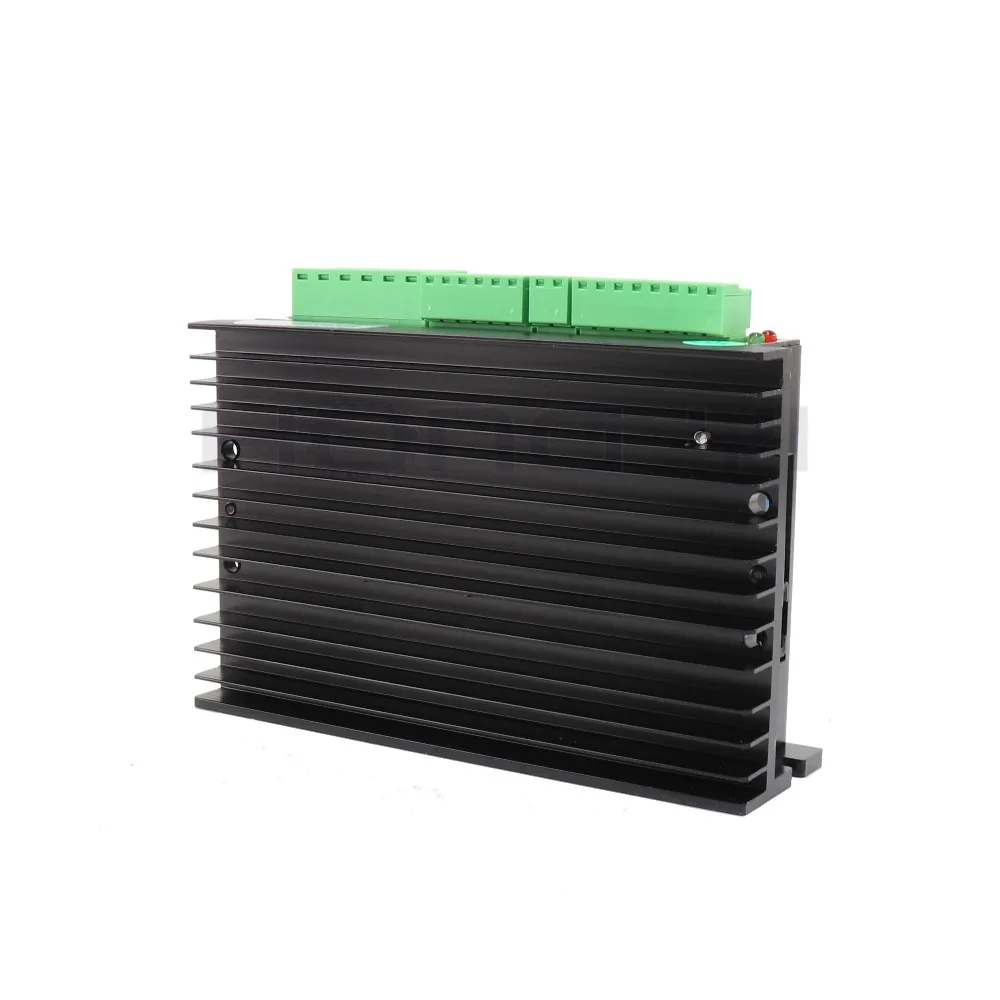

Drive: CL57
Voltage: DC18-90V

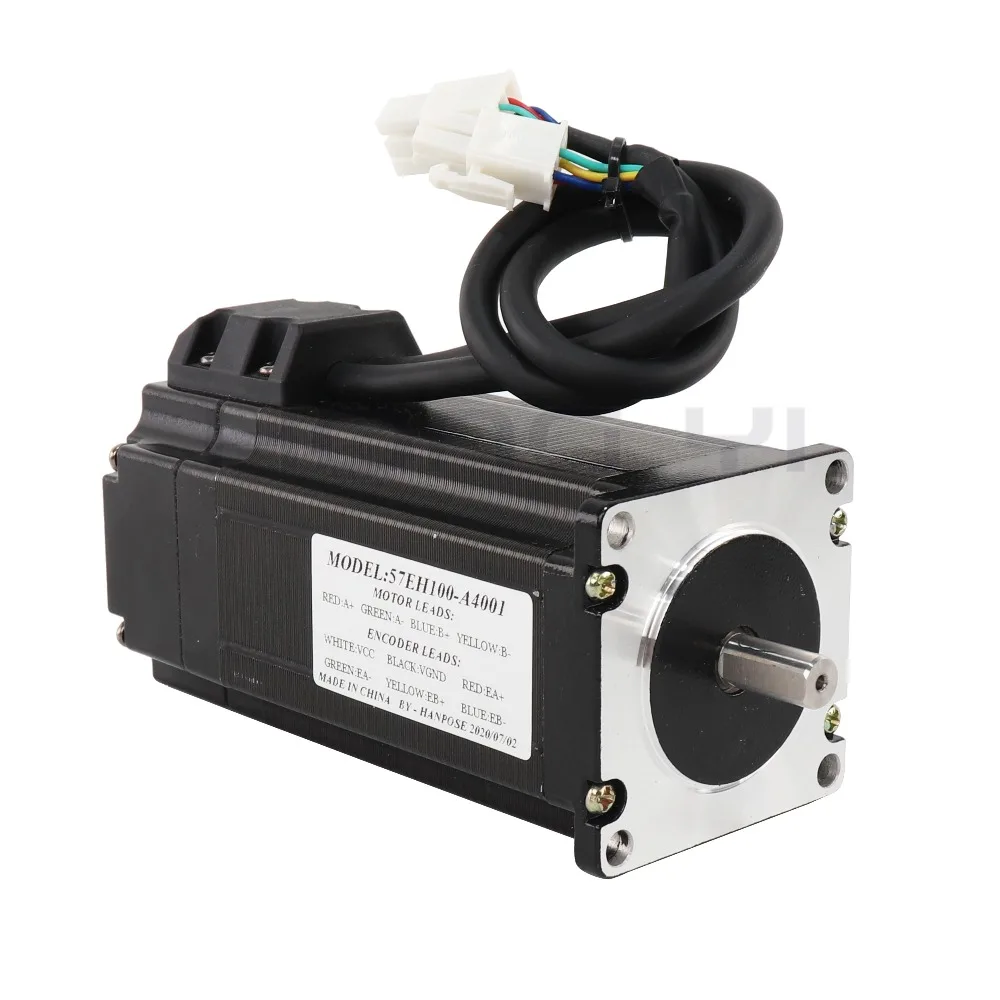

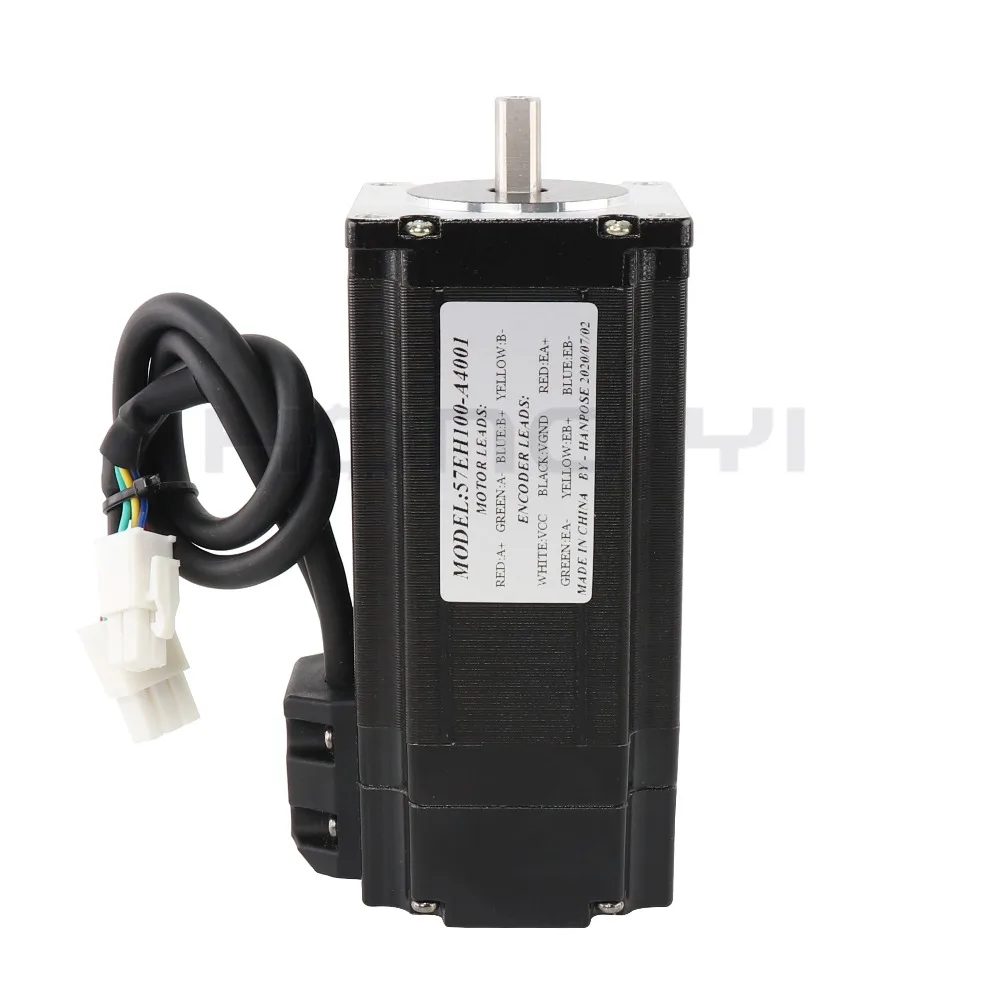

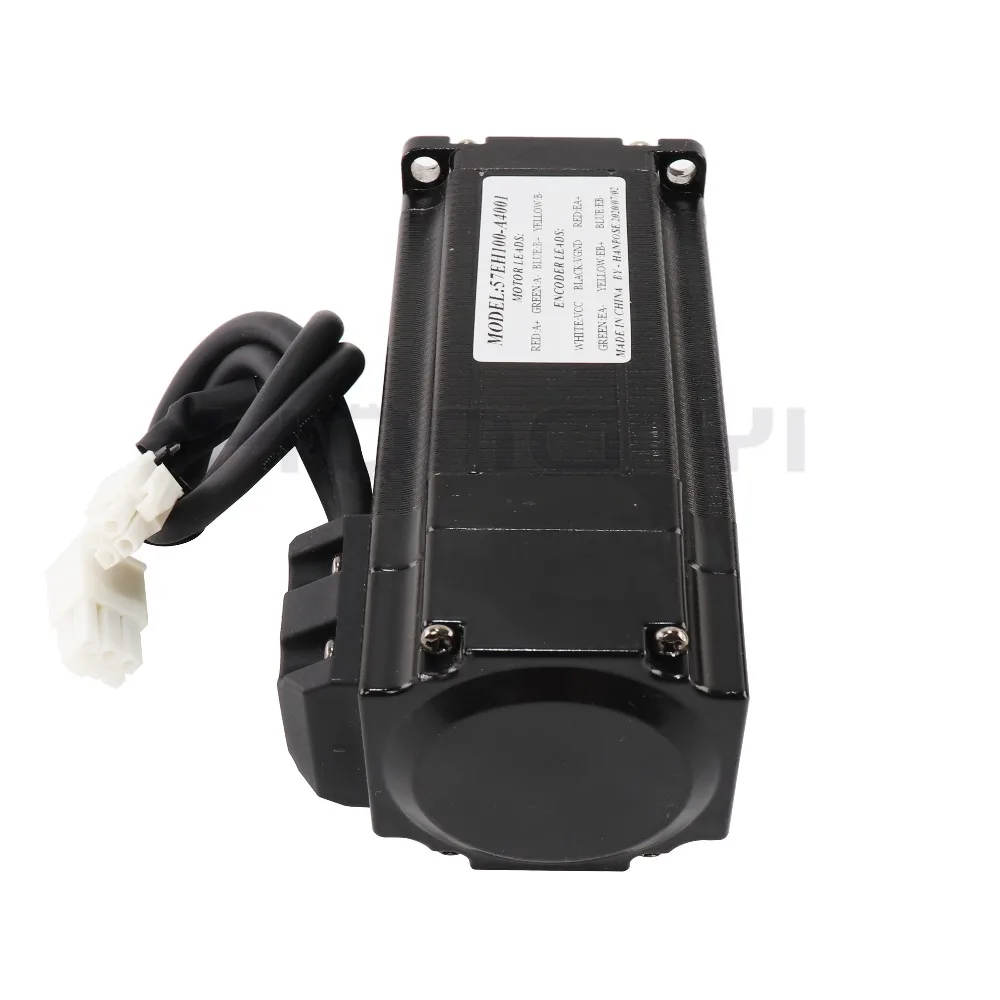

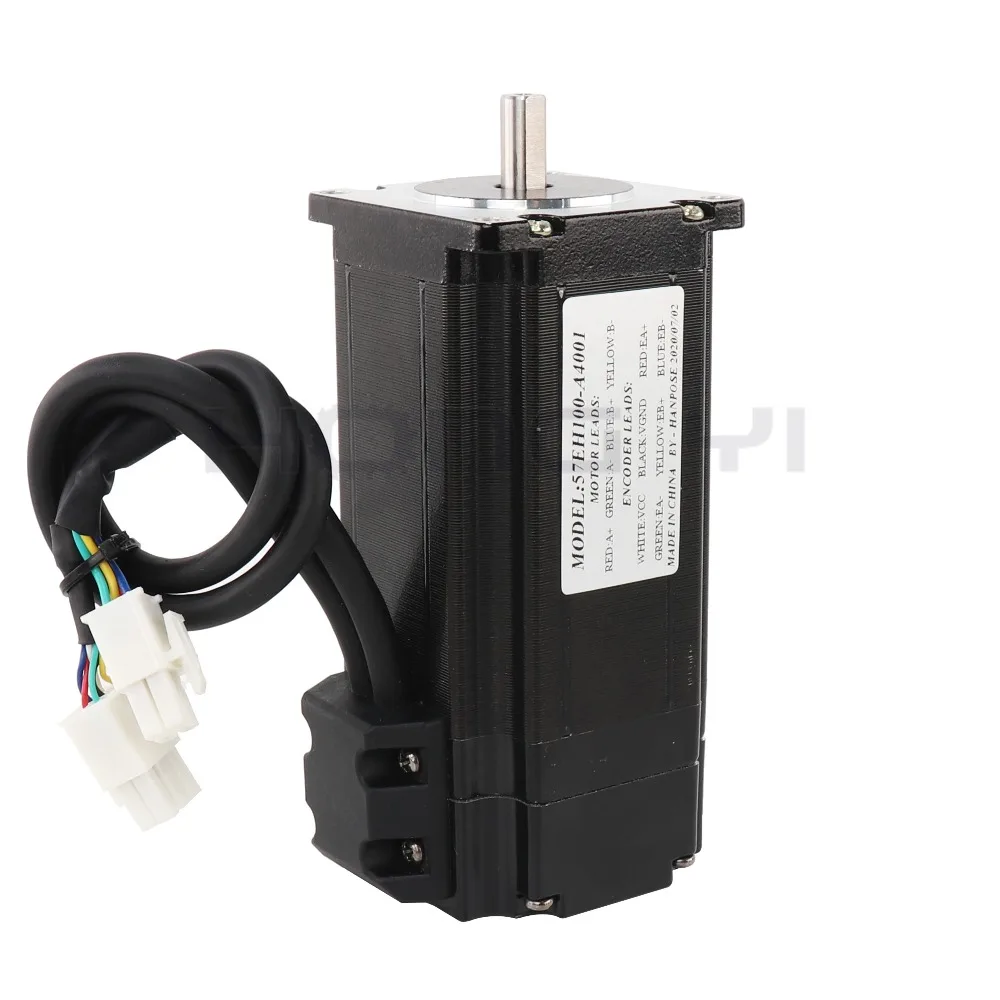

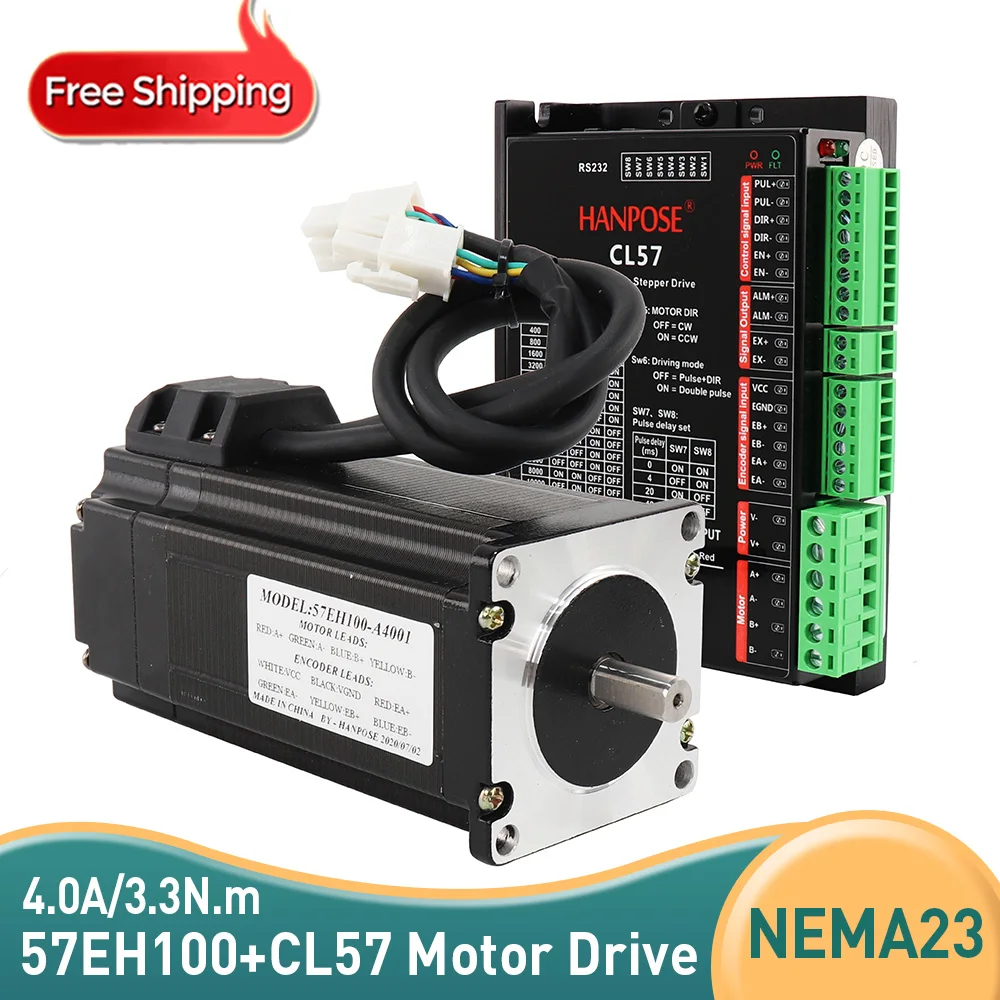

1pcs 57EH100A4001 Closed Loop motor
1pcs CL57 Drive
1pcs 1M Line
Notes：RS232 connection is only used for factory debugging,
Do not open connections, Hope to understand
