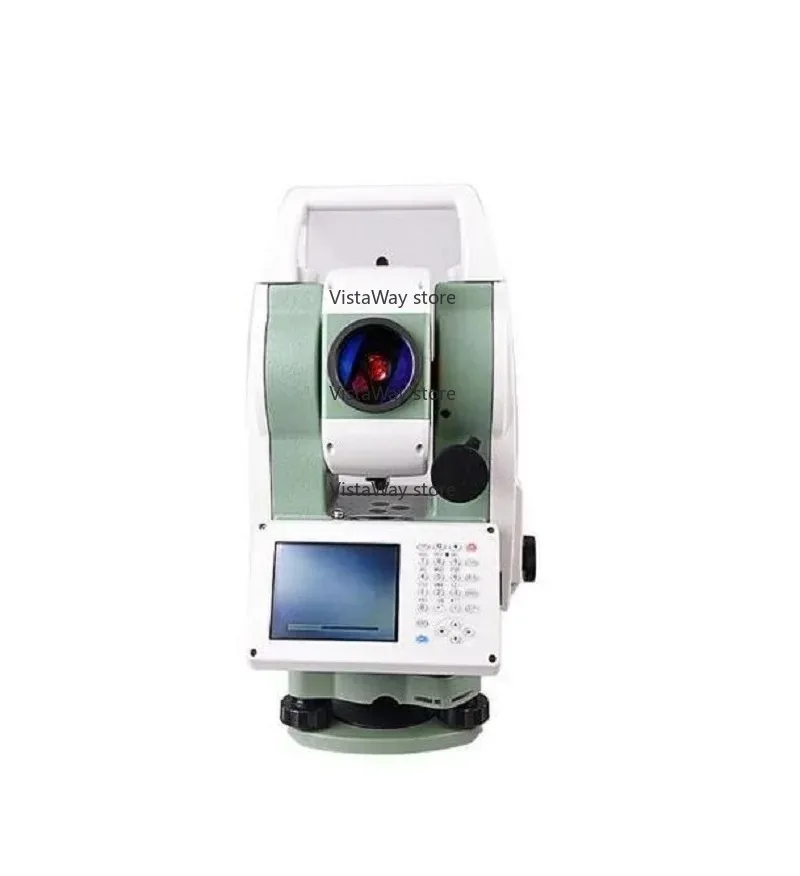

FOIF RTS010 1″ Angle Accuracy Windows CE Total Station Surveying Instrument Robotic Total Station

Features:

• 1” angle accuracy

• Windows CE

• Dual Axis Compensator

• Dual colour touch screen

• Bluetooth

• USB, mini USB, RS-232C

• Professional onboard software: FOIF FieldGenius or Carlson SurvCE

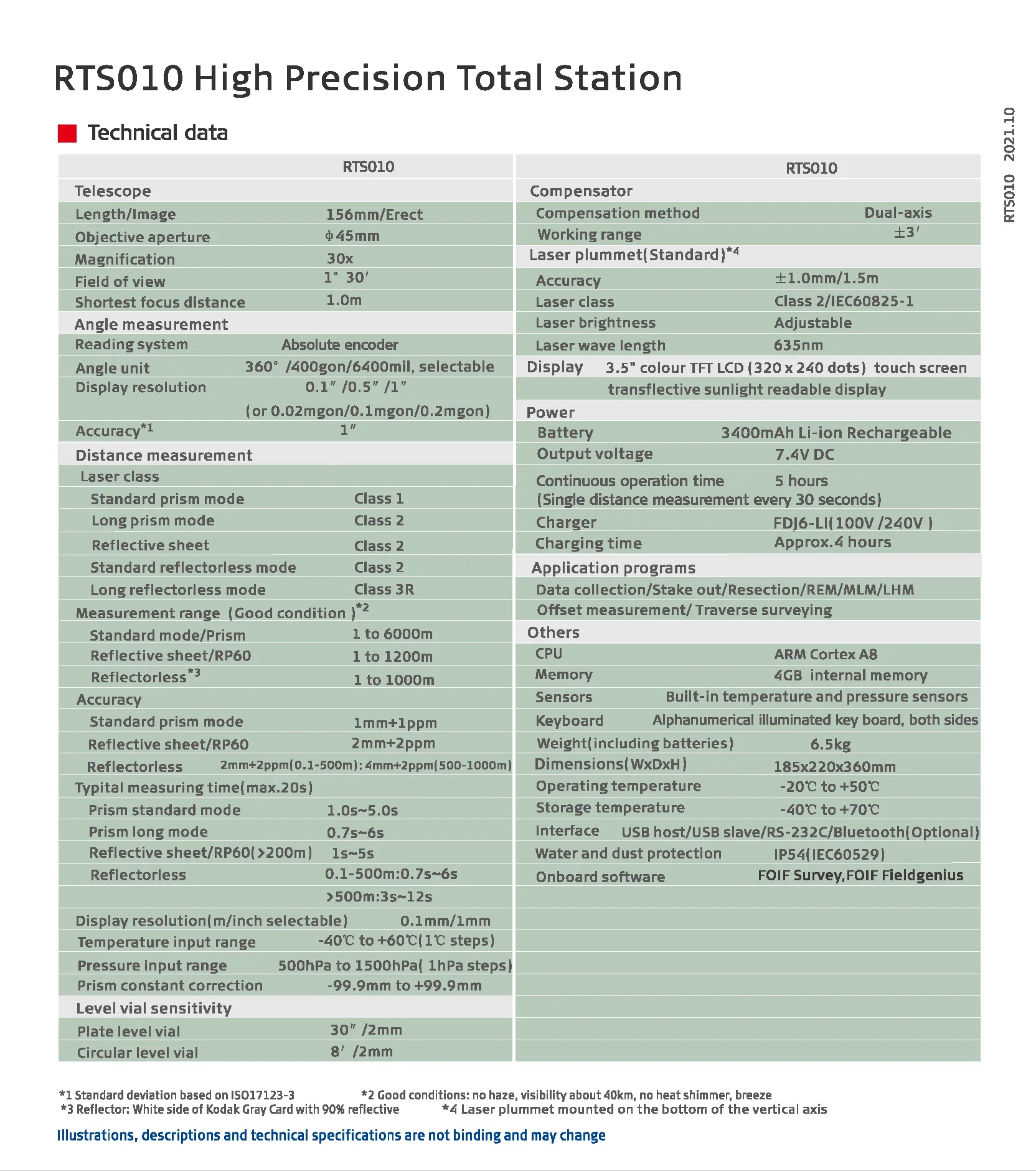

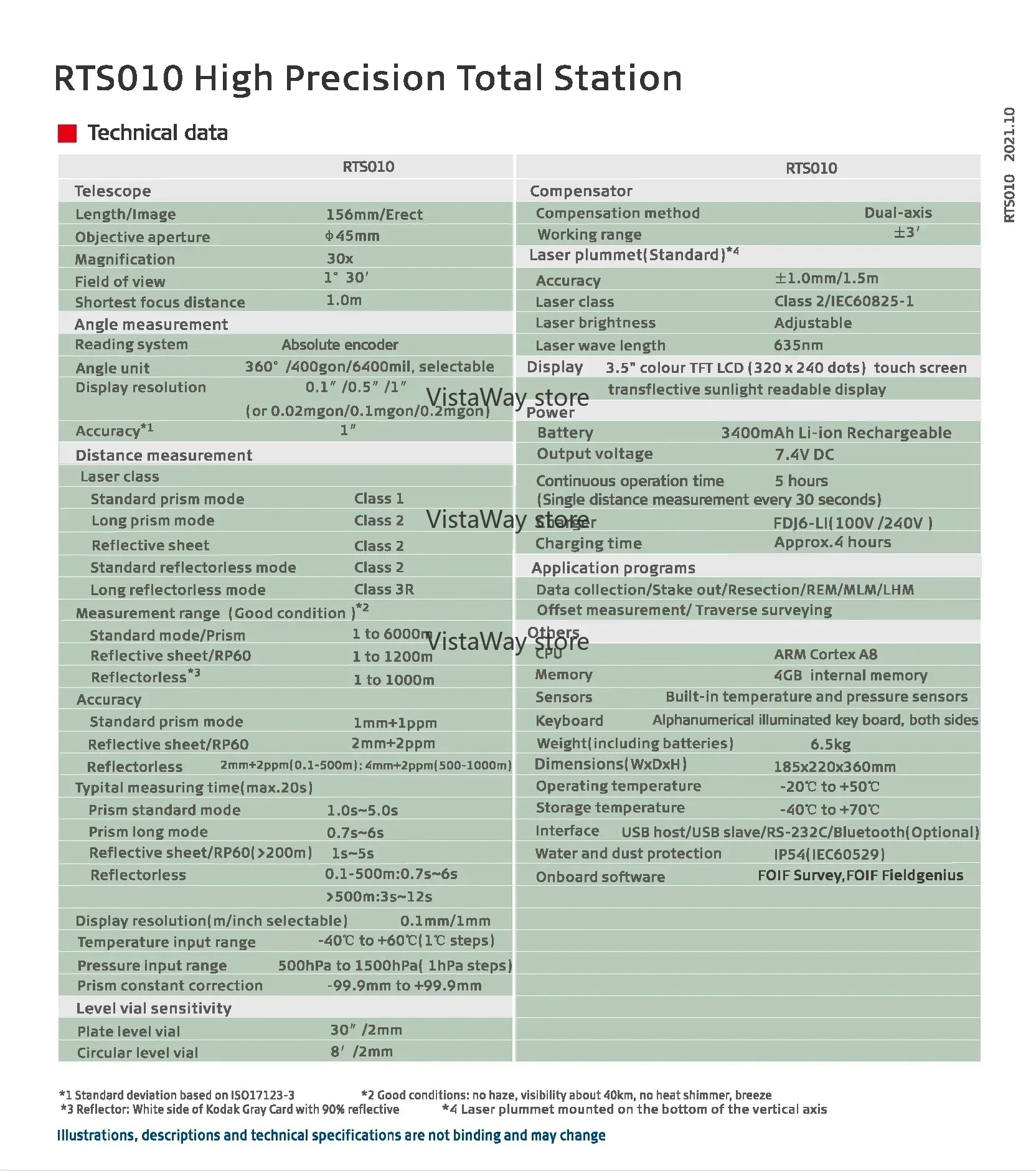

RTS010 series Total Station:

• Angle measurement accuracy: 1”

• Distance measurement accuracy: 1mm+1ppm (prism)

• 1000m long range reflectorless distance measurement

• Industrial measurement instrument, distance measurement accuracy reaches to 1mm+1ppm with reflective sheet

• Ultra-narrow EDM laser beam, can precisely measure high voltage wire, walls, corners, manholes, even chain link fences and tree branches

• High Accuracy can be achieved in an easy, fast and reliable way

• Applied for high precision surveying area such as high-speed railway construction, structural monitoring and large-scale 3D measurement

• Compact design with Windows CE 5.0 operating system

• 3.5” colour TFT LCD (320x240 dots) touch screen, transflective sunlight readable display

• Professional onboard software: FOIF FieldGenius or CARLSON SurvCE

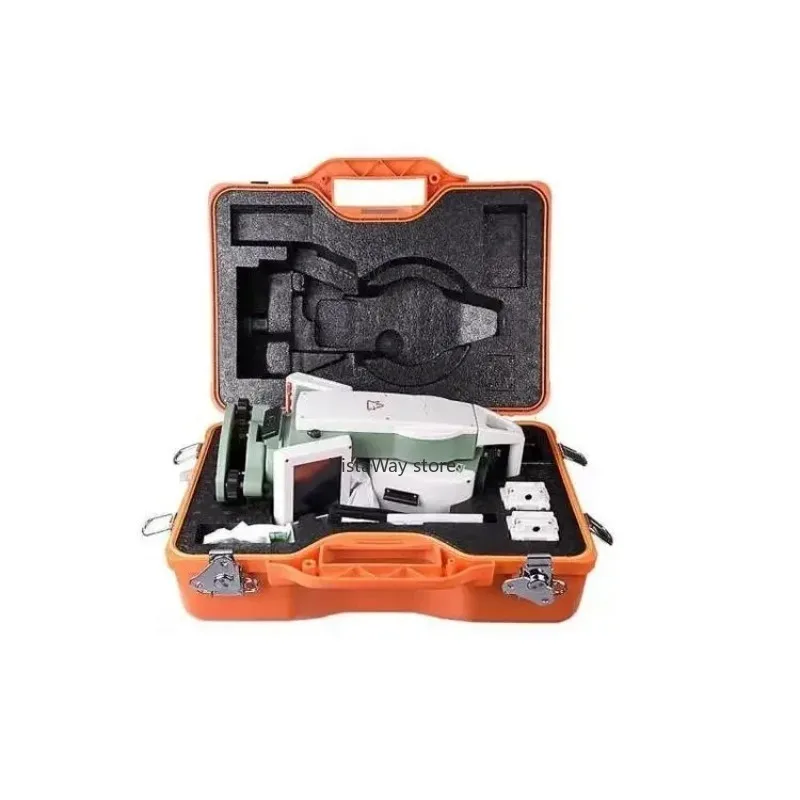

Standard Accessories:

• Instrument

• Batteries (x2)

• Battery charger

• Communication cable USB to mini USB

• Communication cable RS-232C to USB

• Reflective sheets 30×30 mm (x4)

• Reflective sheet 60×60 mm (x1)

• Tool kit
