FIMI 4G Cellular Transmission Module rone Official Spare Parts for MINI 3 SE & MINI 3 CaOriginal Dmera Drone

FIMI new 4G Cellular Transmission Module rone Spare Parts for FIMI MINI 3 & MINI 3 SE CaOriginal Dmera Drone

This module is only compatible with Brazil. Please confirm before purchase.

Package include:

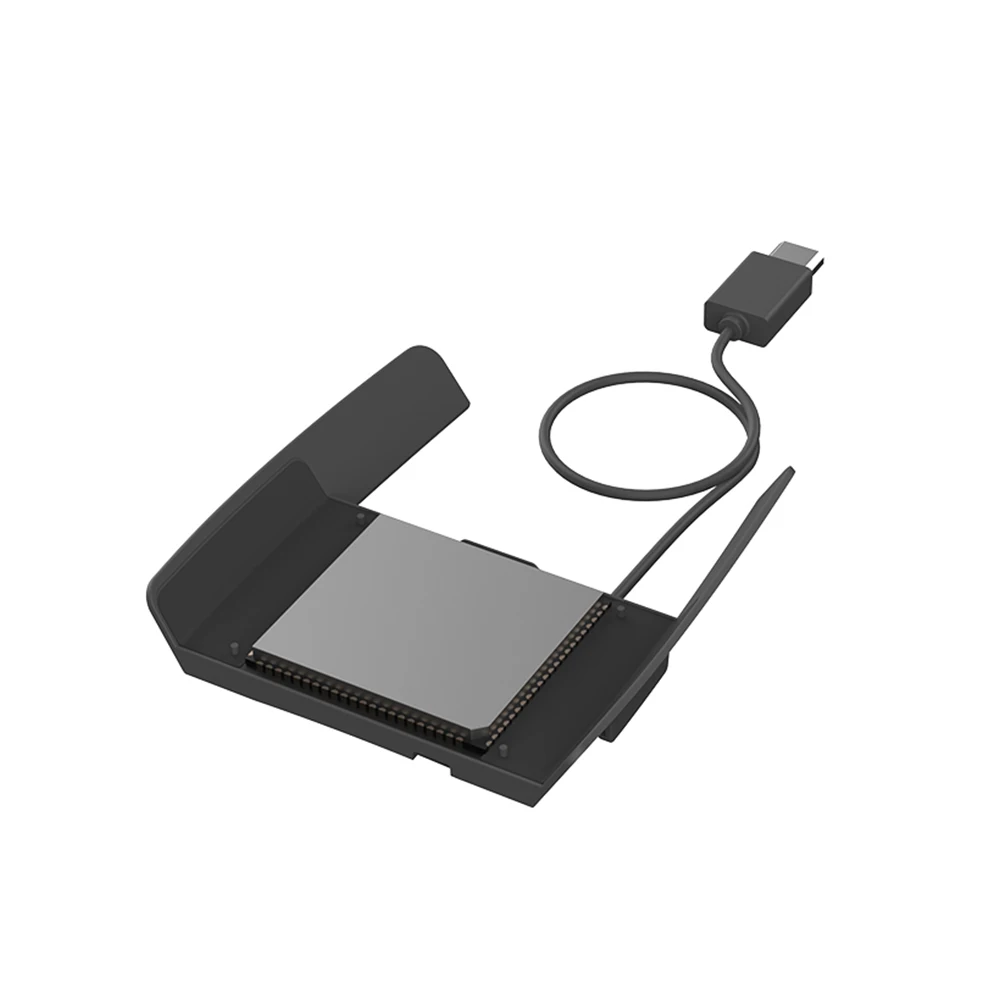

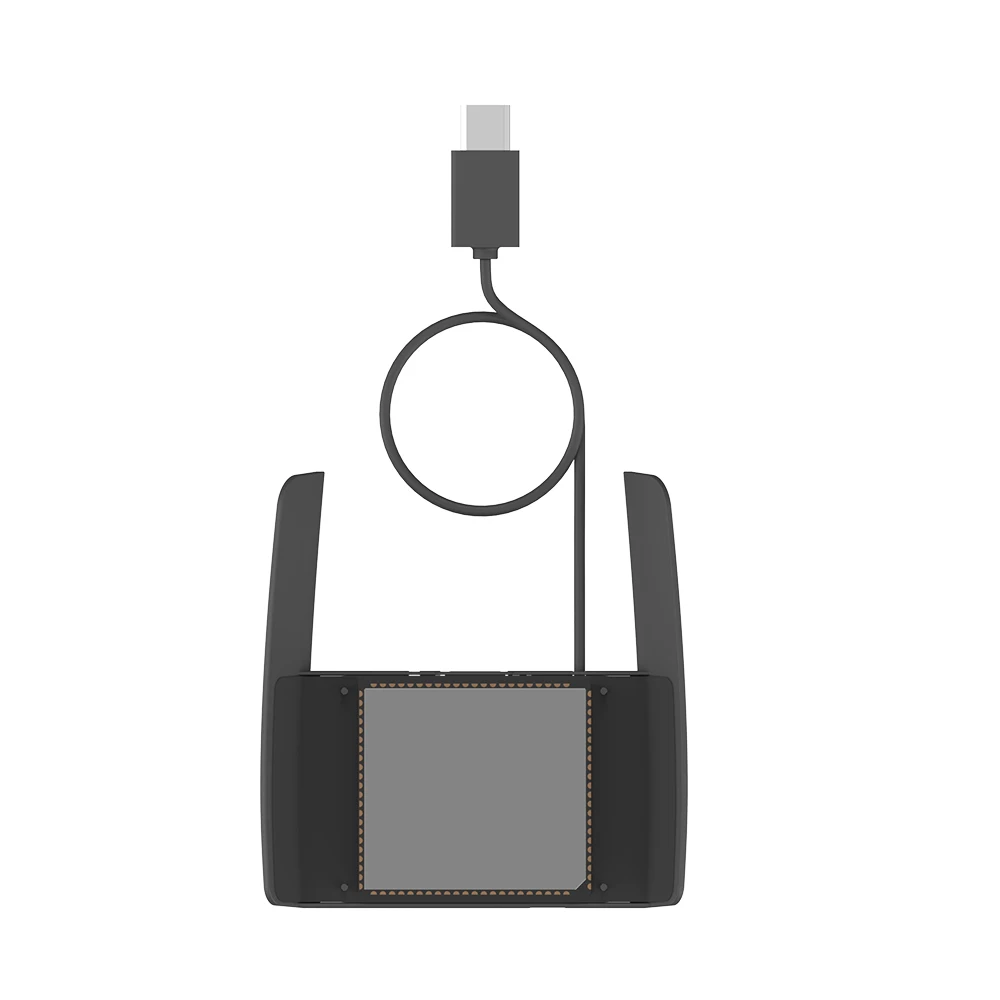

1* FIMI MINI 3 & MINI 3 SE Drone 4G Cellular Transmission Module



Overview

The
FIMI 4G Cellular Video Transmission Module can be installed as an
expansion module on FIMI drones (please refer to official website
information for specific supported models). In cases where the remote
control signal exceeds the
operating range or is obstructed, the drone can still be controlled via a 4G connection.

Specifications

Technical standard: TDD-LTE/FDD-LTE/WCDMA
Working frequency: LTE FDD: B1/2/3/4/5/7/8/28/66
LTE TDD: B40
WCDMA: B1/2/4/5/8
Interface: MicroUSB interface
Nano-SIM card interface
Onboard ipex fourth-generation antenna interface
Antenna: Built-in FPC dual antenna, supports external antenna
Dimensions: 49x38x26mm（Does not include wire length）
Product Weight: 14g
Input: 5V - 1.5A
Operating temperature: Normal operating temperature：-10℃～+60℃
                                           Storage temperature：-20℃～+80℃

Note:
For working frequency bands in other regions, please pay attention to
the official website product instruction manual for updates.

Notes：

1. Choose the appropriate 4G carrier based on the local network environment.
2.
The 4G signal is weaker at high altitudes, so it is advised to use the
enhanced transmission function within 100 meters above ground.
3. In
densely populated areas, the quality of the 4G signal may decrease,
which can cause lag in the video feed and affect the flying experience.
It is recommended to avoid using it in such areas.
4. It is advisable
for the enhanced transmission module and mobile device to use the same
carrier's 4G network service to avoid communication delays between
different carriers, which can cause lag and other issues.
5. Please use the enhanced transmission feature when the sky network and ground network signals are close to full strength.
6. If lag occurs when using a WiFi network on the ground, please try switching to the mobile 4G network.
