Falou célula de carga com peso sensor 50 30kg kg 100kg 200kg 300kg 500kg 800kg 1T de peso da célula de carga sensor + display Indicador de célula de carga

1pcs S type weighing sensor + 1pcs  load cell  Indicator

indicator we have two size :

load cell display instrument weighing pressure digital display instrument S weight sensor 2 way output

we have :96×48×112 and 160 X 80 * 125 two size ,please leave a message which you need .

or we will default 96×48×112.

indicator we have two size :

load cell display instrument weighing pressure digital display instrument S weight sensor 2 way output

we have :96×48×112 and 160 X 80 * 125 two size ,please leave a message which you need .

or we will default 96×48×112.

0.05 - level measuring accuracy, measuring speed of 10 times per second

Net weight, gross weight, peak - Valley, processing and display

In the upper and lower limit, deviation, range 6 alarm modes

- zero tracking, stability criterion, boot automatically reset function

- alarm status and engineering unit indicator

content	Code description
	CHB-	0.05Measurement accuracy of 10 times per second
Outline dimension		AH	160 X 80 * 125 opening size: 152 * 76
		CH	96×48×112 opening size: 92 * 45
Panel specifications				5Bit LED (-19999 ~ 45000)
Input signal					Proportion measurement, the distribution of 4 wire strain sensor, to adapt to 0.8 ~ 2.5mV/V
Call the police						2Point relay output, AC/3A 250V, resistive load
External power supply							10V+ 2%, 150mA 30ppm
Power specifications								AC 50/60 Hz 100-240V

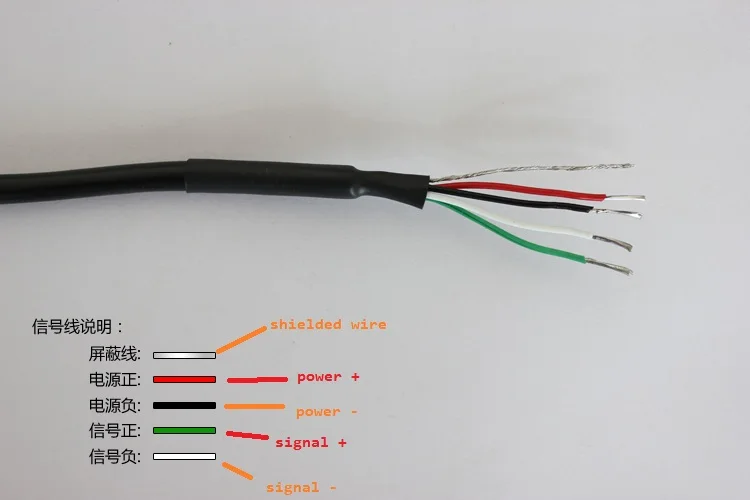

connect way:

160 X 80

96×48:
