- High-concerned chemical: None
- Origin: Mainland China
- Battery Type: LiFePO4, LiFePO4
- Model Number: LVB15WTC
- Brand Name: Exliporc
- Place of Origin: Guangdong, China
- System Voltage: 48 V
- Output Power Range: 5-10kW
- Dimension (L*W*H): 1200*760*520mm
- Weight: 360KG
- System Type: Wall-Mounted, Floor-mounted
- Type: Split
- Communication Port: Rs485, RS-232, Wifi
- Grid connection: Hybrid grid, Off grid
- Product name: Home Energy Storage Battery System
- Application: Home Appliances
- Warranty: 5 Years
- Keywords: Battery Lithium Lifepo4
- Certification: CE/RoHS/UN38.3/MSDS
- BMS: Built-in BMS Protection
- Display: LCD Touch Screen
- OEM/ODM: Accepatable
- Usage: Slolar Energy System
Dear customer, Welcome to my store,We sell all kinds of products. If you have any other items you wish to purchase, please feel free to consult us.There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and more favorable prices, please add WhatsApp for confirmation Manager: Liu Mr WhatsApp:+86 19176692407 Email：1799483840@qq.com
Details Images

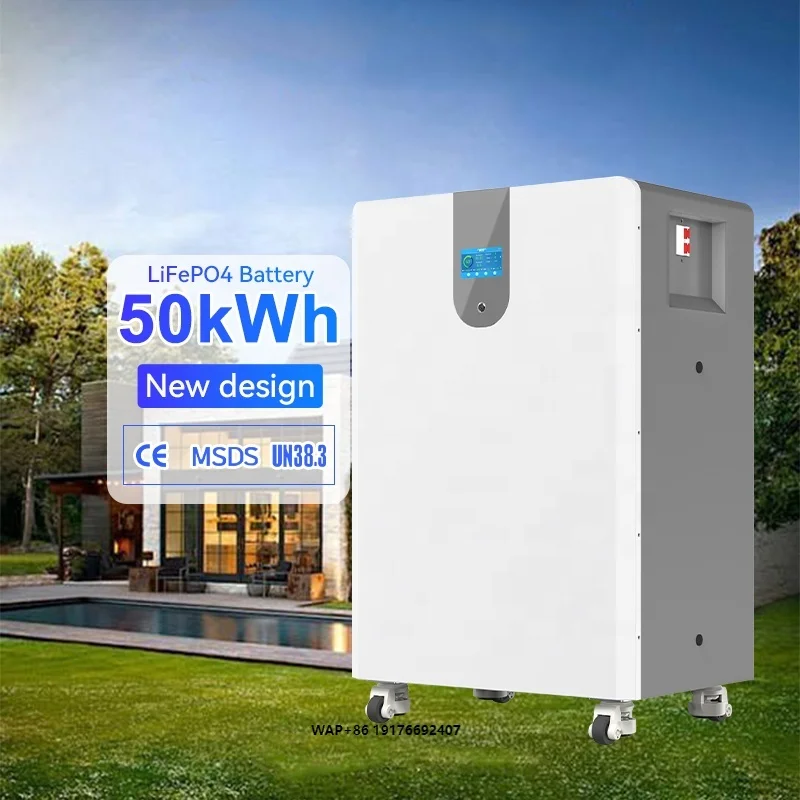

ESS 50 kWh Battery LiFePO4 48V 1000Ah Controller Solar Lithium Ion Battery Pack 50KW Bms Home Energy Storage System
Specification
|
Cell
|
Model
|
LVB10WTC
|
LVB15WTC
|
LVB30WTC
|
LVB50WTC
|
|||
|
|
Capacity
|
200Ah
|
280Ah
|
280Ah
|
314Ah
|
|||
|
|
Rated Voltage
|
3.2V
|
3.2V
|
3.2V
|
3.2V
|
|||
|
|
Internal Resistance
|
≤0.2mΩ
|
≤0.2mΩ
|
≤0.2mΩ
|
≤0.2mΩ
|
|||
|
|
Combination Standard
|
A. Capicity≤1%
A. Resistance ≤0.2mΩ
B.Voltage≤10mV |
A. Capicity≤1%
A. Resistance ≤0.2mΩ
B. Voltage≤5mV
|
|
|
|||
|
|
Combination Method
|
16S1P
|
16S1P
|
16S2P
|
16S3P
|
|||
|
Electrical Characteristics
|
Nominal Voltage
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
|||
|
|
Nominal Capacity
|
200Ah
|
300Ah
|
580Ah
|
980Ah
|
|||
|
|
Energy
|
10.24kWh
|
15.360kWh
|
29.696kWh
|
50.176kWh
|
|||
|
|
Useable Energy
|
≥95%
|
≥95%
|
≥95%
|
≥95%
|
|||
|
|
Cycle Life
|
≥5000 cycles
|
≥10000 cycles
|
≥10000 cycles
|
≥11000 cycles
|
|||
|
|
Months Self Discharge
|
<3%
|
<3%
|
|
|
|||
|
|
Efficiency of Discharge
|
96~99%@0.5C@25℃
|
96~99%@0.5C@25℃
|
|
|
|||
|
|
Charge Voltage
|
57.6V±0.2V
|
57.6V±0.2V
|
|
|
|||
|
|
Charge Mode
|
0.5C constant current,58.4V constant voltage charge to 58.4V,continue charging till current deadline to ≤0.05C
|
0.5C constant current,58.4V constant voltage charge to 58.4V,continue charging till current deadline to ≤0.05C
|
|
|
|||
|
|
Charge Current
|
100A
|
140A
|
140A
|
|
|||
|
|
Max. Charge Current
|
200A
|
200A
|
200A
|
|
|||
|
|
Continuous Current
|
100A
|
140A
|
140A
|
|
|||
|
|
Max. Pulse Current
|
200A
|
200A
|
200A
|
|
|||
|
|
Discharge Cut-off Voltage
|
44.8V
|
44.8V
|
44.8V
|
|
|||
|
|
Charge Temperature
|
0℃ to 45 ℃ @60±25%R.H.
|
|
|
|
|||
|
|
Discharge Temperature
|
-20℃ to 55 ℃@60±25%R.H.
|
|
|
|
|||
|
|
Water Dust Resistance
|
IP20
|
|
|
|
|||
|
|
Plastic Case
|
Sheet metal
|
|
|
|
|||
|
Mechanical
|
Dimensions（mm）
|
630*460*265mm
|
820*460*285mm
|
1003*650*440mm
|
1200*760*520mm
|
|||
|
|
Weight(kg)
|
About 89KG
|
About 124KG
|
About 240KG
|
About 360KG
|
|||
Selling Points
1.High Efficiency: The EXLIPORC 51.2V 300Ah Solar Lithium Iron Phosphate Battery boasts an outstanding 15kWH lithium-ion battery
pack, ideal for setting up a reliable home solar power system.
3.Advanced Communication Features: The EXLIPORC battery pack features advanced communication ports, including rs232, CAN, and rs485, enabling efficient control and monitoring of the system.
4.Customization Options: As an ODM/OEM-acceptable product, the EXLIPORC 51.2V 300Ah Solar Lithium Iron Phosphate Battery offers flexibility in design and branding, catering to individual preferences and market needs.
5.Reliable Life and Warranty: This robust battery pack comes with a lengthy 5-year warranty, backed by the reputable EXLIPORC brand, ensuring customers can enjoy a worry-free experience.
2.Durable and Environmentally Friendly: With a unique LiFePO4 battery type and life cycle of 10,000 times, the product offers long-lasting, eco-friendly performance.
3.Advanced Communication Features: The EXLIPORC battery pack features advanced communication ports, including rs232, CAN, and rs485, enabling efficient control and monitoring of the system.
4.Customization Options: As an ODM/OEM-acceptable product, the EXLIPORC 51.2V 300Ah Solar Lithium Iron Phosphate Battery offers flexibility in design and branding, catering to individual preferences and market needs.
5.Reliable Life and Warranty: This robust battery pack comes with a lengthy 5-year warranty, backed by the reputable EXLIPORC brand, ensuring customers can enjoy a worry-free experience.

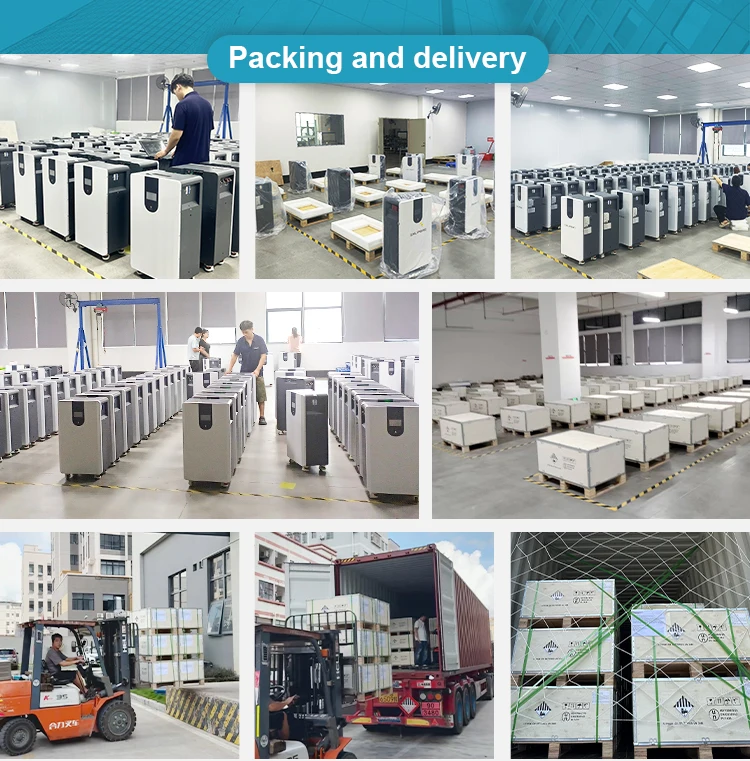

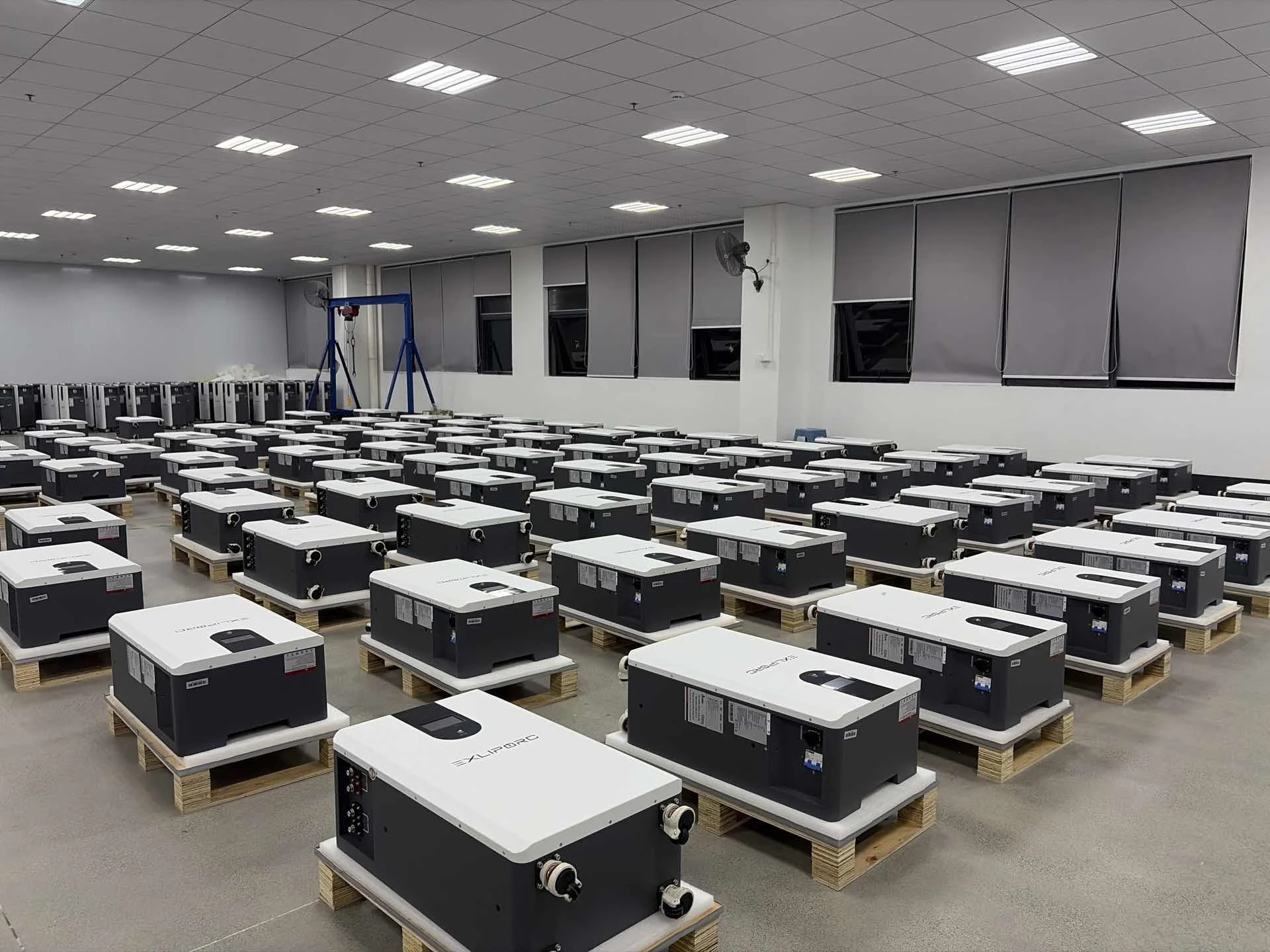

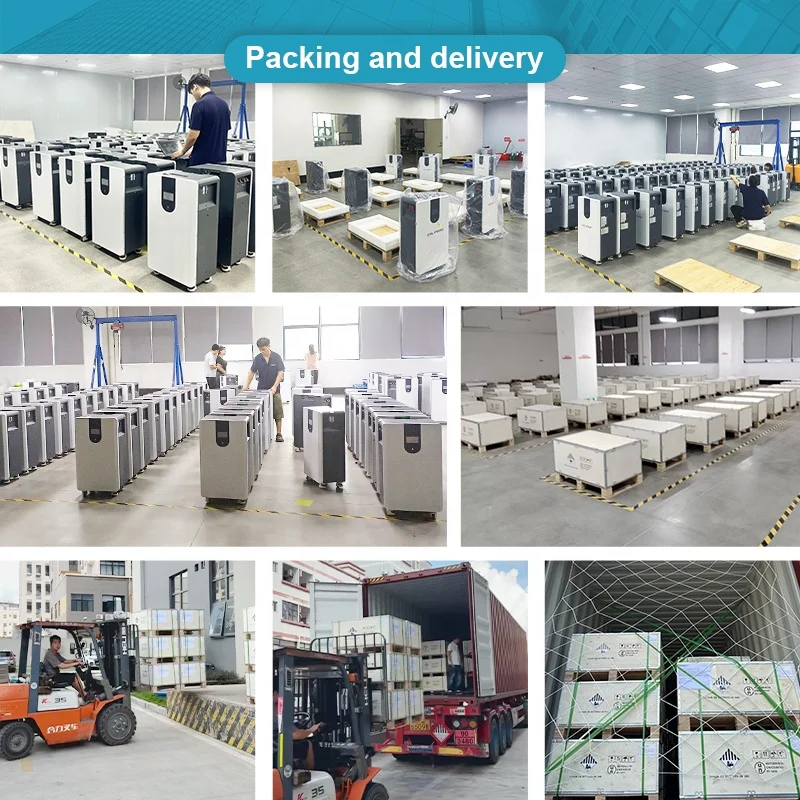

Packing & Delivery
Why choose us
1. High-Efficiency Energy Storage
* 10-Year Lifespan Lithium Batteries: Industry-leading durability with 95% energy retention after 10,000 cycles, ensuring long-term savings.

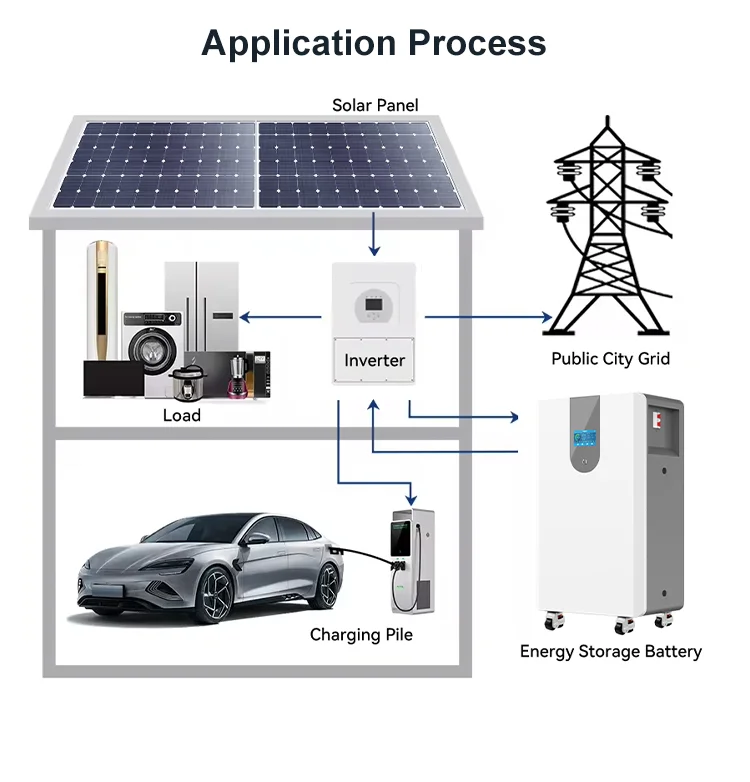

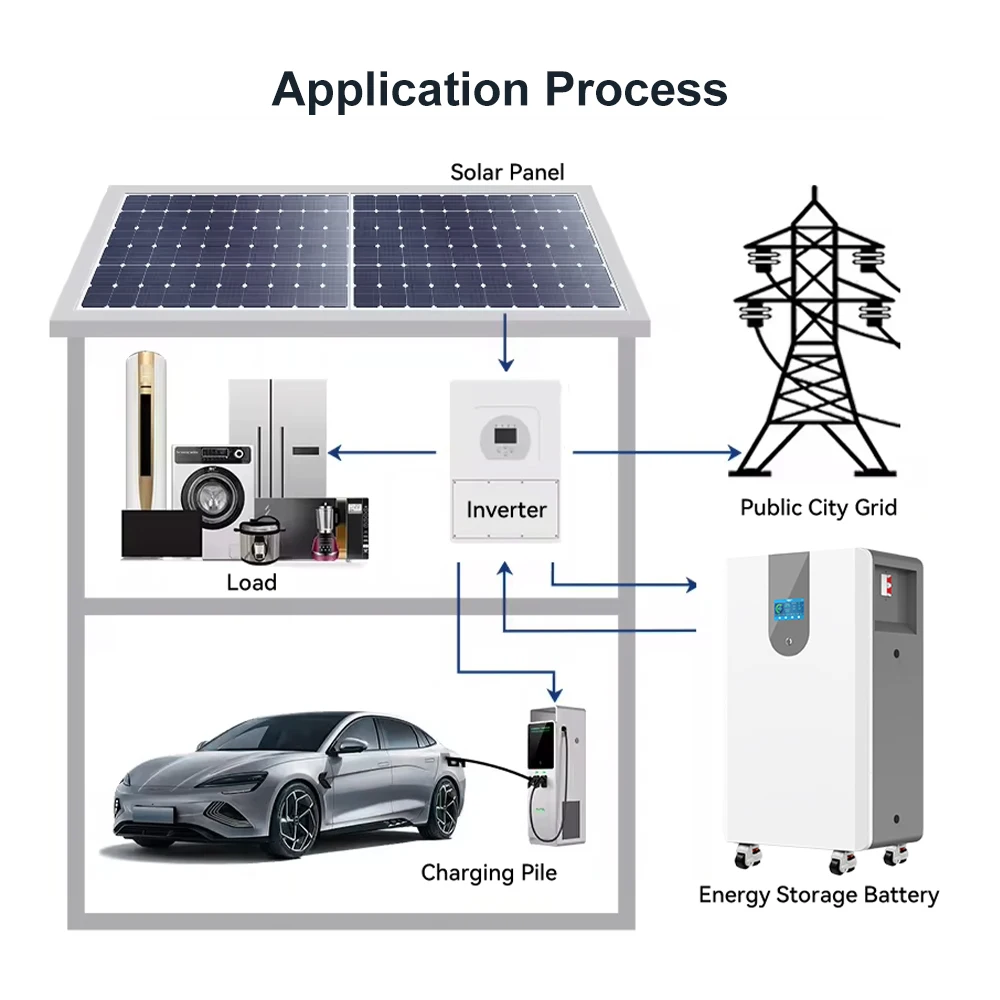

* Smart Grid Integration: Seamlessly switch between solar power, battery storage, and grid electricity to maximize energy independence.
2. Reliable Backup for Every Home
* Instant Power Supply: 24/7 automatic backup during outages, supporting critical appliances like refrigerators and medical devices.
* Powerwall 2 Capacity Optimization: Wall-mounted systems from 5kWh to 50kWh, tailored for homes of all sizes.
3. Expert Support & Savings
* Certified Installation & Warranty: Professional setup with 10-year warranty and 24/7 global technical support.
* 30% Lower Energy Bills: Reduce reliance on the grid with solar energy storage, backed by ROI calculations in 3-5 years.
* 10-Year Lifespan Lithium Batteries: Industry-leading durability with 95% energy retention after 10,000 cycles, ensuring long-term savings.
* Smart Grid Integration: Seamlessly switch between solar power, battery storage, and grid electricity to maximize energy independence.
2. Reliable Backup for Every Home
* Instant Power Supply: 24/7 automatic backup during outages, supporting critical appliances like refrigerators and medical devices.
* Powerwall 2 Capacity Optimization: Wall-mounted systems from 5kWh to 50kWh, tailored for homes of all sizes.
3. Expert Support & Savings
* Certified Installation & Warranty: Professional setup with 10-year warranty and 24/7 global technical support.
* 30% Lower Energy Bills: Reduce reliance on the grid with solar energy storage, backed by ROI calculations in 3-5 years.

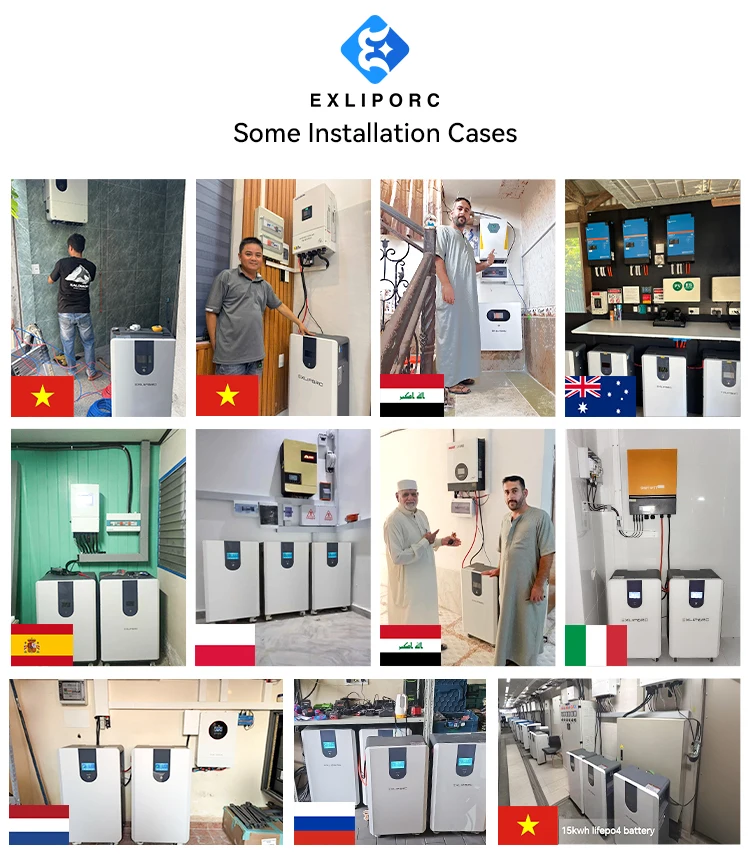

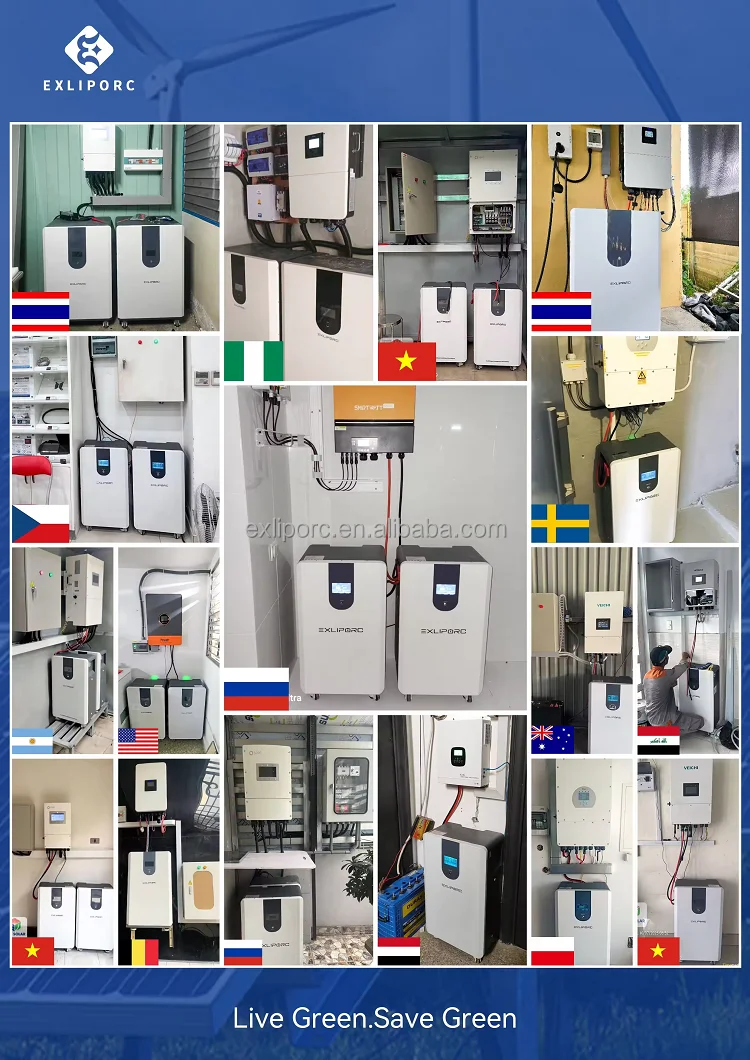

Customer Photos
