Dz Atto Turbo Wifi Android iOS 350kg Rossi 220V Sliding Gate Engine Wifi App

Motor Rossi DZ Atto Turbo Sliding 1/5 For Gate of 350kg Wi-Fi 220V

Sliding line entry Automator Rossi, has been developed for residential applications and light gates. Now it's even better with the launch of the Simply Connect app, which provides in a single module ideal solutions for the control of opening and closing the gate at hand. Complete solutions for users and installers, all in a single module! From now on, the user is offered control of all resources from wherever he is. For the installer, the settings of automators and controls can be done remotely with management of the facilities through the mobile phone or tablet, without having access to the user's mobile phone. In addition, the app is compatible with Android and iOS.

-For User: Open and close your gate from wherever you are at any time. Know if the gate is open or closed. Manage, register or erase remote controls through the APP. Configure users and define which times and days can have access to your gate opening!
-More security: each phone works as a unique key, with end-to-end encryption
-For the installer: Configure and manage automators and controls in a remote way, through the APP. All databases of your settings are saved. Status notifications, calls, and revisions in real time! Protect your facilities with passwords
-Bluetooth: Allows the transfer of data between devices, such as smartphones, tablets, among others. It offers higher data transfer speed, extended range, and energy efficiency.
-Allows to configure all functions of the board, record, delete and manage remote control, determine permissions and operating hours
-Receive status information and real-time notifications in the app
-Allows activation of other electromechanical products and other automators. Allows to update card firmware
-Opens 3-meter gate in 10.5 seconds: Get in and out of your residence more quickly, ensuring safety
-It has anti-cloning system: 4.3 billion possibilities of combinations, recognized only by the receptor. Impossible cloning

Technical description:
-Model: Dz Atto Turbo
-System: Android/iOS
-Power: 0.2 or 1/5 HP (gates up to 350kg balanced)
-Frequency (Hz): 60
-Cycles/Hour: 20
-Rotation (rpm): 1620
-IP of protection: 44
-External Metal Gear 17 teeth
-Inner crown in metal alloy

-Board WKXHB90 functions: clutch, brake, soft stop, end of stroke sensor HALL, memorizes 90 buttons, erases individual control, records Master control, receiver 433 Mhz Rolling, building function, auto-closing, Smartclose function, button-in, signal-in, photocell-in, garage light-out, System of reception HCS, anti-cloning.

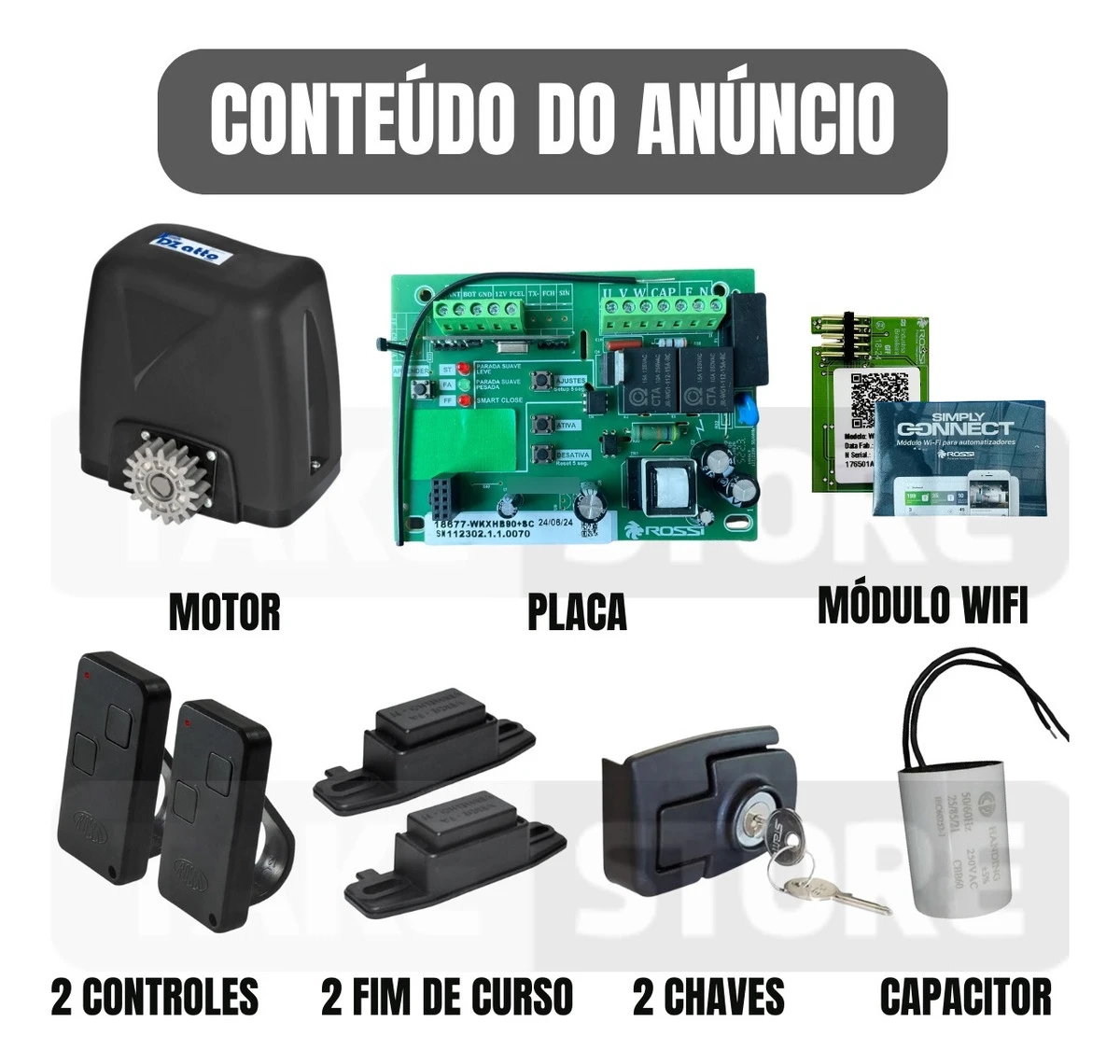

Content:
01 Motor of 1/5HP 220V
01 Electronic board WKXHB90
01 Wi-Fi Module-Simply Connect (Certified by Anatel)
02 Keys to unlock (lack of power)
01 Engine Protective Cover
02 Hall sensor magnets (End of course)
02 Black Controls With Stand
01 Capacitor
01 Manual of installation

New and original product Rossi, accompanies invoice.
