- High-concerned chemical: None
- Is Electric: No Battery
- Quantity: 1 pcs
- Is it battery/power supply: N
- Is it charger/adapter: N
- Is Batteries Included: No
- Technical parameters: value 3
- Plastic Type: ABS
- Model Number: S006M
- For Vehicle Type: Cars
- Tool Supplies: Assembled class
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Servos
- Upgrade Parts/Accessories: Frame
- RC Parts & Accs: Servos
- Material: Plastic
- Brand Name: DSPOWER
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys

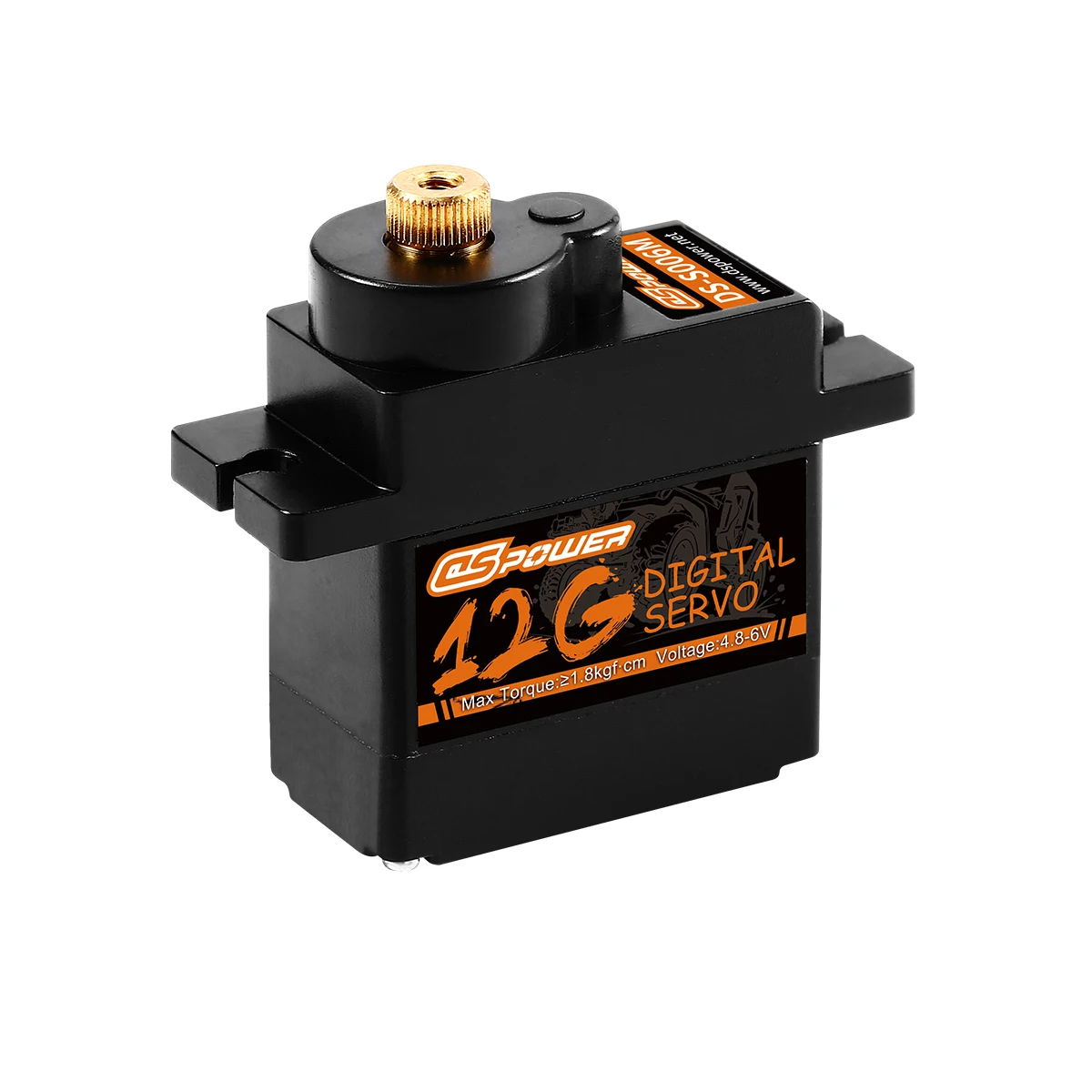

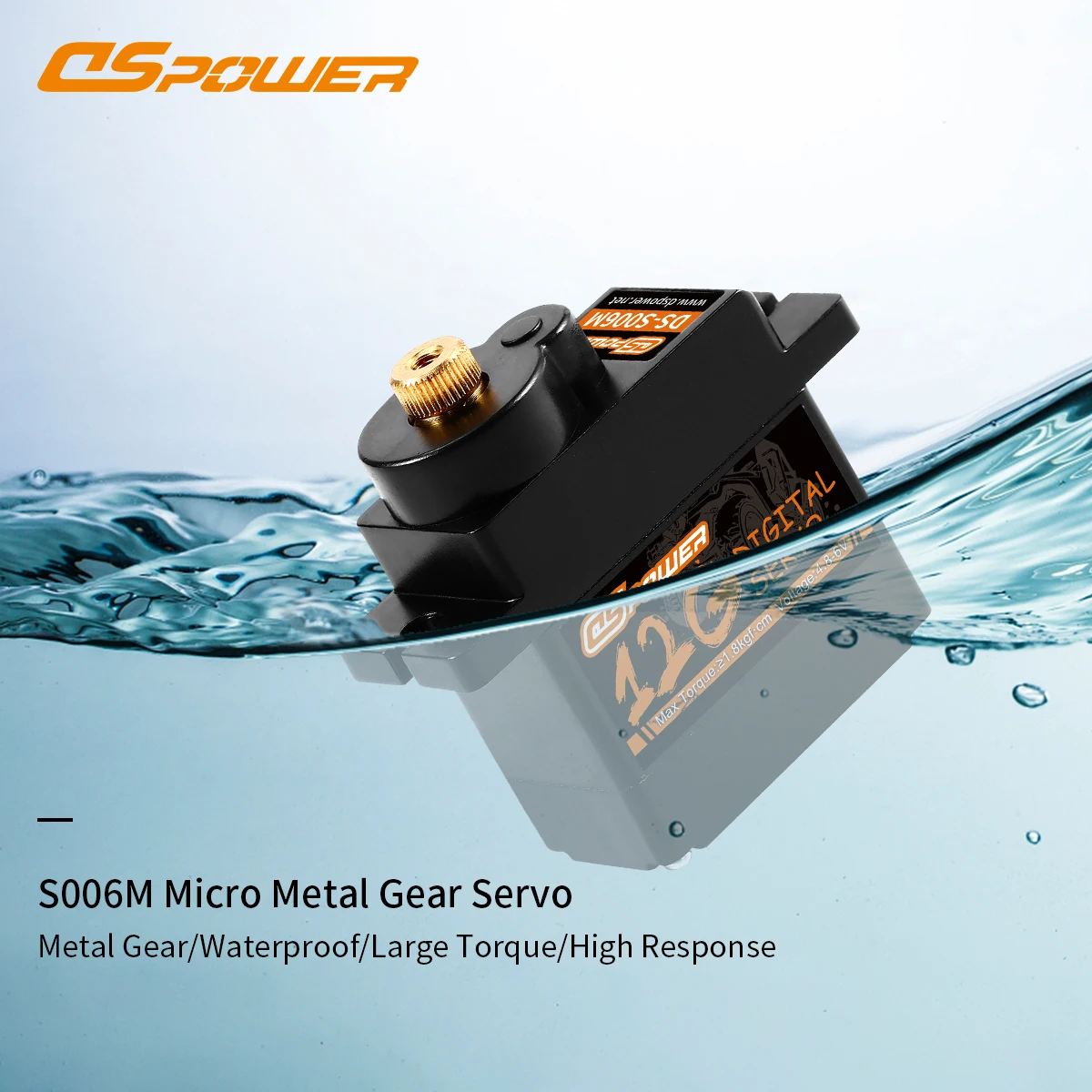

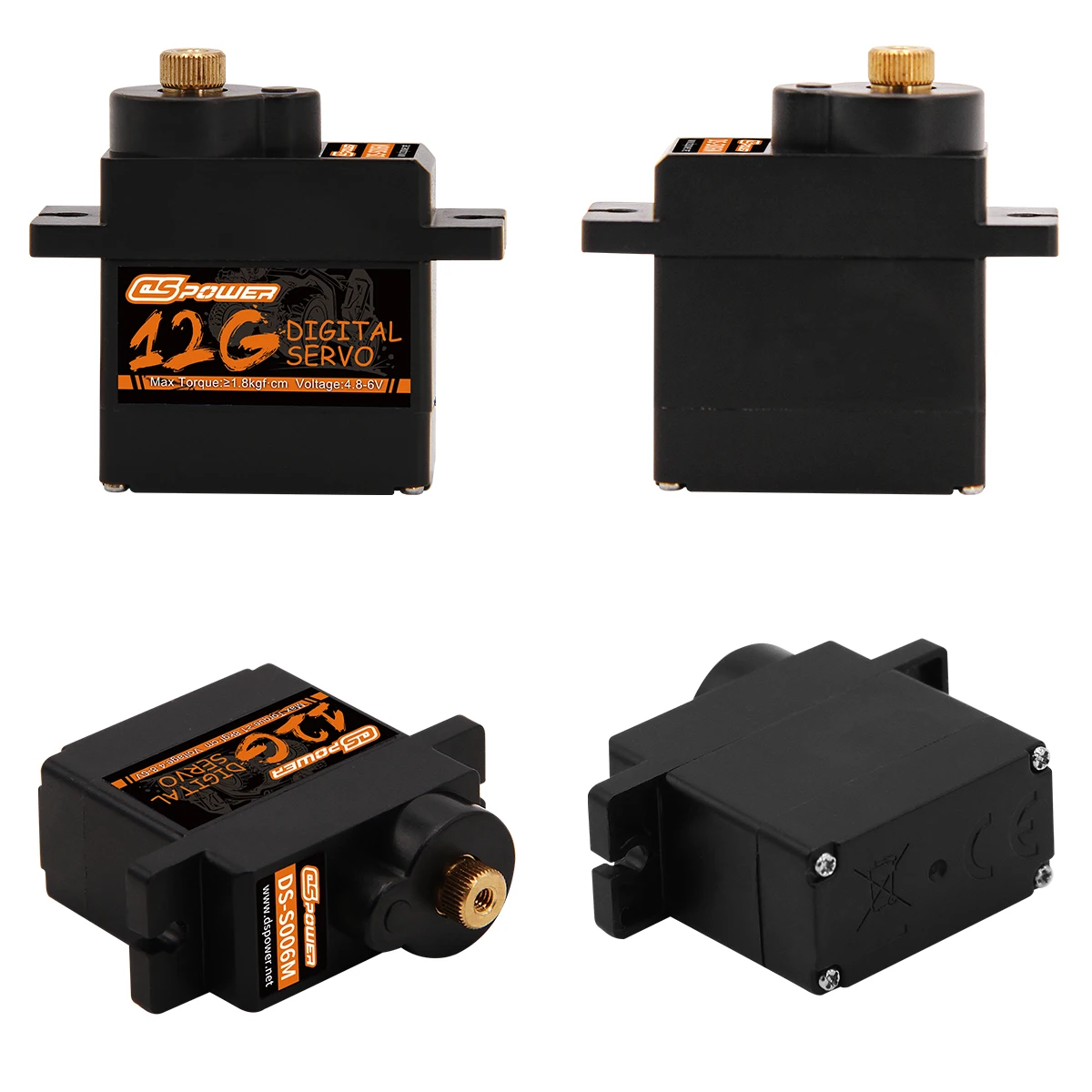

DSpower SG90 MG90S 9g 12g Mini Micro Servo Motor Metal gear Servo for 450 Helicoper SCX24 RC Car WLtoys k969 k989 k999 Airplane
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:

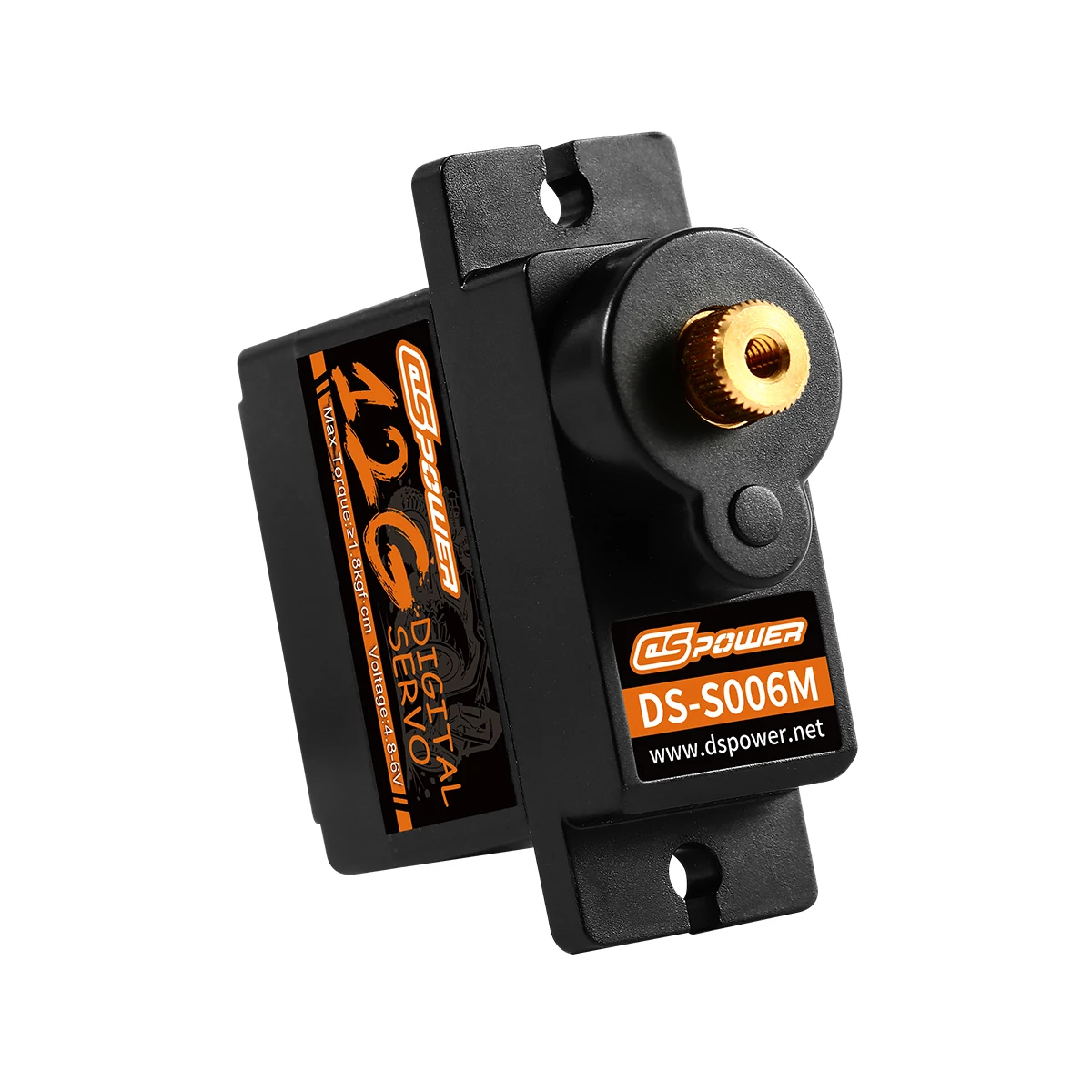

Item name: DSpower S006M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC

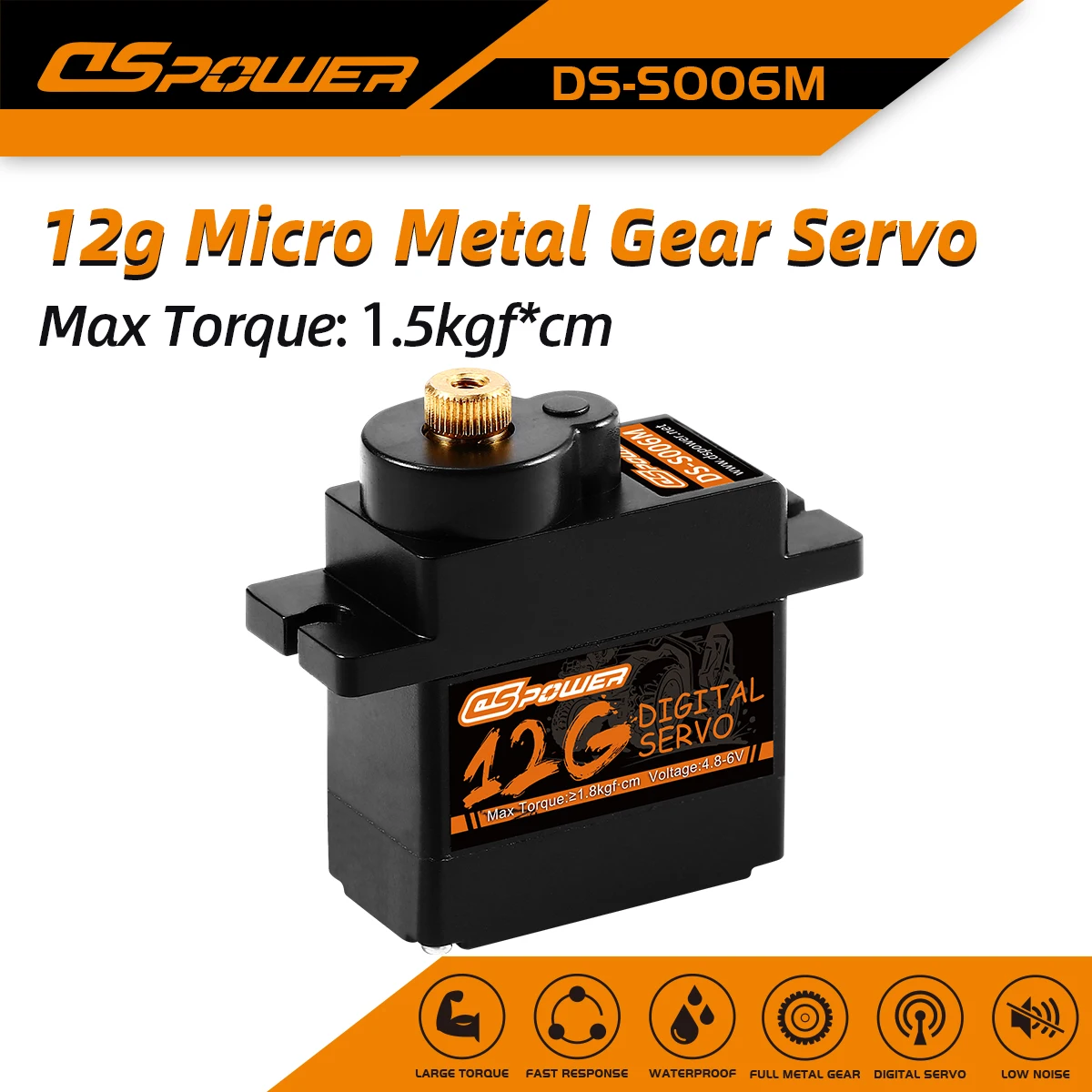

Max. Torque : 4.8V≥1.30kgf·cm ； 6.0V≥1.50kgf·cm
No Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°
Stall Current：4.8V≦700mA；6.0V≦800mA
Consumption Current* (No Load)：4.8V ≦150mA ；6.0V≦170mA

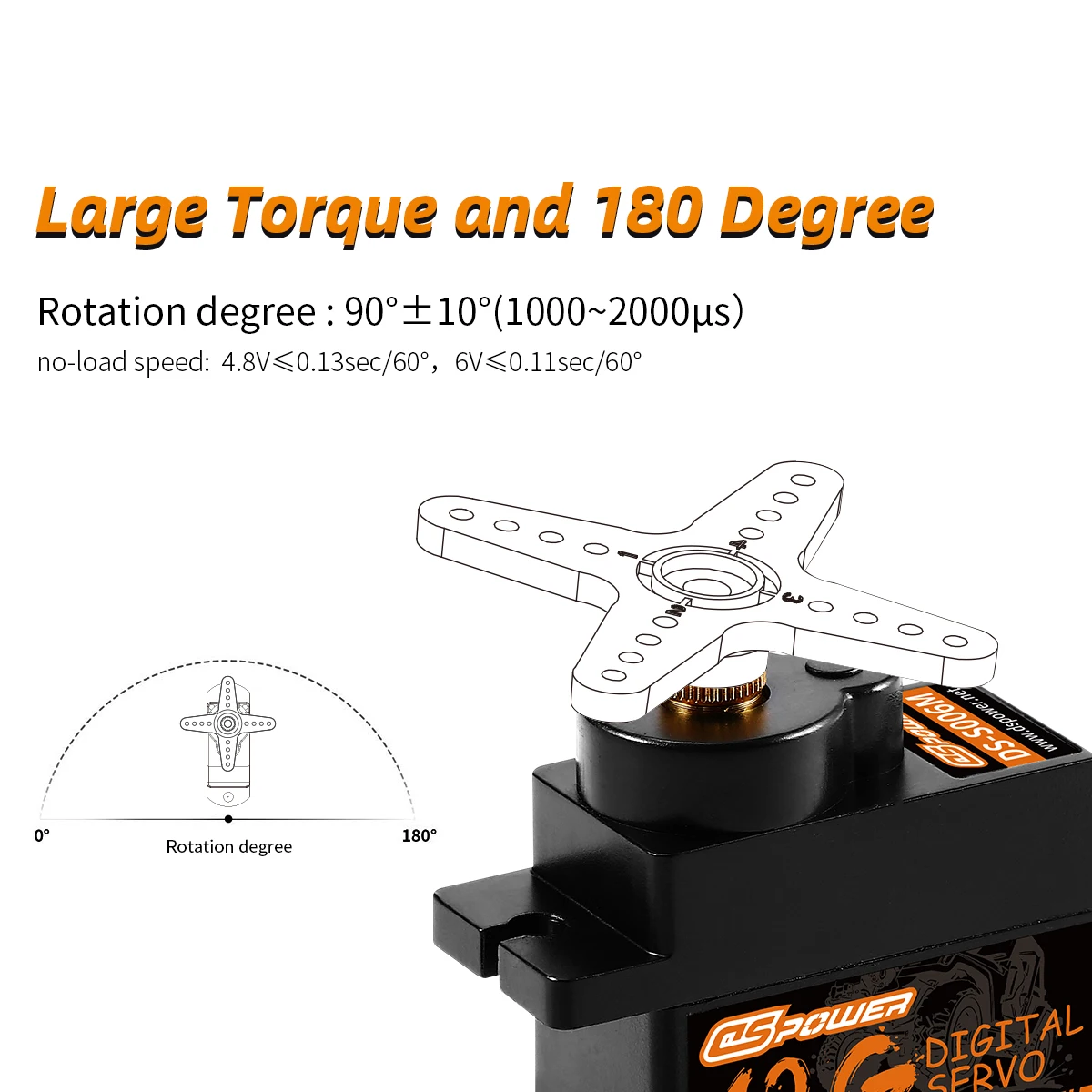

Max. Operating Travel Angle：180°±10°(1000~2000μs）
Dead Band Width: ≤ 3us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS

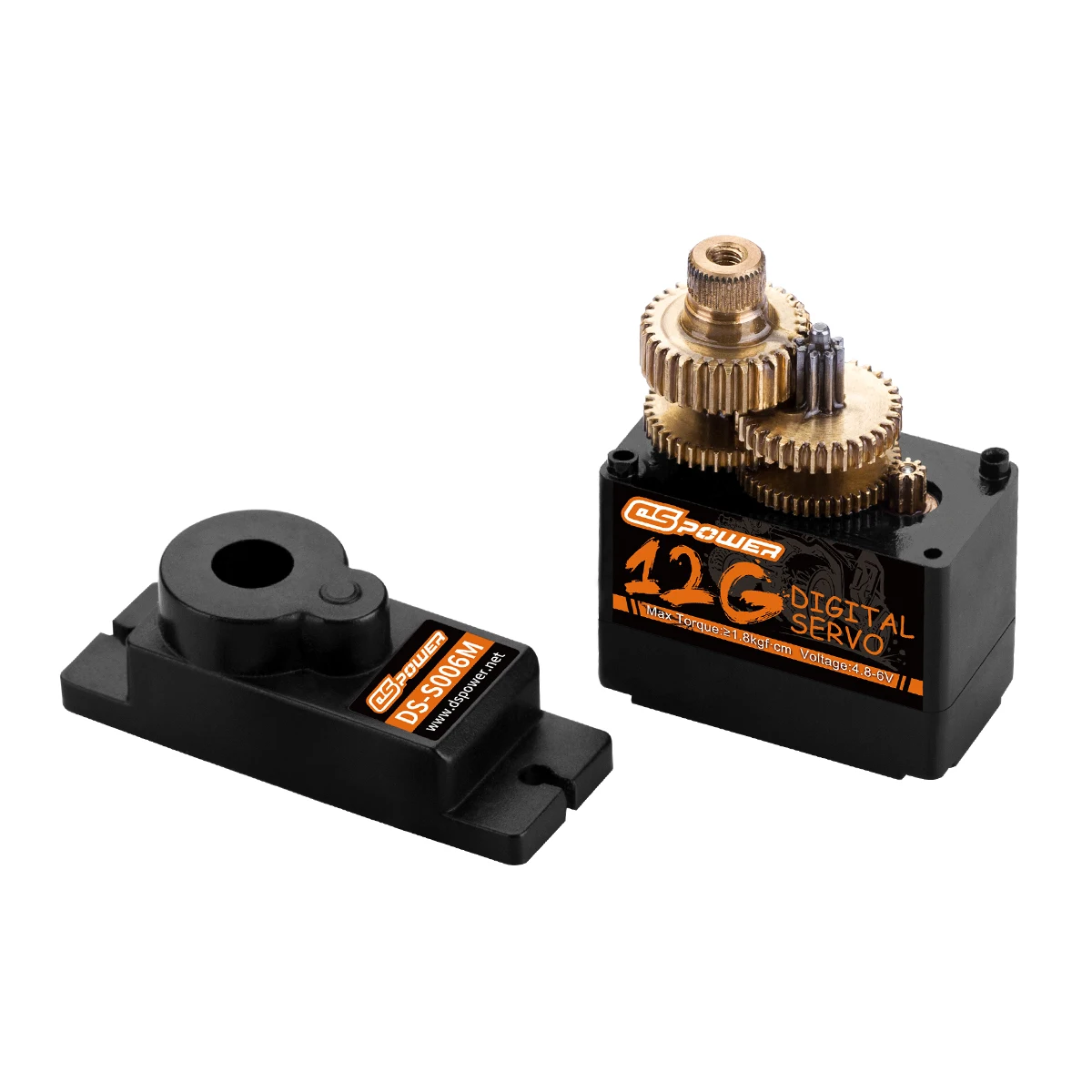

Gear Set Material : Metal gear
Weight: 13.5 g

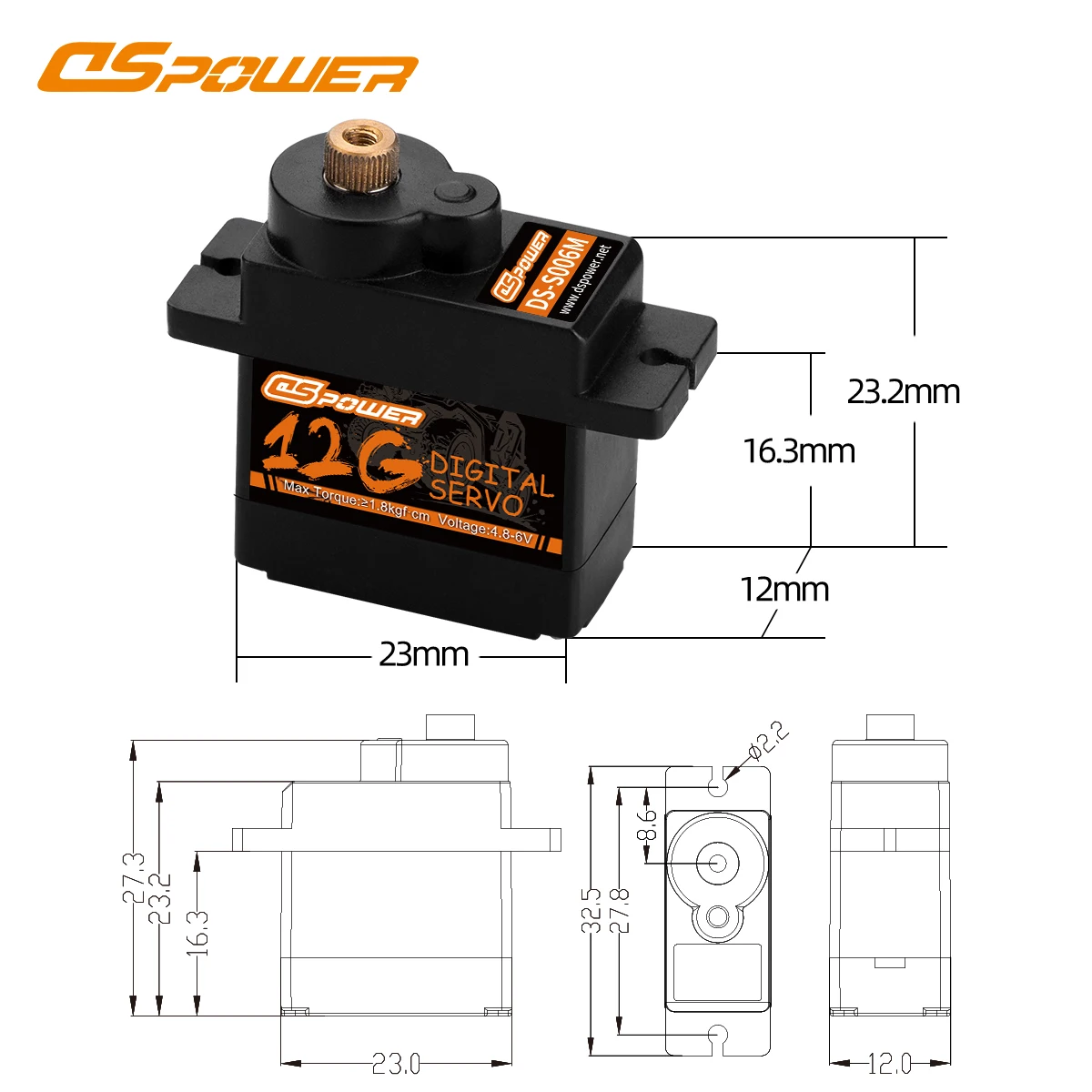

Size: 27.3 × 12 × 23mm
Length of Connector cable: JR 250±5mm (exposed without plug)

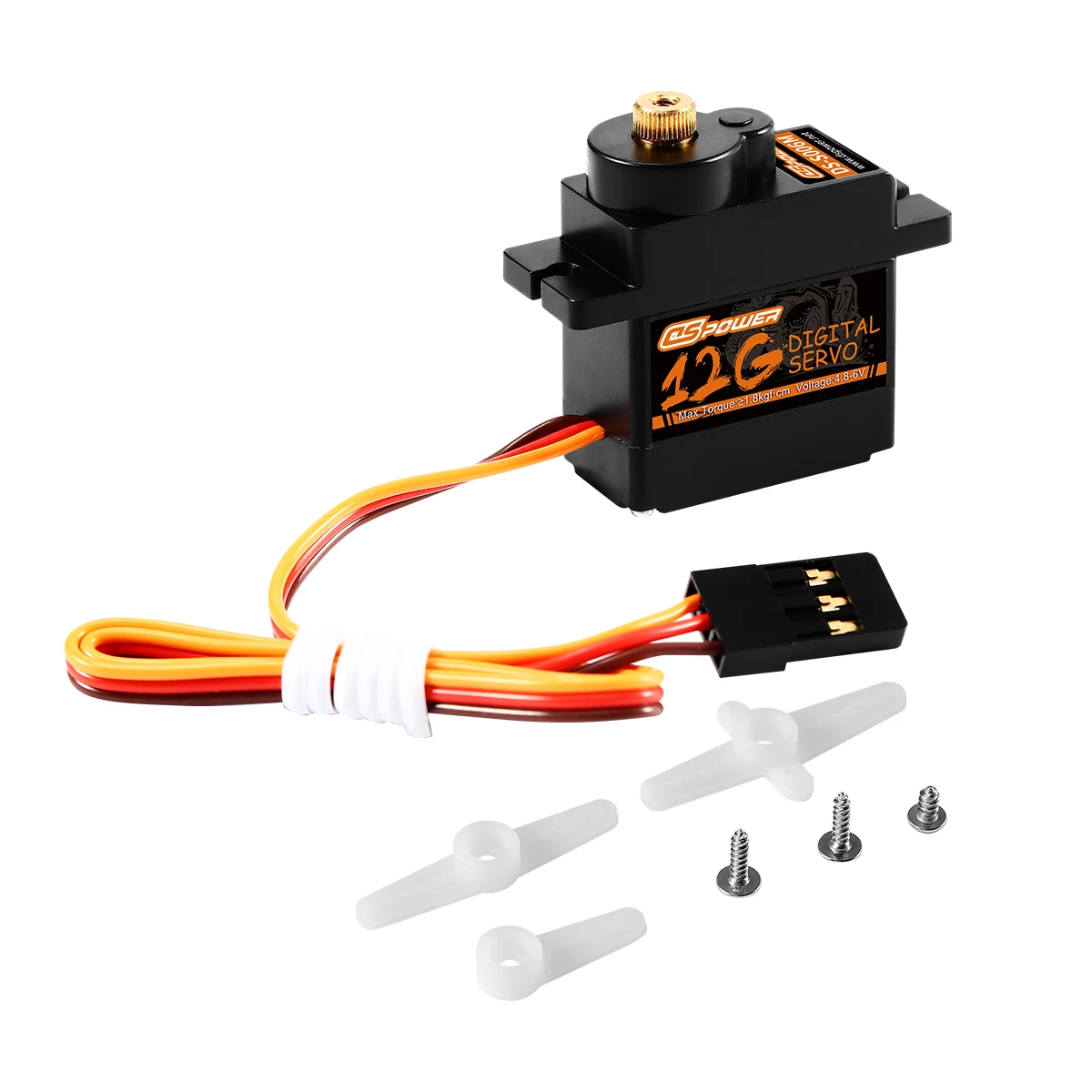

Package included:
1 * 9G Digital Servo
1 * Servo Arm Accessories
