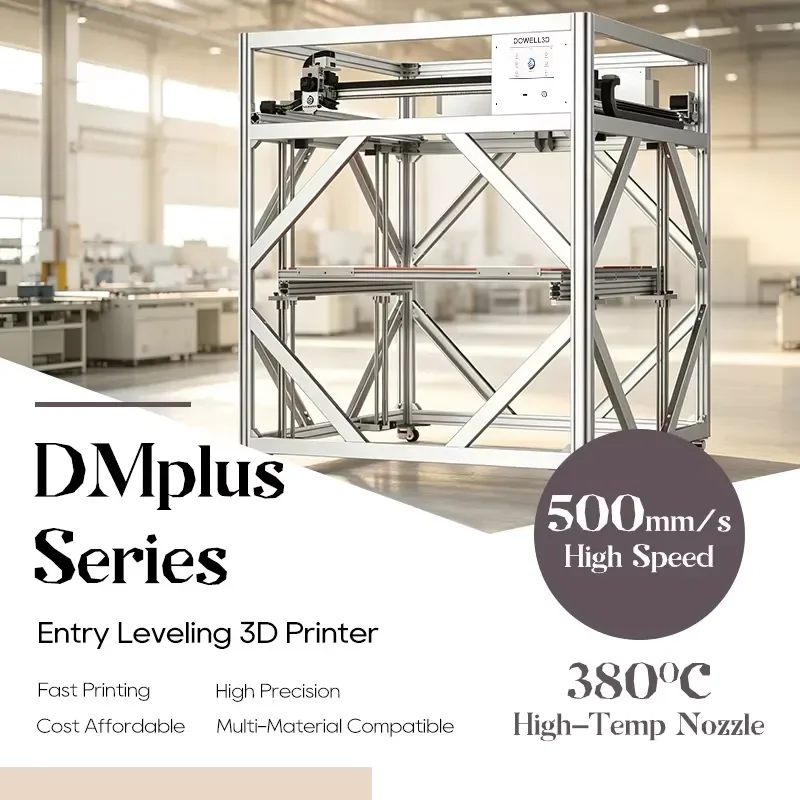

DM Plus Series Industrial 3D Printer
The Dowell3D DM Plus series 3d printer offers a large-scale printing volume of up to 1200x2000x2000mm, supporting multi-color and various materials like PLA, ABS, ASA, PETG, TPU, WOOD, and carbon fiber. It features a 7-inch touchscreen, auto-leveling, a high-temp nozzle (up to 380°C), and a 100°C heated bed for superior adhesion. Equipped with industrial-grade ball screws and linear guides for precision, ensuring fast prototyping at speeds up to 500 mm/s. The DM Plus 3D printer is ideal for businesses, professional studios, and educational institutions seeking to improve prototyping and production efficiency.
Specification
|
Product name
|
DM1220-16plus 3D Printer
|
Printing size
|
1200*1950*1600mm
|
||
|
Print Technology
|
FDM (Fused Deposition)
|
Frame
|
60mm aluminum frame
|
||
|
Nozzle diameter
|
0.4/0.6/0.8mm
|
Nozzle temperature
|
0-380℃
|
||
|
Bed temperature
|
0-100℃
|
Location accuracy
|
0.02mm
|
||
|
Extrusion flow rate
|
Max400g/hour
|
Printing speed
|
150- 500mm/s
|
||
|
Filament available
|
1.75mm PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, etc
|
||||
|
File format
|
STL/OBJ/GCOD
|
Connectio
|
SD Card / U Disk / WiFi
|
||
|
Operation firmware
|
Independent research and development
|
Operation interface
|
7''full color touch screen
|
||
Product Description
500 mm/s Maximum Printing Speed
The DM Plus Fast 3D printer offers a rapid print speed of up to 500mm/s and an extrusion rate of 400g/h. Combined with Dowell's independently developed high-performance firmware significantly shortens the from design to production. Whether you're rapidly iterating on prototypes or producing small batches, it helps you stay one step ahead and seize market opportunities.
380°c High Temperature Nozzle
The Dowell DM Plus high precision 3d printer is equipped with a high-performance nozzle that reaches up to 380°C, supporting a wide range of filaments like ABS, PLA, PETG, nylon, carbon fiber, and more. This allows for stable, fast, and smooth printing with high-temperature materials, ensuring optimal results for diverse projects.
100℃ High-Temp Platform
The DM Plus series fast 3d printer features a 6mm tempered glass heated bed with high surface flatness and even heat distribution, reaching up to 100°C. It's ideal for printing with engineering-grade filaments, avoiding warping issues and providing easy cleaning and model disassembly.
One-Click auto-leveling helps you operate easily
The Dowell DM Plus features a 100-point automatic leveling system that accurately detects and compensates for the build platform's flatness in real . This ensures flawless first-layer adhesion across the entire surface, reducing warping and improving print success.
Industrial Balls crews & Linear Rails:
Dowell DM Plus large size 3d printers are equipped with ball screw + linear guide rail as standard, which has low friction resistance and ensures precise positioning and consistent and smooth movement throughout the printing process, achieving industrial-grade high printing accuracy.
Low-Noise Operation for Quiet
The DM Plus series industrial 3d printers use a 60dB low-noise drive, eliminating the noise that may be caused by traditional 3D printers, improving user experience, and can be widely used in offices, classrooms, homes, and other places.
All-aluminum frame stable structure
The Dowell 3D large format printer features a 60mm aluminum alloy outer frame, providing an ultra-robust structure and exceptional stability. Its robust XYZ axes ensure printing accuracy and durability, meeting all your printing needs.
Multiple print sizes available
The large-format 3D printer offers a wide printing size range from 600x600x600mm to 1200x2000x2000mm, perfect for large-scale projects. Its versatile build accommodates prototypes and massive industrial models, delivering unmatched flexibility for diverse printing needs.
Customer Feedback
Our customers rave about the stability and efficiency of our 3D printers. "The Dowell 3D printer runs smoothly, with high print speed and large build volumes—perfect for large model making. After-sales service is prompt, and the overall experience is fantastic."
Company Profile
Dowell – a global leader in large-format industrial 3D printing.
Luoyang Dowell Electronic Technology Co., Ltd. was established in Luoyang, China, in 2014. The company boasts a modern R&D and production base of over 6,000 square meters and a professional technical team of more than 220 people. As one of the world's largest manufacturers of large-format FDM 3D printers, we are committed to the research, development, and manufacturing of high-quality, environmentally friendly 3D printing filaments and industrial-grade printing equipment. All products have passed international authoritative certifications such as CE, FCC, and RoHS. We promise: 1. Every piece of equipment delivered to our customers undergoes continuous operational testing before shipment. 2. A professional technical team is available 7x24 hours a day to provide ly and professional technical support. 3. From installation and commissioning guidance and printing parameter optimization to troubleshooting and remote diagnostics, Dowell's engineers are always there for you. Because we understand that you are not just buying a piece of equipment, but also a long-term trust.
Official Notice:
Dear Valued Customers, This is the only official store of Luoyang Dowell 3D Electronic Technology Co., Ltd. We are the sole manufacturer and exporter of Dowell3D 3D printers and related products. Please note: We have not authorized any third-party websites or suppliers to distribute or resell our products. Products sold under the "Dowell3D" brand on other platforms or websites are counterfeit and unauthorized. They lack genuine quality, technical support, and after-sales service. Please exercise caution and discretion when purchasing. Choose us without hesitation; it will be the best decision you make.
FAQ
1. Are you a trading company or a manufacturer? We are DOWELL, a 3D printer manufacturer with over 12 years of R&D experience. 2. What certifications do you have? CE, FCC, ROHS, etc. 3. What is the minimum order quantity (MOQ) for your 3D printers? The minimum order quantity is just ''1 set''. Whether you need a single 3D printer or a bulk order, we cater to small-scale and large-scale requirements with flexible purchasing options. 4. What types of 3D printers do you offer? We provide a wide range of 3D printers, from entry-level to industrial-grade, catering to various applications such as prototyping, education, and manufacturing. 5. What is your customer service like? We offer 24/7 dedicated customer support to assist you with any questions or concerns, ensuring a seamless experience from inquiry to delivery. 6. How do you handle international shipping? We provide reliable international shipping solutions with tracking services, ensuring your 3D printing products arrive safely and on . You can choose shipping by sea, by train, by air, or by express delivery, etc. 7. What payment methods do you accept for international transactions? We accept a variety of secure payment methods suitable for international trade, including bank transfers, credit cards, PayPal, and Western Union, etc.
