- High-concerned chemical: None
- Display Mode: 1
- is_customized: Yes
- Model Number: 2.42 Inch
- Type: OLED
- Brand Name: DIYUSER
- Origin: Mainland China
- Resolution: 128*64

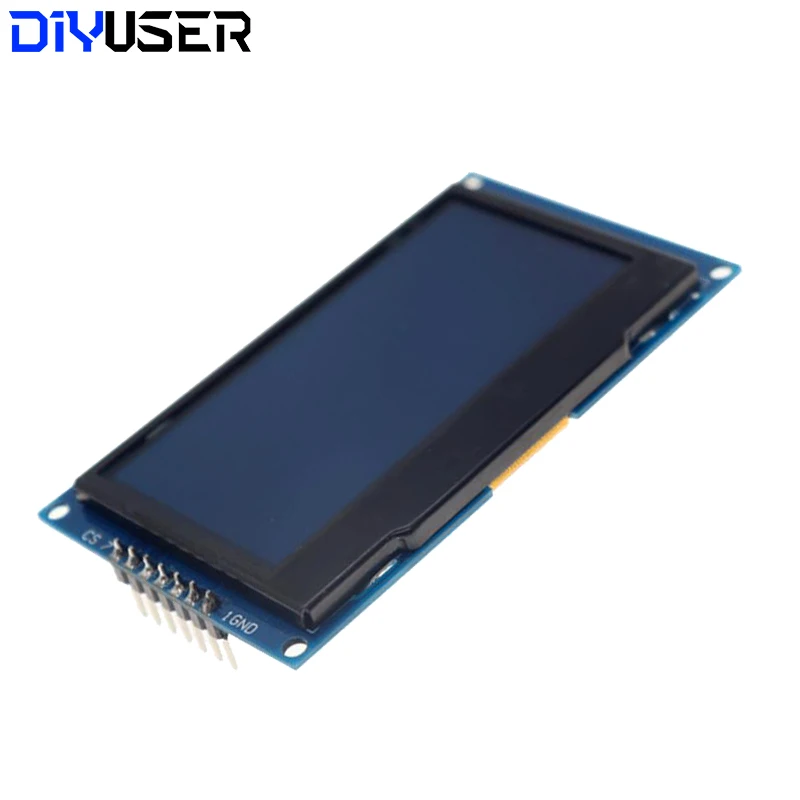

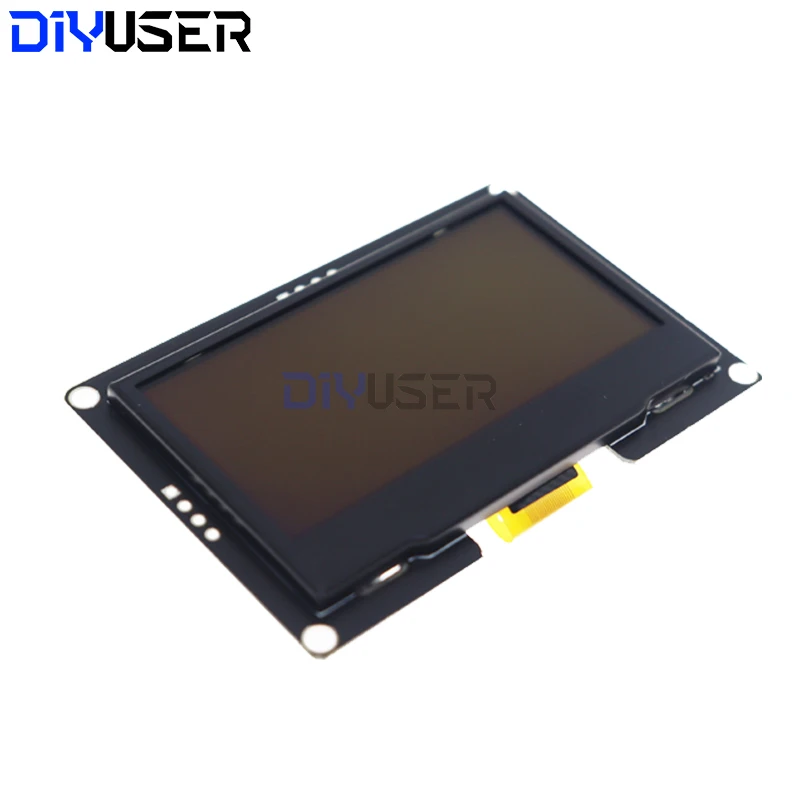

2.42" OLED Display Module
Driver chip SSD1309

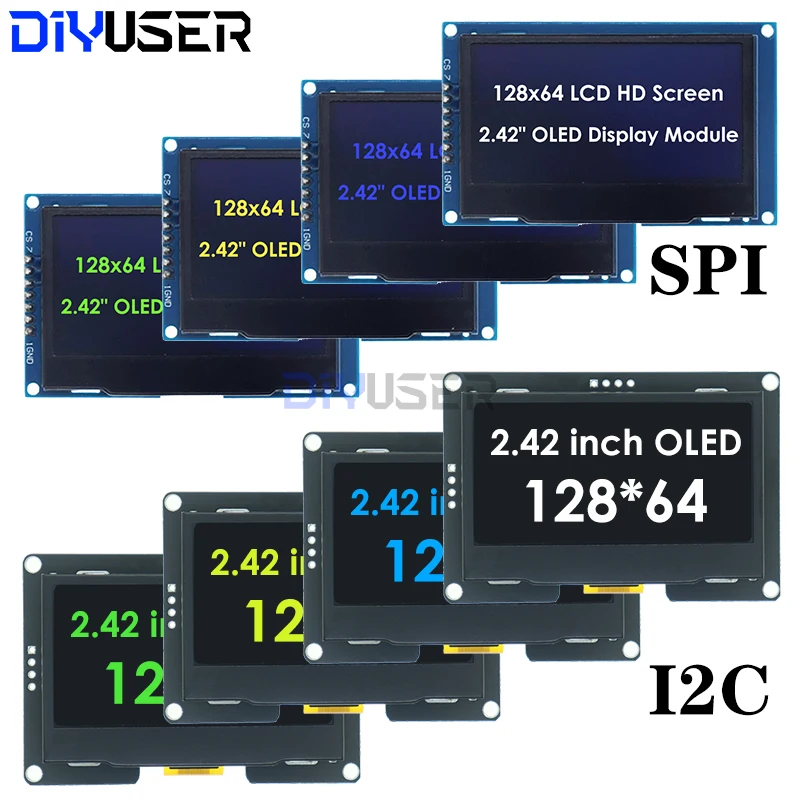

Support interface IIC/SPI
Resolution 128×64
Display size 2.42 inches
Display color: white/blue/yellow/green
Module size 71×43.5 (mm)
Glass size 60.5×37.00× (mm)
Display area 55.02×27.49 (mm)
Drive voltage 3.3-5V
Number of pins 7PIN
Viewing angle >160°
Working temperature -40℃~70℃
Storage temperature -40℃~80℃

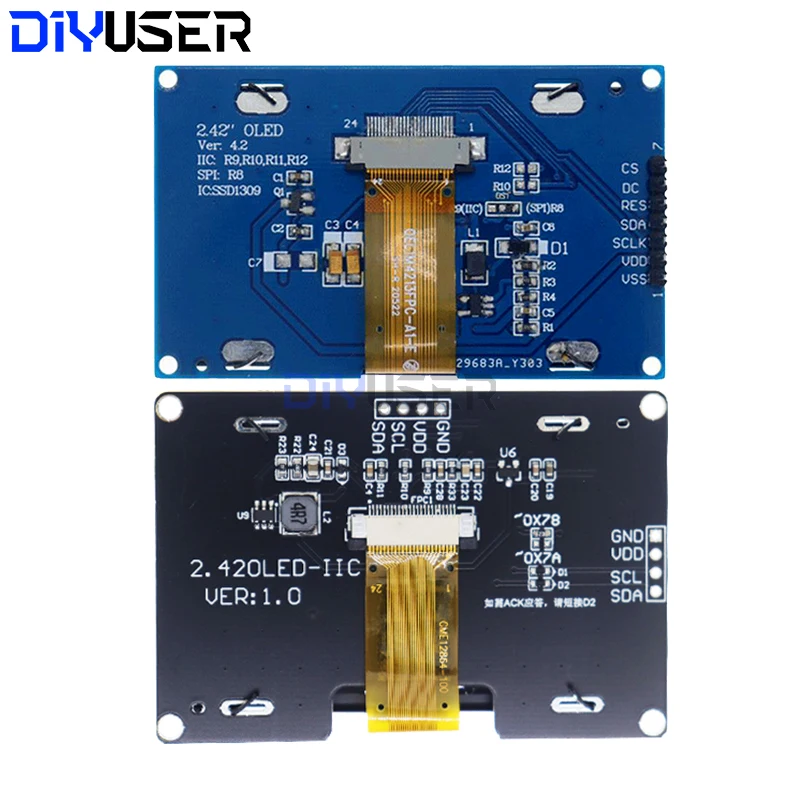

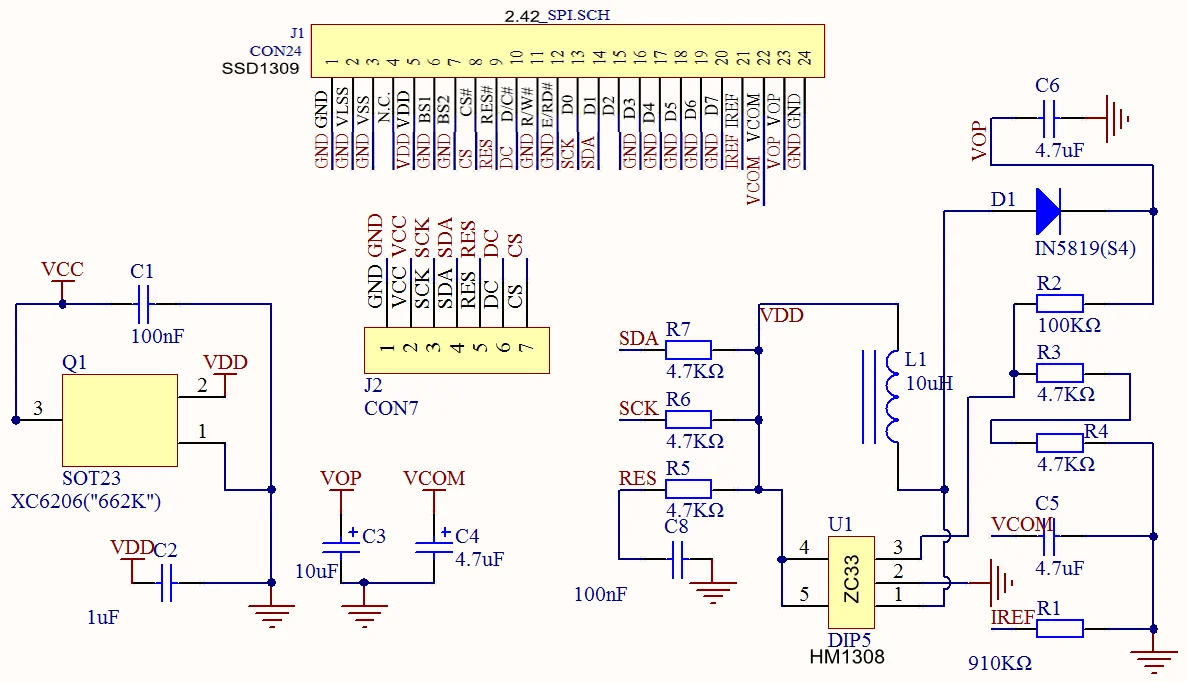

SPI Interface Definition:
1 GND - Power Ground
2 VDD - Power Supply Positive (2.8-5.5V)
3 SCK - Clock Line
4 SDA - Data Line
5 RES - Reset Line
6 DC - Data/Command
7 CS - Chip Select
