- Battery Included: No
- High-concerned chemical: None
- Model Number: DRO-3V
- Brand Name: SNSNTDRO
- Certification: CE
- Origin: Mainland China
- Power cable type: AU EU US UK etc.
- DRO acceptable input: TTL
- DRO reading resolution: 0.1um,0.5um, 1um, 2um, 5um, 10um
- Voltage range: AC90-260V 50/60HZ
- Ouput: 5VDC
- Power: 25VA
- Accessories: display cover, mounting bracket, user manual
- Item name: snsntdro linear scale
- Scale Resolution: 5um/ 0.005mm
- Available Measrus Length: 50mm-1000mm
- NTS-M:Cross Section Dimension: 22mmX34mm
- Output signal: TTL
- Input voltage: 5VDC ±5% , 100mA
- Procut name: Mill Lathe 3 Aaxis DRO kit
- Max of Measuring speed: 60m/min
- Scale cable: 3 meters
- If include accessories: Yes(with protect cover, screws and accessories)
- Application: Lathe, Mill, Drill, Boring machine etc.
- Warranty: 1 year
High precision DRO-3V 3-axis lathe milling machine DRO digital readout kit,
with 3 effective working strokes of 50mm-1000mm linear grating encoder
optical grating ruler, accuracy of 5um.
1.How to select scales length?
For model: NT-M, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 700,
750, 800, 850,900,950,1000 for choose.
For model: NT-S, 50, 100, 150, 200, 250, 300, 350, 400, 450 for choose.
Scale length means scales working travel length.
After making order, please leave a message to seller with you needed scales travel length.
2.The order fee does not include any import taxes and duties and the buyer is
responsible for the duties. Some countries require you to provide personal tax ID and corporate tax ID, please leave us a message or contact us.
Dear buyer, please note:
1. The order are one piece new dro/digital readout, with 3pcs linear scales,travel length includes 50-1000mm, Accuracy are 5um
2.This price is not included remote fees,duty fees with storage fees.etc.
3.After placing the order, please note or leave a message to me the travel length of the linear scale you want.
Then I will send you the goods you want as soon as possible.

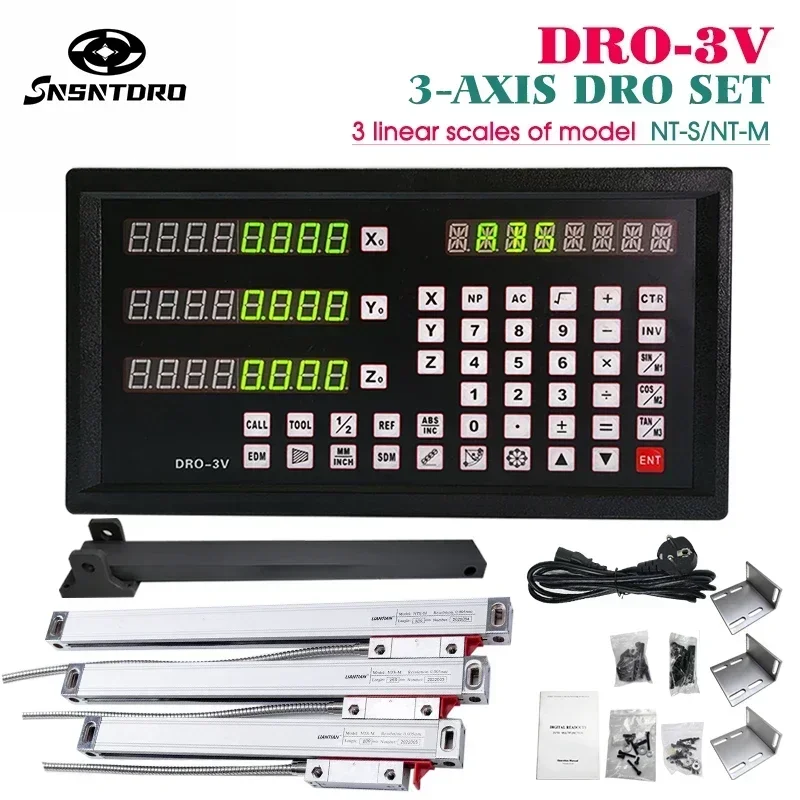

What in package

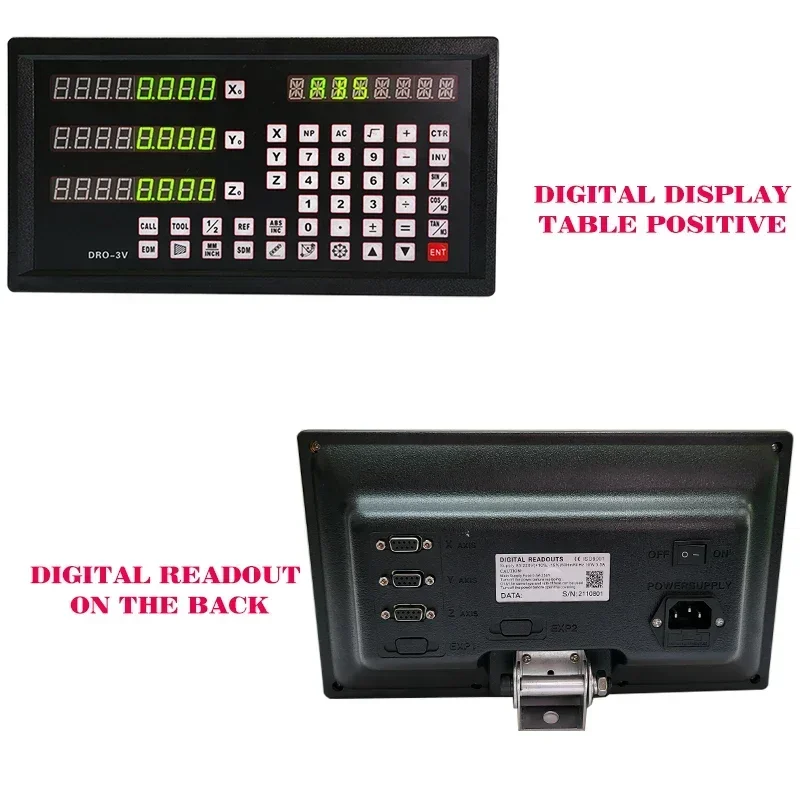

DRO-3V
-1 piece DRO-3V display, display cover, mounting bracket, screw bag, user manual
0.005mm complete set
-1 piece DRO-3V display, display cover, mounting bracket, screw bag, user manual
-3 pieces 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags

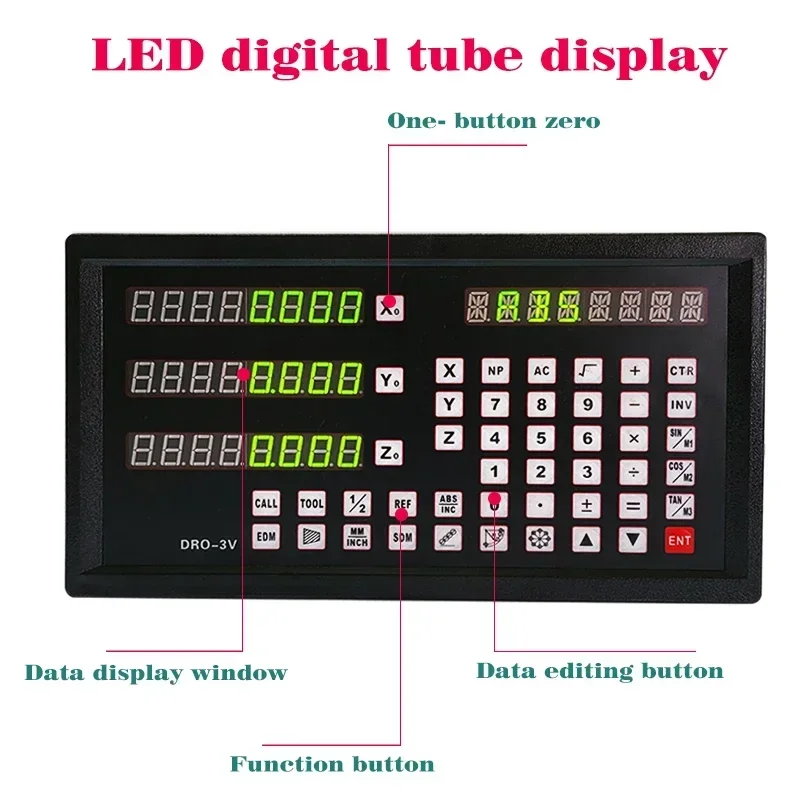

DRO features

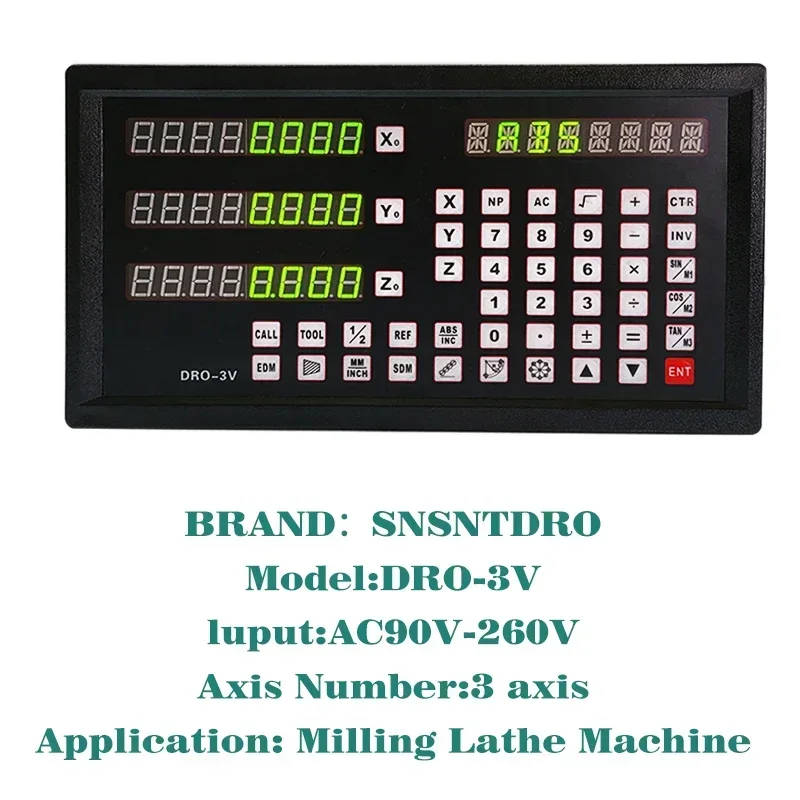

DRO digital readout parameter
1.Voltage Range: AC 90V~260V/50HZ~60HZ
2.Acceptable Signal: TTL square wave/ EIA-442
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um
Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
2. The wide voltage AC80-250V can be widely used in all over the world.

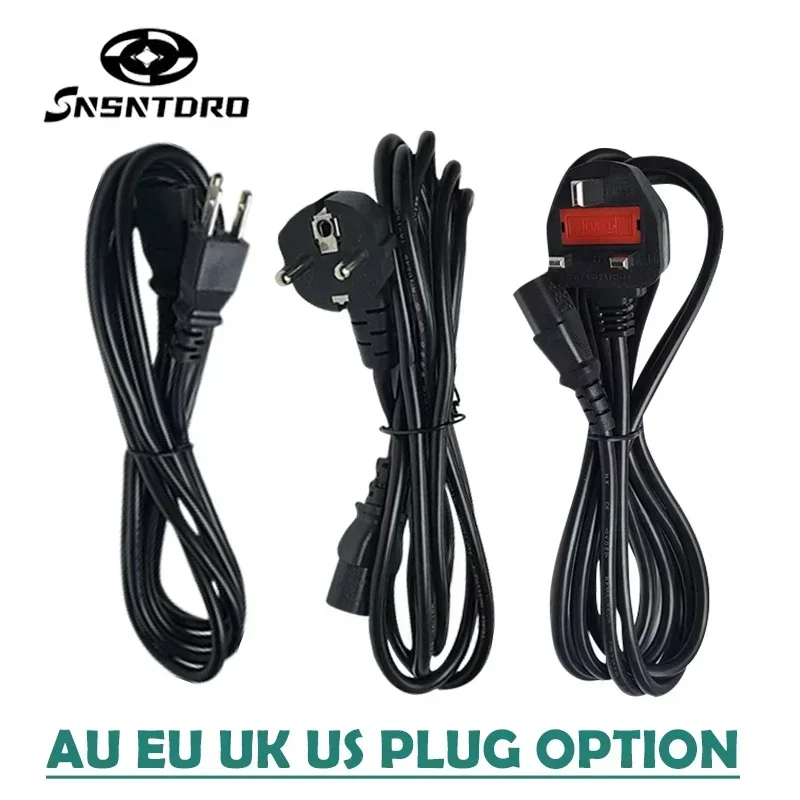

3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.
Function
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20:vibration filtering
21: Lathe function
22: Daimater/Radius function
23. Y+Z function
24. Additional charges for customized features
25. Contact customer service if necessary

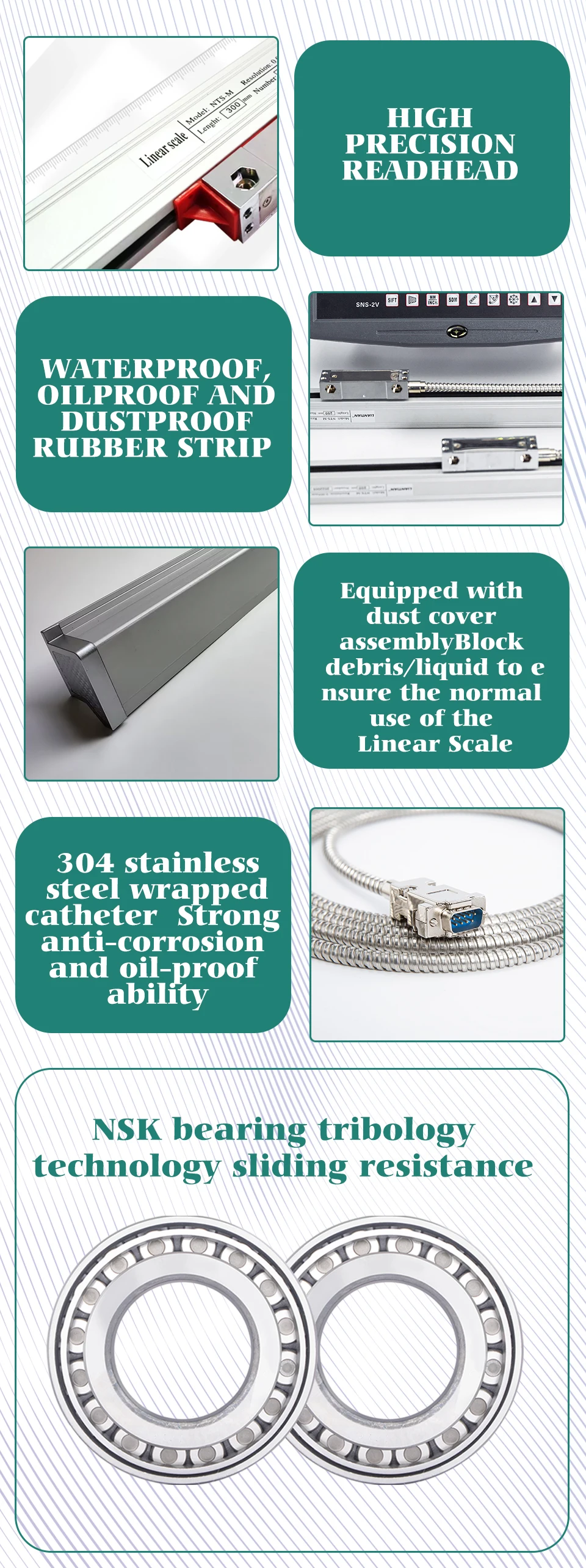

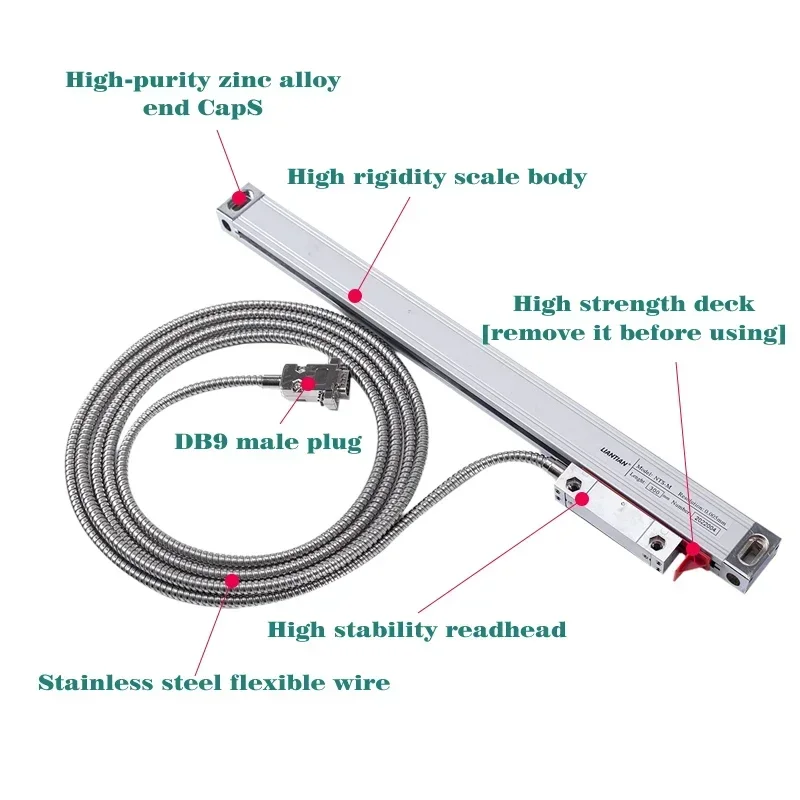

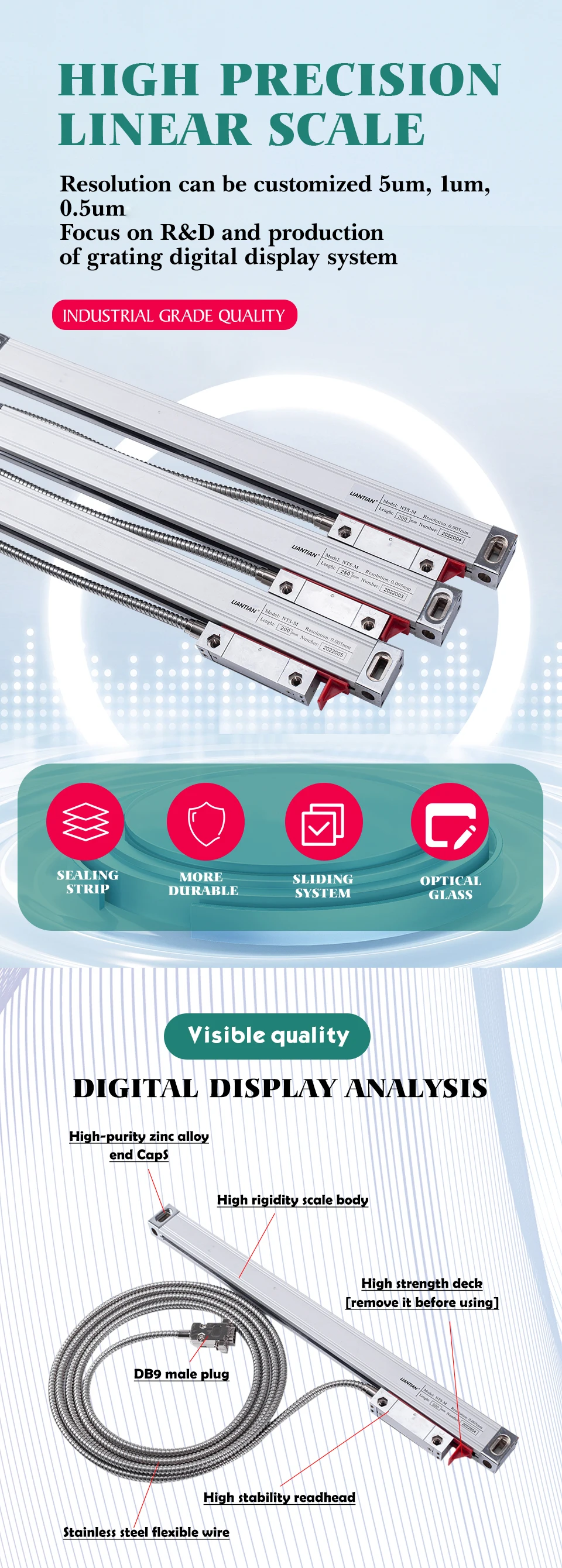

Scale feafures

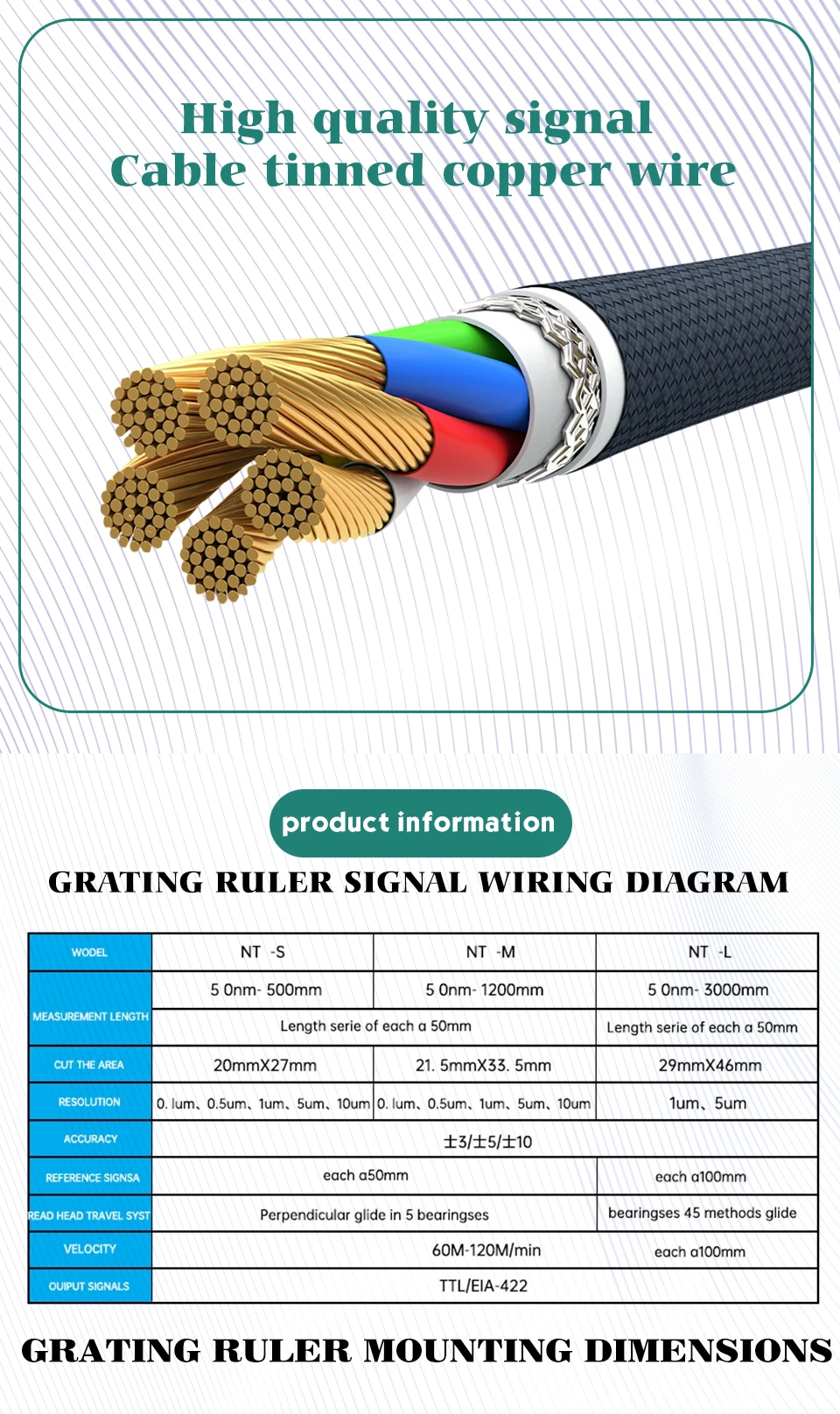

Parameter
Model: NT-S,NT-M
Available measurement: 50mm to 1000mm

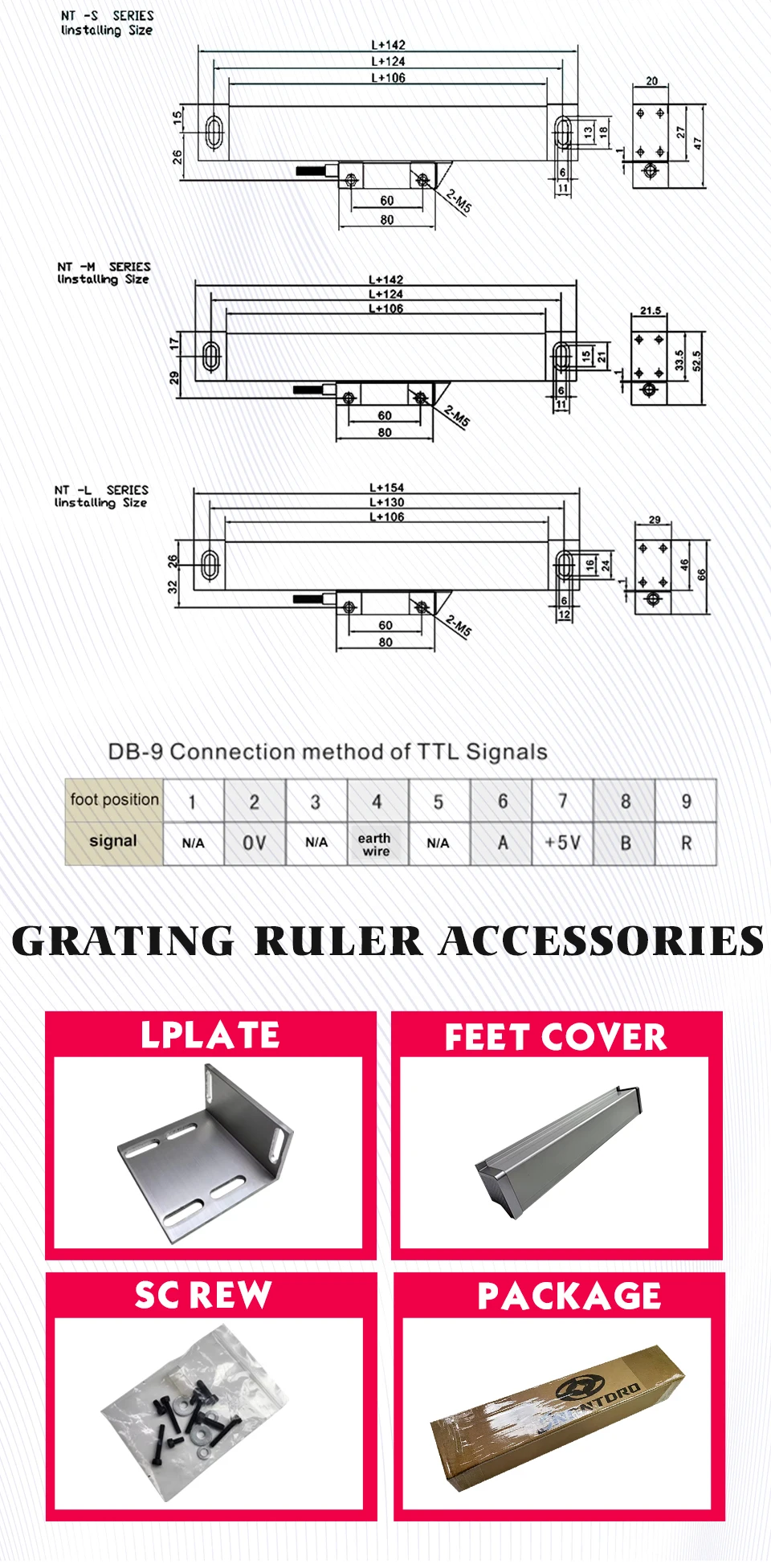

Total length: measurement+142mm
Size cross section size: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3meters
Tips (How to choose scales length?)
This order includes 1 pieces 3-axis DRO-3V and 3 pieces linear scales with travel length between 50 to 1000mm, after order and payment please contact seller to write down you needed scales travel(measuring) length.
PS: Please contact customer service for linear scales that require longer travel
