- Hign-concerned Chemical: None
- Material: Plastic
- Type: Other
- Origin: Mainland China
- Cooling System Type: Air Cooling System
- Rated Current: 5A
- Rated Voltage: 220/380,230/400V
- Starting System: 12V DC Electric Start
- Model Number: DG3500SE3
- Place of Origin: Jiangsu, China
- Frequency: 50HZ
- Speed: 3000RPM
- Type: Silent Type, Silent and electric
- Weight: 135
- Color: Yellow/White/Green/Red/Orange/Blue
- Panel: Common/digital/ATS
- Structure: Skylight/rings
- Wheel: Solid rubber wheel /omni-directional
- Design: New
- Noise: low
- Power factor: 0.8
- Phase: Three phase
- Engine type: HR178F-6HP
Related Products
Product Description
1.silent, electric, with 20AH storage battery
2.low fuel consumption
3.with four wheel
4.good quality and after sales service

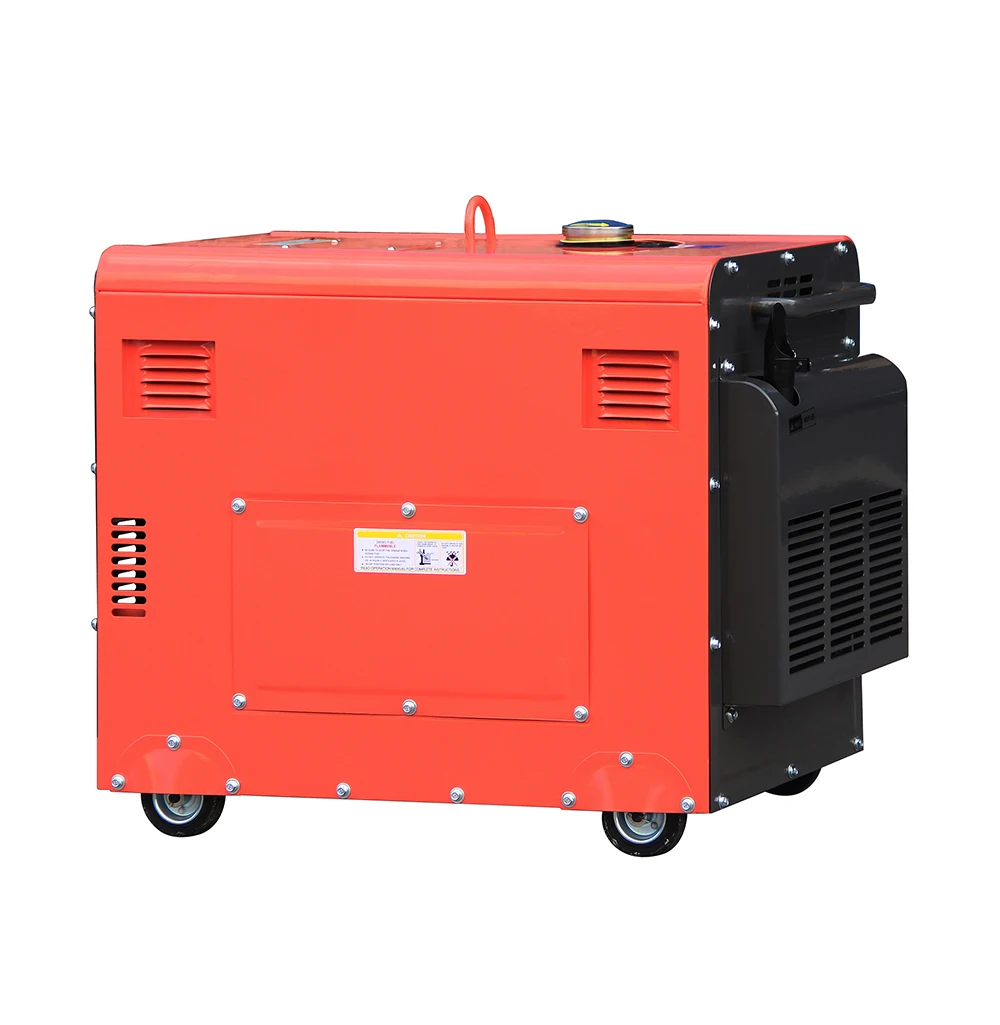

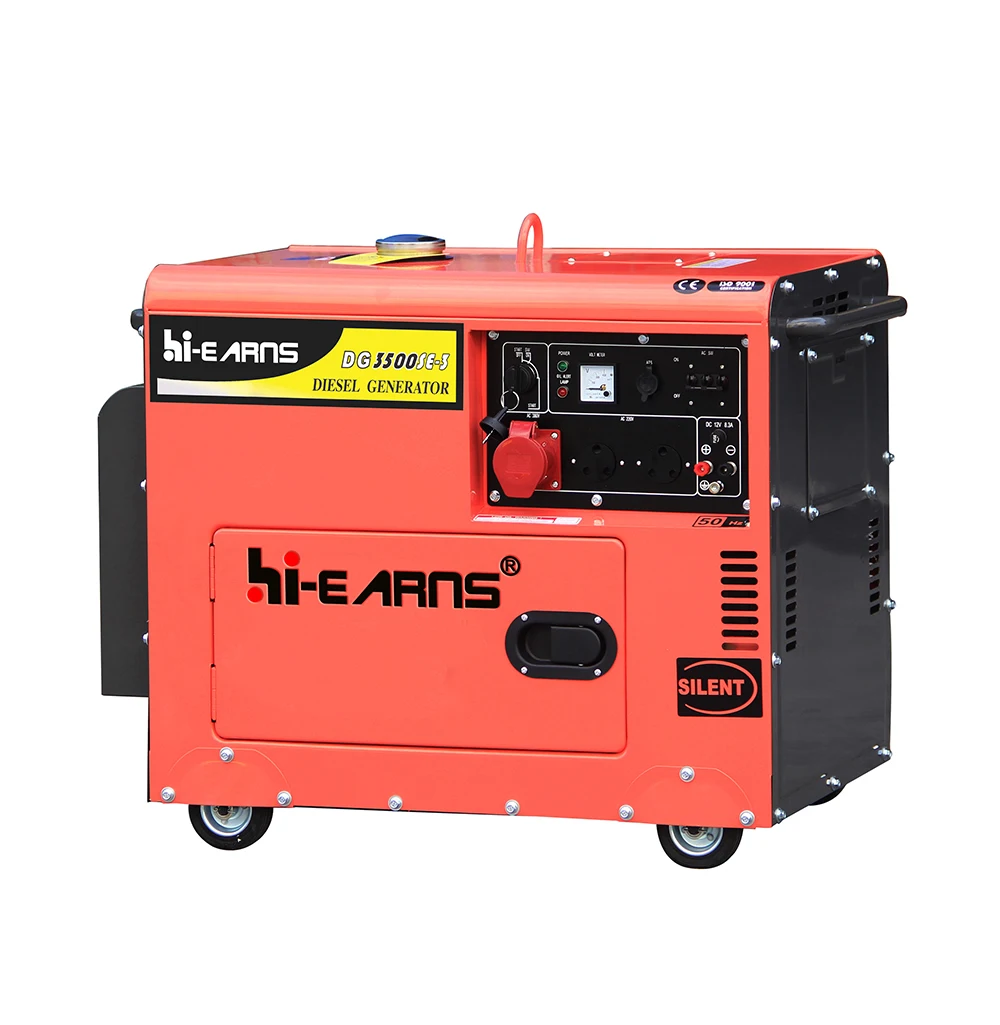

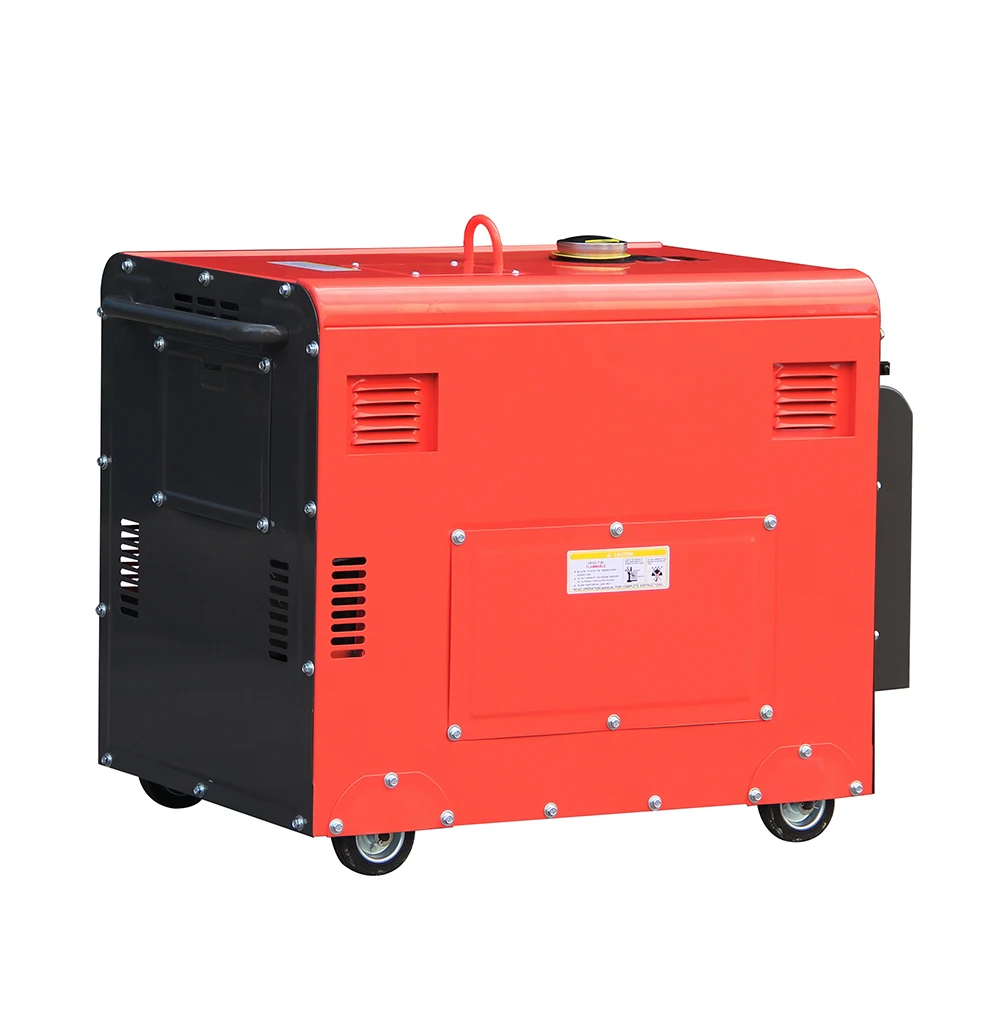

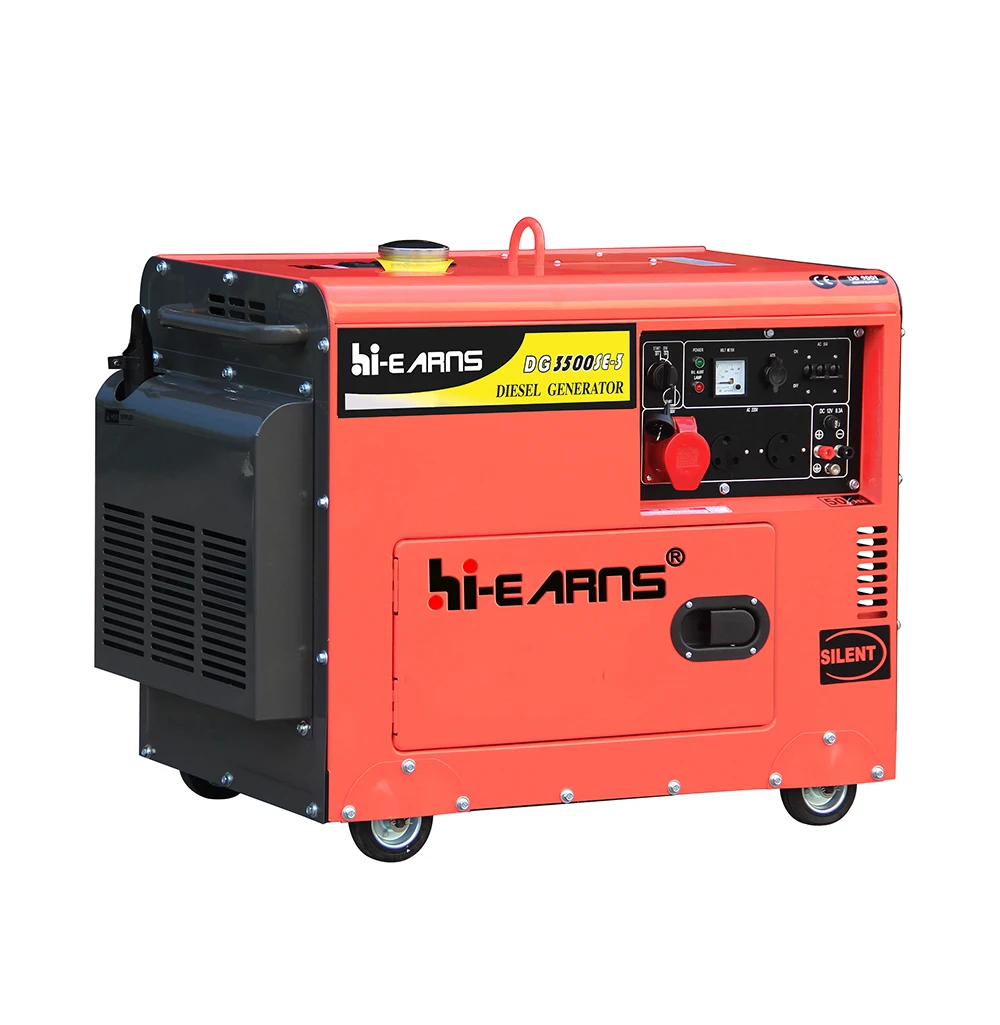

3KVA silent portable diesel generator for home use
| GENERATOR | Model | DG3500SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 3.0 | 3.3 | |
| Rated output(kw) | 2.8 | 3.0 | |
| Rated. AC voltage(v) | 110/220,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 13 | 18 | |

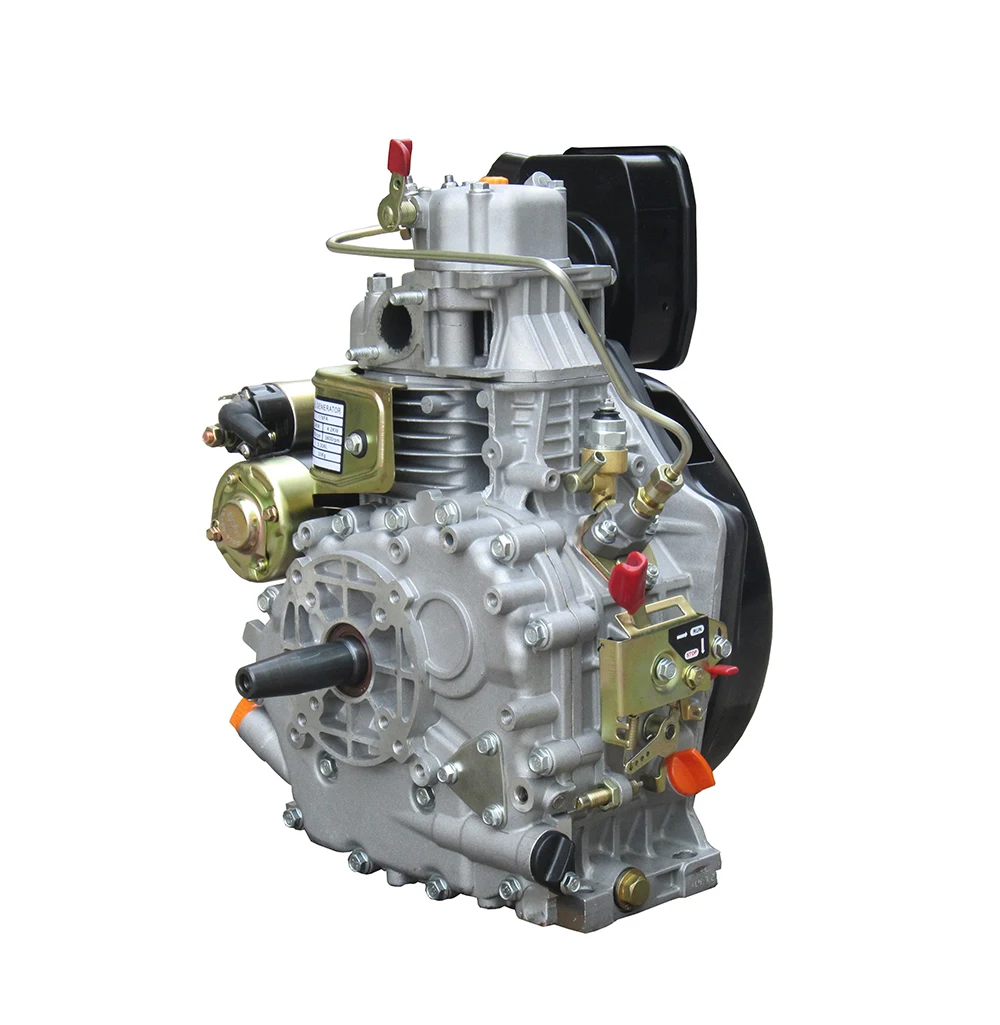

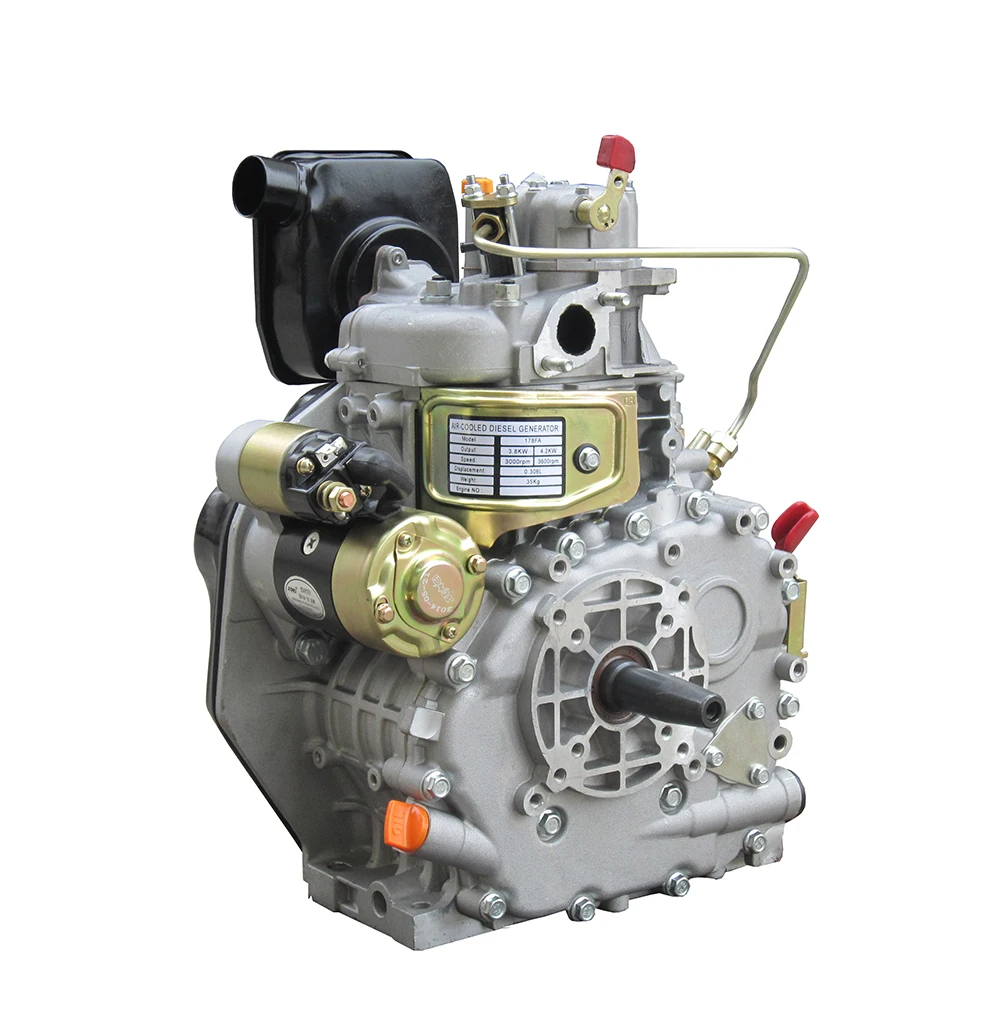

| ENGINE | Model | HR178F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 78×62 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 940×560×750 | |
| Net weight(kg) | 136 | ||
| 20FT | 72 | ||
