- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: CE
- Model Number: HF6090
- Condition: New
- CNC or Not: CNC
- Origin: Mainland China
- Table structure: T slot table
- Working size: 600x900mm
- Control System: NC Studio
- Inverter: 1.5KW 220V/380V
- X Y Z Axis: Ball screw (Taiwan TBI)
- Keywords: Advertising CNC Router 6090 Wood Acrylic Metal Plastic CNC Cutter Router

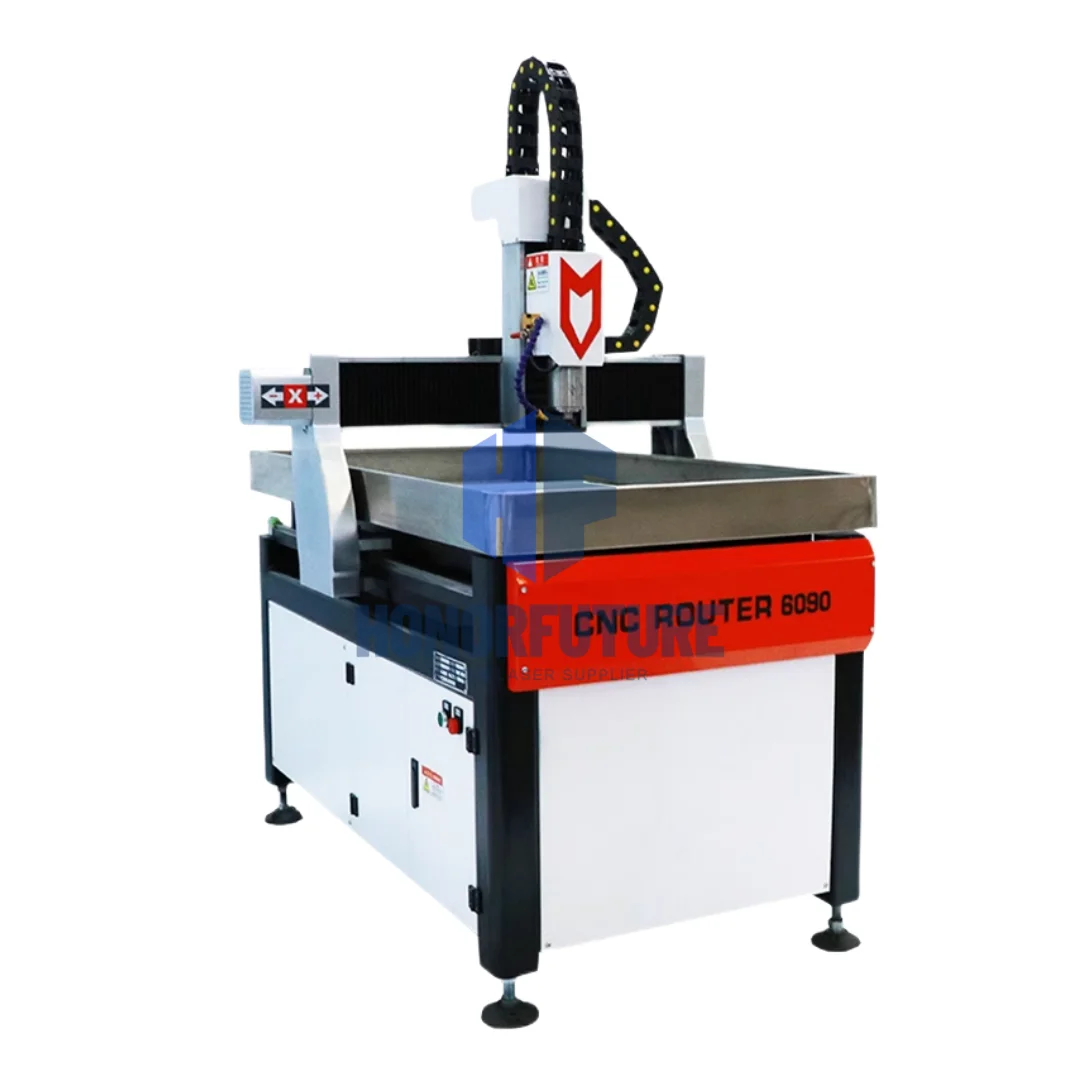

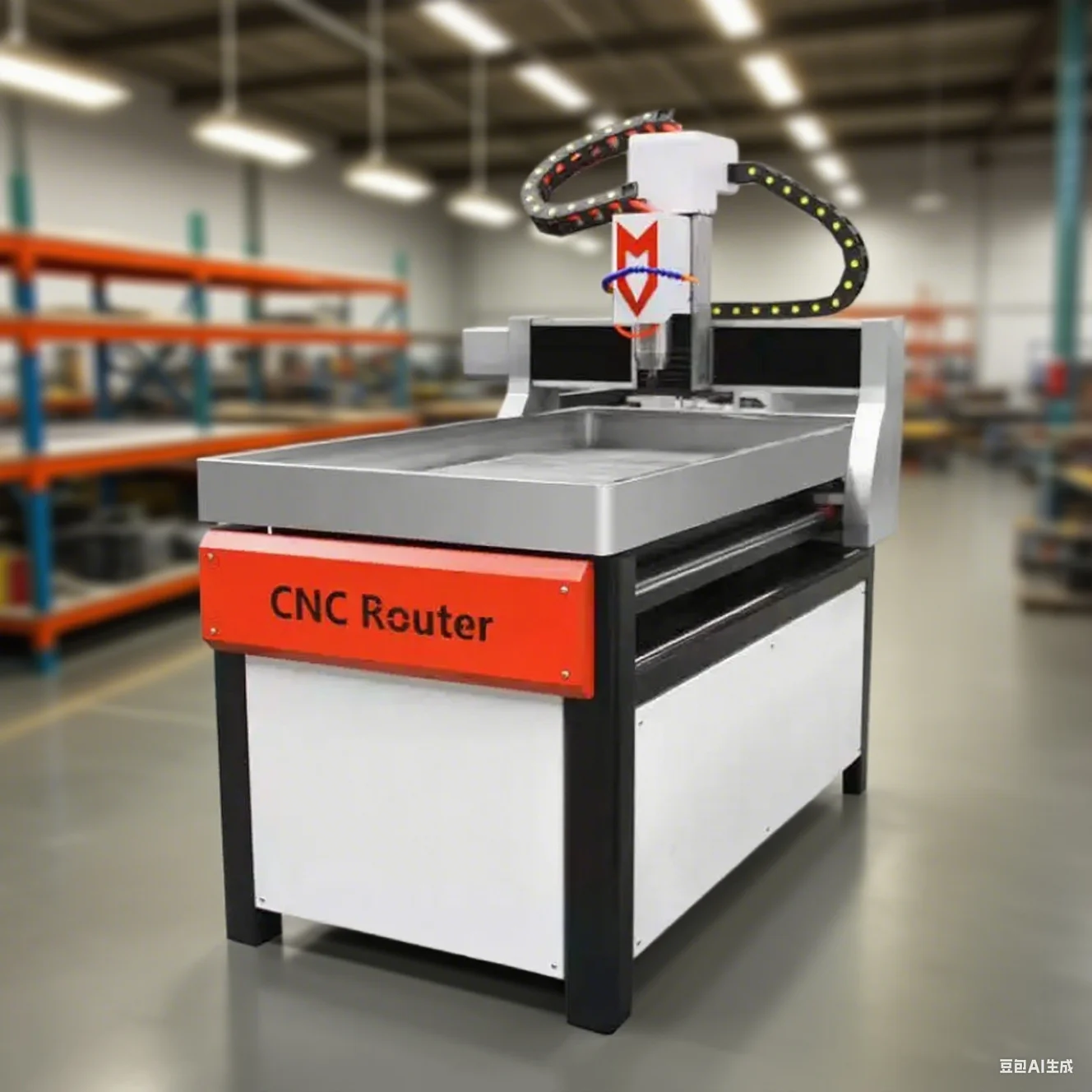

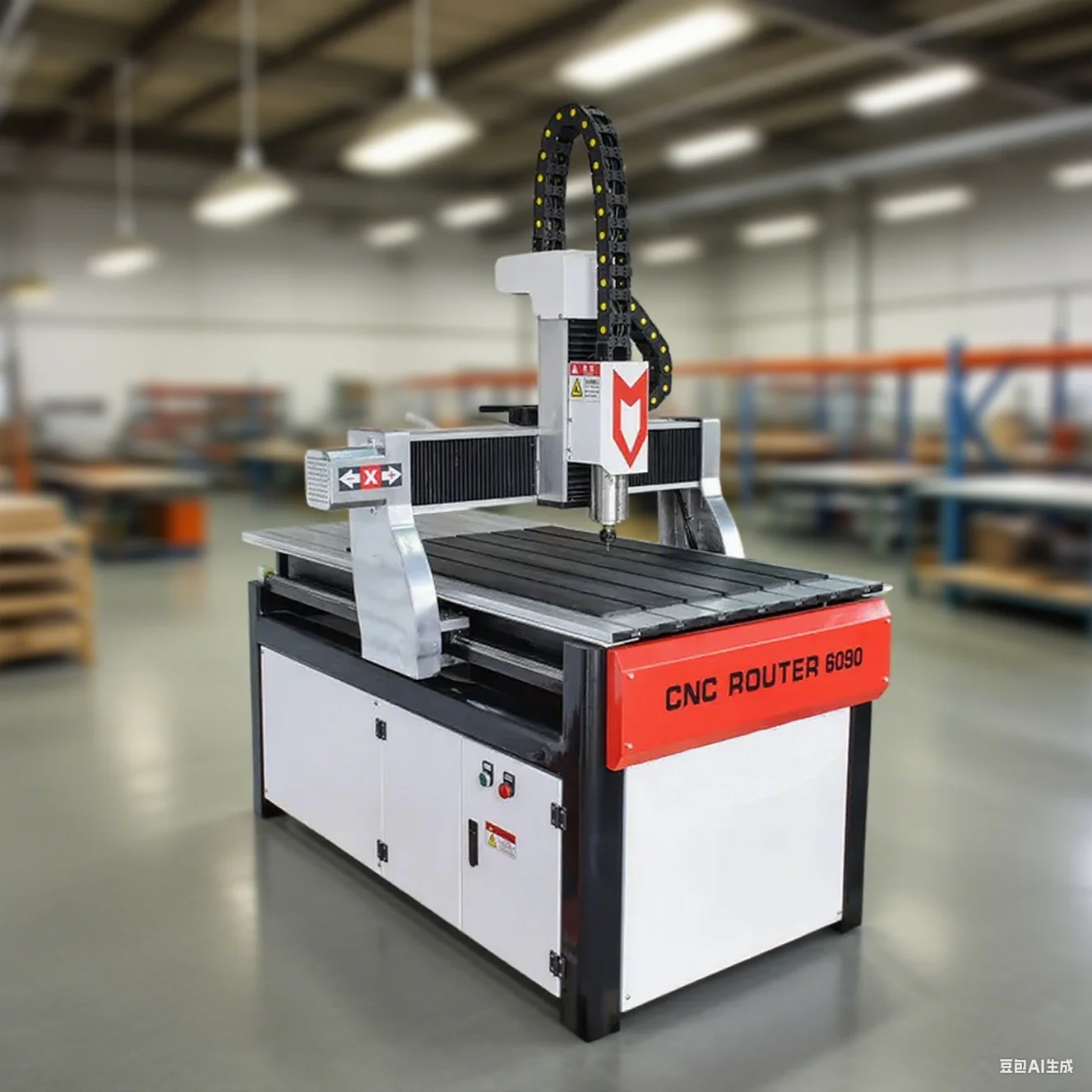

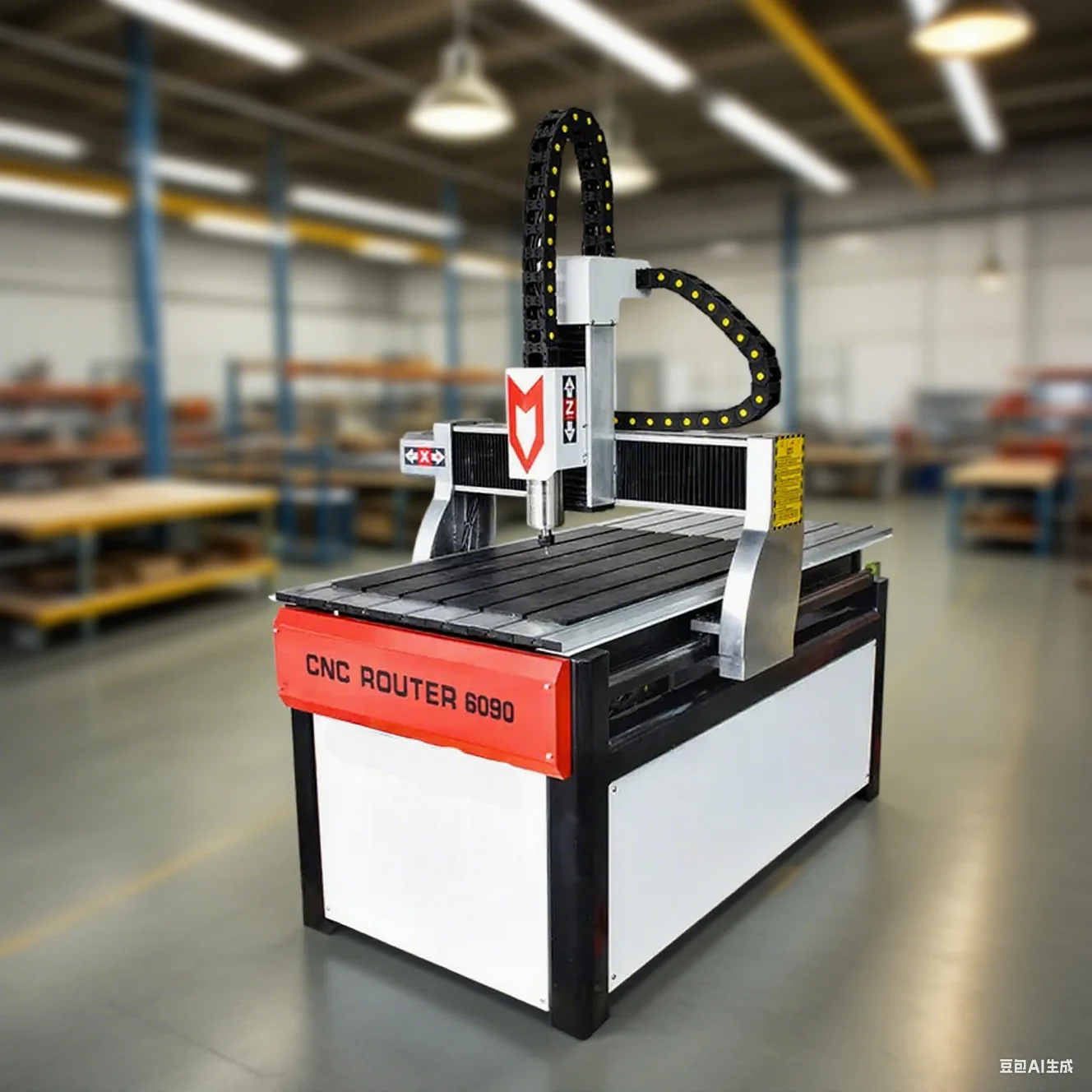

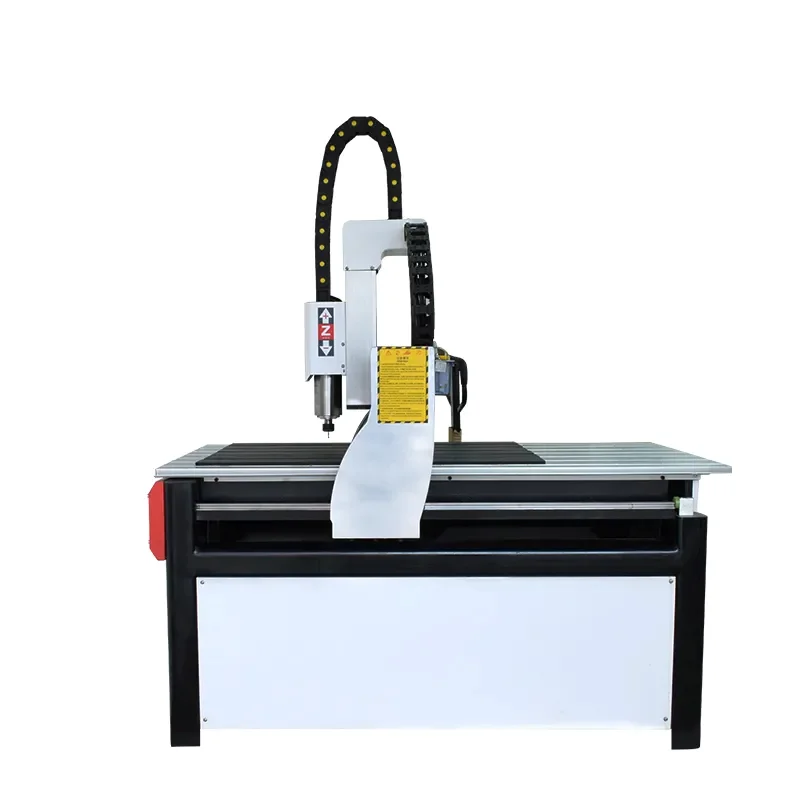

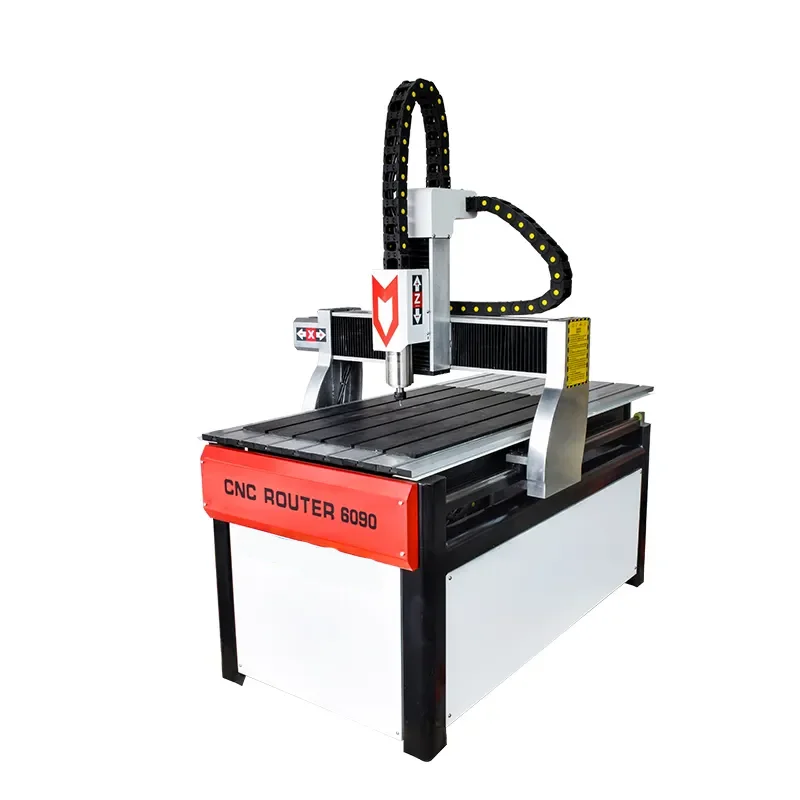

Desktop 6090 6012 Mini CNC Router 2.2kw Router CNC 600 X 900mm for Wood MDF Engraving Machine Price
Model No. | HF6090 CNC Router |
Working Area(X*Y) | 600*900mm |
Working area(Z) | 150mm |
Machine dimension | 1210*940*900mm |
Router Spindle | 1.5kw water cooling spindle |
Collet | ER16 |
Spindle Speed | 0-24000RPM |
XYZ Guider | Taiwan Hiwin Square Rail |
XYZ Transmission | Ball Screws Transmission |
Max.Traveling Speed | 5000mm/min |
Max.Working Speed | 3500mm/min |
Inverter | Sunfar Inverter |
Motor | Stepper Motor |
TableSurface | T slot with Cast Iron |
Control System | NC-studio control system |
Positioning Accuracy | ±0,025mm |
Reposition Accuracy | <0.025mm |
Power source | 220v±10%,50/60HZ |
Warranty | 24months |
Optional Parts | 1.2*2kw water cooling spindle 2.DSP Controller 3.Tool sensor 4.Rotary axis 5.Water chiller 6.Servo motor |
