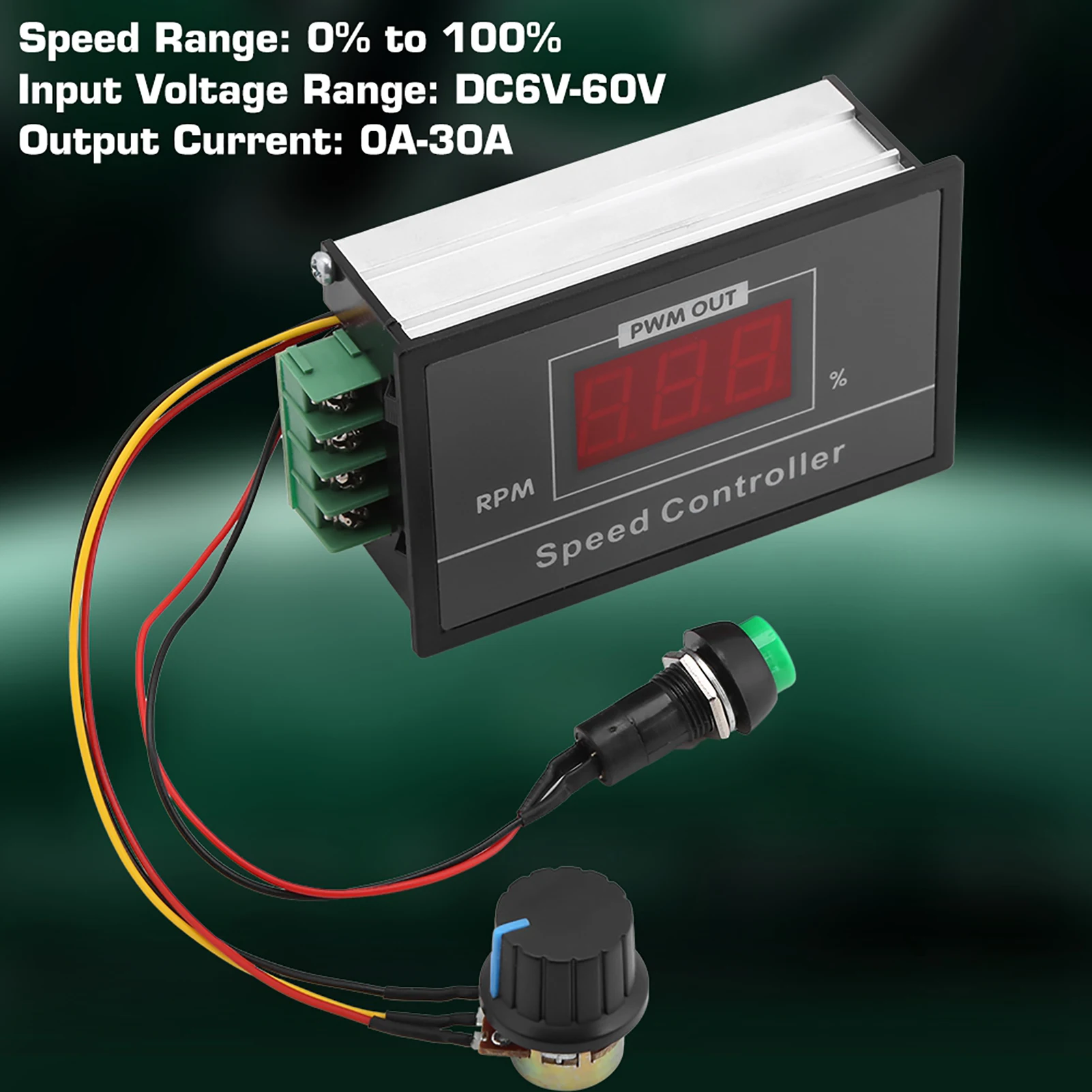

DC 6-60V 12V 24V 36V 48V 30A PWM DC Controlador de Velocidade do Motor Regulador Controlador de Velocidade do Motor com Start Stop Switch

Speed controller is made with high quality circuit board which ensures a longer service life

This simple and easy‑to‑use DC motor speed controller has an stable performance

Designed with a digital display that shows the rate in percentage of actual speed to maximum speed

This motor speed controller uses screw terminals for convenient and quick wiring

Comes with a momentary start/stop switch and a speed control potentiometer

Features：

Speed controller is made with high quality circuit board which ensures a longer service life.

This simple and easy-to-use DC motor speed controller has an stable performance.

Designed with a digital display that shows the rate in percentage of actual speed to maximum speed.

This motor speed controller uses screw terminals for convenient and quick wiring.

Comes with a momentary start/stop switch and a speed control potentiometer.

Specifications：

Input Voltage Range: DC6V-60V (input voltage should be same as motor rated voltage)

Output Voltage: Linear with load

Output Current: 30A

Continuous Current: 20A

Speed Range: 0% to 100%

Regulation Method: Potentiometer

Regulation Type: Regulating Current

Control Frequency: 15KHz

Wiring Type: Screw terminal

Package Includes：

1 x Speed Controller

Note:

1. Please allow small size error due to manual measurement. Thanks for your understanding.

2. The digital tube only displays 0-100 motor full speed percentage, not the actual motor speed. For example, if the maximum motor speed is 500 rpm, it will display 100 at 500 rpm and 50 at 250 rpm.

FAQ：

Q1: Can this product be used for brushless motors?

A: This product can only be used for DC brushed motors.

Q2: What is the range of speeds that can actually be handled?

A: 10% ‑ 98%.

Q3: Can it change the speed of the window lifter?

A: Yes, it can.
