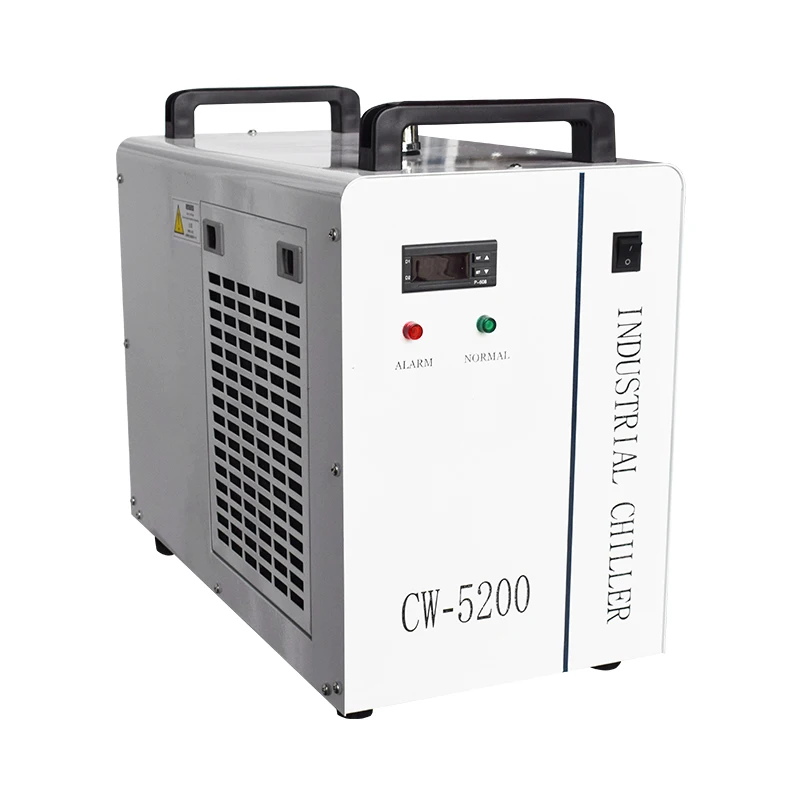

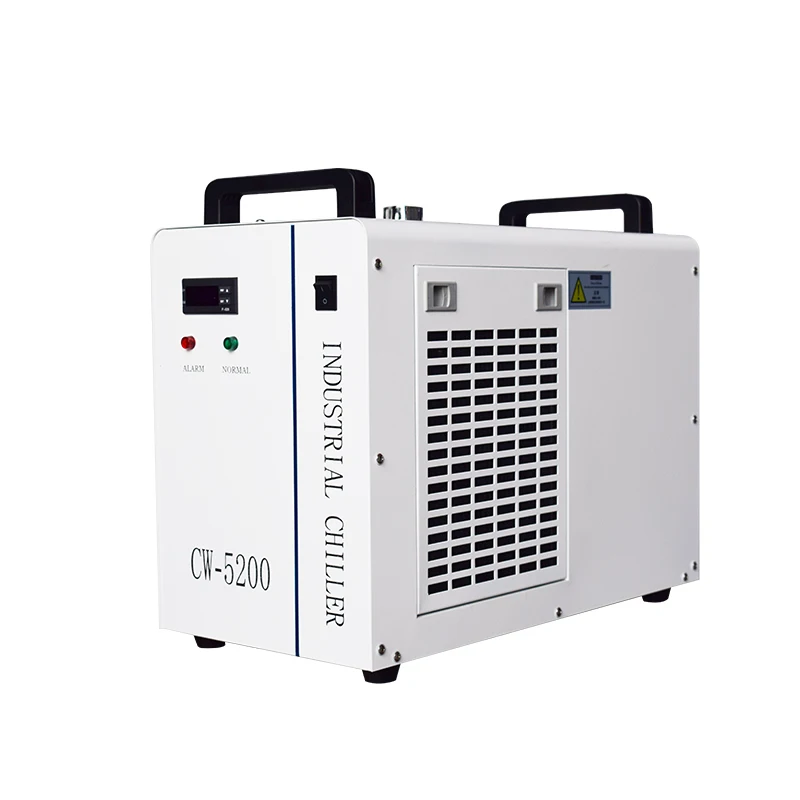

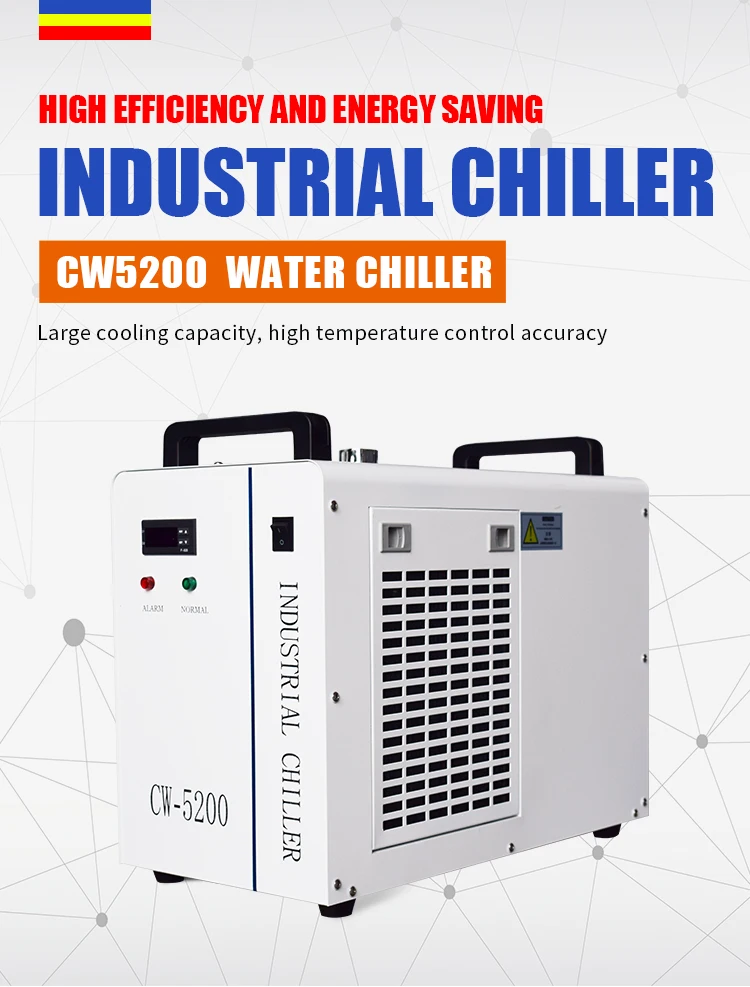

Factory Direct Supplier CW-3000 CW-5000 CW-5200 Water Chiller
Machine Cooling Industrial Water Chiller
The Advantages :

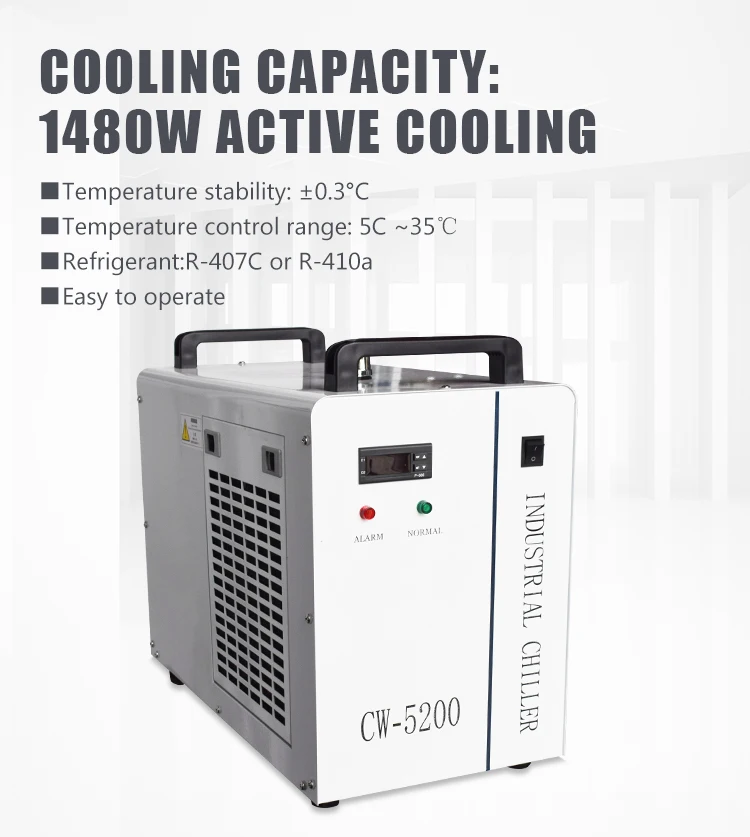

鈻燭he cooling capacity reaches 1480W 鈻燬mall size 鈻燣ongevity and durability 鈻燛asy to operate 鈻燭he temperature control accuracy can reach ±0.3°C CW-5200 single 150W CO2 laser tube CW-5202 single 100W CO2 laser tube Recommended Use: CW-5200AH is suitable for single C02 laser tube below 130W; Or a single 8KW spindle cooling CW-5202AH is suitable for two CO2 laser tubes below 130W or 8 spindles of an engraving machine below 1.5KW; CW-5200AI is suitable for a single 1530W solid-state laser; Or a single 50-75W semiconductor ; or 30W metal RF laser cooling For more use environment, please contact customer service
Product Description
Product Paramenters
|
Model
|
CW-5200
|
|
|
||
|
Voltage
|
220V AC
|
220V AC
|
110V AC
|
||
|
Frequency
|
50Hz
|
60Hz
|
60Hz
|
||
|
Electric current
|
0.4-4.6A
|
0.4-4.2A
|
0.4-6.2A
|
||
|
Compressor
power
|
620W
|
696W
|
425W
|
||
|
|
0.92HP
|
0.92HP
|
1HP
|
||
|
Refrigerating capacity
|
1.6kw ±5%
|
1.8kw ±5%
|
1.5kw ±5%
|
||
|
Refrigerant
|
R407C/R410a
|
R407C/R410a
|
R410a
|
||
|
Amount of refrigerant charged
|
R407C 350g/R410a 280g
|
R407C 350g/R410a 280g
|
480g
|
||
|
restrictor
|
capillaries
|
|
|
||
|
Maximum lift
|
13m
|
15m
|
25m
|
||
|
Maximum discharge
|
12L/min
|
16L/min
|
20L/min
|
||
|
Pump power
|
30W
|
55W
|
88W
|
||
|

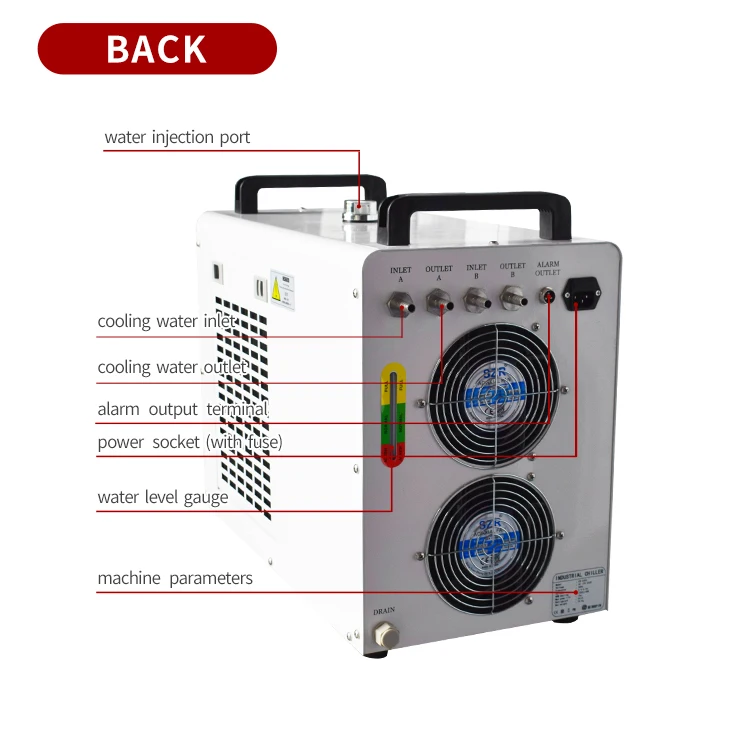

Water outlet
|
Extemal φ10mm brass connector/φ8 quick couplings/φ10 quick couplings/φ12 quick couplings
|
|
|
||
|
Tank capacity
|
7L
|
|
|
||
|
Net weight
|
27.5kg
|
|
|
||
|
Machine size
|
560*290*430mm
|
|
|
||
|
Package size
|
640*360*540mm
|
|
|
||
Install steps:
1. Open the package to check if the machine is intact and all the necessary accessories are completed.
2. Open the mouth screw on the top of machine, add cooling water (Please don't power the machine without water).
3. According to system conditions, connect the water isnlet and outlet pipe well.
4. Connect the power cable, turn the power switch (Note: Don't let the water overflow).
5. Check the radiator water level again (Keep the distance between water level and mouth is 80-150mm).
1. Open the package to check if the machine is intact and all the necessary accessories are completed.
2. Open the mouth screw on the top of machine, add cooling water (Please don't power the machine without water).
3. According to system conditions, connect the water isnlet and outlet pipe well.
4. Connect the power cable, turn the power switch (Note: Don't let the water overflow).
5. Check the radiator water level again (Keep the distance between water level and mouth is 80-150mm).
PRODUCT DETAILS
Quality Assurance / Long Quality Assurance

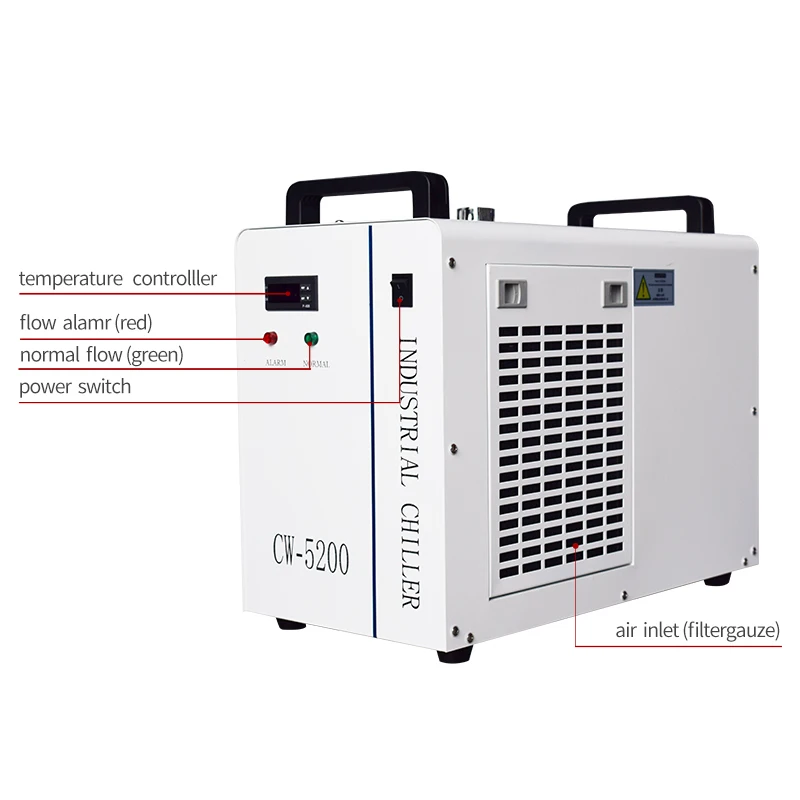

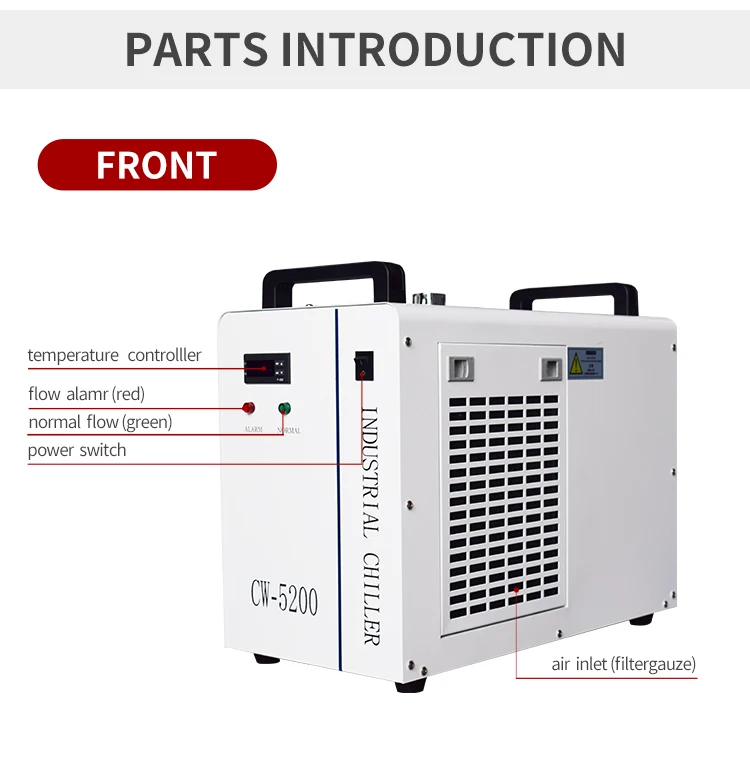

User-friendly control panel
temperature control of ±0.3鈩� and
two user-adjustable temperature control modes- constant temperature mode and intelligent control mode.

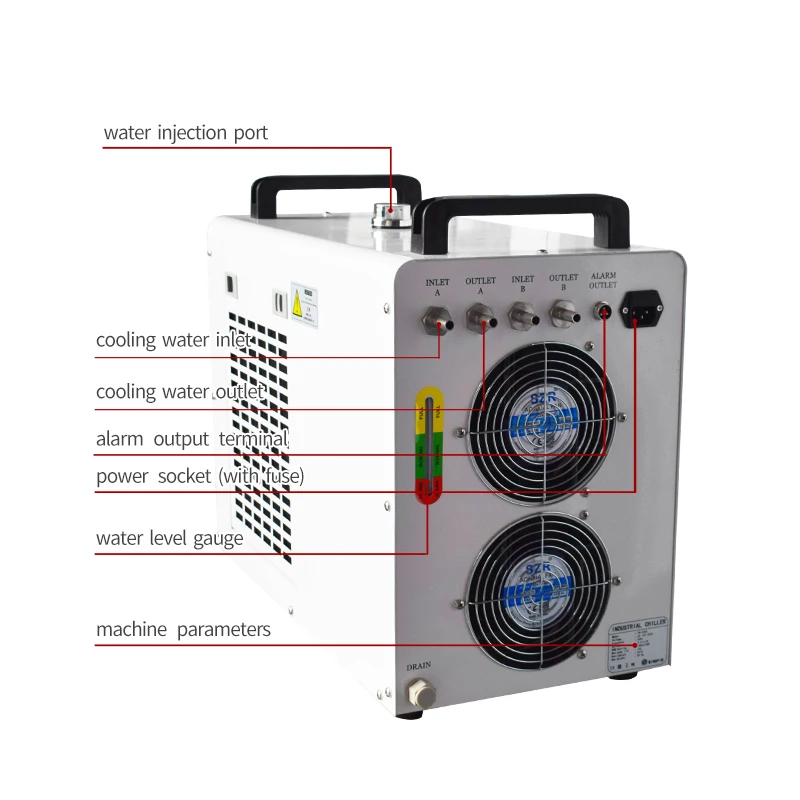

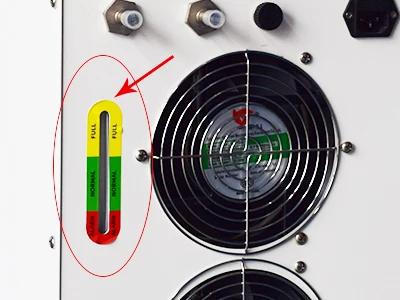

Easy-to-read water level indicator
The water level indicator has 3 colorareas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

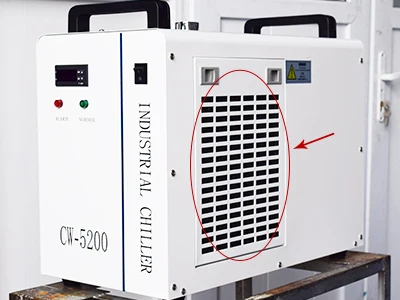

Dust-proof filter
Integrated with the grill of the sidepanels, easy mounting and removal.
Product Packaging
Quality Assurance / Long Quality Assurance
1 unit of industrial chiller
1 copy of user manual

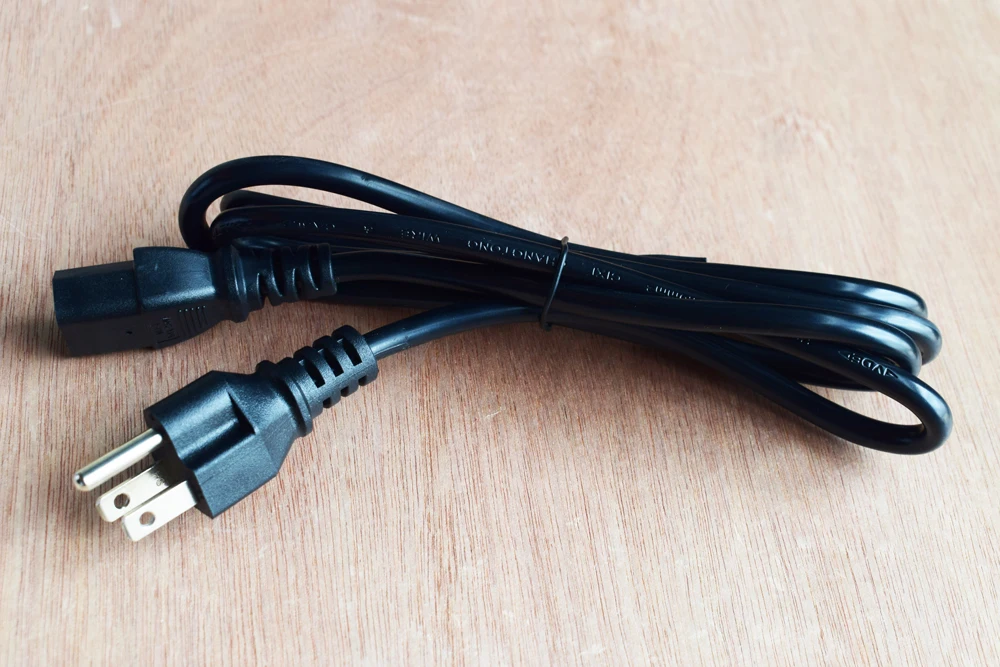

1 pc of power cord

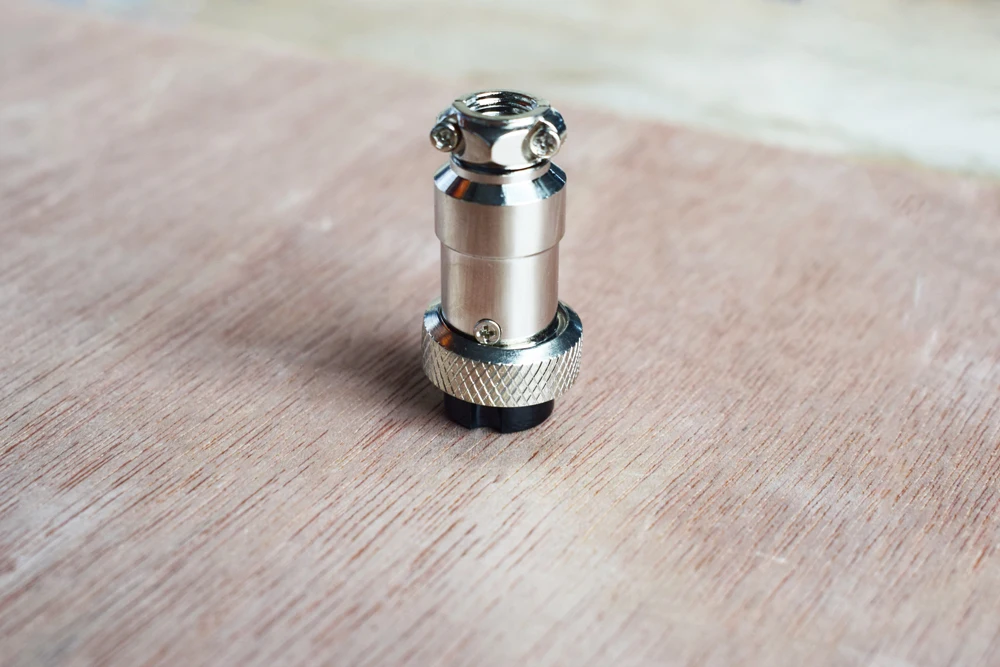

1 pc of alarm signal output plug
1 pc of spare fuse (Held in the spare fuseholder of power socket)
2 pcs of sealed hoop (optional)

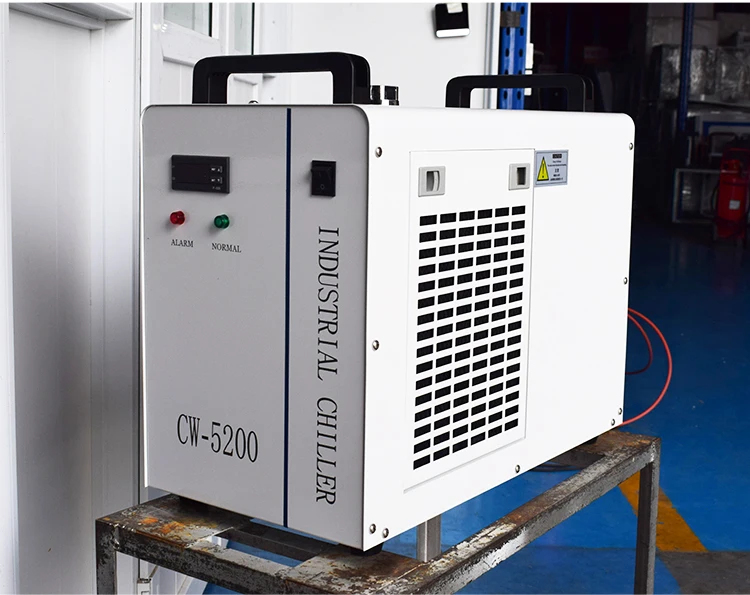

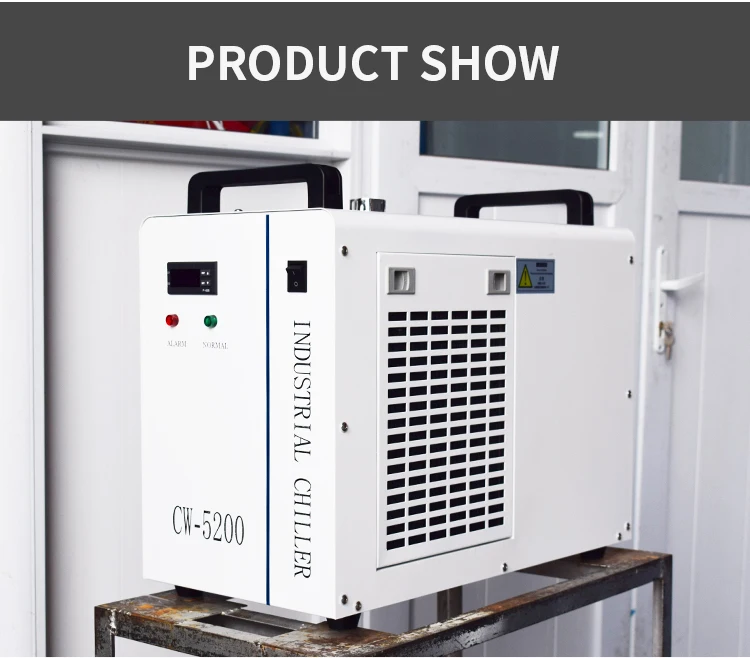

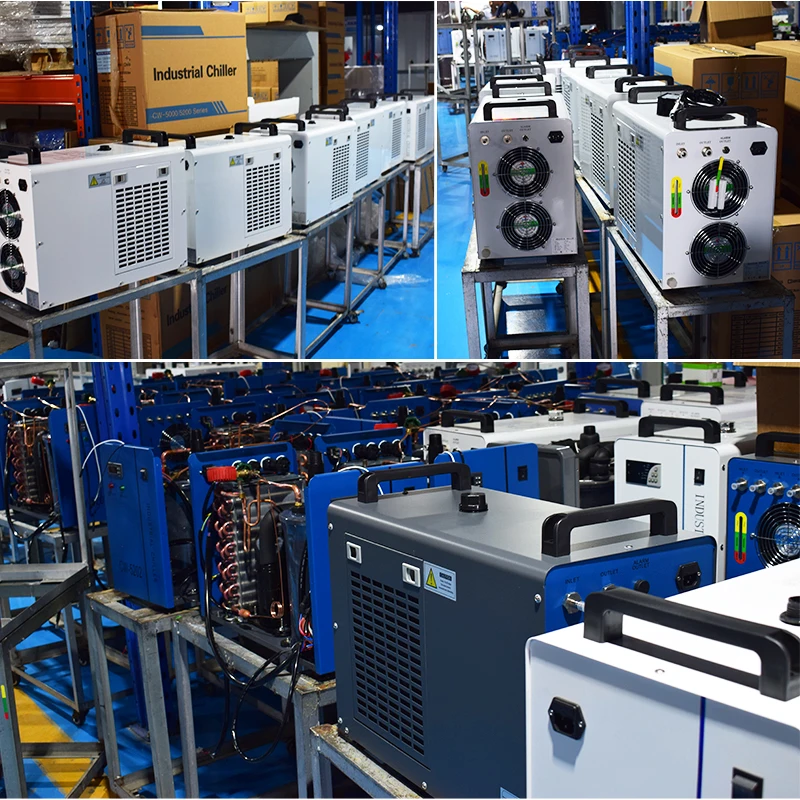

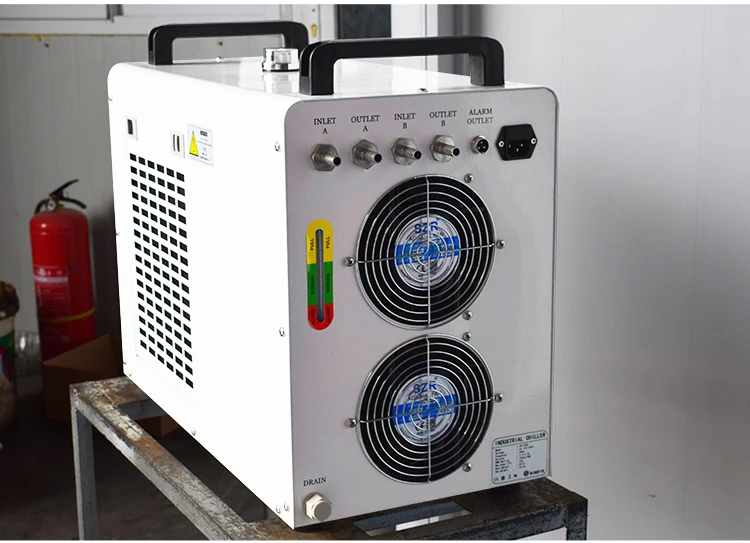

Product Show
Customer Feedback
Certifications

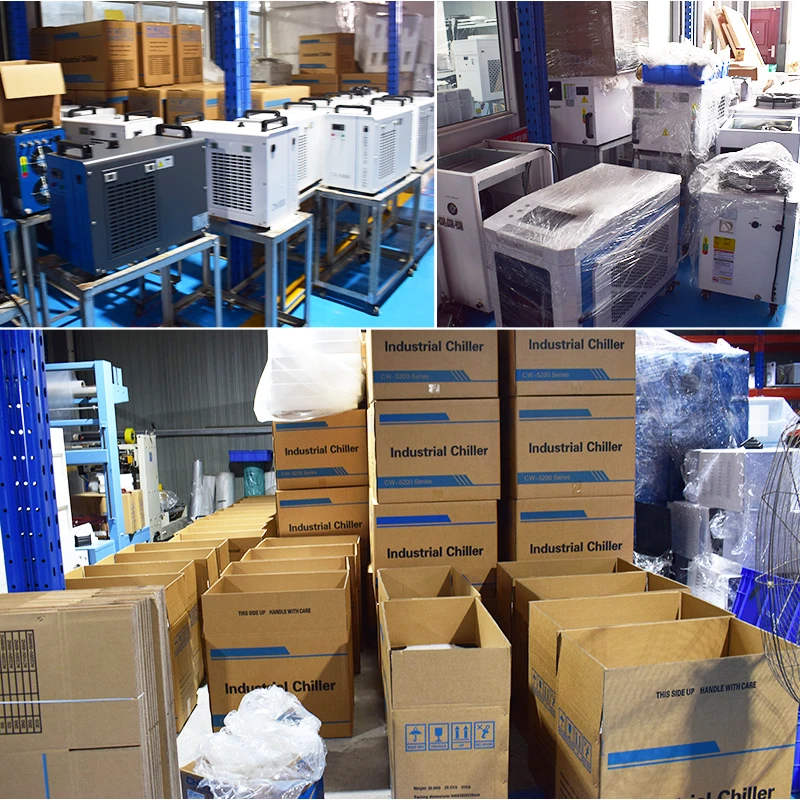

Product Packaging
Company Profile
FAQ
1.About us
We are in Jinan, Shan Dong, which is the hometown of CNC Router. We are focus on CNC Machine Parts.
We've been in this business for more than 10 years.
2.What products do we have?
We have many CNC Machine Parts , include Spindle,Inverter,stepper motor,driver,guide rail,sliding block,
rack,gear box,water pump,dust collector,coupling,tool-setter,tool cutter. And so on ...
3.How we guarantee the quality of the products?
Each batch of products will pass the test before leaving the factory.
Before delivery, we will check the list one by one.
4.Why you should choose us?
We are focus on CNC Router Parts more than 10years. We can provide you with the overall solution, We
can offer you many type CNC products.Just tell us which you need , we will provide you as the best price
and the best quality and service.
5.What's the payment term?
We normally accept T/T, Western Union, L/C, and Paypal.
6.What about the shipping ?
We support multiple modes of transportation,such as by express,by air,by sea,by rail and so on.
Also can shipping by DHLFedExTNTUPSEMS and so on.
We can offer different type transactions: FOBEXWFCADAPCIF.
We can also help you to keep other suppliers goods at our warehouse and shipping together.
7.How to place an order?
Just tell us what you need , then we can make a Invoice for you. If all OK , then make the order and we
shipping to you the goods ASAP.In order to ensure that all products are what you need, we will show you the pictures, drawings, videos
and so on before shipping .
8.What about the delivery time?
We have a large warehouse and most of our goods are in stock.When you have order, we can shipping
the goods fast.Generally speaking, the time from our warehouse to the forwarder is about two days, and then the goods
can be sent by DHL FedEx UPS TNT to you.
