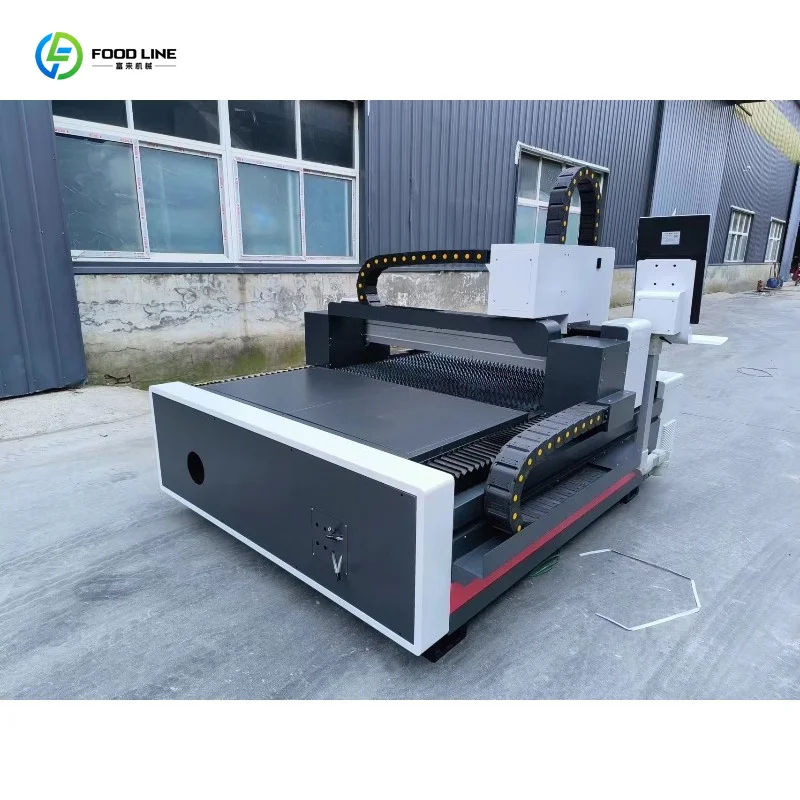

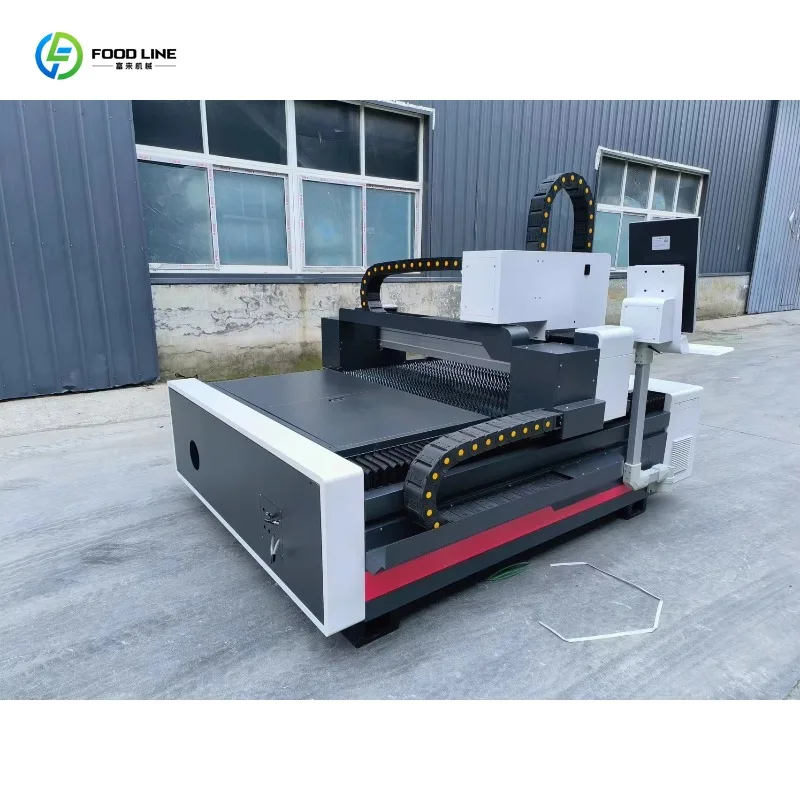

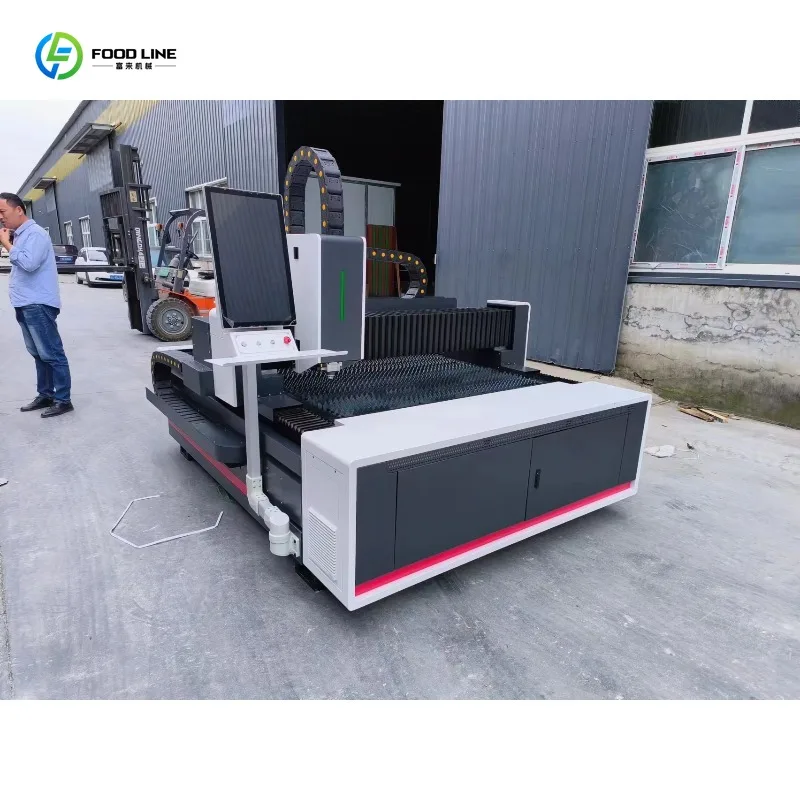

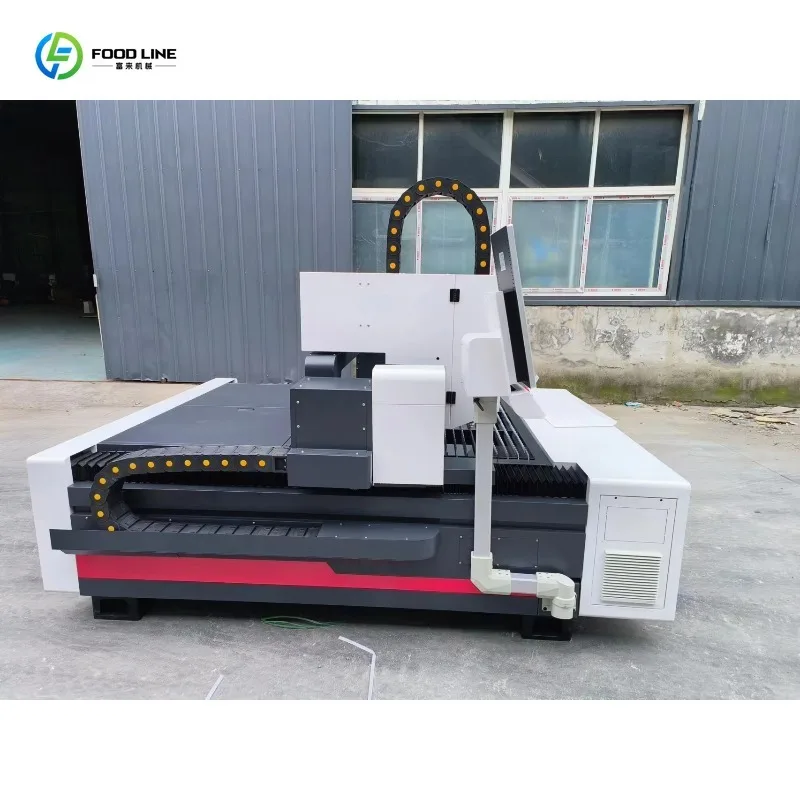

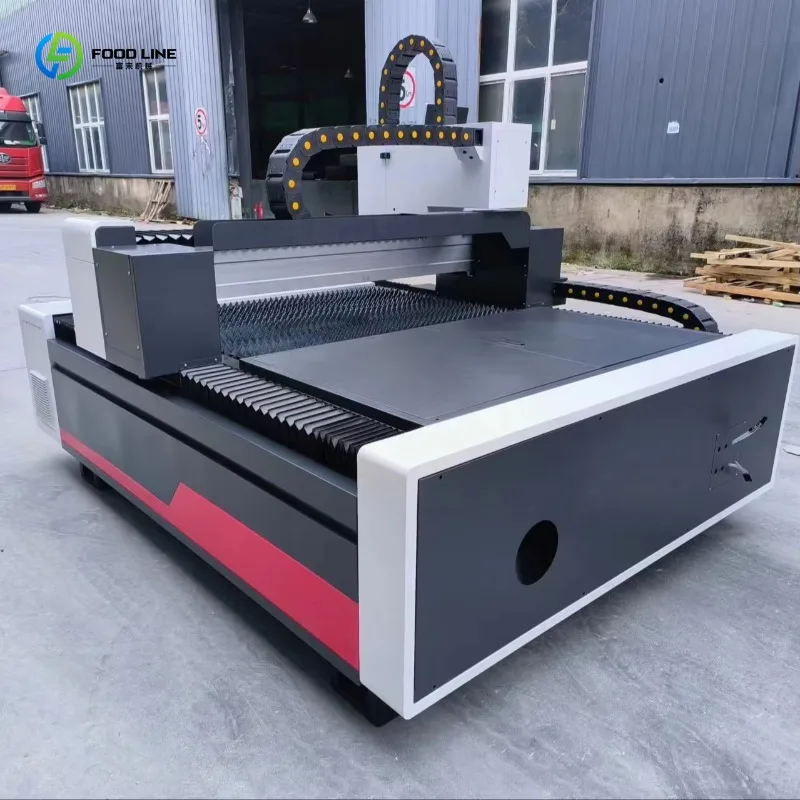

130*90cm Small Fiber Laser Cutting Machine 3000w Fiber Laser Cutter For Stainless Steel
Ruman Laser Fiber Cutting Machine 130*90cm working size
Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
|
MACHINE MODEL
|
1390 fiber cutting machine
|
|
Machine frame |
#New design of our company
#CE standard Heavy duty Plate iron welded machine frame #Cast Aluminum gantry |
|
Controller |
#raytools cutting system + raytools software Controller
#Industrial CPU + cantilever #independent controller box #DSP |
|
Laser system
|

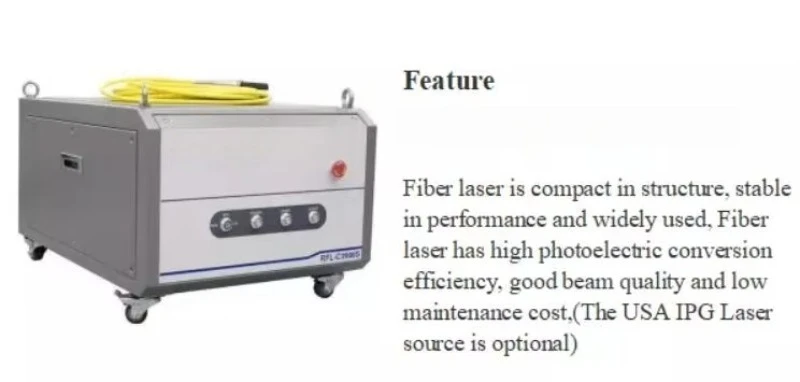

#Fiber laser generator MAX RAYCUS
#Hand laser RAYTOOLS cutting head |
|
Transmission system |

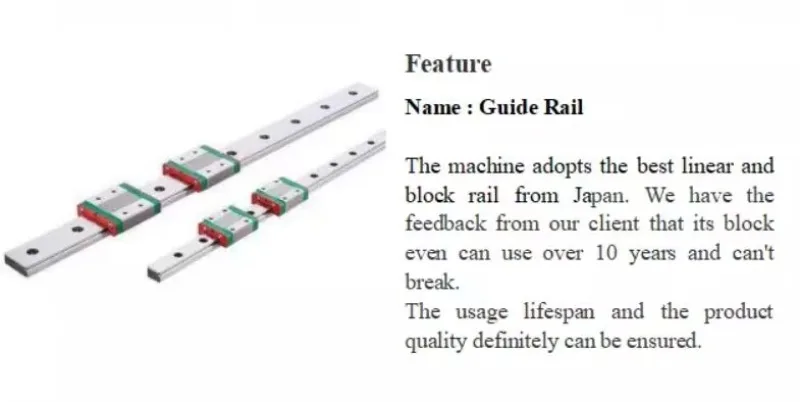

#Taiwan Hiwin guide rail

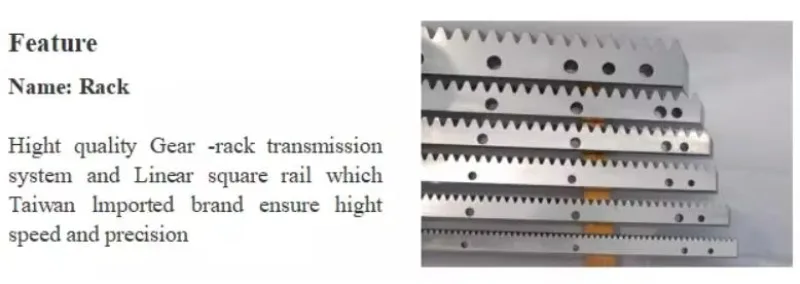

X 25 Y 30 Z：20 #Taiwan YYC gear transmission #Z axis TBI ball screw transmission |
|
Driver system |

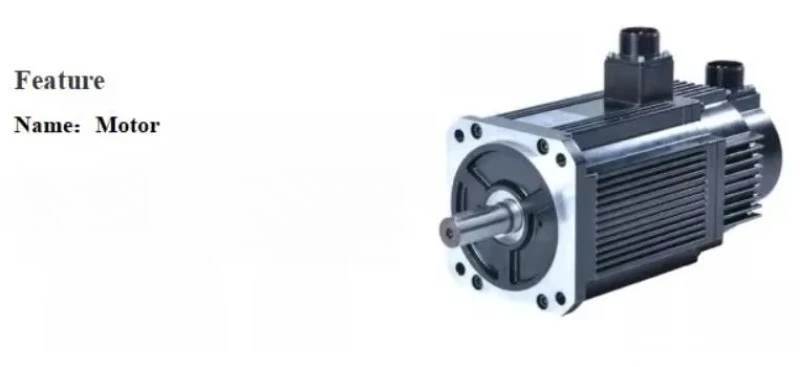

#Japan Fuji servo motor and driver
X：750W Y:850W Z 750W brake #Japanese Shimpo Reducer |
|
Auxiliary equipment
|
#SA Water chiller #Automatic lubrication system
|
|
Other important parts |
#Solenoid valve to control gas switch
#Japan SMC Proportional valve, control gas pressure #France Schneider Electric Device #Software Limited switch +Hard Limited switch #Other tools |
|
Consumable parts
|
#10xCutting nozzle #5xProtective Mirrors
|
|
Service |
#Manual +Video #Two-year warranty
#24 hours online service |
|
Payment
|
T/T 30% advance payment +70% balance payment before delivery
|
|
Model
|
Fiber Cutting Machin 1390
|
|
|
|
|
||||
|
Laser Type
|
Fiber Laser
|
|
|
|
|
||||
|
Laser Wavelength
|
1060nm
|
|
|
|
|
||||
|
Max.cutting speed
|
0-30m/min(Depending on the material and thickness)
|
|
|
|
|
||||
|
X, Y, Z Axis Orientation Precision
|
≤±0.05mm/m
|
|
|
|
|
||||
|
X, Y, Z Axis Repeat Precision
|
≤±0.03mm /m
|
|
|
|
|
||||
|
Min line width
|
≤0.15mm
|
|
|
|
|
||||
|
Maximum Empty Running Speed
|
120m/min
|
|
|
|
|
||||
|
Driving way
|
Imported servo motor
|
|
|
|
|
||||
|
Transmission way
|
Y-axis import gear rack double driver, X-axis imported ball screw
|
|
|
|
|
||||
|
Cooling System
|
Water Cooling
|
|
|
|
|
||||
|
Continuous working time
|
24 Hours
|
|
|
|
|
||||
|
Power requirements
|
380V/3 Phases /50Hz or 60Hz
|
|
|
|
|
||||
|
Packing size (L*W*H)
|
4500x2300x1800mm
|
|
|
|
|
||||

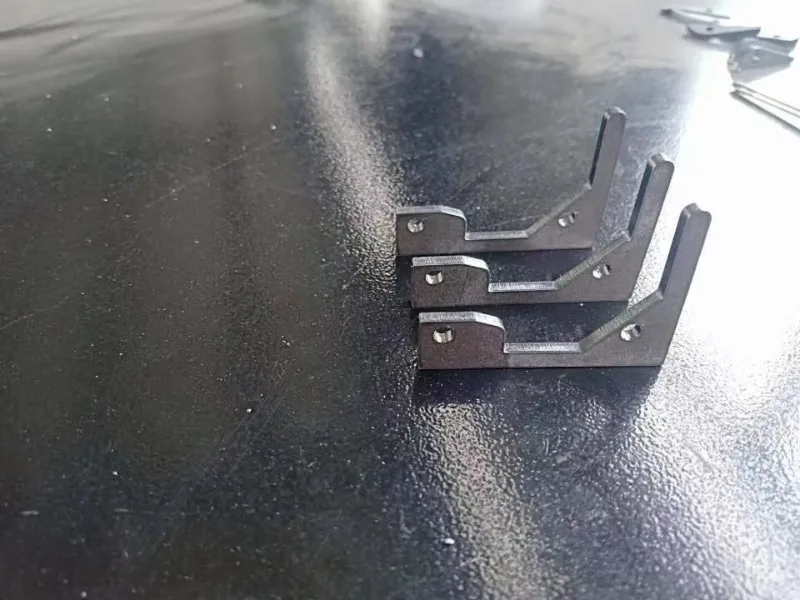

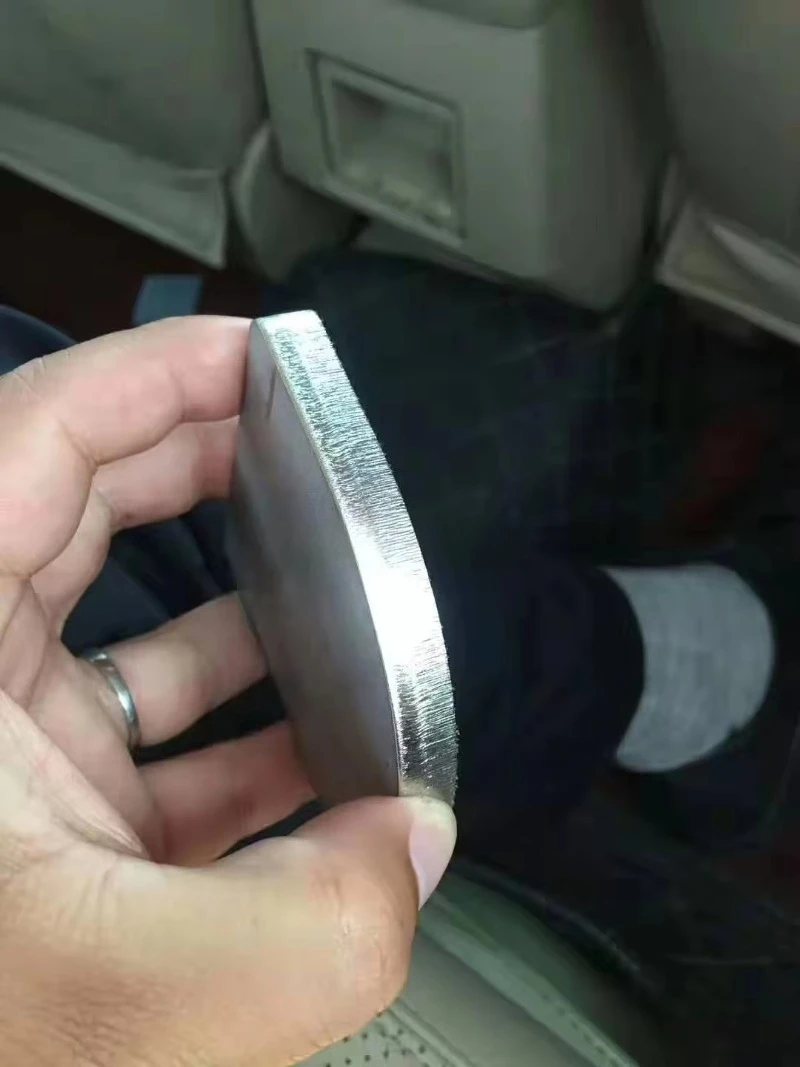

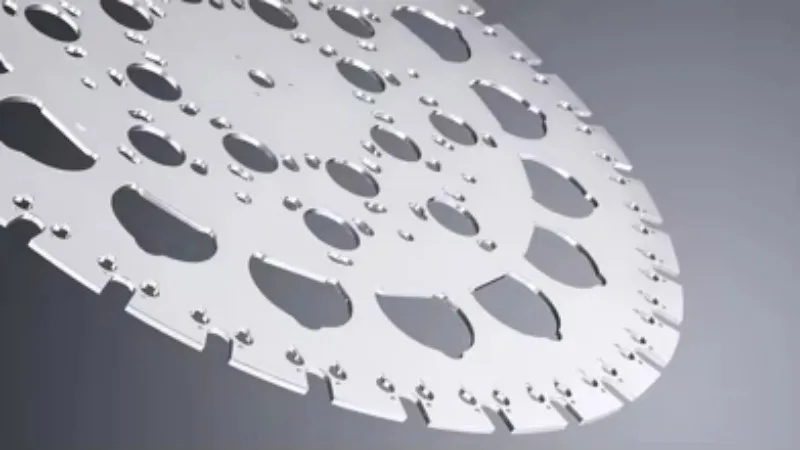

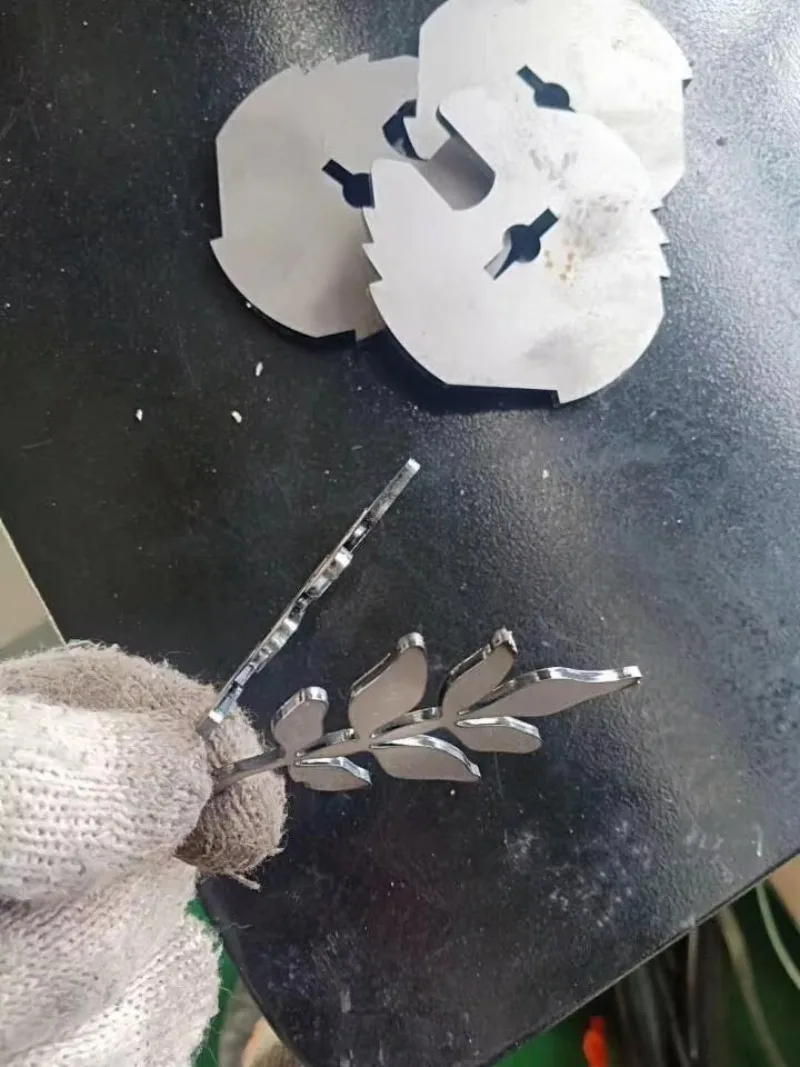

Fiber laser cutting machine work show
FAQ
We are glade that get information from you for your purchase.
)Your material size
)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supply
)Your material size
)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supply
