- Charge Status: No
- High-concerned chemical: none
- Origin: Mainland China
- Applicable material: metal
- brand name: FL
- place of origin: China
- Whether numerical control: Yes
- Condition: New
- configuration: 3 axis
- control software: RAYTOOLS
- Control system brand: Shanghai Bochu
- cooling method: liquid cooling
- Cutting speed: 1-50mm/s
- cutting thickness: 0-20mm
- Product Features: water cooled
- Supports graphic formats: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
- Guide brand: PMI
- core selling point: high precision
- Laser head brand: Raytools
- operating mode: continuous wave
- Business products: plate
- Servo motor brand: Fuji
- Warranty: 2 years
- weight: 1400 KG
- Cutting area: 1300Mm * 900mm
- Laser brand: Chuangxin laser
- control system: RAYTOOLS automatic cutting
- Product name: Fiber laser metal cutting machine
- cutting material: Stainless steel carbon steel aluminum
- laser source: RAYCUS MAX
- work area: 1300mmX900mm
- Laser type: fiber laser,CW Fiber Laser
- laser head: Raytools cutting head
- application: laser cutting
- applicable industry: Building materials stores, manufacturing plants, mechanical repair shops, construction projects, advertising agencies
- Mechanical test report: provide
- Video Output - Check: provide
- Warranty of core components: 3 years
- core component: Motor, gear, gearbox, PLC
📞WA/Telephone:+8613733839562
📧Email address:Lechi06@163.com
1.This is a custom made item.
2.The price onyfor reference,the specific cost based on your equirements and the destination port, please contact us for more product detalsand quotations.
3.Due to differences in products and sizes across countries, all product prices on our website do not include shipping costs. Final shipping costs will be calculated based on actual costs; please confirm with us before placing your order.
4.If you are interested, please contact me using the following methods.👇
📧Email address:Lechi06@163.com

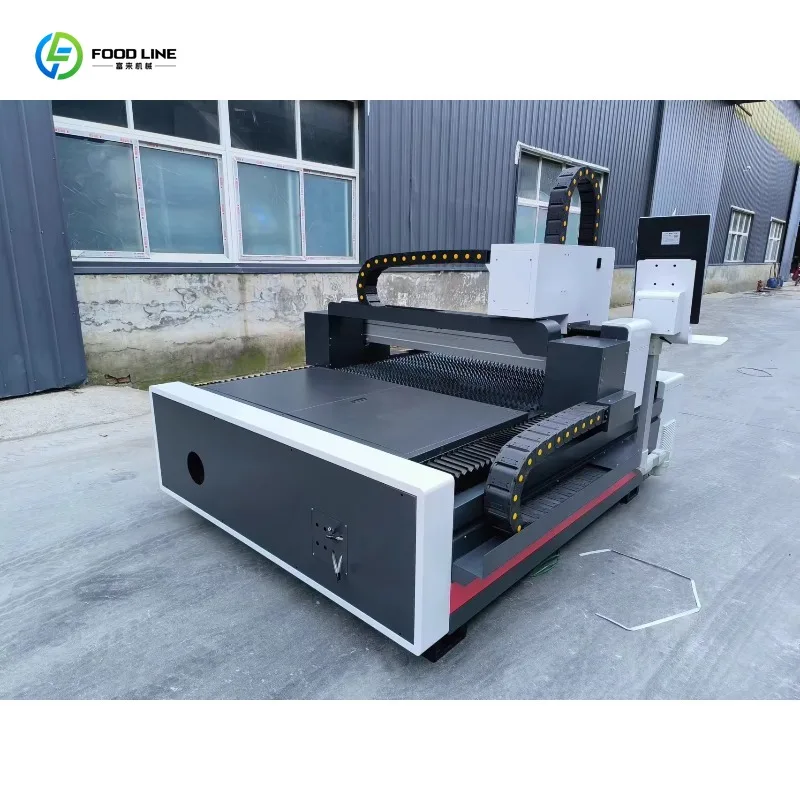

130*90cm Small Fiber Laser Cutting Machine 3000w Fiber Laser Cutter For Stainless Steel
Ruman Laser Fiber Cutting Machine 130*90cm working size
Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
|
MACHINE MODEL
|
1390 fiber cutting machine
|
|
Machine frame |
#New design of our company
#CE standard Heavy duty Plate iron welded machine frame #Cast Aluminum gantry |
|
Controller |
#raytools cutting system + raytools software Controller
#Industrial CPU + cantilever #independent controller box #DSP |
|
Laser system
|
#Fiber laser generator MAX RAYCUS
#Hand laser RAYTOOLS cutting head |
|
Transmission system |
#Taiwan Hiwin guide rail
X 25 Y 30 Z：20 #Taiwan YYC gear transmission #Z axis TBI ball screw transmission |
|
Driver system |
#Japan Fuji servo motor and driver
X：750W Y:850W Z 750W brake #Japanese Shimpo Reducer |
|
Auxiliary equipment
|
#SA Water chiller #Automatic lubrication system
|
|
Other important parts |
#Solenoid valve to control gas switch
#Japan SMC Proportional valve, control gas pressure #France Schneider Electric Device #Software Limited switch +Hard Limited switch #Other tools |
|
Consumable parts
|
#10xCutting nozzle #5xProtective Mirrors
|
|
Service |
#Manual +Video #Two-year warranty
#24 hours online service |
|
Payment
|
T/T 30% advance payment +70% balance payment before delivery
|
|
Model
|
Fiber Cutting Machin 1390
|
|
|
|
|
||||
|
Laser Type
|
Fiber Laser
|
|
|
|
|
||||
|
Laser Wavelength
|
1060nm
|
|
|
|
|
||||
|
Max.cutting speed
|
0-30m/min(Depending on the material and thickness)
|
|
|
|
|
||||
|
X, Y, Z Axis Orientation Precision
|
≤±0.05mm/m
|
|
|
|
|
||||
|
X, Y, Z Axis Repeat Precision
|
≤±0.03mm /m
|
|
|
|
|
||||
|
Min line width
|
≤0.15mm
|
|
|
|
|
||||
|
Maximum Empty Running Speed
|
120m/min
|
|
|
|
|
||||
|
Driving way
|
Imported servo motor
|
|
|
|
|
||||
|
Transmission way
|
Y-axis import gear rack double driver, X-axis imported ball screw
|
|
|
|
|
||||
|
Cooling System
|
Water Cooling
|
|
|
|
|
||||
|
Continuous working time
|
24 Hours
|
|
|
|
|
||||
|
Power requirements
|
380V/3 Phases /50Hz or 60Hz
|
|
|
|
|
||||
|
Packing size (L*W*H)
|
4500x2300x1800mm
|
|
|
|
|
||||
Fiber laser cutting machine work show
FAQ
We are glade that get information from you for your purchase.
)Your material size
)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supply
)Your material size
)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supply
