- High-concerned chemical: none
- Condition: New
- Origin: Mainland China
- WhatsApp: +86 135 9801 2672
- style: Horizontal
- injection rate (g/s): 200
- machine type: Hydraulic
- injection weight (g): 800
- screw diameter (mm): 56
- distance between tie bars: 535X533mm
- weight (kg): 6900
- place of origin: Henan, China
- power (kw): 15.5
- warranty: 1 Year
- key selling points: High Productivity
- Plastic Type: Thermoplastic
- Automatic: Yes
- Injection pressure: 147Mpa
- Screw speed: 0-180r.p.m
- Nozzle Diameter: 20Srmm
- Mould Thickness: 200-530mm
- Ejector tonnage: 70KN
- Hole Diameter: 160mm
- Max. pump pressure: 16MPa
- Machine dimension: 5.8X1.8X2.0m
- Opening Stroke: 510mm
- Clamping Force (kN): 2300
- Applicable Industries: Manufacturing Plant
- Condition: New
- Type: Injection molding machine
PLEASE NOTE:
1.This product is custom-made. Please contact us if you have any other requirements.
2.We will provide you with a final price after understanding your specific needs.
3.Due to variations in product size and shipping costs, all products on our website do not include shipping fees.
4.The final cost will be calculated based on your requirements and shipping costs.
5.Please confirm with us before placing your order.
email address : Mike042025@163.com
whatsapp:+86 13598012672

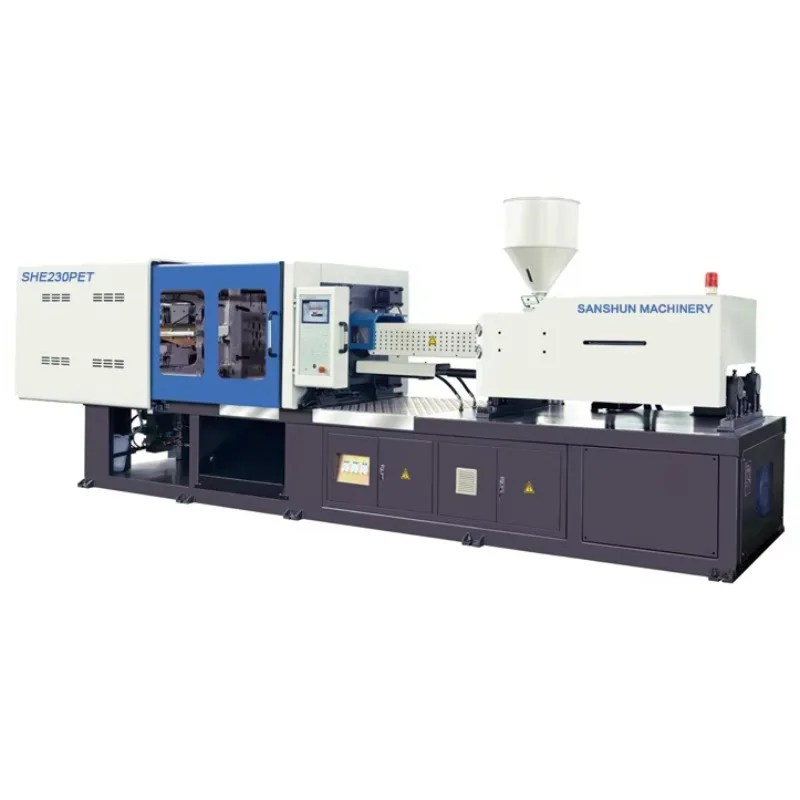

Factory directly sale injection molding machine with cheap price
Product Information
| MODEL | SHE230PET | ||
| INJECTION | UNIT | A | B |
| Screw diameter | mm | 56 | 60 |
| Shot size(theoretical) | Cm³ | 730 | 830 |
| Shot weight | g | 800 | 910 |
| Injection pressure | Mpa | 147 | 128 |
| Injection rate | g/s | 200 | 220 |
| Screw L/D ratio | L/D | 24.5 | 23 |
| Screw speed | r.p.m | 0-145 | |
| Nozzle Diameter | Srmm | 20 | |
| CLAMPING UNIT | |||
| Clamp tonnage | KN | 2300 | |
| Toggle stroke | mm | 480 | |
| Mould Thickness | mm | 200-510 | |
| Space between tie-bar | mm | 535X533 | |
| Ejector stroke | mm | 155 | |
| Ejector tonnage | KN | 70 | |
| Ejector number | Piece | 9 | |
| Hole Diameter | mm | 160 | |
| OTHERS | |||
| Heat power | KW | 15.5 | |
| Max. pump pressure | MPa | 16 | |
| Pump motor power | KW | 22 | |
| Valve Size | mm | 16 | |
| Machine dimension | m | 5.8X1.8X2.0 | |
| Machine weight | t | 6.9 | |
| Oil tank capacity | L | 300 | |
Application
Injection Molding Machines are widely used in Automotive, Packaging, Electrical, Medical, Household and Appliance sectors. In particular, increasing demand in emerging economies fueled the growth of the injection molding machine market.
