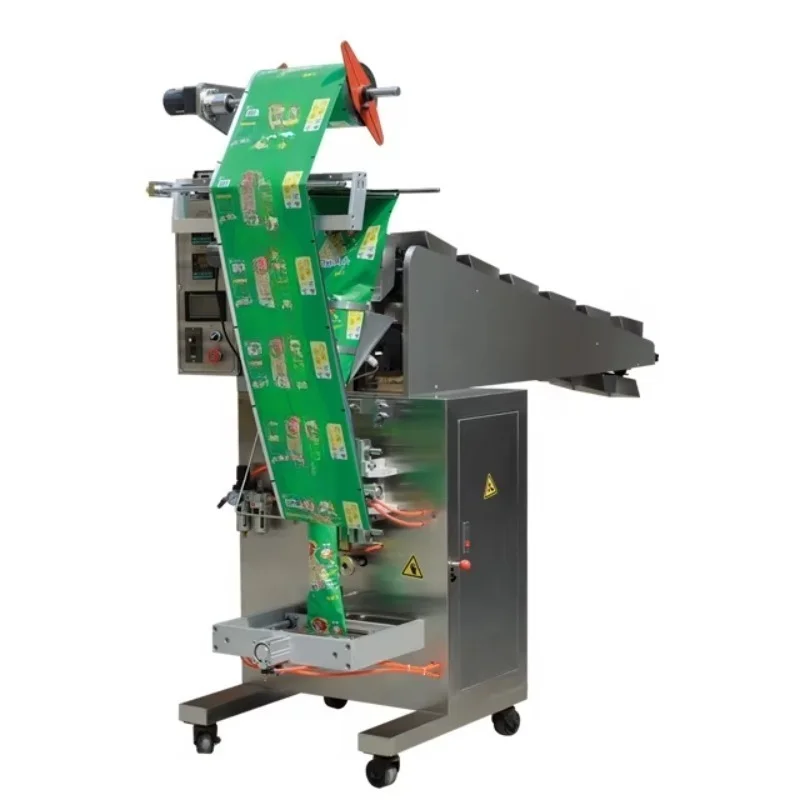

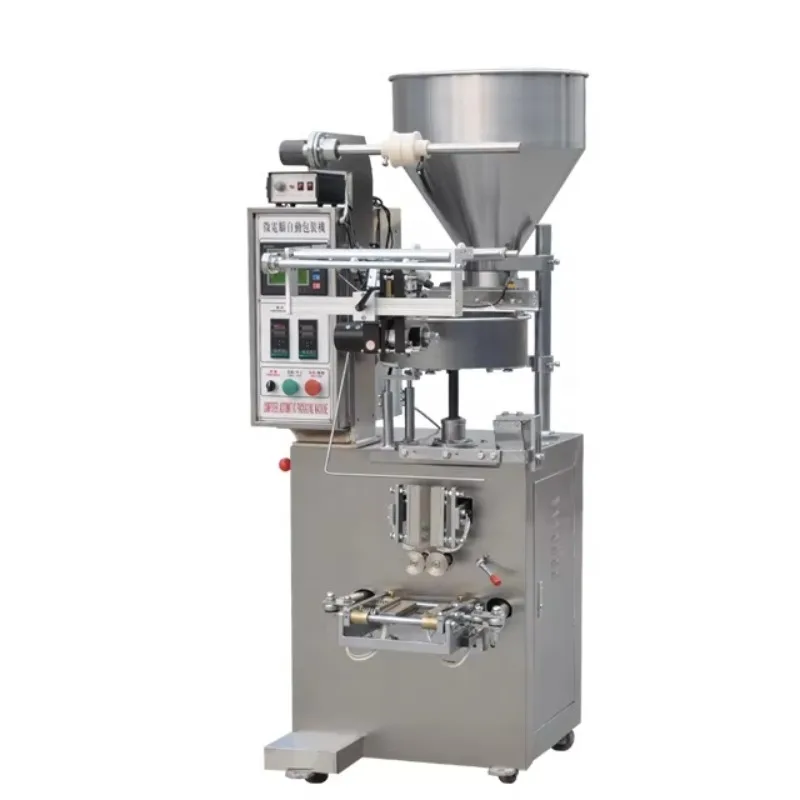

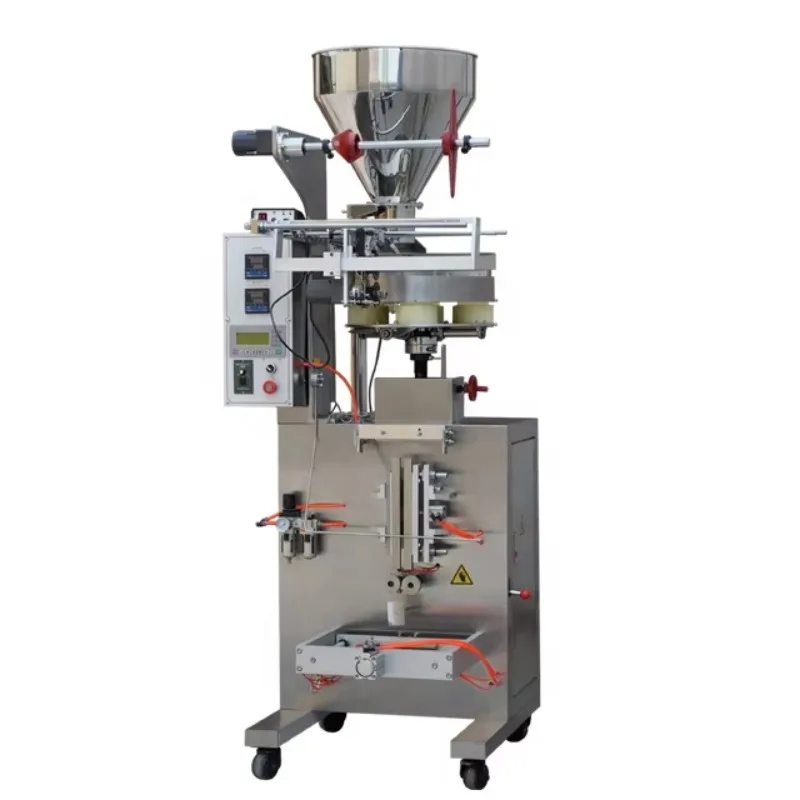

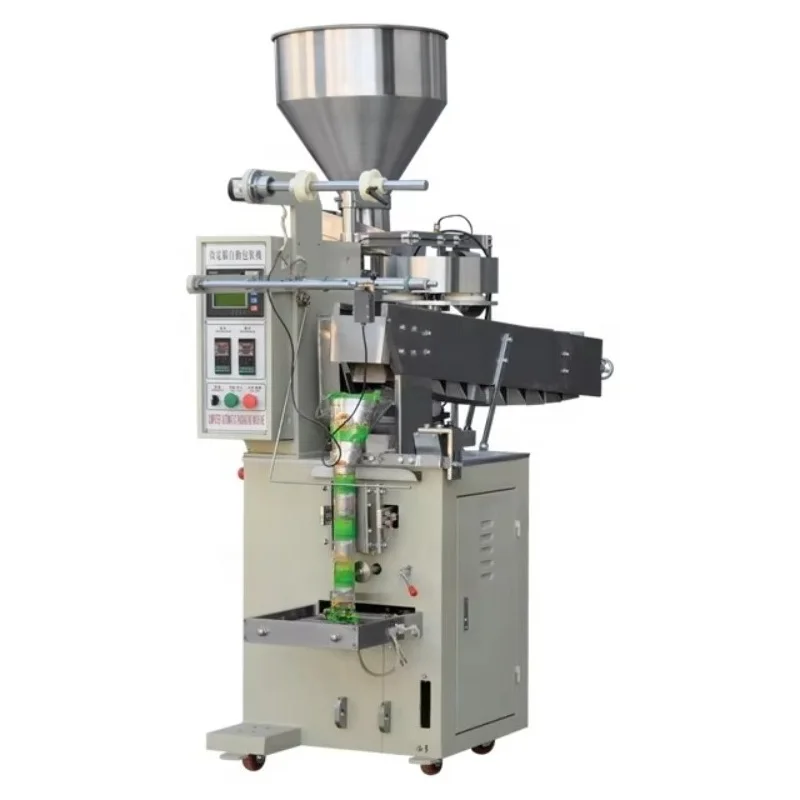

Custom Multi-Function Automatic Vertical Packing Machine for Small Sachets Spices Powder Coffee Tea Bag Filling and Packaging

PLEASE NOTE:
1.This is a custom-made item.The price only for reference,the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !
4.please fell free contact us by email or whatsapp
mail address: fumai05@163.com
wechat:+86 13592697915
whatsapp:+86 13592697915

Dear Buyer,
This product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.
Due to the different product sizes and shipping costs in each country,all products on our website do not include shipping costs.The final shipping cost needs to be calculated based on the actual cost, please confirm with us before placing an order.

Product Description

1.Characteristics

a. .Imported PLC computer control system with human-machine inter face; touch screen and direct-viewing in operation;
b. Precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
c. Upported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, date printing;
d. The way of bag making: the machine can make pillow-type bags, vertical angle bags and hanging bags according to customer’s requirements
2. Applications
This Packaging machine is suitable to use in packaging the high accurancy and easy fragile material, such as puffy food, crispy rice, jelly, candy, pisachio, apple slice, dumplings, chocolate, pet food, small hard ware etc.

Model	GQ-420	GQ-520	GQ-720
Speed	Max 80bags /min	Max 50bags /min	Max 40 bags /min
Bag Size	width:50-300ml	Width:80-350ml	Width:100-350ml
		Length:60-200ml	Length:80-250ml	Length:100-450ml
Width of film	420mm	520mm	720mm
Rang	Max 1300ml	Max 2000ml	Max4000ml
Power	220v 2.5kw 50-60HZ	220v 2.2kw 50-60HZ	220v 4kw 50-60HZ
Film	POPP/CPP,POPP/PE,BOPP/PE,PET/AL/PE,NY/PE
Gas need	0.6Mpa 0.25m3/min	0.6Mpa 0.25m3/min	0.8Mpa 0.40m3/min
Size	L1400×W970× H1600mm	L1430×W1200× H1700mm	L1780×W1350× H2050mm

Main Machine Details

The whole machine consists of five parts:

1. basic packaging machine

2. 10/ 14/ 16 mui-heads weigher
3. supporting platform

4. Z type bucket elevator with vibration feeder

5. finished conveyor

automatic packaging machine

1).Imported PLC computer control system, all Chinese / English touch screen operating system
2).Equipped with servo film transporting system,transport placidly, the photoelectric automatic tracking location system makes sure the high positioning precision
3).The intelligent digital temperature control, stability, sealing device with tooth, ensure firm sealing
4).With automatic fault alarm display function, such as low temperature, no packaging film, ribbon, no material, no color, servo fault signal, the alarm or shut down function can be set automatically when the glass door open;
5)supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling,
date printing, finished product output.

Fourteen heads combination weighter

By adopting this weighing scale, the weight of materials in every bucket can be shown on the screen, when problem accures, workers can easily adjust the equipment. Up to 12 languages to choose. It can set the bucket open one by one, so that the big piece or easy break products will not discharge together and jam the input tube of the packing machines and reduce the break late of the products. Password can be set, so that the user cannot change the main setting easily, easy for operator to manage the machine.
Imported Photoelectric eyes to check the products: if the products on the top corner is not enough for next dump, it will give signal to the packing machine to let it stop baging and at the same time will give the signal to the elevator to let it send products.

Z-type elevator(rapping device)

The lifting machine is applicable to vertical lifting food,feed and chemical department. It lift the hoppers by transform the chains to lift particles and patches of material, it’s advantage is huge enhance and high enhance.

Our Service

1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.

FAQ

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

Packing & Delivery

Packing and delivery
• Inside package is plastic film, outside is wooden or plywood case(based on the customers’
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
