- Químico Hign-em causa: Nenhum
- Sistema Operacional: windows/macOS
- Fatia de Software: LaserGRBL LightBurn
- Formato de arquivo: Gcode
- Certificação do CE: Sim
- Nome da marca: CREALITY 3D
- Origem: CN (Origem)

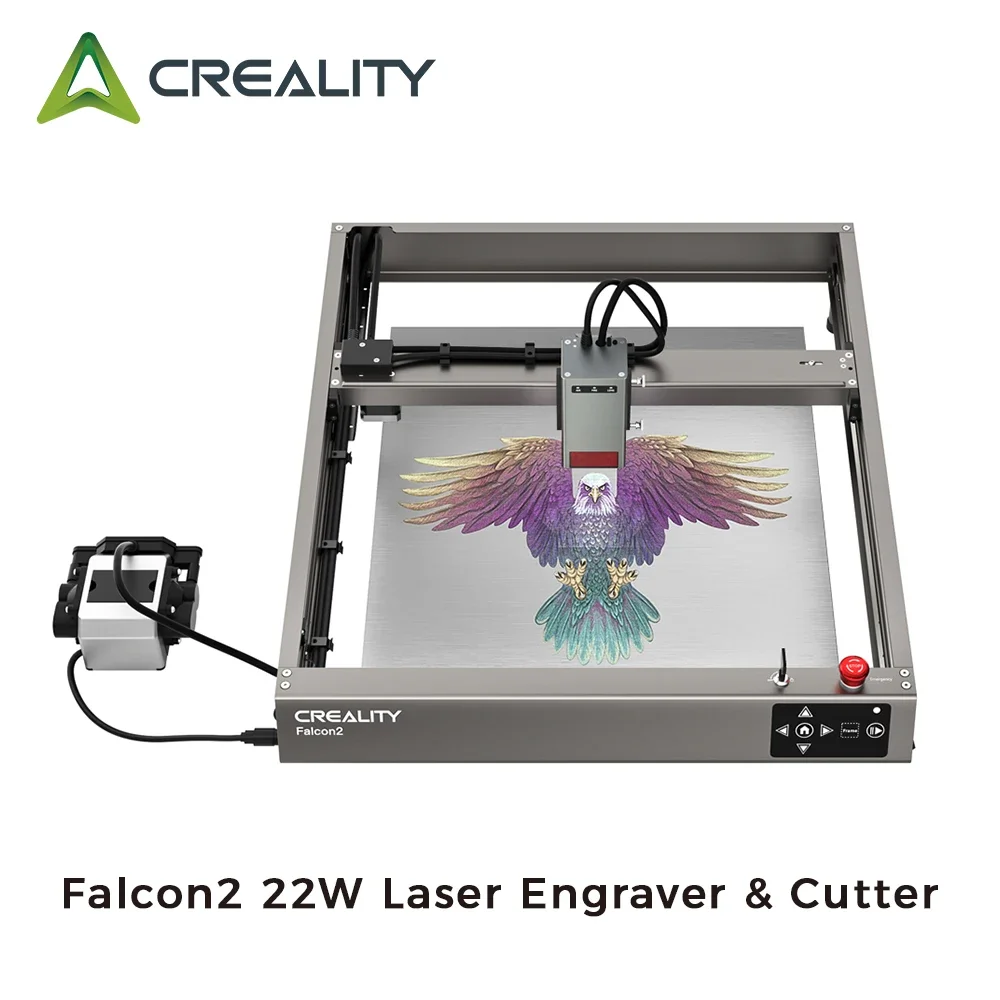

Falcon2 22W Laser Engraver & Cutter
Specifications:
Model: Creality Falcon2 22W and Rotary Kit Pro Upgrade Package
Model: Falcon2
Laser Power: 22W
Cutting Capacity: Cut 15mm wood with one pass
Engraving Speed: 25000mm/min
Colorful Engraving: Support
Spot Size: 0.1mm
Working Area: 400x415mm
Laser Wavelength: 455±5nm
Resolution: 254dpi
Laser Source: Diode Laser
Input Voltage: 100-240V~50~60Hz
Output Voltage: DC 24.0V 5.0A
Supported File Formats: svg,png,jpg,jpeg, bmp, dxf
Supported Software: LaserGRBL,LightBurn
Supported Materials: Cardboard,wood.bamboo.rubber.leather,fabric,acrylic, plastic, metal
Engraving File Format: Gcode
Operating System: windows/macOS
Features:
1. 22W Cutting Power: More Powerful Than Ever, Cuts 0.1mm Metal
2. Fast and Productive: Engrave at 25000mm/min for Faster Creation
3. Integrated Air Assist: Ensures A Cleaner Result and Protects the Laser Lens
4. Hassle-Free Assembly: Only 3 Steps for Beginners
5. Five Safety Protections: For A Safer and More Secure Experience
6. Colorful Engraving: Produces Hundreds of Colors that Bring Your Works to Life
7. Extensive Compatibility: Compatible with Various Systems and Software, including Windows and macOS systems, and software such as LaserGRBL and LightBurn.
8. Offline Creation: Create Anytime, Anywhere with A TF Card
9. Triple Monitoring Systems: Ensures Flame Detection and Property Security
10. Outstanding Motion Stability: High Synchronization for A More Stable Movement.

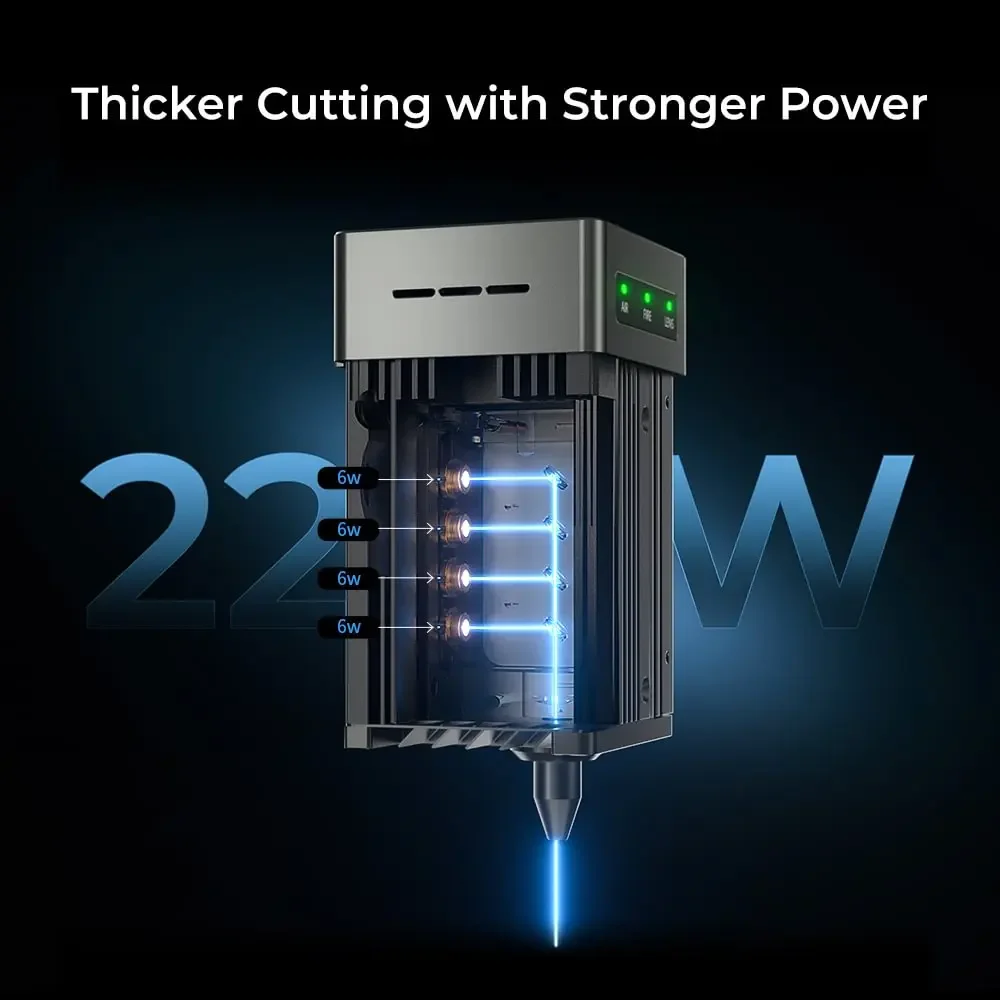

22W More Powerful Than Ever
Based on the latest FAC spot compression technology, four powerful 6W laser diodes are compressed to increase the laser power to 22W.
25000mm/min Fast for Higher Productivity
With 2x faster engraving speed, Falcon2 allows you to spend less time creating more.

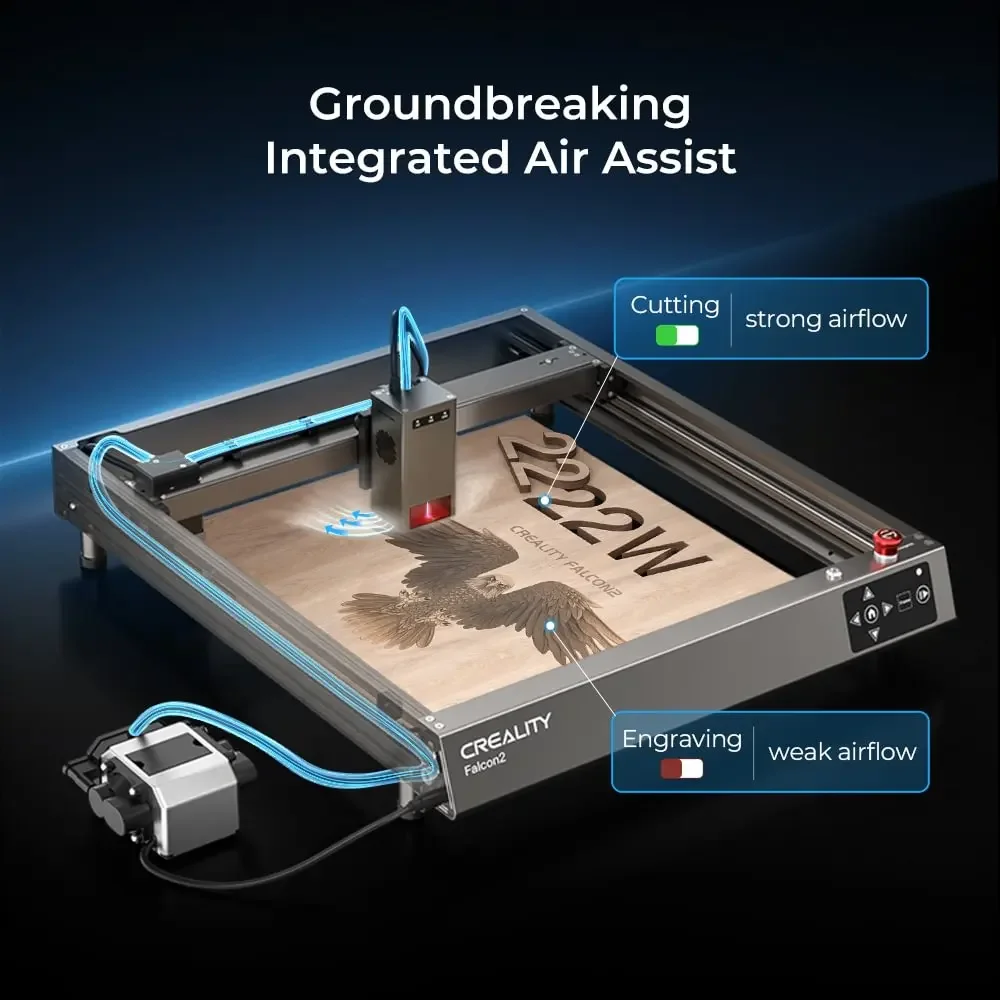

Groundbreaking Integrated Air Assist
Manually adjust the air assist steplessly through the knob, or it can automatically adjust the airflow through LightBurn, to remove smoke and protecthe laser lens, bringing a cleaner result.
Triple Monitoring Systems
(Note: The alarm function is disabled by default. Please enable it in the settings if needed.)

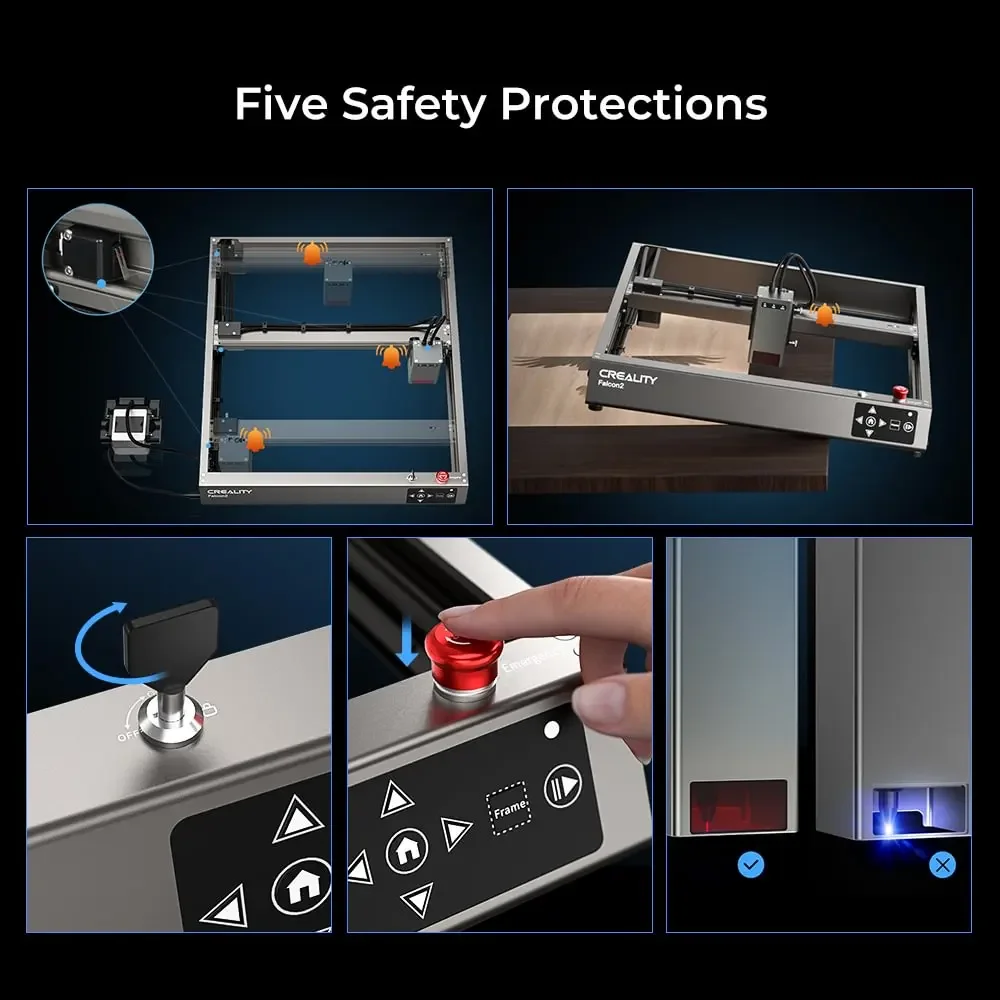

Five Safety Protections
1. Bidirectional Limit Switch
If the laser head hits the boundary, the machine willstop automatically and a buzzer will sound an alarm.
2. Active Stop Function
The machine will stop working in case of accidental tilt, flip or drop, with the buzzer and indicator sending alert.
3.Security Lock Design
Professional use only.
4.Emergency Stop Button
Ifan emergency occurs during operation,you can also manually stop the machine immediately.
5. Laser Protective Cover
Made of high-efficiency colored filter glass material, the protective cover around the laser head will effectively prevent the laser from dazzling the eyes.
Cet Things Done with Less Hassle
Only3 steps are needed for full assembly. You can enjoy creating as soon as possible.
Extensive compatibility
Compatible with a variety of systems, including Windows and macOS systems, and software such as LaserGRBL and LightBurn.
Support offline Creating
Just insert a TF card, and you can feel free to create anytime, anywhere.
Offline Dynamic Preview
Position and adjust precisely without connecting to a computer.
Outstanding Motion stability
The full aluminum alloy structure design brings a more solid machine, ensuring exceptional stability even in high-speed operation.

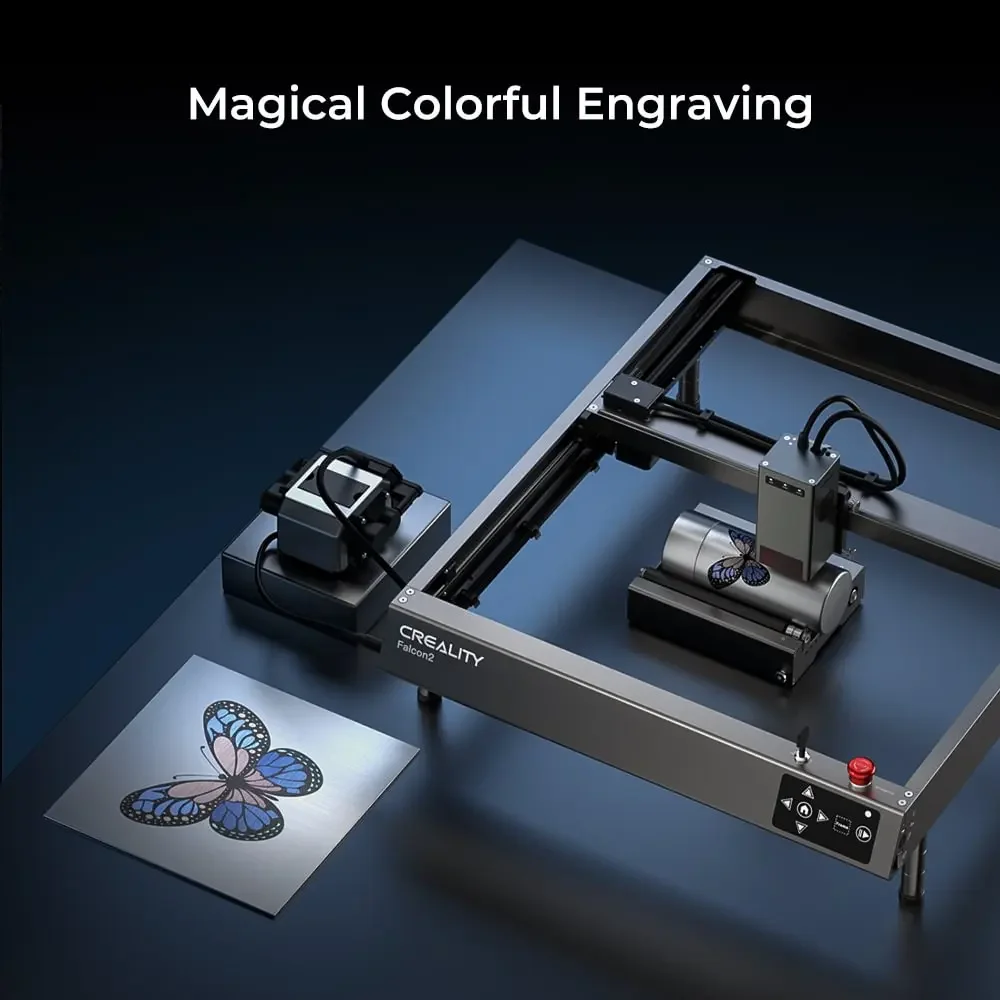

Add Some Colors to Your Works, and your life
When the stainless steel is heated by the super powerful laser beam, the metal surface will physically react and produce hundreds ofcolors, bringing your works to life.
Take the Experience Further
There are 3 adjustment holes on the bottom of the machine to suit different table sizes.
Silicone Pads
Can be fine-tuned manuallyto suit uneven tables.
Adjustable Risers
Multi-segment equal-lengthrisers to increase the heightfor engraving skateboards,basketballs and other talle!objects.(Note: 8 sections ofrisers are provided.)
Integrated Cable Storage
Keep it secure and well-organized.
Unlock Your Creativity with Creality Falcon2
From DlY home projects to maker education, fromjewelry customization to business signage, whatever you can think of, you can make with Falcon2.
Specifications:
Model: Creality Falcon2 22W and Rotary Kit Pro Upgrade Package
Model: Falcon2
Laser Power: 22W
Cutting Capacity: Cut 15mm wood with one pass
Engraving Speed: 25000mm/min
Colorful Engraving: Support
Spot Size: 0.1mm
Working Area: 400x415mm
Laser Wavelength: 455±5nm
Resolution: 254dpi
Laser Source: Diode Laser
Input Voltage: 100-240V~50~60Hz
Output Voltage: DC 24.0V 5.0A
Supported File Formats: svg,png,jpg,jpeg, bmp, dxf
Supported Software: LaserGRBL,LightBurn
Supported Materials: Cardboard,wood.bamboo.rubber.leather,fabric,acrylic, plastic, metal
Engraving File Format: Gcode
Operating System: windows/macOS
Features:
1. 22W Cutting Power: More Powerful Than Ever, Cuts 0.1mm Metal
2. Fast and Productive: Engrave at 25000mm/min for Faster Creation
3. Integrated Air Assist: Ensures A Cleaner Result and Protects the Laser Lens
4. Hassle-Free Assembly: Only 3 Steps for Beginners
5. Five Safety Protections: For A Safer and More Secure Experience
6. Colorful Engraving: Produces Hundreds of Colors that Bring Your Works to Life
7. Extensive Compatibility: Compatible with Various Systems and Software, including Windows and macOS systems, and software such as LaserGRBL and LightBurn.
8. Offline Creation: Create Anytime, Anywhere with A TF Card
9. Triple Monitoring Systems: Ensures Flame Detection and Property Security
10. Outstanding Motion Stability: High Synchronization for A More Stable Movement.
22W More Powerful Than Ever
Based on the latest FAC spot compression technology, four powerful 6W laser diodes are compressed to increase the laser power to 22W.
25000mm/min Fast for Higher Productivity
With 2x faster engraving speed, Falcon2 allows you to spend less time creating more.
Groundbreaking Integrated Air Assist
Manually adjust the air assist steplessly through the knob, or it can automatically adjust the airflow through LightBurn, to remove smoke and protecthe laser lens, bringing a cleaner result.
Triple Monitoring Systems
(Note: The alarm function is disabled by default. Please enable it in the settings if needed.)
Five Safety Protections
1. Bidirectional Limit Switch
If the laser head hits the boundary, the machine willstop automatically and a buzzer will sound an alarm.
2. Active Stop Function
The machine will stop working in case of accidental tilt, flip or drop, with the buzzer and indicator sending alert.
3.Security Lock Design
Professional use only.
4.Emergency Stop Button
Ifan emergency occurs during operation,you can also manually stop the machine immediately.
5. Laser Protective Cover
Made of high-efficiency colored filter glass material, the protective cover around the laser head will effectively prevent the laser from dazzling the eyes.
Cet Things Done with Less Hassle
Only3 steps are needed for full assembly. You can enjoy creating as soon as possible.
Extensive compatibility
Compatible with a variety of systems, including Windows and macOS systems, and software such as LaserGRBL and LightBurn.
Support offline Creating
Just insert a TF card, and you can feel free to create anytime, anywhere.
Offline Dynamic Preview
Position and adjust precisely without connecting to a computer.
Outstanding Motion stability
The full aluminum alloy structure design brings a more solid machine, ensuring exceptional stability even in high-speed operation.
Add Some Colors to Your Works, and your life
When the stainless steel is heated by the super powerful laser beam, the metal surface will physically react and produce hundreds ofcolors, bringing your works to life.
Take the Experience Further
There are 3 adjustment holes on the bottom of the machine to suit different table sizes.
Silicone Pads
Can be fine-tuned manuallyto suit uneven tables.
Adjustable Risers
Multi-segment equal-lengthrisers to increase the heightfor engraving skateboards,basketballs and other talle!objects.(Note: 8 sections ofrisers are provided.)
Integrated Cable Storage
Keep it secure and well-organized.
Unlock Your Creativity with Creality Falcon2
From DlY home projects to maker education, fromjewelry customization to business signage, whatever you can think of, you can make with Falcon2.
