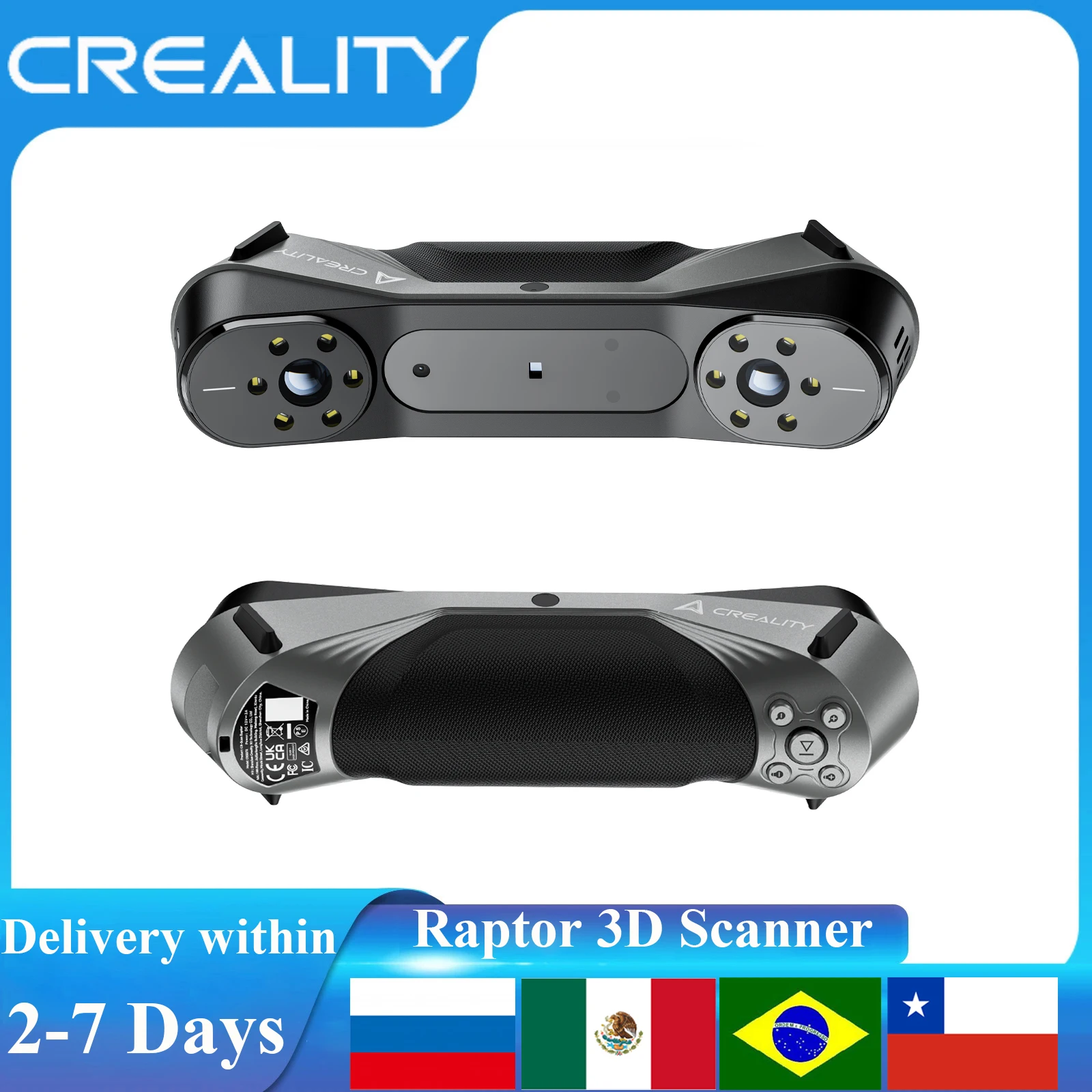

Creality 3D Scanner Raptor CR-Scan 0,02 mm Precisão 60fps Velocidade de digitalização Impressão 3D Digitalização portátil Laser azul Scanner de luz NIR

We have inventory of this product in our overseas warehouse, but the quantity is limited.

Specifications

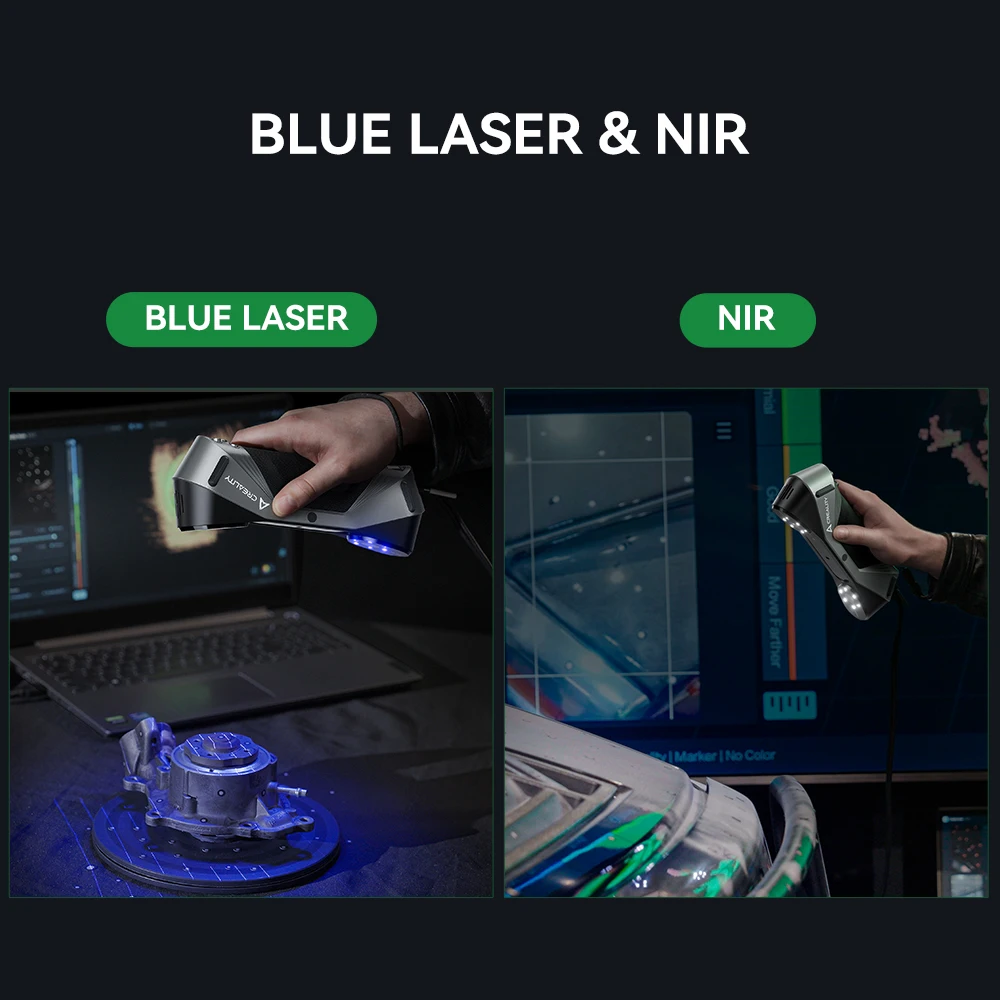

Scanning Mode:  Blue Light(blue 7-line laser)      NIR(infrared binocular structured light)

Accuracy:  Up to 0.02mm @ 100mm [1]               Up to 0.1mm

3D Resolution :    0.02-2mm                                  0.1-2mm

Scanning Speed :  Up to 60fps                              Up to 20pfs
Min. scanvolume:  5mm x 5mm x 5mm               150mm x 150mm x 150mm

Single Catpure Range：270mm x 170mm @300mm          930mm x 580mm @1000mm

Working distance ：150mm-400mm                    170mm-1000mm

Color Mapping :       Yes                                         Yes

Alignment mode : Marker                                      Marker/geometry/texture

3D imaging camera resolution :       1920*1200

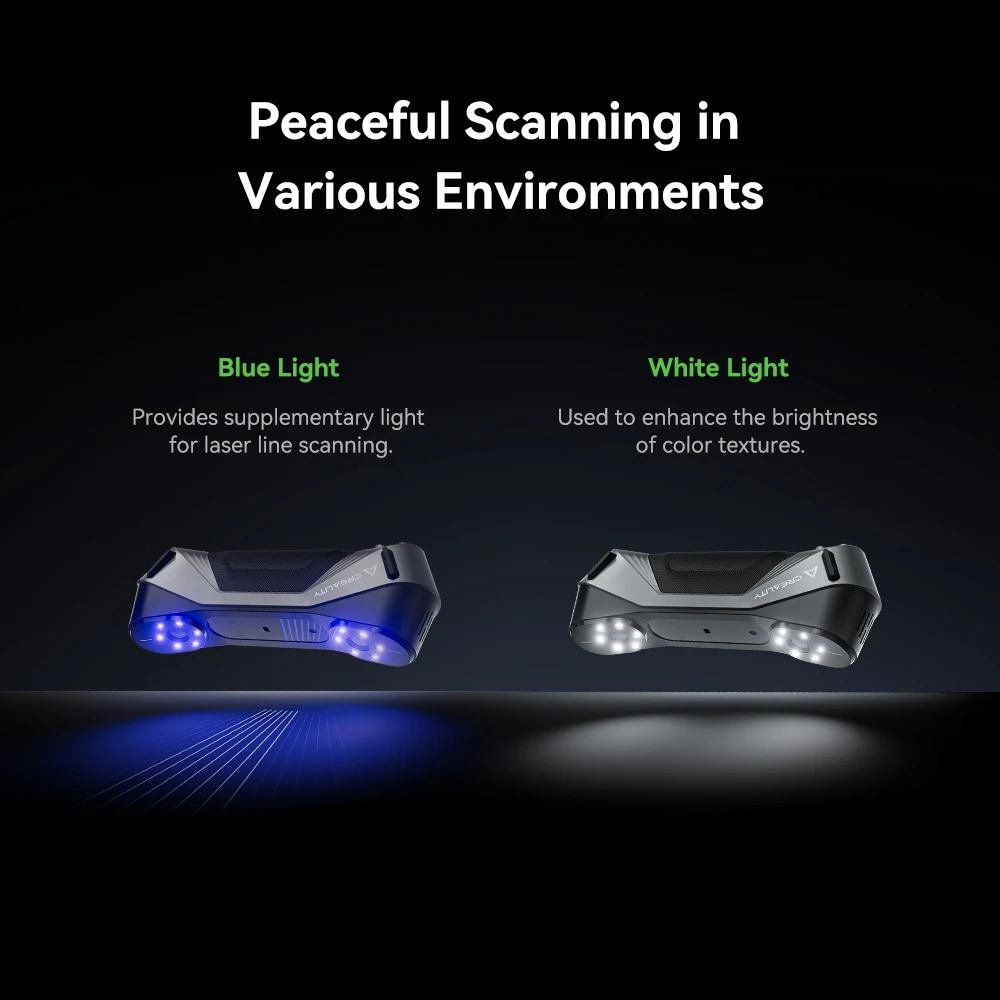

Color Supplemental Light ：           12 white LEDs

Marker Recognition Enhancement :  12 Infrared LED

Laser Safety :    Class 1（eye safe)

Button ：  Mechanical

IMU :  Yes

Output format ： OBJ/STL/PLY

Input Power :  12V 2A

Data interface :  TypeC/USB3.0

Device Dimensions : 215mmx50mmx74mm

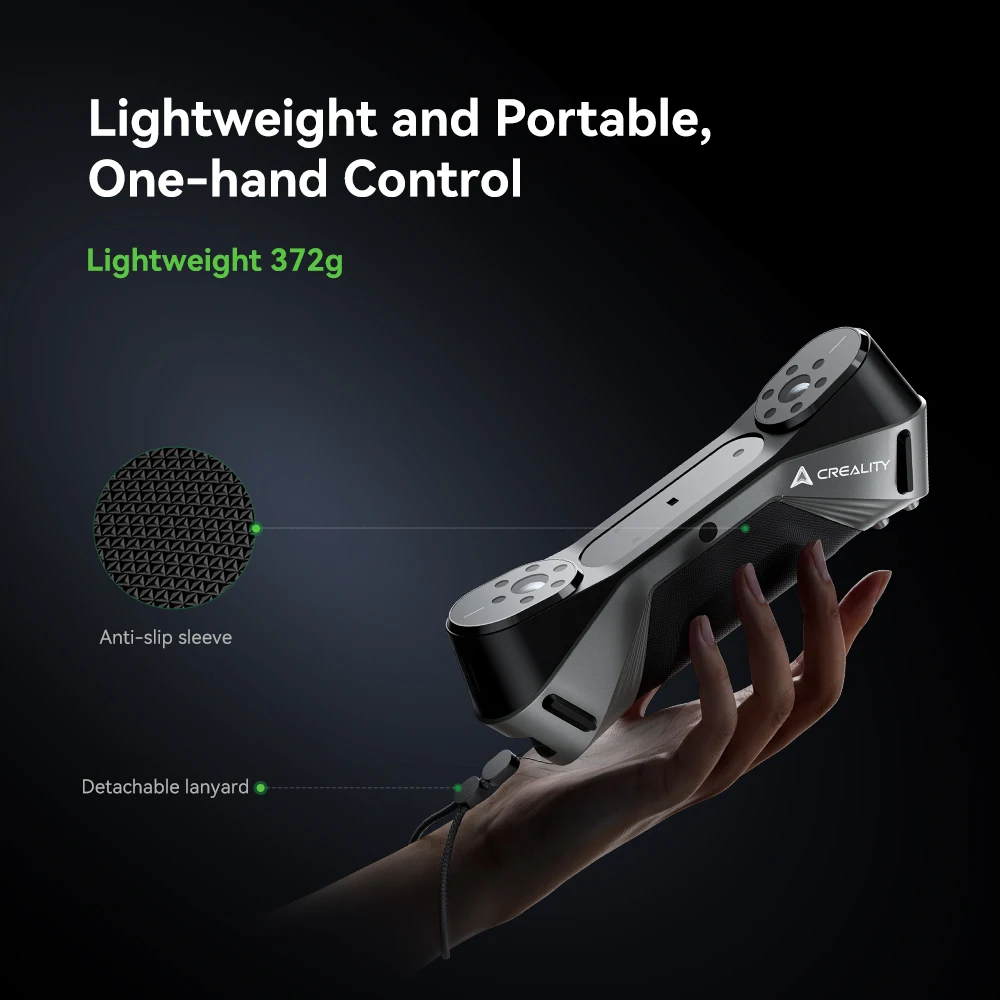

Device Weight :  372g

Calibration board :  High-precision glass calibration board

System Support :  Windows 10/11(64bit） macOS

Wireless Scanning ： Supported

Operating temperature ： -10℃ to 40℃

Operating humidity :  0-90%RH"
