- High-concerned chemical: None
- Origin: Mainland China
- Type: Universal
- Condition: New
- Brand Name: Argedo
- Model Number: CRA285
- CNC or Not: CNC
Package list:

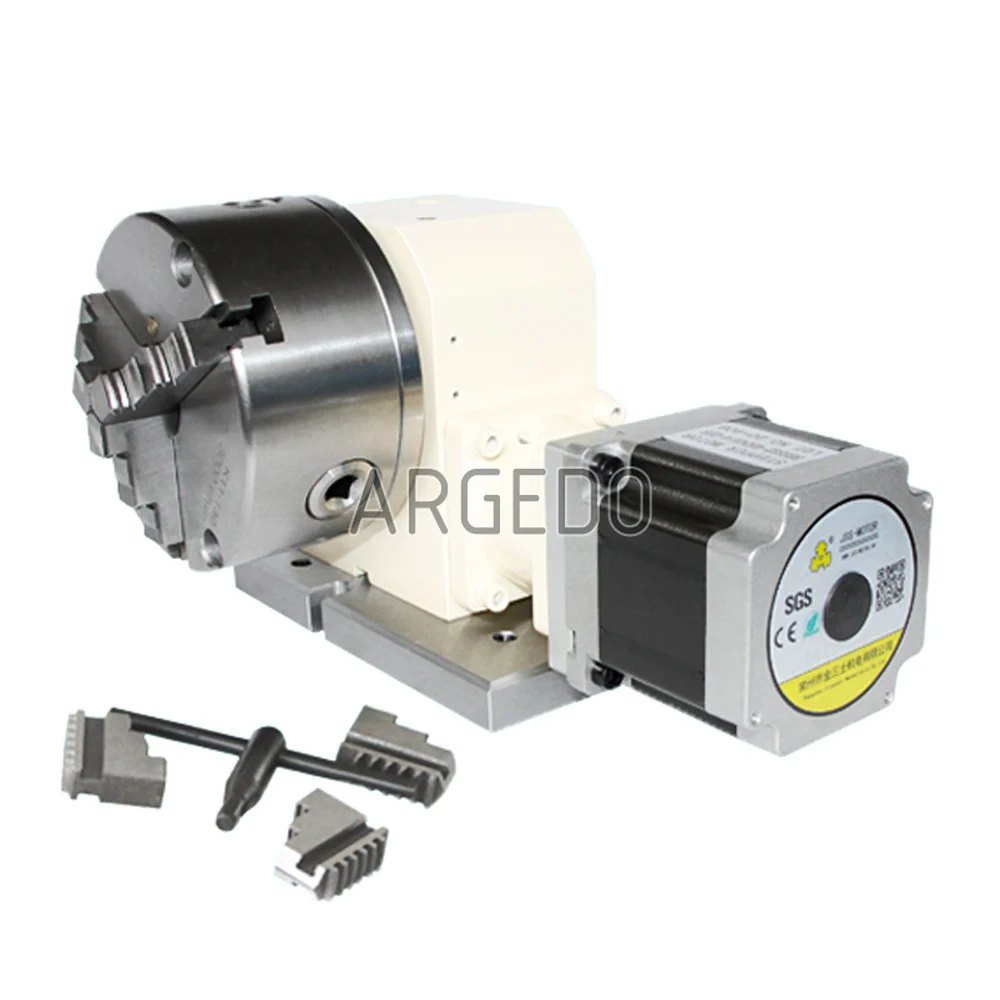

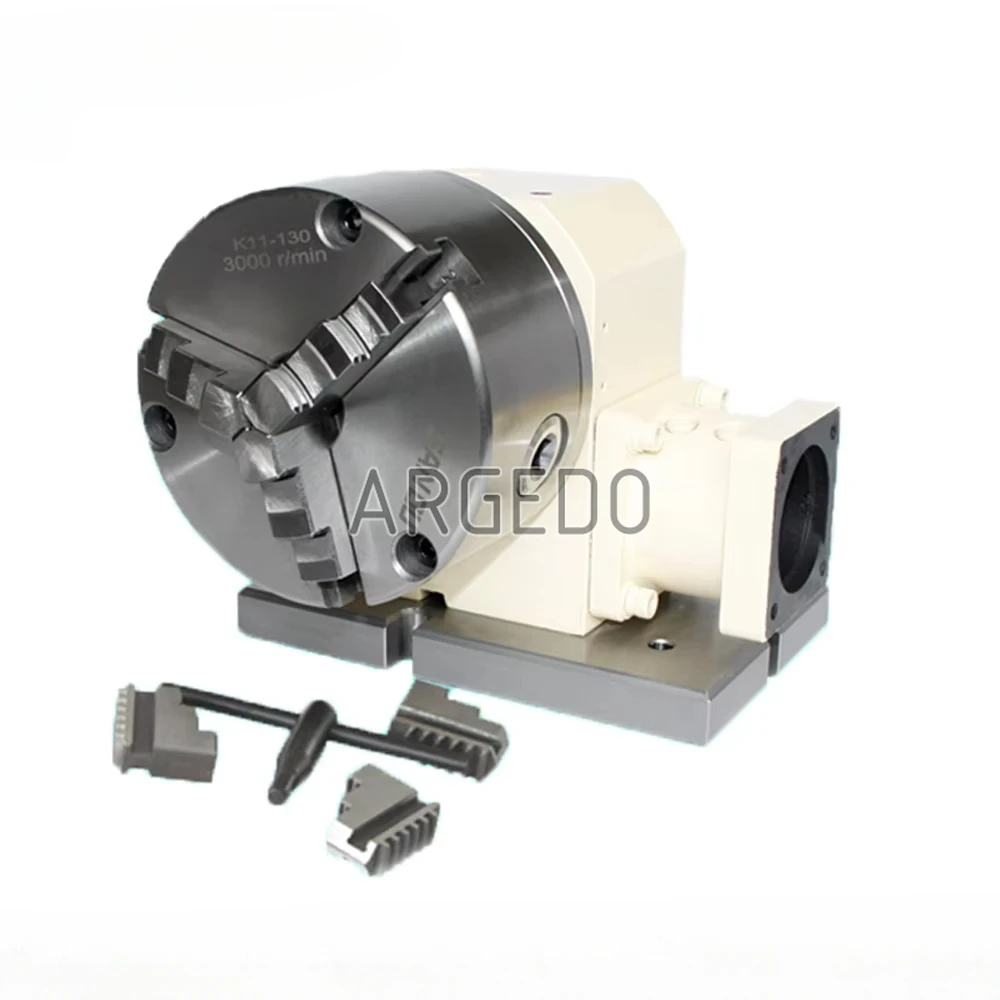

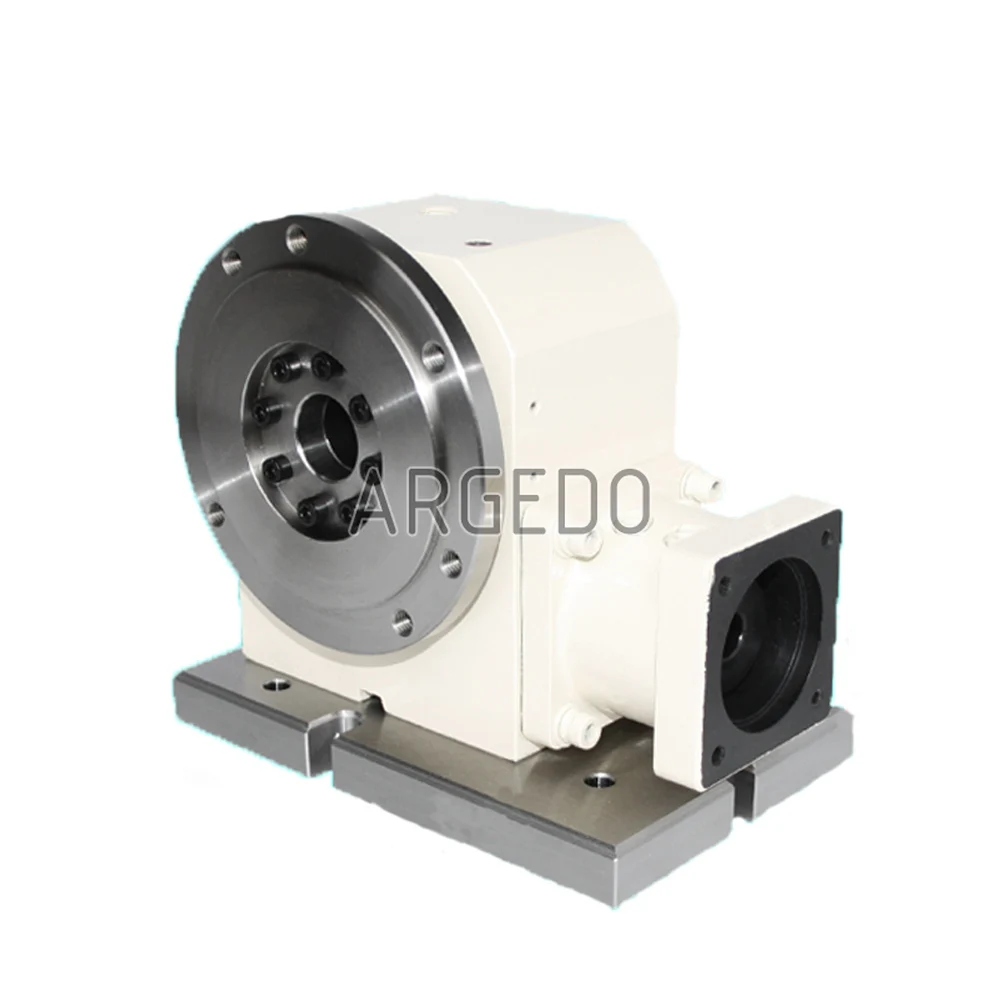

1 x CNC 4th Rotary Axis Indexer Dividing Head
Features:
Model: CRA285-A/C/D
Chuck: 3-jaw centering chuck K11-130
Center height: 110mm
Gearbox: High precision roller cam reduction (accuracy of 1 arc minute)
Total height: 175mm
Reduction ratio: 15:1
Through-hole diameter: 25mm
Motor: 86 2-phase 4-leads stepper motor (Also support 200W or 400W servo motor, we don't offer)
Dimensions: 260MM long * 130MM wide * 175MM high
Weight: 12KG
1 x CNC 4th Rotary Axis Indexer Dividing Head
Features:
Model: CRA285-A/C/D
Chuck: 3-jaw centering chuck K11-130
Center height: 110mm
Gearbox: High precision roller cam reduction (accuracy of 1 arc minute)
Total height: 175mm
Reduction ratio: 15:1
Through-hole diameter: 25mm
Motor: 86 2-phase 4-leads stepper motor (Also support 200W or 400W servo motor, we don't offer)
Dimensions: 260MM long * 130MM wide * 175MM high
Weight: 12KG
