- High-concerned chemical: None
- Is Electric: Other Battery
- Quantity: 1 pcs
- Wheelbase: Bottom Plate
- Is it battery/power supply: N
- Is it charger/adapter: N
- Is Batteries Included: Yes
- Model Number: DS939HV
- For Vehicle Type: Airplanes
- Tool Supplies: Tools
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Remote Controller
- RC Parts & Accs: Servos
- Material: Composite Material
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys

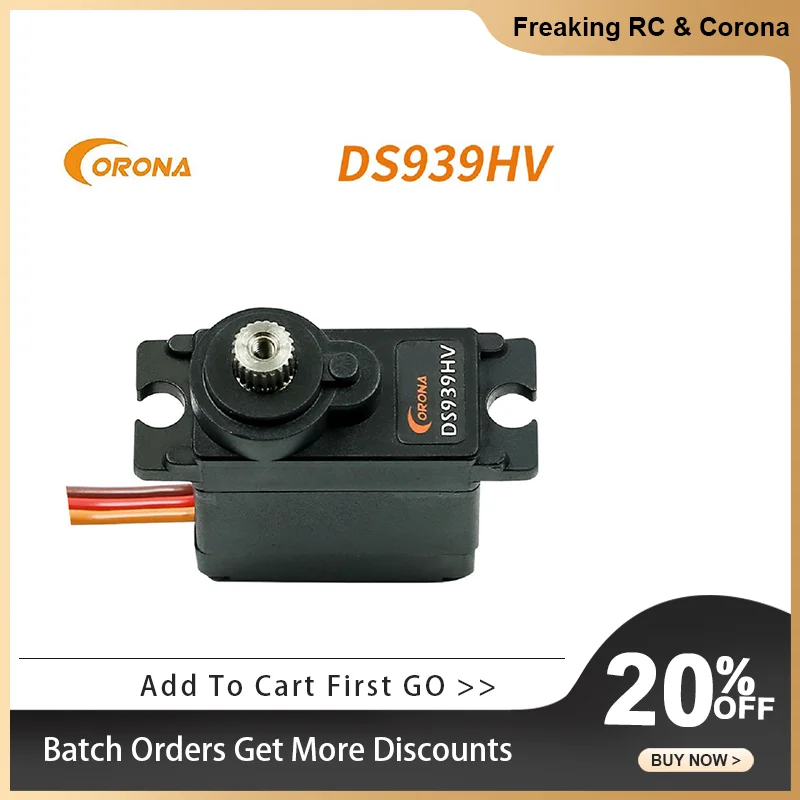

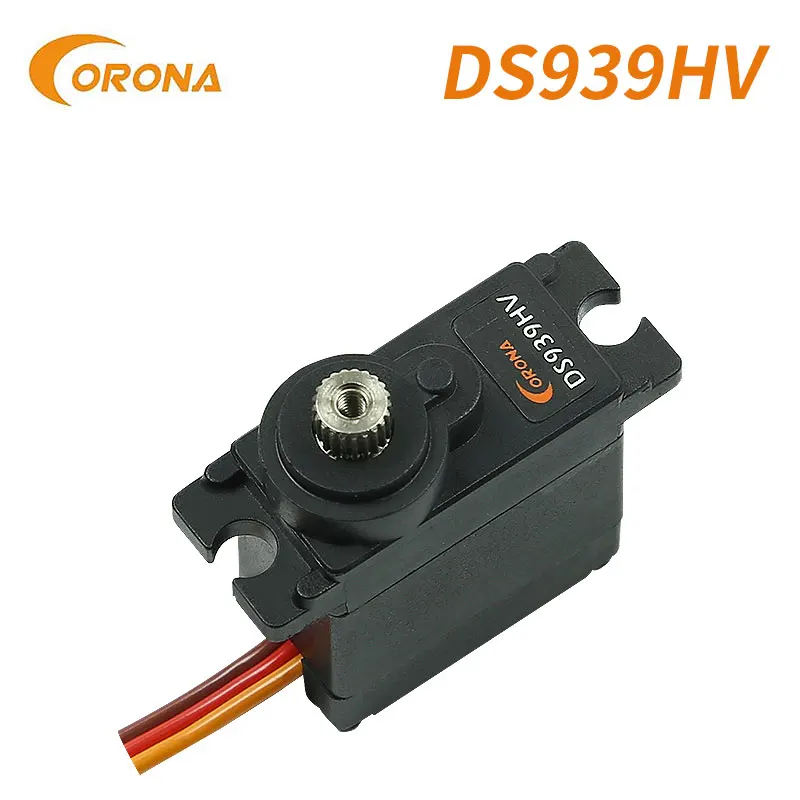

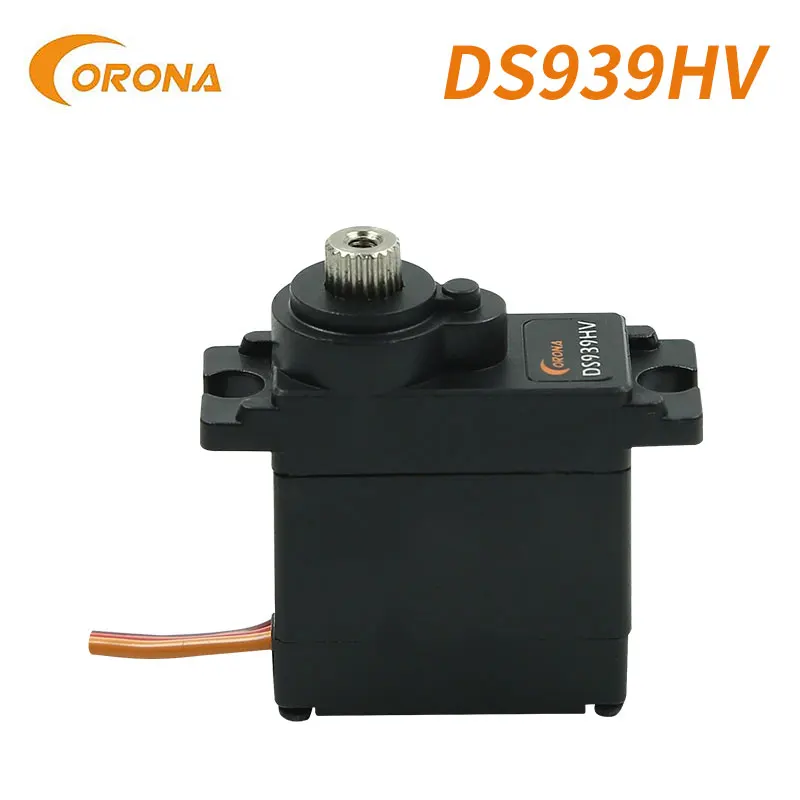

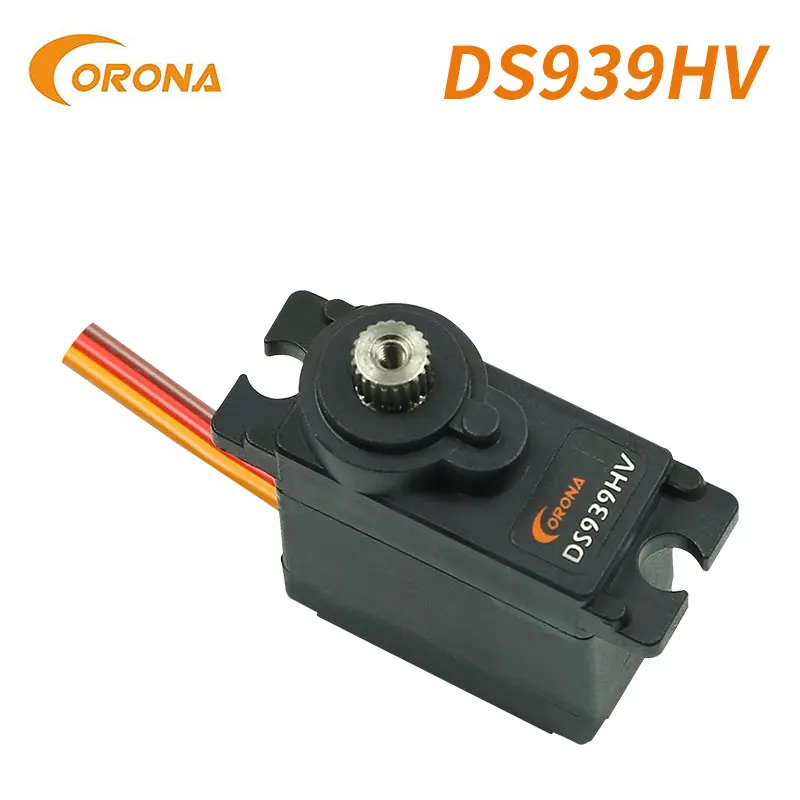

Corona DS939HV 2.8kg 0.12sec 12.5g Digital Metal Gear Mini Servo for Hobby Robotics Education Industrial
Corona servos have a long history in the world of RC Modeling, robotics and industry use. Corona use designs and manufacturing techniques that have been proven effective over many years of production and end user feedback. For unmistakable quality and reliability choose Corona serves every time.
Specifications
Operating Voltage: 6.0V / 7.2V
Operating Current: 200mA / 240mA
Operating Speed: 0.13sec.60º/ 0.12sec.60º
Stall Torque: 2.6kg.cm / 2.8kg.cm
Size: 22.5X11.5X24.6mm(0.88''x0.45''x0.96'')
Weight: 12.5g
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 2 slider/Direct Drive
Ball bearing: MR85
Gear: Metal
Coreless
Connector wire: 215mm
Operating Temperature Range: -20C+60C
Spline count: 21
