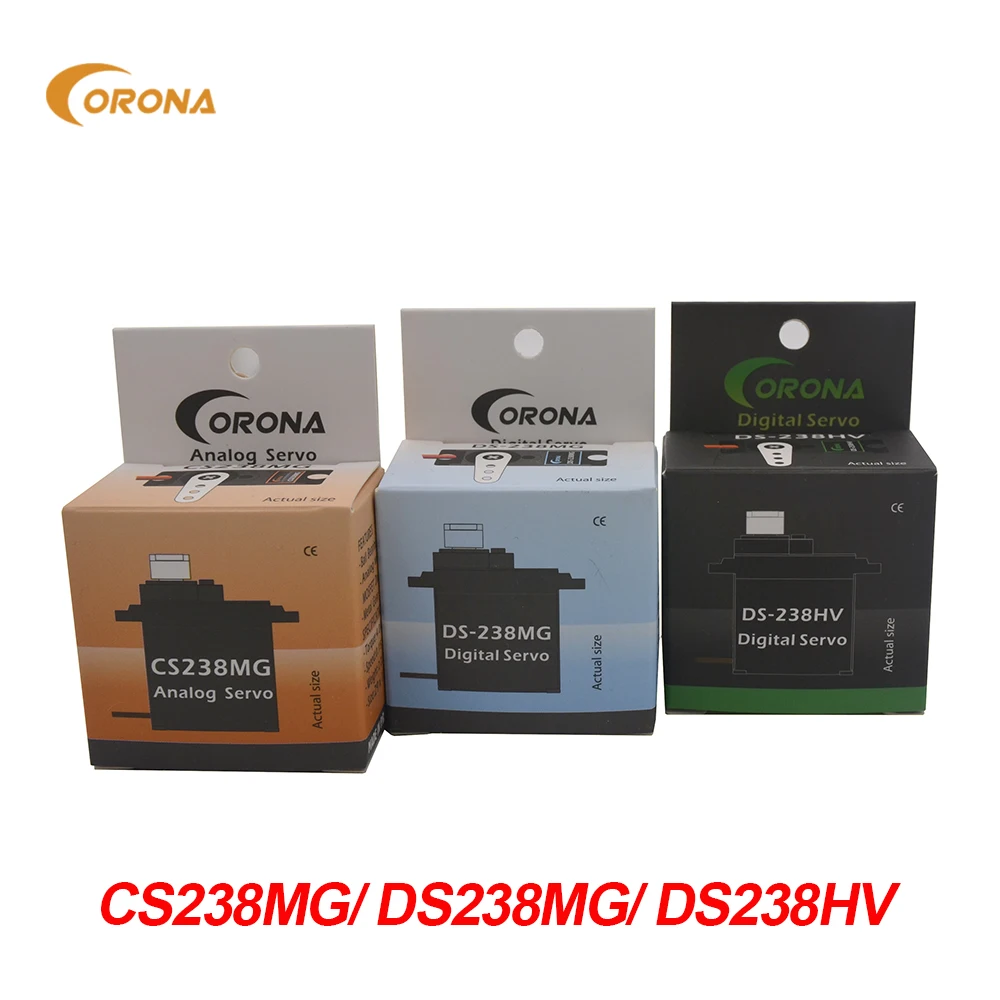

Corona CS238MG/DS238MG/DS238HV Metal Gear Servo 4.6kg / 0.13 Sec / 22g

Corona CS238MG/DS238MG/DS238HV Metal Gear Servo 4.6kg / 0.13 Sec / 22g

(There have 3 options, please choose what servo you needing, CS238MG is analog servo, DS238MG is digital servo, DS238HV is Digital high voltage servo.)

CS238MG:

Brand:Corona
Item:CS238MG Analog Servo
Model: CS238MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed: 0.15sec.60º/ 0.14sec.60º
Stall Torque: 4kg.cm / 4.6kg.cm
Size: 29X13X30mm
Weight: 22g
Dead Band: ≤5uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR106
Gear: Metal
Connector wire: 215mm
Operating Temperature Range: -20°C ~ +60°C

DS238MG:

Model: DS238MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed: 0.15sec.60º/ 0.14sec.60º
Stall Torque: 4kg.cm / 4.6kg.cm
Size: 29X13X30mm
Weight: 22g
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR106
Gear: Metal
Gear Type: Digital
Motor: Brushless
Connector wire: 215mm
Operating Temperature Range: -20c ~ +60c
Spline count: 25

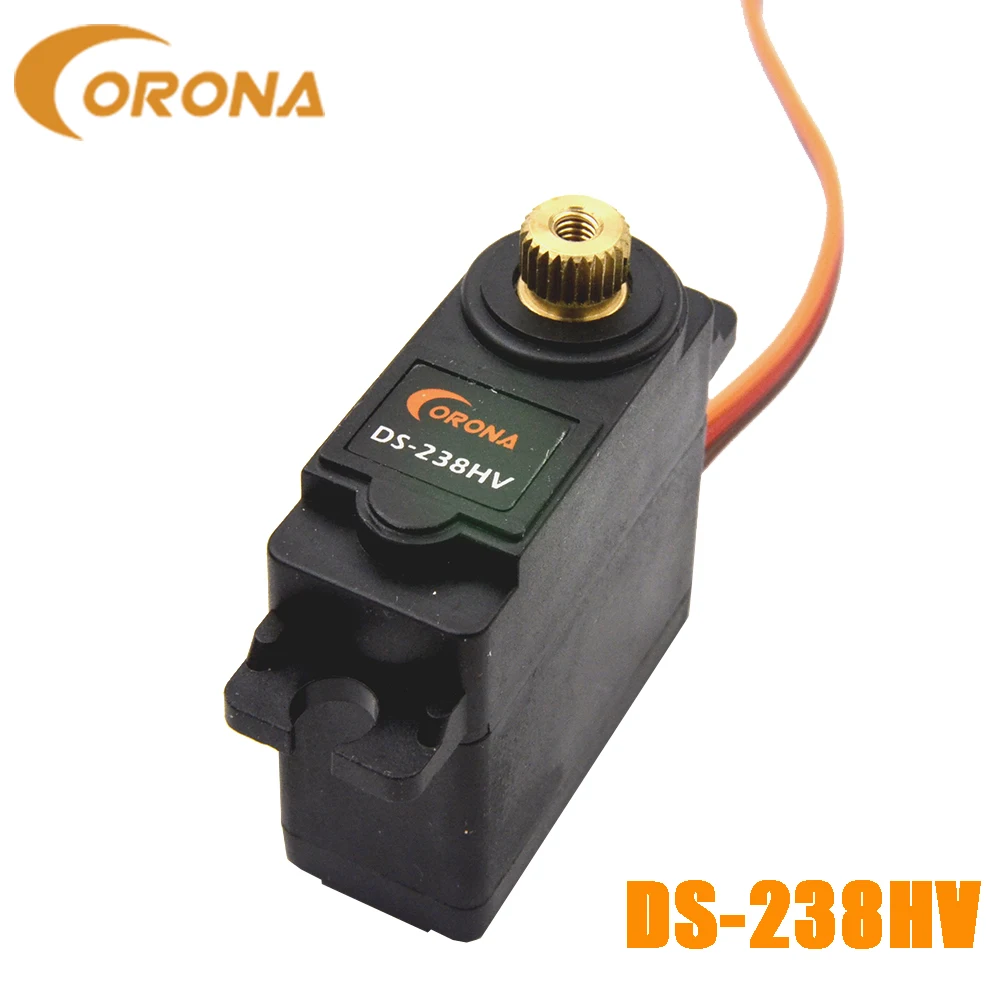

DS238HV:

Model: DS238HV
Operating Voltage: 6.0V / 7.4V
Operating Current: 300mA / 400mA
Operating Speed: 0.14sec.60º/ 0.13sec.60º
Stall Torque: 4kg.cm / 4.6kg.cm
Size: 29X13X30mm
Weight: 22g
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR106
Gear Material: Metal
Gear Type: Digital
Motor: Brushed
Connector wire: 300mm
Operating Temperature Range: -20ºC ~ +60ºC
Spline count: 25

Packing Included:

X1 Servo
(Optional)

Pictures:

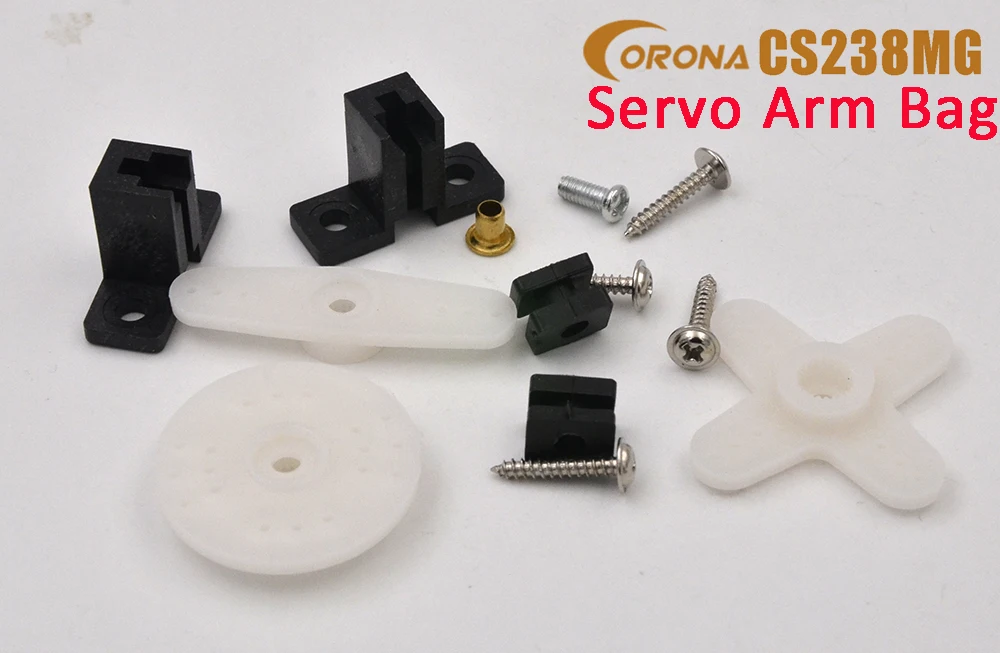

(with same servo arm for three servoes)
