- is_customized: Yes
- Origin: Mainland China
- Model Number: EX3S-8070H-44MT
- External Dimensions: 200*146*36mm
- Cutout Dimensions: 192*138mm
- Weight (Net Weight): 535g
- No - load Power Consumption: 4W
- Input Voltage: DC24V ±10%
- Display Type: 7.0"TFT
- Display Size: 154*87mm
- Resolution: 800*480
- Running Memory: 128MB
- Storage Memory: NAND Flash 128MB
- CPU: CPU 1GHz

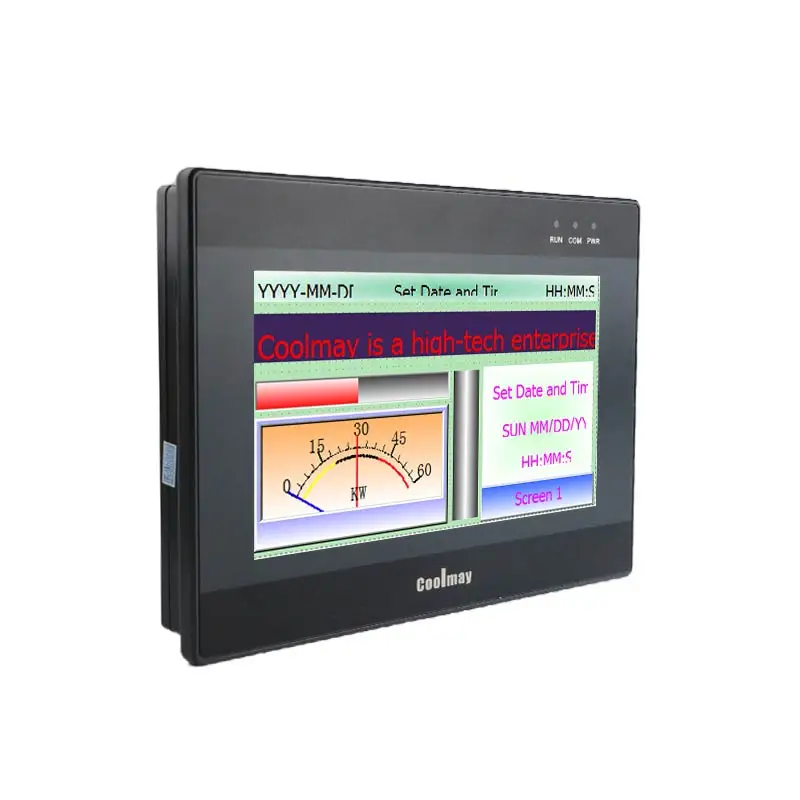

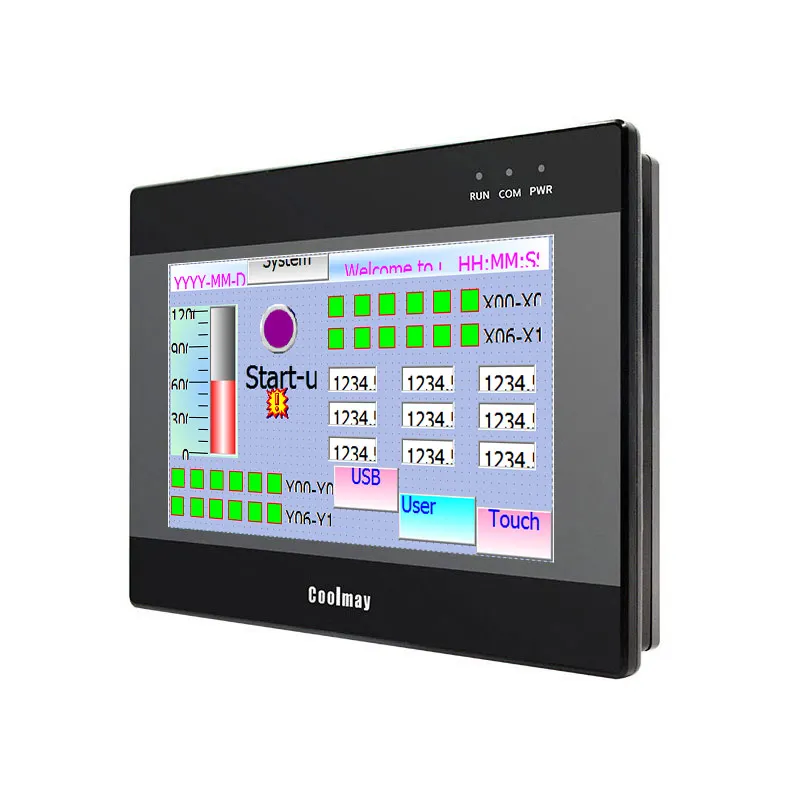

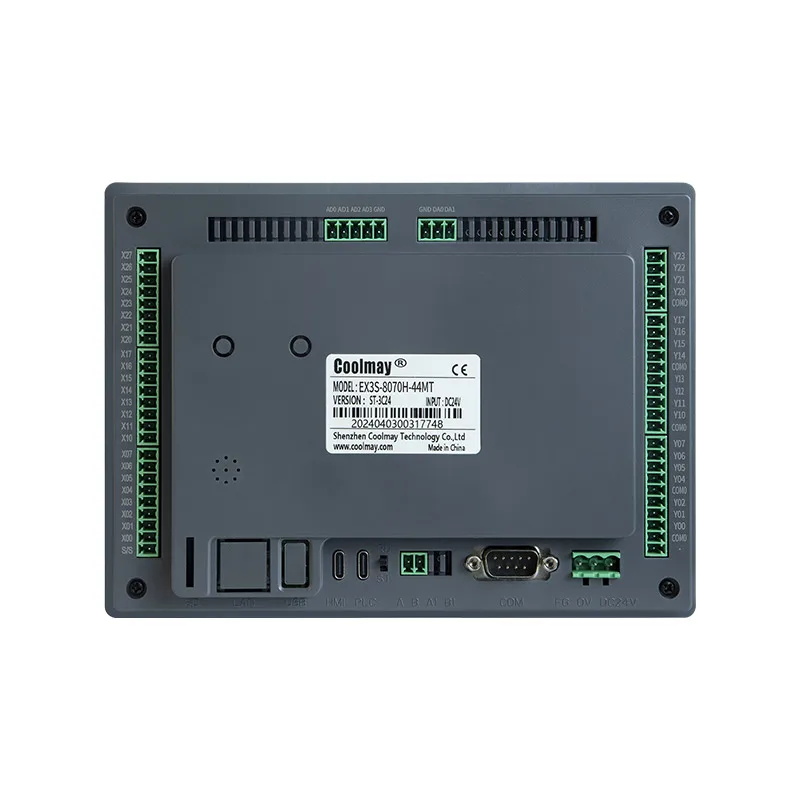

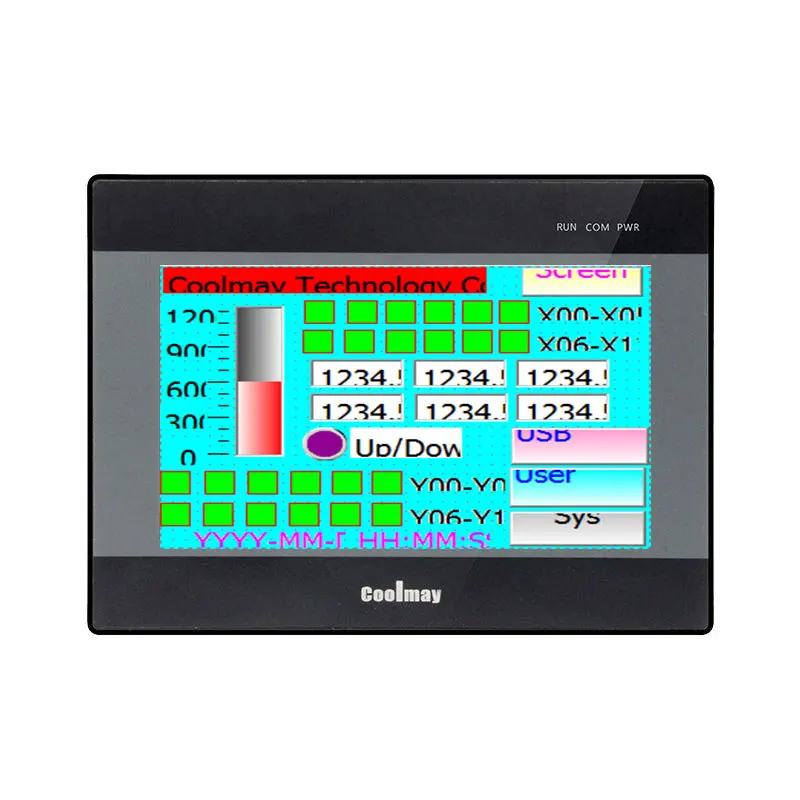

Description：Coolmay 7 inch HMI/PLC All In ONE EX3S-8070H-44MT
➤Technical Specifications
Specification | Descriptions |
Parameter | EX3S-8043H-24MR |
Maximum I/O Points | 24DI/20DO |
Analog input type | E_K_S_T_J_type negative temperature thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/0-10V/0-5V/0-20mA/4-20mA or mixed types |
Analog output type | 0-10V/0-5V/0-20mA/4-20mA or mixed type optional |
Analog points | MAX 8AD8DA |
Communication interface | Comes with 1 TYPE-C port; default 1 RS232 + 1 RS485 |
High-speed counter input | Conventional single-phase 6-channel 100KHz or AB phase 3-channel 60KHz |
High-speed pulse output | 4.3/5-inch MT output: Conventional 4-channel Y0-Y3 at 200KHz; 7-inch/10-inch conventional 8-channel Y0-Y7 at 200KHz |
Programming software | Coolmay VTool Pro |
➤Product Features
●Highly integrated design slashes 50% hardware costs, packing multiple functions into a 60% smaller form.
●Easy installation cuts wiring/accessory costs, installable by non - pros with screws.
●Military - grade dual processors deliver 0.24μs instruction speed and 30k - step program capacity.
●Mitsubishi - compatible, with VToolPro (ladder diagram now, SFC later) for easy dev.
●NOR Flash (100k - 1M cycles) outlasts NAND (50k - 100k), boosting screen durability.
●USB/Ethernet supports one - click program upload/download, plus remote ops via 4G/WiFi.
●USB firmware updates, pluggable parts, and remote maintenance mean zero after - sales travel costs.

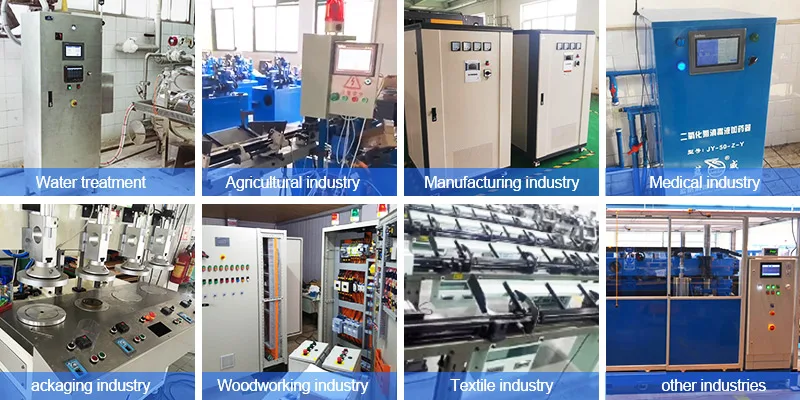

➤ Application Scenarios
