- Produto Químico de Alta Preocupação: Nenhum
- Origem: CN (Origem)
- Disc Diameter: 60mm / 80mm (Optional)
- Supply Voltage: DC 5V / 12V / 24V (Optional)
- Resolution: 100 PPR
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -25°C to +85°C
- Protection Level: IP50
1.NOTE

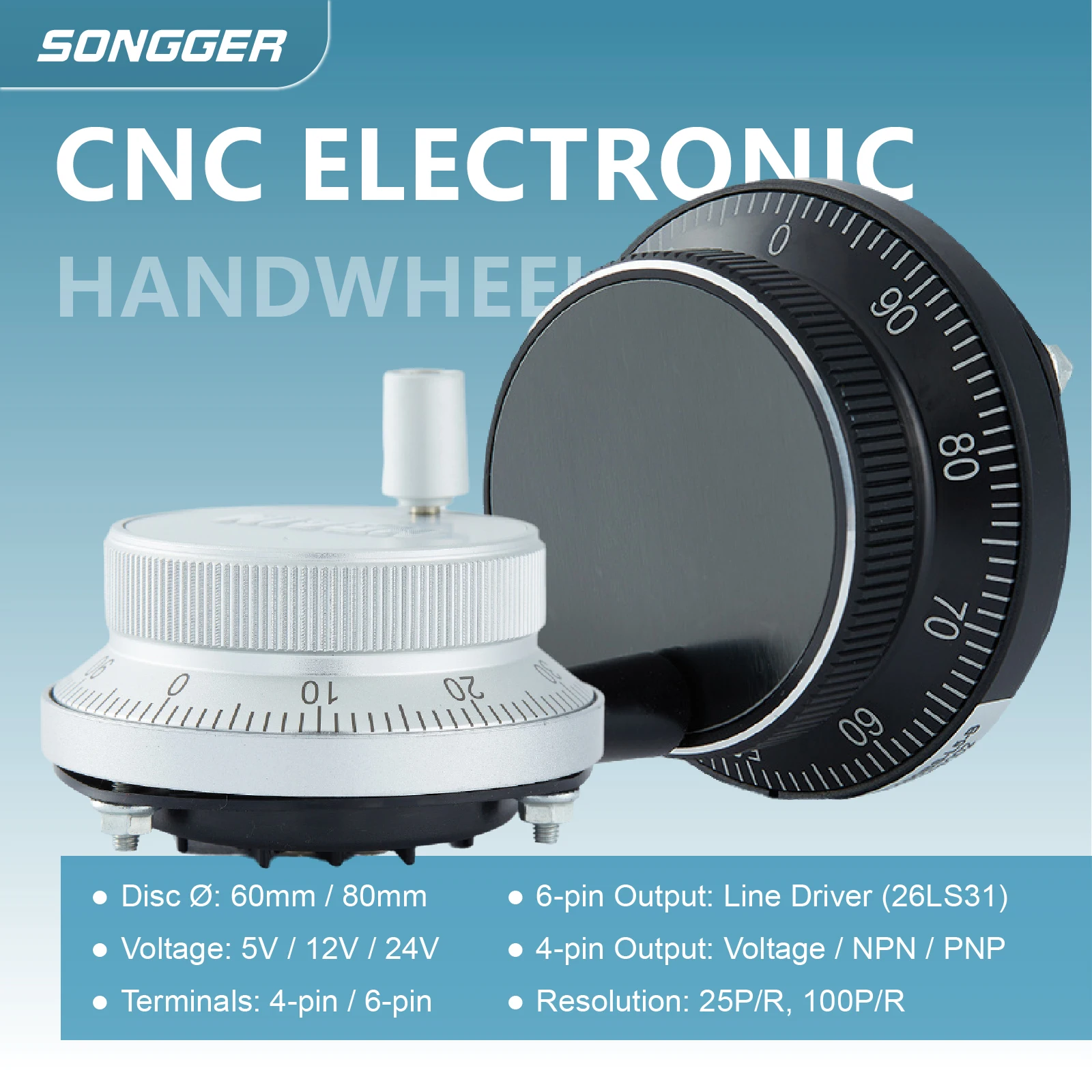

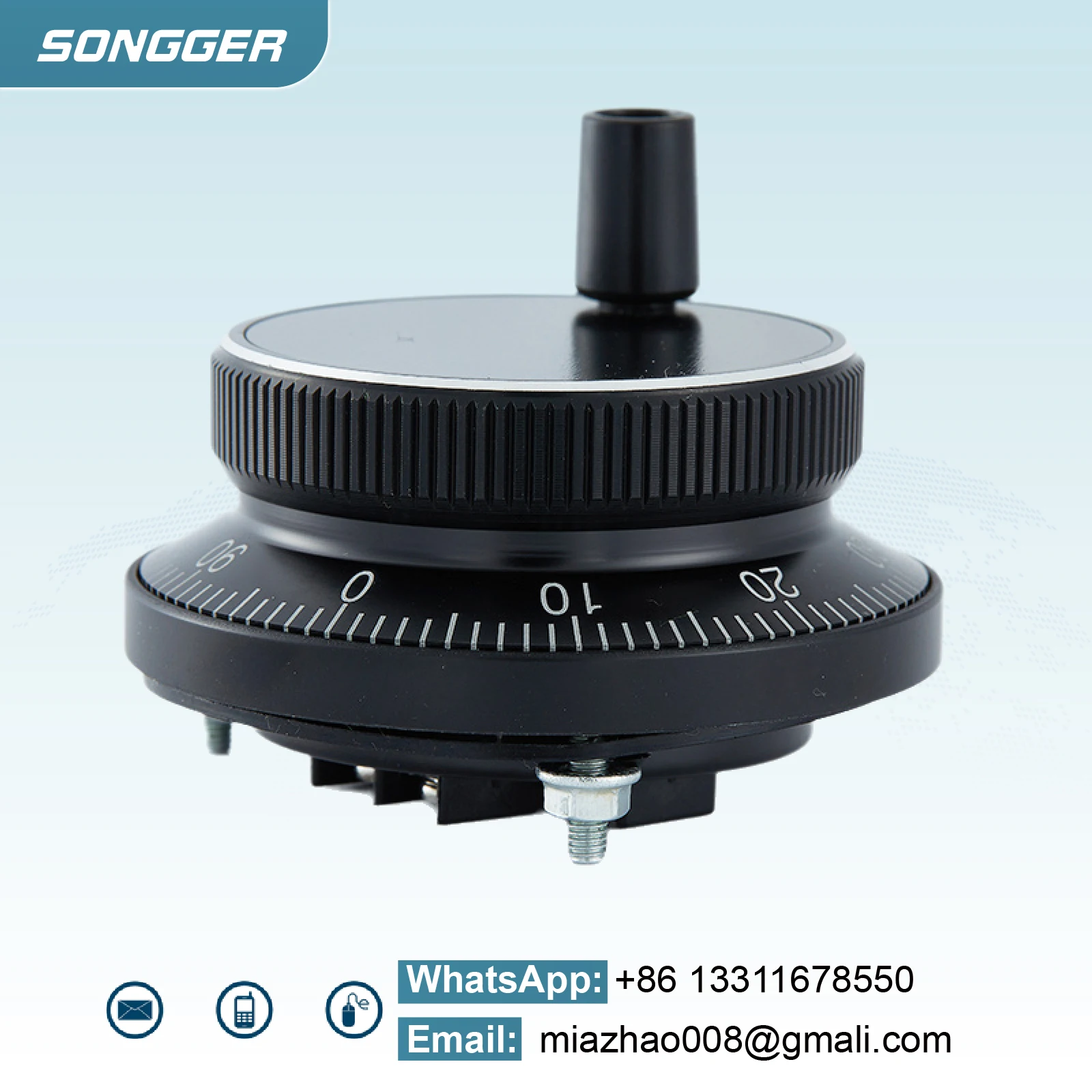

Default Parameters
Disc Diameter: 60mm, 80mm (Optional)
Power Supply: 5V, 12V, 24V (Optional)

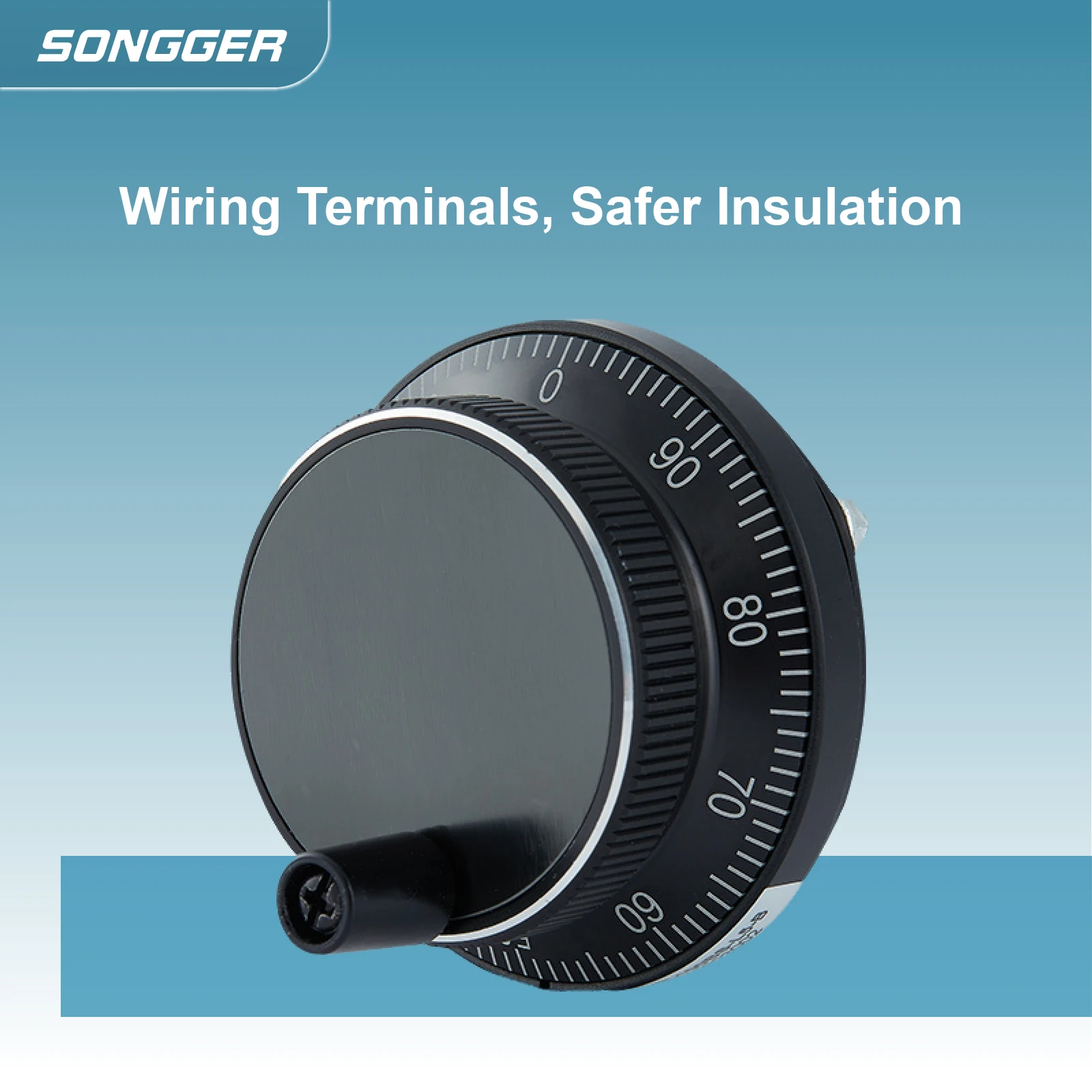

Connection Terminals: 4-terminal, 6-terminal (Optional)
6-Terminal Output
L = Long-line driver output, 26LS31
4-Terminal Output Options
T1 = Voltage output, NPN + R
T2 = Voltage output (rotational), NPN + R
C = Open collector output, NPN
CP = Open collector output, PNP
Resolution Options
25 = 25 pulses per revolution (P/R)
100 = 100 pulses per revolution (P/R)

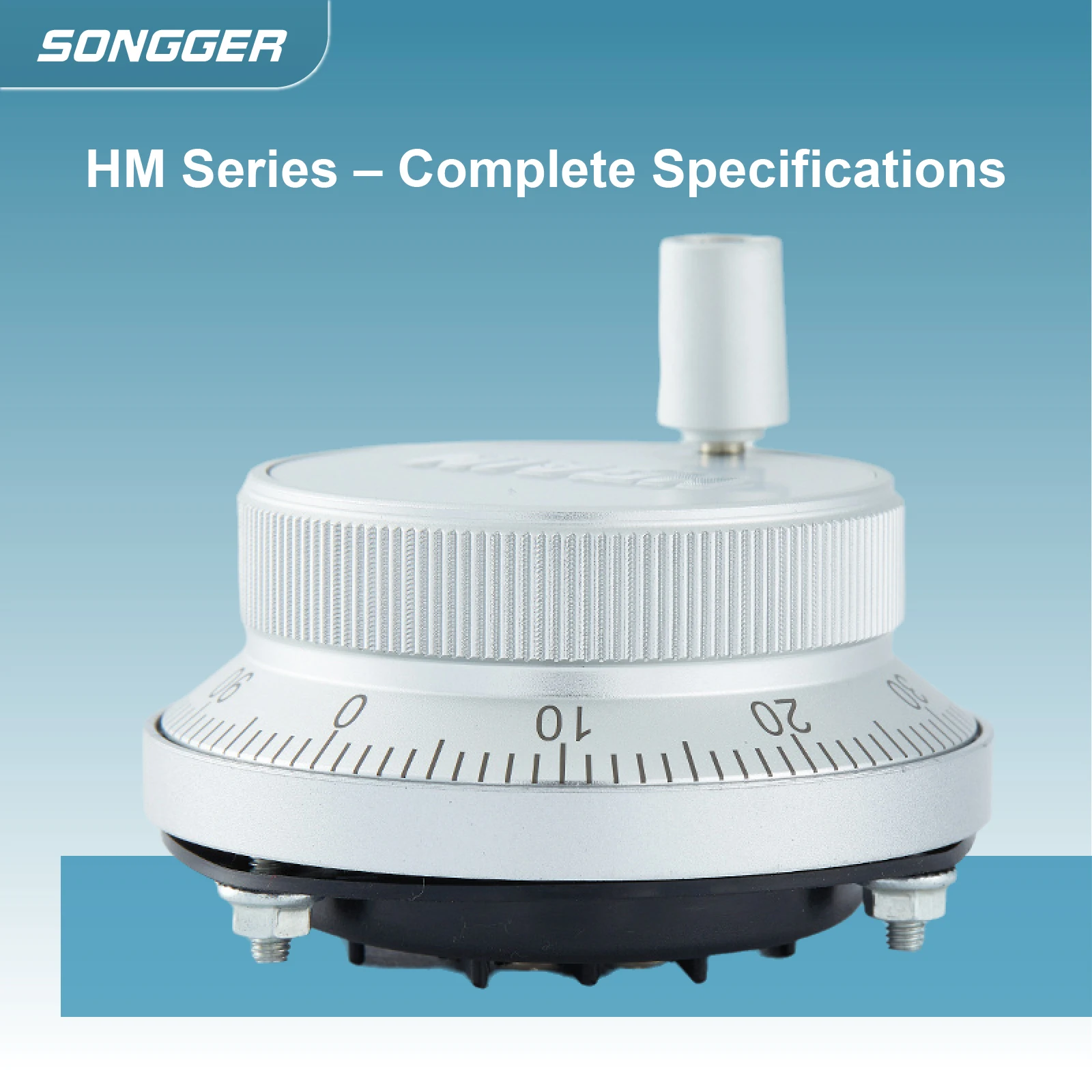

2. Parameters
Specification | Value |
Disc Diameter | 60mm / 80mm (Optional) |
Supply Voltage | DC 5V / 12V / 24V (Optional) |
Output Type | Voltage / Open Collector / RS422 |
Resolution | 25 PPR / 100 PPR |
Terminal Configuration | 4-pin / 6-pin (Optional) |
Max Rotational Speed | 600 rpm |
Operating Temperature | -40°C to +85°C |
Storage Temperature | -25°C to +85°C |
Protection Level | IP50 |
Weight | 250g |

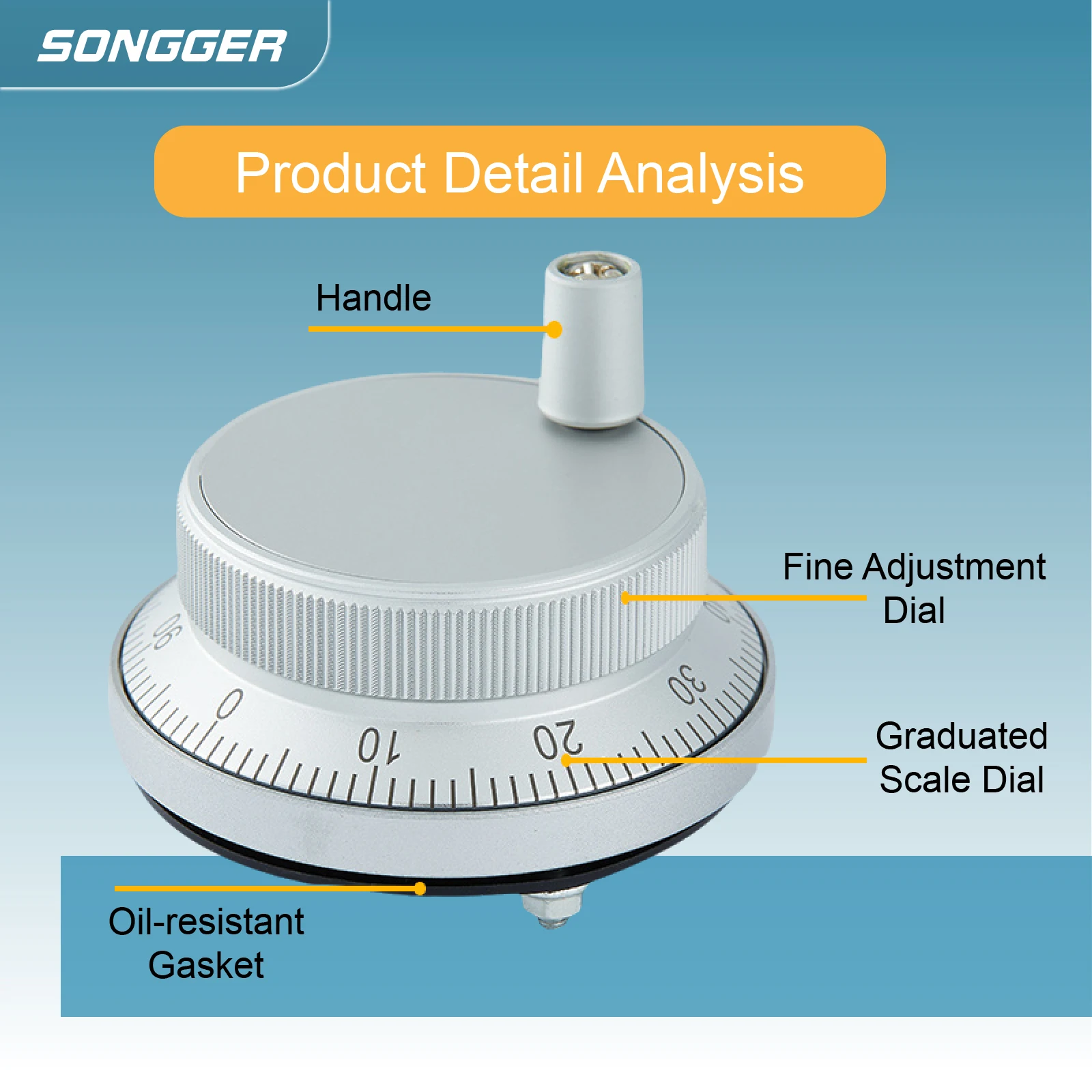

3. Features

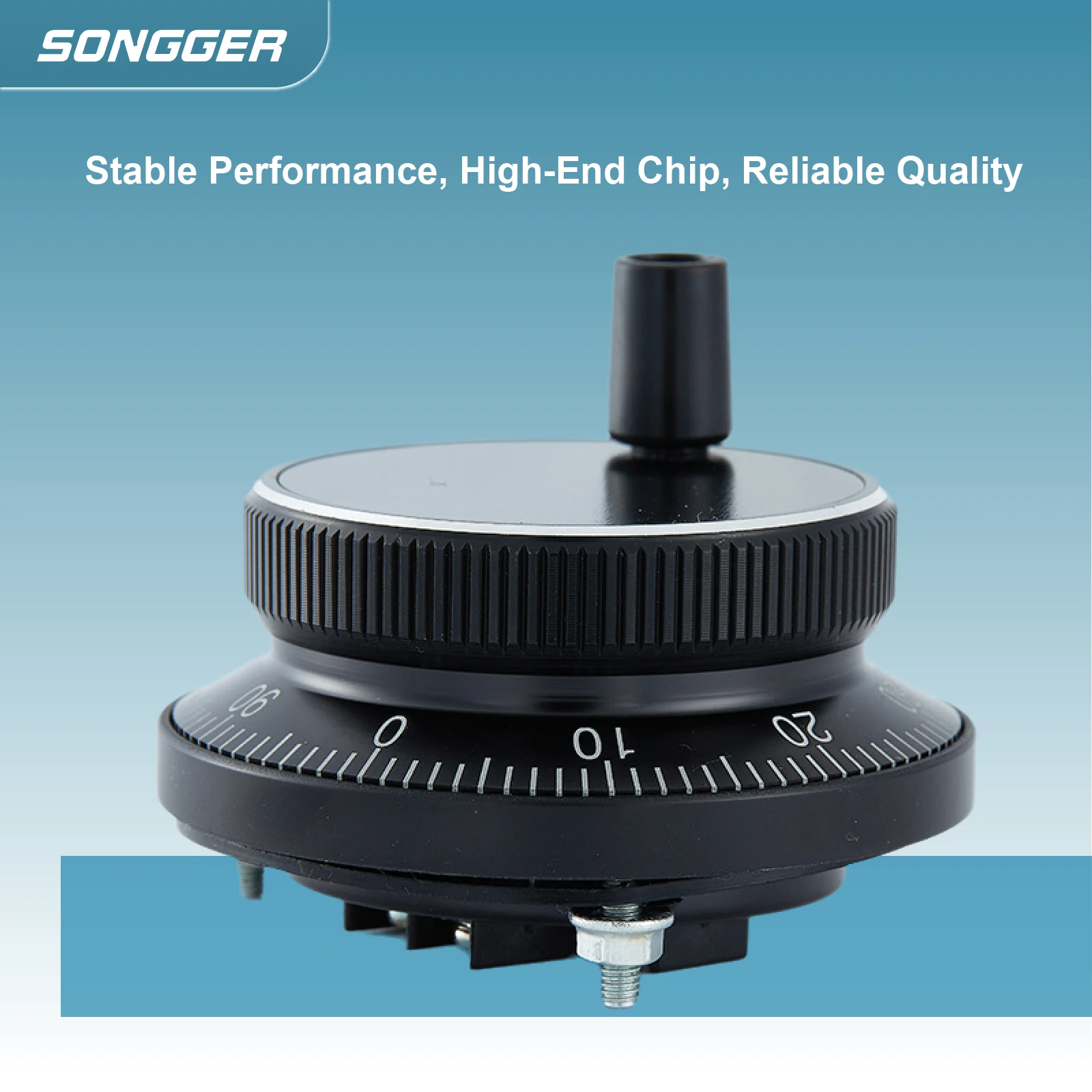

High Precision & Reliability
Delivers accurate signal output without pulse loss, ensuring precise and dependable control.
4. Applications
Widely applied in CNC machine tools, elevators, printing equipment, industrial automation systems, medical devices, and textile machinery for manual positioning and motion control.
5. FAQs
Q1: What’s the difference between 4-pin and 6-pin outputs?
A: 4-pin outputs are designed for standard voltage or open collector signals. 6-pin outputs support RS422 differential signals, ideal for long-distance data transmission.
Q2: Can I customize the encoder specifications?
A: Yes, we offer customization for pulse count, mechanical dimensions, and signal protocols to suit your specific application requirements.
Q3: What should I consider during installation?
A: Carefully follow the wiring diagram, ensure the power supply is within the specified range, and mount the device securely to prevent vibration-related signal issues.
