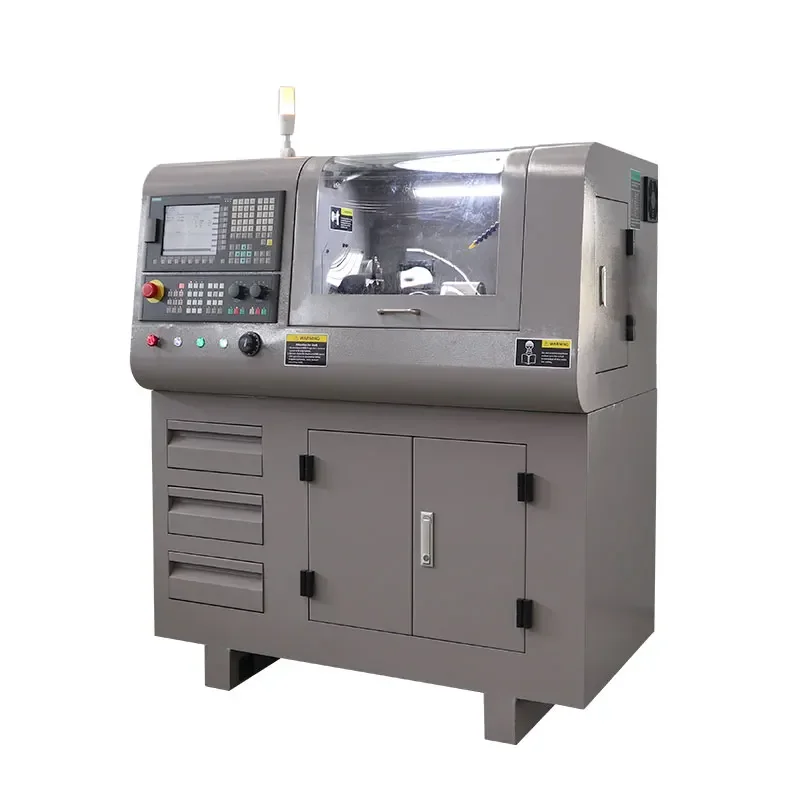

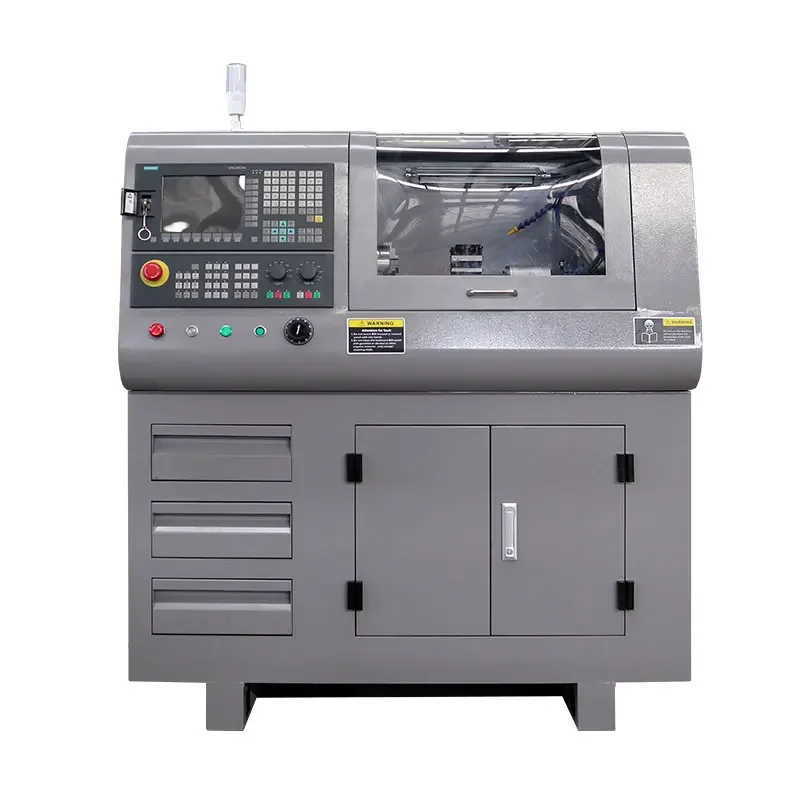

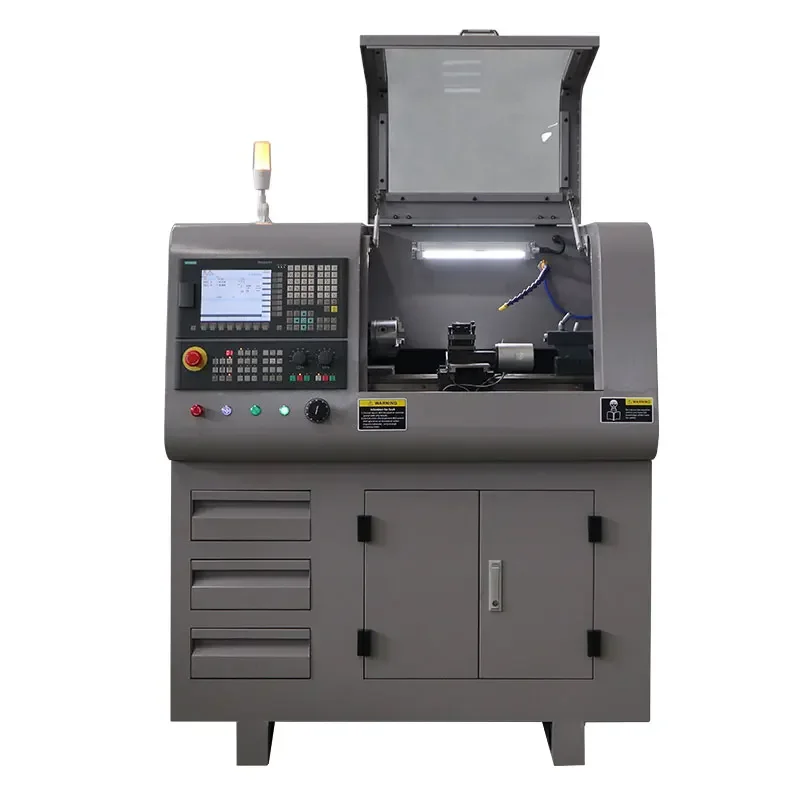

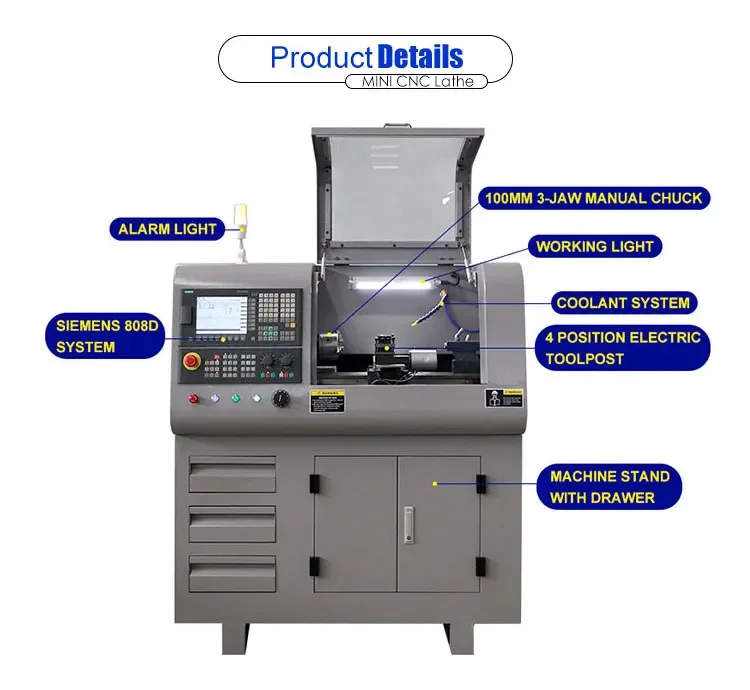

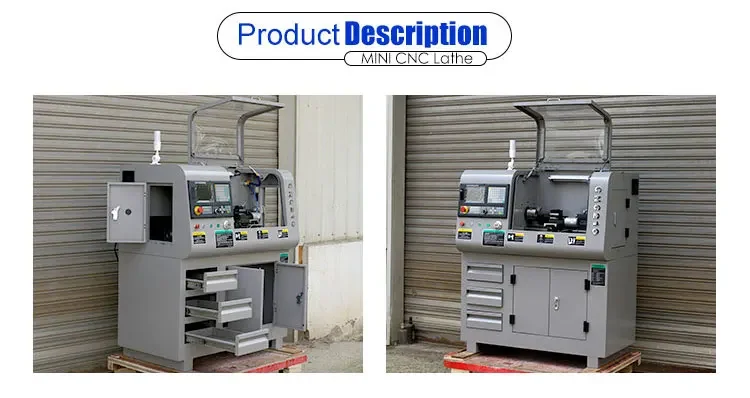

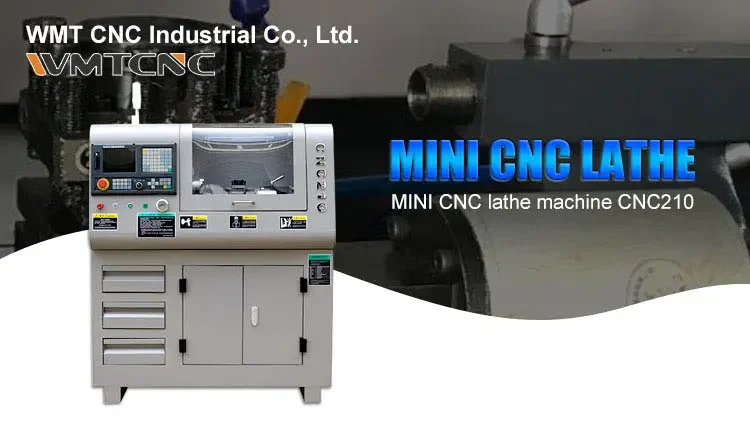

CNC210 Mini CNC Lathe Machine Features:
1.Main motor:Servo motor
2.Small size and cheap price
3.Lower noise and high precision
4.Suitable for educational training and mould machining
2.Small size and cheap price
3.Lower noise and high precision
4.Suitable for educational training and mould machining
|
Capacity
|
|
|
Max. swing over bed
|
210mm
|
|
Distance between centers
|
400mm
|
|
Rail width
|
100mm
|
|
Spindle
|
|
|
Spindle bore dia.
|
26mm
|
|
Spindle taper
|
MT4/5C(Optional)
|
|
Spindle speed
|
3000rpm
|
|
No. of tool stations
|
4-position
|
|
Axis
|
|
|
X-axis travel
|
105mm
|
|
Z-axis travel
|
270mm
|
|
X rapid speed
|
3000mm/min
|
|
Z rapid speed
|
3000mm/min
|
|
Motor
|
|
|

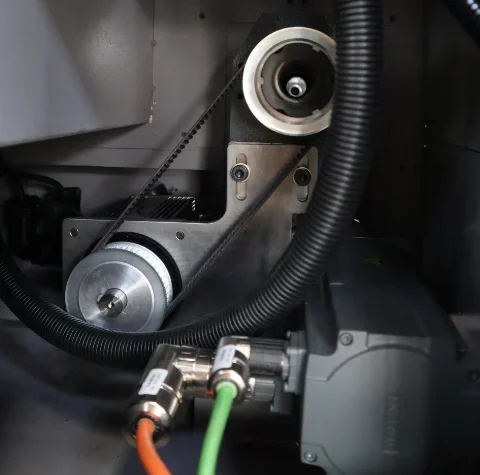

Spindle motor power
|
1.2kw
|
|
Main motor type
|
Srevo motor
|
|

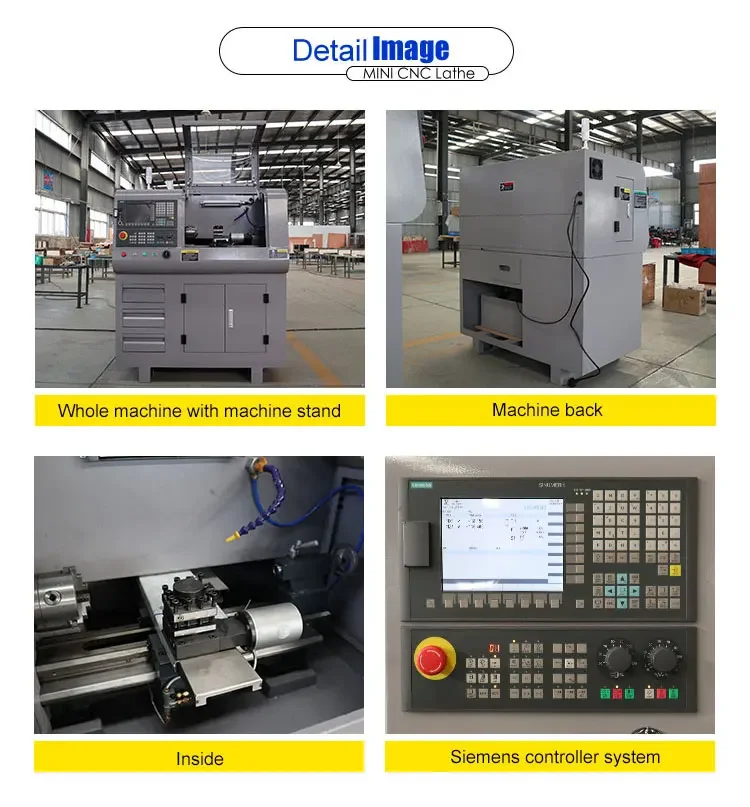

Controller system
|
After 990TDB
|
|
X motor torque
|
2.4N.m
|
|
Z motor torque
|
2.4N.m
|
|
Min. setting unit
|
0.001mm
|
|

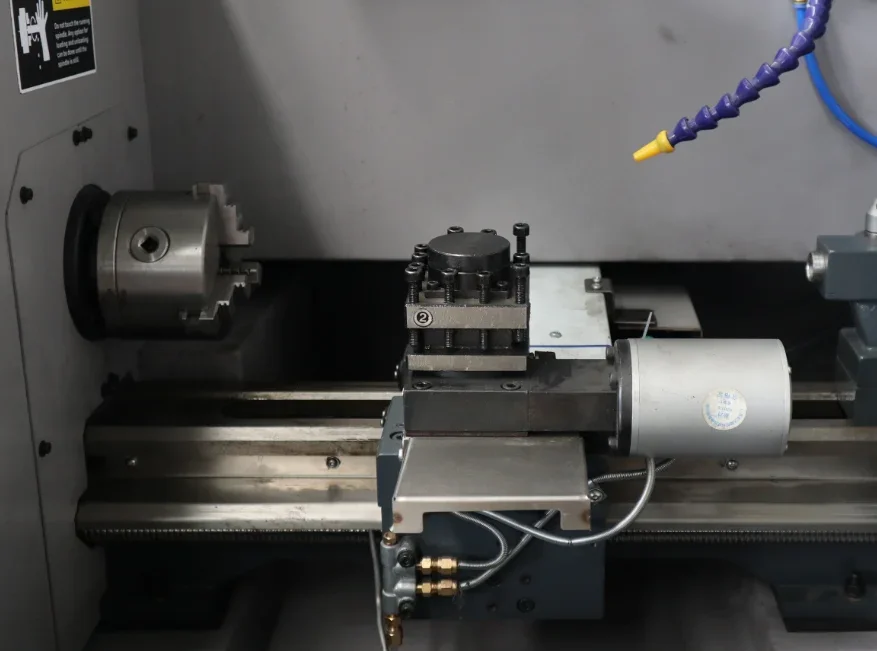

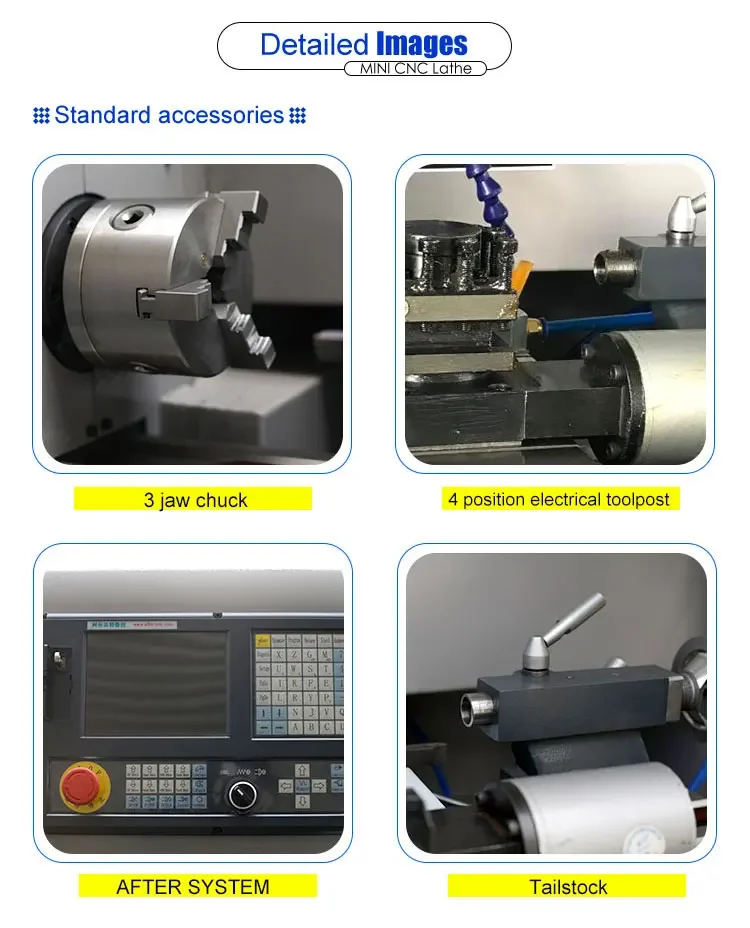

Turret
|
|
|
Type
|
Electric type
|
|
No. of tool stations
|
4 position
|
|
Max. section of tool
|
12x12mm
|
|
Tailstock
|
|
|
Tailstock dia.
|
22mm
|
|
Tailstock tavel
|
50mm
|
|
Tailstock taper
|
MT2
|
|
Machine Dimensions
|
|
|

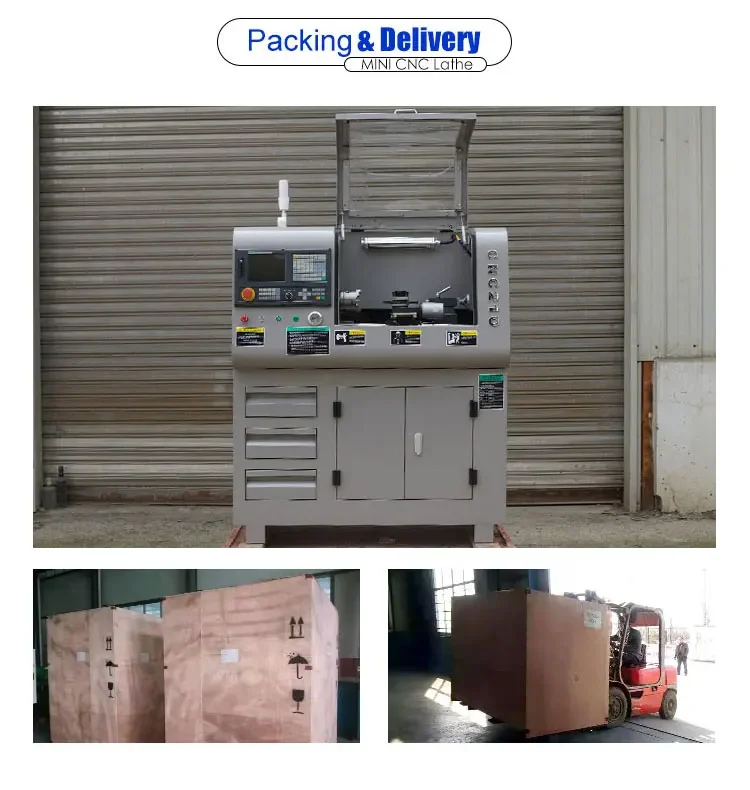

Packing size(without stand)
|
1170X700X860mm
|
|
Overall size
|
1300X800X1500mm
|
|
N.W(without stand)
|
200kg
|
|
N.W
|
230kg
|
