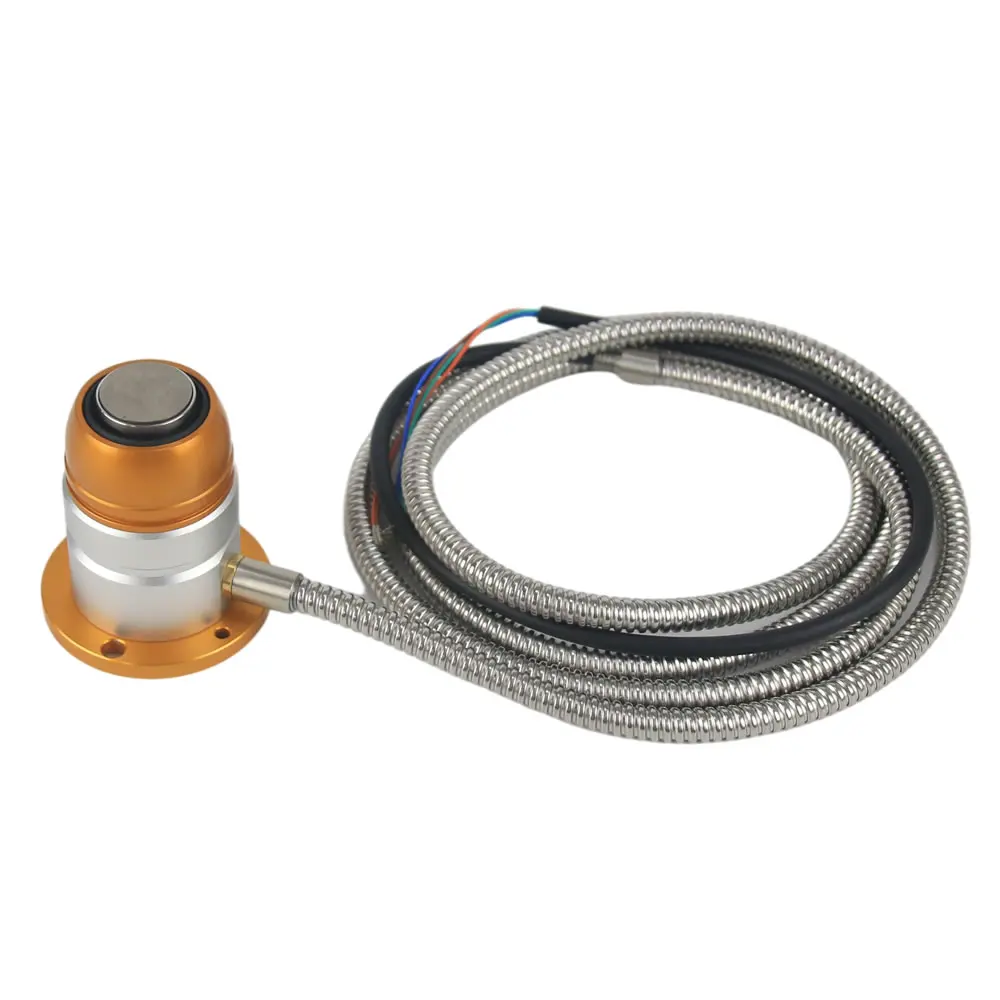

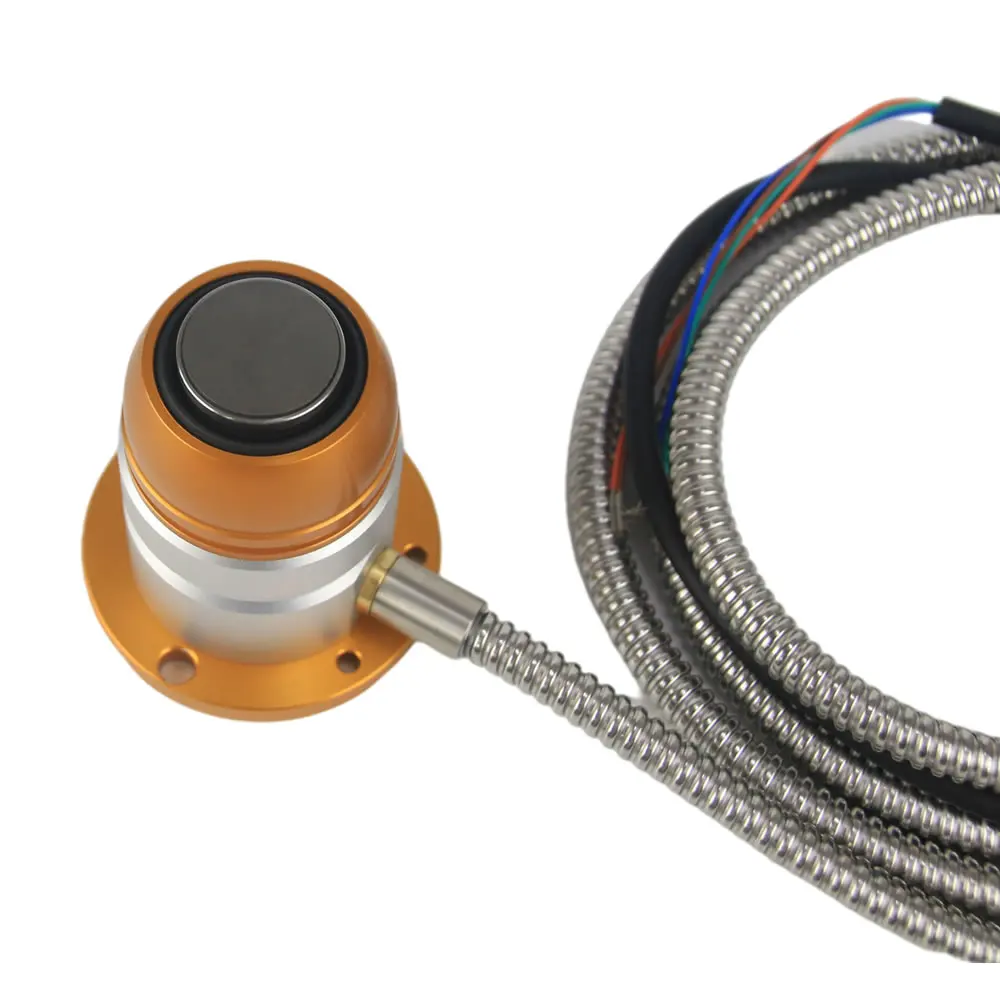

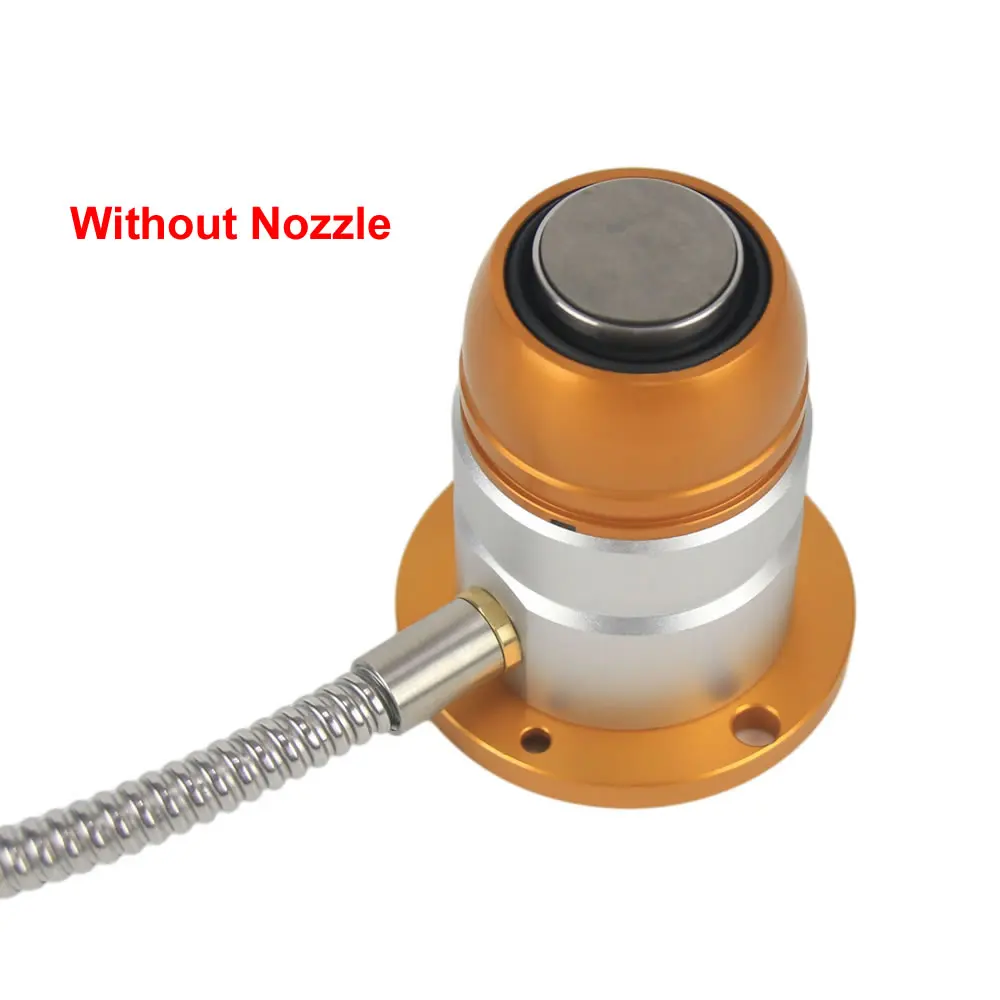

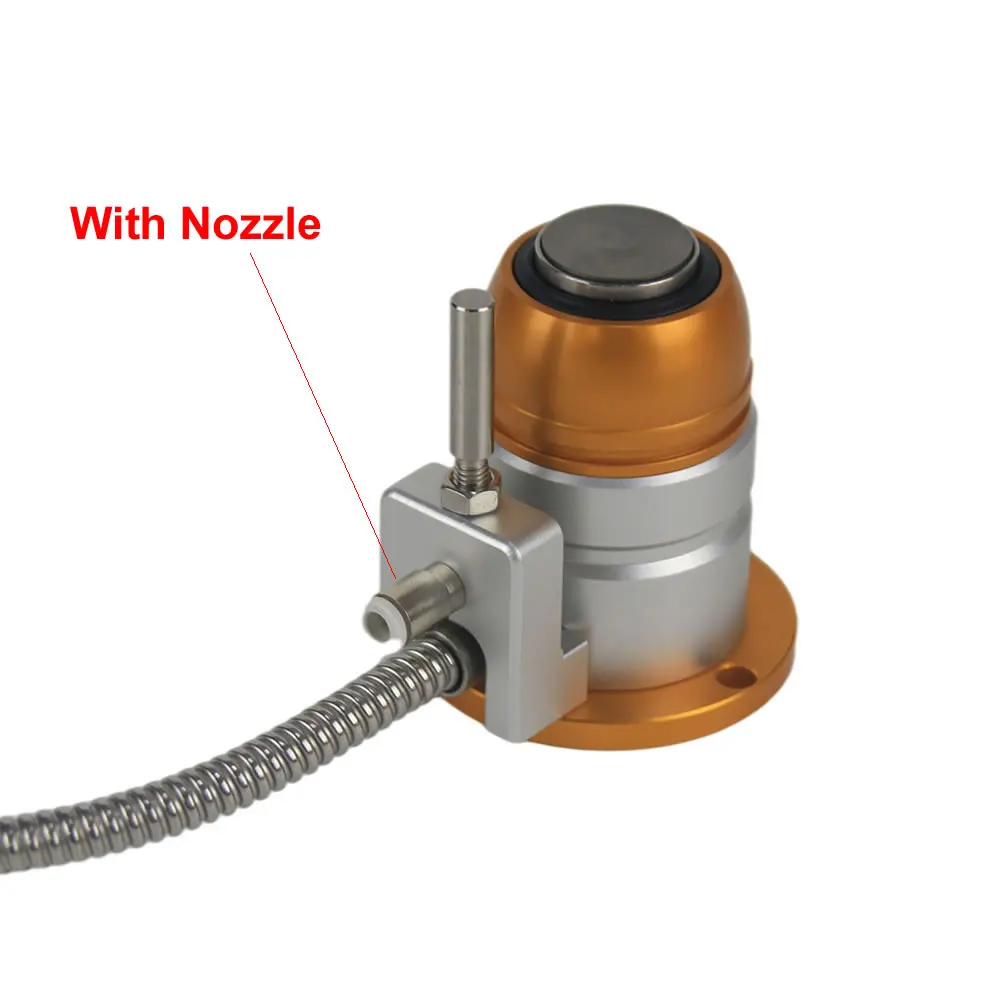

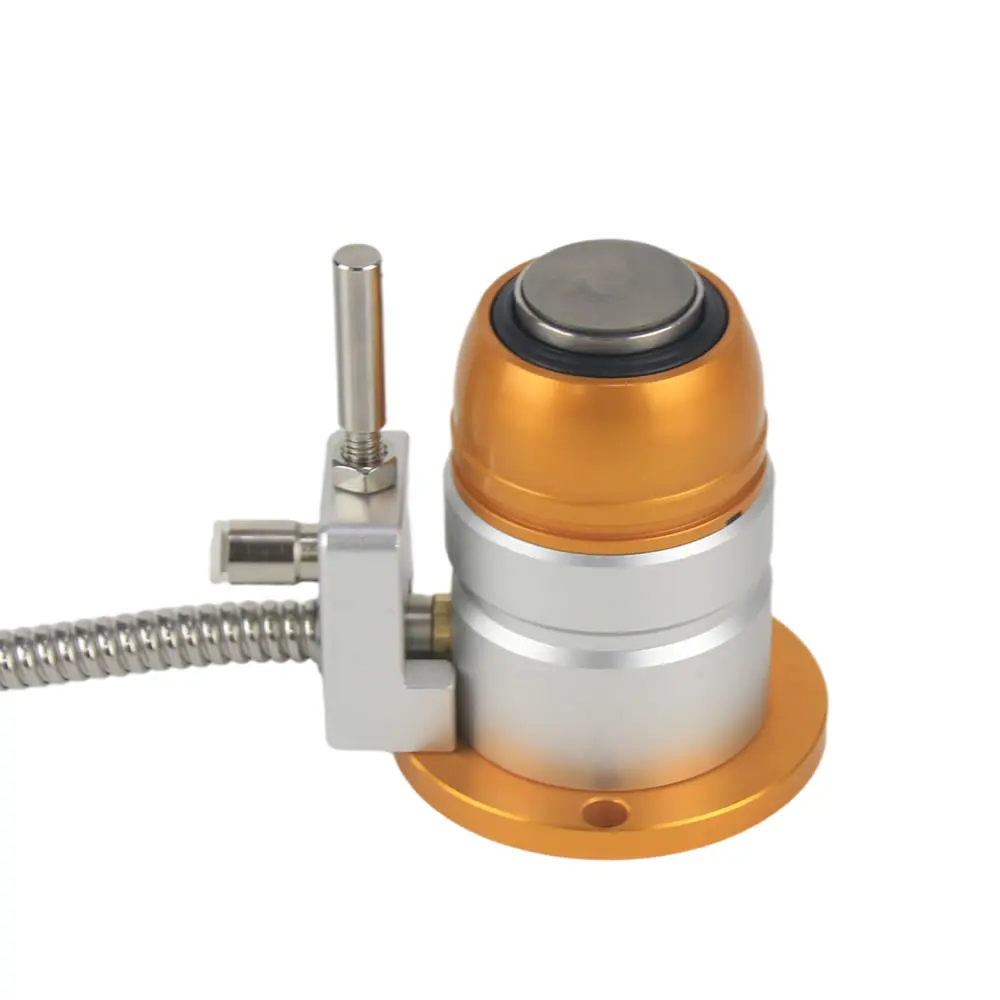

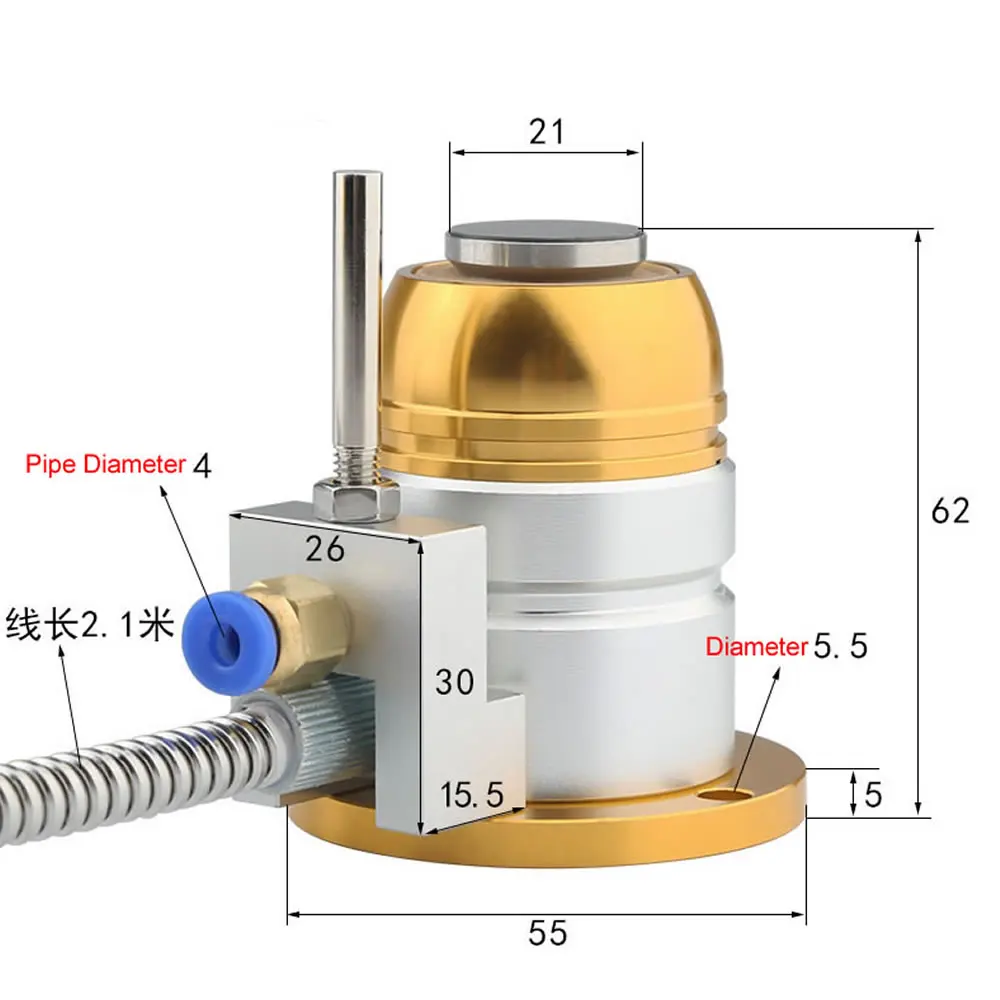

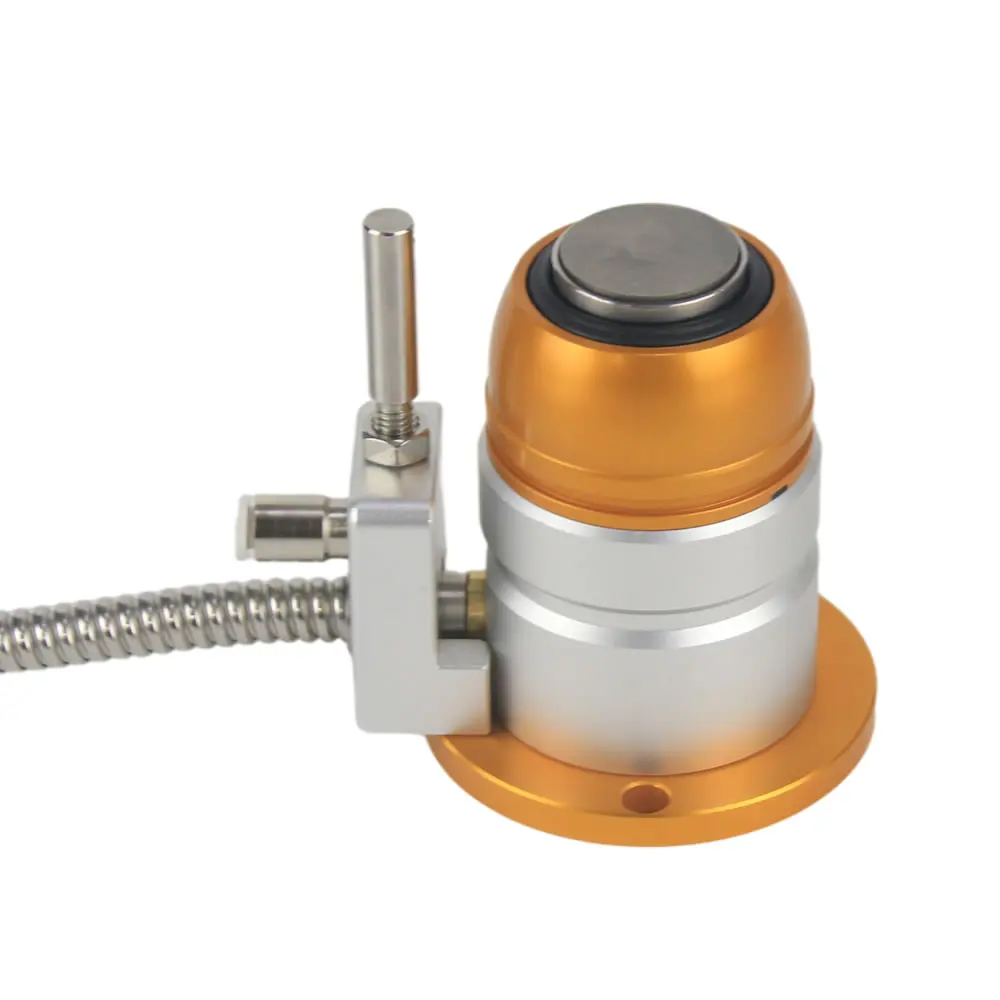

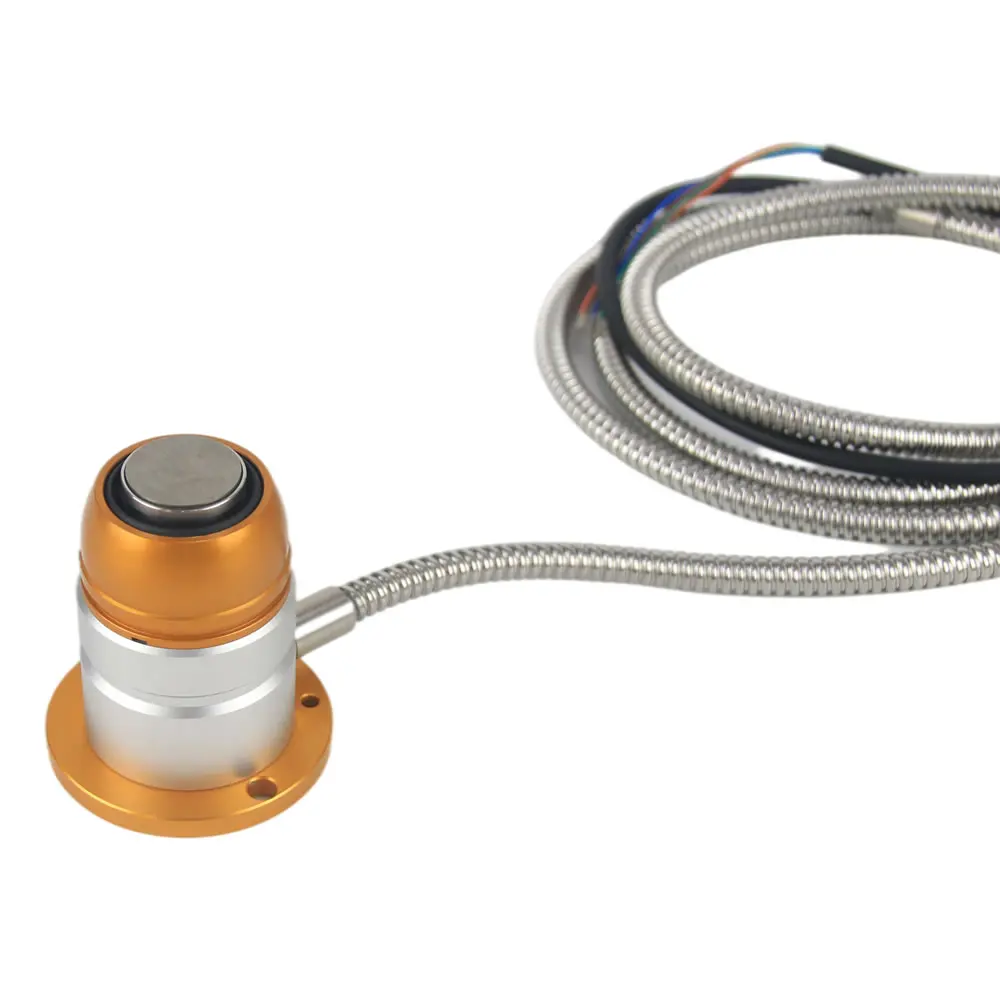

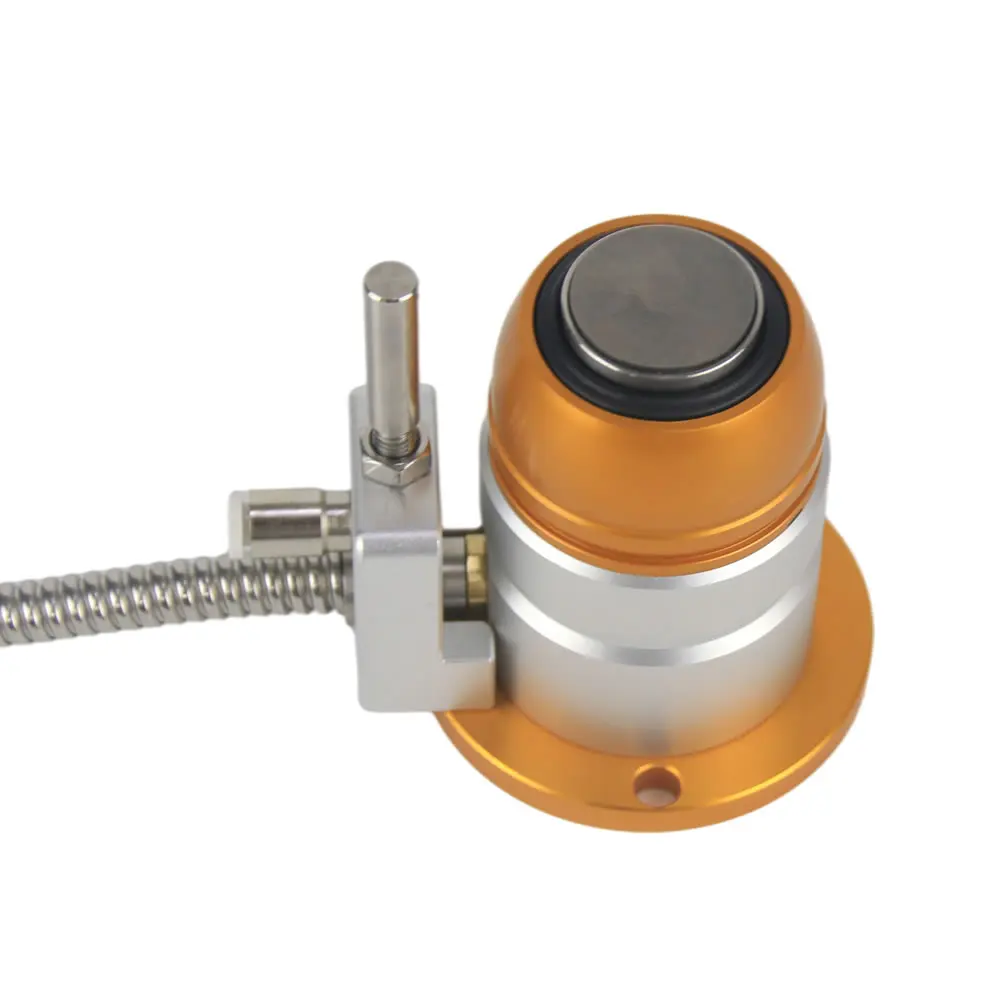

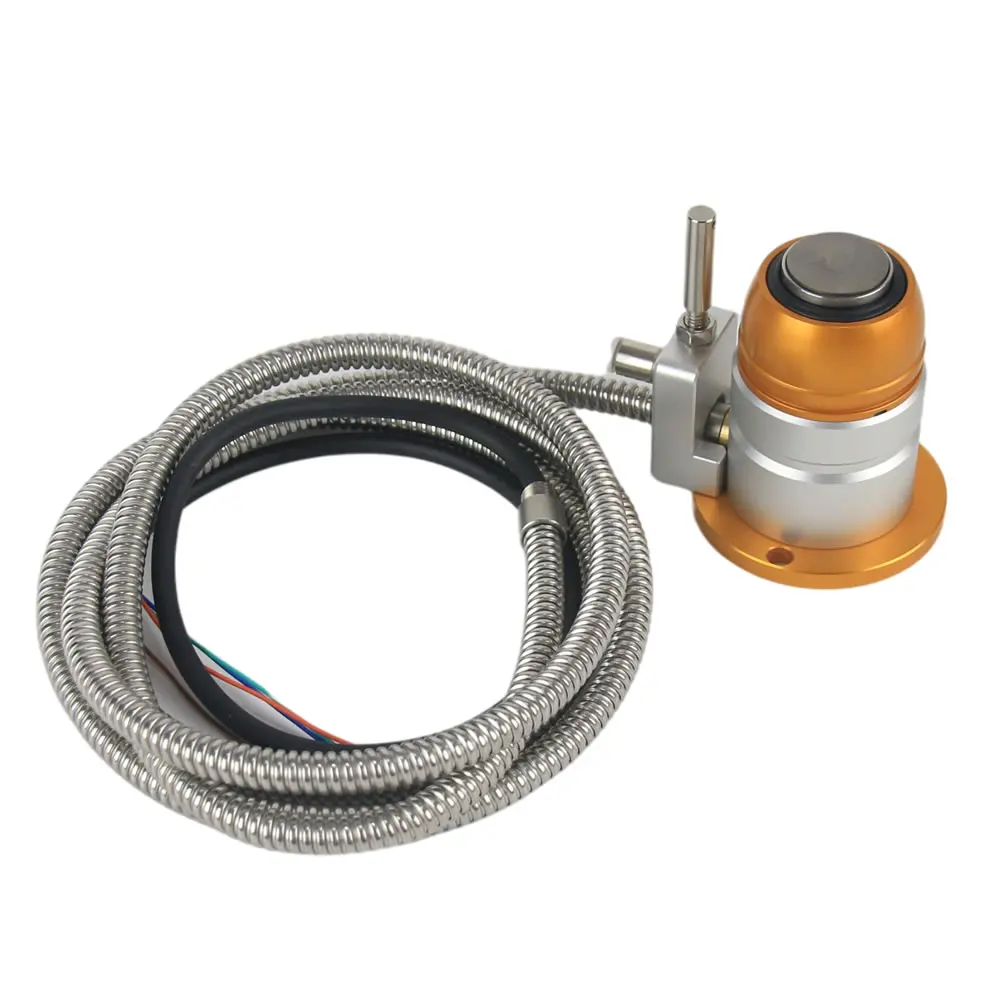

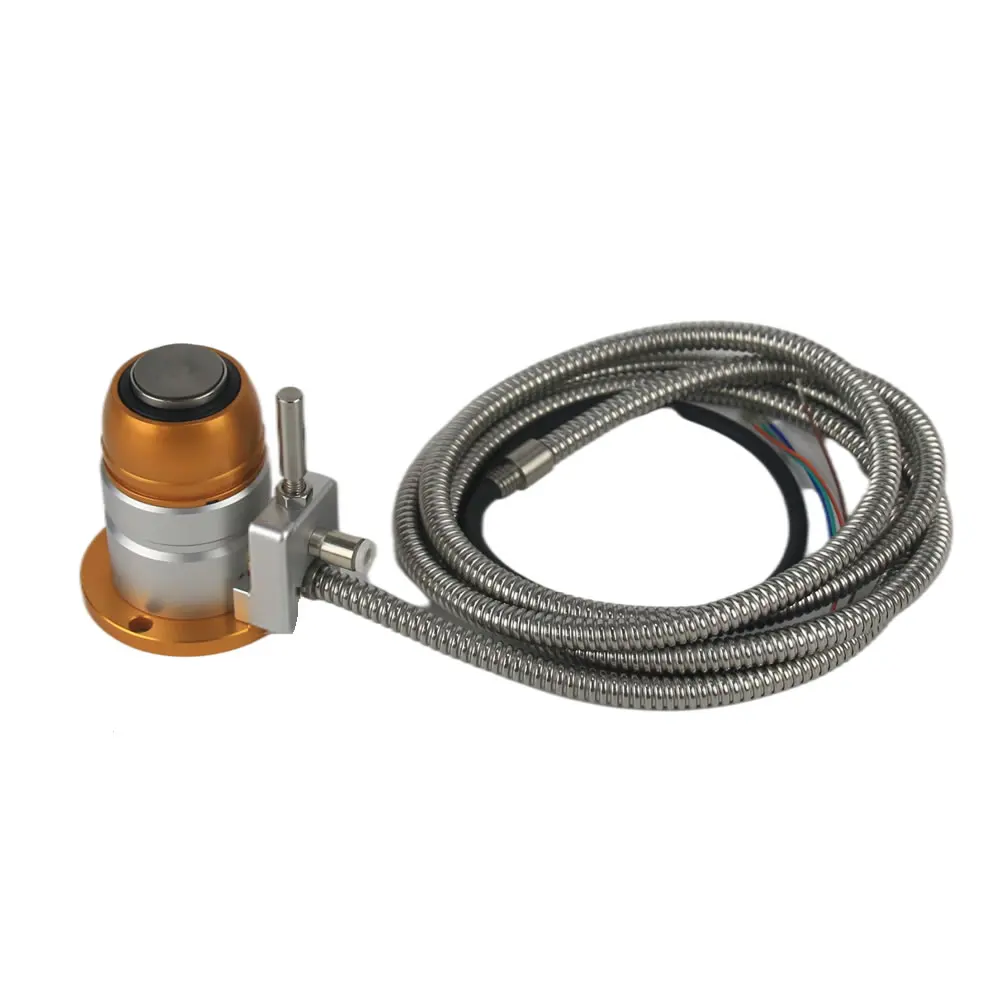

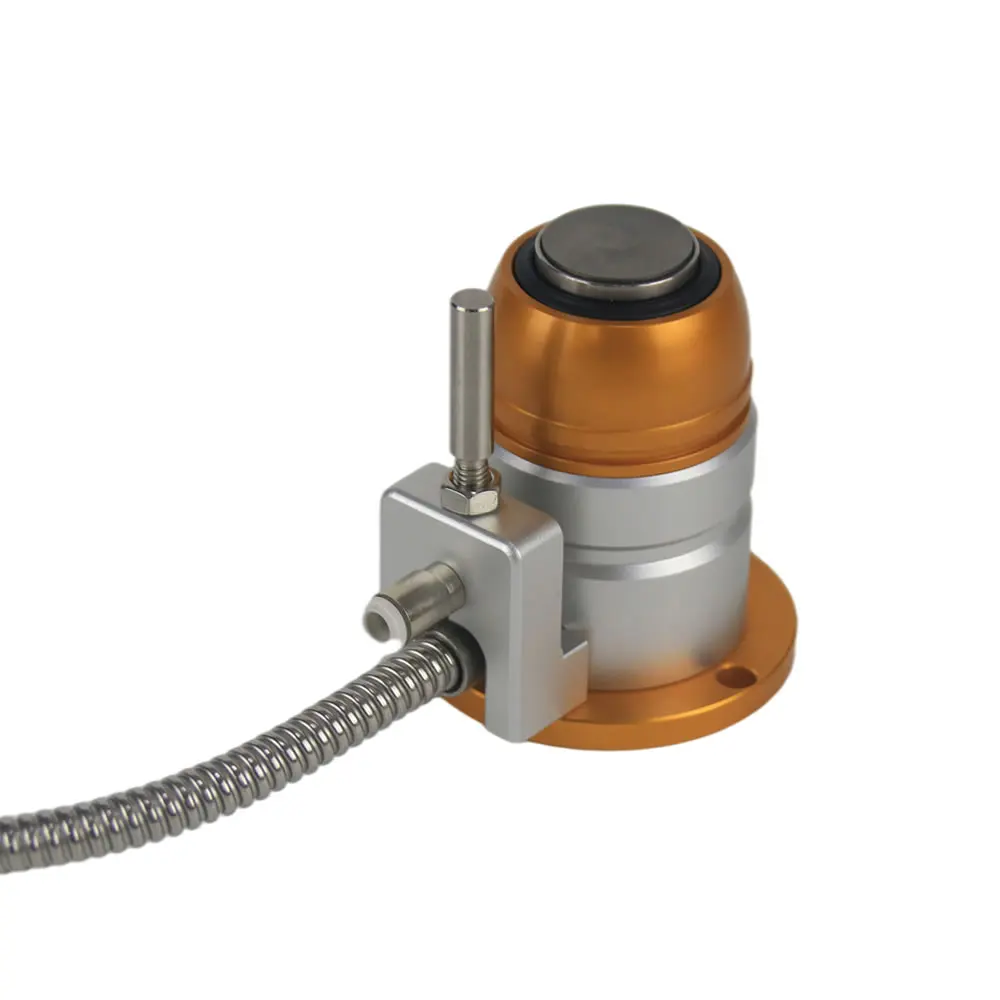

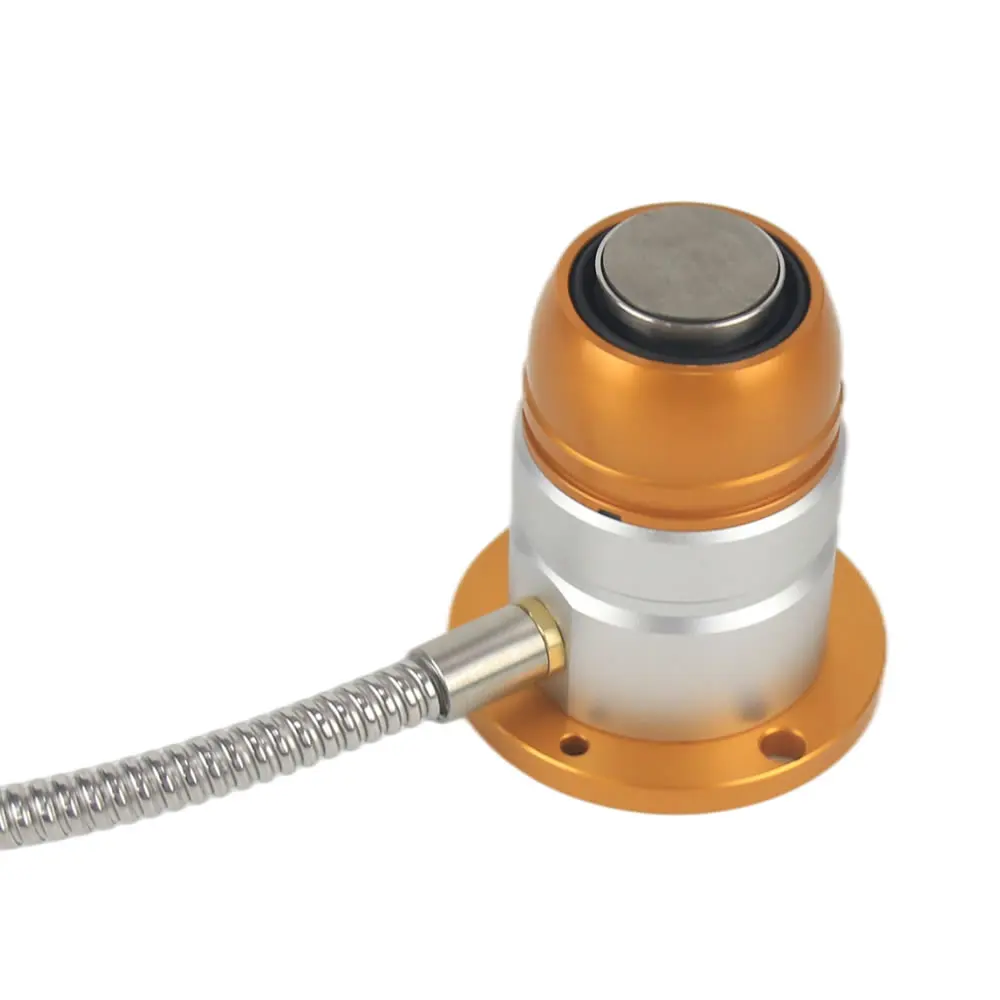

CNC Z Axis Automatic Tool Touch Sensor Setting Gauge Instrument Block for Mach3 CNC Machine Touch Sensor

Introduction

Stroke: 5mm

Repeatability: 0.001mm

Electric shock life: 3 million times

Protection level: IP67

Contact force: 1.5N

Material of contact part: soft and hard combination

Shell material: grinding 4S

Protection tube: 1m long minimum bending radius R25

Cable: 2 meters, oil-resistant, 4-core

Precautions

1. The stroke of the tool setter (5mm) should not be exceeded during contact, otherwise the tool setter will be easily damaged

2. Do not release immediately when touching the contact surface of the tool setter with your hands, so as not to damage the internal structure of the tool setter and affect the efficiency and life of the tool.

3. After the tool setting is finished, the tool must be lifted vertically away from the contact surface, do not move laterally, which may damage the tool setting instrument
