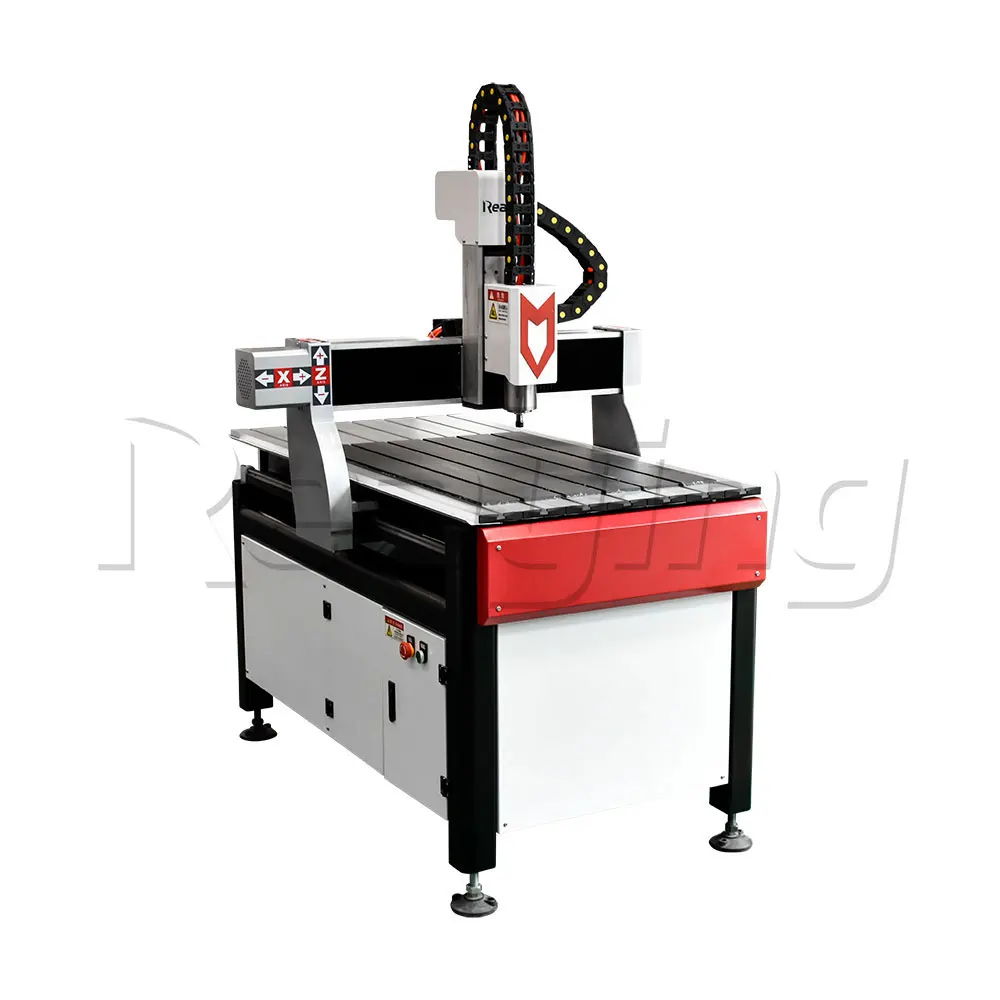

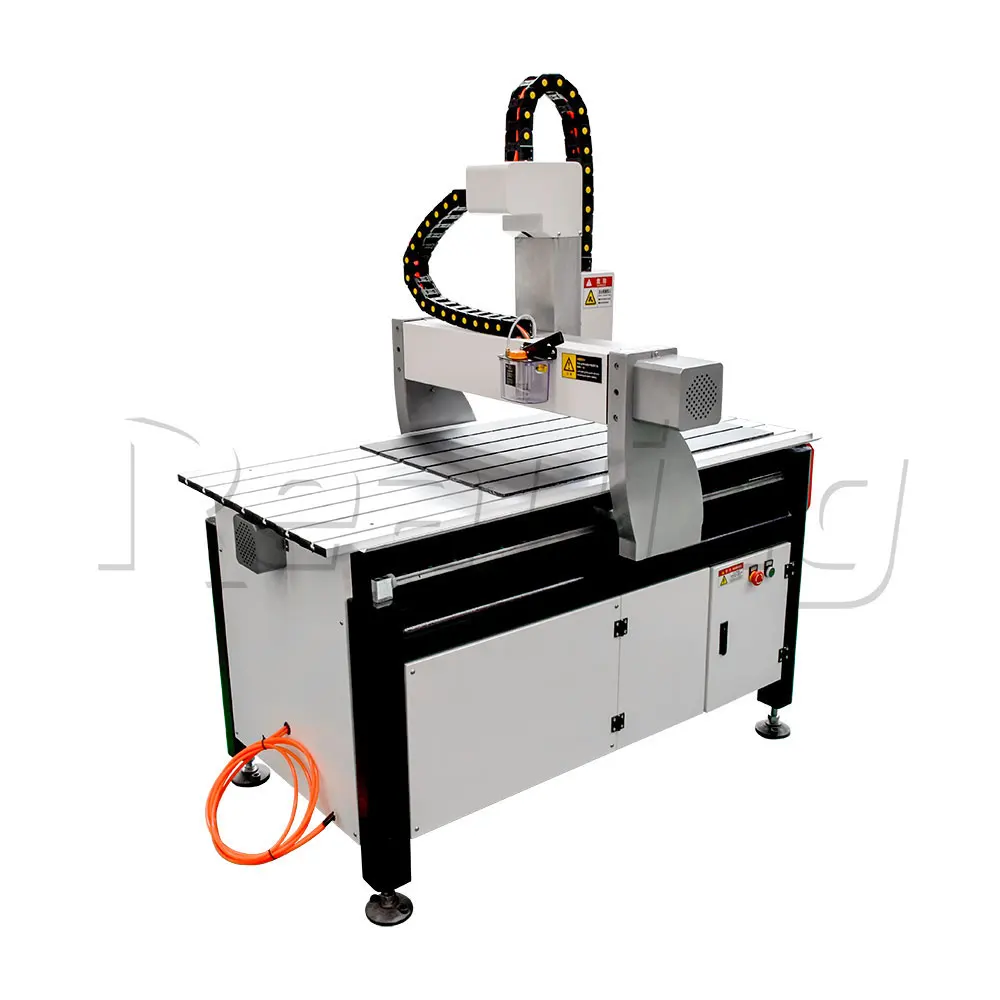

Name: CNC router machine woodworking plywood cutter advertisiment router machine 9060
SKU: 1005008847884585
Availability: InStock

EXW Price, please contact us to check sea shipping cost before order.

Feature

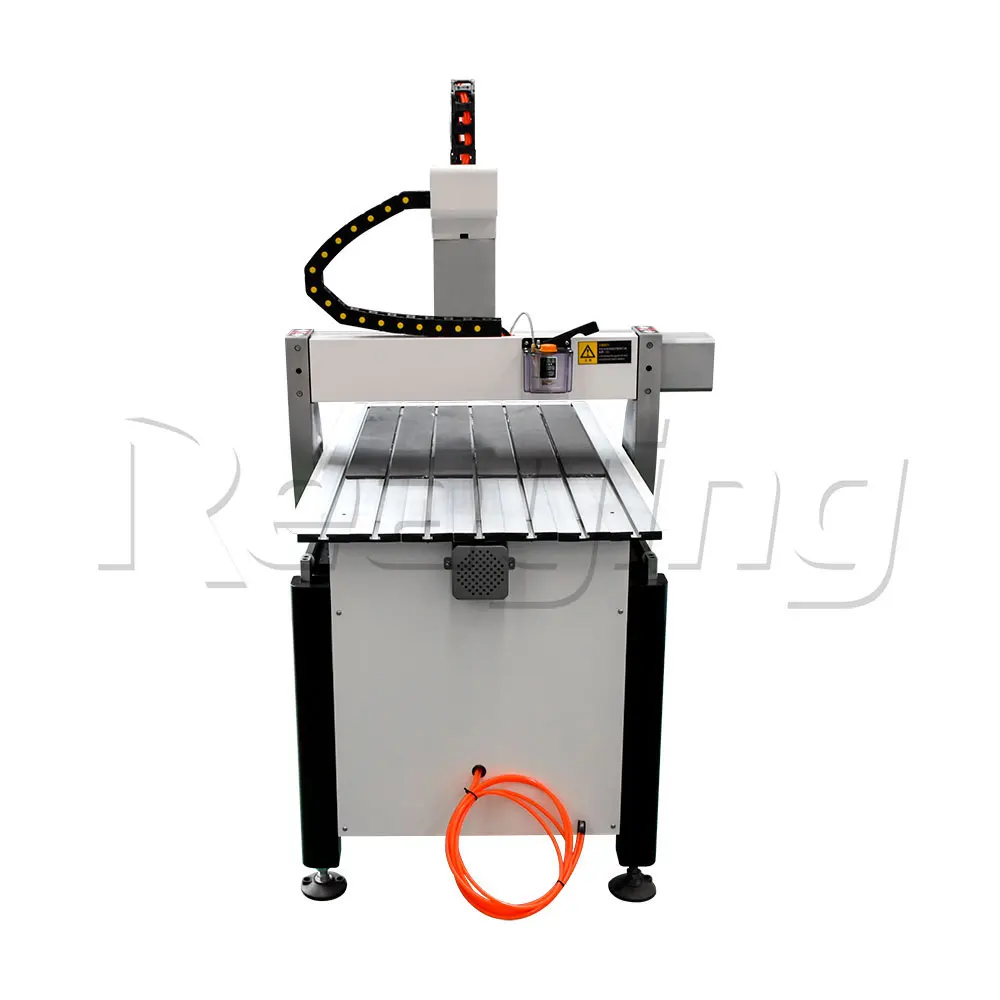

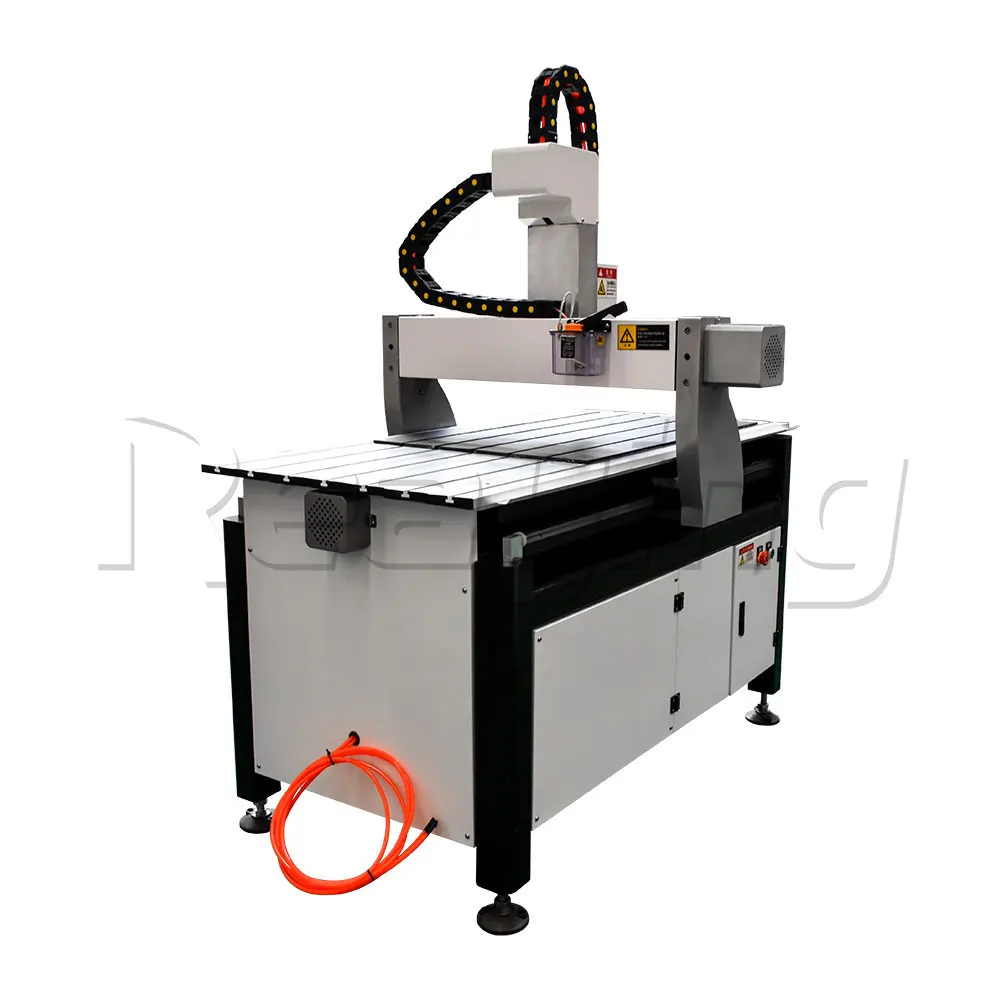

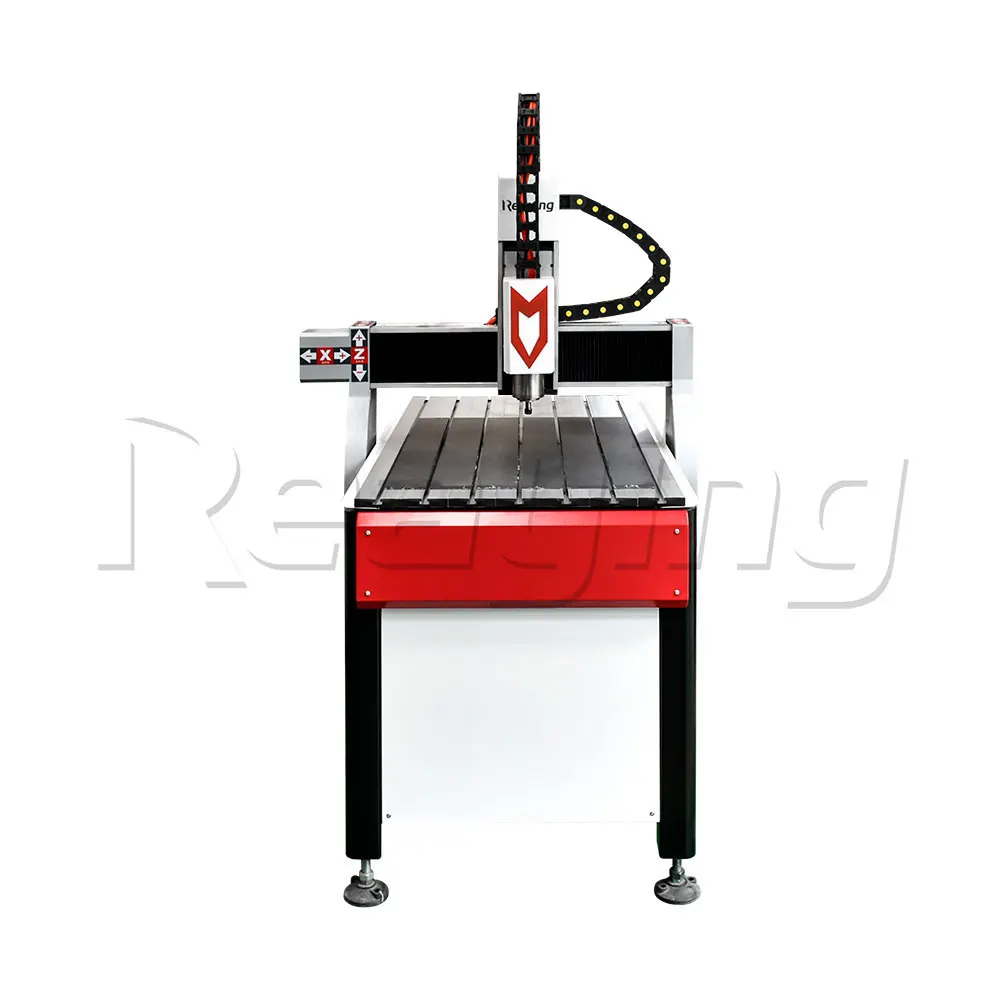

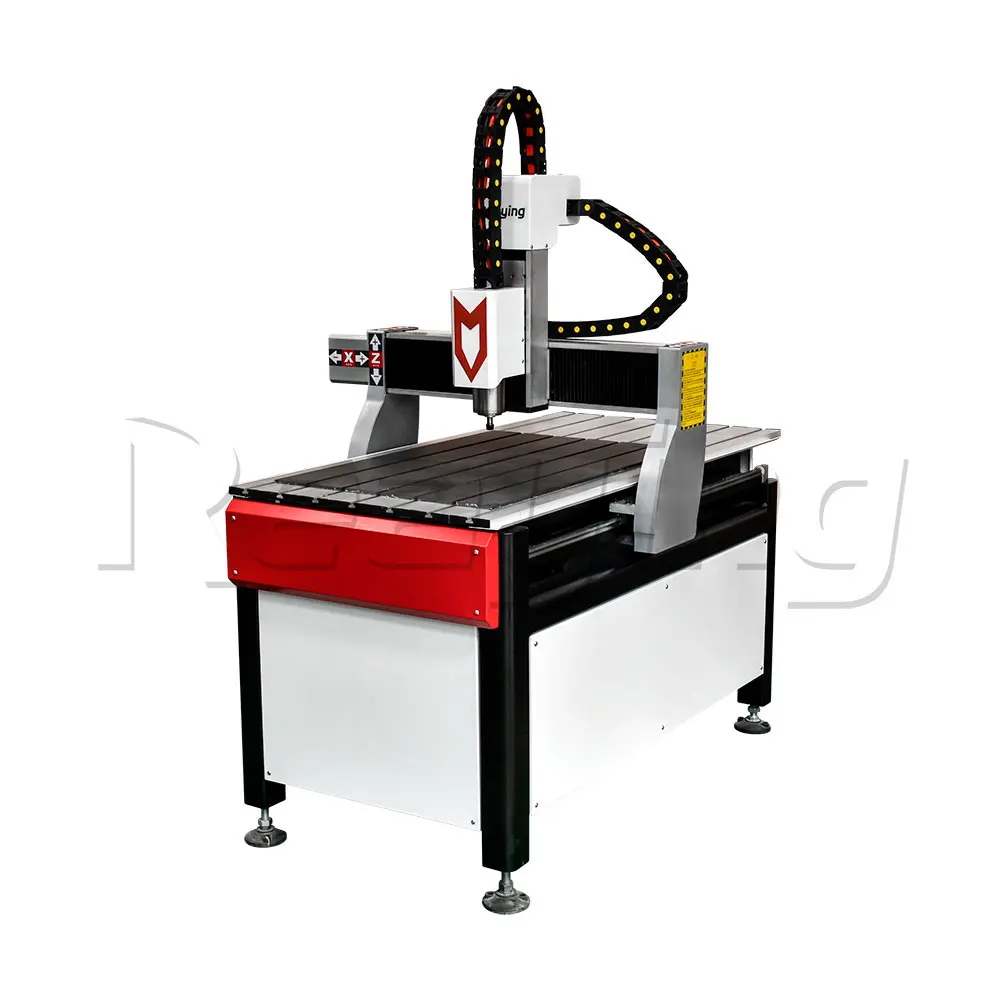

RY-C6090 mini CNC Router machine is a model suitable for DIY enthusiasts. It has high cost performance, small size, high processing accuracy, and a wide processing range. It can process all kinds of wood, metal, stone, acrylic, PVC, ABS and other materials.

Applicable industries:

1. Advertising industry: Carving and cutting various materials to make advertising characters, luminous characters, Chanel characters and various signs.

2. Crafts industry: Carving words and figures on handicrafts and souvenirs

3. Mold processing industry: precision processing of small molds

4. Model industry: engraving fences, wall decorations, patterns and other reliefs

5. Stamp industry: various stamps can be engraved on plastic, rubber, wood and other materials

6. Wooden handicraft industry: suitable for the production of tea plates, wood prints, etc

Specification

Model	RY-C6090
Frame	Seamless welding bed, cast iron table top, cast aluminum gantry
Spindle power	1.5KW
Spindle brand	HQD brand
Frequency inverter	BEST brand
Rpm	24000
Working area	600x900x200mm
Control system	WEIHONG / RICHAUTO DSP A11E controller
Drive system	Ball screw and double liner guide
Cooling method	Water cooling
Motor	HH-MOTOR brand stepper motor
Running speed	8,000mm/min
Voltage	220 single phase/380V, 3Phase, 50/60Hz

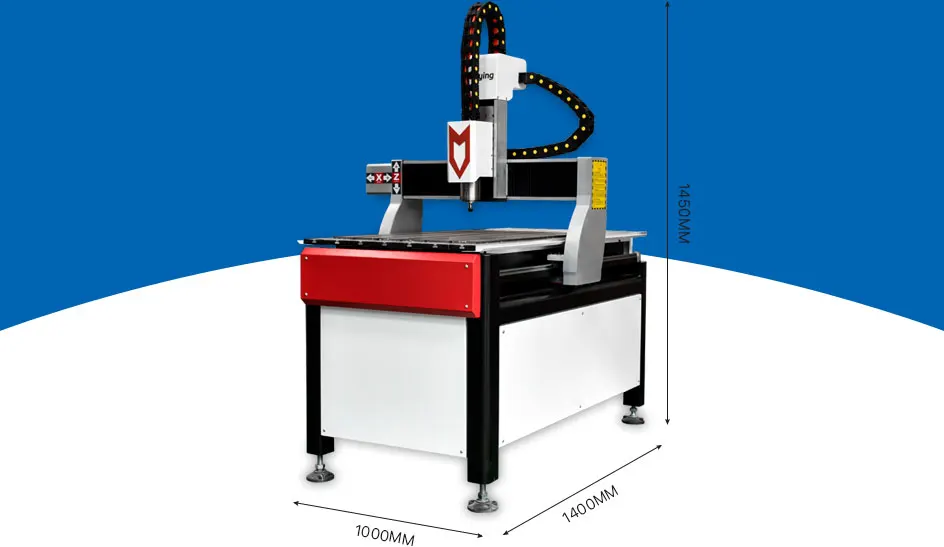

Package size	155011501650mm, 300kg
Optional accessories	Water tank and cooling system, rotary device

Details Show

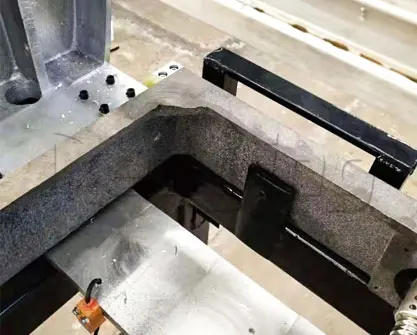

Machine frame

Adopted seamless welding bed, cast iron table top, cast aluminum gantry. This structure is more stronger, durable and not easy to deform, laying a solid foundation for stable operation of the equipment.

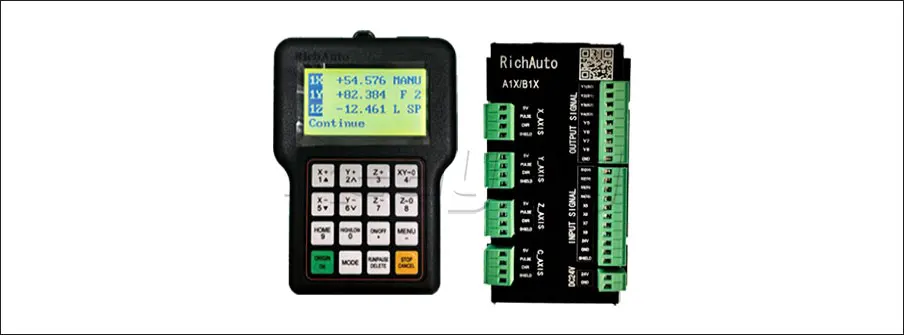

RICHAUTO DSP A11E controller

1. DSP operation core, with fast operation speed and strong processing ability.

2. 16 button hand-held operation, easy to train and operate

3. Equipped with screen display to realize full offline operation

4. Built in storage space, supporting USB flash disk reading

5. Standby USB flash disk mode function, supporting direct connection with the computer

6. 8 pairs of I/O ports can be customized

7. Support G code, PLT, DXF format files generated by various CAD/CAM software

8. Multi coordinate system memory function, supporting 9 workpiece coordinate systems,

9. Intelligent pre reading of documents to improve processing efficiency

10. Intelligent memory supports breakpoint, power failure and continuous machining

11. Parameter backup and recovery function

12. Two operation modes to ensure quality and efficiency

13. Safety pre inspection and alarm to ensure safe production

14. More convenient encryption and decryption function, no longer worry about forgetting the password

15. Support remote maintenance and system upgrade

16. Multi language display, free switching

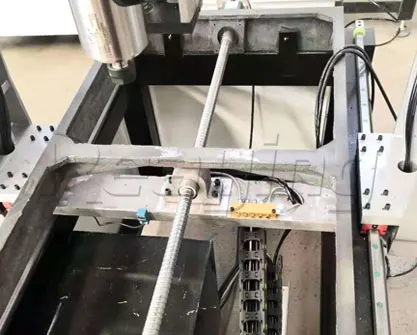

Drive system

The mute ball screw is used with double linear guide rail to ensure higher processing accuracy, more stability and more durability of the equipment.

Water cooling spindle

Selected the 1.5KW water-cooled spindle, the maximum speed can reach 24000rpm. Smooth running, low noise, safe, reliable and long lifetime.

Frequency inverter

With BEST brand frequency inverter, it has strong anti-interference ability, overvoltage, undervoltage, overcurrent, overload, overheating, phase loss protection, and can display parameter setting, status information, fault code and other information in real time.

Optional cooling system and water tank

In addition to wood, if you also need to process stone and metal, you can choose cooling system and water tank, which is more convenient for your use and operation.

Samples

Wood, solid wood, particle board, acrylic, plexiglass, MDF, plastic, copper, aluminum, etc
This machine is mainly used in furniture making industry, furniture decoration industry,wood craft industry,wood decoration industry and automotive tooling industry,etc
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard. Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

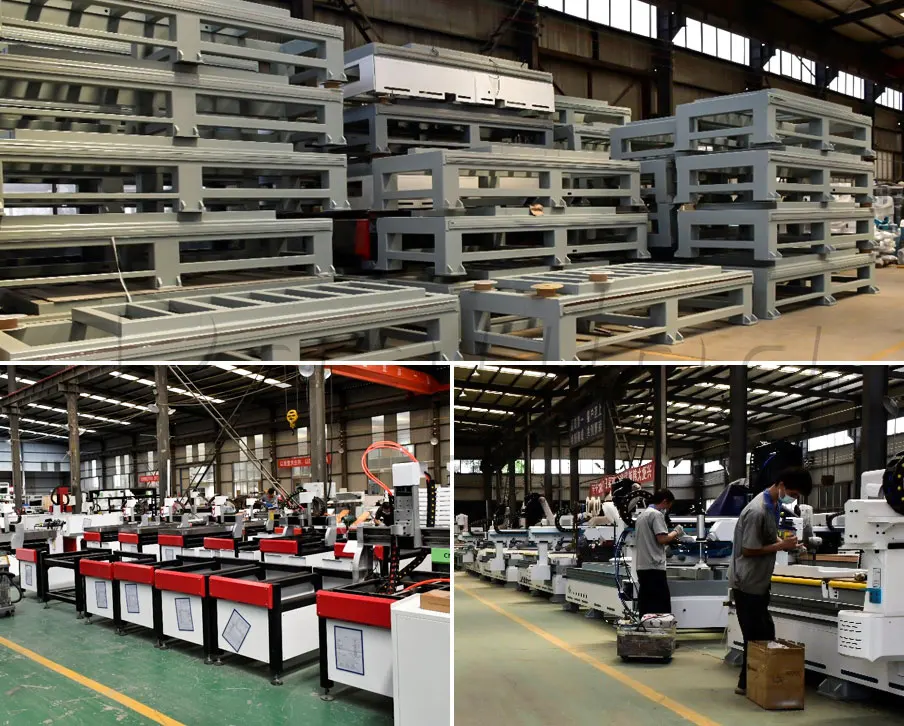

Factory

Our service

Pre-sale Service

1. View our Factory.

2. Any technical questions will be answered as soon as possible.

3. Machine video for reference.

4. Free sample test.

Sale Service

1. Acceptance of equipment together with you.

2. Offer you help to make the operating instruction.

3. Any other help you need.

After-sale Service

1. 1 years warranty for whole machine

2. Free change accessories due to quality problem.

3. Procedures via Internet and phone any time when needed.

4. Training how to install and operate.

Packing

1). Inner side waterproof film

2). Middle size foam

3). Outside plywood package with metal belt

About Us

Shandong Reaying Machinery Co., Ltd. is one of the leading laser machine manufacturers around the world since 2008 with a registered capital of 3 million RMB. It is a high-tech enterprise focusing on R&D, production, sales and service of laser engraving, marking and cutting products. As a well-known laser equipment manufacturer, Reaying laser machines mainly consist of laser engraving machine, laser cutting machine, fiber laser marking machine, fiber laser cutting machine, fiber laser cleaning machine and CNC router woodworking machine and other laser equipment…Production meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.

Payment and Shipment

(1) We accept Alipay, West Union, T/T. All major credit cards are accepted through secure payment processor. Don't accept PAYPAL.

(2) Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number, TAX ID. It is EXW item. The buyer should pay shipping cost, custom clearance cost and import taxes. C&F and FOB, DDU, DDP terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).
