Name: CNC Router Machine 1325 One Head with 2 Spindles 4 axis with air Cooled Spindle Woodworking Engraving Machine
SKU: 1005008874003459
Availability: InStock

Químico Hign-em causa: Nenhum
Origem: CN (Origem)
Certificado: CE
Número do modelo: AKM1325-2R
Condição: novo
Nome da marca: ACCTEK
CNC ou não: Cnc

CNC Router Machine 1325 One Head with 2 Spindles 4 axis with air Cooled Spindle Woodworking Engraving Machine

Fern Dong

whatsapp+8615550803000

email :export07@acctekcnc.com

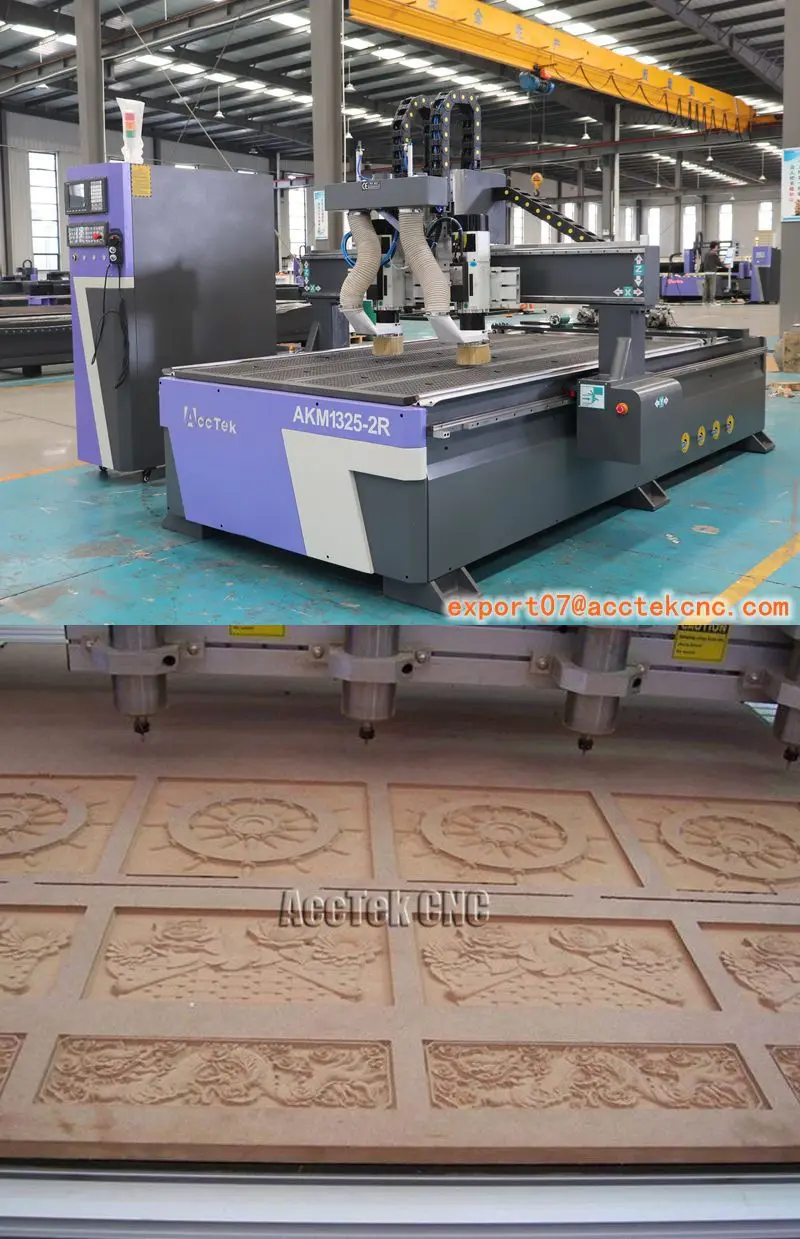

Multi head multi spindle cnc router

1. Adopting imported linear square guide rails, double row four row ball sliding blocks, with large load-bearing capacity, smoothoperation, high accuracy, and long service life. Imported ball screws have high precision and precise cutting.

2. The operation of the computer control system is simpler and the design is more user-friendly,

3. By using a high-speed stepper motor and driver,combined with a strong cutting spindle, the carving speed can be further improved.

4. The 2 spindle CNC engraving machine can produce 2 samples at once, improving the factory's production capacity.

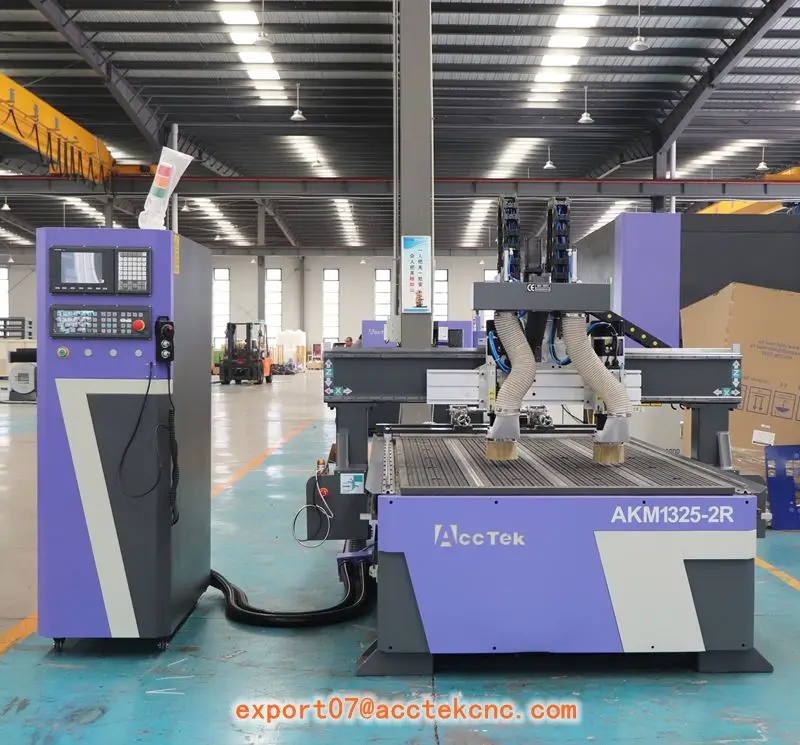

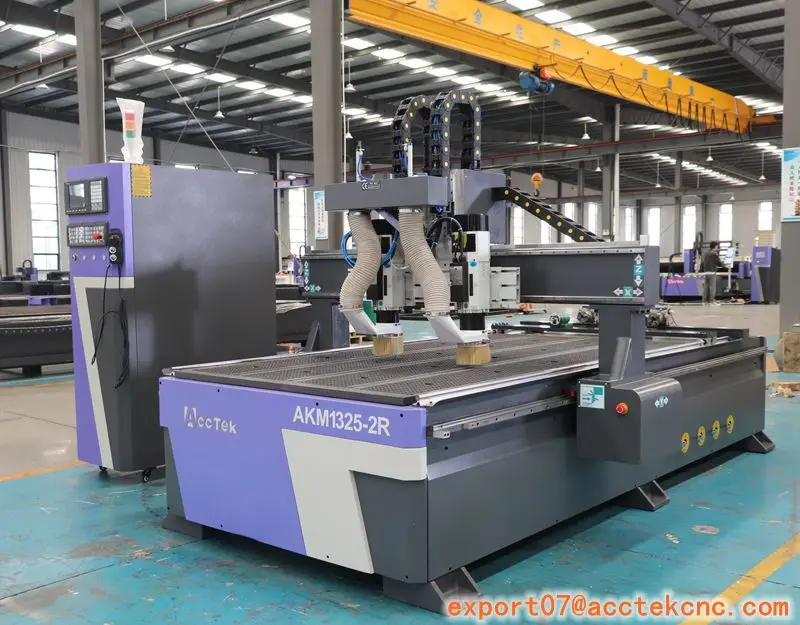

Details photos

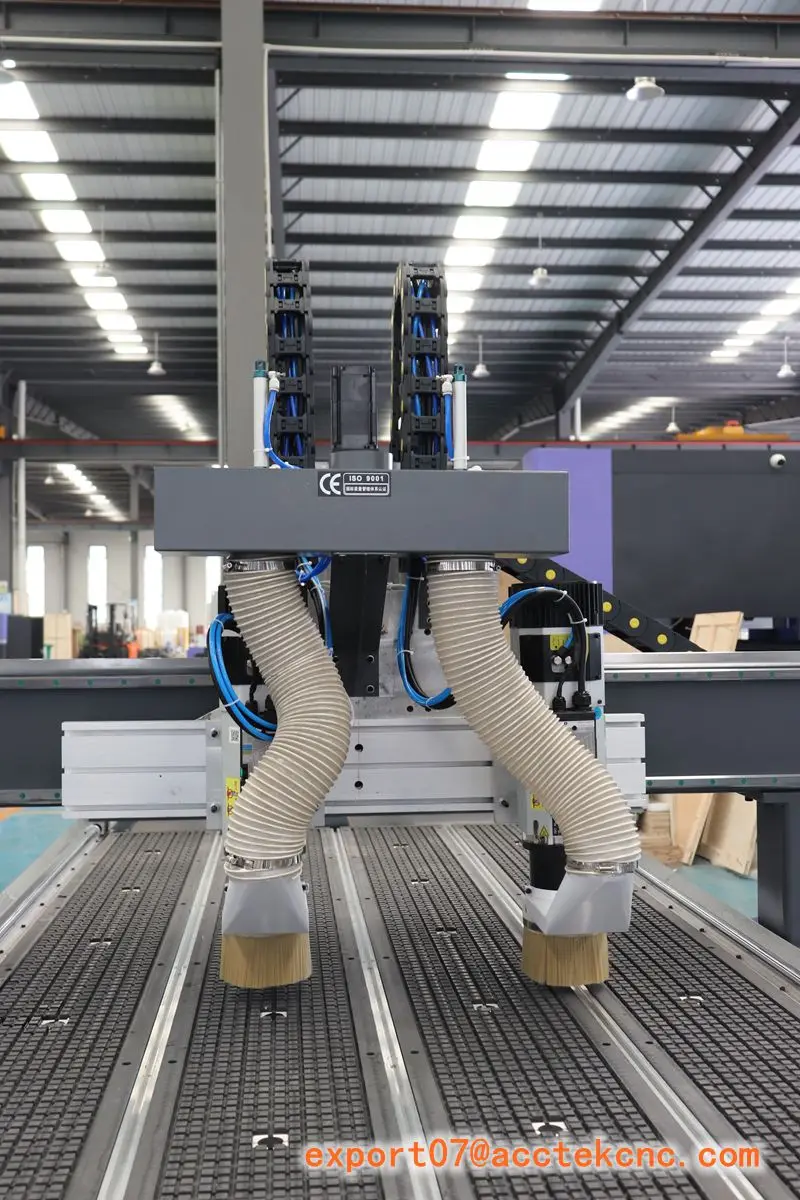

2PCS 9.0kw air cooling spindle :

Technical parameters

Description	Parameter
X,Y,Z Working Area	1300x2500x300mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Table Surface	Vacuum&T-slot Table
Frame	Welded Structure,heavy duty T-structure
X, Y Structure	Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z Structure	Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Max. Power Consumption	15.0KW
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
spindle	9.0KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	servo motor and driver
Working Voltage	AC380V/50/60Hz,3PH

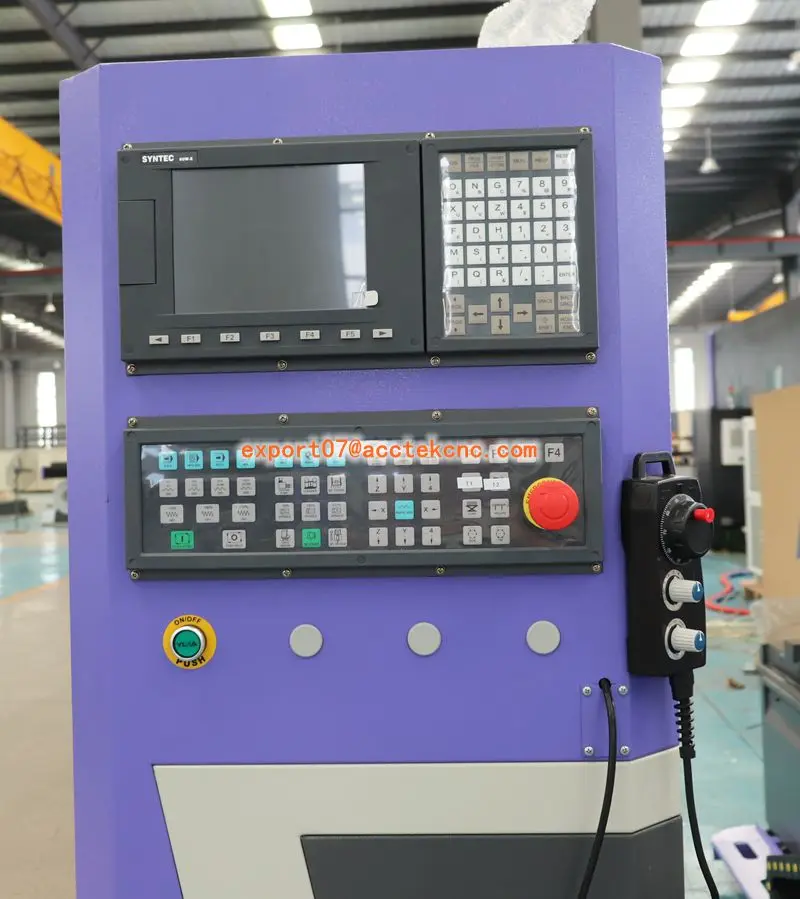

Control System	Taiwan SYNTEC control system
X,Y Resolution	<0.01mm
Software Compatibility	Artcam Software
Running Environment Temperature	0 - 45 Centigrade

application &samples

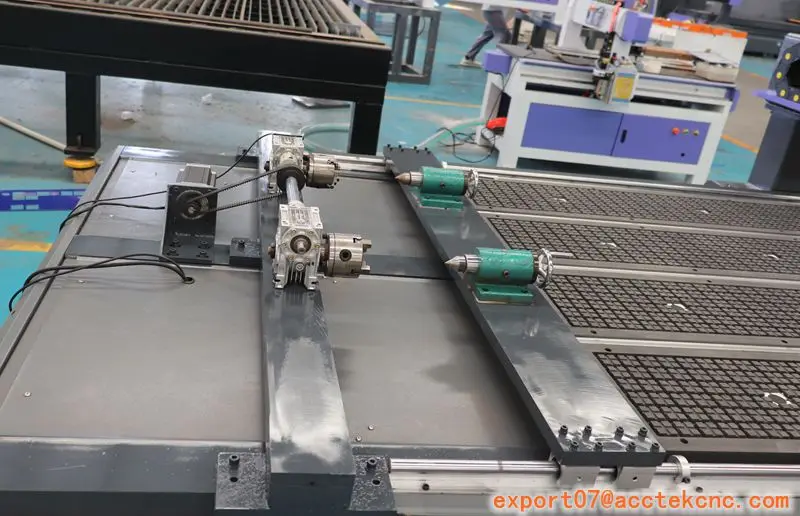

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.

Company Information

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.

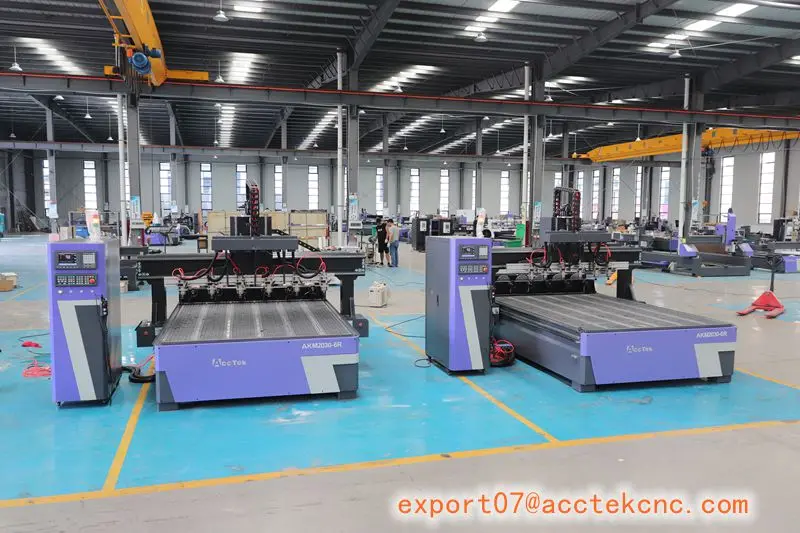

Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.

Packaging & Shipping
