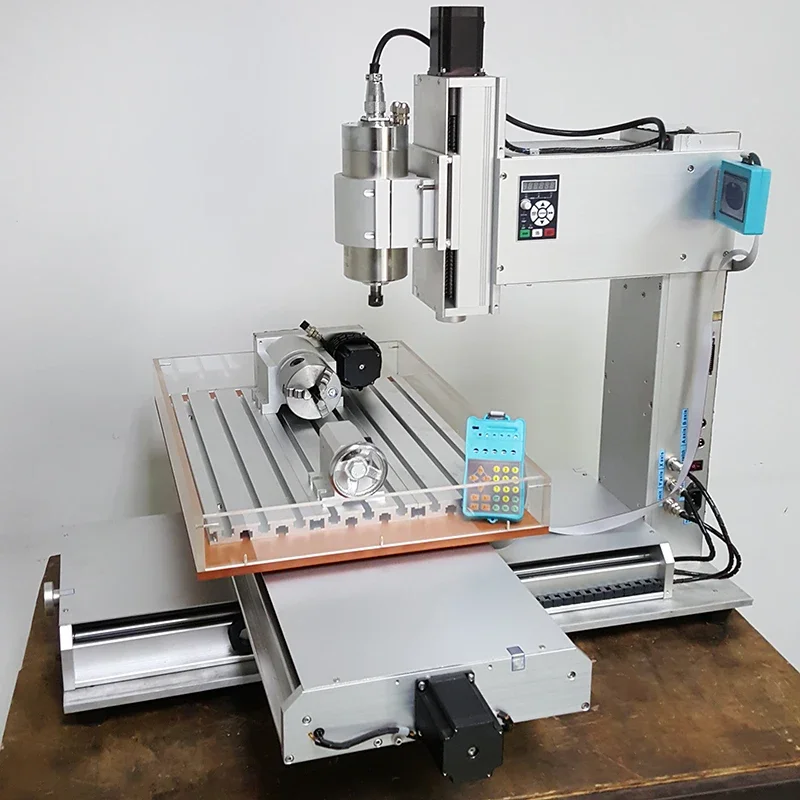

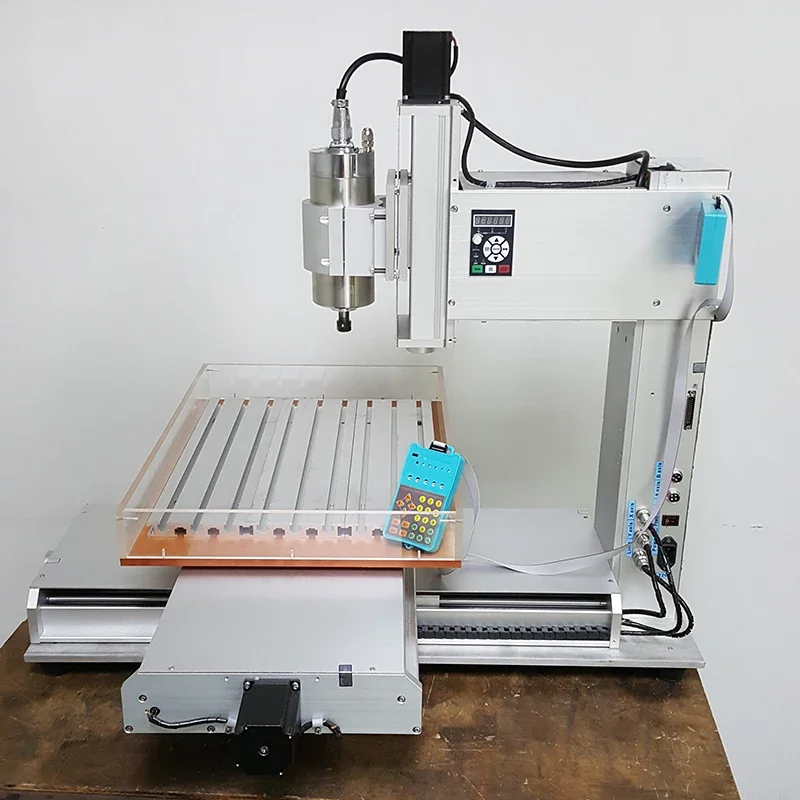

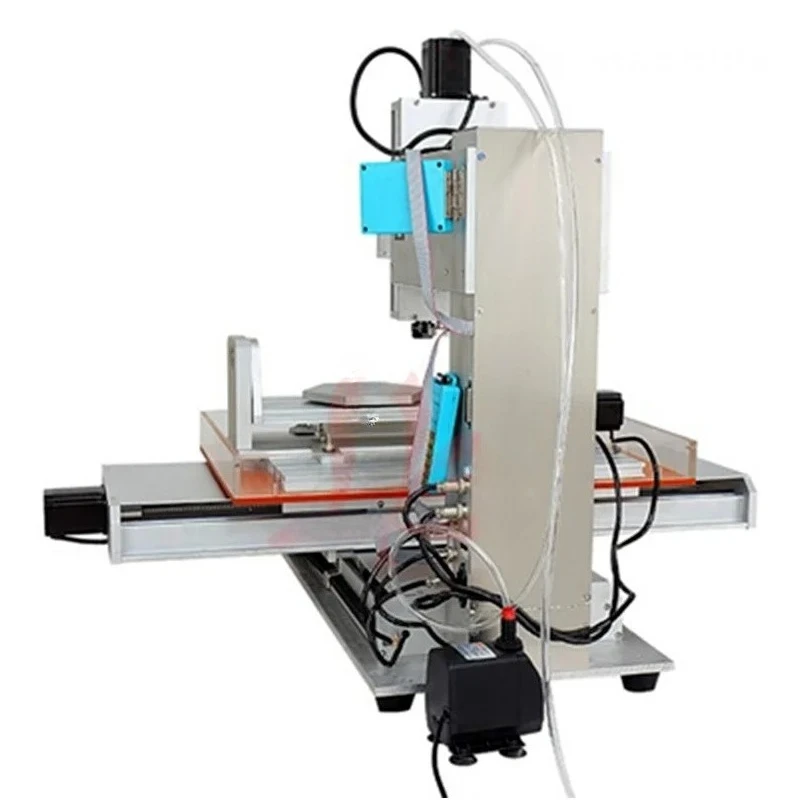

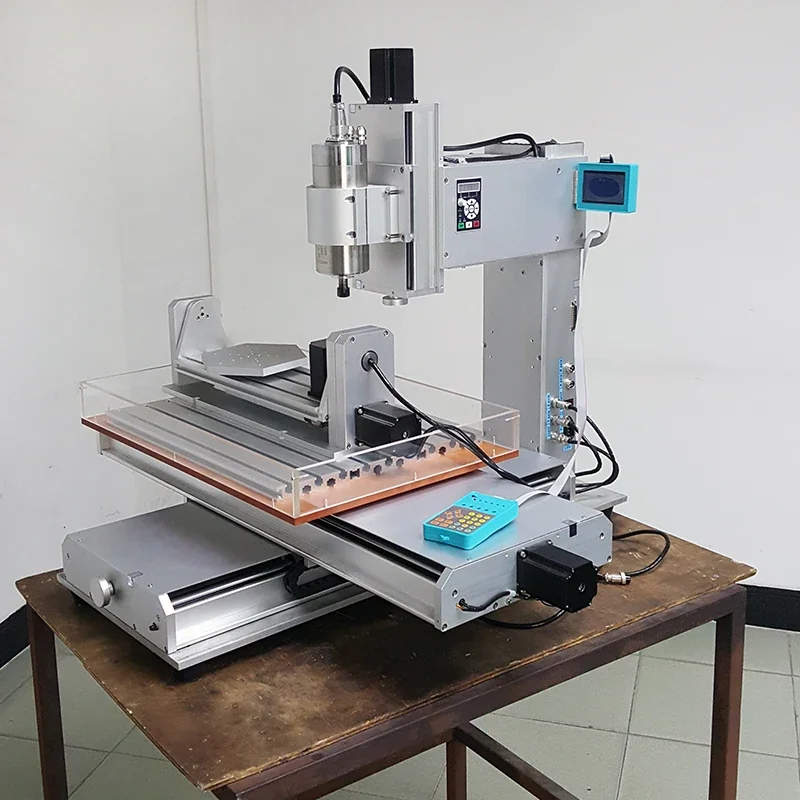

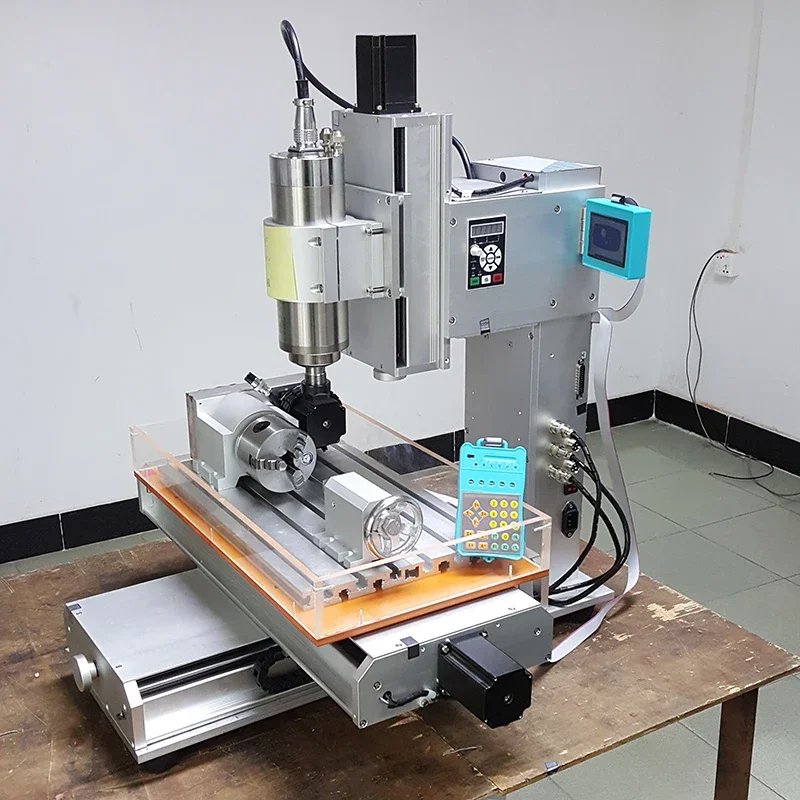

Name: CNC Router 5 Axis 2200W Metal Engraving Machine CNC 6040 USB Port 3040 Pillar Type Wood Aluminum Copper Milling Machine
SKU: 1005010140678148
Availability: InStock

High-concerned chemical: None
Model Number: 3040/6040
Origin: Mainland China
Precision ball screw: 1605
XYZ rail material: Hard chrome shaft
XYZ axis torque: 57*78 250 OZ/IN (2.2N/CM)
4th and 5th: 57*56
4th and 5th transmission ratio: 1:6
Repeat positioning accuracy: 0.01mm
Working precision: 0.02mm
Processing speed: 0-4000 mm/Min
A-axis B-axis rotation speed: 0-180 rpm/min
Tailgate material: Stainless steel
Switching Power Supply: Integrated 24V 350W

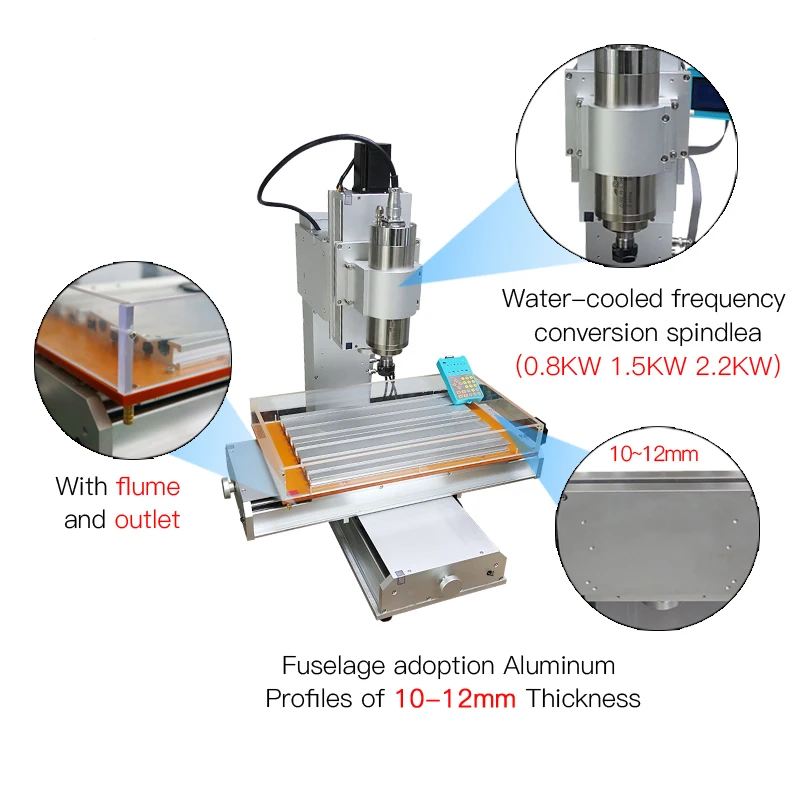

Spindle power: 1500/2200W water-cooled frequency spindle
Spindle converter: 1500W/2200W
Input Power: 220V / 110V power supply
Output Current: Drive 4.5A (peak 5A)
Drive motor: 57*78 stepper motors (two-phase 4 wire)

Specifications:

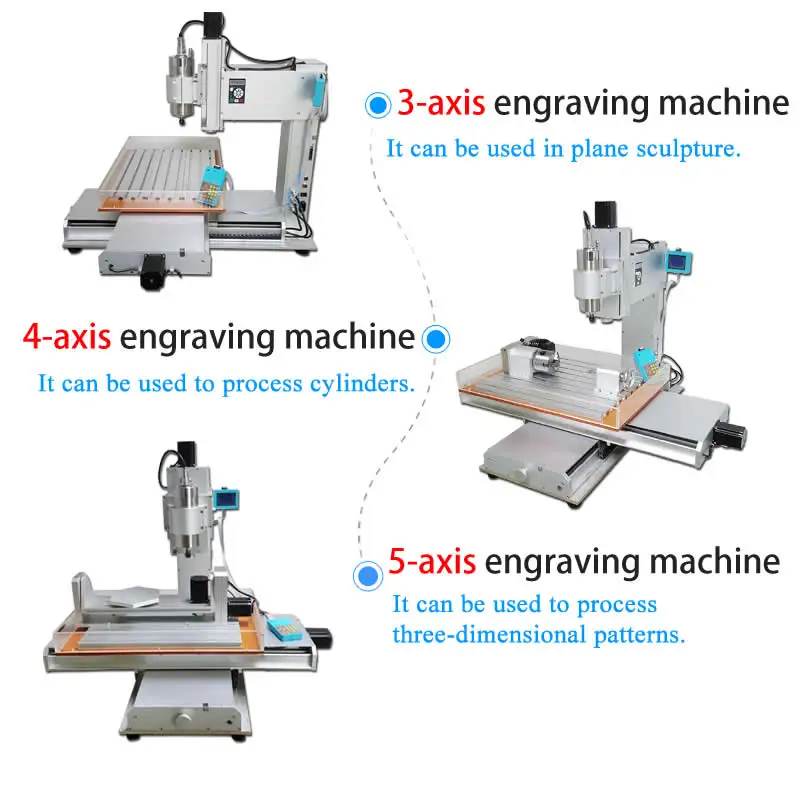

Model	3040/6040 3/4/5 Axis CNC Machine
Product demention 3040 6040	520660580mm 970810790 mm
Effective work area 3040 6040	300x400x(150)mm 600x400x(150)mm
Precision ballscrew	1605
XYZ rail material	Hard chrome shaft
XY rail diameter	20mm
Z rail diameter	16mm
XYZ axis torque	57*78 250 OZ/IN (2.2N/CM)
4th and 5th	57*56
4th and 5th transmission ratio	1:6
Repeat positioning accuracy	0.01mm
Working precision	0.02mm
Processing speed	0-4000 mm/Min
A-axis B-axis rotation speed	0-180 rpm/min
XY table maximum load	50kg
XY+A+B axis table maximum load	15kg
Tailgate material	Stainless steel
Switching Power Supply	Integrated 24V 350W
Spindle power	1500/2200 W water-cooled frequency spindle
Spindle converter	1500/2200W
Input Power	220V / 110V power supply
Output Current	Drive 4.5A (peak 5A)
Drive motor	57*78 stepper motors (two-phase 4 wire)
Net Weight	55KG/75kg
Gross Weight	85KG/120kg
Outside packing 3040 6040	768854(cm) 1109085 (cm)
