Name: CNC Manual Sliding Table 100-500mm Effective Stroke Linear Guide Stage Module with Digital Display Position Counter SFU1605/1610
SKU: 1005004347980493
Availability: InStock

CNC Manual Sliding Table 100-500mm Effective Stroke Linear Guide Stage Module with Digital Display Position Counter SFU1605/1610

REF: 1005004347980493

Brand Name: TEHIGHAUTO
Model Number: M-SPSX-DXG5048-1605-100
Guide Width or Diameter: 12mm
Origin: Mainland China
Certification: CE
Ballscrew type: SFU1605/SFU1610
Ballscrew accuracy: C7 level
Effective stroke: 100mm-500mm Optional
Slider Type: MGN12H
Rail Type: MGN12R
Maximum speed: 500mm/s
Repeat positioning accuracy: 0.03-0.05mm
Horizontal load: 60KG (Max)
Vertical load: 30KG(Max)
Slide Material: Industrial Aluminum Profile

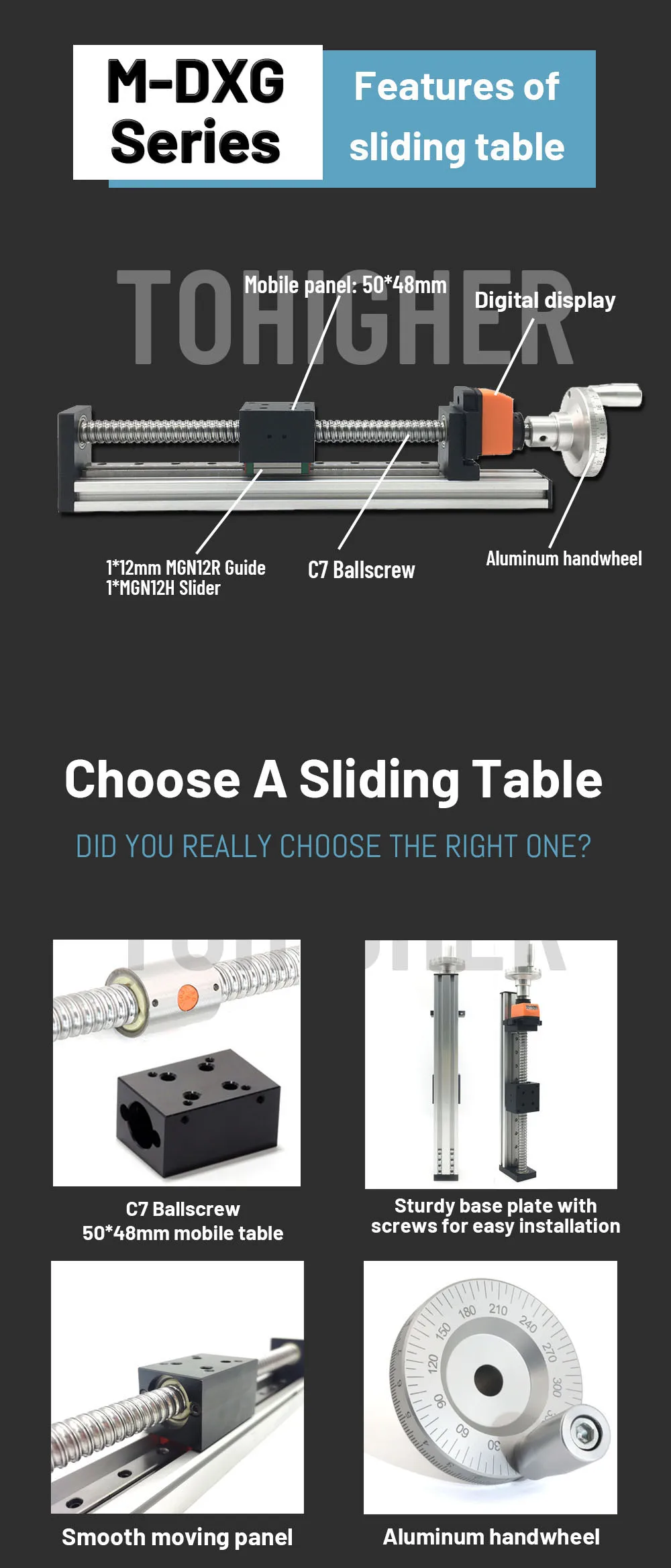

●Package list:
1 X Sliding Table with Digital display

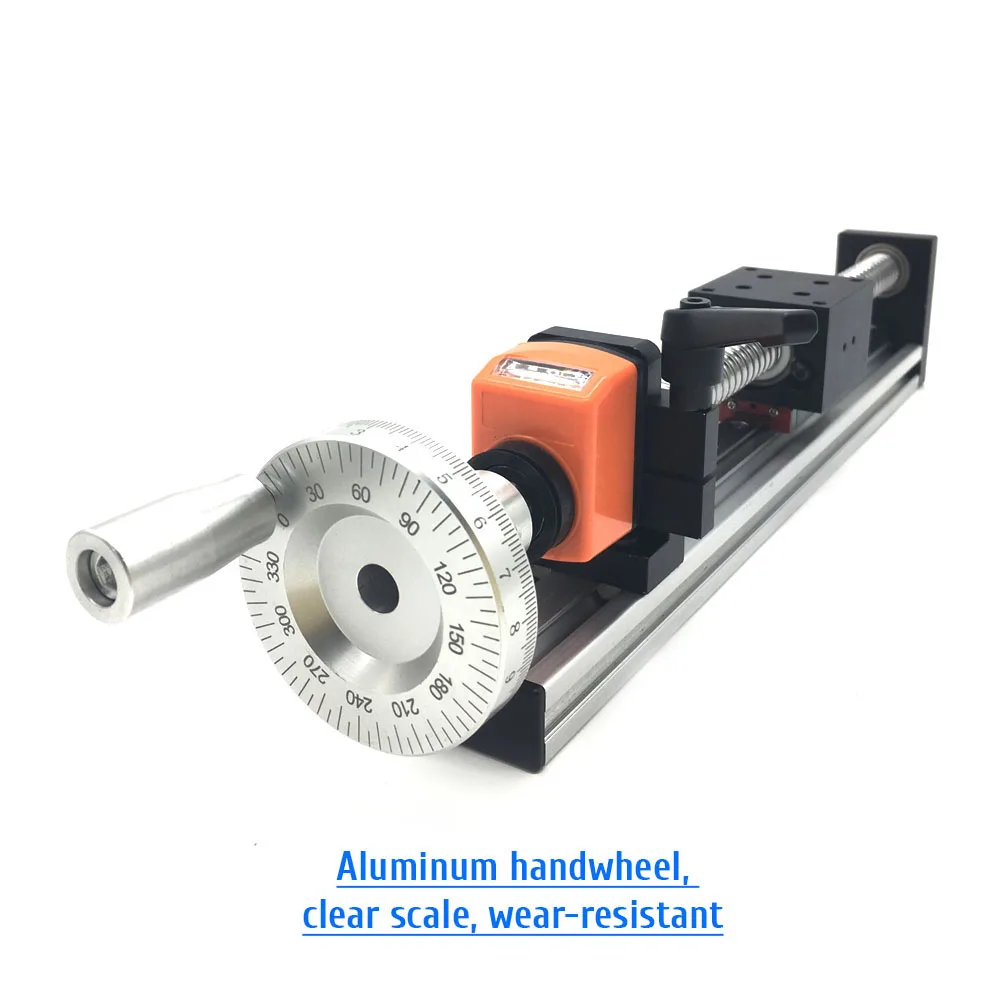

1 X Metal handwheel
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-500mm Optional

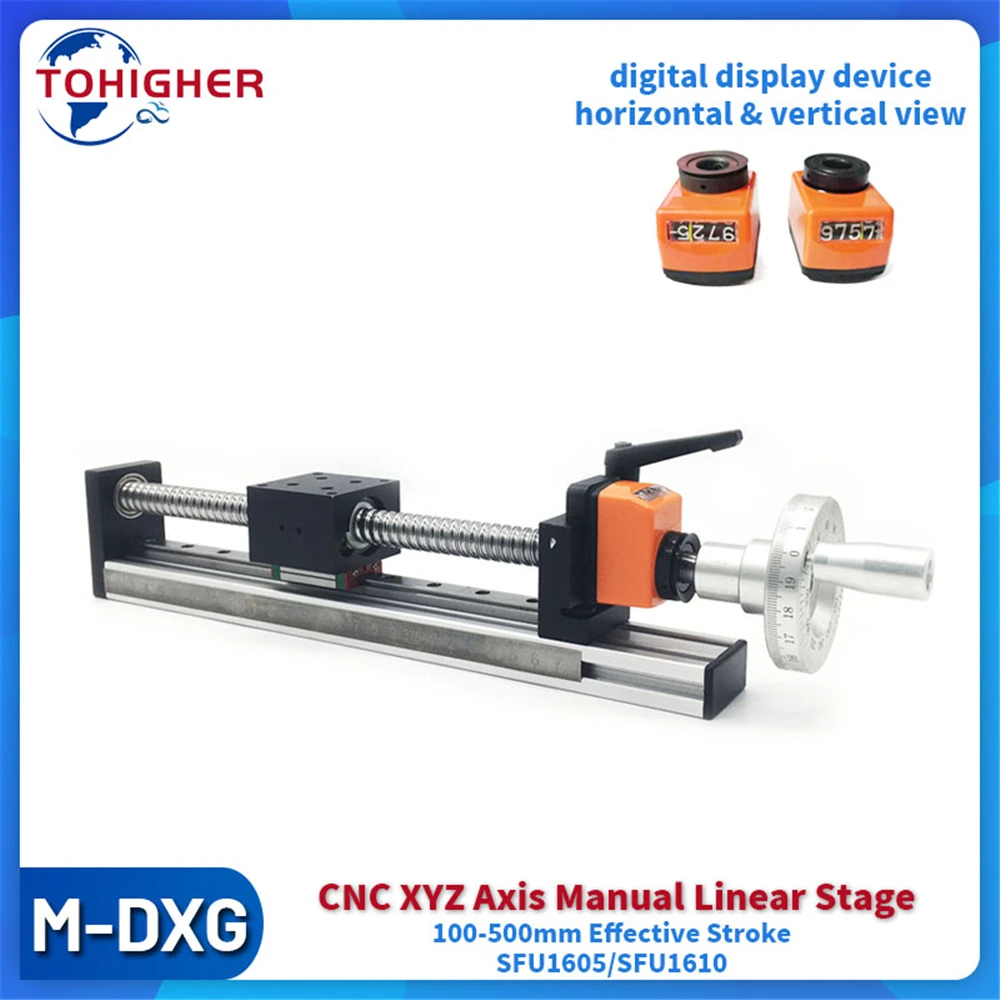

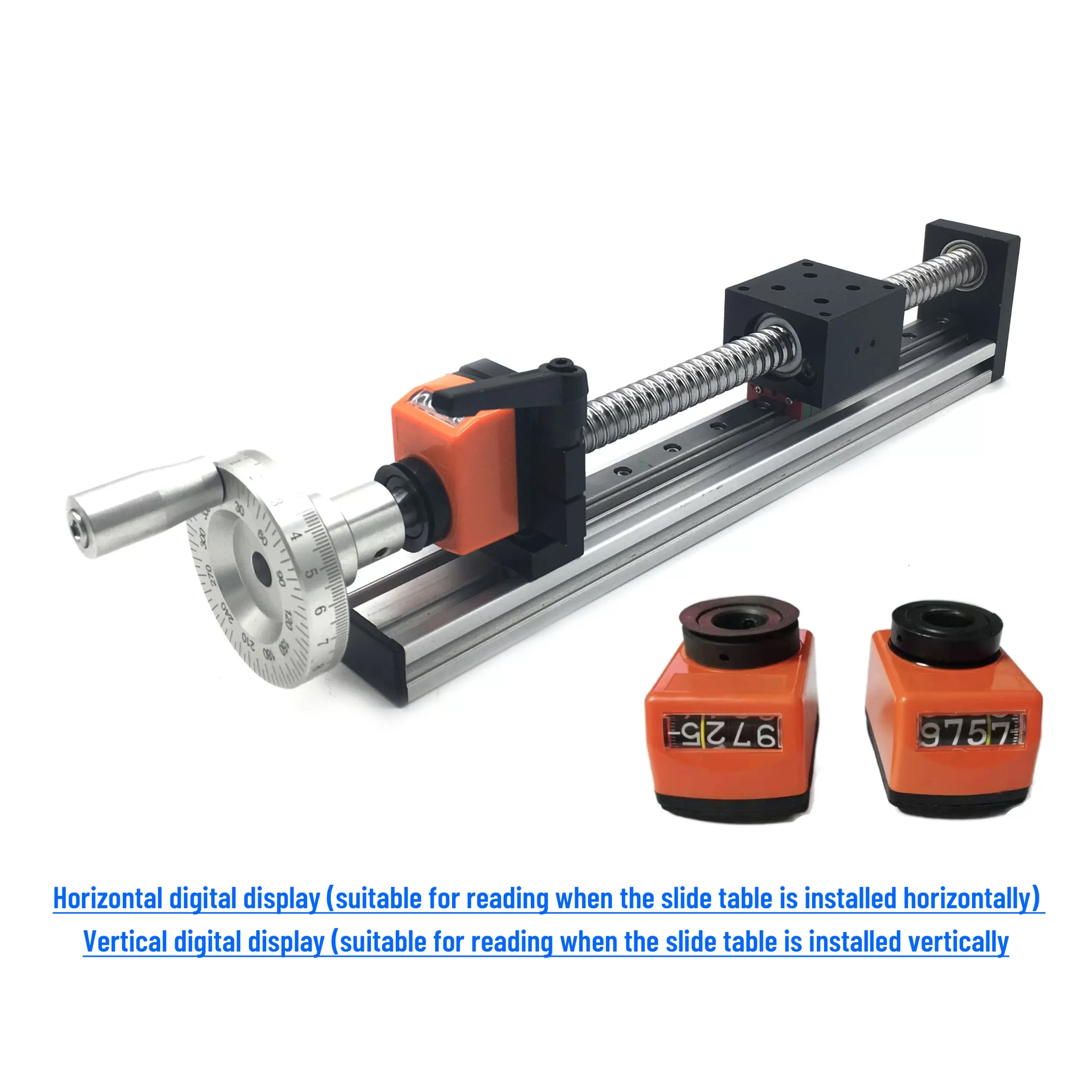

● Digital display:   Horizontal digital display (suitable for reading when the slide table is installed horizontally) / vertical digital display (suitable for reading when the slide table is installed vertically)

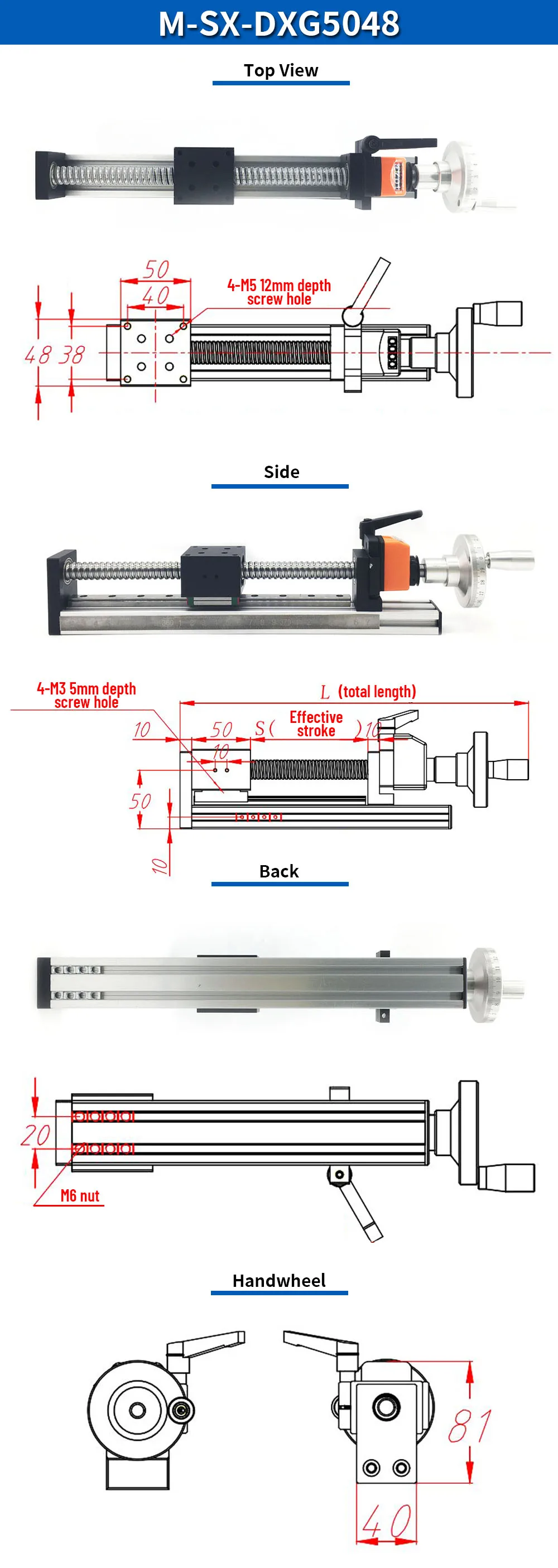

●Mobile panel size: 50 *48mm
●Guide diameter: 12mm

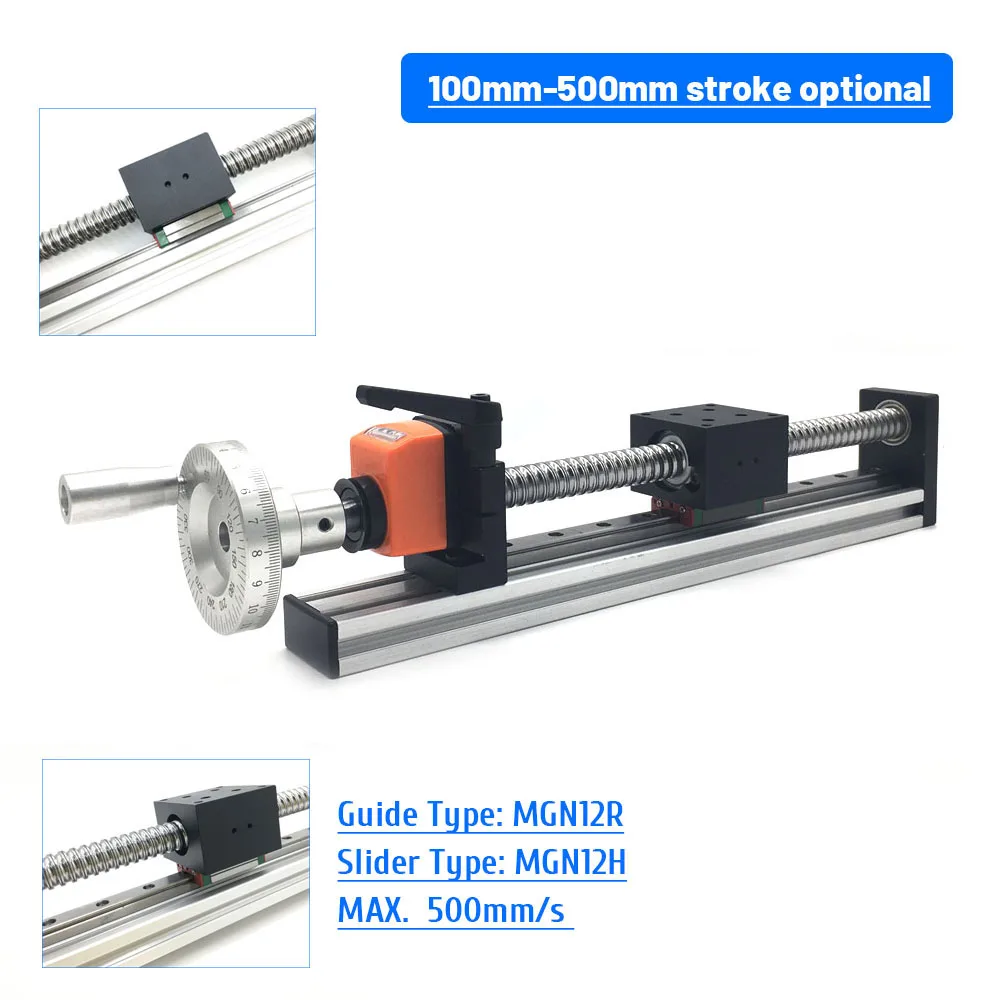

● Guide Type: MGN12R
● Slider Type: MGN12H
●Horizontal load: Max  60 KG (The load that the slide table can bear when installed horizontally)

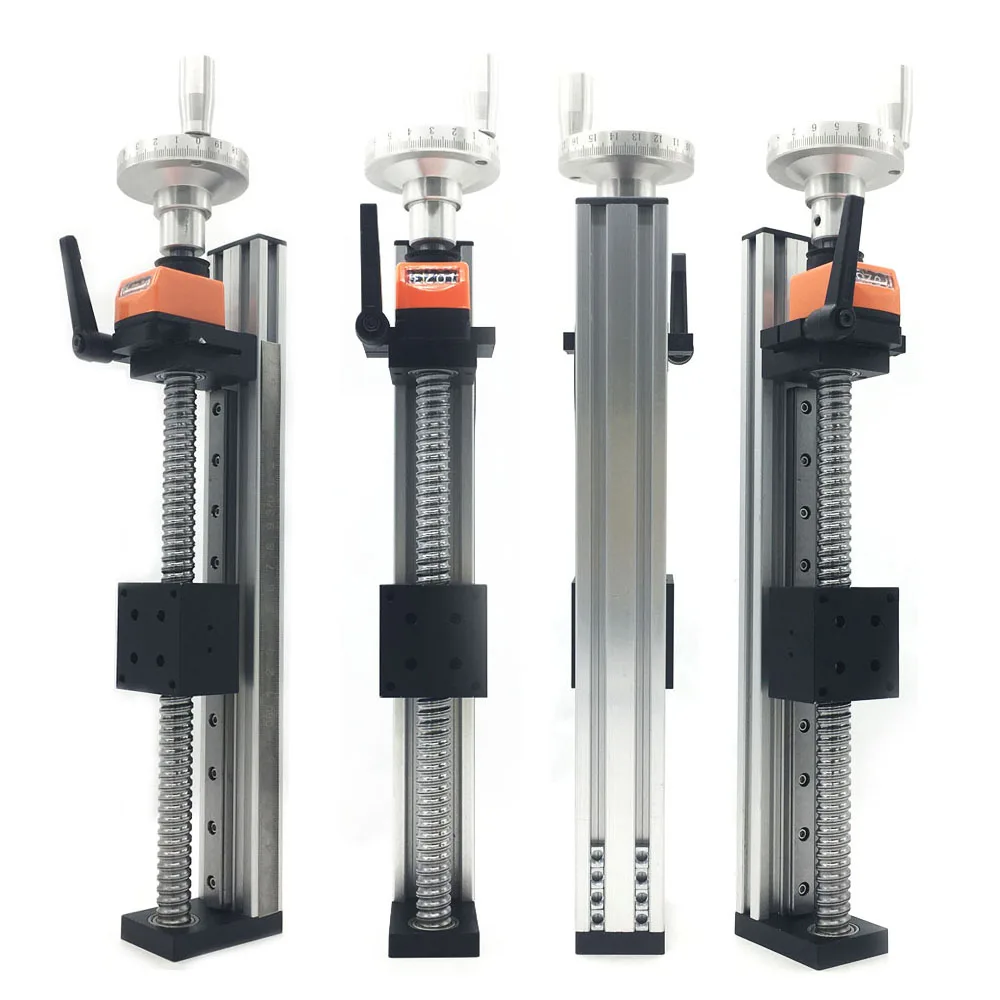

●Vertical load: Max  30 KG (The load that the slide table can bear when installed vertically)
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.03-0.05mm
●Material: Industrial Aluminum Profile
