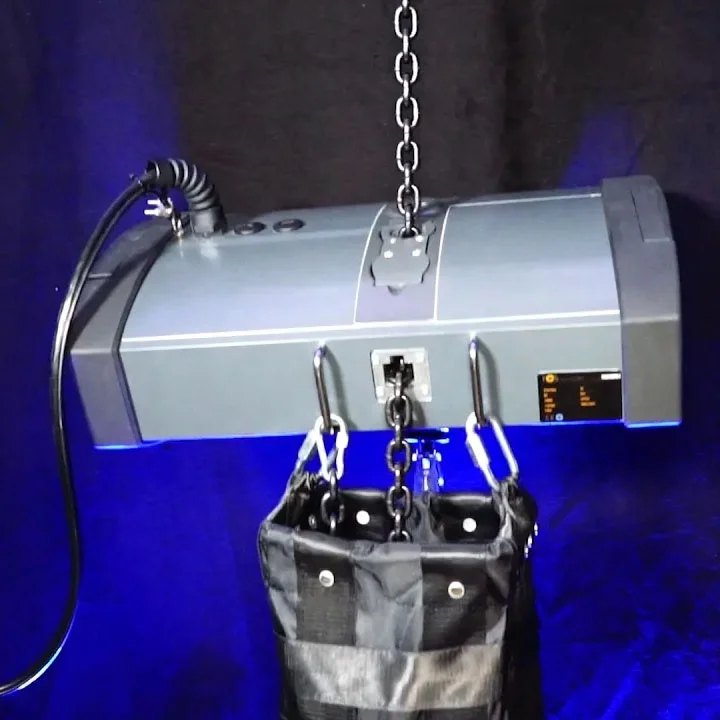

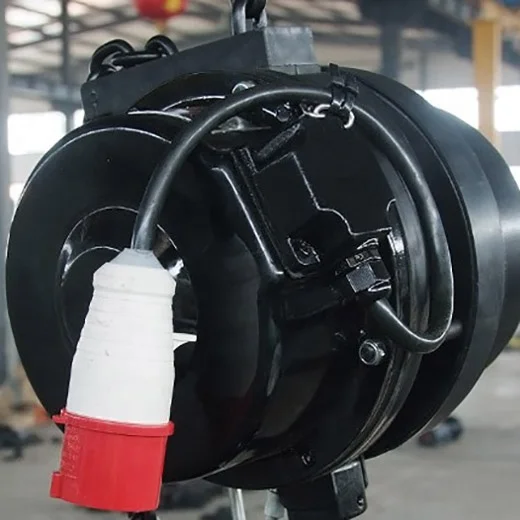

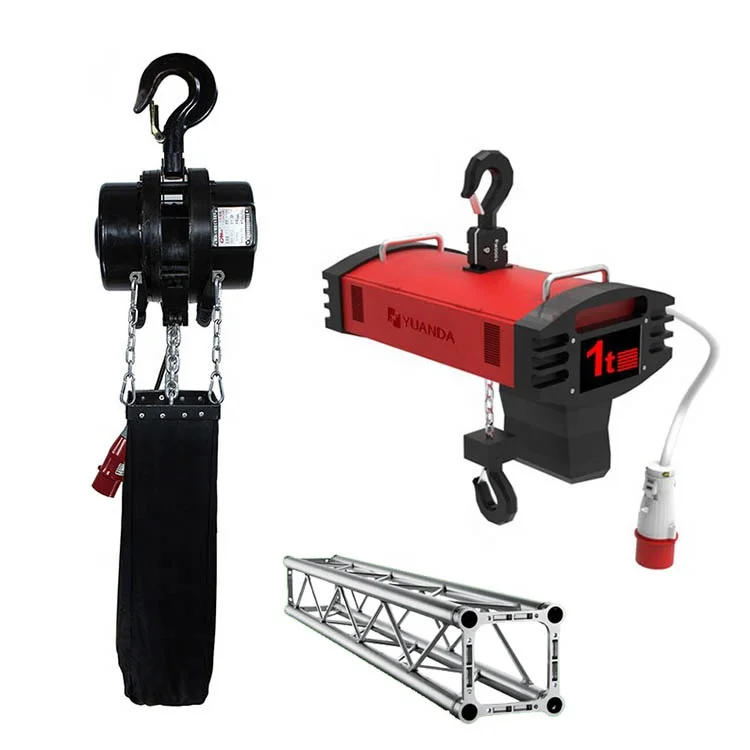

Chinese Theatre Stage Truss Electric Chain Winch Hoist Hoist System

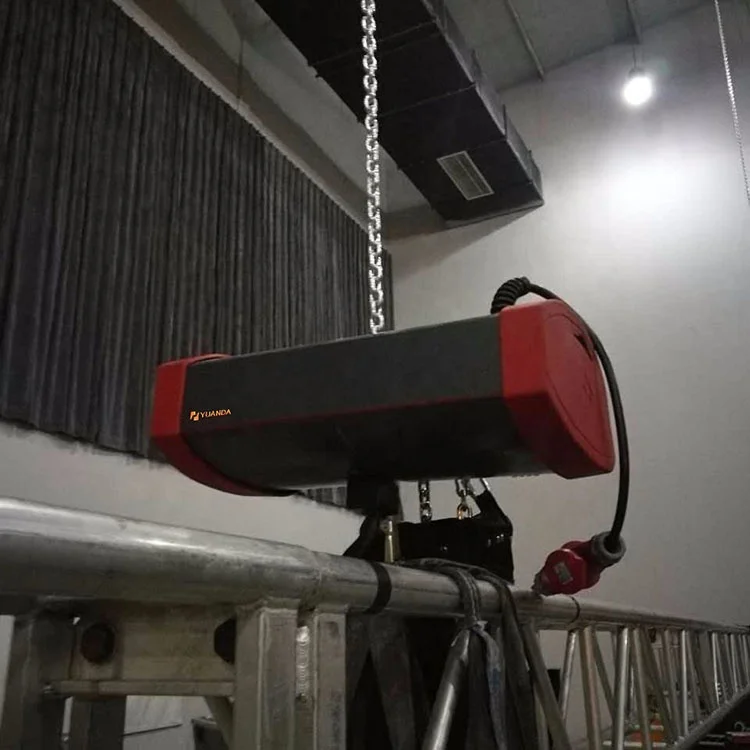

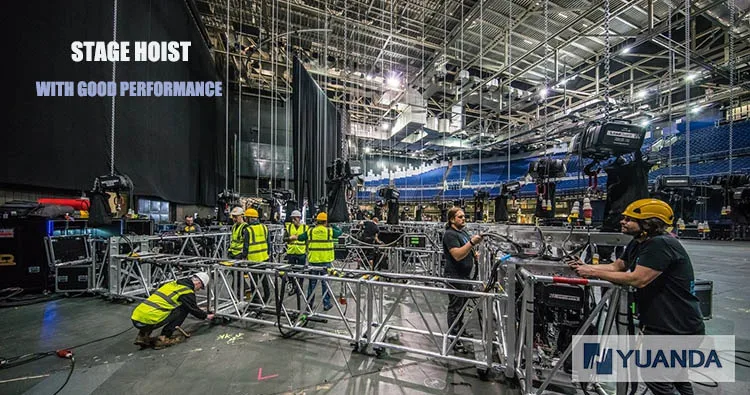

The stage hoist is mainly suitable for fixed installation in commercial stage construction field, and is used for stage construction / mobile performance, stage setting, sound and lighting arrangement. Single - control or multi-machine linkage design, to meet your needs for a variety of operations, hanging upside down for its convenience. This new hoist has been more functional for different use, and with a wide range of customization. It is ready for all kinds of use.

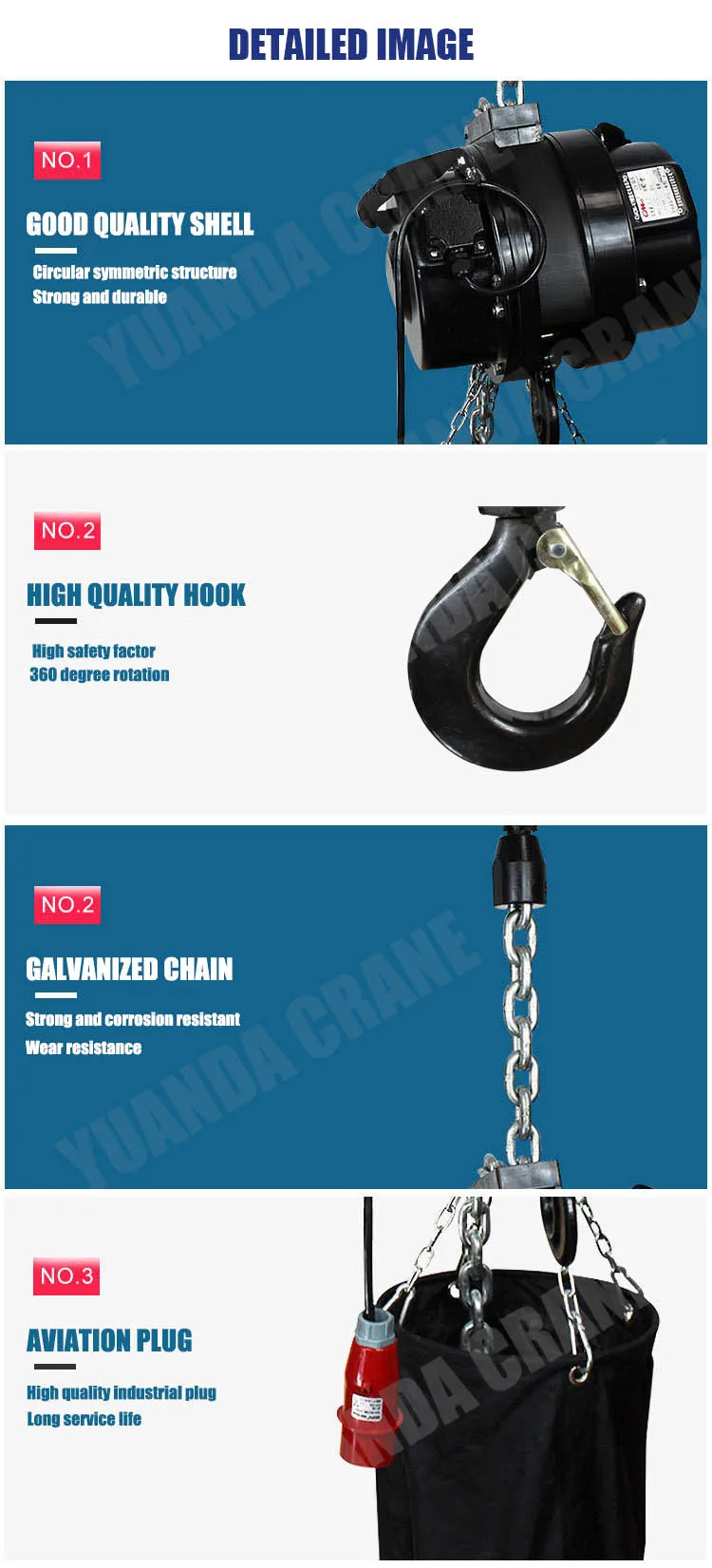

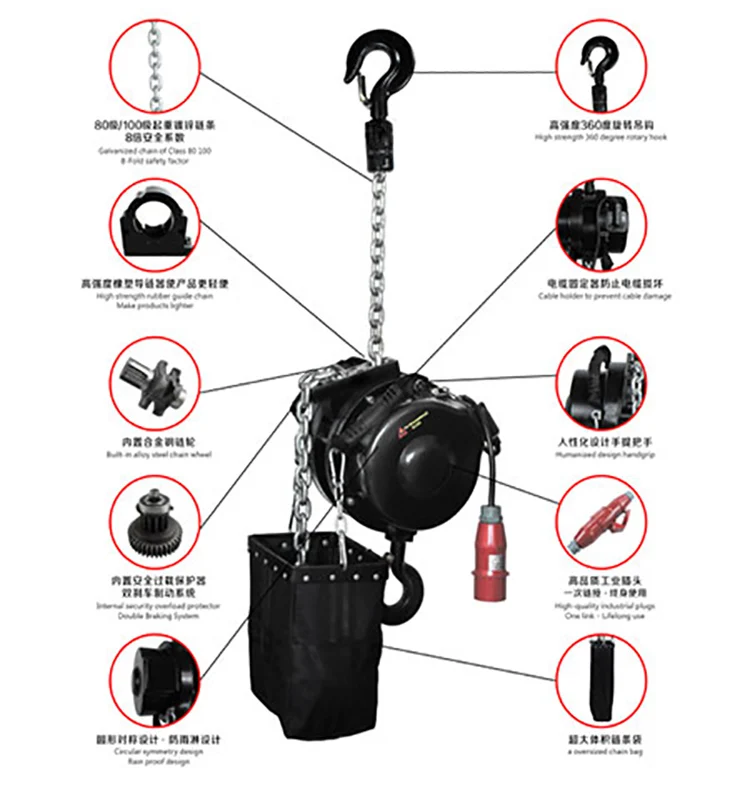

 FEATURES

1.Double friction disc brake system

2.Control: electric hoist is equipped with standard connecting cable and CE connector. The power supply is 380V with 3-phase, 220V single phase or custom made as you need.

3.The shell is rainproof and high-strength aluminum alloy structure shell.

4.Chain guide device: special five-hole lifting sprocket, which makes the chain lift and balance

5.Reliability: the hoist is equipped with overload protection clutch, which can protect the safety of the operator and the product from damage in case of overload.

6.Safety: lifetime maintenance, and provide related accessories and technical support



SPECIFICATION

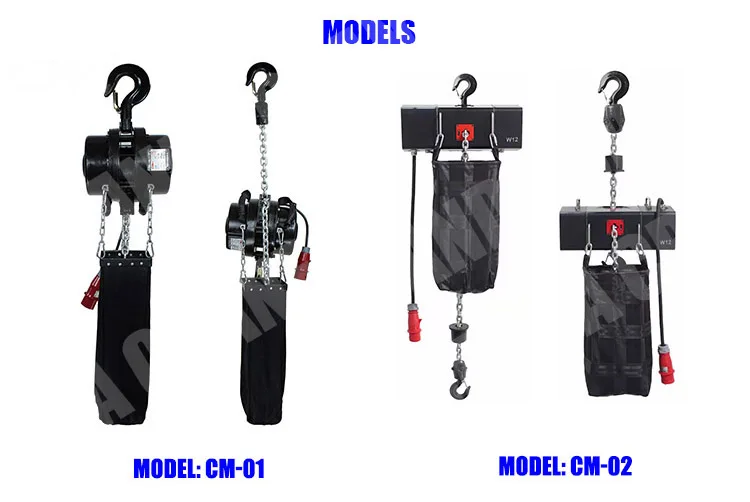

Model	Capacity(kg)	Voltage(1P/3P)	Lifting Height(m)	Lifting Speed(m/min)	Power(kw)	Weight
HCM-0.5	500	220/380	3-35m	3.2	0.3	20KG
HCM -1.0	1000	220/380	3-35m	2.6	0.75	29KG
HCM -1.5	1500	220/380	3-35m	2.6	0.75	30KG
HCM -2.0	2000	220/380	3-35m	2.5	1.1	58KG

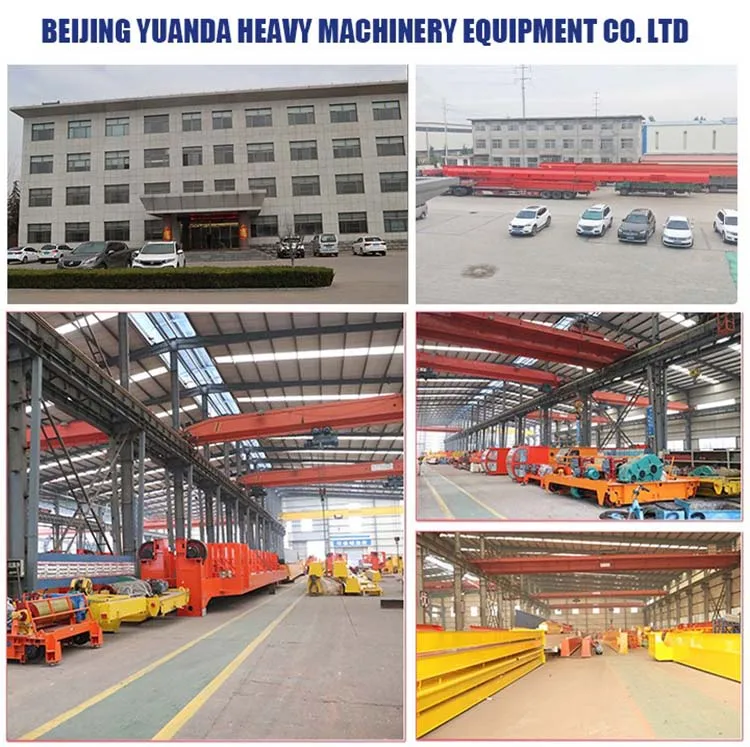

Beijing Yuanda Heavy Machinery Equipment Co. Ltd is a professional large-scale manufacture of all types of hoisting cranes and machinery equipments. Our company was established in 2009 located in Beijing which is capital of China. Our company has the professional technical teams to provide you the best solution if you want the customized products. We have always focused on research, development and innovation. Our watchword is "Providing the best product with the most competitive price; not only providing the professional pre-sale service but also providing the best after-sale service.We have over 20 years experience in R&D design. Our main products are gantry crane, jib crane, bridge crane, handing equipment, industrial manipulator, conveyors, industrial machineries and some other new products with modern technology.We look forward to your coming and hope our long good relationship.
