General System Performance
|
||
|
Absolute accuracy
|
H: <3 cm RMS⁽¹⁾
V: <3 cm RMS⁽¹⁾ |
|
|
Relative accuracy
|
<1 cm⁽²⁾
|
|
|
Repeatability
|
<2 cm⁽²⁾
|
|
|
Power supply mode
|

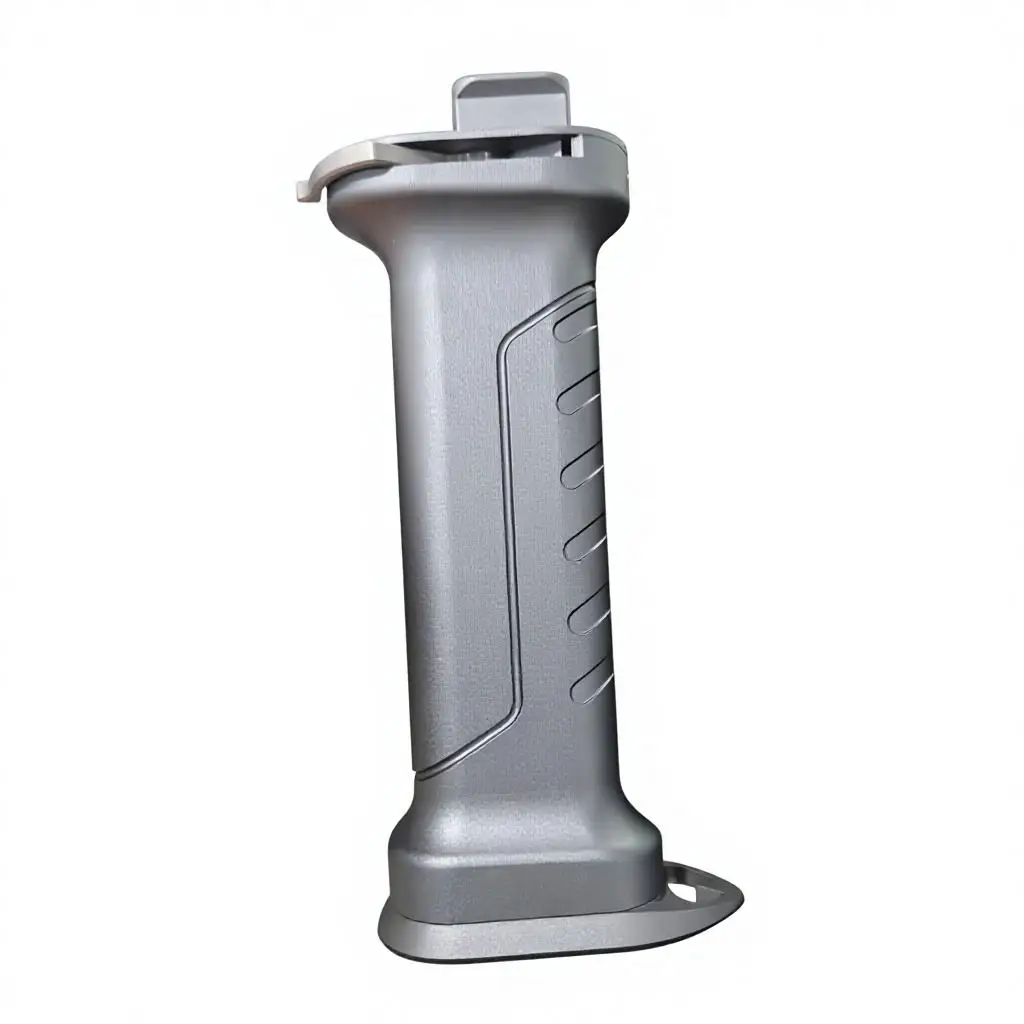

Battery integrated in handle
|
|
|
Battery capacity
|
47.5 Wh
|
|
|
Working time from a single battery
|
150 mins⁽³⁾
|
|
|
Power consumption
|
16 W
|
|
|
Data storage
|
512 GB
|
|
|
Weight(with Battery Handle)
|
1200 g
|
|
|
Operating temperature
|
-20 °C to +50 °C
|
|
|
Ingress protection
|
IP64⁽⁴⁾(according to IEC 60529)
|
|
|
Laser Scanner
|
||
|
Laser product classification
|
Class 1 Eye Safe
|
|
|
Range
|
40 m @10% Reflectivity
|
|
|
Channel
|
64
|
|
|
Max. effective measurement rate
|
Single Return: 576 000 pts/sec
Dual Return: 1152 000 pts/sec |
|
|
Field of view
|
360° × 189°
|
|
|
Wavelength
|
905 nm
|
|
|
Positioning and orientation system
|
||
|
GNSS system
|
GPS: L1,L2,L5
GLONASS: L1,L2 BEIDOU: B1,B2,B3 GALILEO: E1,E5a,E5b |
|
|
IMU update rate
|
500 Hz
|
|
|
Gyro zero bias instability
|
0.5°/hr
|
|
|
Gyro random walk
|
0.01°/√hr
|
|
|
Acc zero bias instability
|
10 ug
|
|
|
Acc random walk
|
0.017 m/s/√hr
|
|
|
Camera
|
||
|
Number of cameras
|
2
|
|
|
Resolution
|
48 MP
|
|
|
Sensor size
|
1/2 inch
|
|
|
FOV
|
340°(H) × 360°(V)
|
|
|
Communication
|
||
|
Wi-Fi
|
2.4GHz & 5GHz
IEEE 802.11n/ac (U-NII-1/3) |
|
|
Bluetooth
|
V5.3 (BR+EDR+BLE)
|
|
|
Ports
|
1 x USB V3.0 Type-C port (data download)
1/4" mounting thread |
|
|
Optional Software
|
||
|
SmartGo software
|
Data acquisition control, Real-time point cloud display,etc.
|
|
|
CoPre intelligent processing software
|
POS Processing, Adjustment & Refinement, Point Cloud Generation,3D Modeling
Supports Colorized Point Clouds, 3D Mesh Models, and 3D Gaussian Splatting (3DGS) Outputs. |
|
|
CoProcess 2025
|
point cloud processing with built-in CAD tools
|
|
|
|
||
|
All specifications are subject to change without notice.
|
||
|
(1)
|
According to CHCNAV test condition.Accuracy and reliability are determined under open sky, free of multipaths, optimal GNSS
geometry and atmospheric condition. Performances assume minimum of 5 satellites, follow up of recommended general GPS practices. |
|
|
(2)
|
Measured under laboratory conditions; actual performance may vary.
|
|
|
(3)
|
Tested and obtained in a standard laboratory environment at 25℃.
|
|
|
(4)
|
Splash, water, and dust resistant and water tested under controlled laboratory conditions with a rating of IP64 under IEC standard
60529 |
|
|
Position accuracy
after post-processing |
0.010 m RMS horizontal,
0.020 m RMS vertical |
|
|
Camera
|
||
|
Number of cameras
|
3
|
|
|
Resolution
|
15 MP (5 MP*3)
|
|
|
Sensor size
|
2592 (H) × 1944 (V)
|
|
|
Pixel size
|
2.0 µm
|
|
|
FOV
|
210° × 170°
|
|
|
Environments
|
||
|
Operating temperature
|
-20°C to +50°C
|
|
|
Storage temperature
|
-20°C to +60°C
|
|
|
Ingress protection
|
IP64(5) (according to IEC 60529)
|
|
|
Humidity (operating)
|
80%, non-condensing
|
|
|
Electrical
|
||
|
Input voltage
|
9 - 20 V DC
|
|
|
Power consumption
|
<30 W
|
|
|
Battery capacity
|
24.48 Wh
|
|
|
Equipped Software
|
||
|
SmartGo software
|
Data acquisition control, real-time point
cloud display, etc |
|
|
CoPre intelligent processing software
|
POS process, Adjust & Refine, Generate point cloud, modeling, etc
|
|
|
CoProcess efficient feature extraction software
|
Building feature extraction, road feature extraction, volume calculation, etc
|
|
|
LandStar Field Survey APP
|
Topographic survey, Point stakeout, Line stakeout, Elevation check, Facade survey
|
|
