- High-concerned chemical: None
- Certification: None
- Diameter: 4mm
- Coating: TiCN
- Origin: Mainland China
- Model Number: 4x4x10x50
- Brand Name: SIQICNC
- Type: End Mill
- Material: Tungsten Cobalt Alloy
- Overall Length: 50
Carbide Radius End Cutter Mill Aluminium Cnc Milling Cutter For Metal Tungsten Steel CNC Maching Endmils
Product Information：
Name: Tungsten steel end mill
Material: overall tungsten steel
Cutting hardness: HRC45°/55°/65°
Coating: Nano industrial titanium coating
Configuration equipment: machining center, CNC machine tool
Applicable processing materials: carbon steel, cast iron, die steel, alloy steel, tool steel, stainless steel, aluminum alloy, etc.
Our product advantages:
1. Using tungsten steel base material, it has higher wear resistance and red hardness
Strong performance, high temperature resistance, anti-burning
2. High-strength and large-capacity spiral chip flutes, integrally formed spiral, good versatility and durability
3. The large blade diameter design can greatly increase the stability and vibration resistance of the tool
4. Nano-coated blade, effectively reducing the number of tool changes, saving time, effort, and efficiency
5. Standard straight shank design, strong compatibility, tight occlusion, high bearing capacity, not easy to break
Please read the following before placing an order:
about order:
-Please check the quantity and unit size before placing an order.
-If you have any questions about this product, please feel free to contact us! We are happy to provide you with supportive advice.
-After the order is placed, due to the uncertainty of international shipping and the long delivery time. If you have any questions or questions about the purchased order. Please contact us and we will provide assistance (including refunds and re-shipments). If you need a faster delivery time, you can also choose many other delivery methods besides AliExpress, such as: DHL, EMS and UPS......
About customization:
-If you are satisfied with our products and seek closer cooperation. We do sell to wholesalers and businesses. If you really need to cooperate with us further, please contact us.
-We provide customized services. If you have such a requirement, please contact us and provide your product drawings. Therefore, we can provide you with a more specific quotation.
-We also provide OEM service!
Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid tool-holding systems.

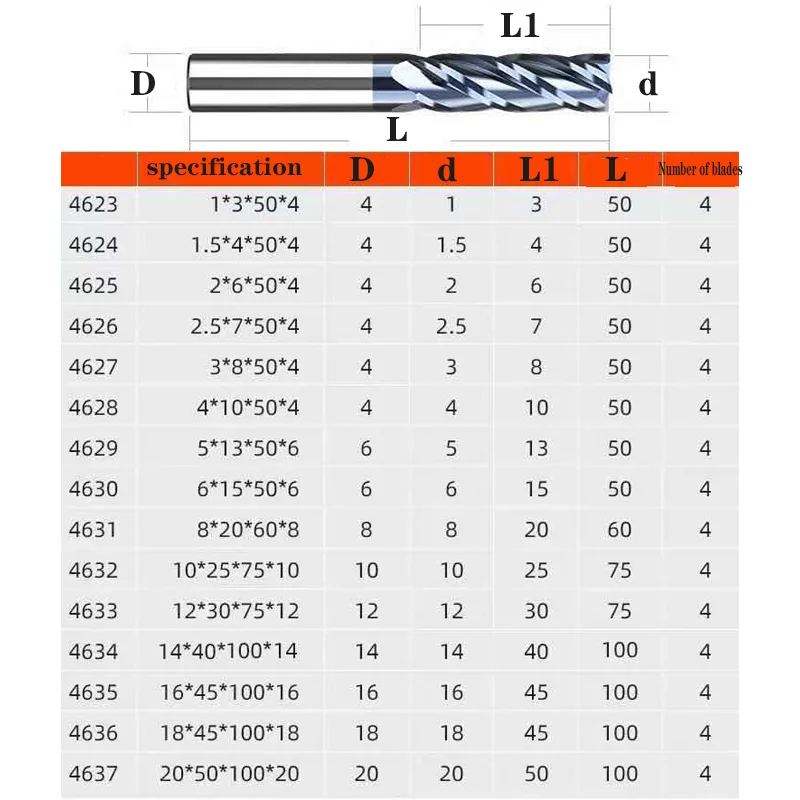

Tolerance of End Mill Diameter:
1 < D≤6 -0.010 ~ -0.030
6 < D≤10 -0.015 ~ -0.040
10 < D≤ 20 -0.020~-0.050
Coating:Good coating can improve tools life and production efficiency, as well as solve the cutting problems.

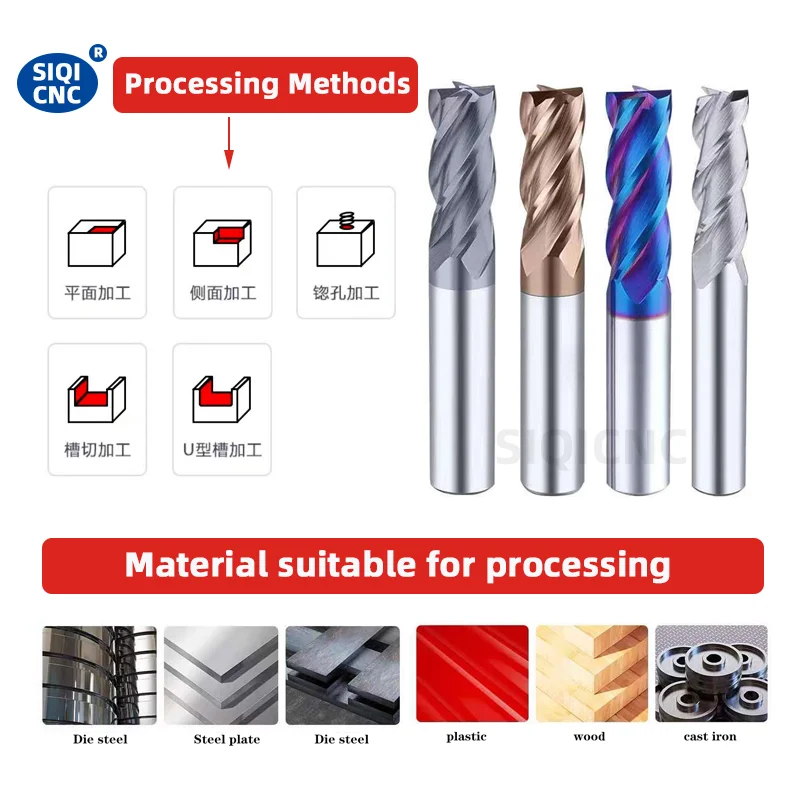

Application
Used in Milling Machine.,CNC,Drill press,Engraving machine. Metal, woodworking, alloy steel, stainless steel, etc
2 flutes end mills is widely used in slotting, sinking etc.
3 flutes for aluminum.Bright finish for machining aluminum.
4 flutes, high rigidity, widely used in shallow slot, profile milling, and finish machining.

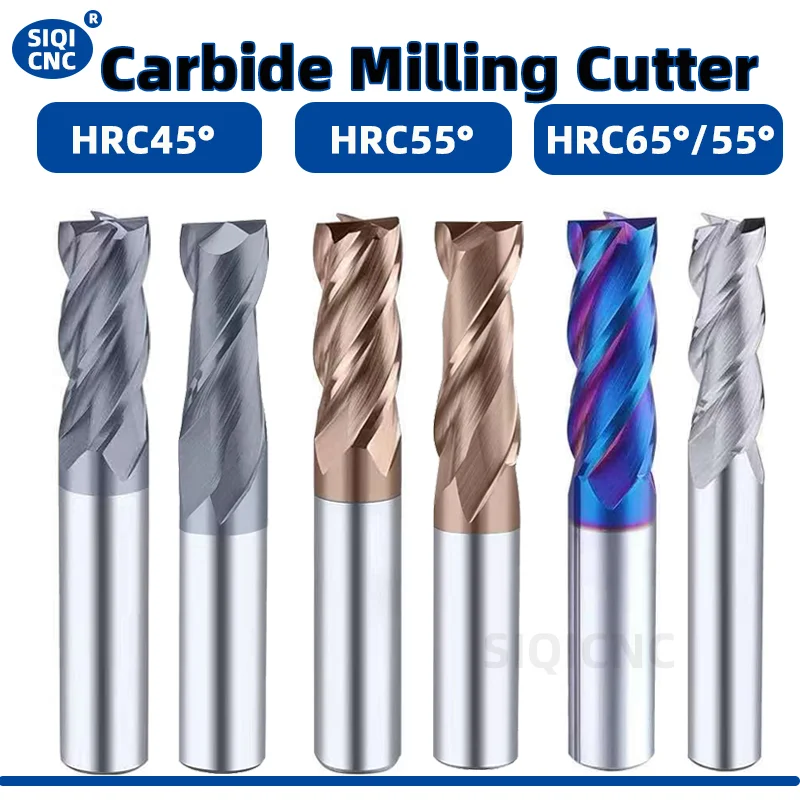

45° 2/4 Flutes Carbide End Mills
55° 2/4 Flutes Carbide End Mills
65° 4 Flutes Carbide End Mills
PS: The above data diameter is for reference, subject to actual cutting
Note: The above table is the standard value for side milling of the milling cutter. When the tool is used to process the keyway, the feed rate is 50%-60% of the table
When the rigidity of the machine tool and the installation is relatively poor, the product will vibrate and abnormal sound, at this time, the speed and feed should be reduced.
Note: It is recommended to be used on machining centers, engraving machines and other equipment.
