Product Description

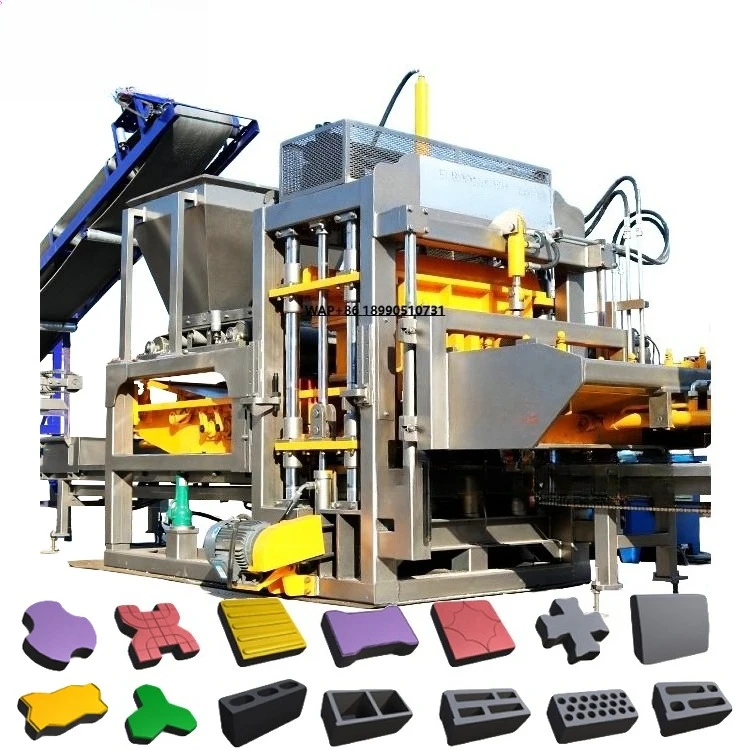

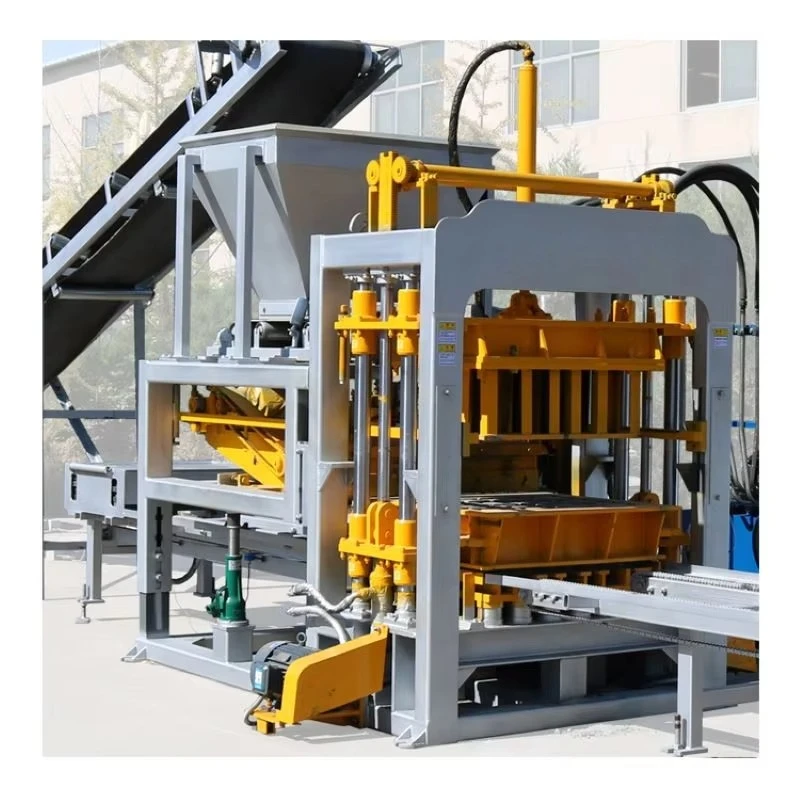

1. QT6-15 Fully Automatic Stacking Brick Making Machine Plant use PLC intelligent control, make the man-machine interface as true, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.

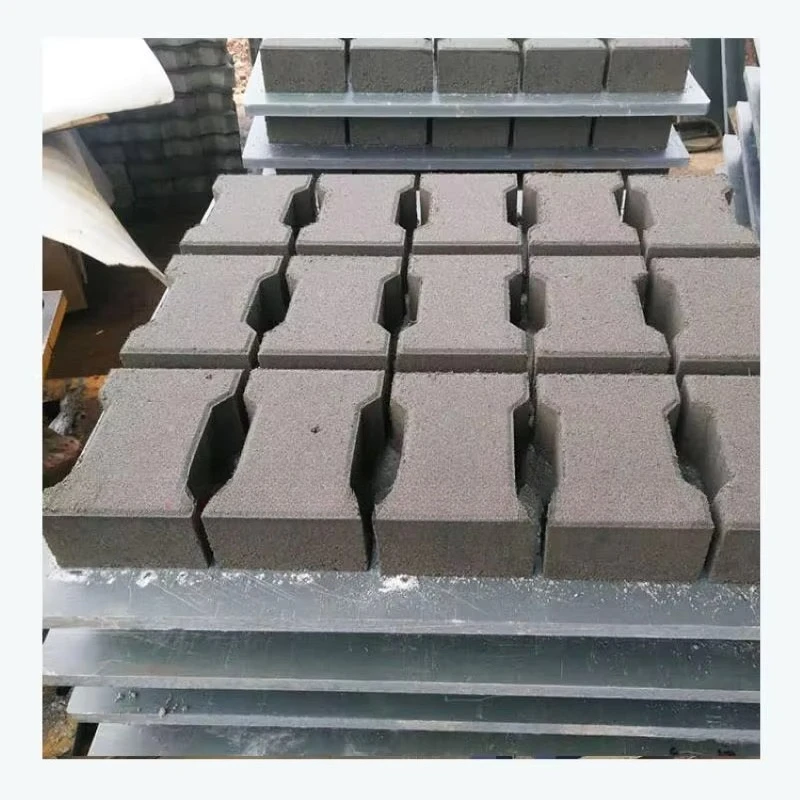

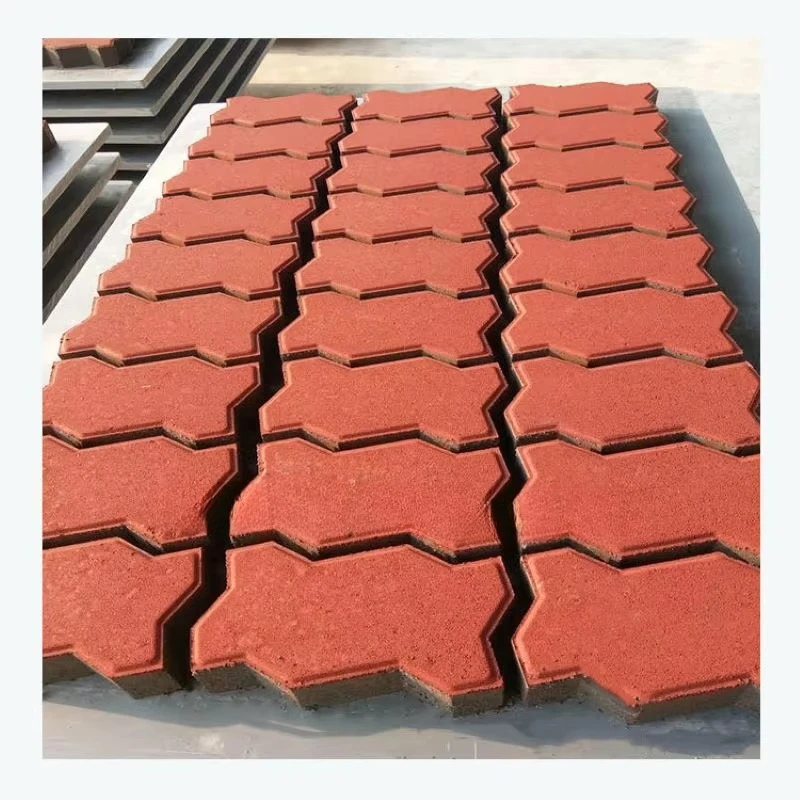

2. Can produce the paver block with or without color on the surface, if need color, should use the face-color material feeding device.
3. Through mold-releasing oil cylinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density,especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
4. The unique forcing charge system can make use of various kinds of industrial waste and material such as coal ash, cement, sand,stone, slag, and so on.
Main Specification
Overall Dimension
7450*2450*2900mm
Rated Pressure
16Mpa
Main Vibration Form
Platform Vibration
Virbration frequency
2800-5100r/min
Pallet Size
900*700mm
Mould Cycle
15s
Exciting Force
65kn
Overall power
32kw
Weight
12500kg
Raw Materials
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products

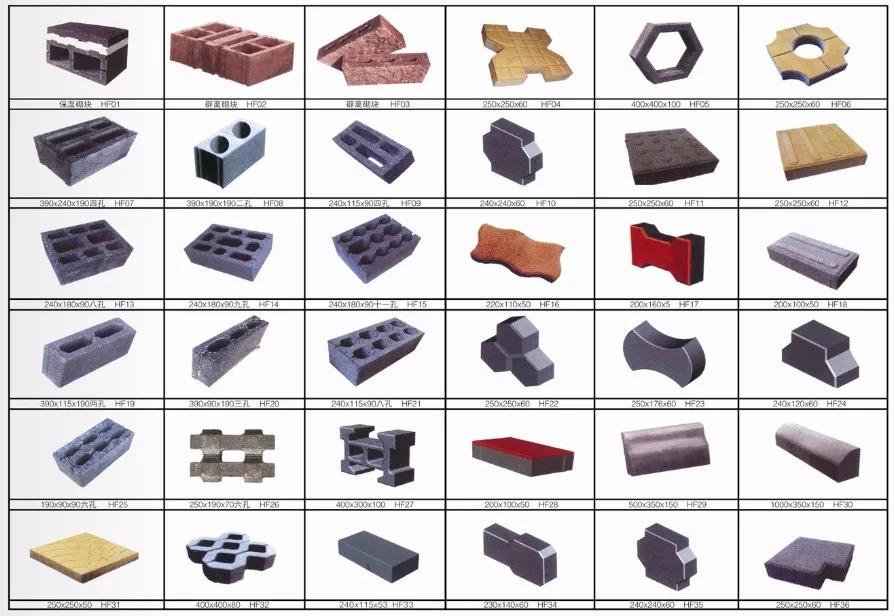

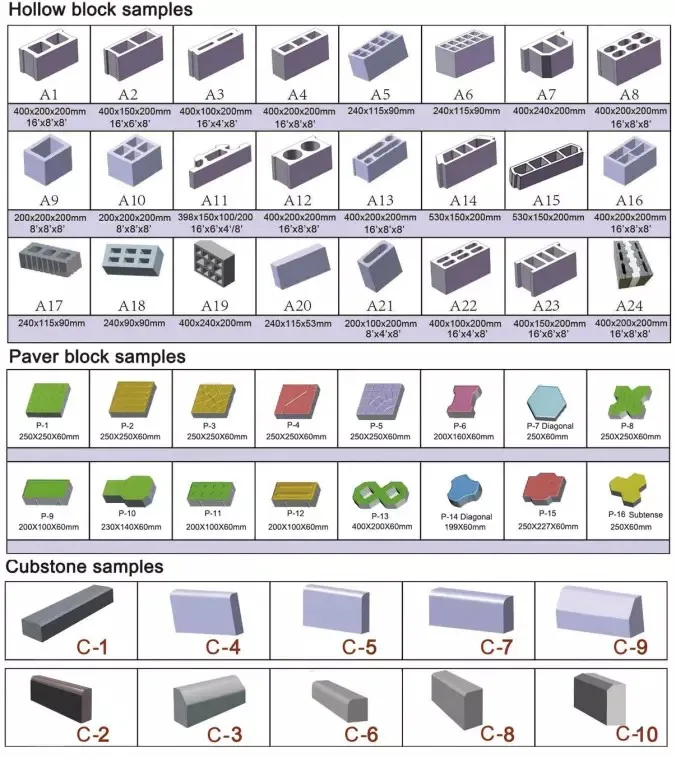

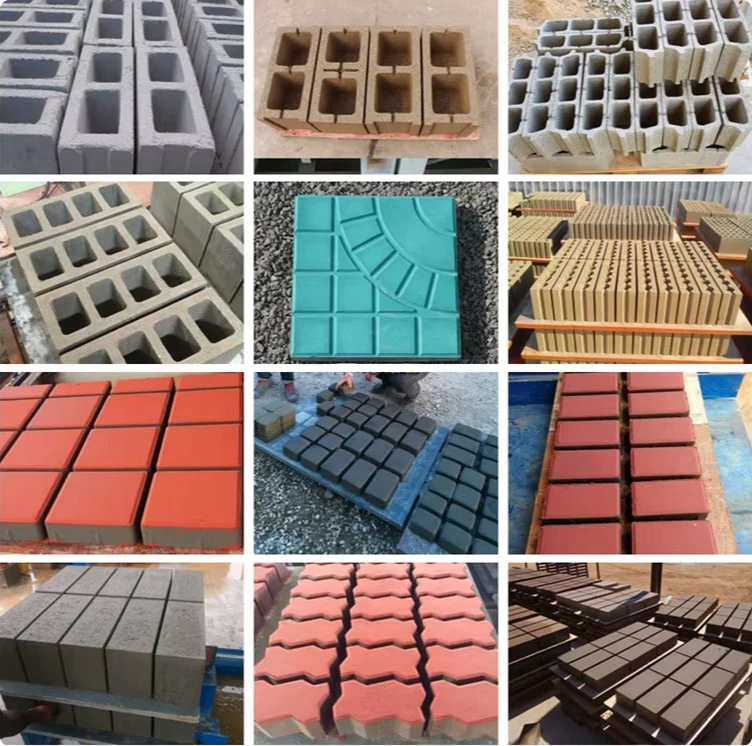

Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Theoretical Productivity
Item
Specification size(mm)
Quantity per moulding (pcs/mould)
Cycle moulding (s)
Output per hour (pcs/h)
color brick
200*100*60
21
18-23
3287-4200
Pave Brick
200*160*60
12
18-23
1878-2400
Solid brick
240*115*53
32
15-17
6500-7800

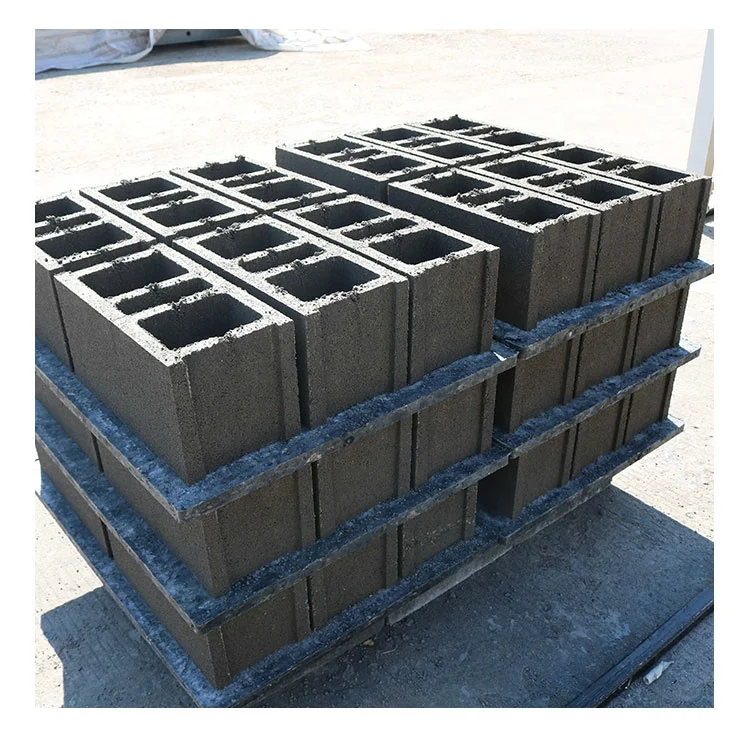

Hollow brick
390*190*190
6
20-25
864-1080
Advantages:
1) The motor for the host machine is Germany SIEMENS brand or ABB brand or other Chinese famous brand.
2) Control PLC: we select original Japan Mitsubishi or other brand PLC combine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54- 58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running. 6)Feeding system:Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material.
Detail Photo:
Other Accessoies The following appliances are greatly convenient for the use of the block machine.

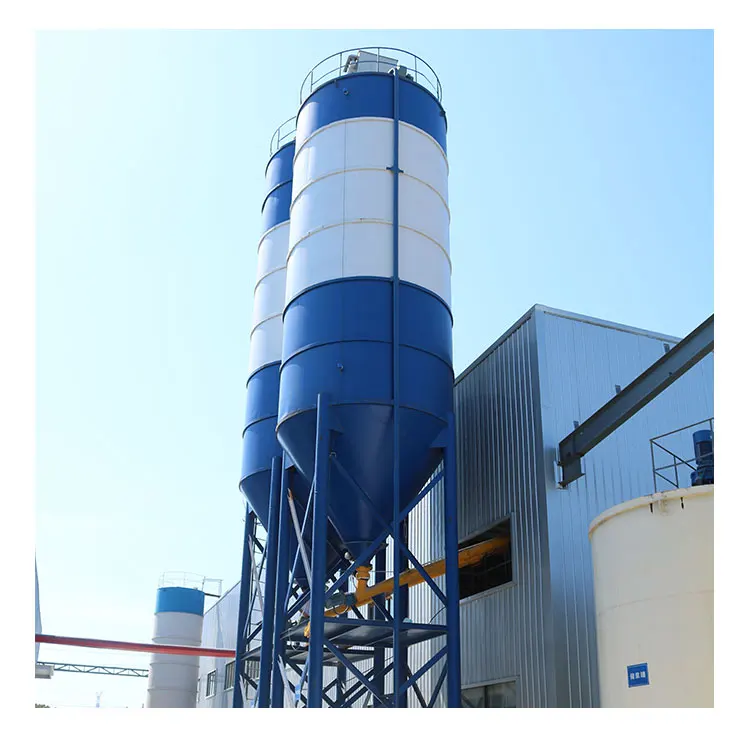

Cement Silo
50-100T cement silos are commonly used in brick machine production lines: There are two types: split type and integral type:
(1)The split type is assembled with screws and sealing strips, which is convenient for transportation, saving transportation space
and freight, but the cost is high and the installation period is long. However, the split type is generally used for foreign
trade. (2) The integral welding type has low cost and short installation period, but it is not convenient for transportation (only
50T can be placed in a 40-foot high cabinet), and large-capacity ones generally do not have the conditions for welding and
installation at the customer's location.
JS500 Mixer
The JS series concrete mixer is different from the JQ series. It is a twin-shaft forced mixer. It has the dual advantages of
independent operation and the ability to form a concrete mixing station with supporting products such as the PL series batching
machine. It can mix dry hard concrete, plastic concrete, lightweight aggregate concrete and various mortars. The whole machine
design of this series of products is reasonable, the layout is novel, and it is easy to use and maintain.
Stacker
The block stacker is one of our new products , it can take 3-4 pallets block per time , and stacking 4-5 layers block . The
forklift cant ake 10-20 pallets block , save work time , reduce the labor cost and curing land area .Then reduce the block
manufacturing cost , is one of our best selling products .

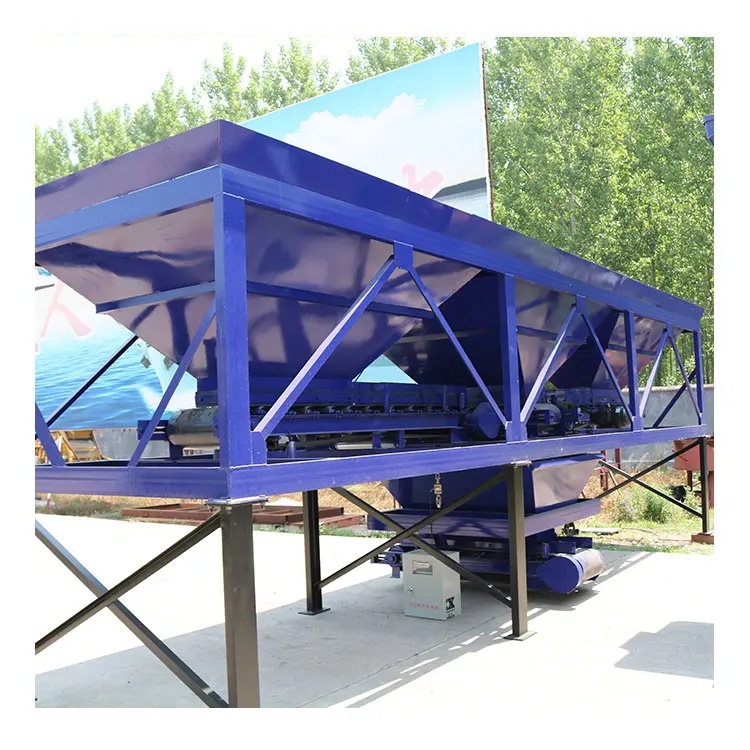

Batching Machine
PL series concrete batching machine is a front-end automatic batching equipment used in conjunction with a mixer. It can
automatically complete the batching process of sand, stone, cement and other species according to the concrete ratio requirements
designed by the user. The equipment is composed of a storage hopper, a weighing system, a feeding system, an electronic control system and other parts. The feeding methods include pneumatic gates and belt conveyors.
Conveyor Belt 8M
The mixer mixes the raw materials and sends them to the hopper via a conveyor belt.
Our Service
1.The Machine color can be customized as your requirements;2. Engineers draw drawings as your design and brick shapes can be customized;
3. We will test the machine before delivery , make sure the machine is run well;
4. We can send engineer to your country , help you install ,debugging the machine and train your workers;
5. Welcome to visit our factory, free training;
6. 24 hours online support , providing you the best pre-sale and after-sale service.
Pre-Sales Service
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Send foundation drawing and working video to customers.

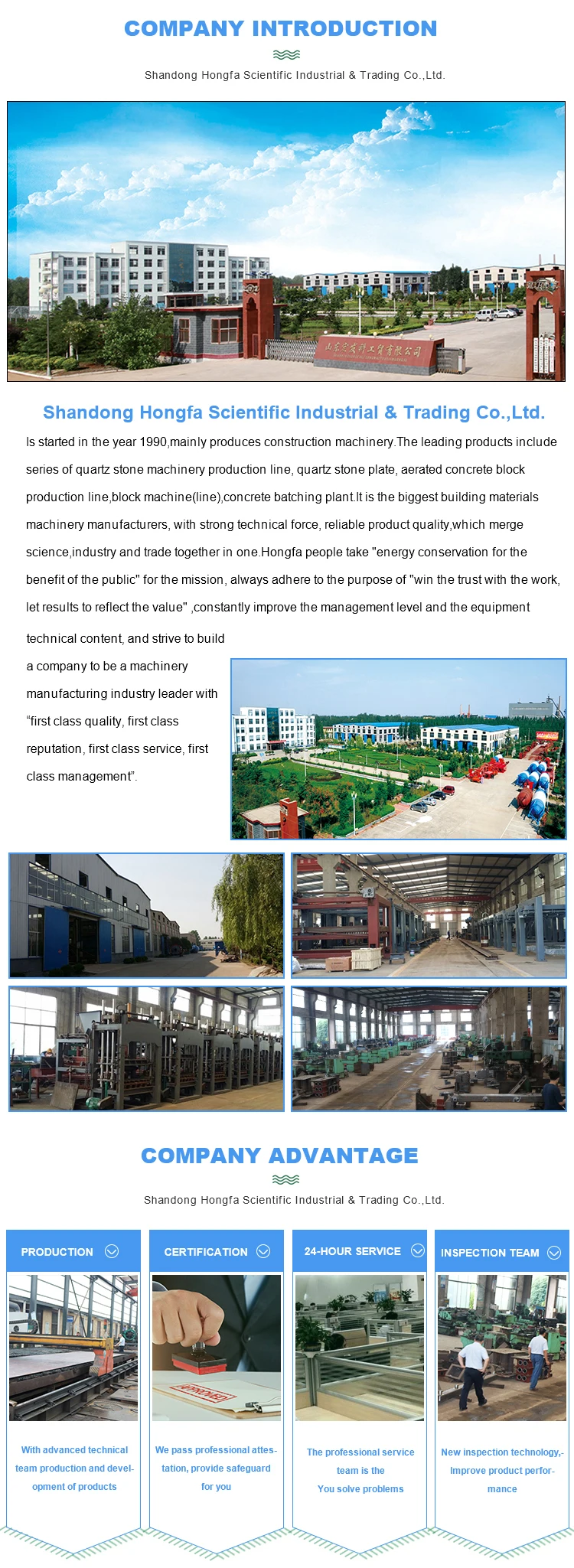

Company Introduction
Certifications
Packing&Shipping
FAQ
1.Q:What is the material of the brick? A: Cement,sand,stone.fly ash,building waste and so on. 2.Q:What kind of the brick that the brick making machine can produce? A: All kinds of the hollow block and paving brick. You can customize the type of brick. 3.Q:what is the driving power of the hollow block making machine? A: Electricity and diesel engine. 4. Q: Are you a manufacturer of a trading company? A:We are the biggest building materials machinery manufacturers, with strong technical force, reliable product quality, which merge science,industry and trade together in one.Welcome to our factory at any time. 5. Q: How can I pick up a suitable machine ? A: Only clarify your required output per day or per shift (8 hours) as well as your budget, then we can recommend suitable machine with very competitive price. 6. Q: How about the installation ? A: We support Overseas Installation for all our medium / big machines, small machines you will gain online video technical support (Trading company may not support). 7.Q: What kind of blocks can be produced by this plant? A: You can get blocks with different sizes by changing the position of cutting wires. 8. Q: Can you assure the quality? A: Yes, we can. Our equipment will be carefully tested before shipping, and can be used over 10 years. If you worry about that, we can make the translation via Trade Assurance Order on Alibaba. 9. Q: How can I get this plant? A: You can visit our factory at first, and if you want to buy, we can transport the equipment to you by sea after we get the payments.If you are interested in this product, please click the "Chat Now" button on the right side of the product page, and a professional will serve you. Also you can click the"Send Inquiry"button on the right side of the product page.
