- High-concerned chemical: None
- Diameter: 3mm~12mm
- Coating: TIAIN
- Origin: Mainland China
- Model Number: Deburrer
- Brand Name: BB
- Type: Chamfer End Mills
- Material: Carbide
- Overall Length: 50~84mm

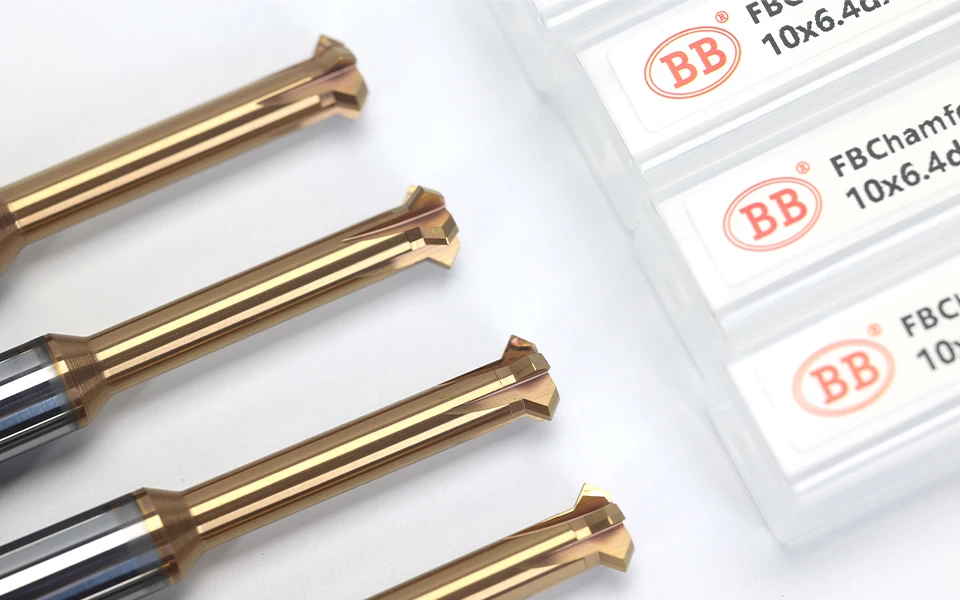

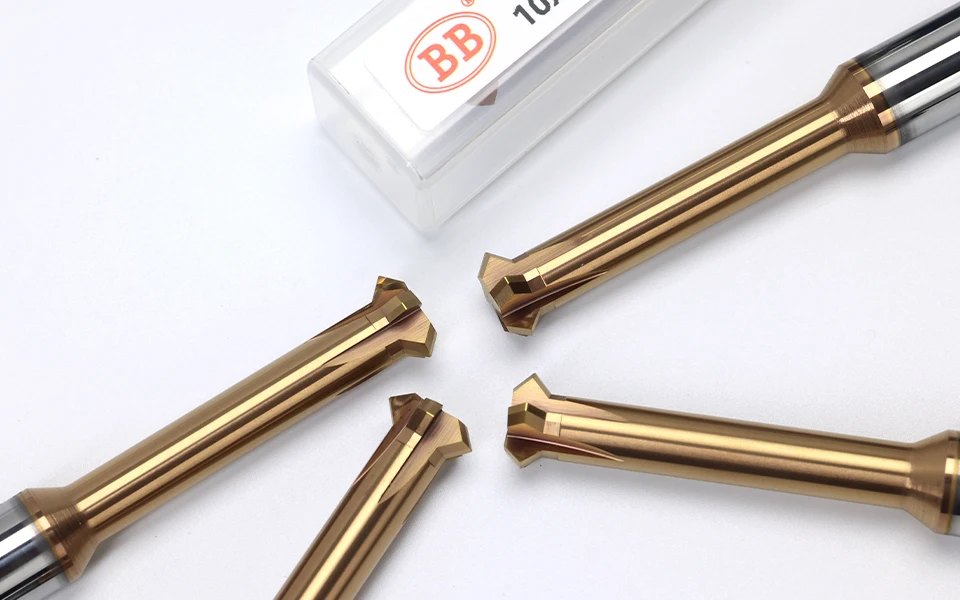

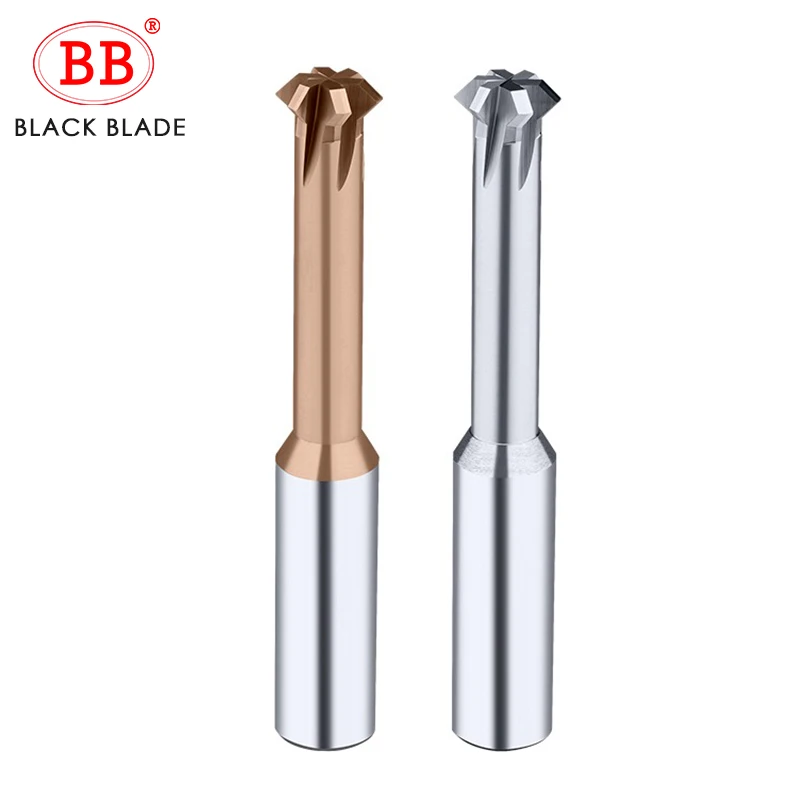

BB Front Back Chamfer Cutter
-Double Angular
-Solid carbide, the whole alloy material is harder and more durable.
-90,60,120 Degree
-The diameter is very small, and chamfering can also be carried out for complex workpiece shapes.

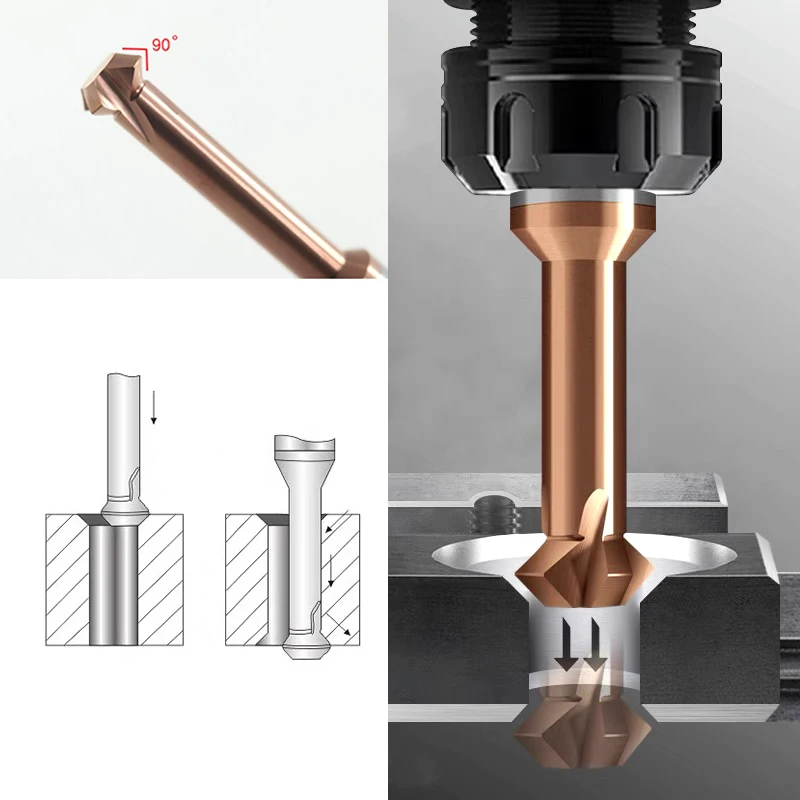

-The specification of the long neck which is convenient for the edge of the workpiece in a deeper position and reverse chamfering of the drilling hole has been standardized.
-A coating with higher melting resistance is adopted.
-Efficient spiral flute makes cutting easier.

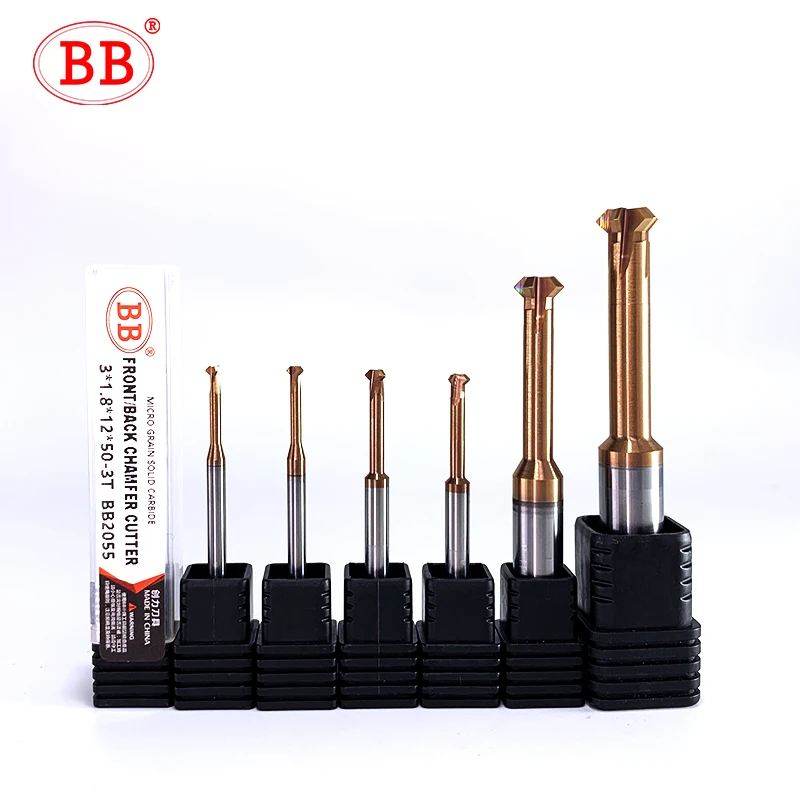

Dimensions
"Cutting Edge Diameter":
Diameter of cut × Dia.of neck × Dia. of shank ×Length of neck × Overall length
E Series
Highly competitive price, meets basic functional needs.
Softer materials like aluminum and mild steel,plastic.
Low-frequency machining, budget-sensitive projects, education.
D4*d2*8*D4*50L
D6*d3*10*D6*50L
D8*d4*10*D8*60L

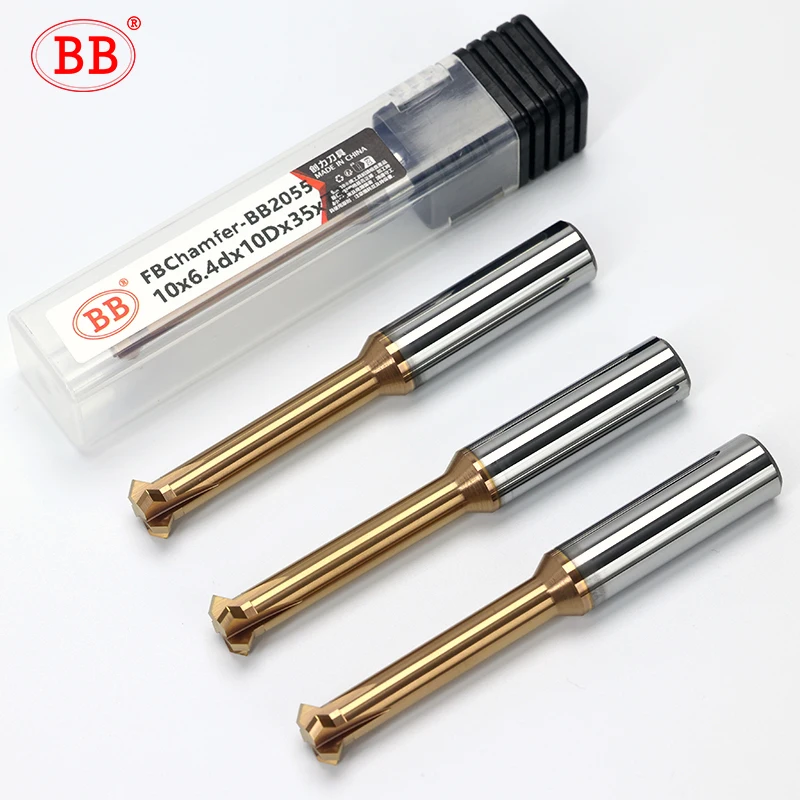

D10*d5*15*D10*60L
D12*d6*15*D12*60L
D14*d7*20*D14*75L

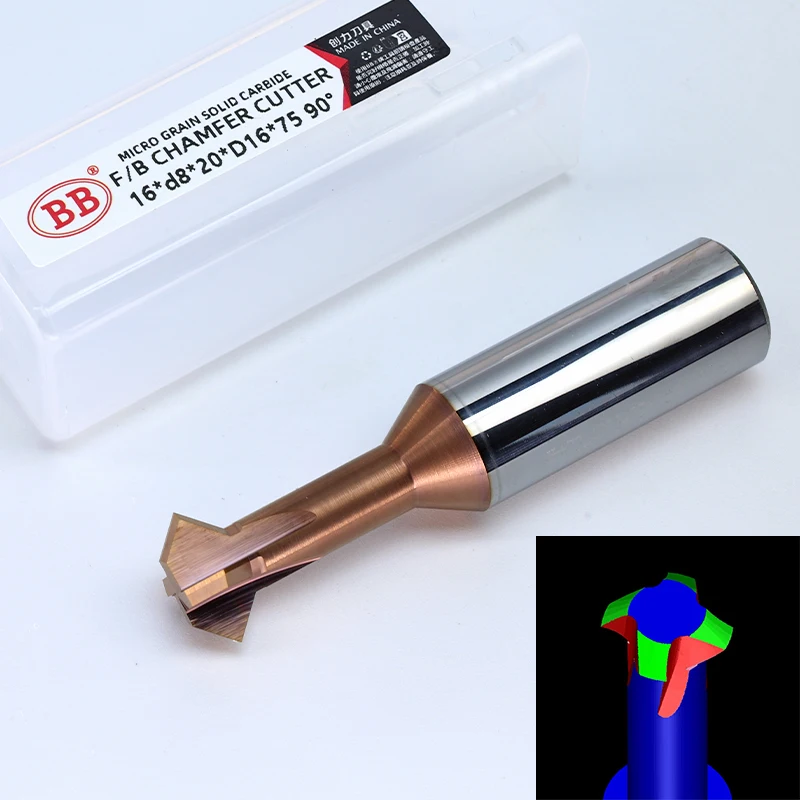

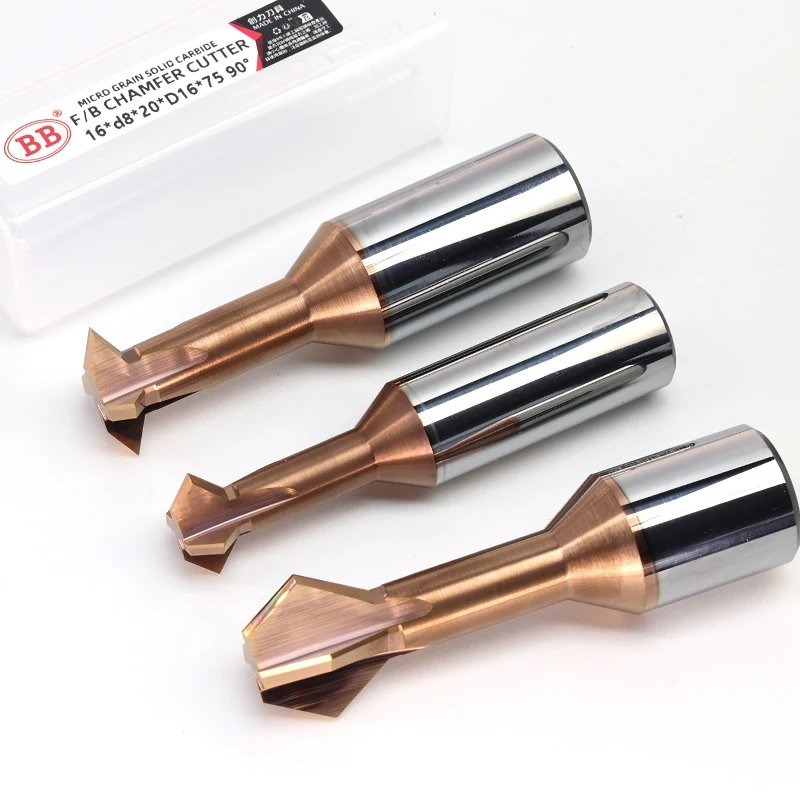

D16*d8*20*D16*75L
Cutting Conditions
P: Vc 70-100 , fz 0.05~0.1
M: Vc 60-80 , fz 0.03~0.08
K: Vc 40-80 , fz 0.05~0.1
N: Vc 80-150 , fz 0.05~0.12
-Please adjust the parameters according to different machining conditions.
-We recommend machining with cooling conditions.
-Sometimes Back chamfering needs to reduce parameters.
-If secondary burrs occur, please reduce the feed.
HI, welcome to BB official store.
-We are professional manufacturer ,development and production of milling tools.
-We provide various tools for you . You can follow us and see more.
-You have free choice of collocation, pick different specifications and other tools in our store to you cart and pay them together. We will send the products you have picked as a package.
-Take an additional 5%~10% off when you buy 10 pieces or more.
SHIPMENT
-We have already paid 80% of delivery cost .
-Orders processed timely after the payment verification.We ship products within 3 working days.
-The trade is cross-border, and Airmail is cheapest post which take a long time for delivery.If you need the item urgently ,please choose Express way.
-If you have not received your shipment within 60 days from payment, please contact us. We will track the shipment and get a reply to you as soon as possible.
We sincerely hope that BB tools will meet your full requirements. Please enjoy your online shopping.
