Product Description
Main Features:
1. A high strength, widening the carriage, suitable for heavy cutting;
2. Four position eletric turret;
3. Frequency conversion stepless speed regulation;
4. Standard configuration: manual chuck;

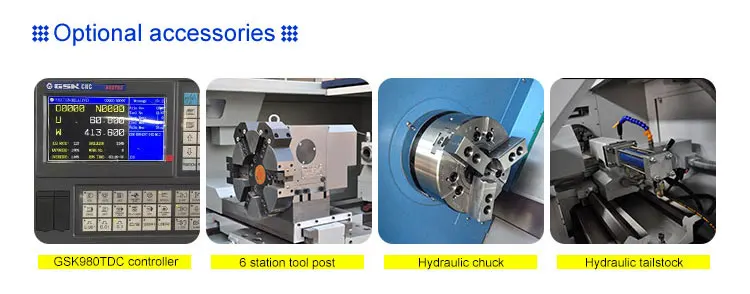

5. Optional configuration: hydraulic chuck.
1. A high strength, widening the carriage, suitable for heavy cutting;
2. Four position eletric turret;
3. Frequency conversion stepless speed regulation;
4. Standard configuration: manual chuck;
5. Optional configuration: hydraulic chuck.
|
Specification
|

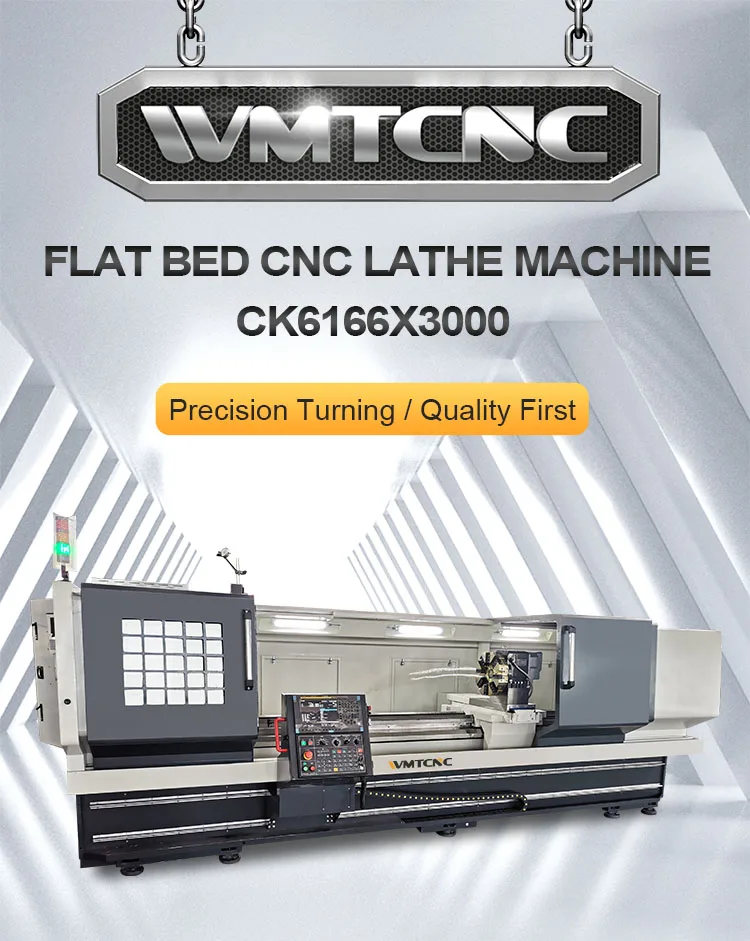

CK6166x750/1000/1500/2000/3000
|
|
Max. swing over bed
|
Ф660mm
|
|
Max. swing over carriage
|
Ф380mm
|
|
Max. cutting length
|
750/1000/1500/2000/3000mm
|
|
Rail width
|
400mm
|
|
Spindle nose
|
C6(D8)
|
|
Spindle bore
|
Ф25mm, Optional Ф80, Ф105mm
|
|
Taper of spindle bore
|
Ф90mm 1:20 or Ф110mm 1:20
|
|
Chuck size
|
320mm
|
|
Range of spindle speed
|
21-1620rpm
|
|
X-axis travel
|
330mm
|
|
Z-axis travel
|
750/1000/1500/2000/3000mm
|
|
X/Z rapid speed
|
3/6 m/min
|
|
X/Z ballscrew
|
25/50mm
|
|
Electronic turret
|
4 or 6 or 8 position
|
|
Max.section of tool
|
25mm
|
|
Stroke of tailstock sleeve
|
150mm
|
|
Diameter/Hole of tailstock sleeve
|
75mm MT5
|
|
Main motor power
|
11kw
|
|
Coolant pump power
|
90w
|
|
Overall dimensions(L x W x H)
|
3120/3630/4630x1360x1630mm
|
|
Packing size(L x W x H)
|
3520/4030/5030x1760x2030mm
|
|
Net weight
|
2300/2450/2650/2880/3700kgs
|
|
Gross weight
|
2900/3050/3250/3450/4300kgs
|

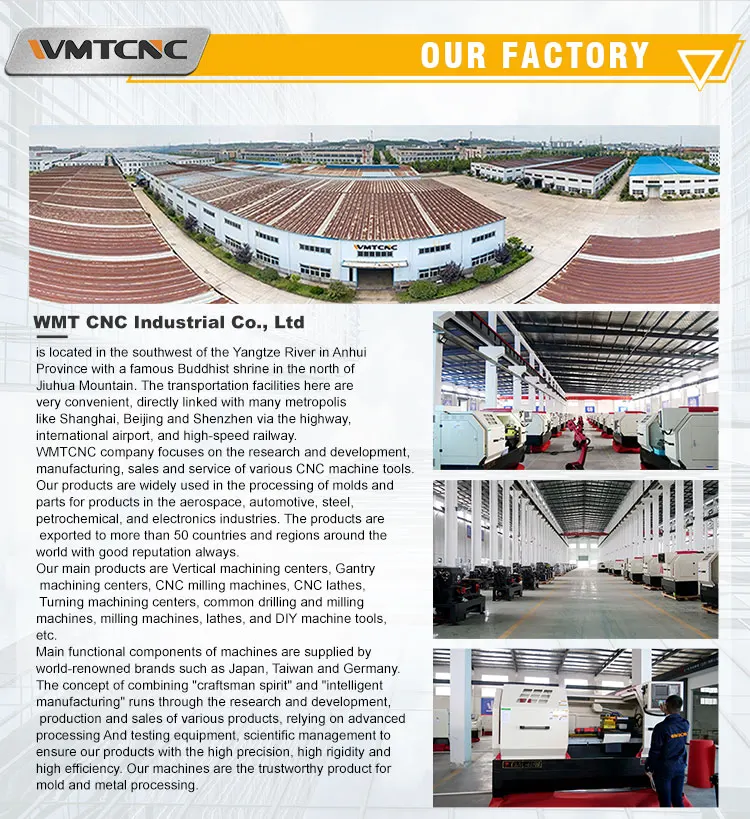

Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
