- Hign-concerned Chemical: None
- Type: Other
- Origin: Mainland China
- Application: Laser Engraving
- Engraving Area: 300mm(11.8in)*300mm(11.8in)
- Laser Type: Diode
- Engraving Speed: 10000mm/min
- Graphic Format Supported: BMP, Dwg, DXF
- CNC or Not: Yes
- Cooling Mode: Air Cooling
- Place of Origin: China
- Dimension(L*W*H): 570*510*150mm
- Laser Source Brand: EFR
- Laser Head Brand: Other
- Servo Motor Brand: Other
- Guiderail Brand: Other
- Control System Brand: Other
- Optical Lens Brand: Other
- Weight (KG): 4.5 KG
- Key Selling Points: High-accuracy
- Warranty: 1 Year
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Engine, Motor
- Mode of Operation: continuous wave
- Configuration: bench-top
- Feature: 3D

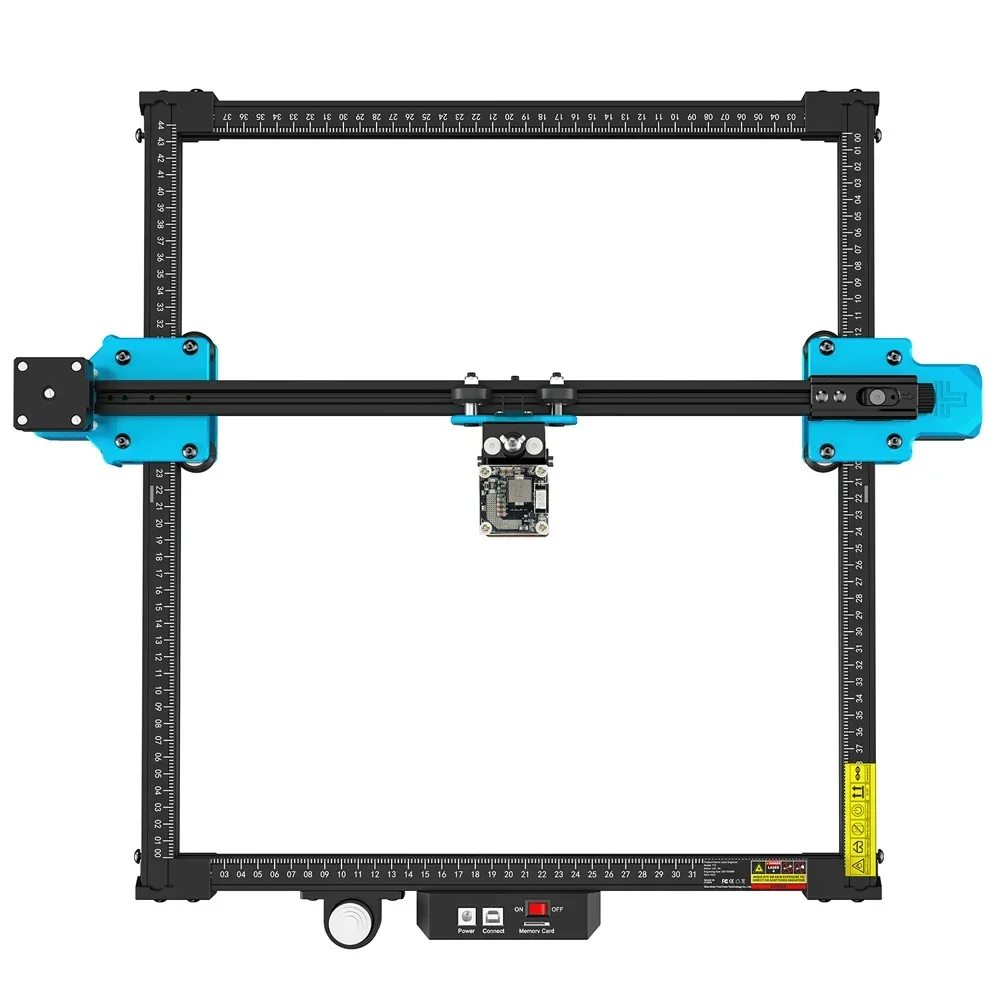

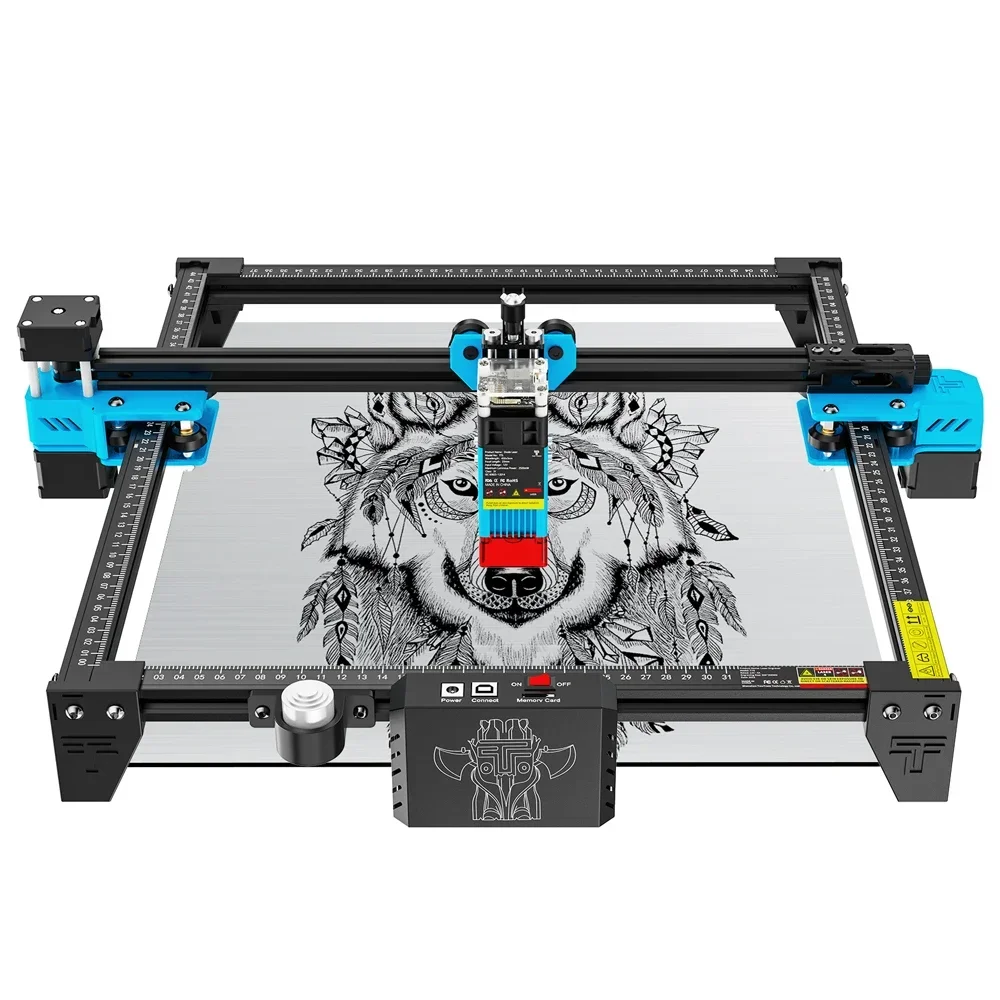

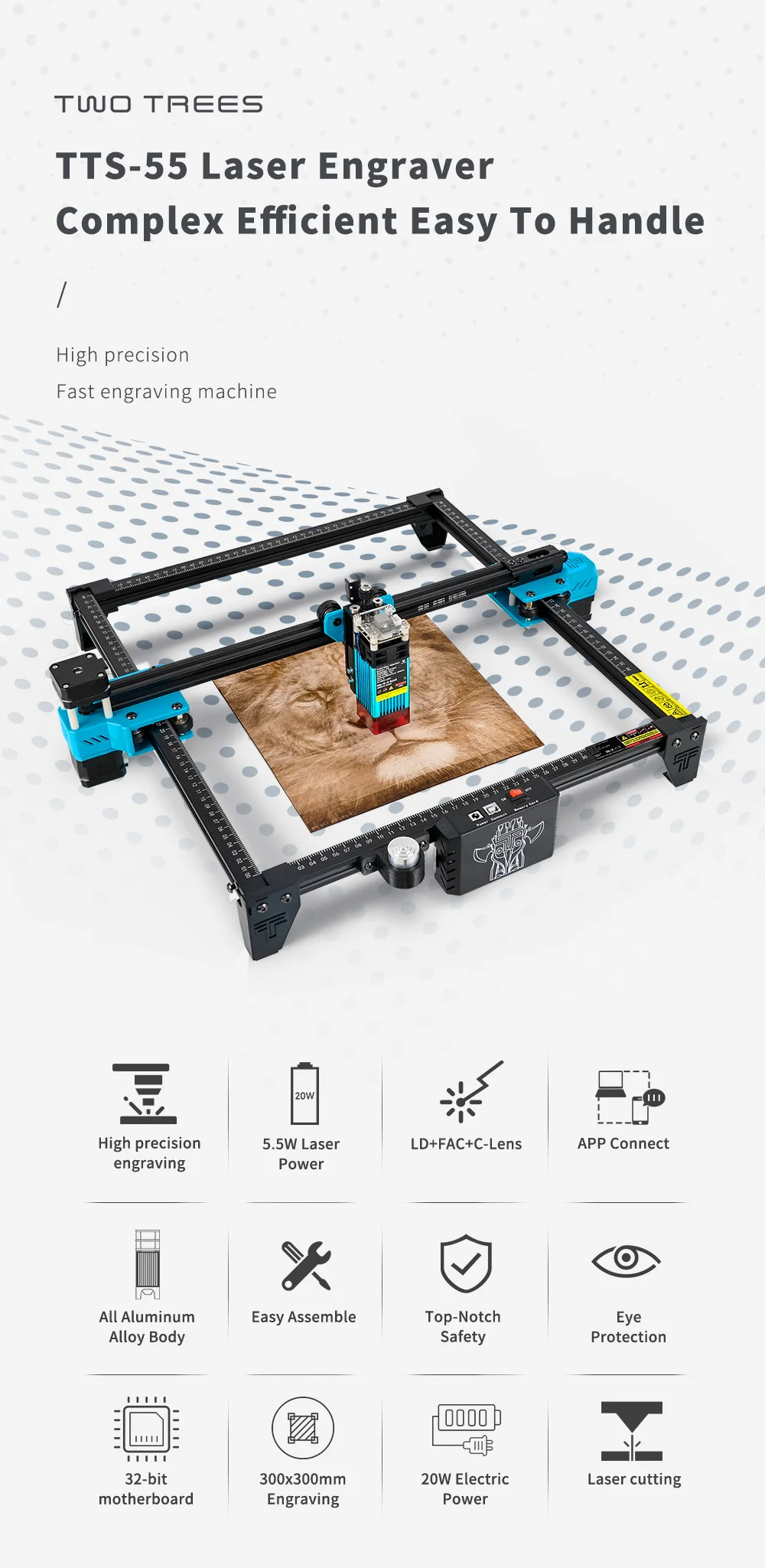

- Product name: TTS55 Laser Engraving Cutting Machine
- Laser power: 5.5W (FAC) High Speed

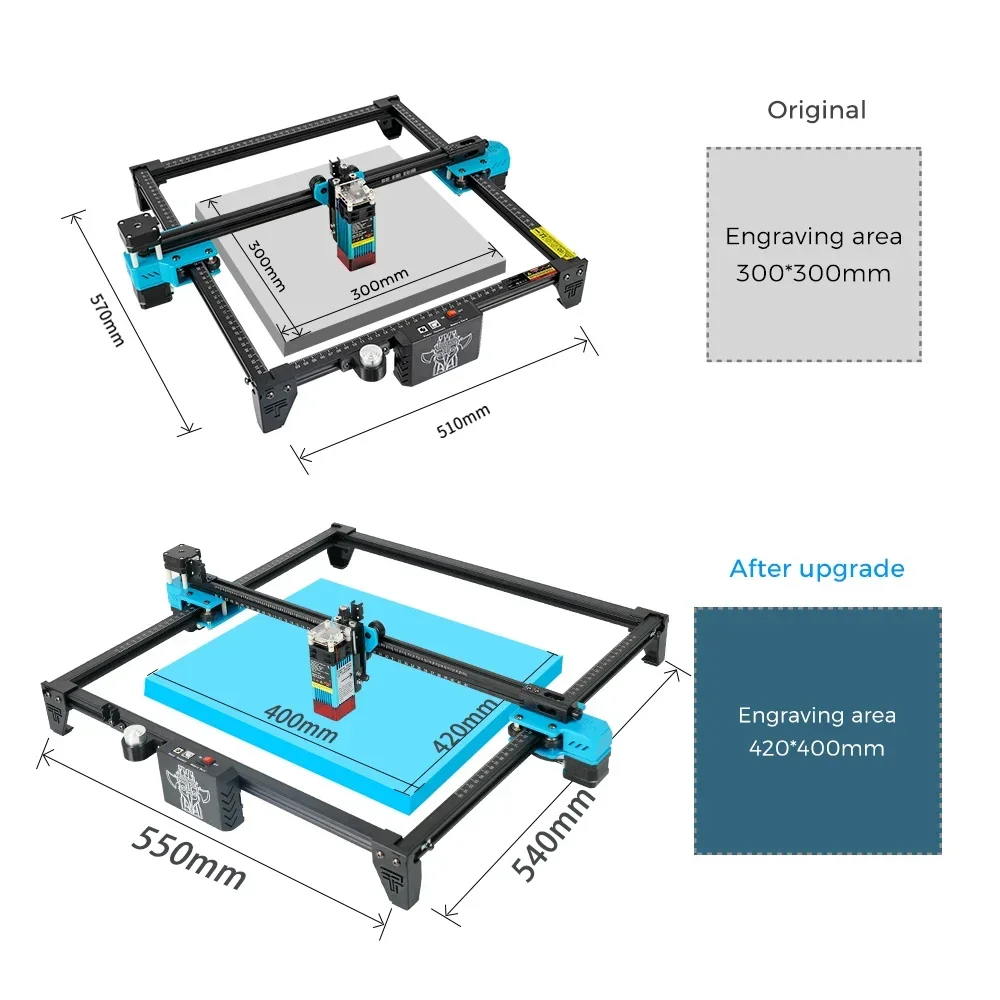

- Engraving area: Extensible 420*400mm/600*600mm kit

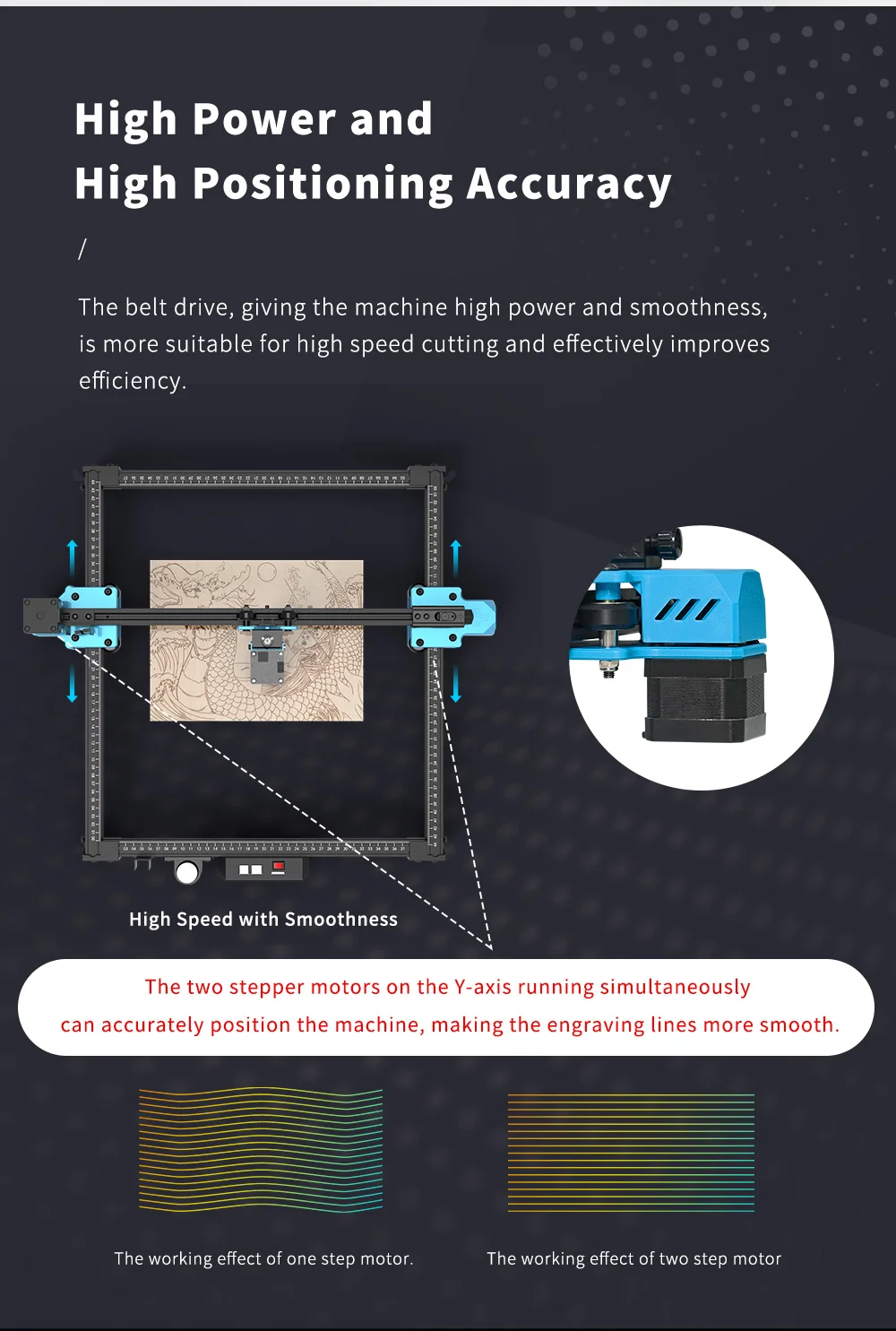

- MG Print head Y Axis: two-axis synchronous machine
- Software support: Mac, Windows,GRBL, LIGHTBURN
- Motherboard: LTS ESP32 Motherboard
- Electrical Requirement: 12V 4A DC
- operation Method: USB /Connect PC /APP WiFi operation
- Glass: Laser colored paper is needed to aid engraving

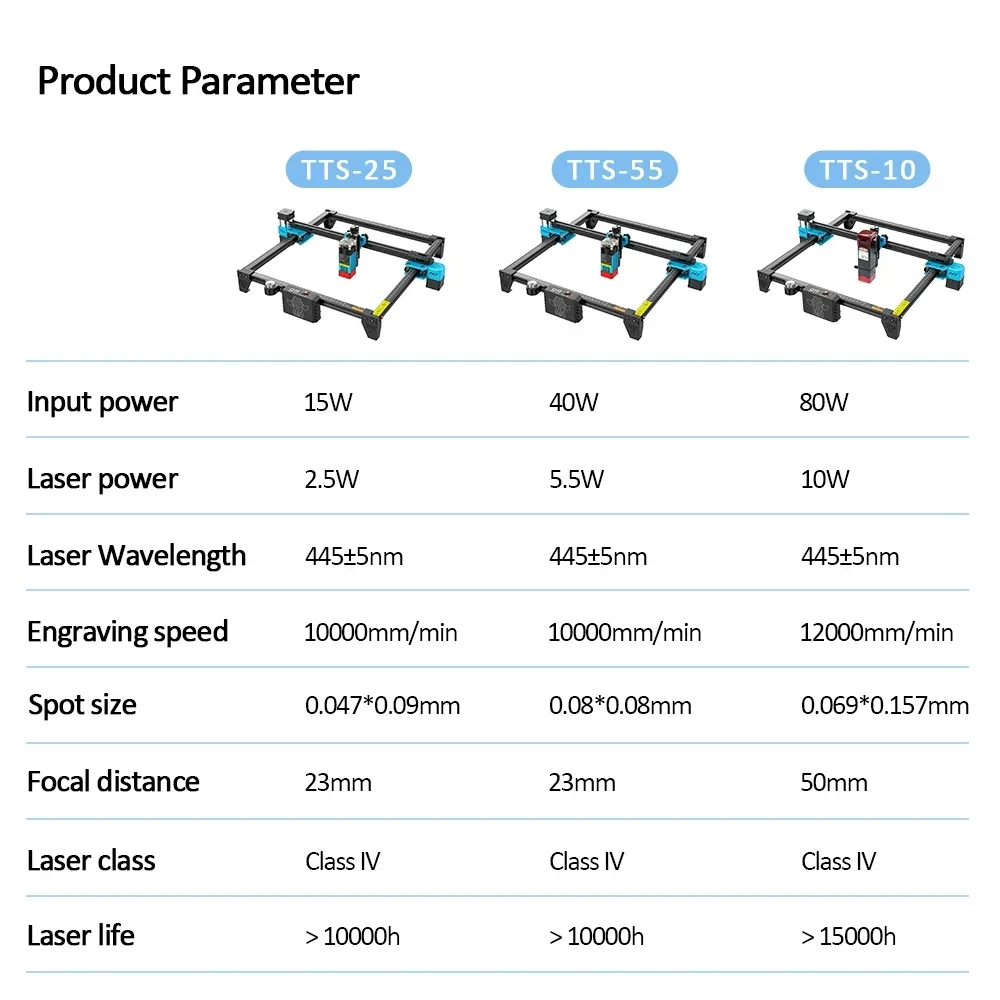

Product Paramenters
Aluminum Oxide, 304 Stainless Steel, Ceramic,Dark Stone Laser Engraver Machine nonmetal 40W Laser Cutting Machine

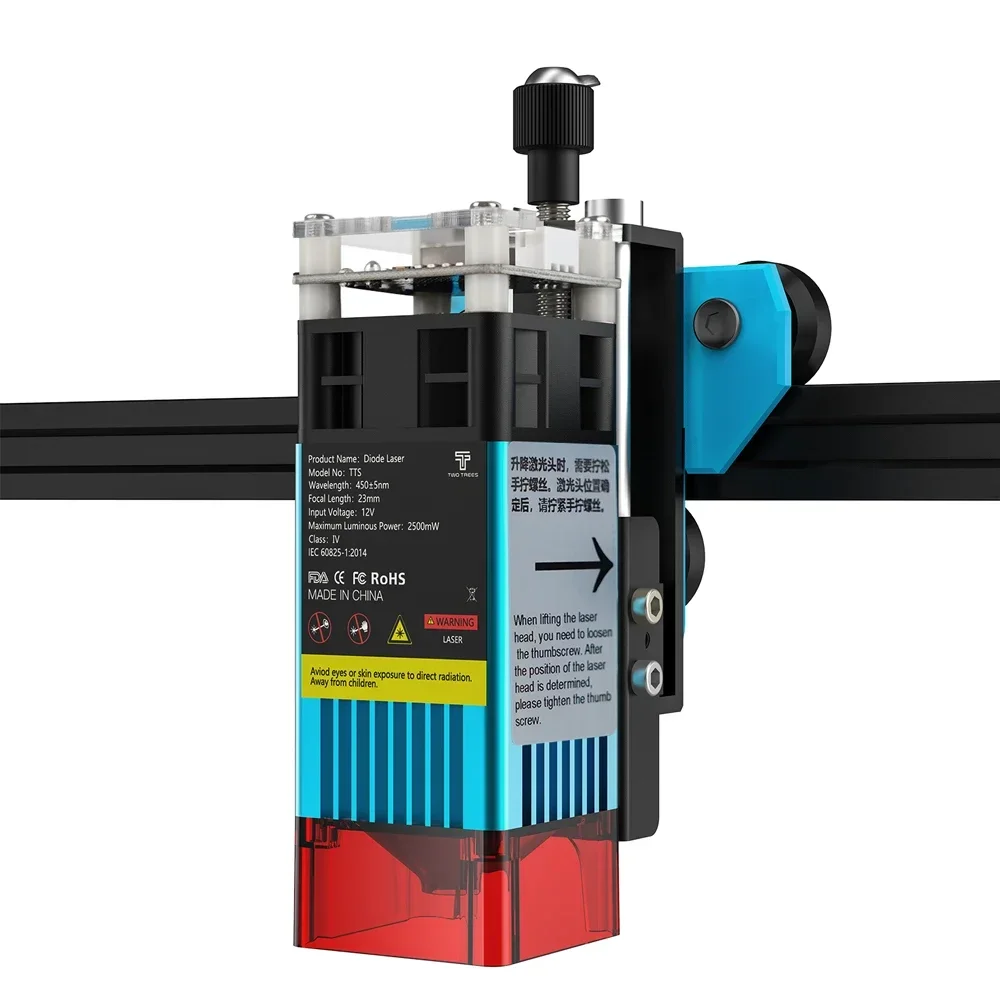

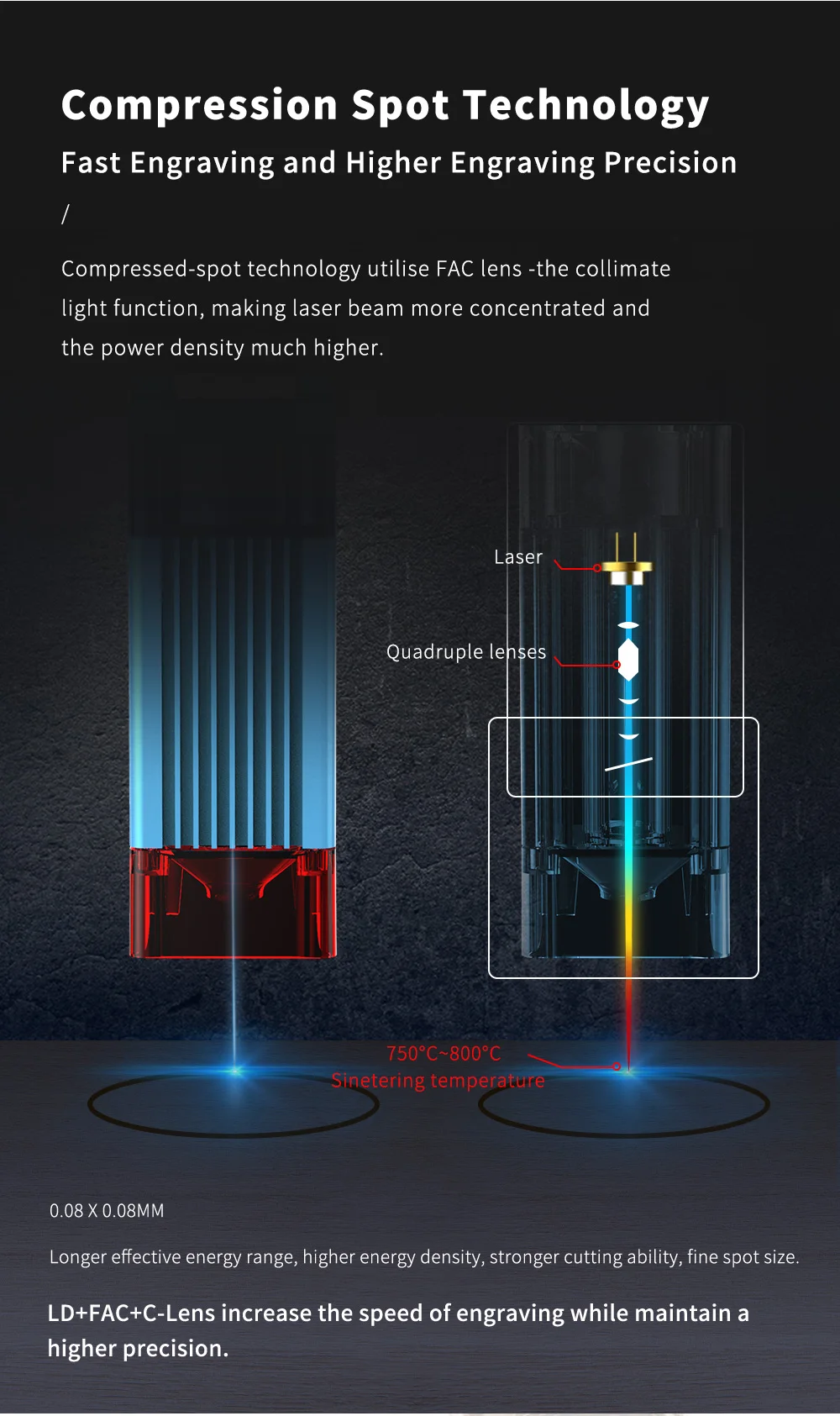

* Advanced Laser Technology: TTS-55 laser module uses the latest LD+FAC+C-Lens compression spot technology, fixed focus, focal length is only 23mm, compared with other long focus lasers, short focus laser has stronger engraving and cutting ability.Engraving accuracy: 0.1mm. Laser power: 5.5W, machine output power: 40W.
* 32-bit Motherboard: The motherboard adopts 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use the mobile phone App and computer WEB for engraving.

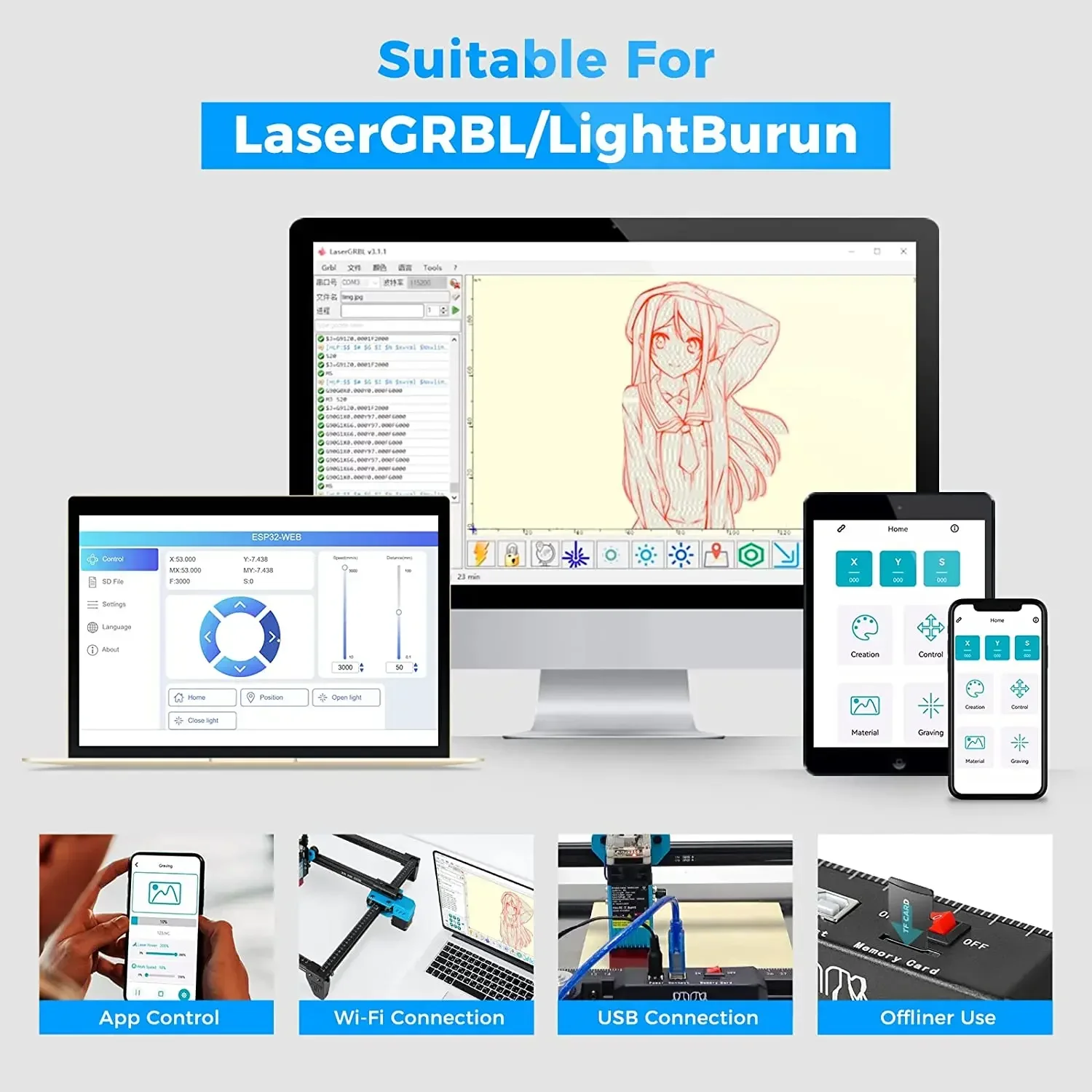

* Software Compatibility: Twotrees TTS-25/55 series engraving machines are compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile app: MKSLaser (for Android and IOS system), can be downloaded from the mobile store.

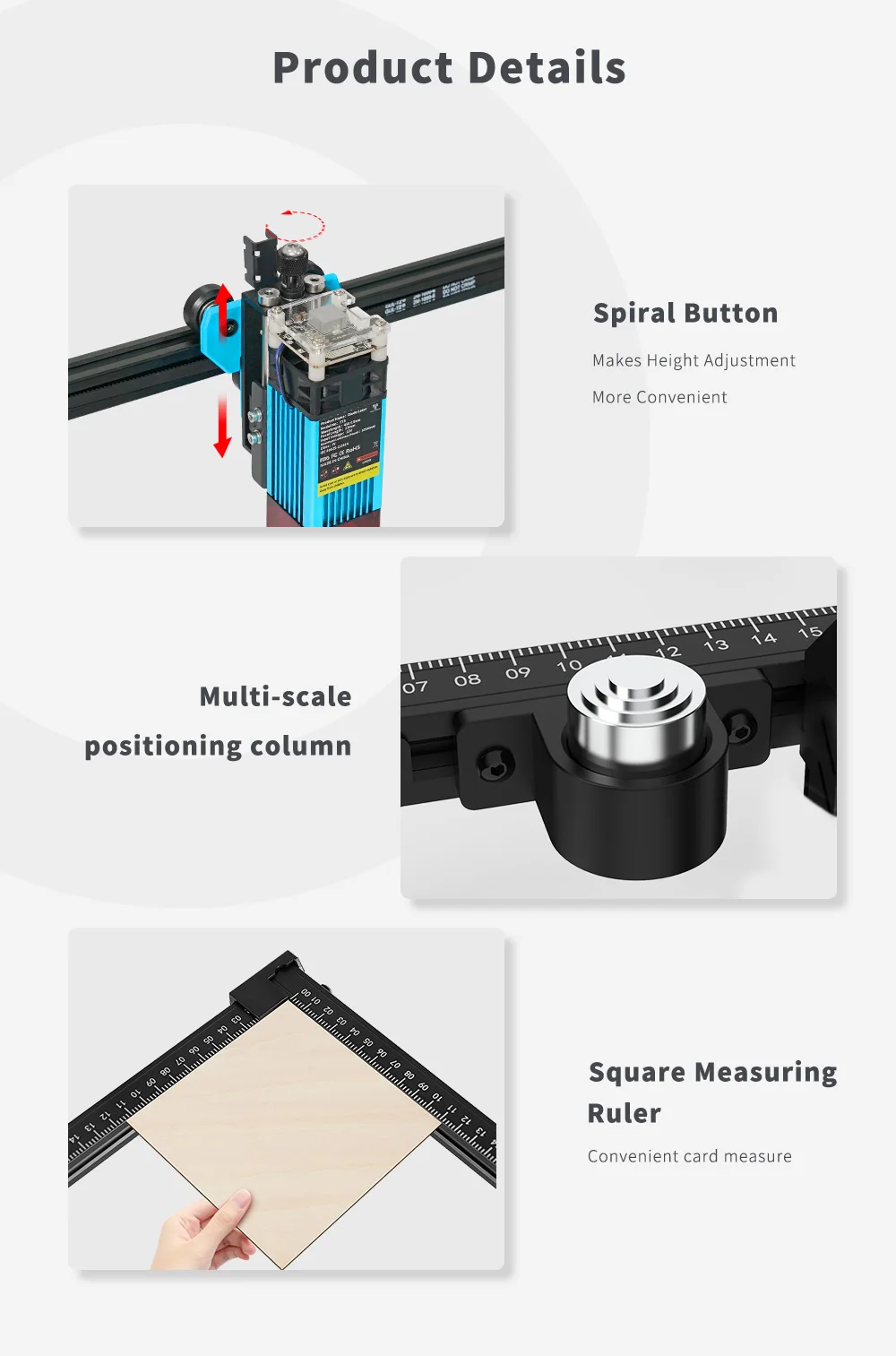

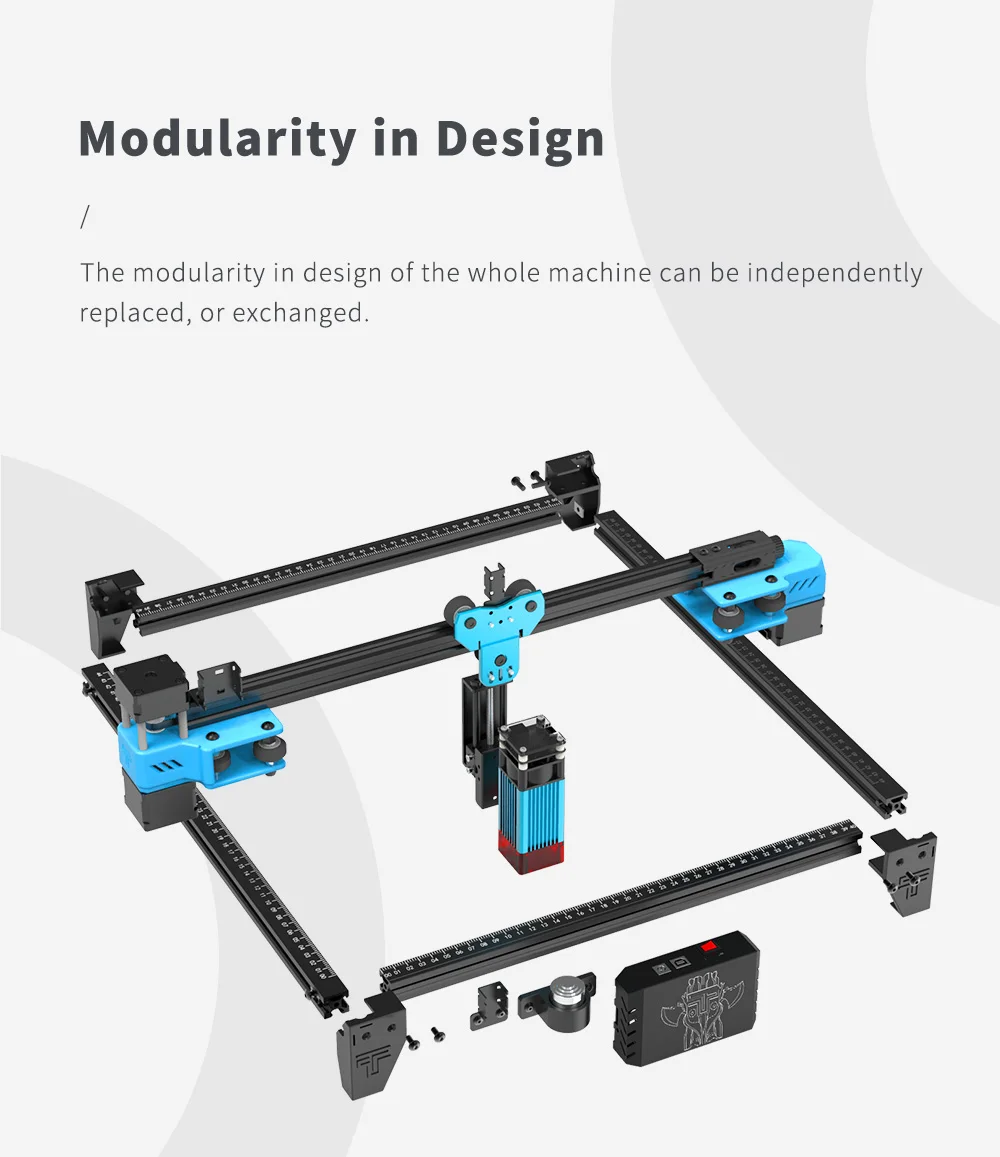

* New Upgrades: Twotrees TTS-55 is an upgraded version of TT-5.5S. TTS-55 aluminum profile added digital scale, upgraded to32-bit motherboard. Add power switch to motherboard. Magnetic laser protection covers, CNC Z-axis lifting devices, Cable management using bellows, Multi-grade metal positioning posts, etc.
* 32-bit Motherboard: The motherboard adopts 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use the mobile phone App and computer WEB for engraving.
* Software Compatibility: Twotrees TTS-25/55 series engraving machines are compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile app: MKSLaser (for Android and IOS system), can be downloaded from the mobile store.
* New Upgrades: Twotrees TTS-55 is an upgraded version of TT-5.5S. TTS-55 aluminum profile added digital scale, upgraded to32-bit motherboard. Add power switch to motherboard. Magnetic laser protection covers, CNC Z-axis lifting devices, Cable management using bellows, Multi-grade metal positioning posts, etc.
