- Producto químico de alta preocupación: Ninguno
- Origen: CN(Origen)
- max. length of workpiece (mm): 350
- range of spindle speed(r.p.m): 50 - 2500 r.p.m
- machining capacity: Medium Duty
- type: Horizontal
- spindle motor power(kw): 0.55
- place of origin: Anhui, China
- brand name: WMTCNC
- model number: DIY0714
- voltage: 110v/ 220/ 380v or Customized
- dimension(l*w*h): 660/760/810*310*370mm
- weight (kg): 45 KG
- warranty: 1 Year
- key selling points: Energy Saving
- machinery test report: Provided
- video outgoing-inspection: Provided
- CNC or Not: Normal

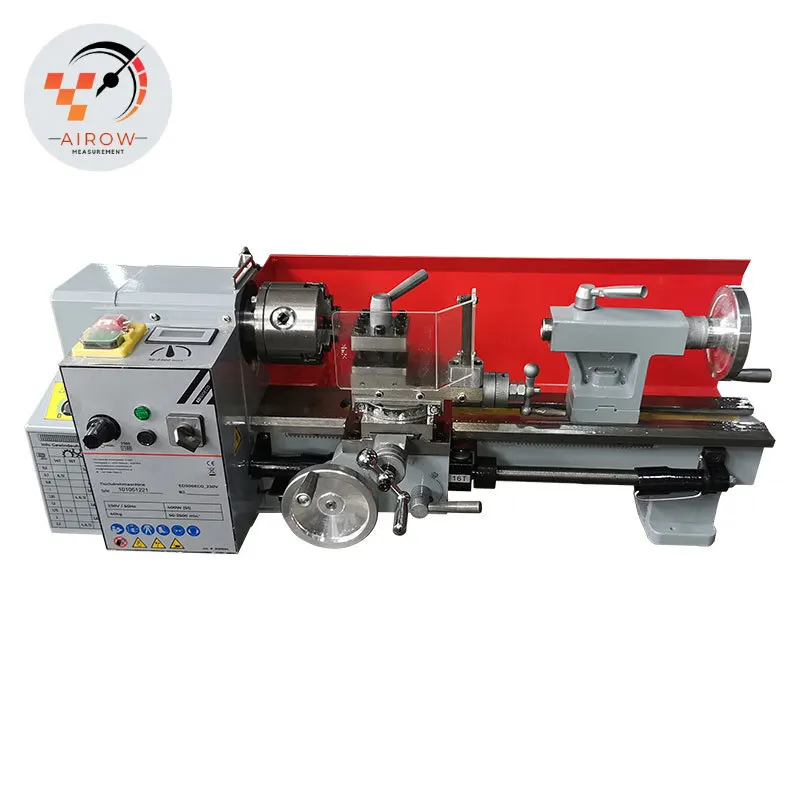

- Product Name: DIY0714 Lathe Machine for Metal
- Automatic Grade: Manual
- Spindle Speed: 50-2500rpm
- Spindle Bore: 20mm
- Swing over Bed: 180mm
- Distance between Centers: 200/300/350mm
- Certification: CE, ISO
- Logo Printing: OEM Service
- After-sales Service Provided: Video technical support
- Condition: New
- Spindle Bore(mm): 20
- Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Japan, Malaysia, Australia
- Warranty of core components: 1 Year
- Core Components: Bearing, Pump, Gear, Motor, Gearbox, Other
- Max. Turned Length (mm): 180 mm
- Year: New
- Marketing Type: New Product 2022
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:516px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:516px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{background-color:#fff900}#detail_decorate_root .magic-10{font-size:18px}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:350px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:354px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:464px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:464px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:556px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:556px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:803px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:803px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:368px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:368px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:846px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:846px}#detail_decorate_root .magic-24{font-size:24px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:346.15384615384613px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:346.15384615384613px}#detail_decorate_root .magic-27{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-28{margin-bottom:0}#detail_decorate_root .magic-29{position:relative;width:100%}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:560px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:560px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:947px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:947px}
Product Description
Mini Lathe Machine Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 50-2500rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.
Specification | DIY0708/ DIY0712/ DIY0714 |
Distance between centers | 200/300/350mm |
Swing over bed | φ180mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Chuck diameter | φ80mm |
Spindle bore | φ20mm |
Range of metric threads | 0.5-2.5mm |
Range of imperial threads | 12-52T.P.I |
Spindle speed | 50-2500rpm |
Power of motor | 400/550W |
Packing size | 660/760/810*310*370mm |
Gross weight | 38/42/45kg |

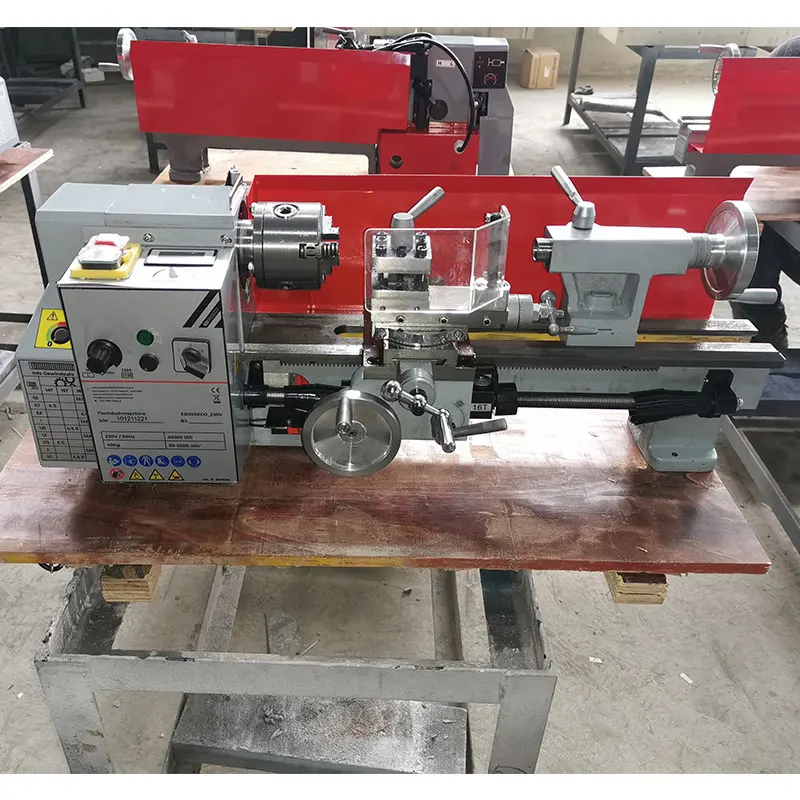

Detailed Images
You may find the accessories as you like:
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
