- High-concerned chemical: None
- Is Electric: No Battery
- Quantity: 1 pcs
- Is it battery/power supply: N
- Is it charger/adapter: N
- Is Batteries Included: No
- Size: 21.2 x 15 x 6mm
- Plastic Type: PC
- Model Number: AFRC-D1015PRO
- For Vehicle Type: Helicopters
- Tool Supplies: Other
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: servo
- Upgrade Parts/Accessories: Gear
- RC Parts & Accs: Servos
- Material: Plastic
- Brand Name: AFRC
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys

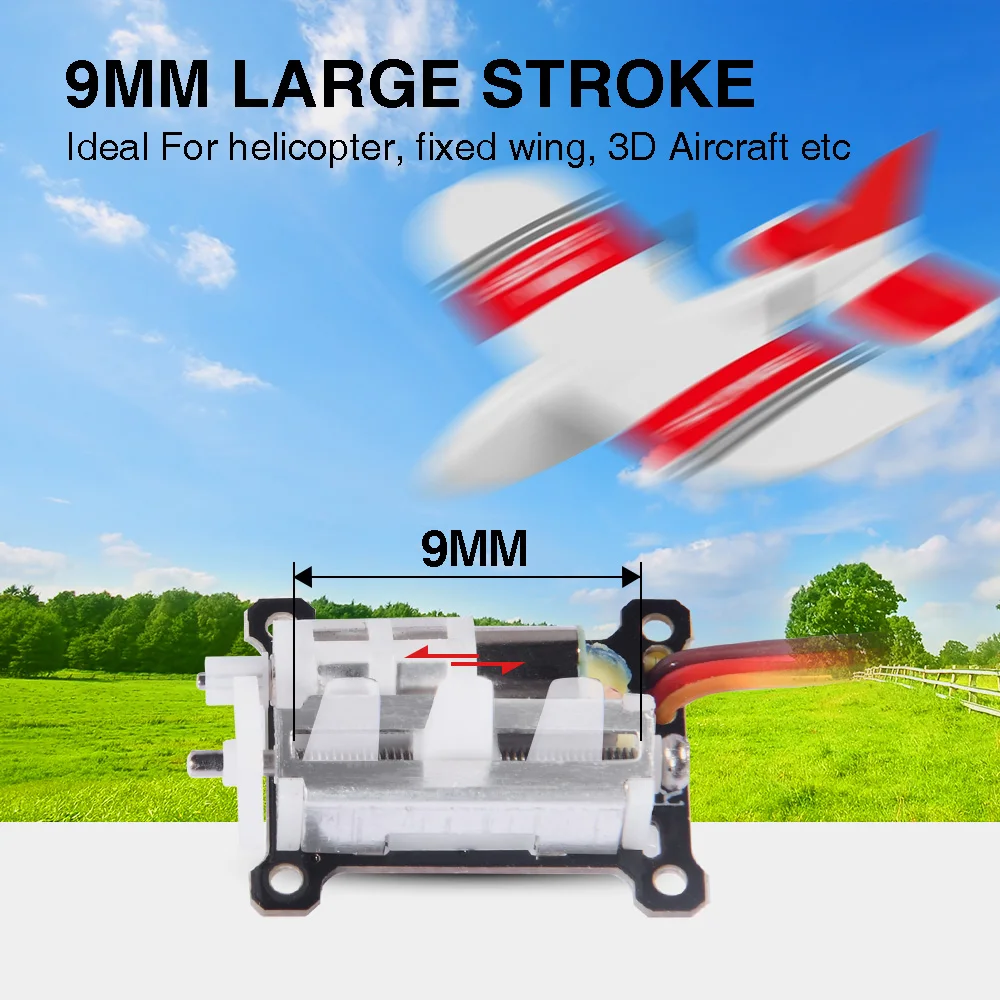

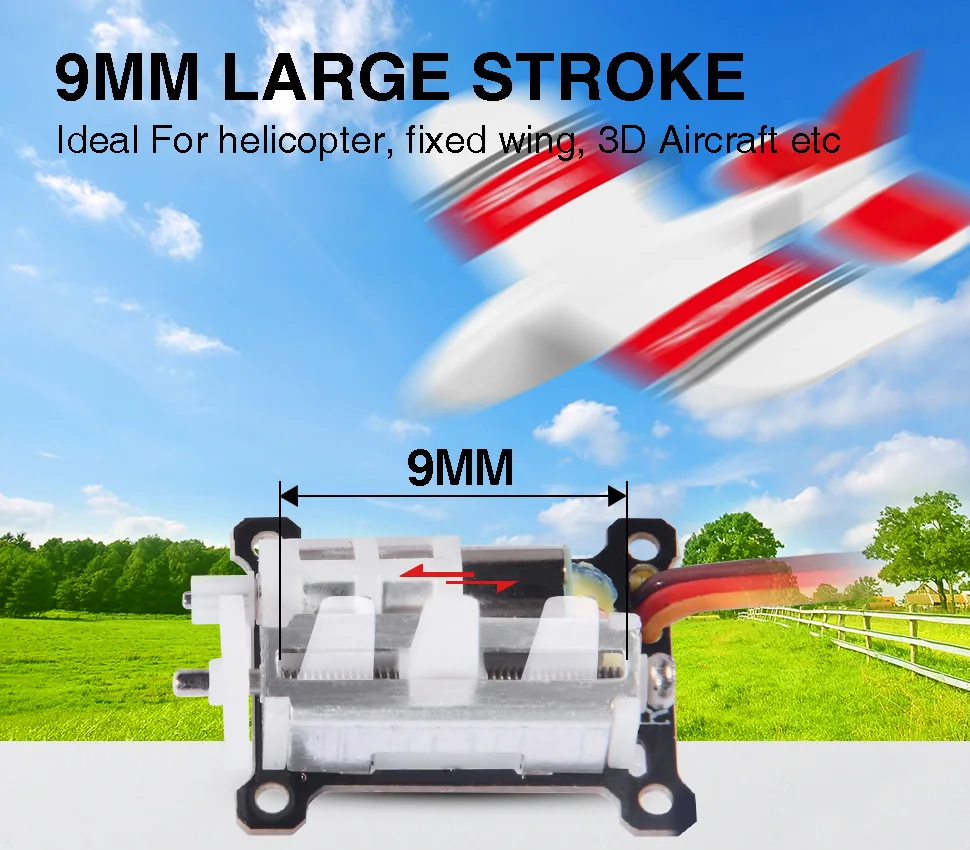

- Stroke: 9mm

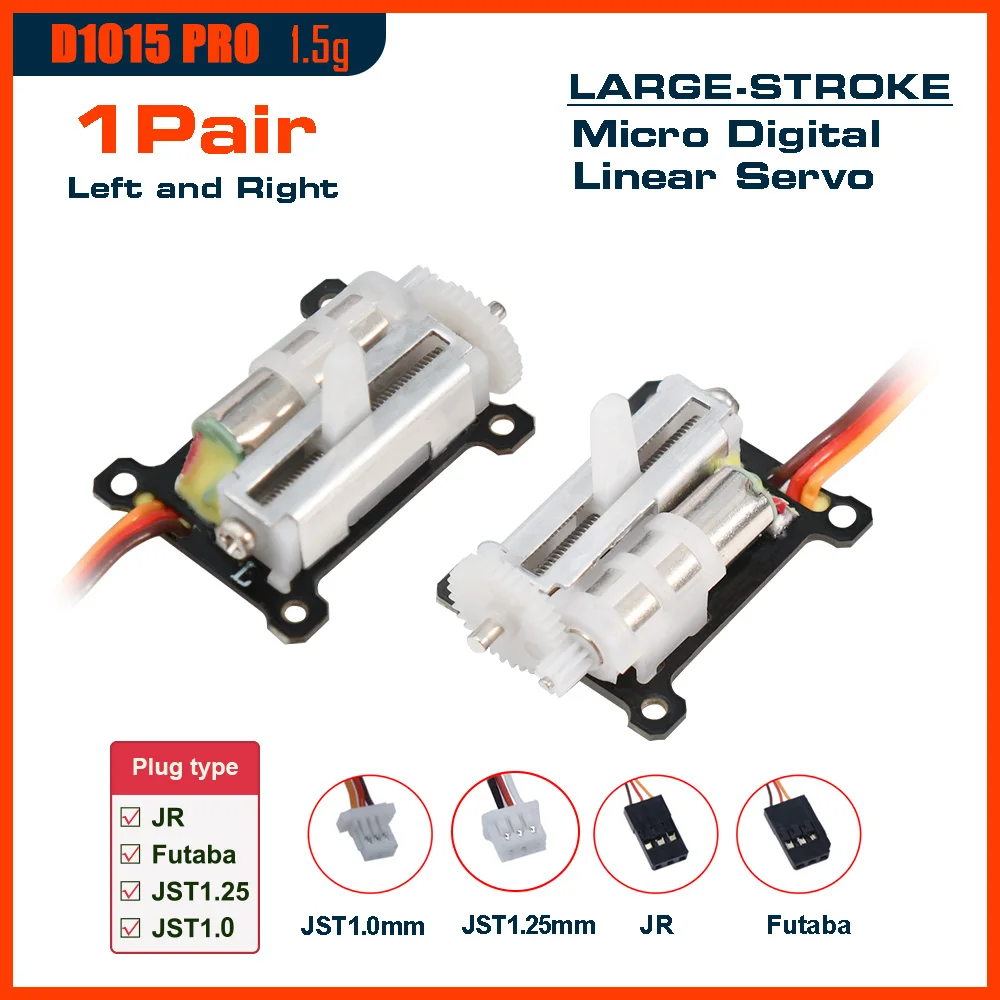

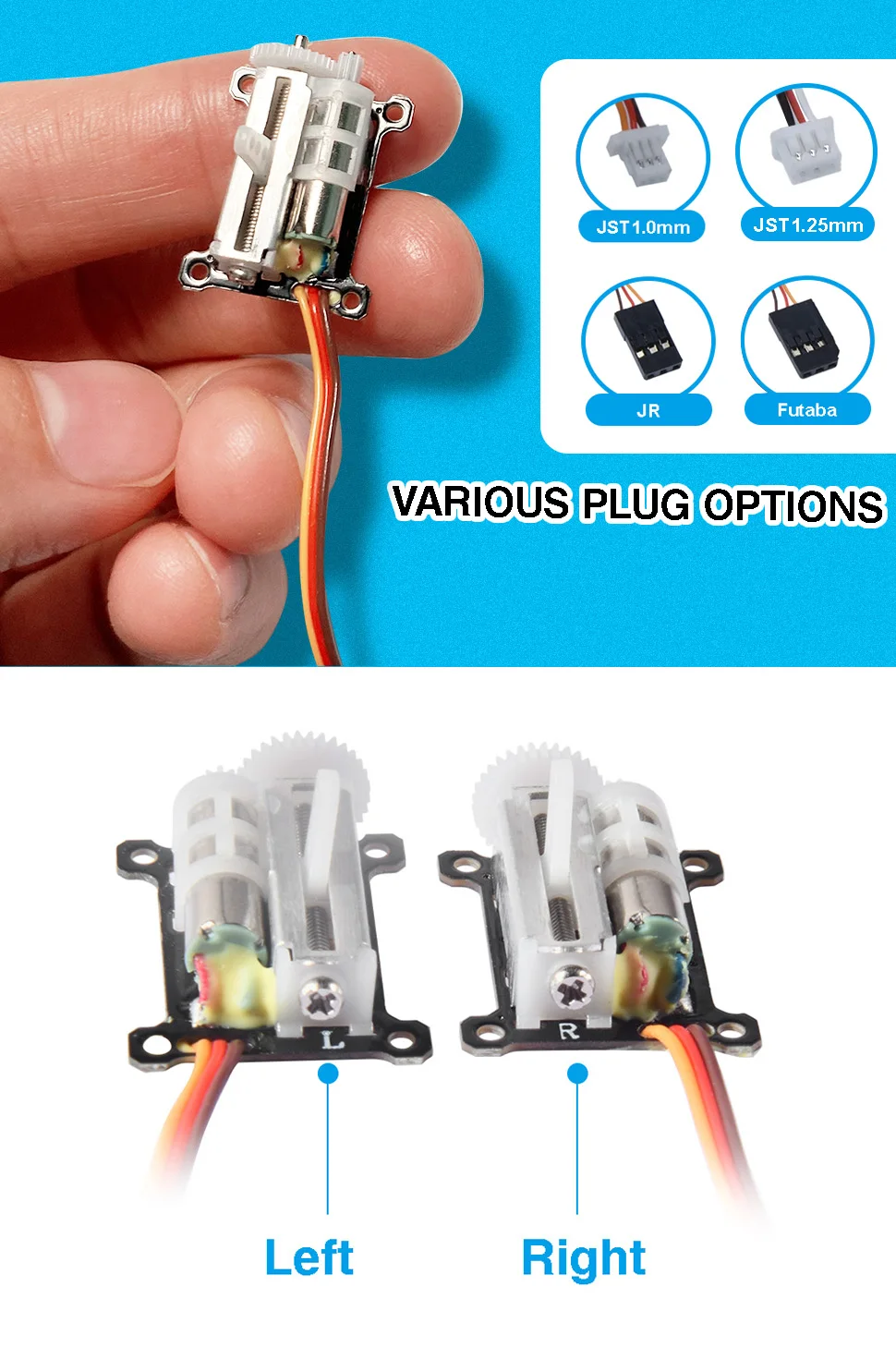

- Plug Type: JST1.0plug, JST1.25plug, JRplug, Futaba plug

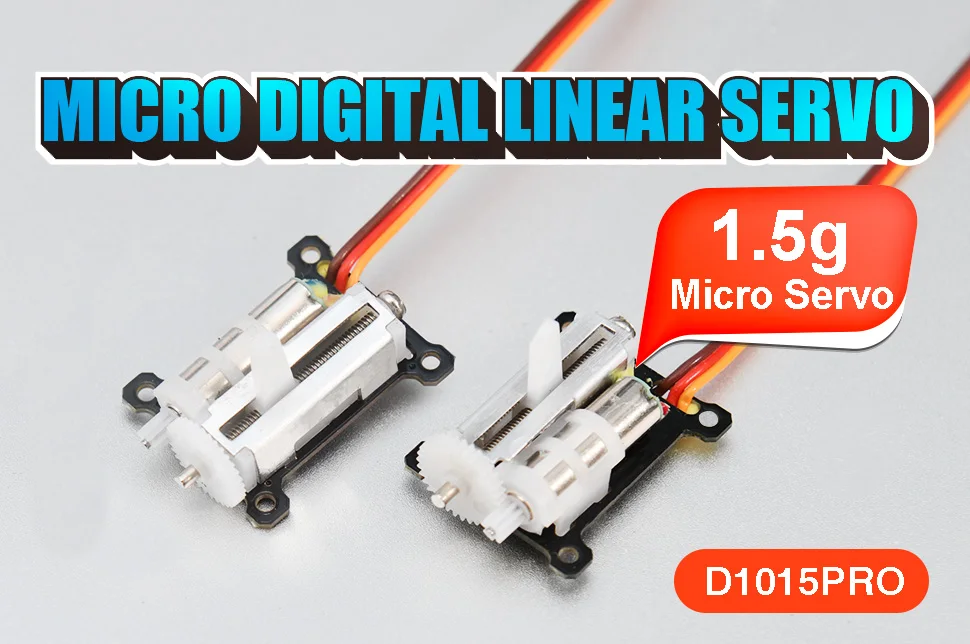

AFRC D1015PRO 1.5g Large-stroke 9mm Micro Digital Linear Servo High Speed For Indoor 3D Flight Helicoper Plane DIY
Features:
◆ The new PRO models have longer strokes, the same structural dimensions, and a wider range of applications
◆ Miniature and exquisite appearance design, super light weight
◆ Adopting digital controller and coreless motor drive.
◆ Micro steering gear with large torque;speed sensitive (0.08sec.cm); Large-stroke(9mm)

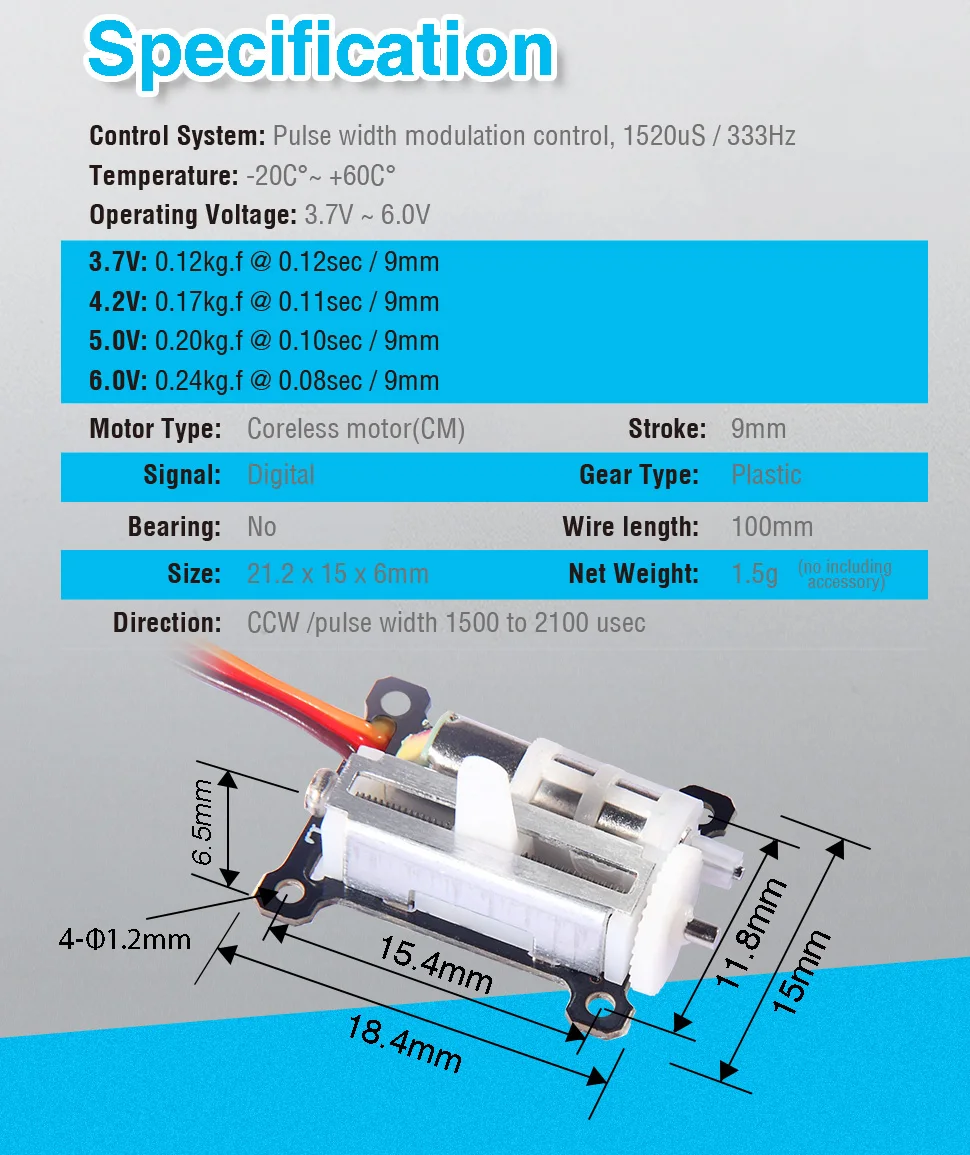

Description:
Model: D1015PRO
Dimensions: 21.2 x 15 x 6 mm/0.83 x 0.59 x 0.24inch
Weight: 1.5g (No including wire)
Working voltage: 3.7 ~ 6.0V
Torque:
3.7V: 0.12 kg-f
4.2V: 0.17 kg-f
5.0V: 0.20 kg-f
6.0V: 0.24 kg-f
Speed:
3.7V: 0.12 sec / 9mm
4.2V: 0.11 sec / 9mm
5.0V: 0.10 sec / 9mm
6.0V: 0.08 sec / 9mm
Motor type: Coreless motor
Gear type: Plastic gear
Signal: Digital
Direction: CCW/pulse width 1500 to 2100 use
Wire gauge: JST1.25mm L= 100mm (red +, black- , white S) ; JST1.0mm,JR,Futaba L=100mm (brown-, red +, orange S) .Please pay attention to distinguish before powering on!
Application: helicopter, fixed wing, industrial intelligence, etc.

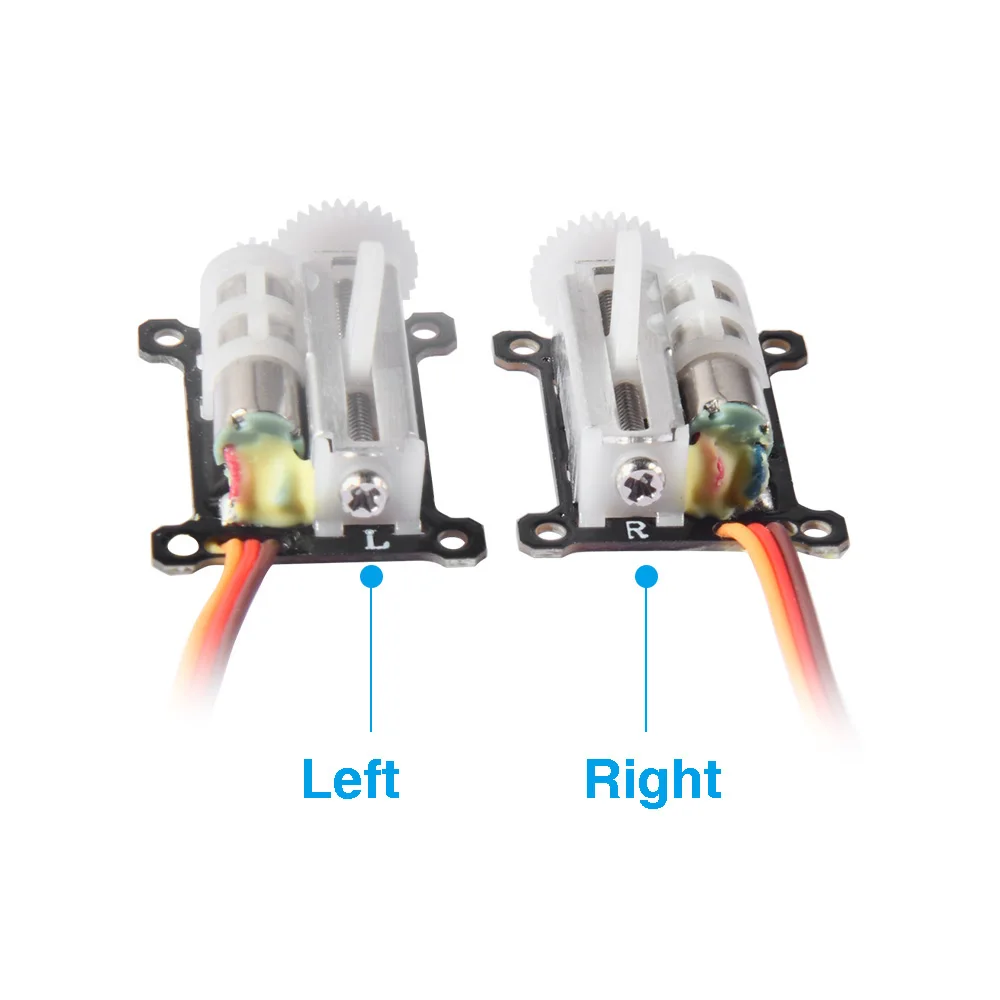

Package Included: 1pair/2pcs (L/R) 1.5g Large-stroke servo
