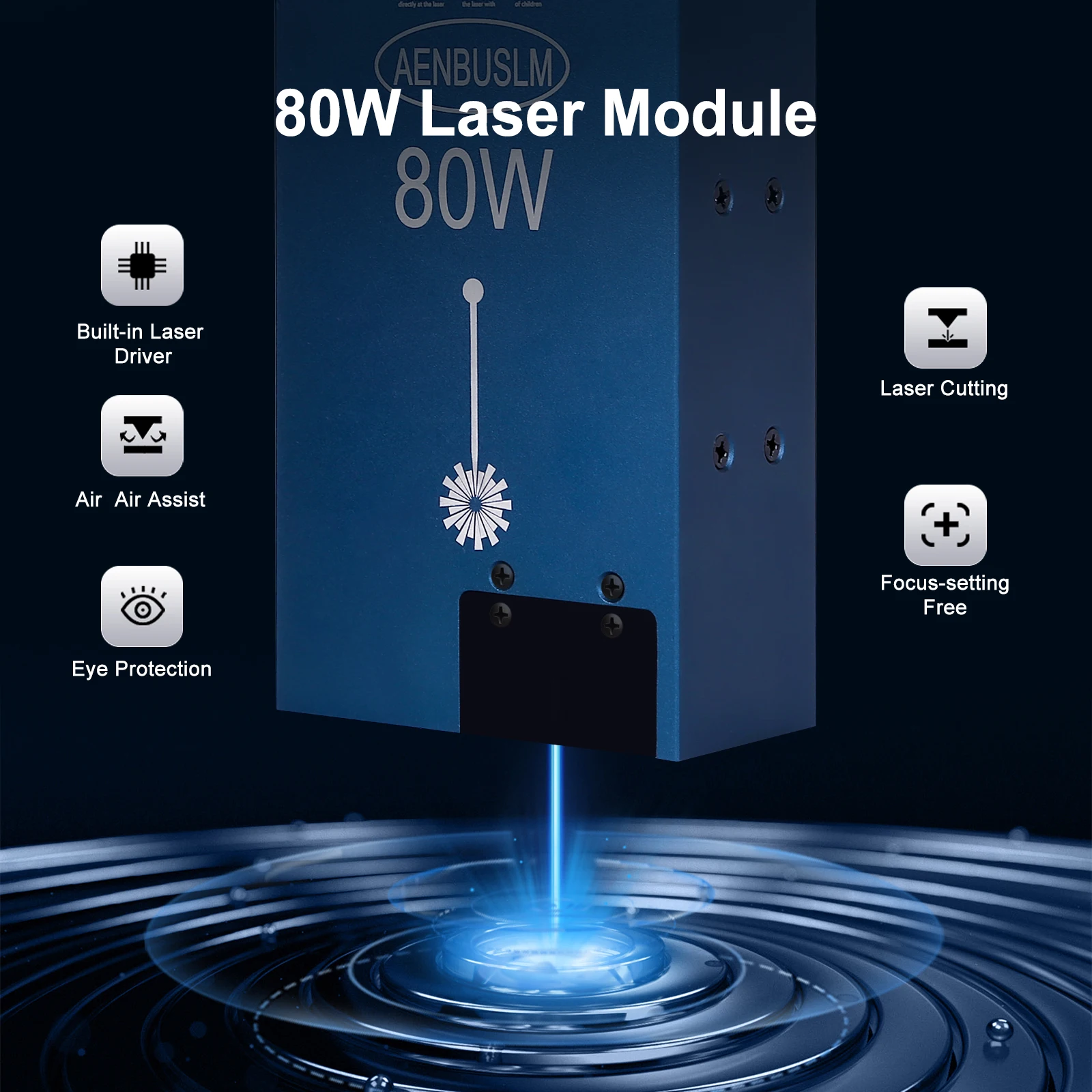

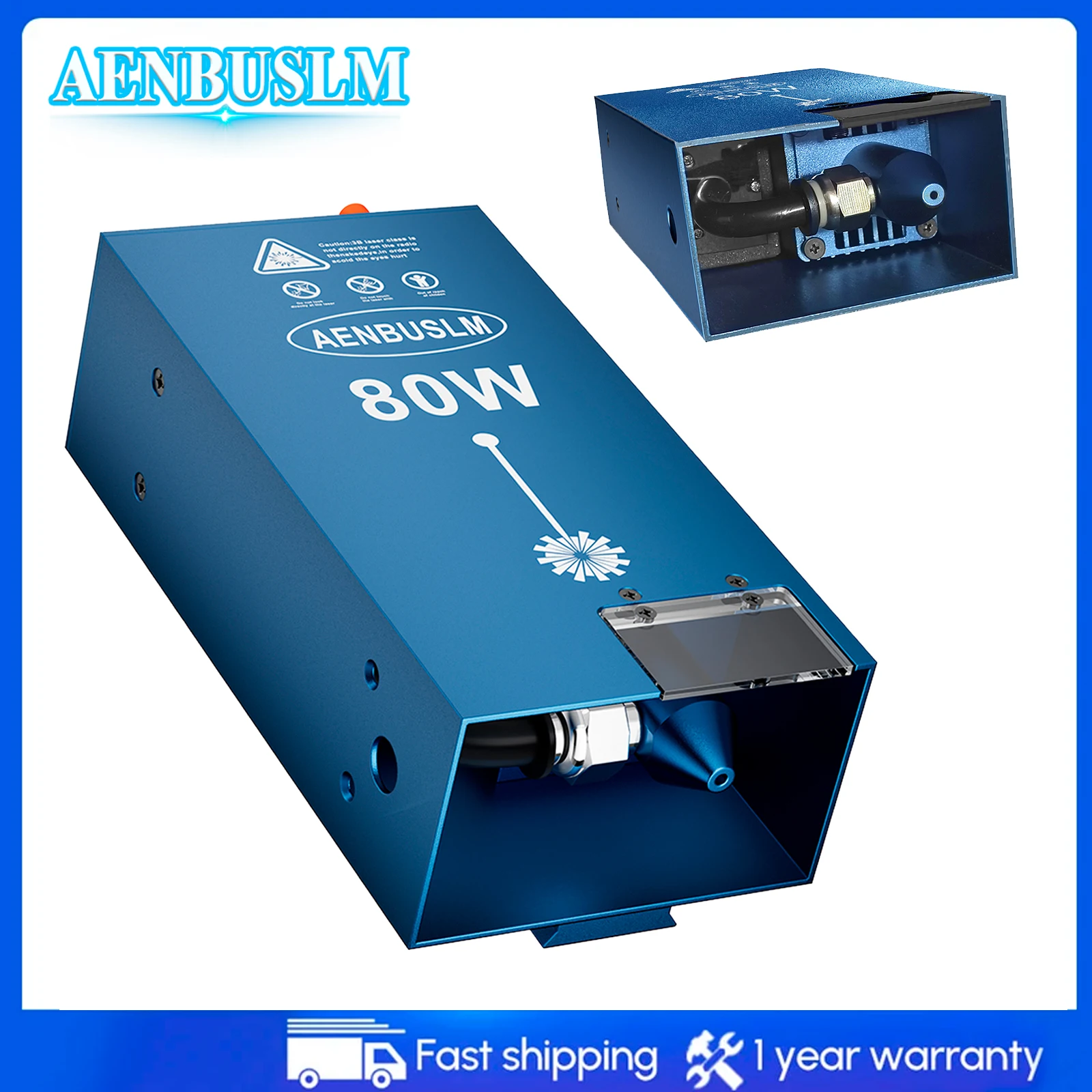

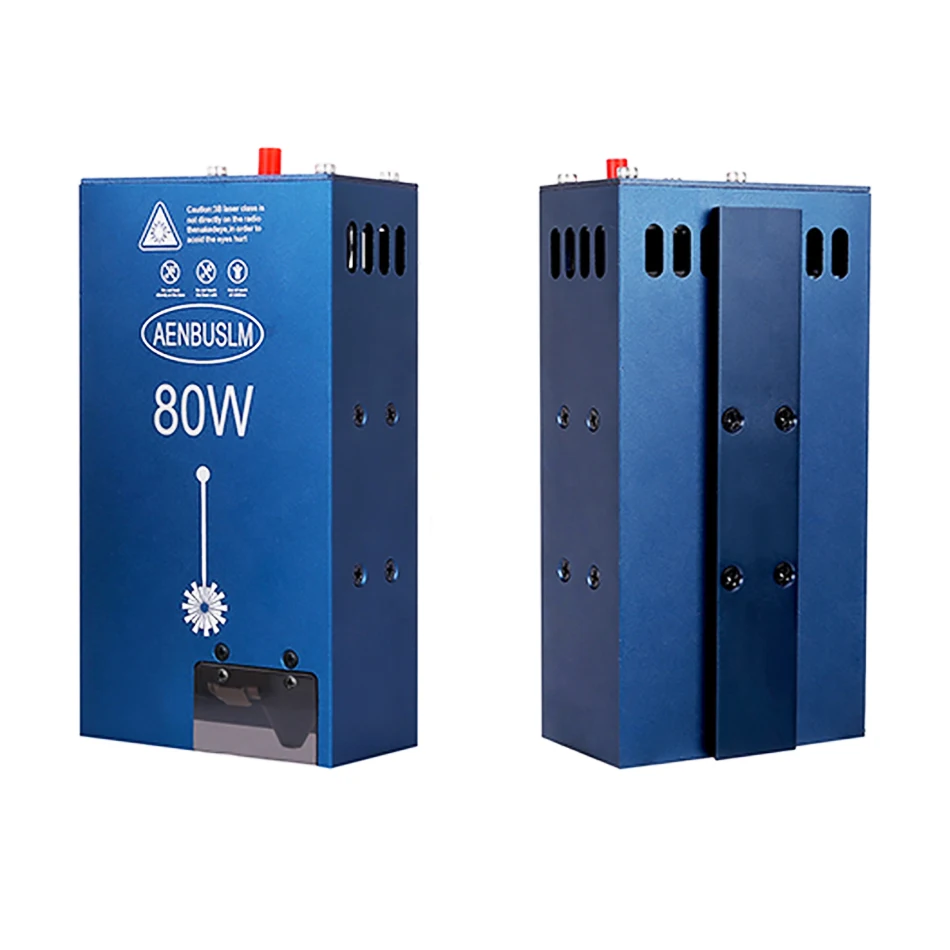

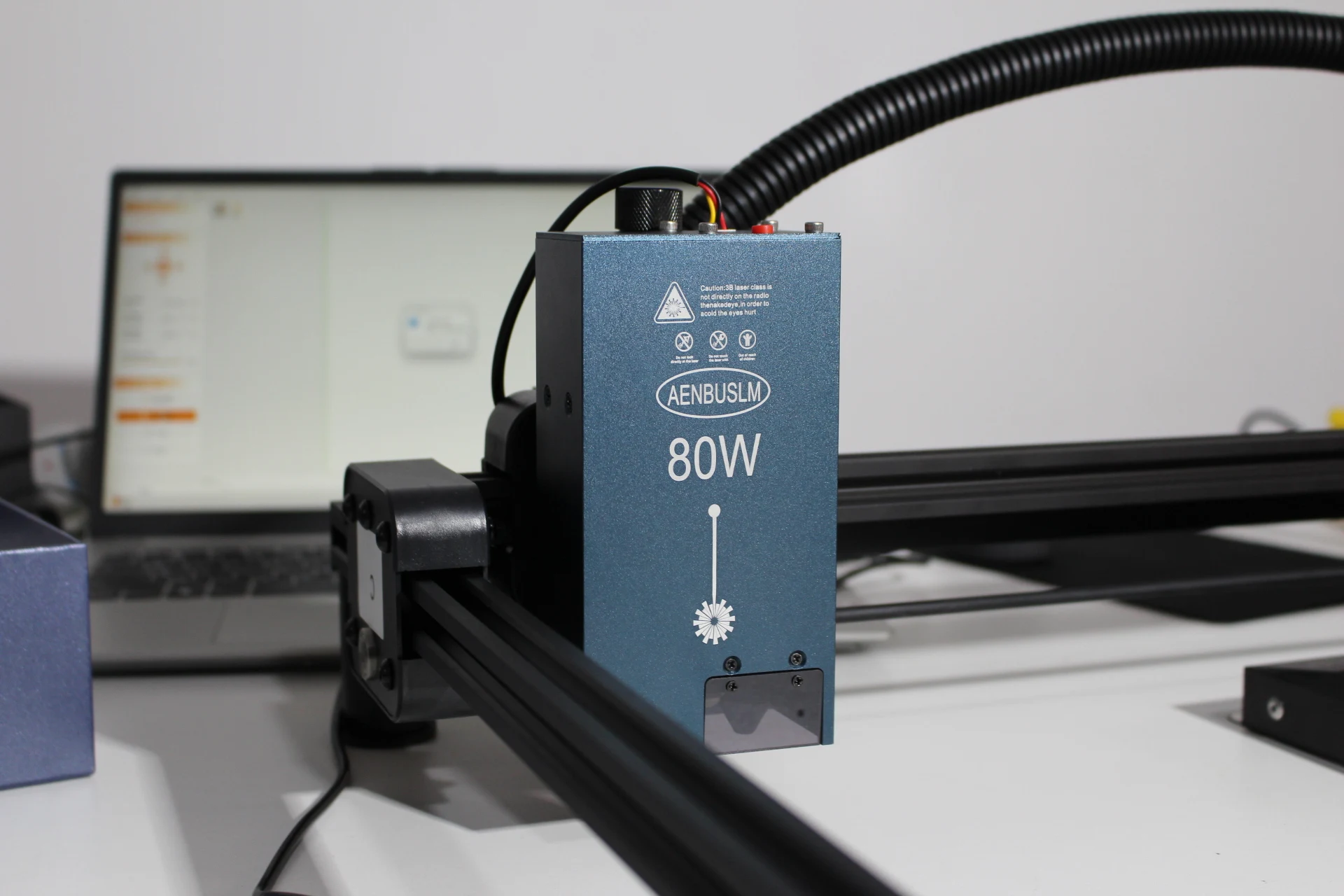

AENBUSLM 80W Laser Module with Air Assist Laser Engraving Head Laser Module Laser Engraver Head CNC Laser Machine Accessories

The newly upgraded 80W power is strong, and the engraving speed is 6-7 times faster than traditional laser modules.

The stainless steel engraving effect is better.

The accuracy of laser engraving is 3-4 times that of traditional laser modules, with faster, more accurate and precise conversion.

Features:

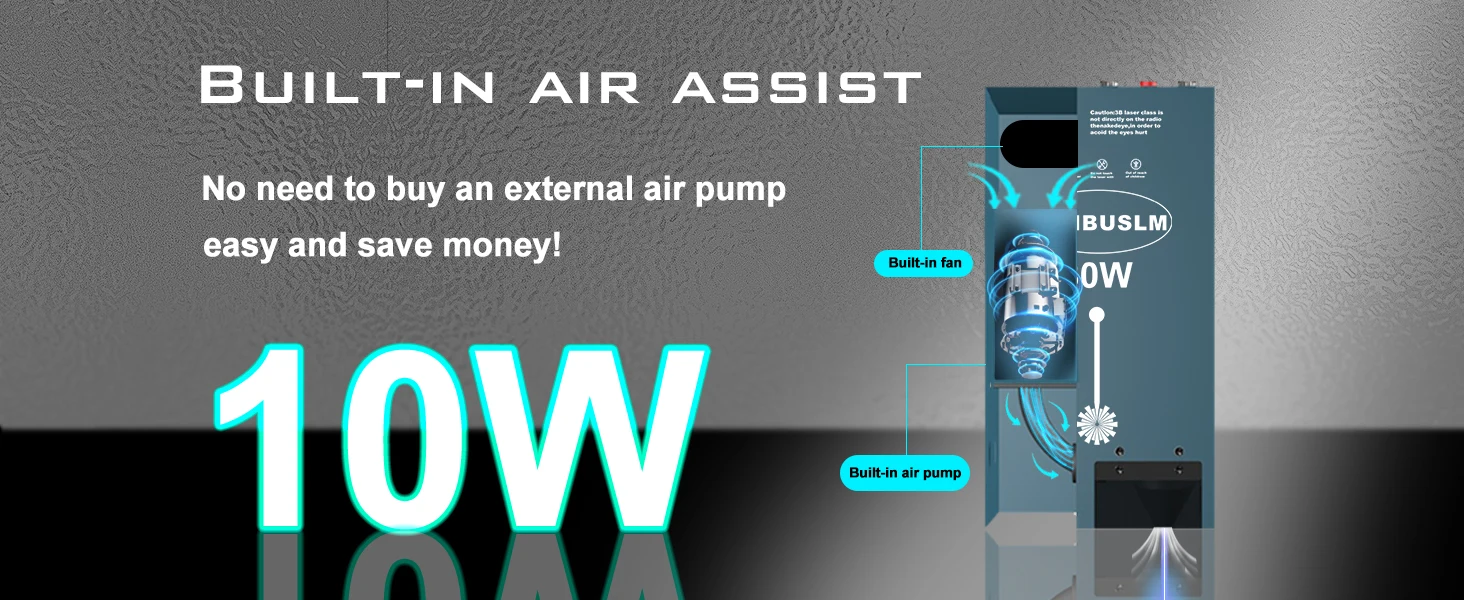

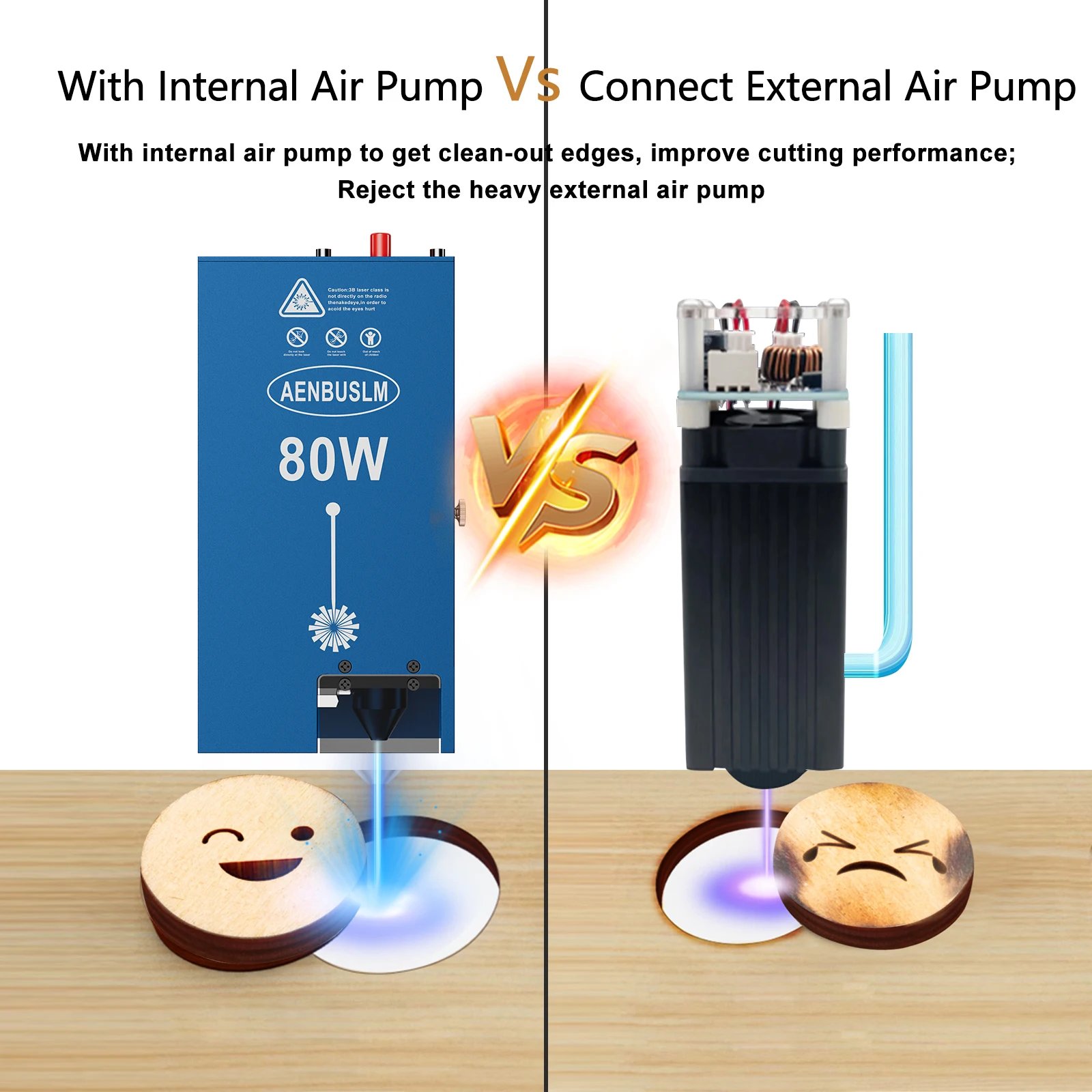

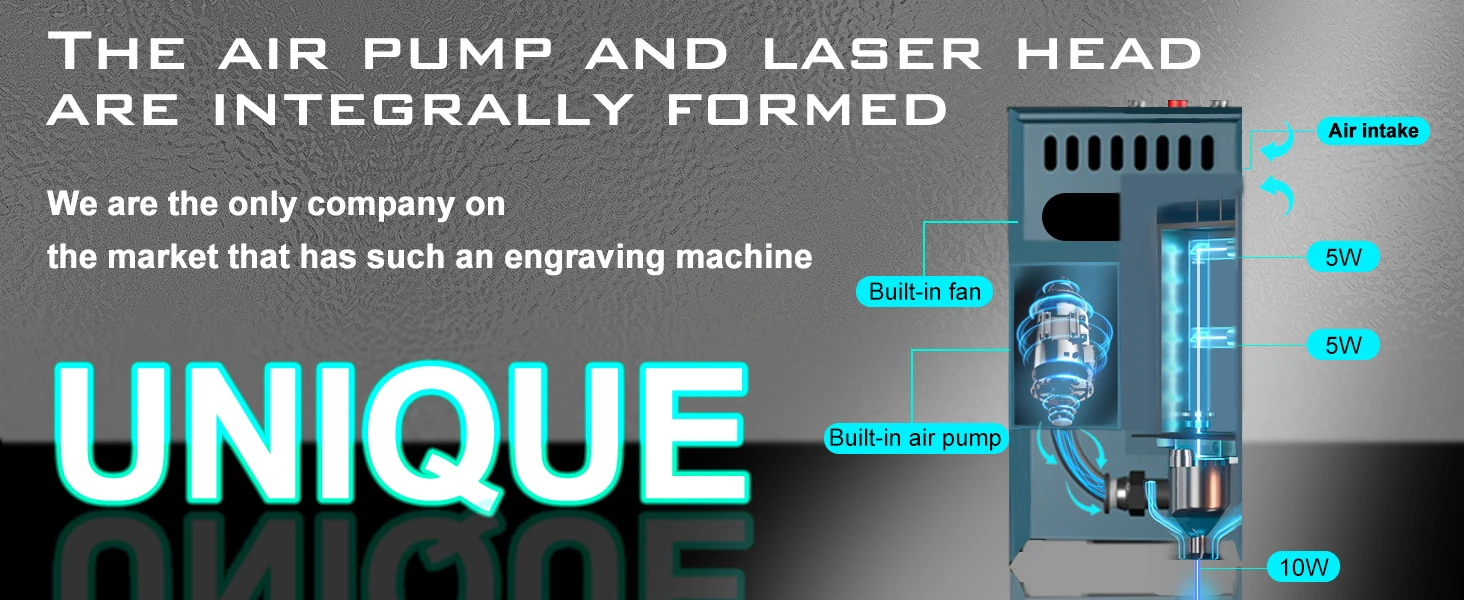

1. With Internal Air Pump: with internal air pump to get clean-out edges, improve cutting performance; Reject the heavy external air pump;

2. High Quality Materials: laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;

3. Work Efficiently: easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;

4. Strong Skills: able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);

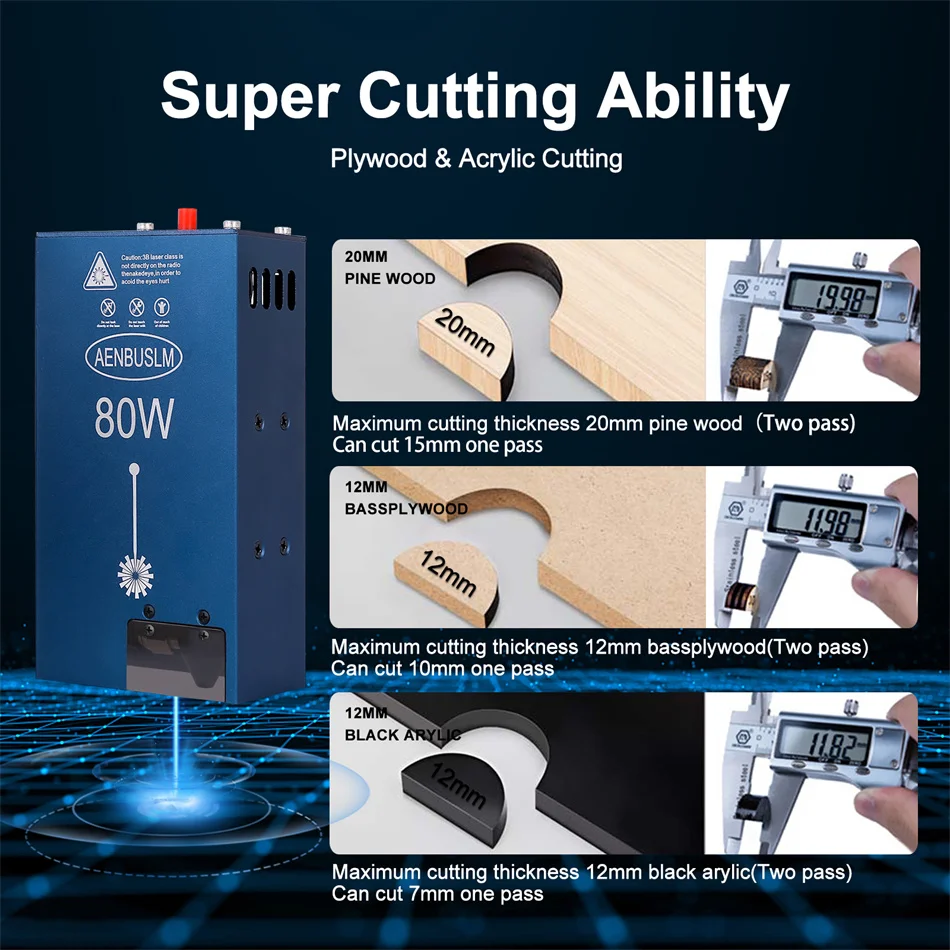

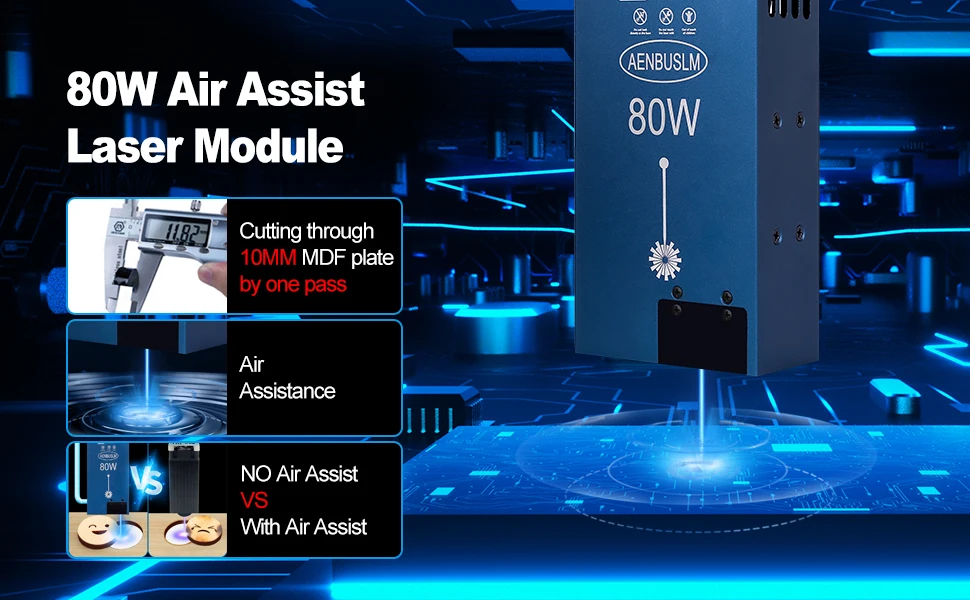

5. Super Cutting Ability: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);

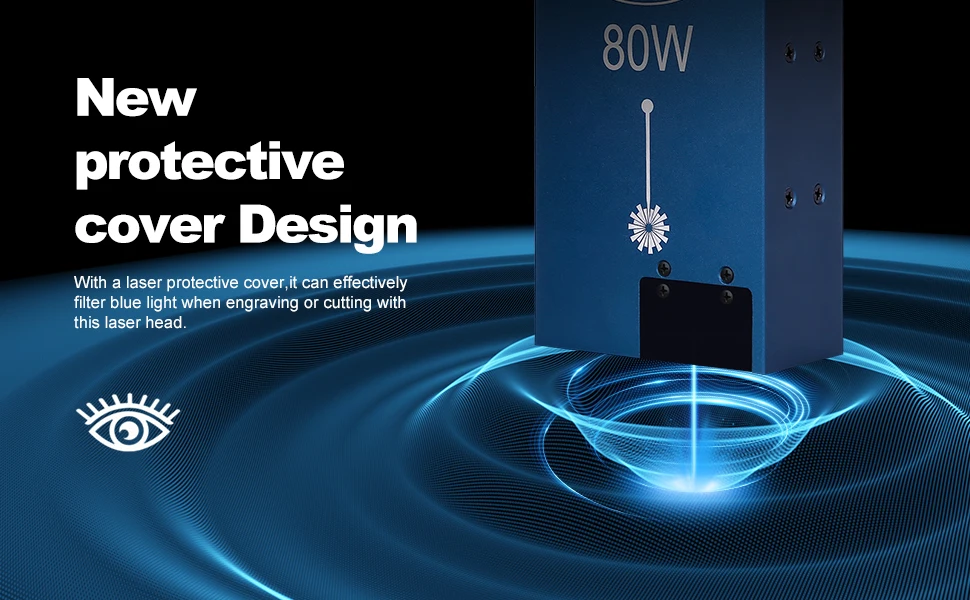

6. Protective Cover Design: with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;

7. Wide Application Range: used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;

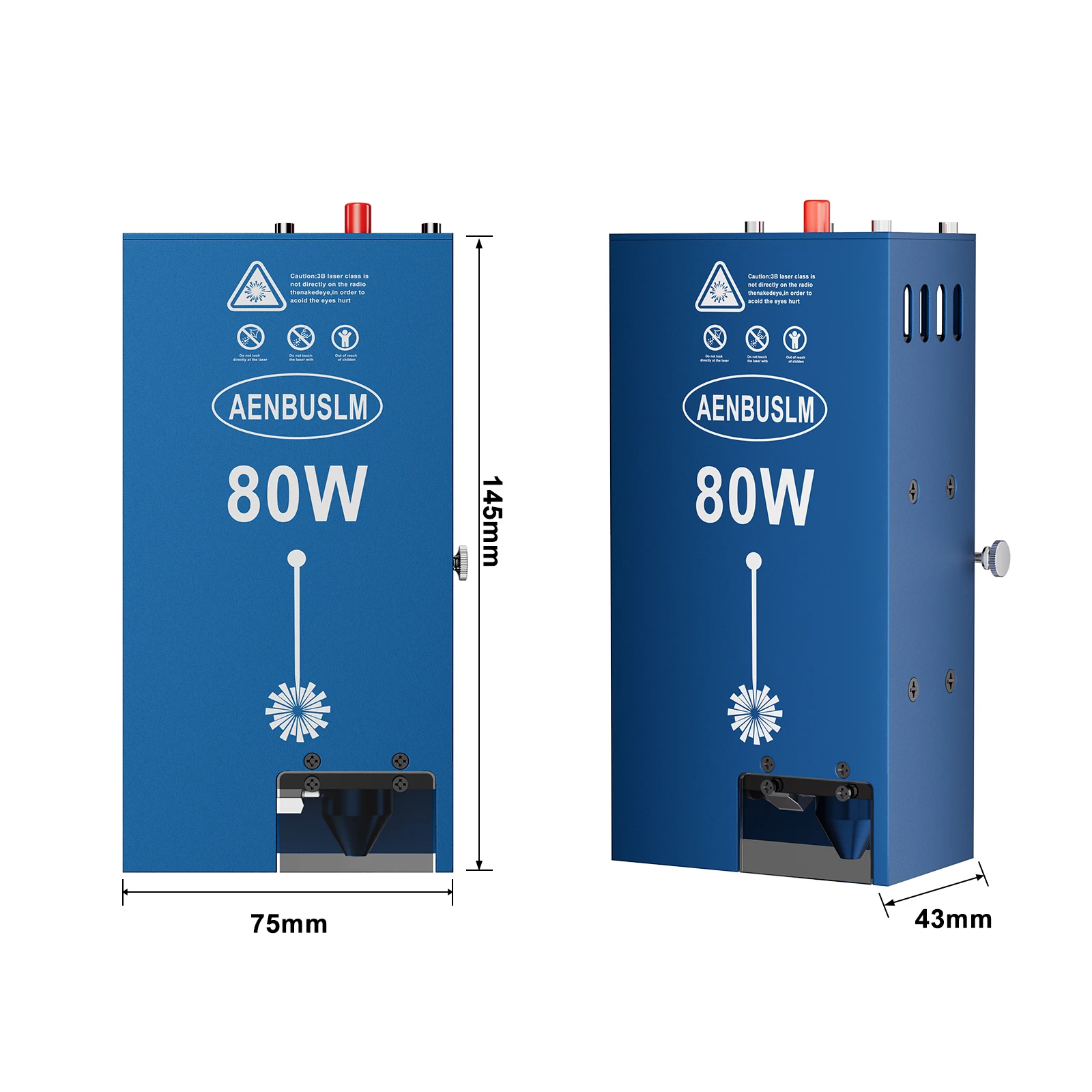

8. Easy to Assemble: small, compact, cable length is 28 cm, convenient and easy to install.

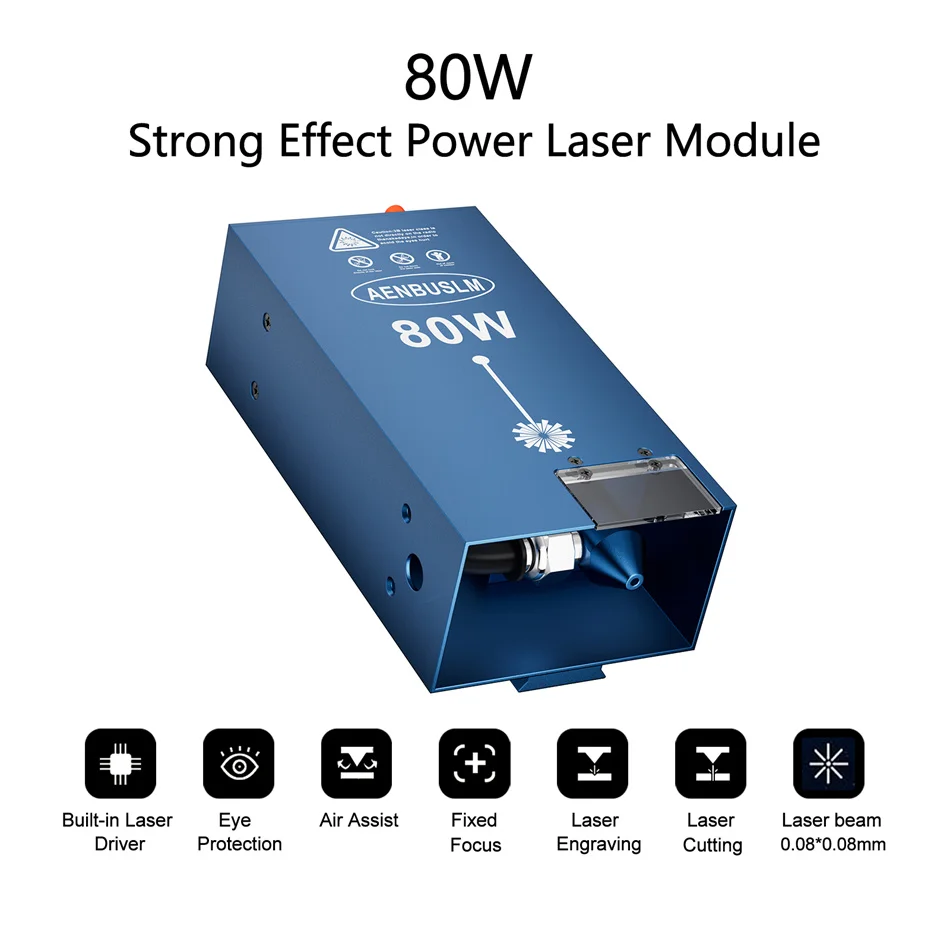

80W:

1. Laser Effect Power: 80W

2. Laser Optical Power: 10W

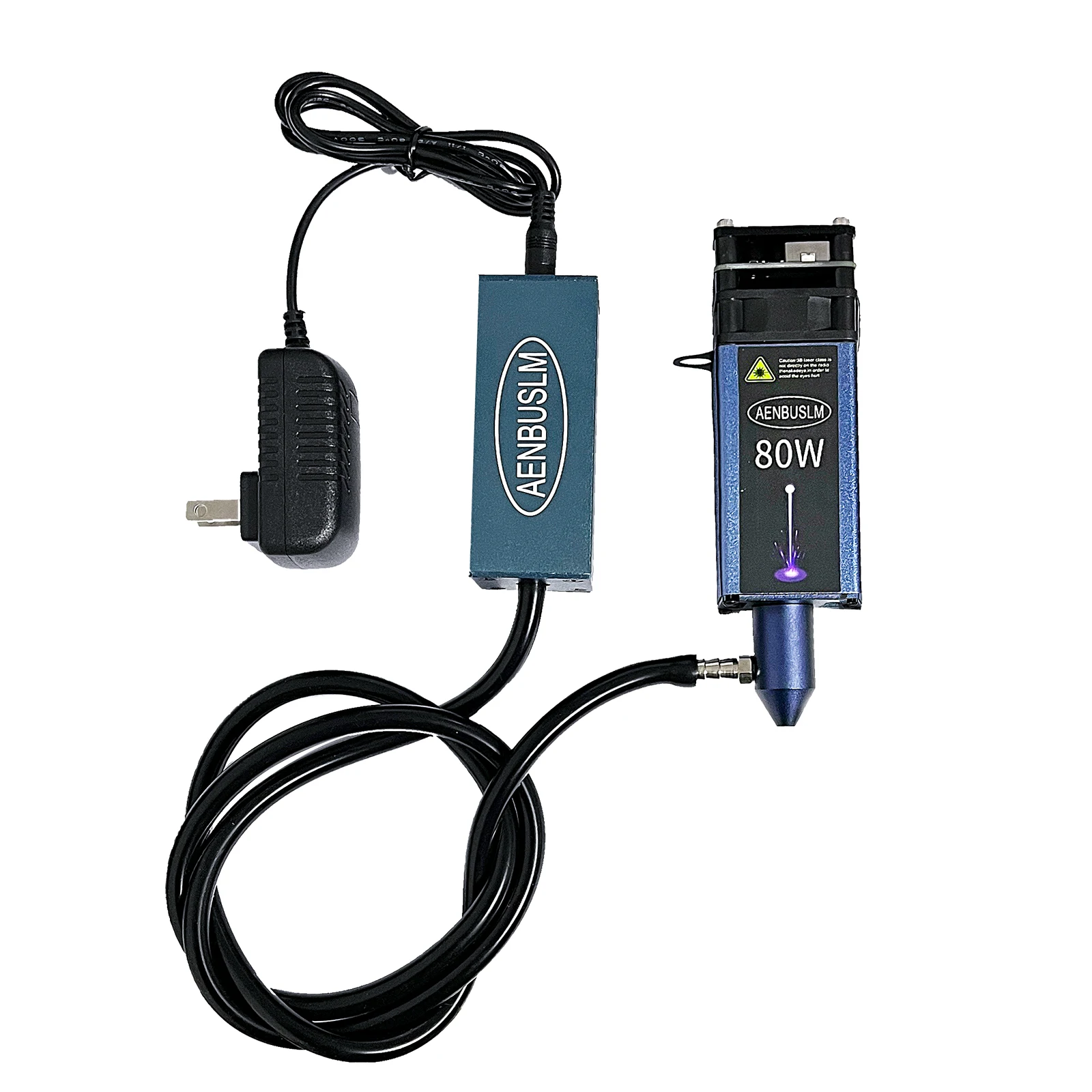

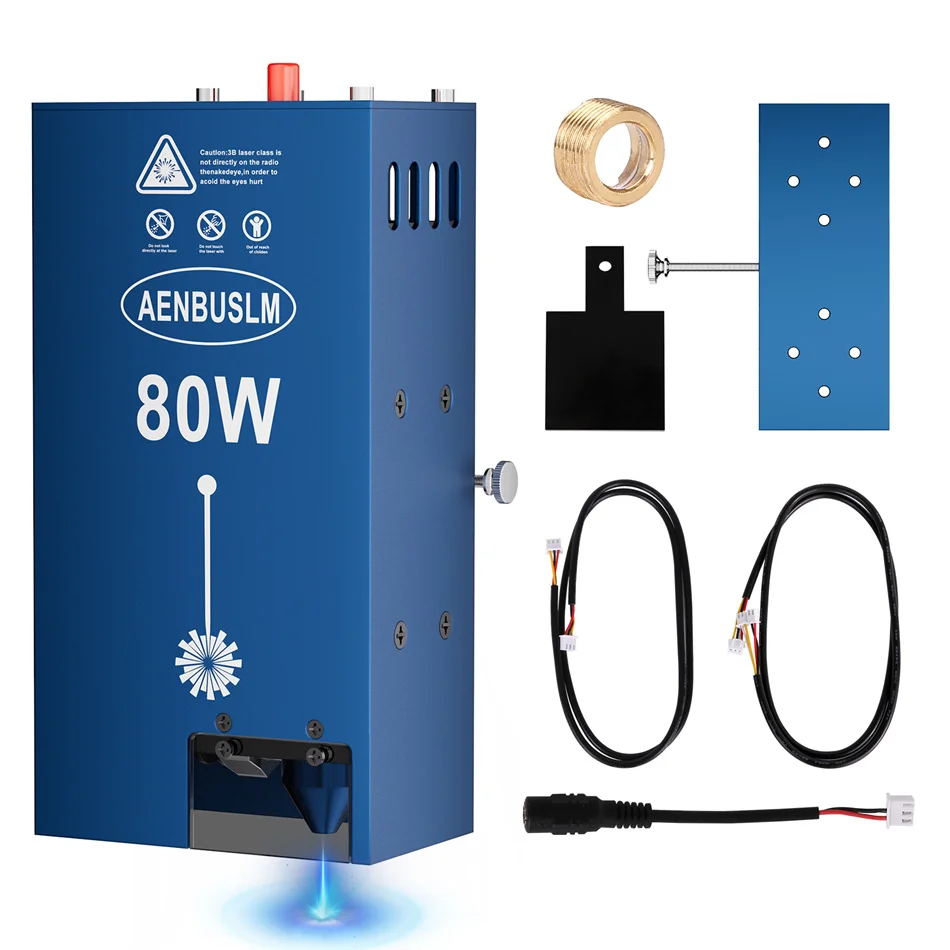

Package List:

1*laser engraving head

1*3pin cable; 1*4pin cable; 1*DC short cable

1*black fixed focus column

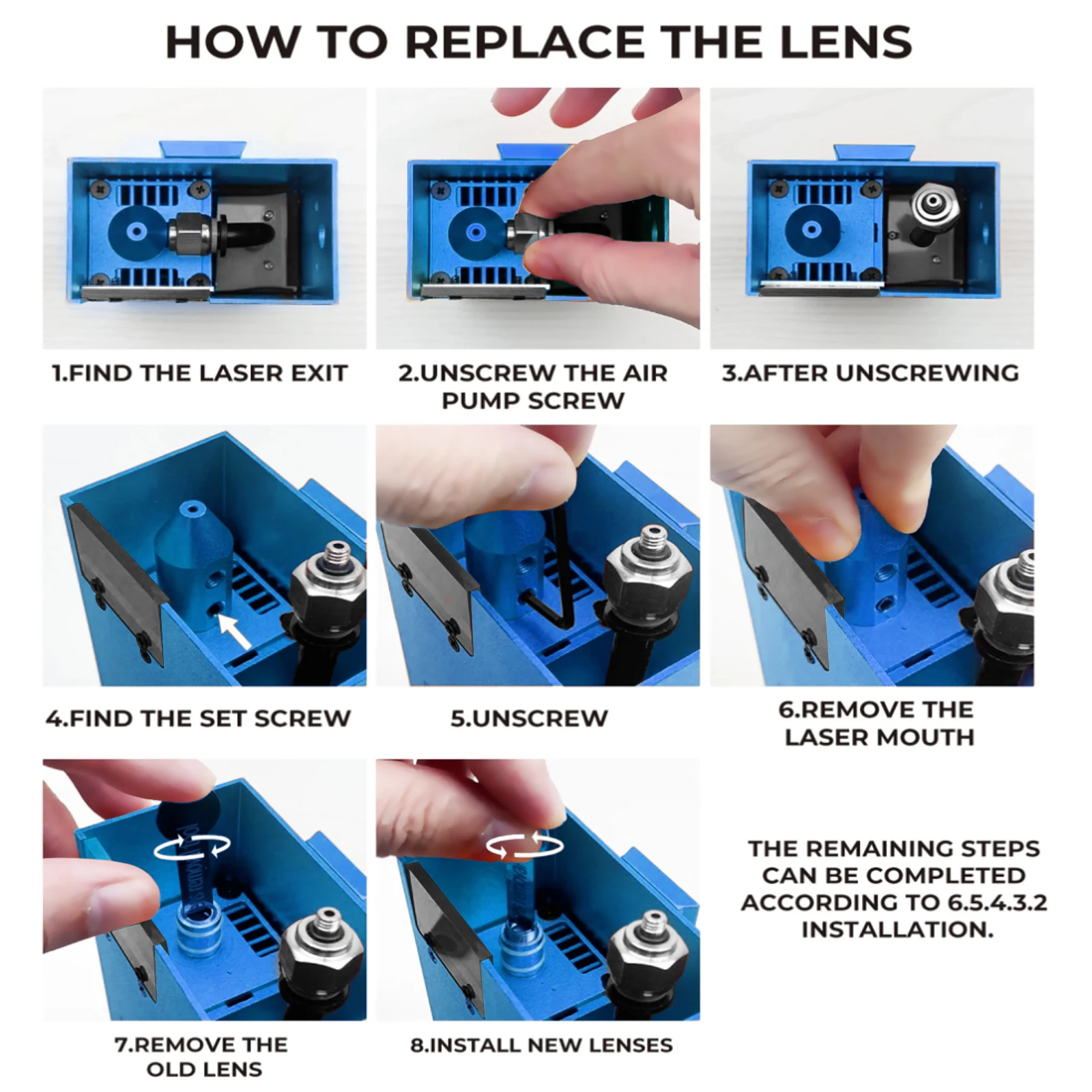

1*focus lens

Notice:

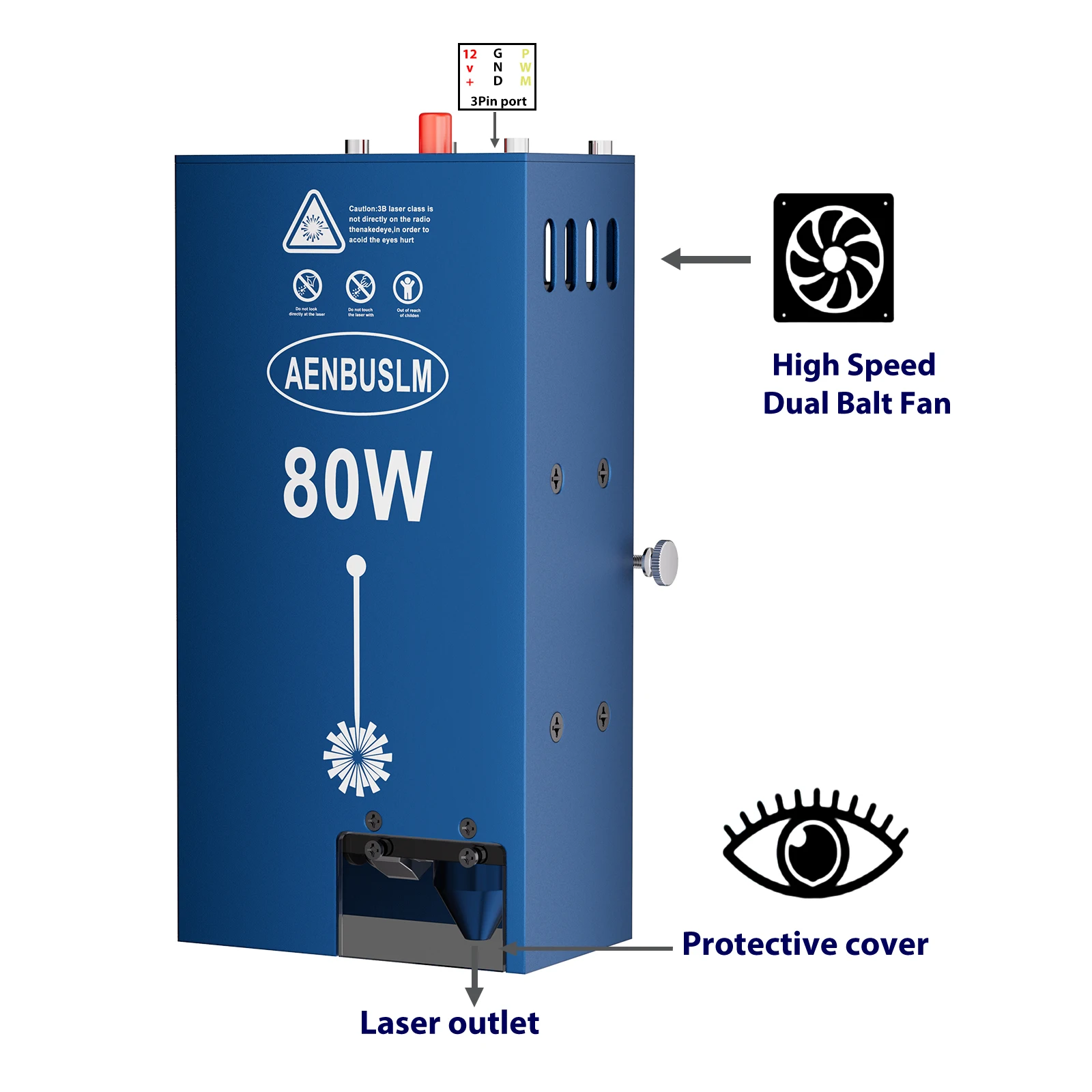

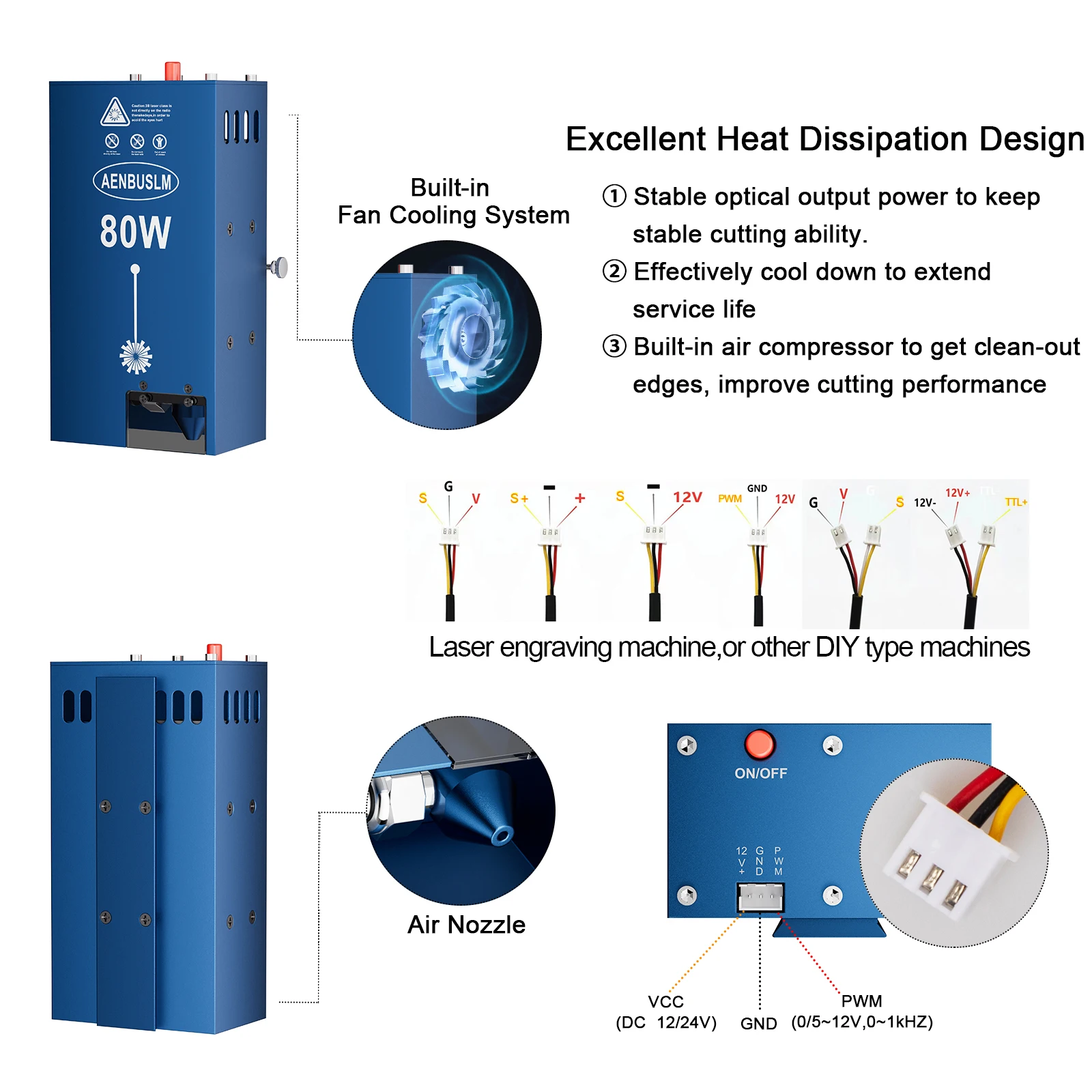

1. Pay Attention to Line Sequence: 3pin: 12V / 24V + red line, GND-black line, PWM+yellow line; 4pin: 12V / 24V +red line, 12V / 24V -black line, TTL+yellow line, TTL-white line;

2. Can Be Engraved: 201/304 stainless steel, titanium steel and anodized aluminum oxide, stone, MDF, light wood, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc;

3. Can Not Engrave: copper raw materials, aluminum raw materials, steel raw materials;

4. Cutting Materials: plywood, black acrylic, leather, paper, etc;

5. Engraving instructions: Engraving reflective objects must be painted black before engraving; otherwise, the reflected light can easily damage the focus lens.
