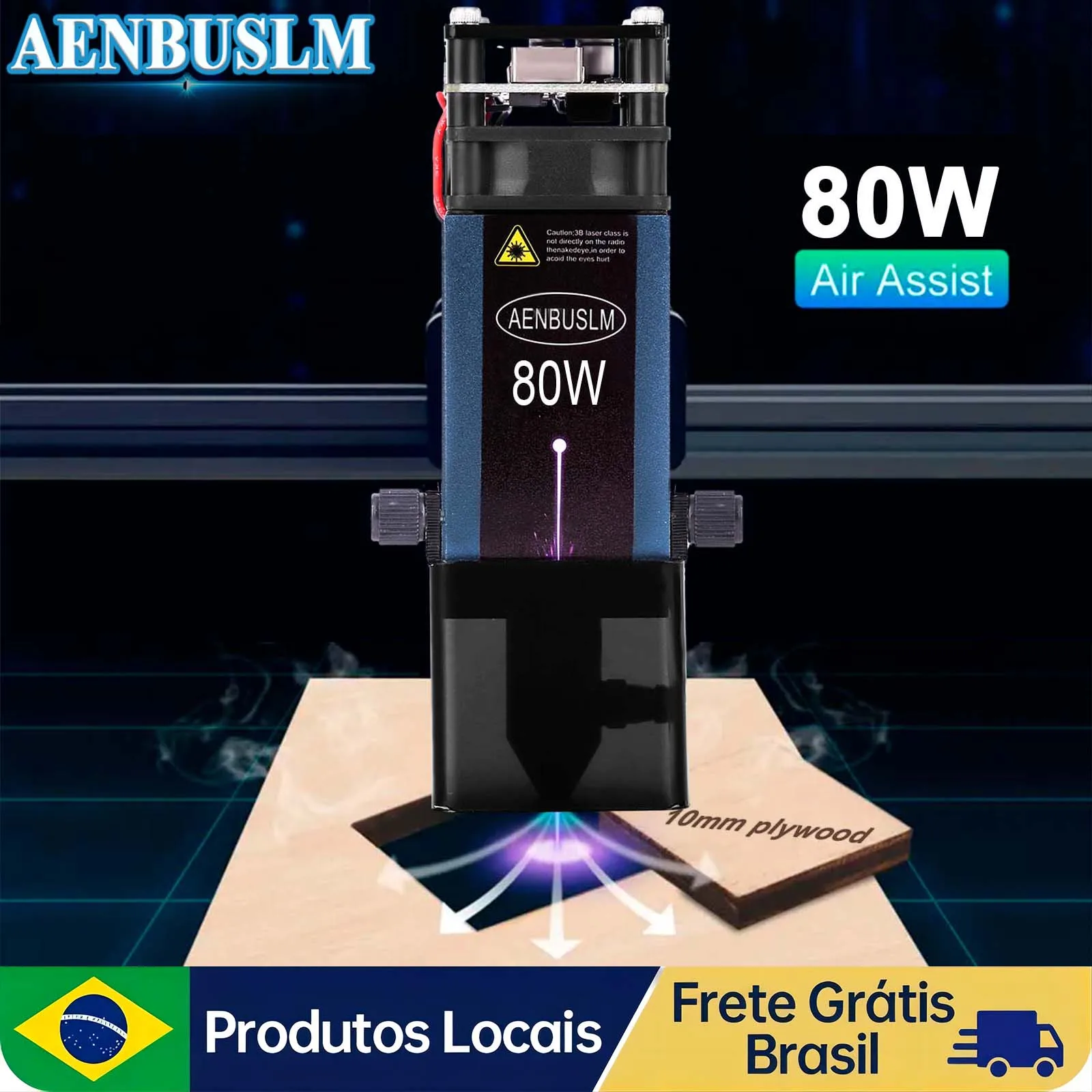

AENBUSLM 10W 40W 80W Módulo Laser 450nm TTL / PWM Cabeça do laser Azul Laser para CNC Laser Gravação Acessórios para máquinas de corte Carpintaria Ferramentas DIY Carpintaria DIY Artesanato em madeira Impresso a laser

1. Our laser module socket is compatible with a plug with 3 pin wires. As long as it can be plugged into the socket of the laser module, it can be powered on. We will give away 3 connecting cables with different interfaces.

2. In addition, for the laser module with a power of 80W, the main board power supply of the laser machine is preferably 12V / 24V 5A, minimum 12V / 24V 3.5A, so as to maximize the power of the laser module.

3. If the laser machine is below 12V / 24V 5A, there are also methods to maximize the power of the laser module (for specific methods, please contact our customer service personnel for answers)

4. Laser module with a power below 80W do not have special requirements for power supply. Such as 40W.

40/80W Fixed Focus

The newly upgraded 40W/80W power is strong, and the engraving speed is 6-7 times faster than traditional laser modules. The stainless steel engraving effect is better.

The accuracy of laser engraving is 3-4 times that of traditional laser modules, with faster, more accurate and precise conversion.

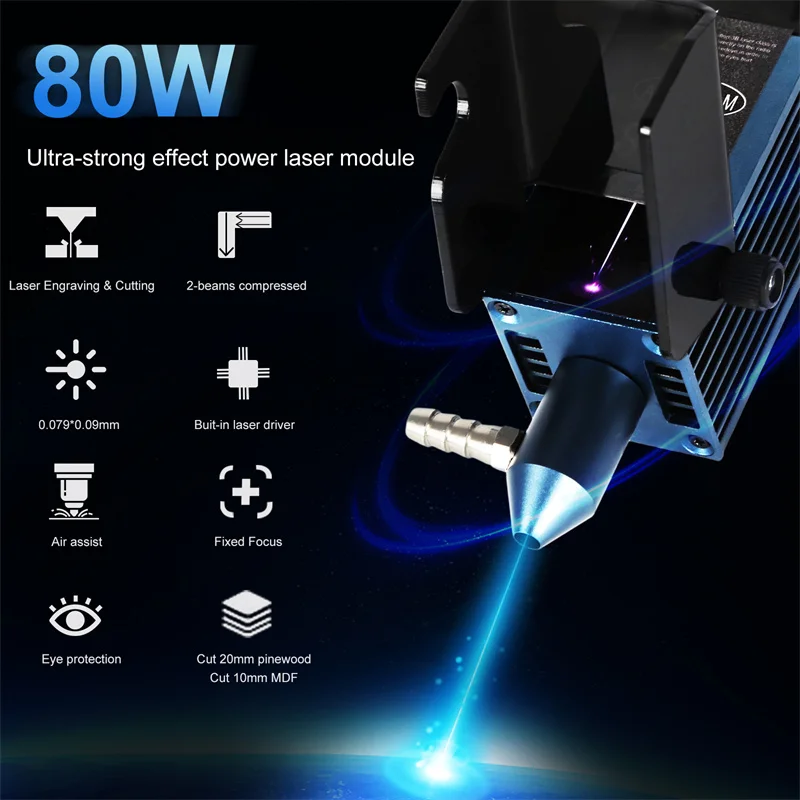

80W Fixed Focus Features:

1. High Quality Materials: laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;

2. Work Efficiently: easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;

3. With Air Assist: with air nozzle to get clean-out edges, improve cutting performance;

4. Strong Skills: able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);

5. Super Cutting Ability: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);

6. Protective Cover Design: with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;

7. Wide Application Range: used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;

8. Easy to Assemble: small, compact, cable length is 28 cm, convenient and easy to install.

Parameter:

1. Laser Effect Power: 80W

2. Laser Optical Power: 10W

3. Size: 45*35*145mm

4. Wavelength: 450nm

5. Input Voltage: 12V / 24V

6. Power Supply Current: 3.5A - 5A

7. Working Life: 20000 hours

8. Power Control: PWM/TTL (0-5V signal control)

9. Interface Specification: 3pin 2.54 / 4pin 2.54

10. Light Color: Semiconductor blue light

11. Material: Aluminum Alloy + Plastic + Copper

Package List 1:

1*laser engraving head
1*3pin cable; 1*4pin cable; 1*DC short cable
1*protective glasses(random color)
1*fixed focus column
1*focus lens

Notice:

1. Pay Attention to Line Sequence: 3pin: 12V / 24V + red line, GND-black line, PWM+yellow line; 4pin: 12V / 24V + red line, 12V / 24V - black line, TTL+yellow line, TTL-white line;

2. Can Be Engraved: 201/304 stainless steel, titanium steel and anodized aluminum oxide, stone, MDF, light wood, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc;

3. Can Not Engrave: copper raw materials, aluminum raw materials, steel raw materials;

4. Cutting Materials: plywood, black acrylic, leather, paper, etc;

5. Engraving instructions: Engraving reflective objects must be painted black before engraving; otherwise, the reflected light can easily damage the focus lens.

Air Pump

40W Fixed Focus Features:

1. High Quality Materials:laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;

2. Work Efficiently:easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;

3. With Air Assist:with air nozzle to get clean-out edges, improve cutting performance;

4. Strong Skills:able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);

5. Super Cutting Ability: 40W: pine wood 10mm; Basic plywood 5mm; Black acrylic 5mm; 80W: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);

6. Protective Cover Design:with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;

7. Wide Application Range:used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;

8. Easy to Assemble:small, compact, cable length is 28 cm, convenient and easy to install.

Parameter:

1. Laser Effect Power: 40W

2. Laser Optical Power: 6W

3. Size: 45*35*145mm

4. Wavelength: 450nm

5. Input Voltage: 12V / 24V

6. Power Supply Current: 2A-5A

7. Working Life: 20000 hours

8. Power Control: PWM/TTL (0-5V signal control)

9. Interface Specification: 3pin 2.54 / 4pin 2.54

10. Light Color: Semiconductor blue light

11. Material: Aluminum Alloy + Plastic + Copper
