- High-concerned chemical: None
- Certification: ce
- Origin: Mainland China
- Brand Name: ACCTEK
- Model Number: AKJ-6010F
- Certification: CE
- Model: AKJ1530
- Key word: Detachable fiber laser cutting machine price 1500w mini desktop metal laser cutter machinesery Global Local Service
- configuration: high-end
- materials: stainless steel carbon steel
- laser source: max raycus ipg
- laser power: 3000w 6000w
- feature: new product
- delivery: 25 days
- after-sales service: avaliable
Name: Claudia
Whatsapp&Wechat: +86-17852254044
E-mail: export11@acctekgroup.com

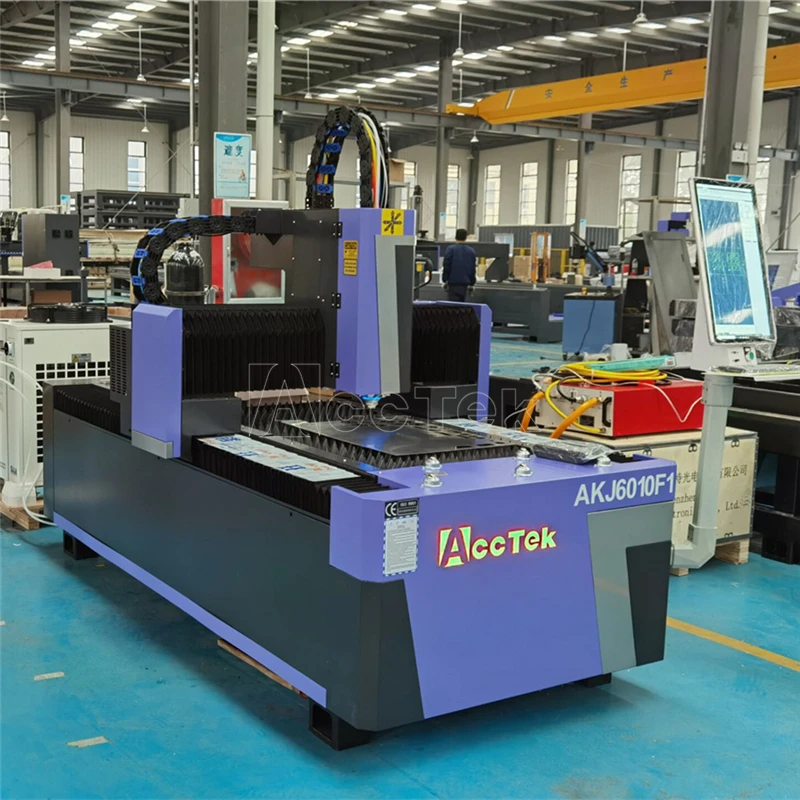

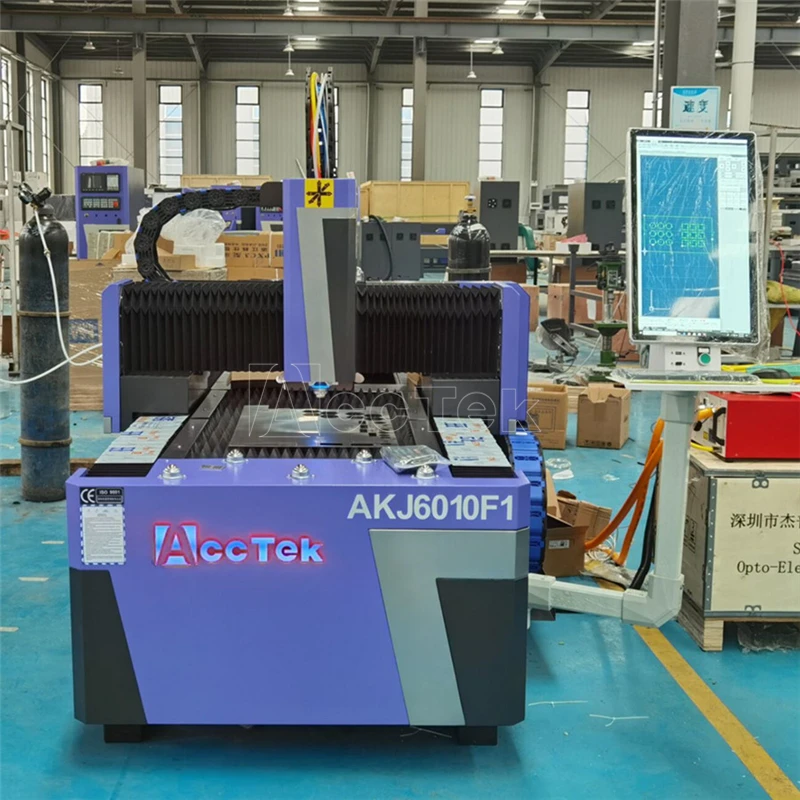

ACCTEK AKJ6010F1 Mini Portable 1kw 2kw 3kw Fiber Laser Cutting Machine Small Size Sheet Metal Fiber Laser Cutter For Steel Cut
Main Features
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating Au3tech system which makes the best cutting effect.
3. The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

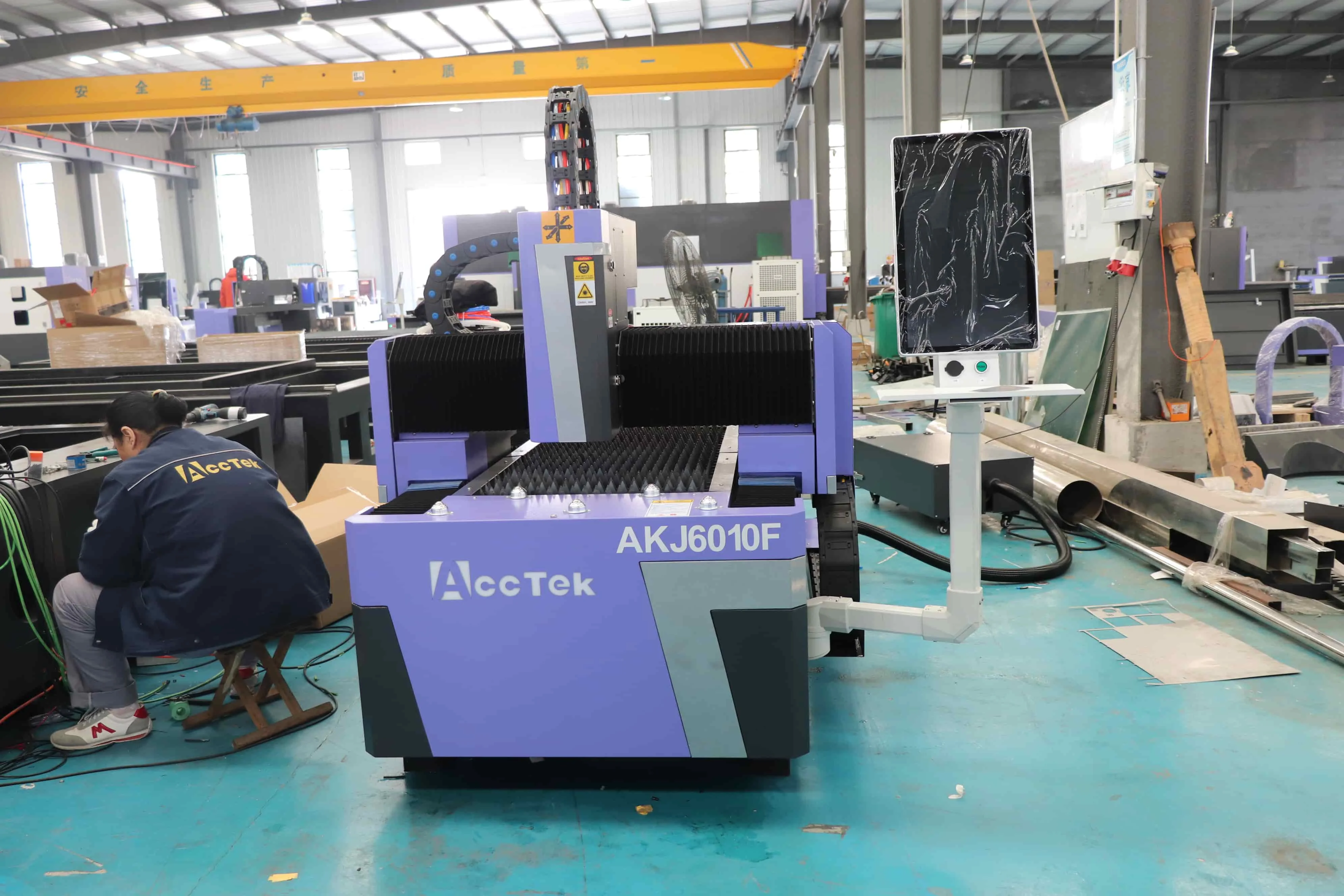

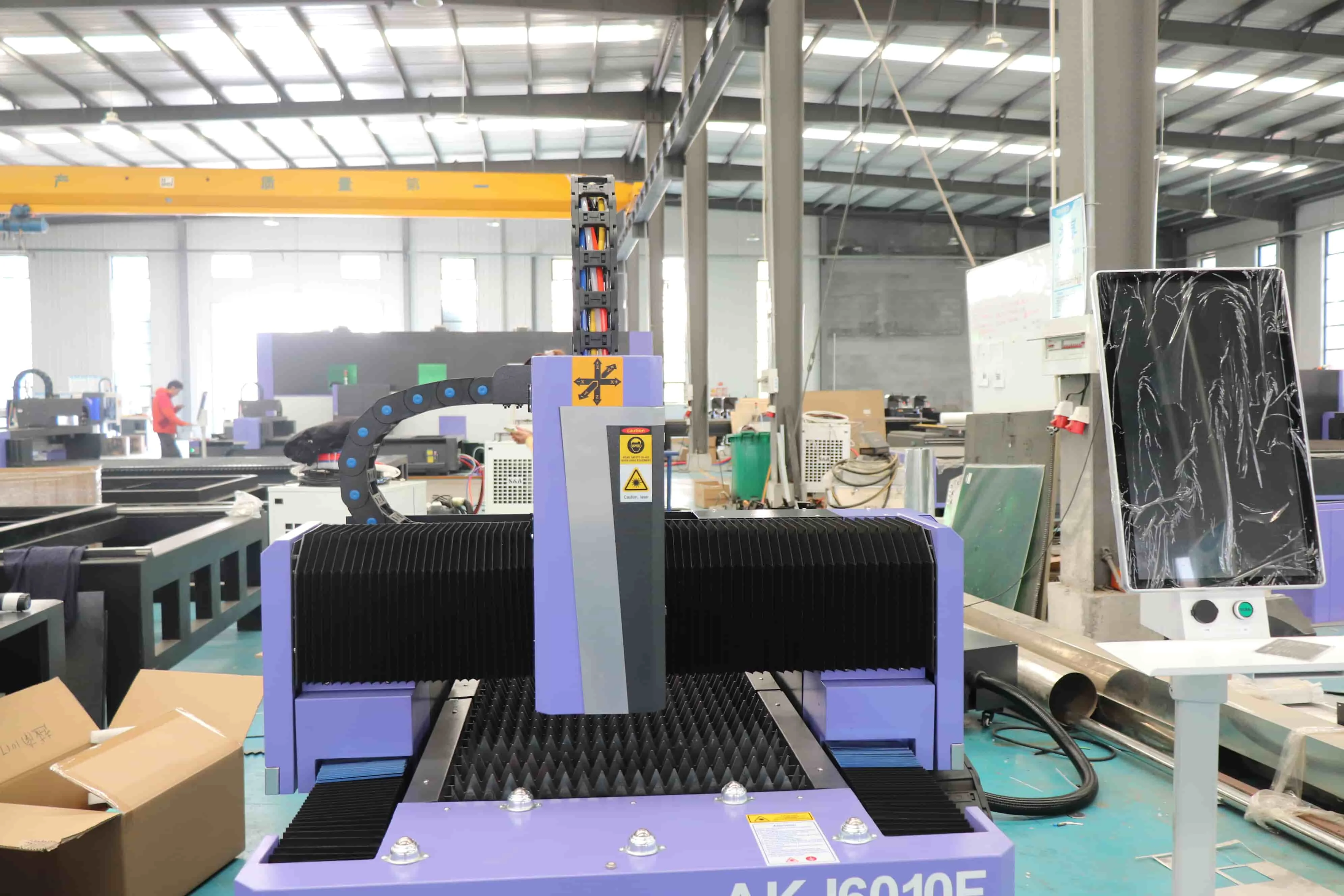

Factory Photo Display
Main Configurations

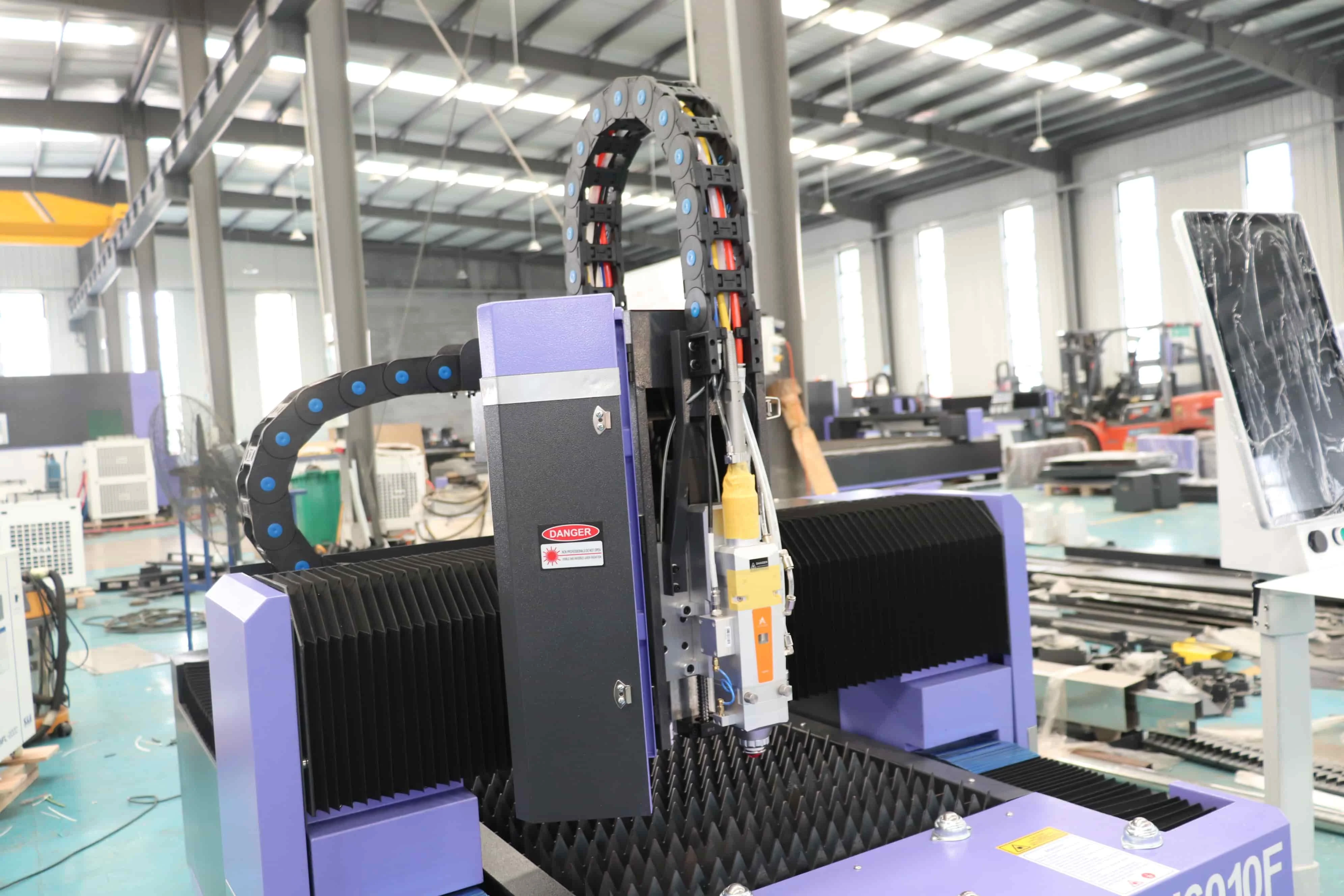

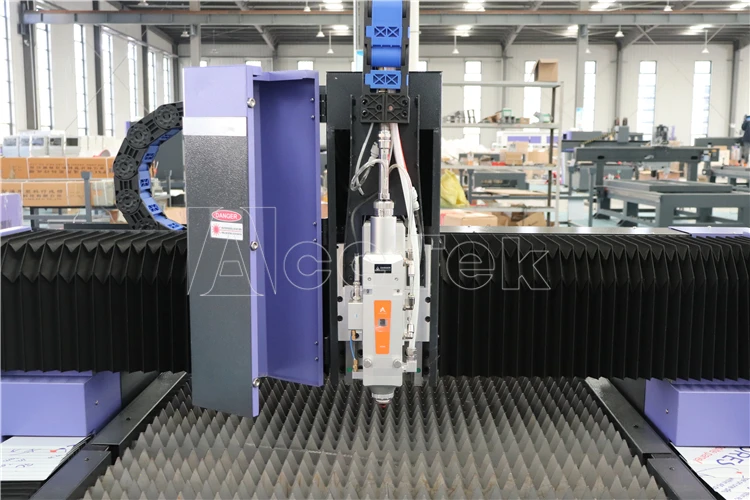

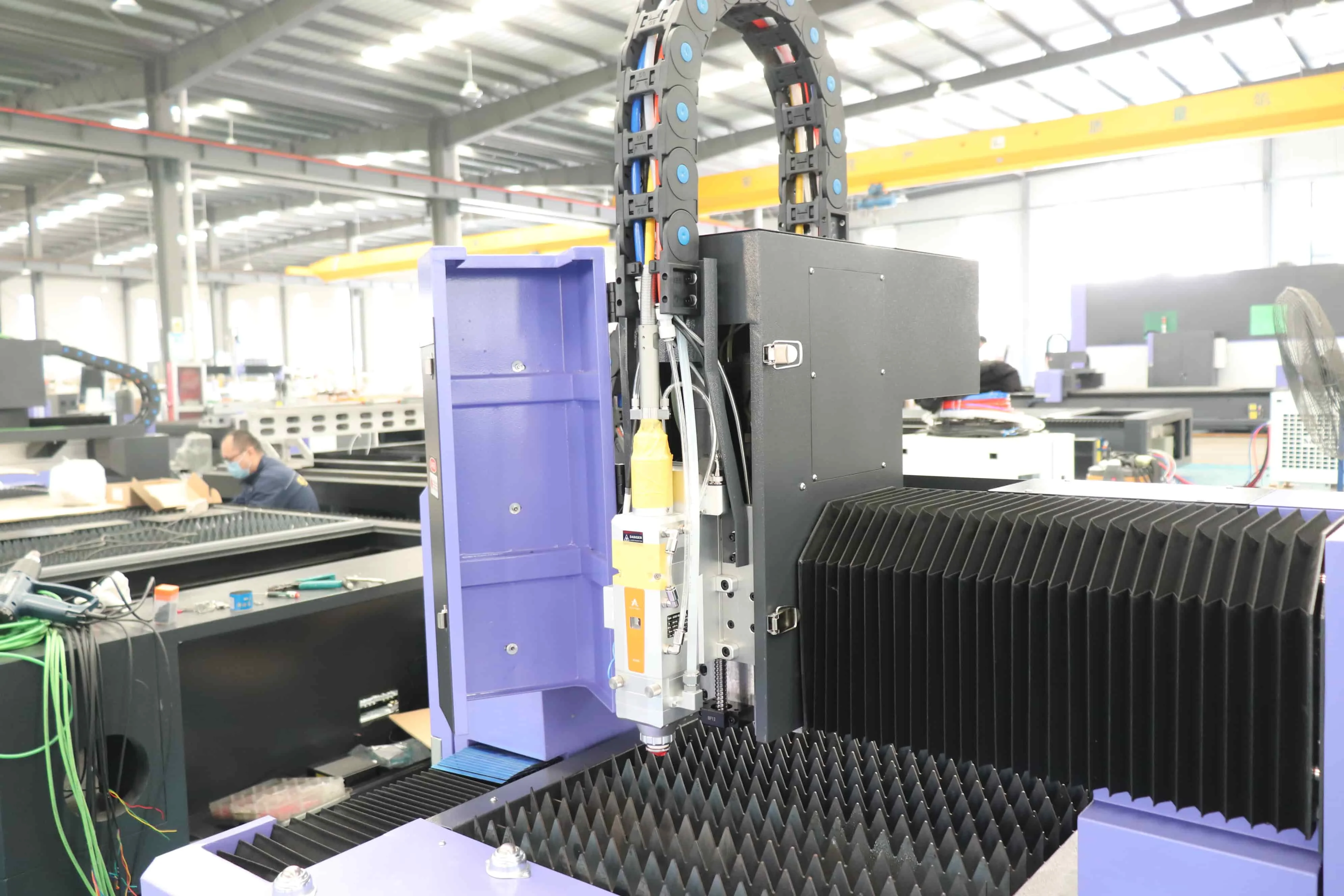

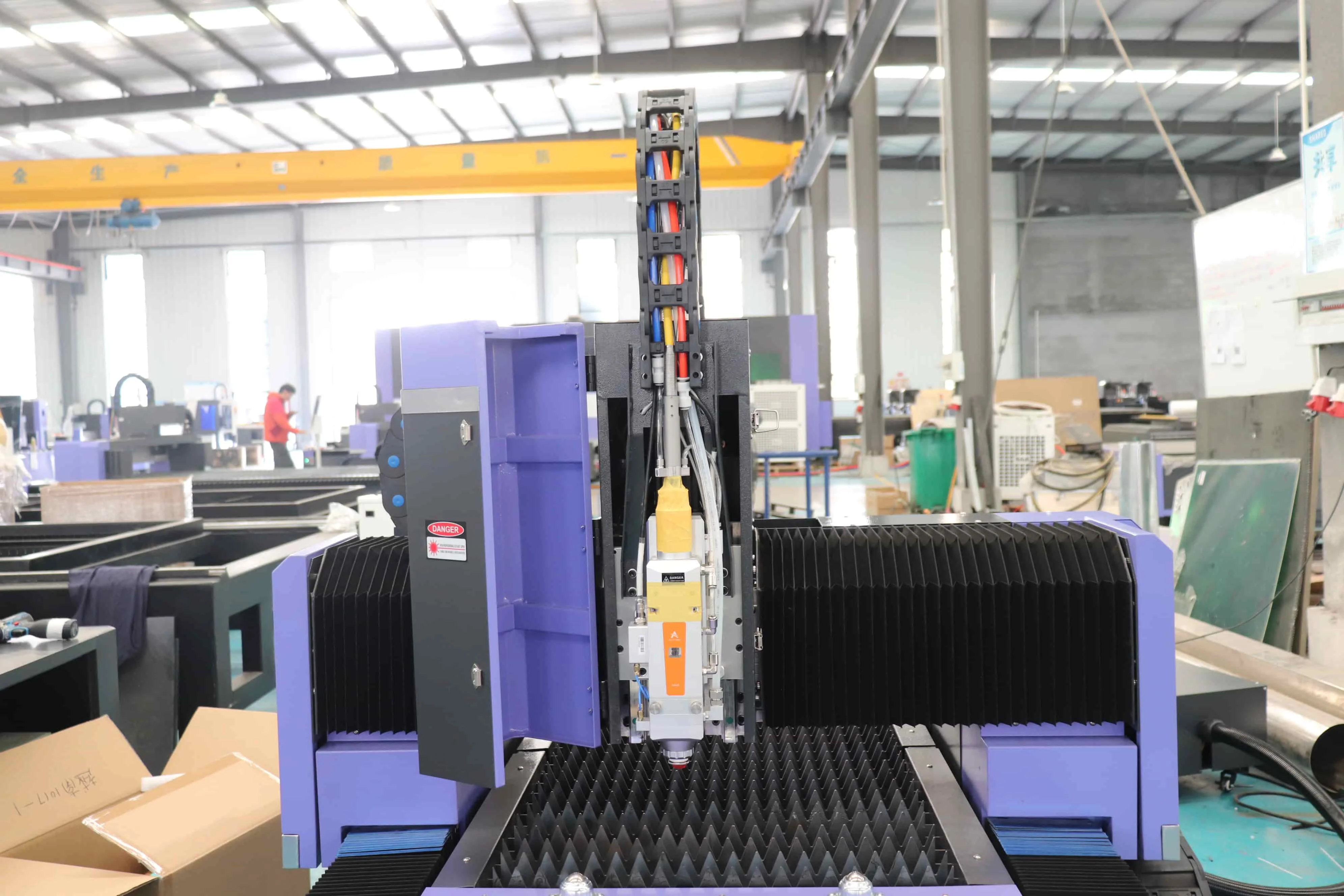

1) Au3tech laser cutting head
It was designed for flat cutting within 2000w by German brand A-cutter in 2018. , which is a wonderful solution for medium power of laser flat auto focus cutting when working with motion control card MCC series and cutting software SC series

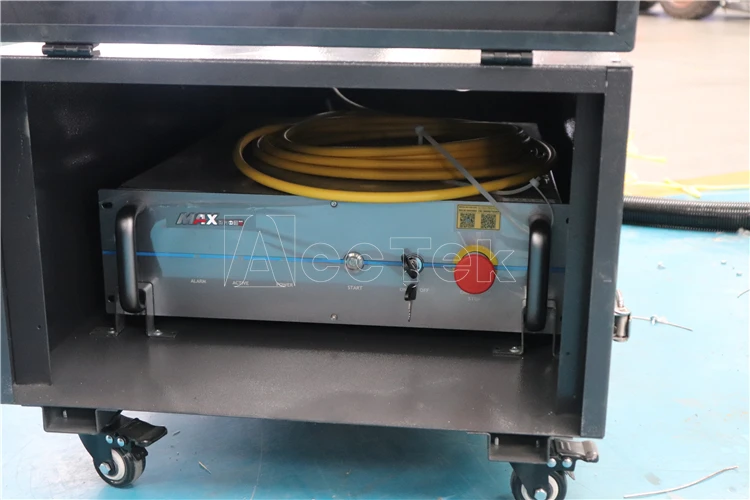

2) IPG/Raycus/MAX/JPT/RECI Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(Germany IPG Laser source is optional)
3) Au3tech controller software.
Based on AutoCAD kernel development, powerful CAM function.Built-in rich fiber laser cutting process and parameters, highlighting the high-quality cutting effect.
4) Aviation aluminum gantry
Light weight, high strength, no deformation. Molded and framed by integral steel mold and die-casting technology, light crossbeam enables equipment a high operation speed, improving processing efficiency and processing quality.
5) Taiwan rack and pinion transmission
Geometrical tolerance of all dimensions defined straightness, parallelism and perpendicularity helical angle and pressure angle with tolerance defined surface roughness of teeth defined hardness and thickness of the hardened layer on the teeth.
6) Taiwan Hiwin linear guide rails
Rail works with slider ,drive the machine move, with good bearing capacity.

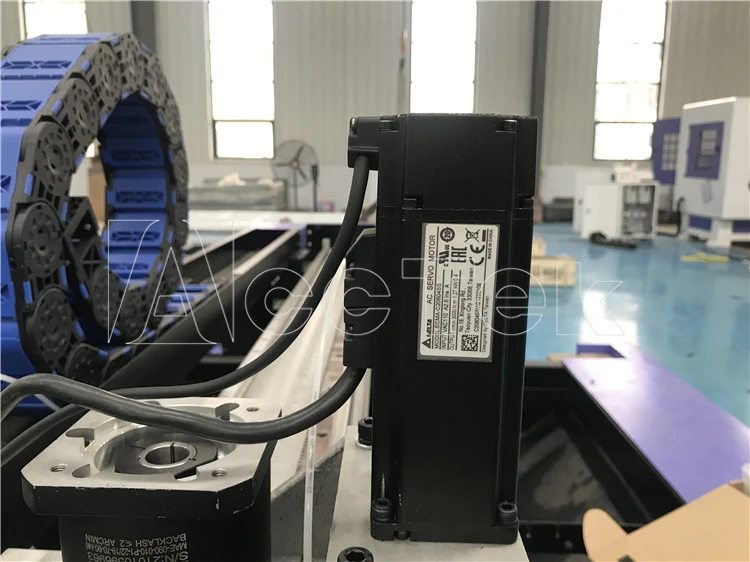

7) Delta servo motor.
Faster speed with signal feedback, low heat radiation.Run smoothly at ultra-low speed, reduce the vibration, avoid oscillation, efficient torque enhancement.
8) French MOTOVARIO reducer
High performance, wide application, high rigidity, high efficiency, low noise and low backlash.
It was designed for flat cutting within 2000w by German brand A-cutter in 2018. , which is a wonderful solution for medium power of laser flat auto focus cutting when working with motion control card MCC series and cutting software SC series
2) IPG/Raycus/MAX/JPT/RECI Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(Germany IPG Laser source is optional)
3) Au3tech controller software.
Based on AutoCAD kernel development, powerful CAM function.Built-in rich fiber laser cutting process and parameters, highlighting the high-quality cutting effect.
4) Aviation aluminum gantry
Light weight, high strength, no deformation. Molded and framed by integral steel mold and die-casting technology, light crossbeam enables equipment a high operation speed, improving processing efficiency and processing quality.
5) Taiwan rack and pinion transmission
Geometrical tolerance of all dimensions defined straightness, parallelism and perpendicularity helical angle and pressure angle with tolerance defined surface roughness of teeth defined hardness and thickness of the hardened layer on the teeth.
6) Taiwan Hiwin linear guide rails
Rail works with slider ,drive the machine move, with good bearing capacity.
7) Delta servo motor.
Faster speed with signal feedback, low heat radiation.Run smoothly at ultra-low speed, reduce the vibration, avoid oscillation, efficient torque enhancement.
8) French MOTOVARIO reducer
High performance, wide application, high rigidity, high efficiency, low noise and low backlash.
Specification
|
Model
|
AKJ6010F1
|
|
Working area
|
600*1000mm
|
|
Laser power
|
1000W/1500W/2000W/3000W
|
|
Control System
|
Au3tech
|
|
Transmission
|
Apex rack and pinion
|
|
Guide rail
|
Taiwan Lapping linear guide rail 25mm
|
|
Motor
|
Taiwan Delta servo motor
|
|
Electronic Components
|
French Schneider
|
|
Max Speed
|
20m/min
|
|
Repeat positioning accuracy
|
±0.02mm/m
|
|
Maximum Acceleration
|
0.5G
|
|
Min line width
|
0.1mm
|
|
Graphic Format Supported
|
AI, BMP, DST, DXF, DXP, PLT
|
|

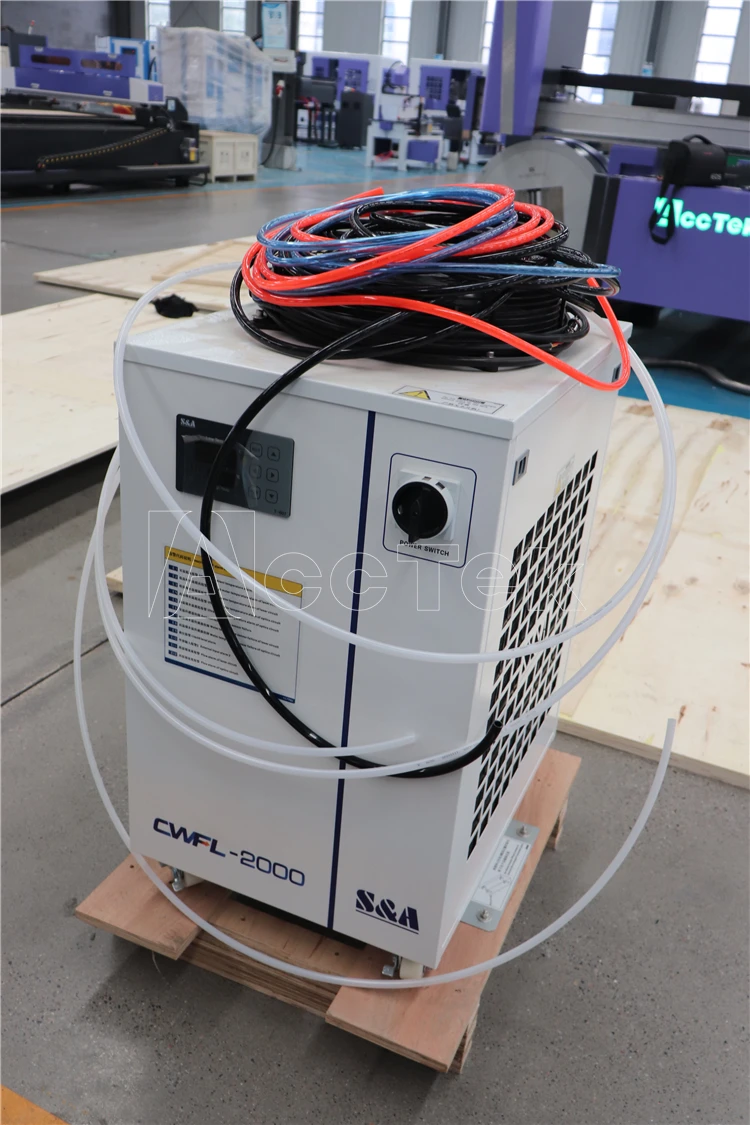

Cooling Way
|
Water cooling
|
|
Machine Operating temperature
|
0 ℃ -40 ℃
|
|
Power Requirements
|
220V 1PH, 50Hz/60Hz
|
Working area:
600*900mm, 600*1000mm, 1300*2500mm, 1500*3000mm, or other sizes that you want.
Laser power: 1kw, 1.5kw, 2kw, 3kw 6kw, 12kw, 20kw. We will recommend you the most suitable laser power according to your works.
Laser power: 1kw, 1.5kw, 2kw, 3kw 6kw, 12kw, 20kw. We will recommend you the most suitable laser power according to your works.

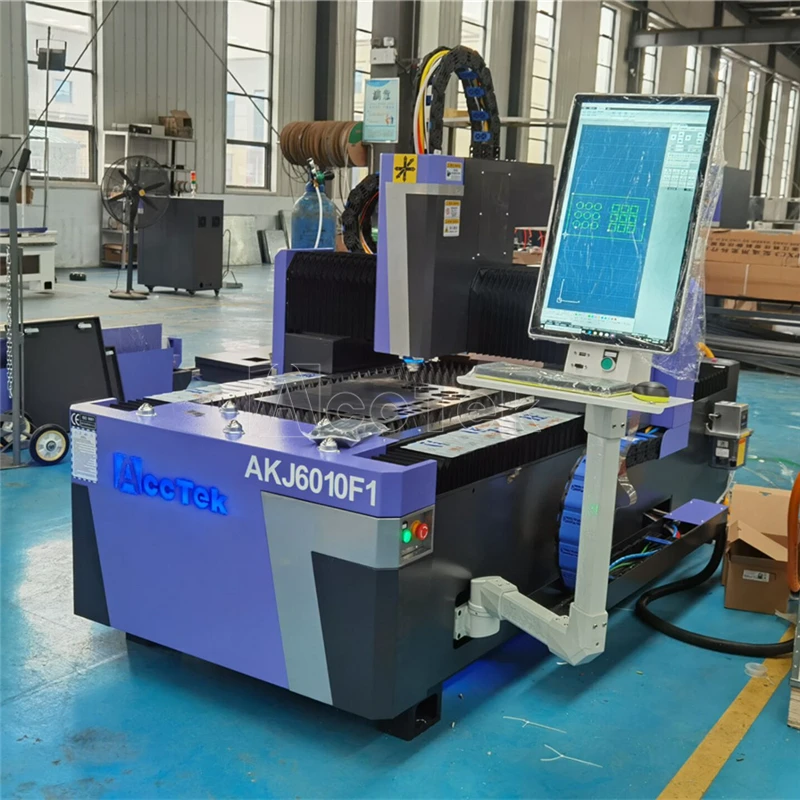

Machine Details
Product Application
>>Applicable Material of Laser Cutter Metals:
1. Stainless Steel
2. Carbon Steel
3. Alloy Steel
4. Spring Steel
5. Iron 6. Aluminum
7. Copper
8. Silver
9. Titanium
1. Stainless Steel
2. Carbon Steel
3. Alloy Steel
4. Spring Steel
5. Iron 6. Aluminum
7. Copper
8. Silver
9. Titanium
>>Applicable Industry of Laser Cutter Metals
1.Sheet metal fabrication
2. Electrical cabinet
3. Elevator
4. Automotive parts
5. Aviation & aerospace
6. Lighting lamps
7. Metal carfts & decoration
8. Hardware tools
9. Advertising
10. Furnitures
11. Kitchenware equipment
12. Fitness equipment
13. Medical equipment
14. Agricultural and forestry machinery
1.Sheet metal fabrication
2. Electrical cabinet
3. Elevator
4. Automotive parts
5. Aviation & aerospace
6. Lighting lamps
7. Metal carfts & decoration
8. Hardware tools
9. Advertising
10. Furnitures
11. Kitchenware equipment
12. Fitness equipment
13. Medical equipment
14. Agricultural and forestry machinery
Our Services
1) Guarantee
3 years for the whole machine, 2 years for fiber laser generator, 1.5 years for core parts.
3 years for the whole machine, 2 years for fiber laser generator, 1.5 years for core parts.
2) Software issue
Our technician is able to re-install or set up by remote for free.
3) Hardware issue
Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4) Support online
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory
We are able to train your staff after placed order in our factory for free.
6) On-site training
Recommended, the most effective way. We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)

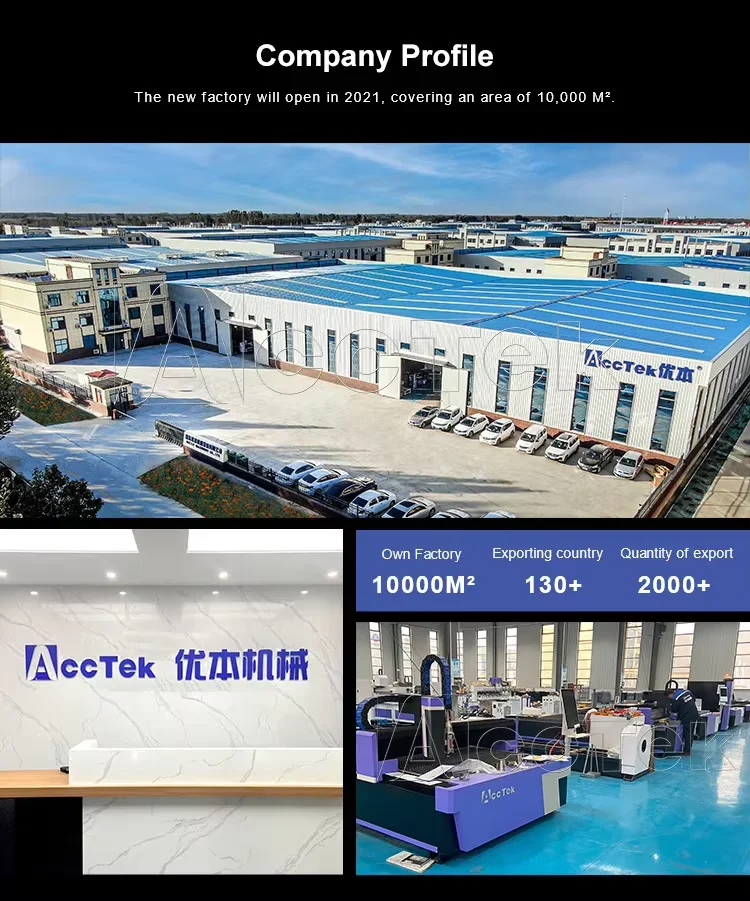

Company Profile
Jinan AccTek Machinery Co., Ltd was located in high technology industry zone of Jinan, which specializes in manufacturing CNC and laser machines since 2005.
Our company is devoted to the research and development of carving CAD/CAM technology and CNC technology."AccTek" is from "accuracy technology",which is and will be our goal all the time! "AccTek" branded CNC routers and laser cutters have obtained remarkable achievements in the design of precise carving machine as well as artistic carving technology. We have realized industrialization of the computerized numerical control technology.
Our produces are widely sold in many European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field. After several years of rapid development, our routers have already covered advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts fields.
Our products well meet the demands of customers in different countries. We are still trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
