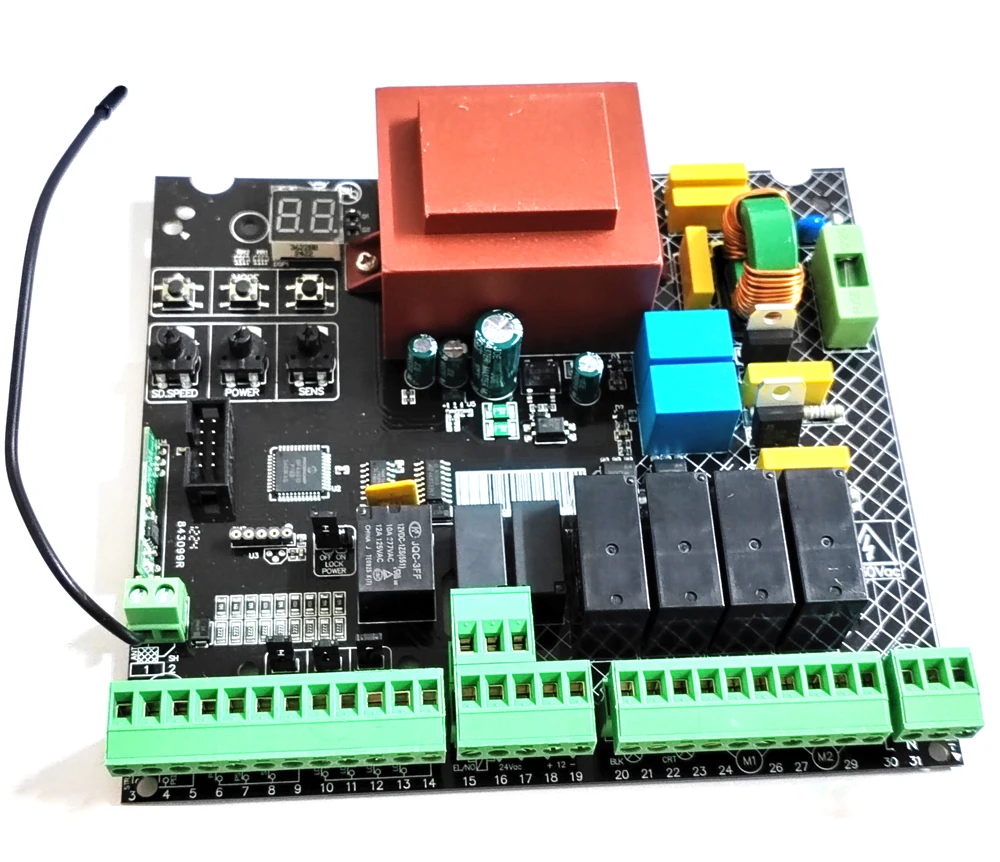

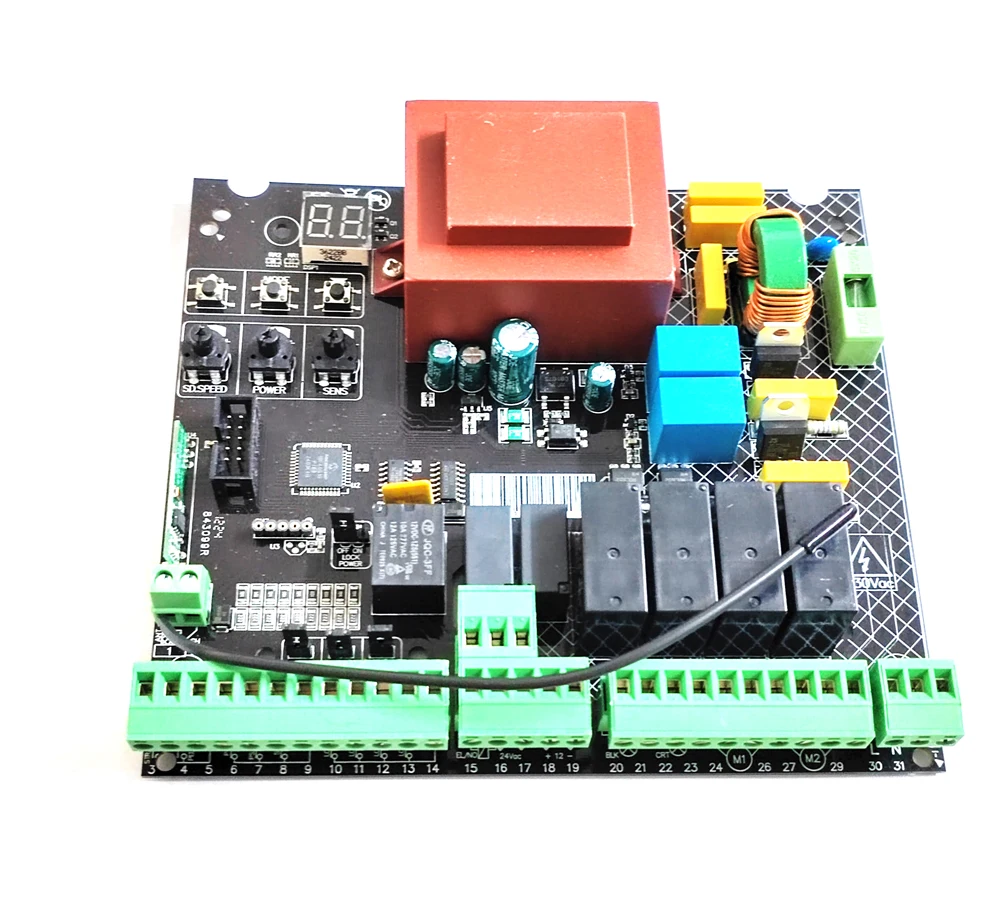

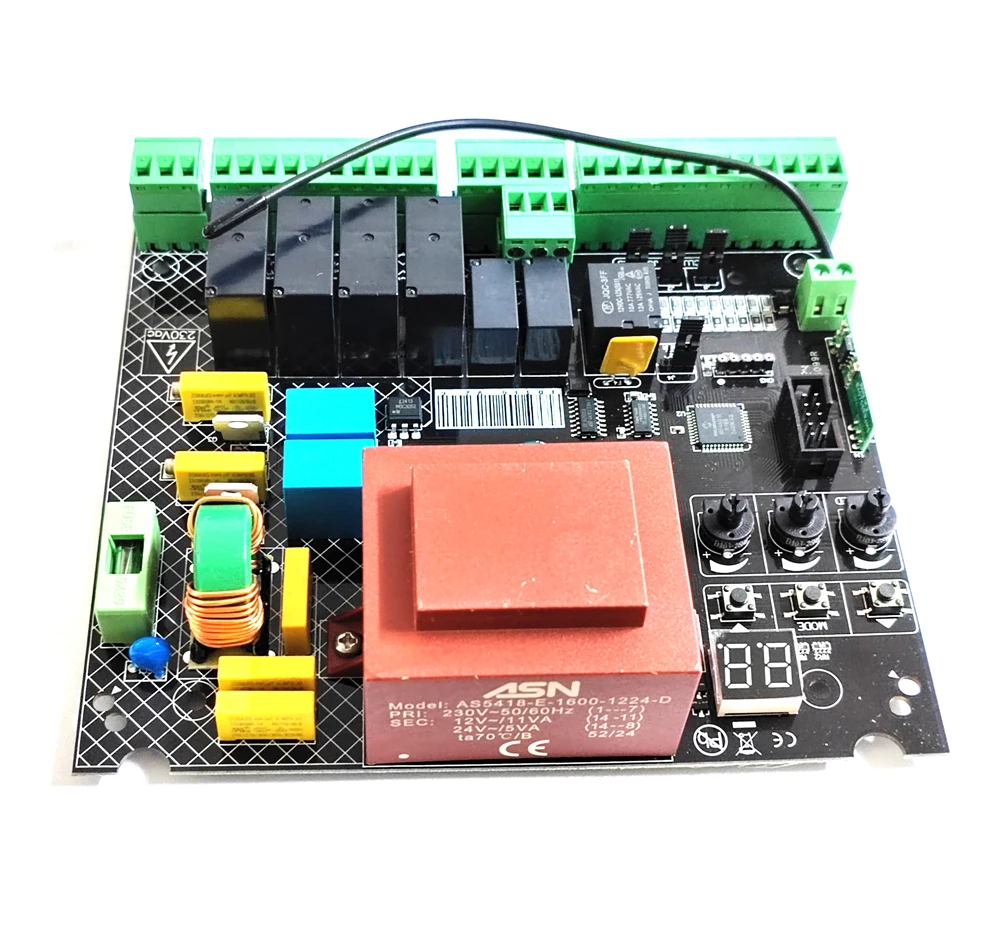

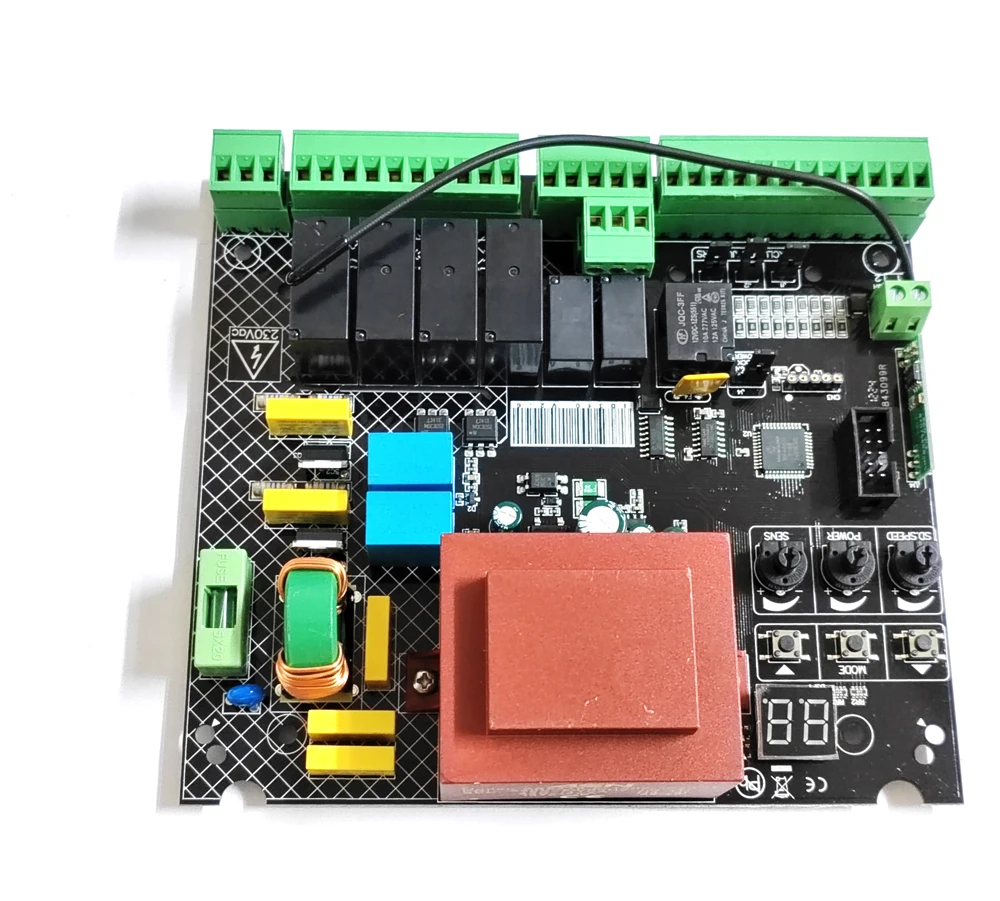

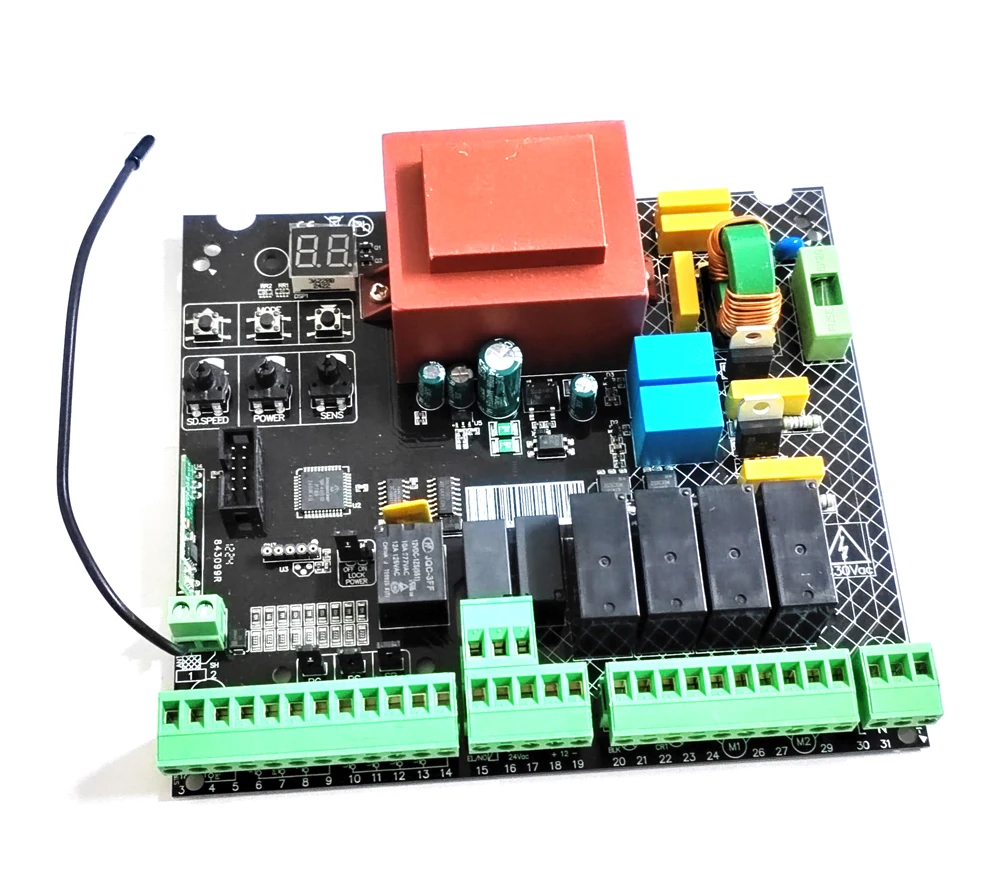

Name: Abridor automático de portão oscilante, 110v ou 220vac, unidade de controle de motor ac, placa de circuito controlador pcb, placa eletrônica
SKU: 32959321422
Availability: InStock

Químico Hign-em causa: Nenhum
Modo de segurança: Falha Segura
Número do modelo: PK400AC
Nome da marca: LPSECURITY
Origem: CN (Origem)
Direção: Nenhum
Certificado: CE
Plataforma de casa inteligente: NONE
application: swing gate controller plate

this board is for dual swing gate opener motor, AC motor only; not for sliding gate opener;

manual not included in the package and it will be sent by email;

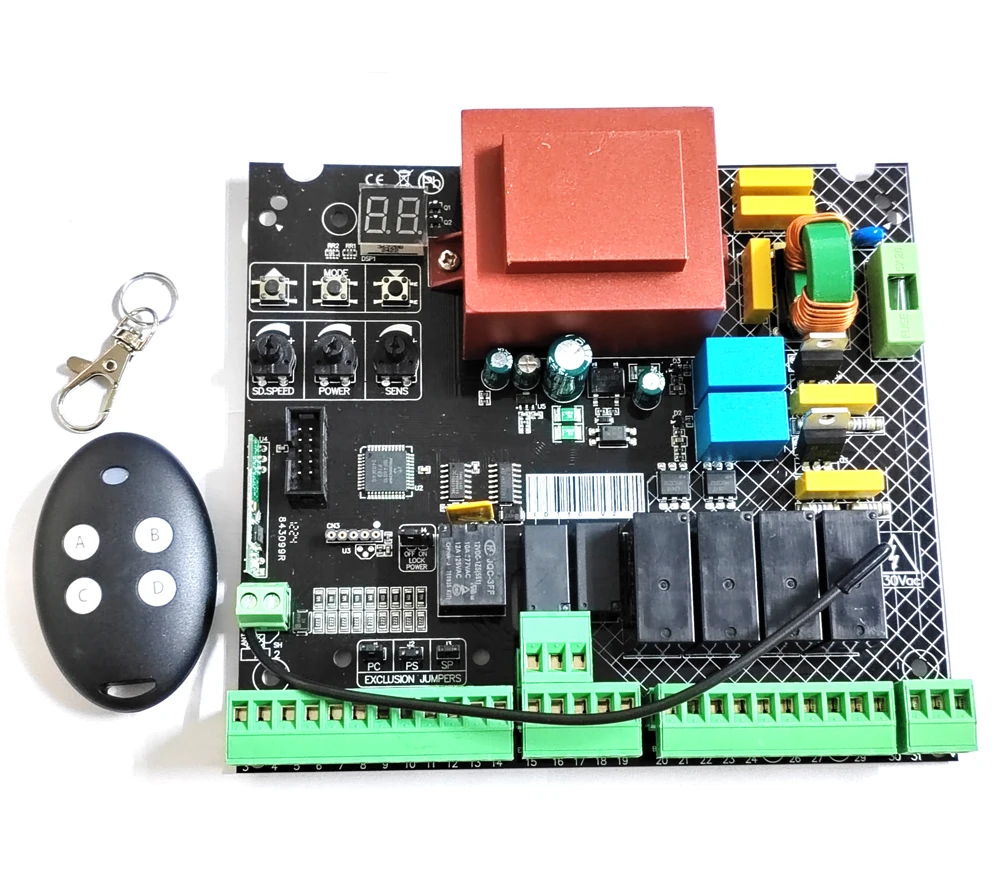

this board is only for our remote control use, not compatible with other remote controls;

Articualted Swing gate opener board

Soft start slow stop, automatic close, obstacle detection by automatic reversng.
Interface for GSM, infrared sensor, alarm light, wall button.
Separate control unit, easy to install.
Power saving mode, remote control automatic learning.
Motor working time is adjustable.

Technica data of swing gate opener suitable

Type	PK400AC
Motor power	200W
Working duty	S2 15 minutes
Operating cycle	10 seconds per 90 (approx)
Max. single - leaft weight	400 kg per wing
Max. single - leaft length	2.5 m
DSPS device	Electronic timing tracker
Gearbox	Worm gear
Limit switch	Mechanical limit switch
Satery barrier	Infared sensor (optional)
Mian supply	110V / 220V , 60 Hz / 50 Hz
Remote control	Single button mode
Temperature	-20 ~ + 50 centi degree
Protection Class

Receiving antenna: 1. Antenna, 2. Antenna grounded

External button switch: 3. Door open button (normal open), 4. Door close button (normal open), 8. Stop button (normal open), 5. Common terminal

Infrared protective device: 6. Infrared photocell in the front of the door (normal close), 7. Infrared photocell behind the door (normal close), 9. Common terminal

Limit of main engines: 10. OPEN limit switch of main engine 1 (normal close), 11. CLOSE limit switch of main engine 1 (normal close), 12. OPEN limit switch of main engine 2 (normal close), 13. CLOSE limit switch of main engine 2 (normal close)

Output power: 17-18 power source (24 Vac)

External accessories: 15-16 electric lock (12 Vac), 19-20 alarm lamp (220 Vac), 21-22 spotlight (220 Vac)

Main engine’s wiring:

23-24-25 (common terminals) main engine 1, 26-27-28 (common terminals) main engine 2

Input power: 29-30 input power (220 Vac), 31 grounded protection

Adjusting knob:

TR1 adjusting knob for slowing down speed (rotate clockwise for the maximum)

TR2 adjusting knob for motors output power (rotate clockwise for the maximum and the power reaches the maximum at the 2 seconds before motor starting)
