- Produto Químico de Alta Preocupação: Nenhum
- Número do modelo: D-BL10WF
- Nome da marca: HUAHENGCHI
- Certificado: CE
- Origem: CN (Origem)
- Module Name: 450nm 80W laser module
- Spare Parts Type: laser accessories, laser module, laser head parts kits replacement
- Application: wood leather engraving and cutting
- Features: Fixed focus
- Condition: New
- Lifetime: 10000 hours
- Warranty: 1 year

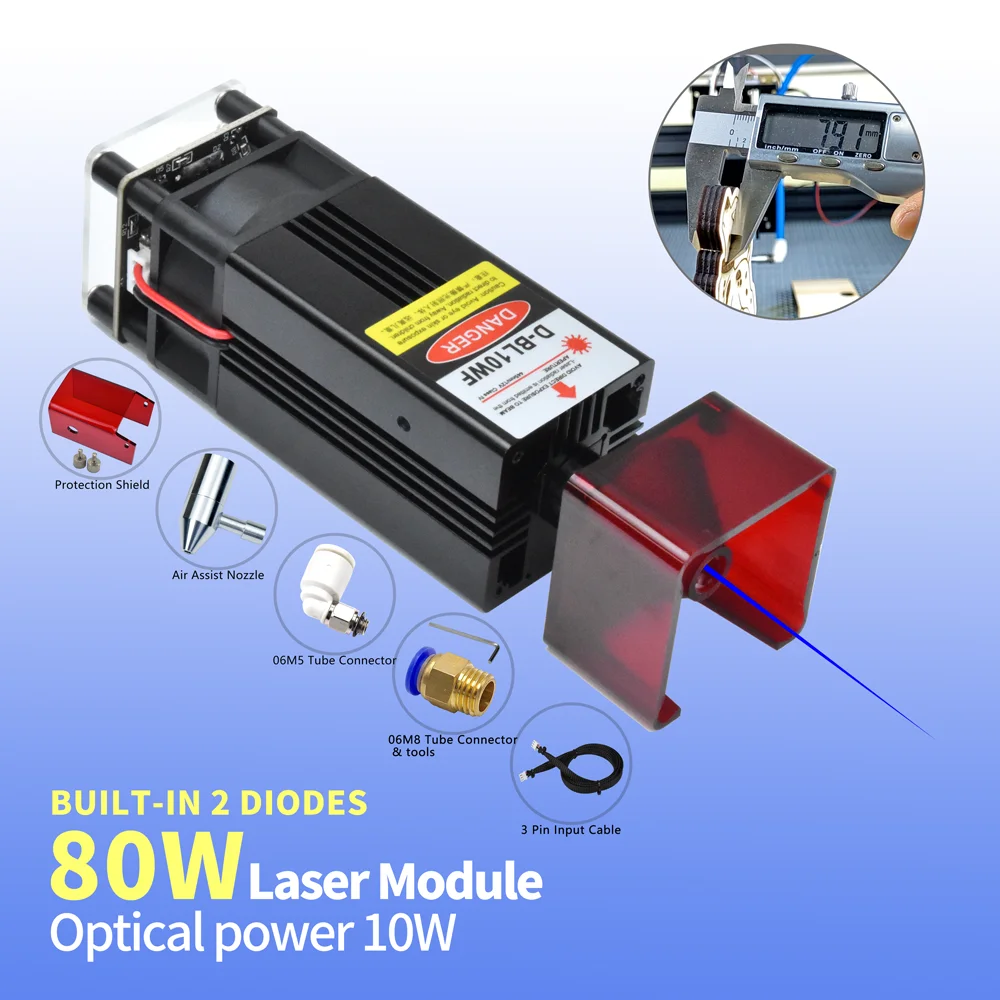

80W/40W Laser Module Head Focal Fixed 445nm Blue Light Module for CNC Laser Engraver Cutting Engraving Marking Machine Wood Tools
Module Features：
- Designed for Laser Engraver,CNC Mill, DIY Engraving and Cutting.
- Fixed Focus, no need to focus, easy to use.
- D-BL10WF laser module can engrave stainless steel at speed of 30mm/s with 50mm focus length. D-BL5WFA laser module can engrave stainless steel at speed of 30mm/s with 30mm focus length.
- D-BL10WF can cut 8-10mm Plywood by one pass. D-BL5WFA can cut 4-5mm Plywood by one pass.
- Professional air assistance: highly improve cutting ability.
- Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel, Ceramics, Bone, Coated glass, Black acrylic, Stone, Bamboo, Rubber, Leather, etc.
- Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board
- Note: Blue/purple/white/transparent materials, aluminum without oxide layer cannot be engraved.
General Specifications:
Model：D-BL10WF
Heatsink Material：Aluminum + PETG
Luminous Color：Blue
Module Size：40mm x 40mm x 148.5mm
Cooling Mode：12V 10000 rpm 40mm cooling fan
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Wire Rod: 22# 3P2.54
Product Net Weight: 238g
Technical Parameters (D-BL10WF)：
Electric Power：12V(3A-3.5A)
Optical power output：10W
Effect power output: 80W
Laser Wavelength：445±5nm
Beam Shape：Dot ( Not Focusable )
PWM/TTL Input：DC5V
Input Interface：XH2.54-3Pin (+,-, PWM/TTL)
Operating temperature range：-10 ℃ ~ 40 ℃
Package includes( D-BL10WF) :
1* 80W laser module with wind gathering hood
1* air assist nozzle with lens
1* 06M5 tube connector
1* 06M8 Pump connector
1* 3pin 80cm cable
General Specifications:
Model：D-BL5WFA
Heatsink Material：Aluminum + PETG
Luminous Color：Blue
Module Size：40mm x 40mm x 122mm
Cooling Mode：12V 9000 rpm 40mm cooling fan
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Wire Rod: 22# 3P2.54
Product Net Weight: 240g
Technical Parameters (D-BL5WFA)：
Electric Power：12V(1.6-1.8A)
Optical power output：5-5.5W
Effect power output: 40W
Laser Wavelength：445±5nm
Beam Shape：Dot ( Not Focusable )
PWM/TTL Input：DC5V
Input Interface：XH2.54-3Pin (+,-, PWM/TTL)
Operating temperature range：-10 ℃ ~ 40 ℃
Package includes( D-BL5WFA) :
1* 40W laser module with air assist nozzle
1* 32*70mm Slide
1* 06M5 tube connector
1* 06M8 Pump connector
1* 3pin 80cm cable
Gift for buyers:
1W+ drawings for engraving and cutting are provided as a gift. You can contact customer service after placing an order.
Including: multi-layer carvings, boxes, bags, clocks, lamps, wall decoration, puzzle, baby toys, animals, flowers, jewelry, Christmas/Halloween/Easter decoration and so on.
Can cut 8-10mm basswood plywood by one pass
Can engrave stainless steel directly and perpectly.
