Name: 8 inch Rugged Tablets PC Linux Ubuntu OS 8GB+128GB N5100 CPU Industrial PC 4G WIFI GNSS 10000mAh Computer
SKU: 1005008701122737
Availability: InStock

Hign-concerned Chemical: None
Scanning Light Source: Laser Light
Novelty: New
Model Number: M-I87J Linux
Signal Connection Type: Bluetooth,Wi-Fi
Scan Breadth: B0
Type: Flatbed Scanner
Interface Type: COM
Scan Element Type: CMOS
Scan Speed: 200 scans/second
Optical Resolution: 2400*1200
Brand Name: IMASONSCAN
Origin: Mainland China

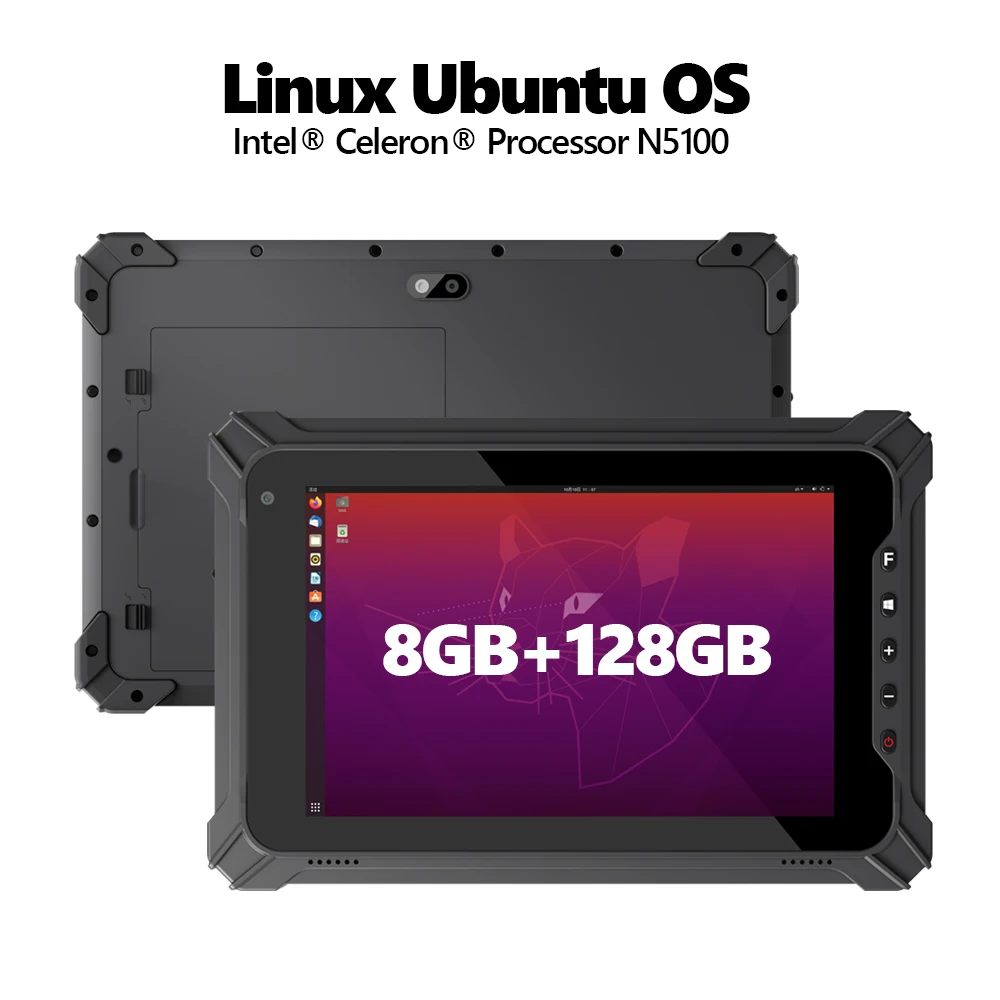

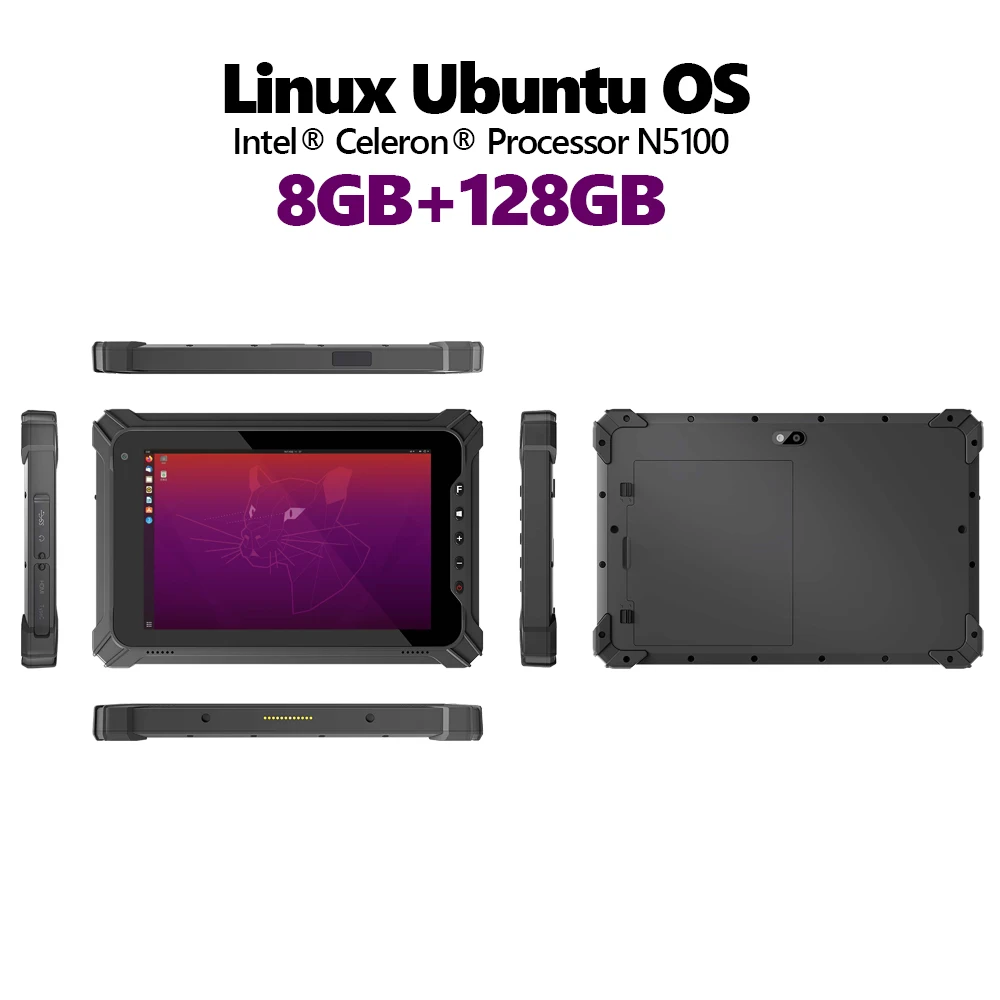

Product Name: 8 inch Rugged Tablets PC Linux Ubuntu OS 8GB+128GB N5100 CPU Industrial PC 4G WIFI GNSS 10000mAh Computer
CPU: Intel Celeron Processor N5100
OS: Linux Ubuntu22.04.4
Memory: RAM 8GB ROM 128GB
Battery: 5000mAh/7.6V Removable Li-polymer battery
Display: 8 inch 16:10 800*1280 or 1920*1200 5 point capacitive touch screen
Dimension: 236.7 x 155.7 x 20mm
4G: LTE FDD: B1/B3/B7/B8/B20,LTE-TDD: B40 WCDMA: B1/B5/B8,GSM: B3/B8
WIFI: 802.11 a/b/g/n/ac (2.4G+5.8G)
BT: BT5.0 Transmission distance: 10m
GNSS: Support, GPS, Glonass
Rugged features: IP65 certified, MIL-STD-810G certified
Operate Temperature: -20 °C ~ 60 °C
Store Temperature: -30 °C ~ 70 °C
2D Barcode Scanner(Optional): Optional, Optical resolution: 5mil, Scan speed: 50 times/s
Note: if you need barcode scanner function,please contact our seller

8 inch Rugged Tablets PC Linux Ubuntu OS 8GB+128GB N5100 CPU Industrial PC 4G WIFI GNSS 10000mAh Computer

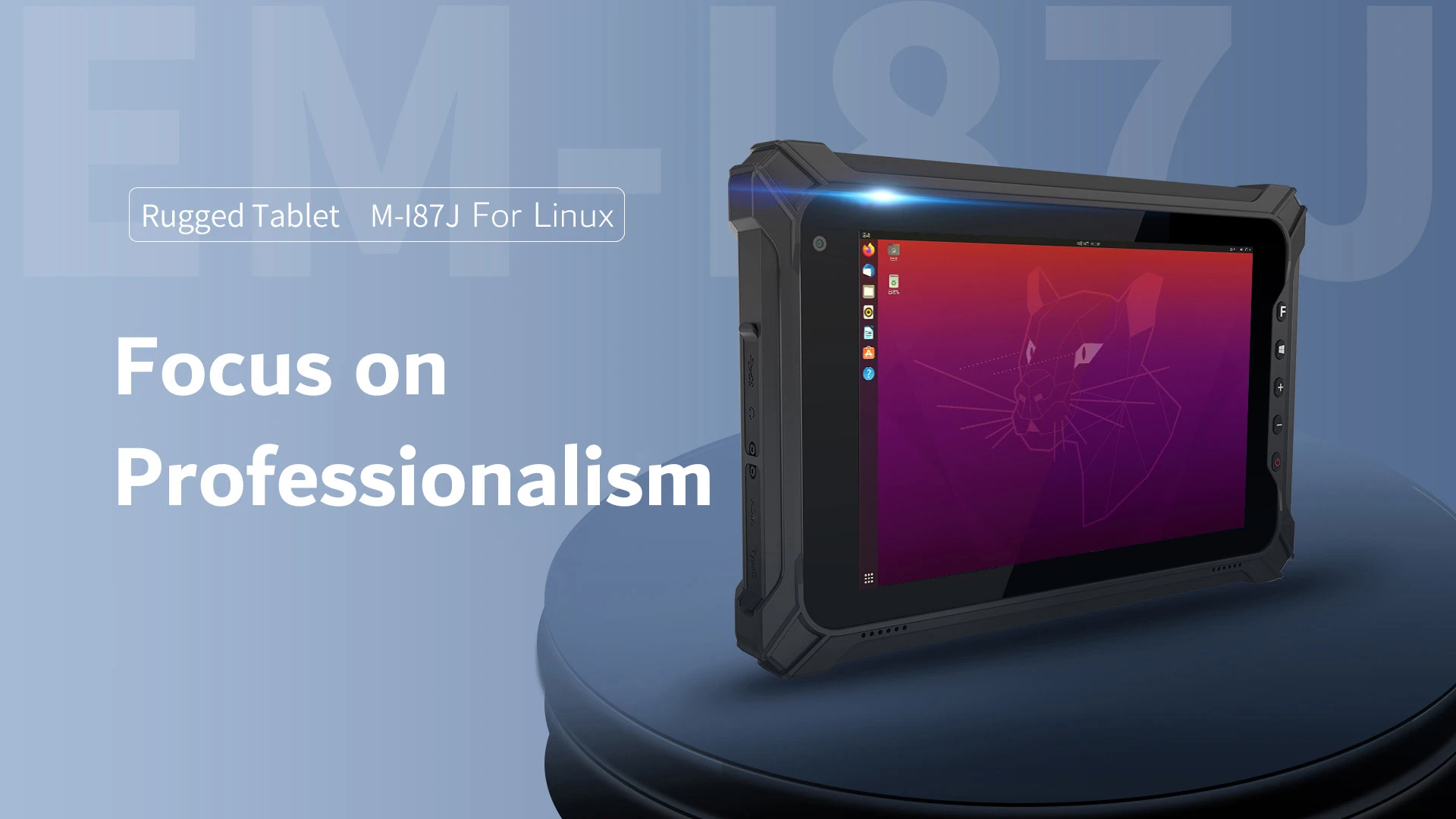

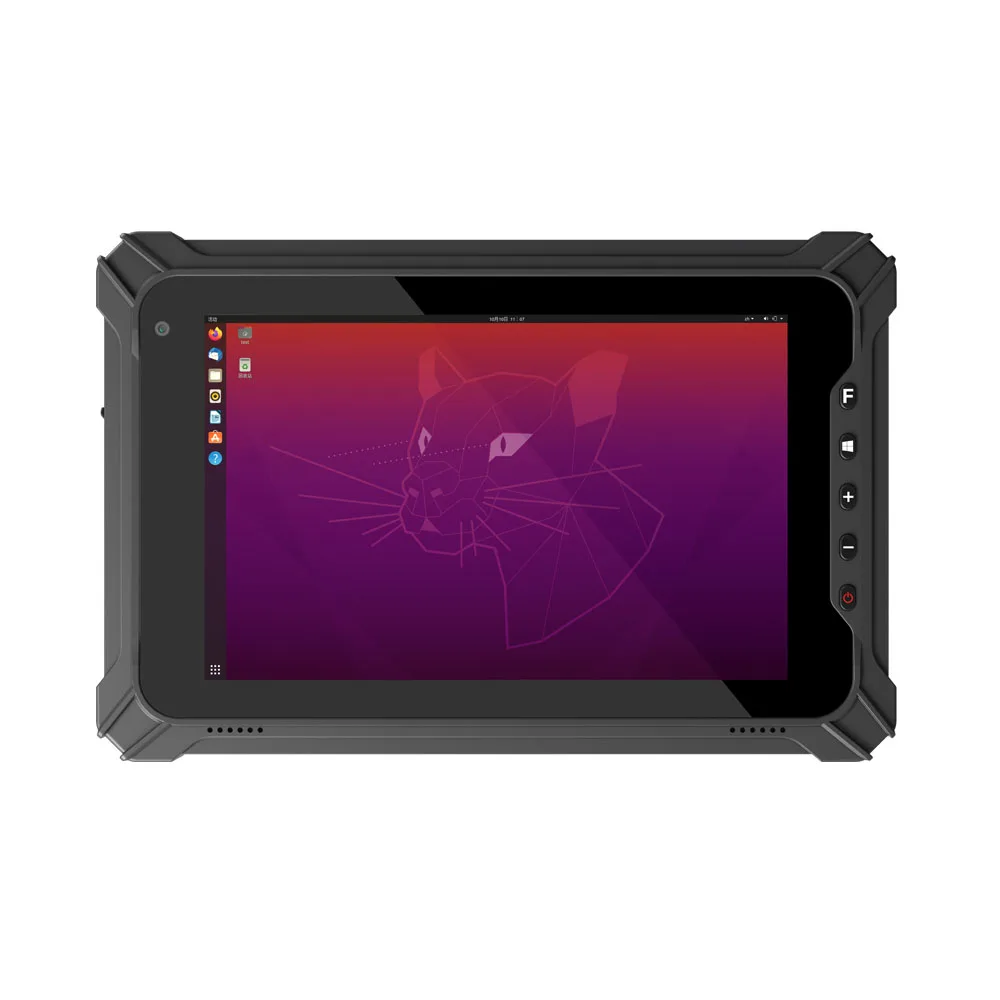

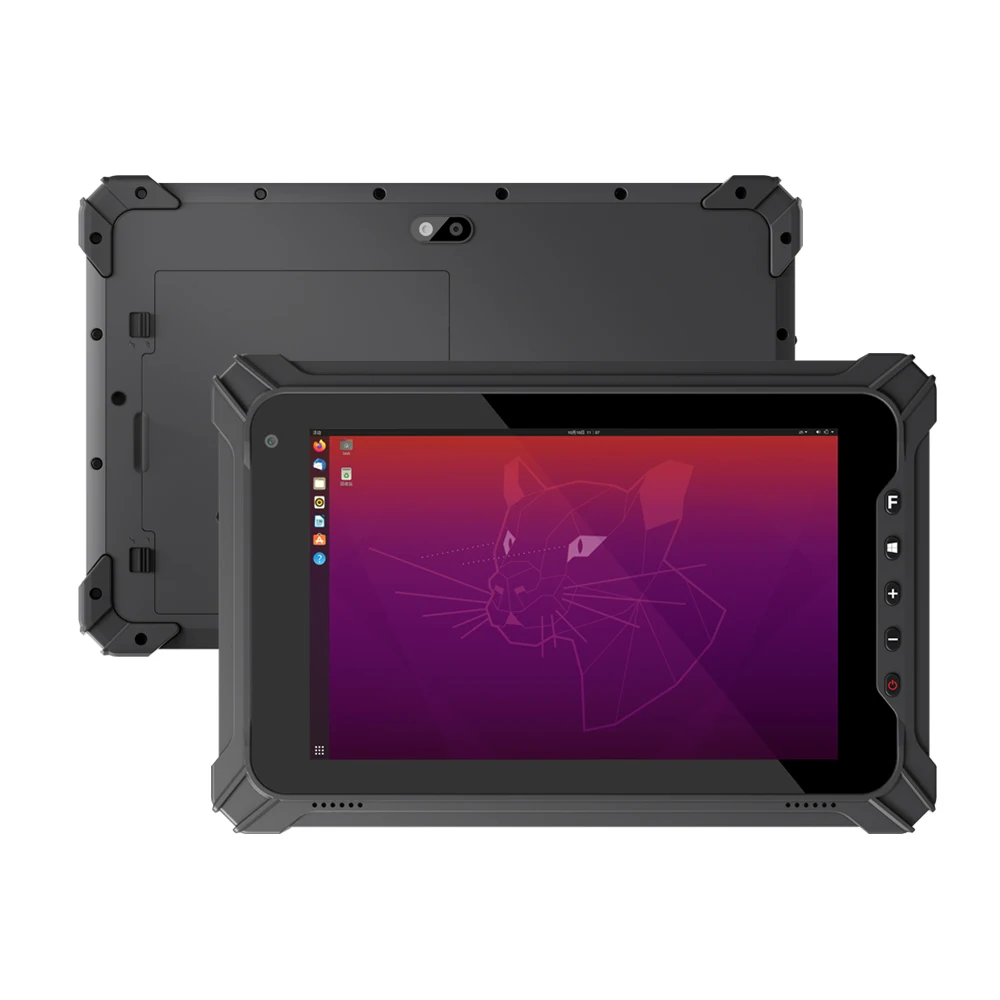

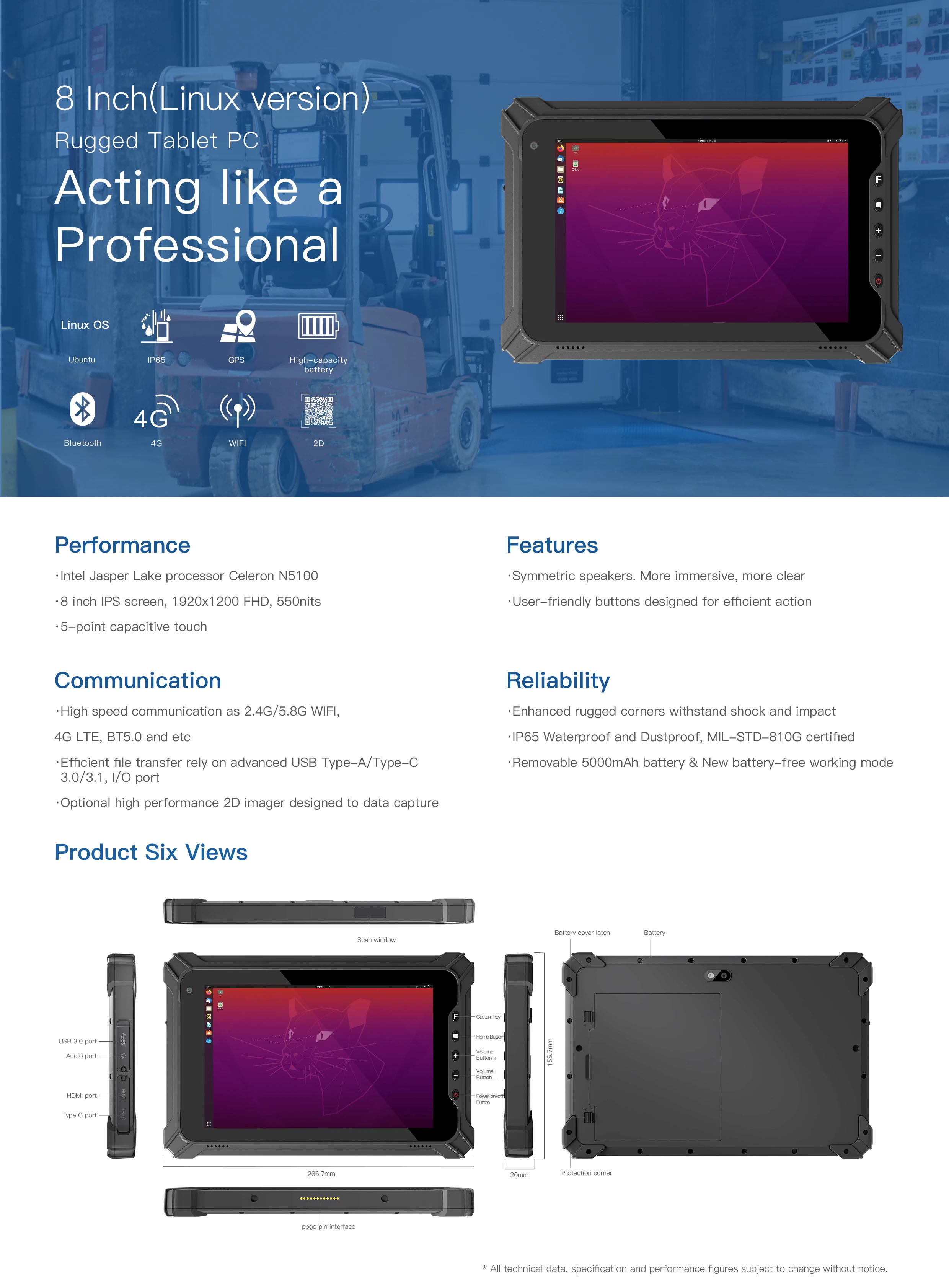

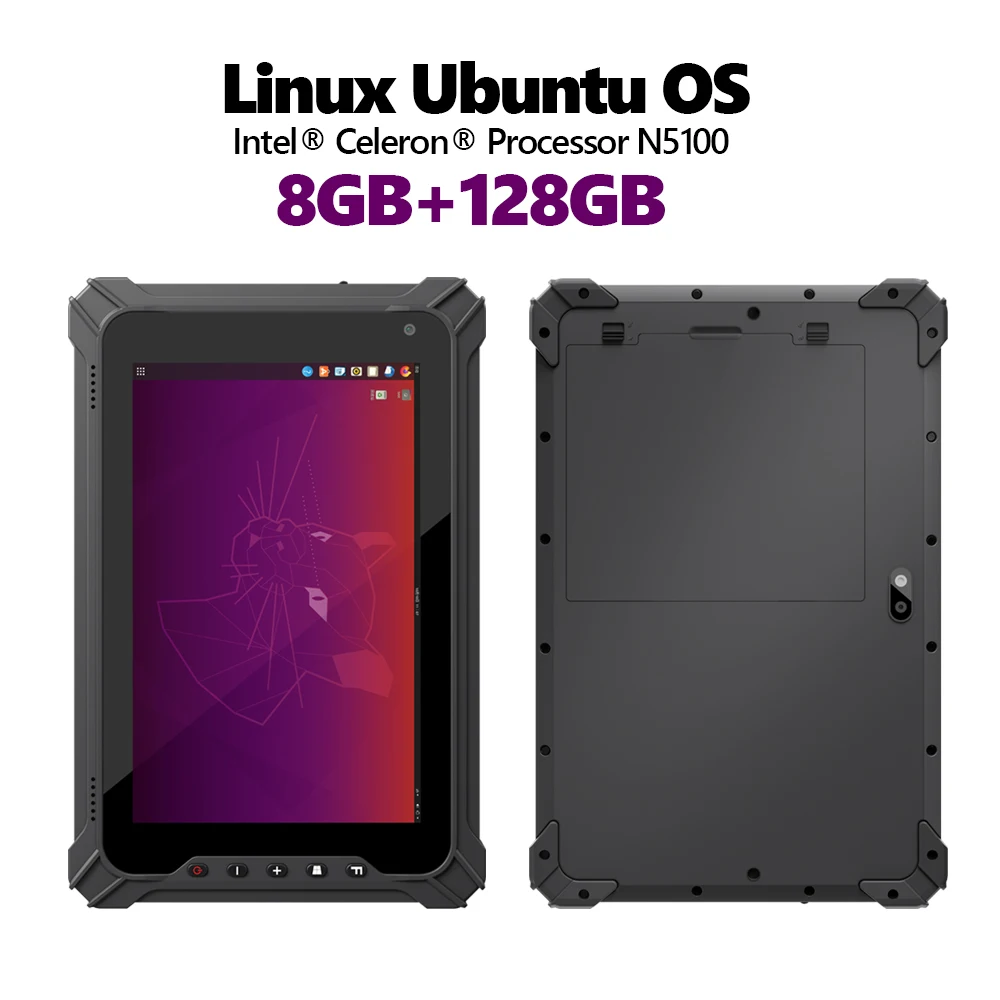

Rugged Tablet PC M-I87J(Linux)

·Intel Jasper Lake processor Celeron N5100

·8 inch IPS screen, 1920x1200 FHD, 550nits

·5-point capacitive touch

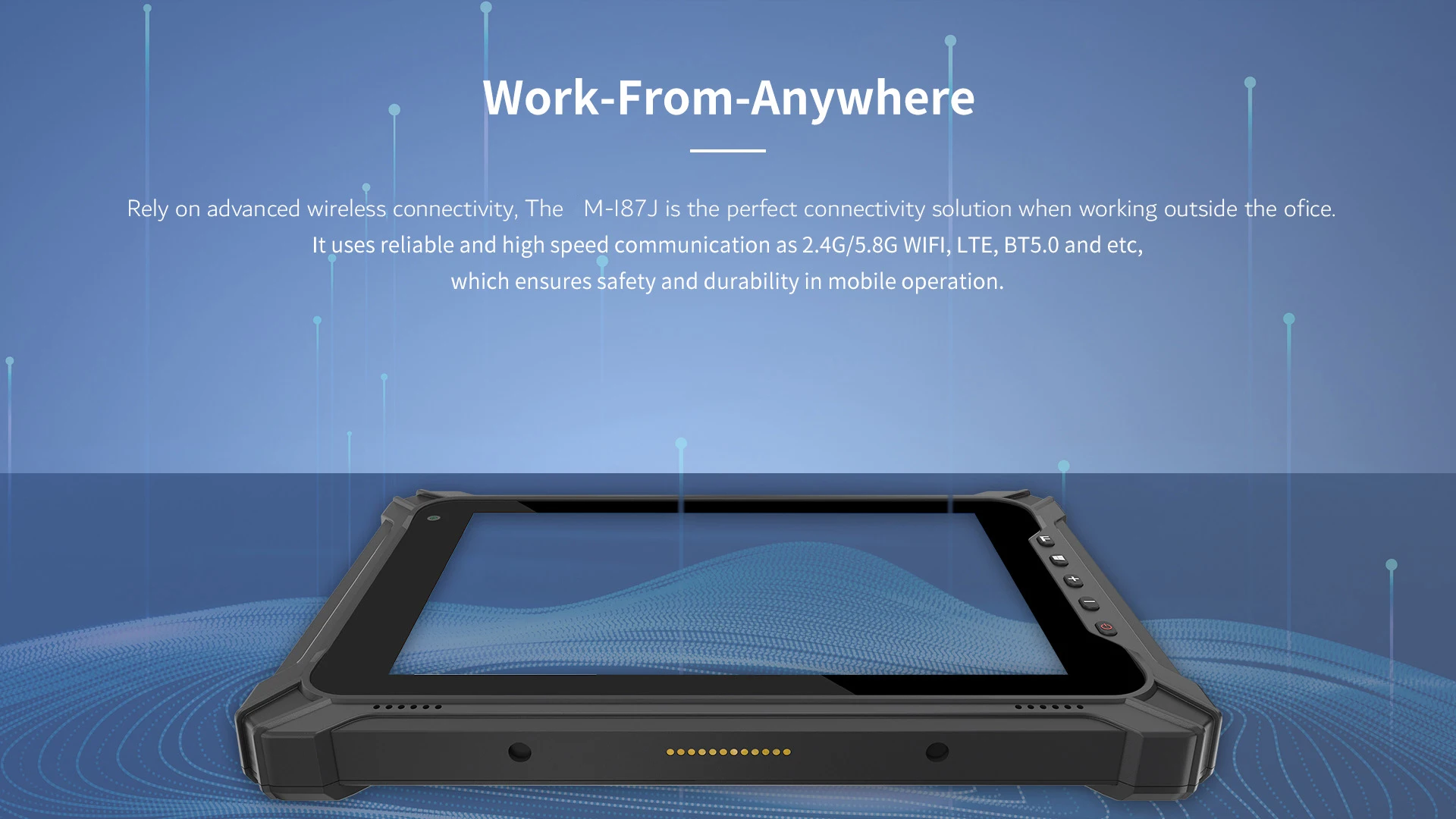

·High speed communication as 2.4G/5.8G WIFI, 4G LTE, BT5.0 and etc.

·Eﬃcient ﬁle transfer rely on advanced USB Type-A/Type-C 3.0/3.1, I/O port

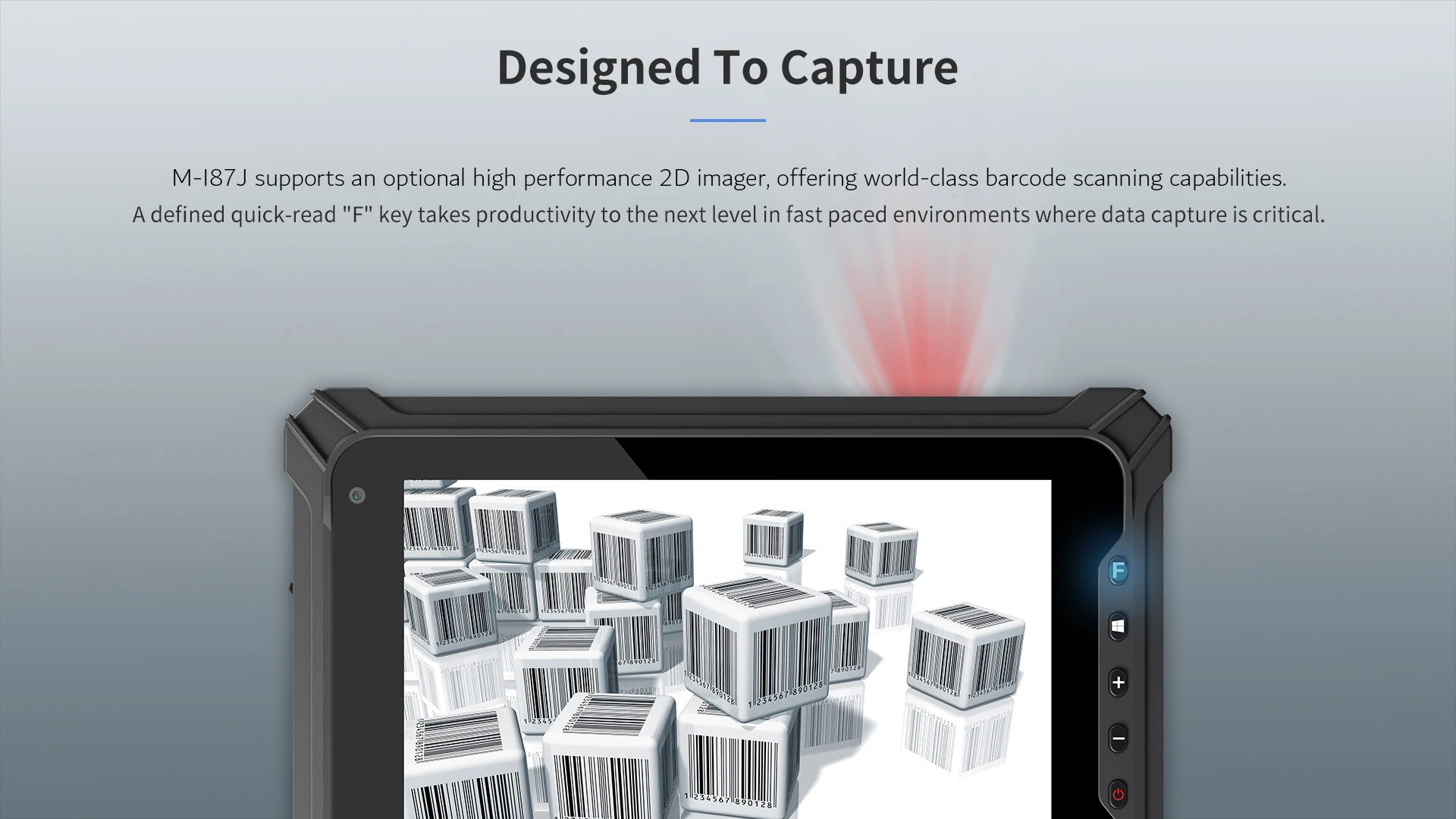

·Optional high performance 2D imager designed to data capture

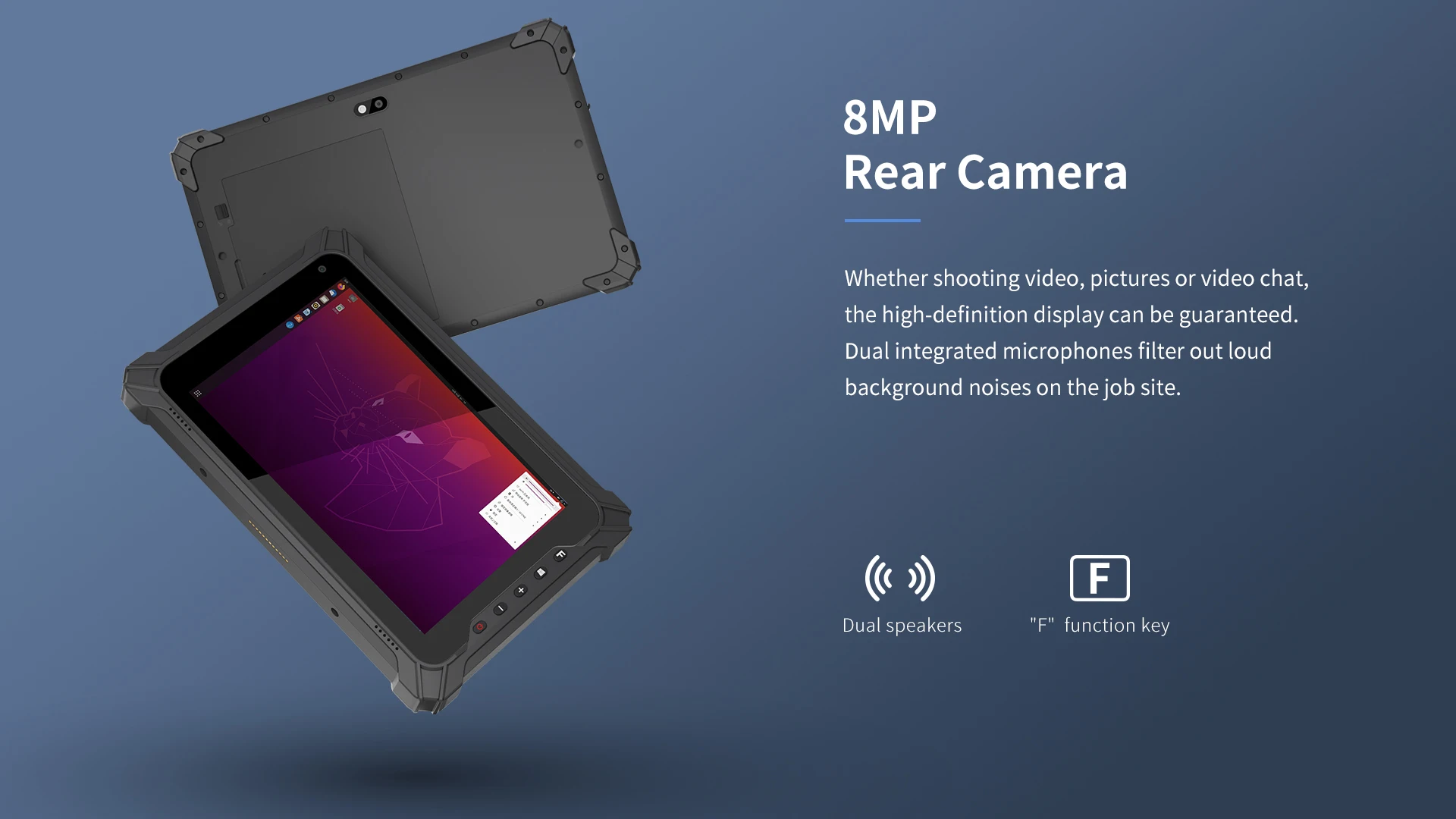

·Front 5.0MP + Rear 8.0MP, autofocus with ﬂashlight

·Symmetric speakers. More immersive, more clear

·User-friendly buttons designed for eﬃcient action

·Enhanced rugged corners withstand shock and impact

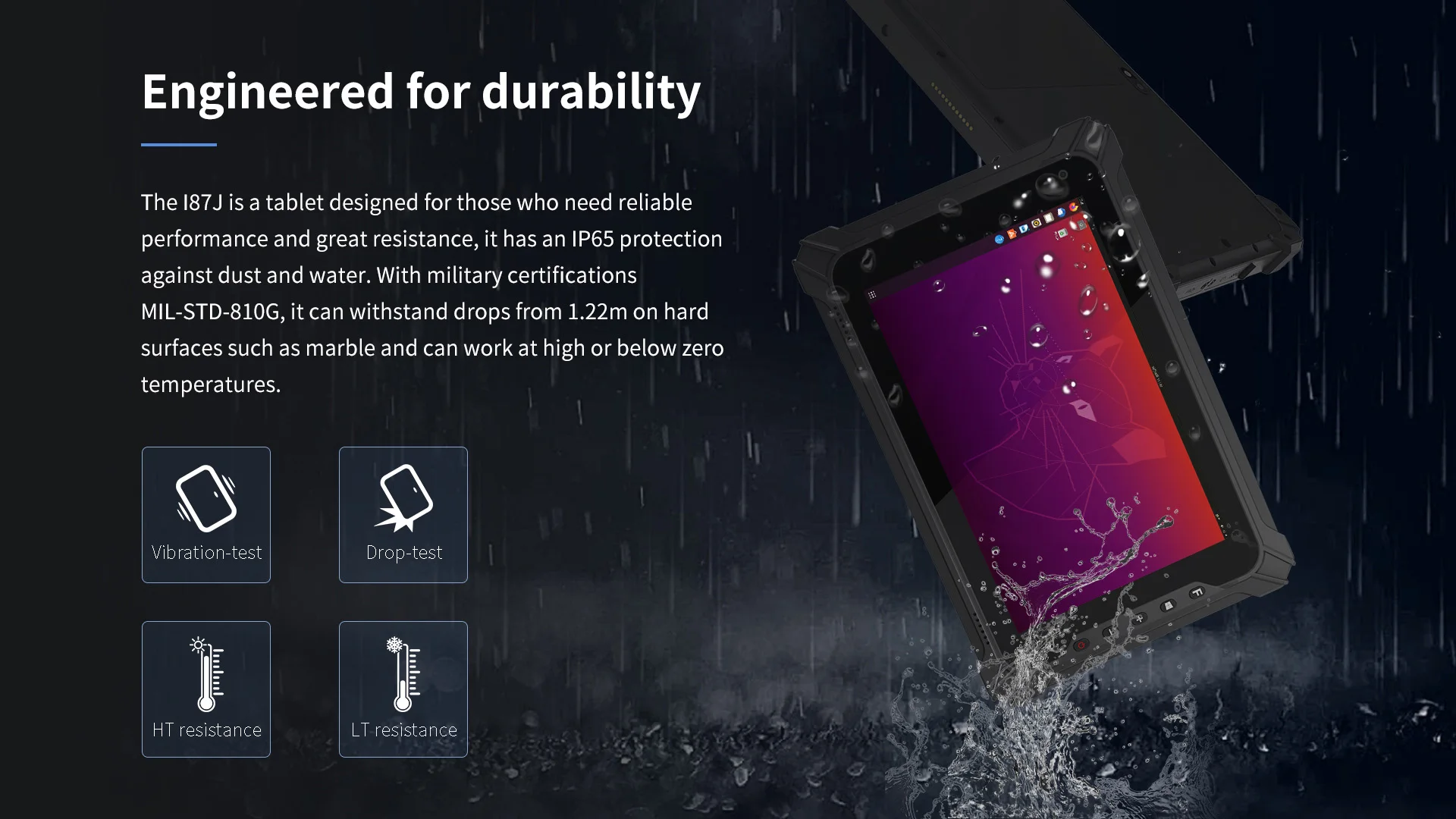

·IP65 Waterproof and Dustproof, MIL-STD-810G certiﬁed

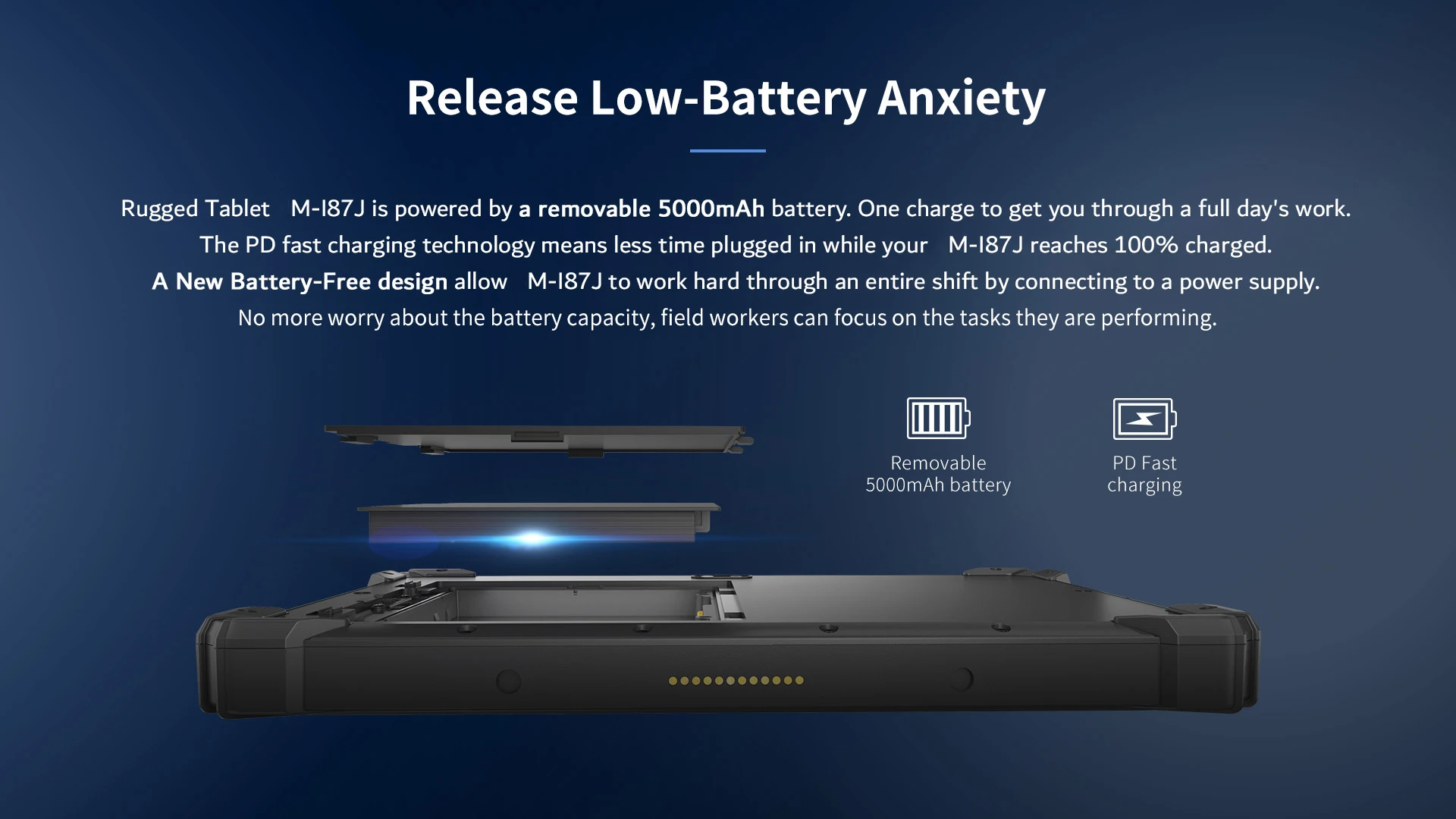

·Removable 5000mAh battery & New battery-free working mode

There are two options for choose:

Basic 4G GPS 800*1280 version
Basic 4G GPS 1920*1200 version

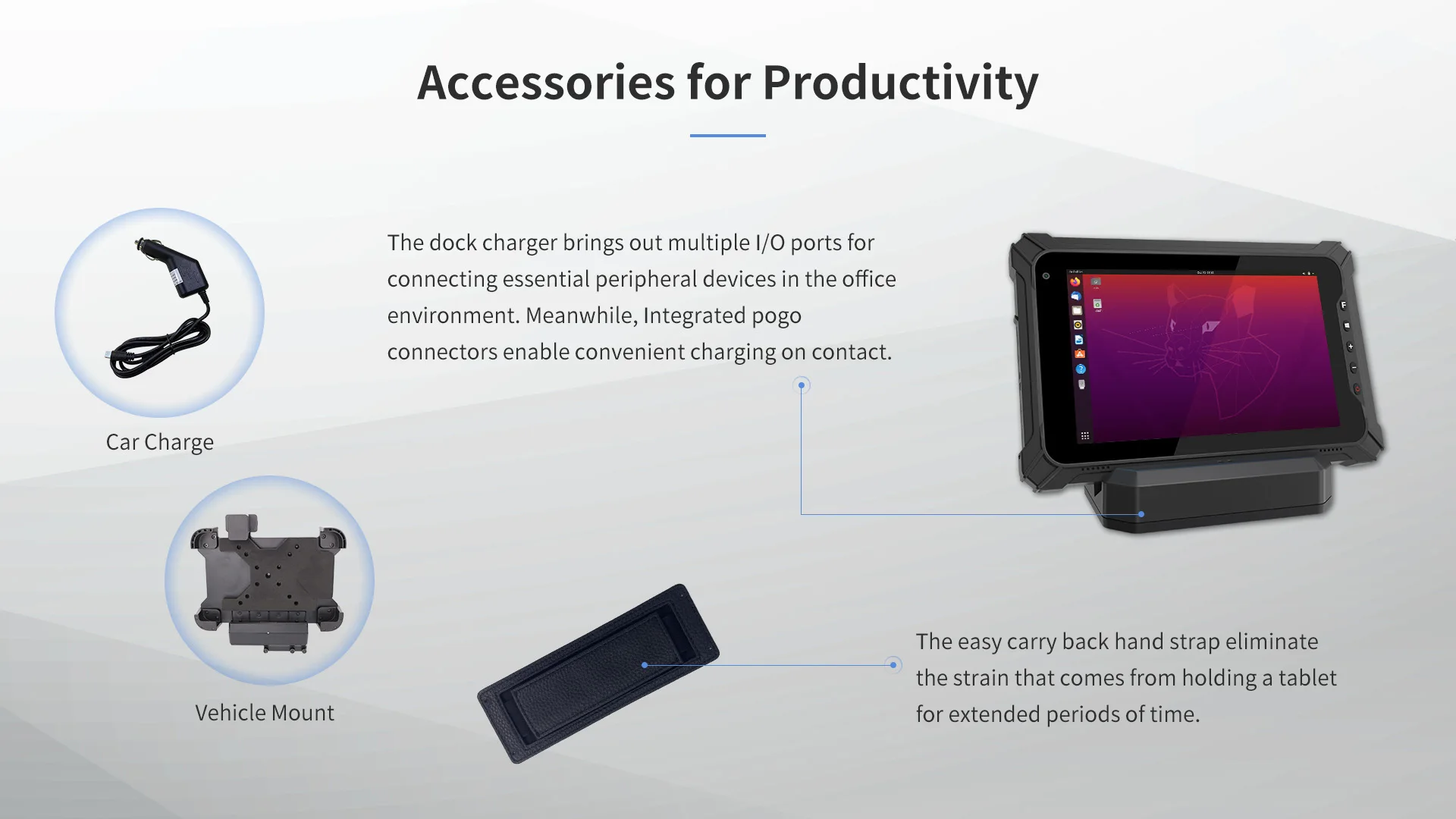

Optional functions:

2D barcode scanner
Charge Cradle
Vehicle Mount
Car Charger
Leather Cover

If you need these accessories,please contact our seller:tina@msench.com WhatsApp/Mobile:+8613076981898

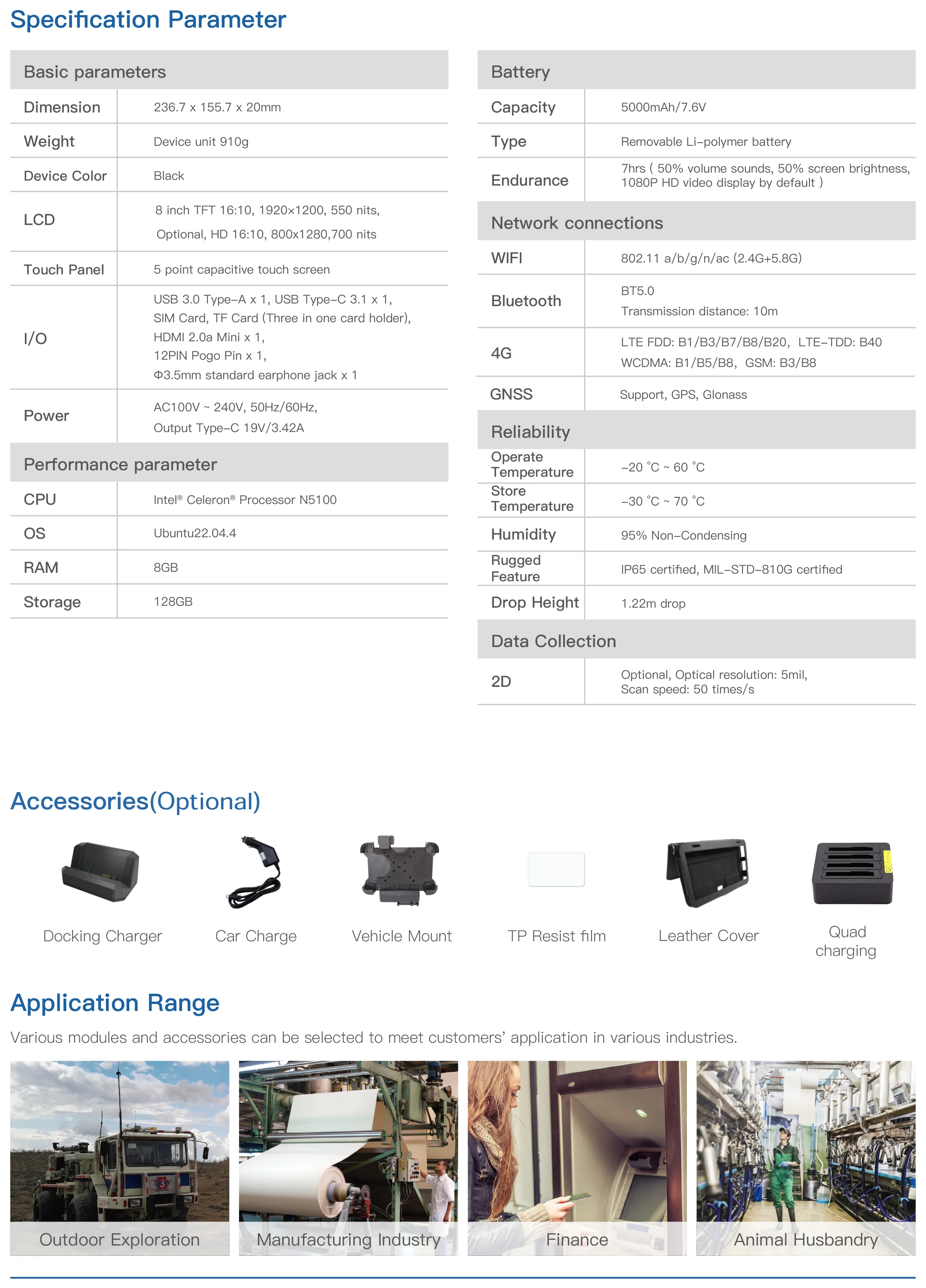

Tech Spec
Product Form	8 inch Rugged Tablet
Material	PC+TPU
Dimension	236.7155.720 mm
Weight	910g
Product Color	Black

CPU	Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz
GPU	Intel® HD Graphics Gen 11 LP
Memory	RAM 8GB DDR ROM 128GB Emmc

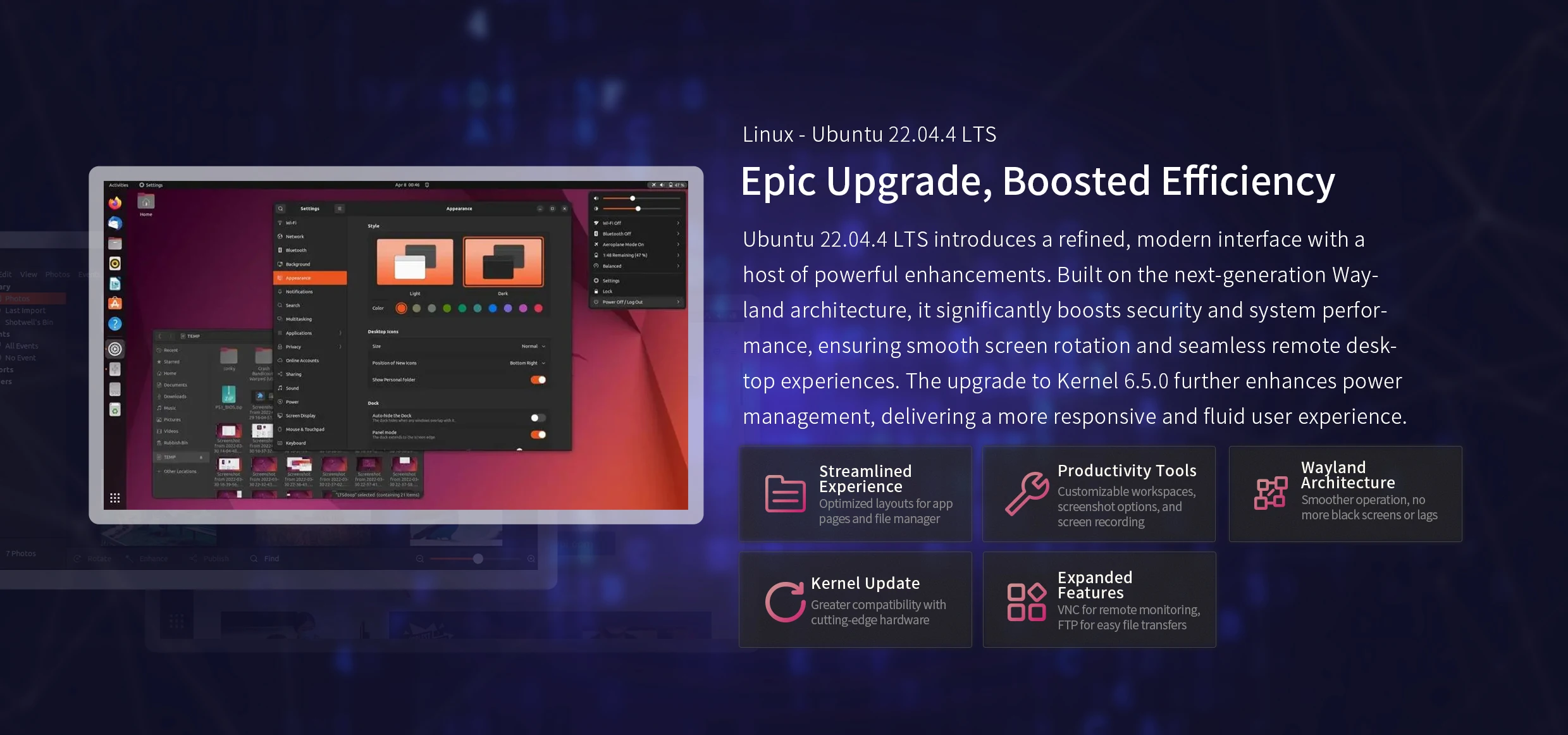

Operating System	Ubuntu22.04.4

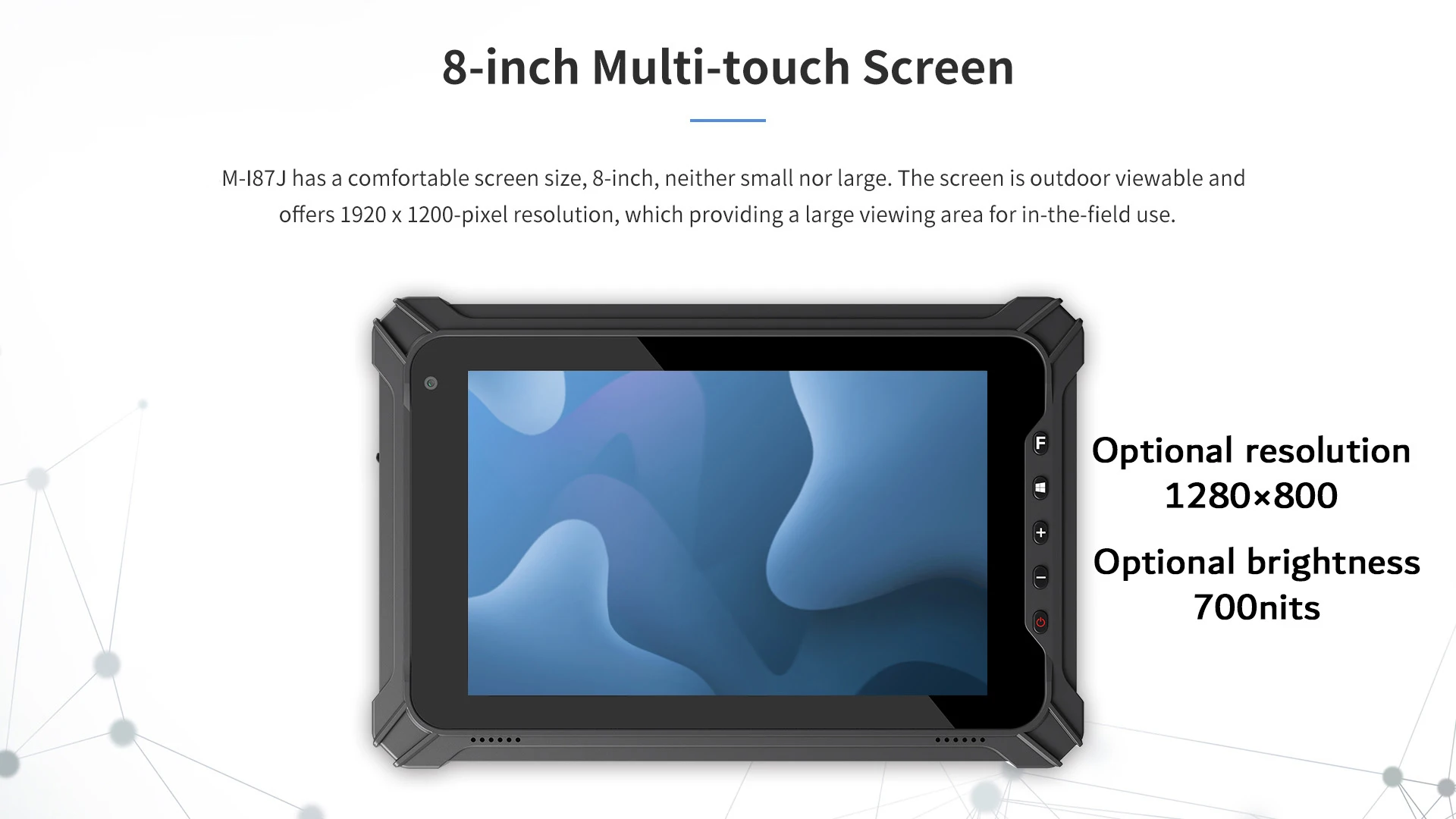

Display	Type: TFT Optional: Type: TFT Size: 8 inch 16:10 Size: 8 inch 16:10 Resolution: 12001920 Resolution: 8001280 Brightness: 550cd/㎡ Brightness: 700cd/㎡
Touch Pannel	5 points tempered glass capacitive screen G+G, hardness 7H

Camera	Front 5.0MP Rear 8.0MP, support auto focus, with flashlight function

Buttons	Power 1 Volume Adjustment Key (+) 1 Volume Adjustment Key (-) 1 F Key 1 (Barcode Scanning), When there is no scanning function, it can be customized Home Key *1

Speaker	8Ω/1W Speaker *2
Microphone	Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ
Senssors	G_sensor
RTC	Built in polymer lithium ion battery, with capacity of 3V/1mAh
Battery (Tablet)	Removable Li-polyment Battery 5000mAh/7.6V 7 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )

WIFI	WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
Bluetooth	BT5.0 (BLE) class1 Transmited distance：10m
4G	Eurasian: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional, EC25-AF, 750-VA, 750-VSA
GPS	Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), Cold start time is not more than 60s

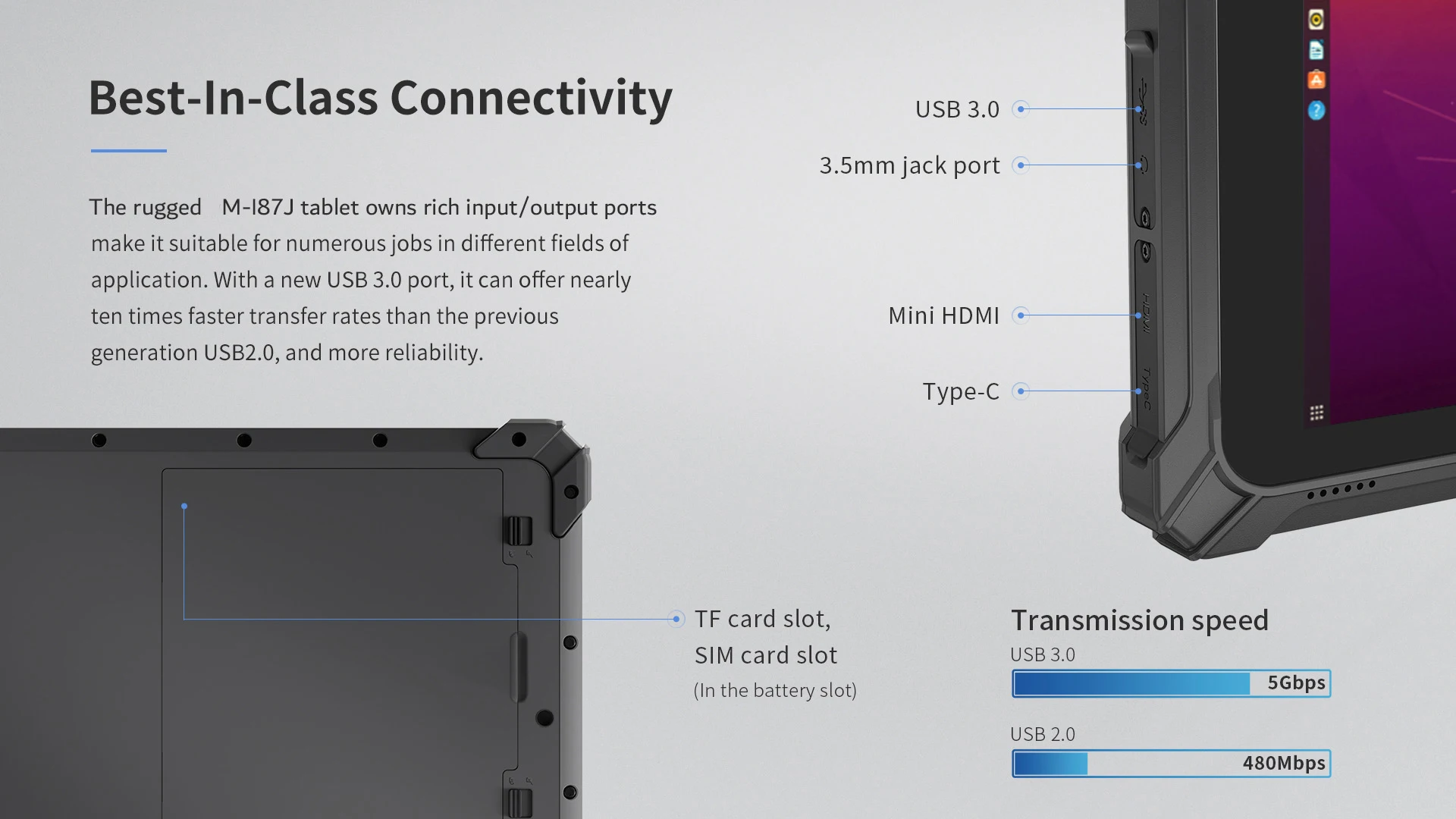

I/O Interface	USB3.0 1 (USB A port, HOST data transmission), Type C 3.1 1 (Charging and Data transmission, Full function Type-C)
	∮3.5mm Standard earjack *1
	HDMI 2.0a mini *1
	Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1)

	12PIN Pogo Pin *1 (Charging interface, USB signal connection base)

Adapter	AC100V ~ 240V 50Hz/60Hz Output TYPE-C 19V 3.42A European Standard adapter
Indicator Light	Blue indicator 1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) R&G two-color lamp 1 (Low power red flickers, red is always on when charging, green is always on when full)

Rugged Features	MIL-STD-810G: 1.22m drop
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge
	Humidity: 95% Non-Condensing

Certification	IP65
	CE
	FCC
	CCC
	MIL-STD-810G

A.For Cost Shipping:

EMS,DHL,Fedex,UPS,express shipping 3-10 working days

B.For free shipping:

Aliexpress standard shipping ways,20-45days

China Post air mail,20-60days

E-package,15-60days

C.Please double check your address before completing your payment.

1.If you are satisfied with our product and service,please leave positive feedback --five stars.And

please press the bottom ‘confirm order received’ on aliexpress.

2.If you are not satisfied with the items, please contact us before you leave the negative feedback.

We will always try our best tosolve the problem.

IMASON Innovtech Co.,Ltd is a domestic high-tech R&D company of rugged PDA,POS machine,Printer.Tablets PC and Laptop products.Specialized in Barcode Scanner,RFID,Printing Technology.and also the biggest domestic IDH of industry terminal and customization.The IMASON with the strategy of Research & Production & Promotion Integration, has set up the professional rugged productsmanufacturing workshop with well-equipped production line, the office work space in 1000 square meter, and also the laboratory in 300 square meter,which effectively combines and links the resources of research, quality, production and sales into great cooperation, further improvesthe product performance and quality, and ensures the timely delivery.IMASON basing on the sustainable development of industry's terminal technology,independently proceeds the R&D of fully rugged product series.
