- Frequency: 50-60Hz
- Model Number: ASD-B2-0721-B+ECMA-C20807RS
- Phase: Single-phase
- Protect Feature: Drip-proof
- Type: Servo Motor
- Efficiency: IE 1
- AC Voltage: 208-230 / 240 V
- Certification: ce
- Brand Name: YUN DUAN
- Origin: Mainland China
- Output Voltage: 750W
- Rated torque: 2.39N.m
- Maximum torque: 7.16N.m
- Rated speed: 3000r/min
- Maximum speed: 5000r/min
- Rated current: 5.1A
- Input voltage: AC 220V, using single-phase/3 phase input
- Communication Interface: RS-232 / RS-485
- Encoder Resolution: 17-bit (160,000 p/rev)
- product keyword 1: delta servo
- product keyword 2: ac servo motor
- product keyword 3: 750w servo motor delta
- product keyword 4: 750w delta servo motor
- product keyword 5: servo motor kit
- product keyword 6: 750w servo motor
- product keyword 7: delta ac servo drive
- product keyword 8: delta b2 servo drive
- product keyword 9: delta servo motor
- product keyword 10: delta servo motor ecma c20807rs

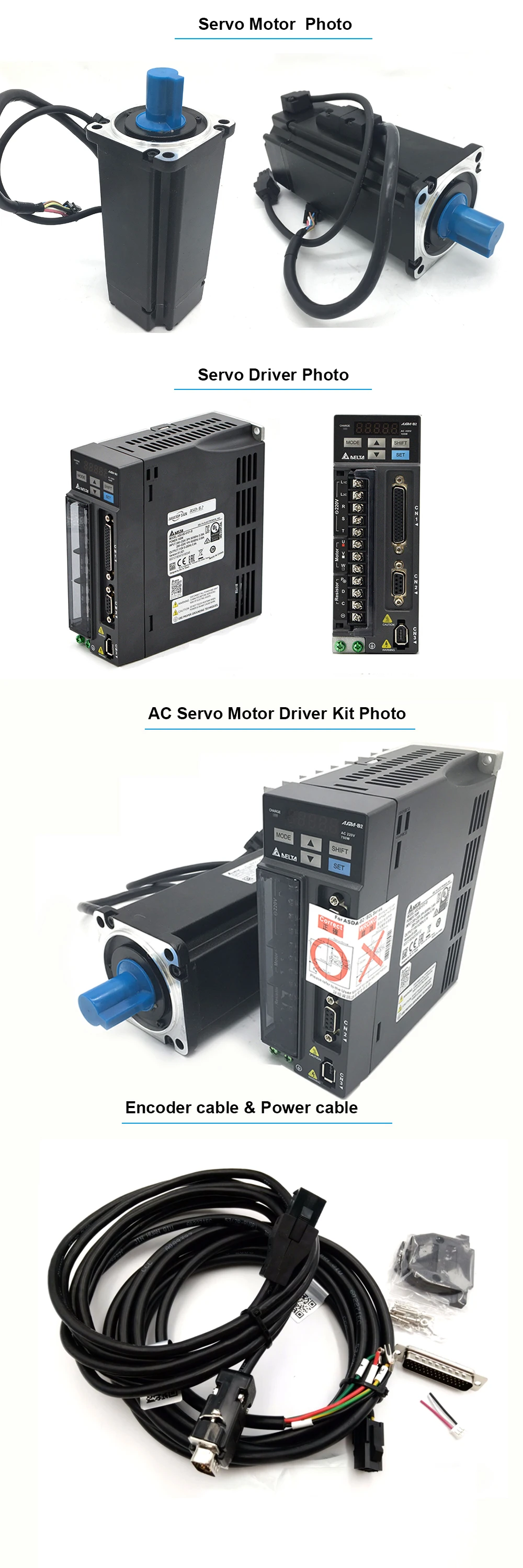

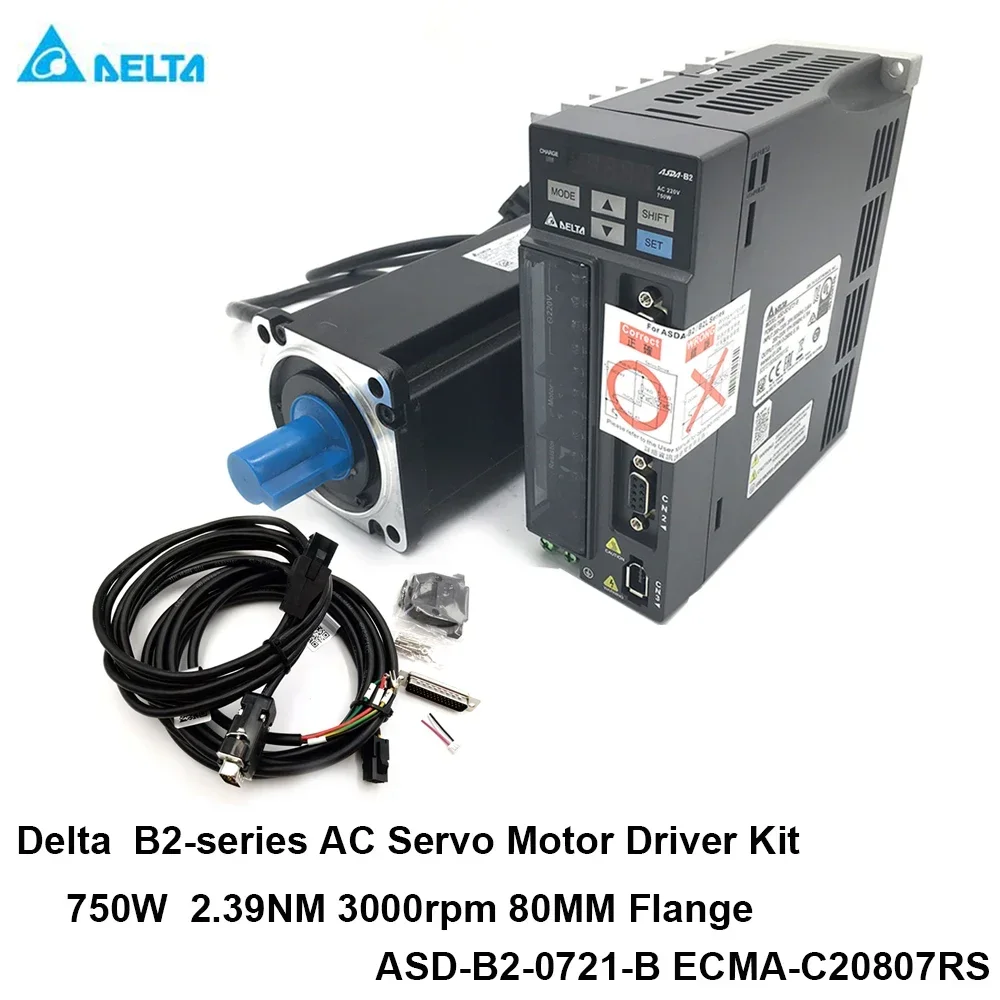

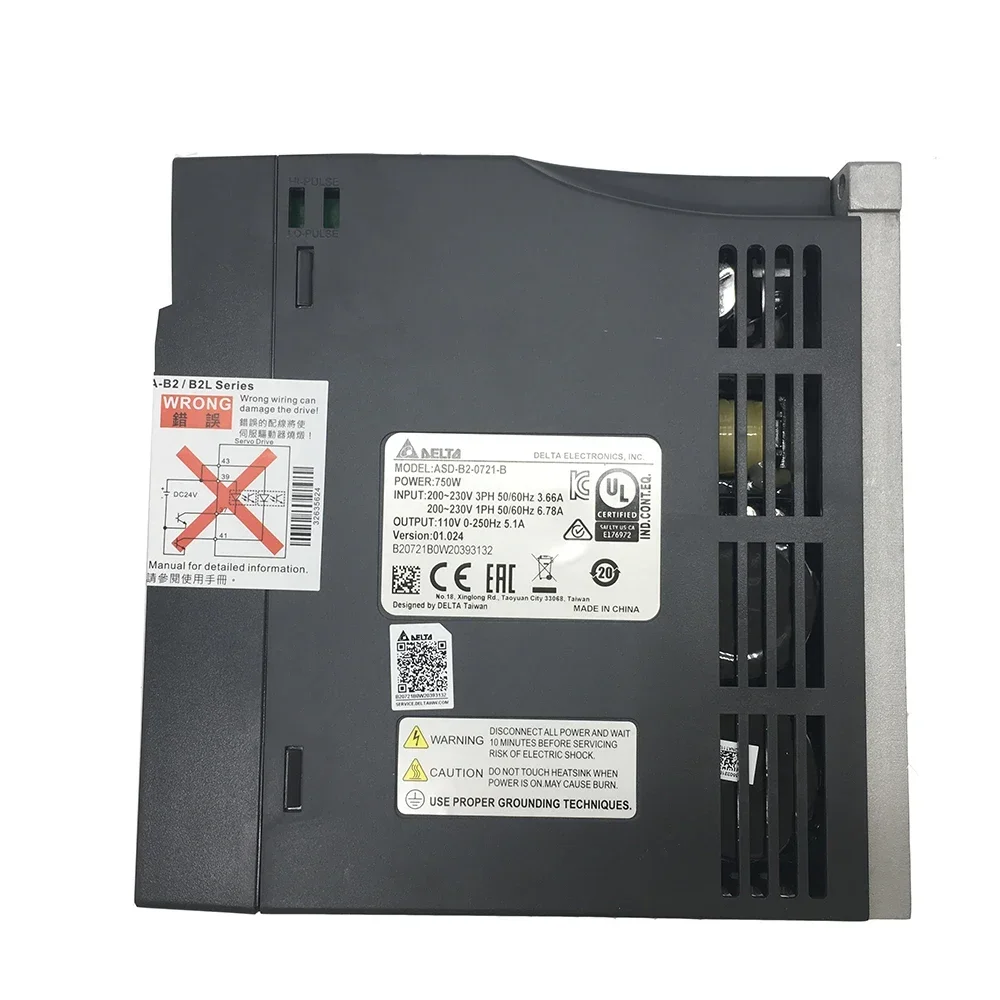

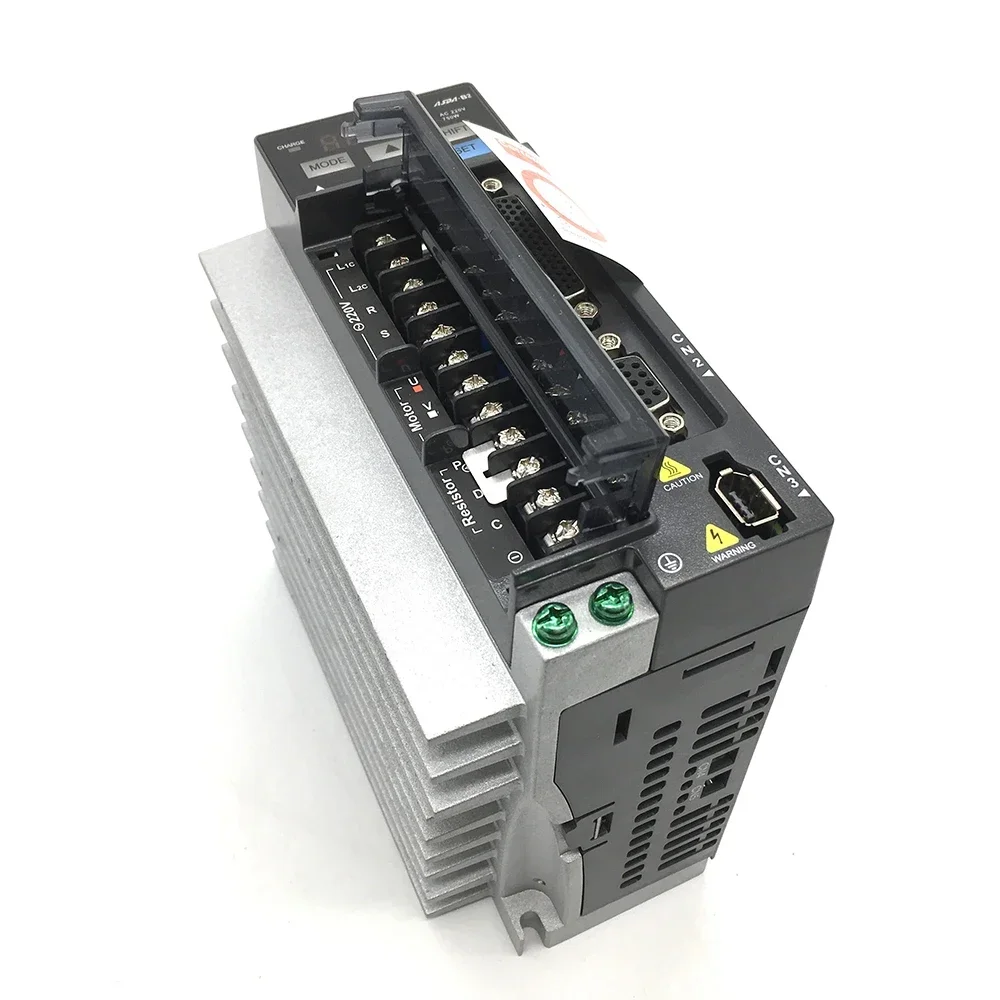

1X 750W Servo Drive

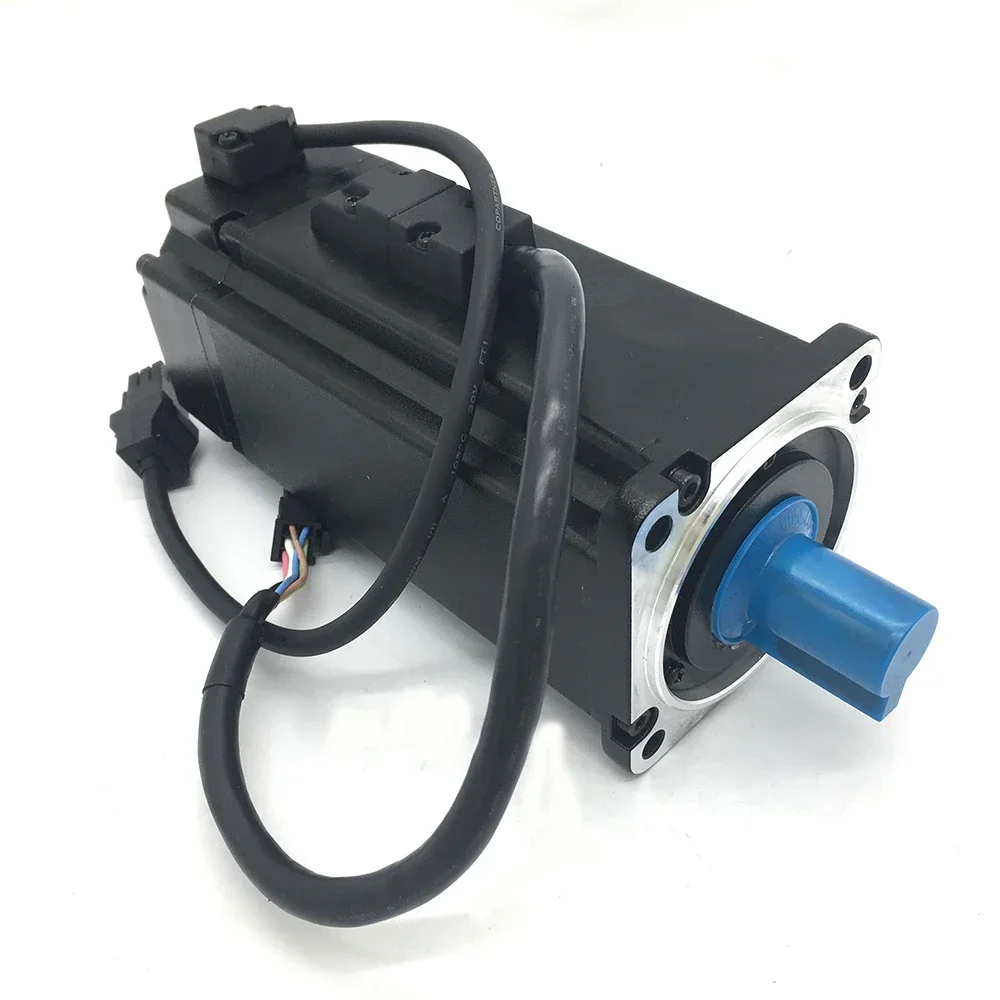

1X 750W Servo Motor

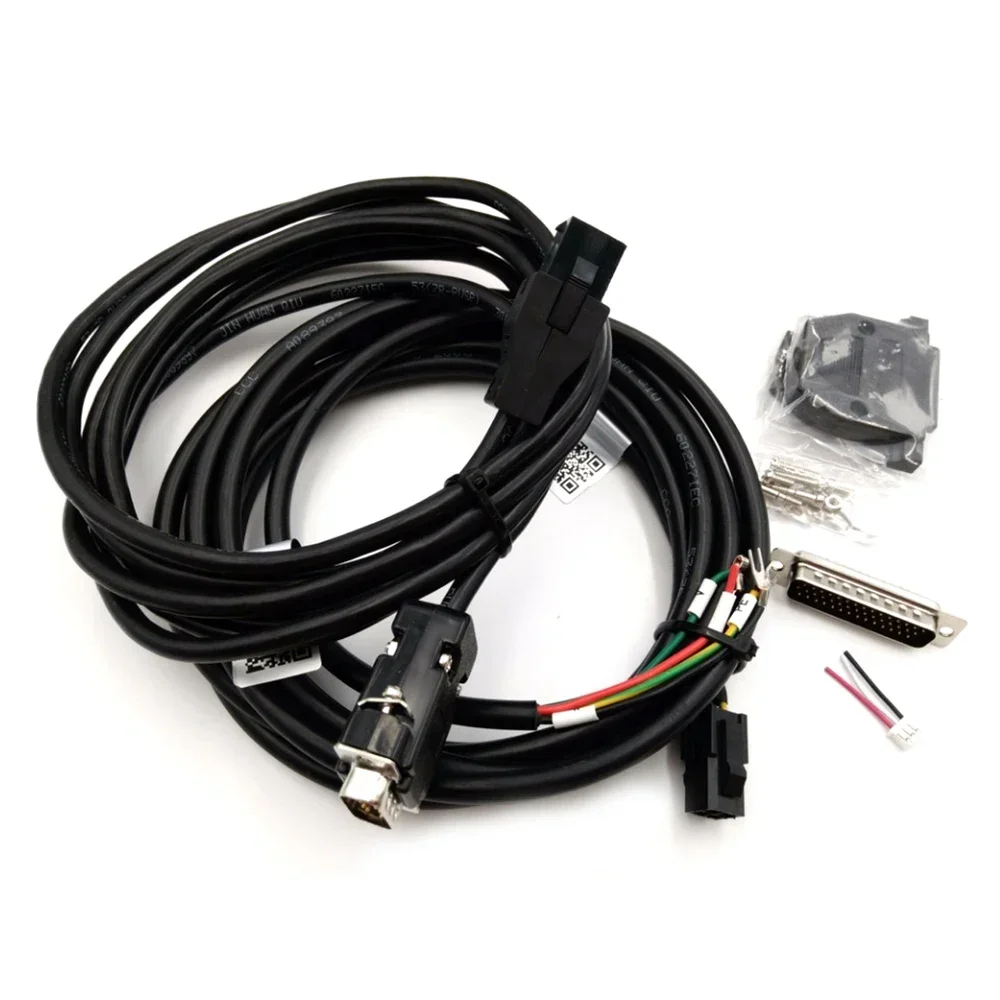

1X 3M Encoder Cable
1X 3M Power Cable
Attention: The Delta B2 series is about to stop production. We suggest that you purchase the latest upgraded version of the E3 series for a lower price: please click here
To get the English manual, please click here.
Features
Implements High Precision Positioning Control
►
ASDA-B2 series servo drivers support 20-bit and 17-bit encoders. The series satisfifies the demand of high-precision
positioning control and stable operation at lower speeds.
positioning control and stable operation at lower speeds.
►
Applying the encoder with a higher resolution can reduce the cogging torque and improve the motor's precision.
2500ppr of Torque Ripple 17-bit of Torque Ripple
►
Outstanding performance with higher speed: Up to 550Hz frequency response and settling time is below 1ms.
►
10ms acceleration time from -3000r/min to 3000r/min when running without load.
Example: Servo motor frame sizes 60mm and 400W
Satisfifies a Variety of Industry Demands
►
Three control modes available: Built-in position, Speed, and Torque.
(Speed and Torque mode canbe controlled by internal parameters or analog voltage.)
(Speed and Torque mode canbe controlled by internal parameters or analog voltage.)
►
High-speed differential command (up to 4Mpps) for high precision positioning control.
►
Three notch fifilters are provided to suppress the mechanical resonance effificiently
and make the system operate more smoothly.
and make the system operate more smoothly.
►
Lead friction compensation parameter is specifified for the application of circular interpolation,
Z-axis motion and ball screw to reduce the loading of the controller.
Z-axis motion and ball screw to reduce the loading of the controller.
►
For bar feeders and other equipment requiring high torque output,
motor protection parameters are offered to protect the mechanical system.

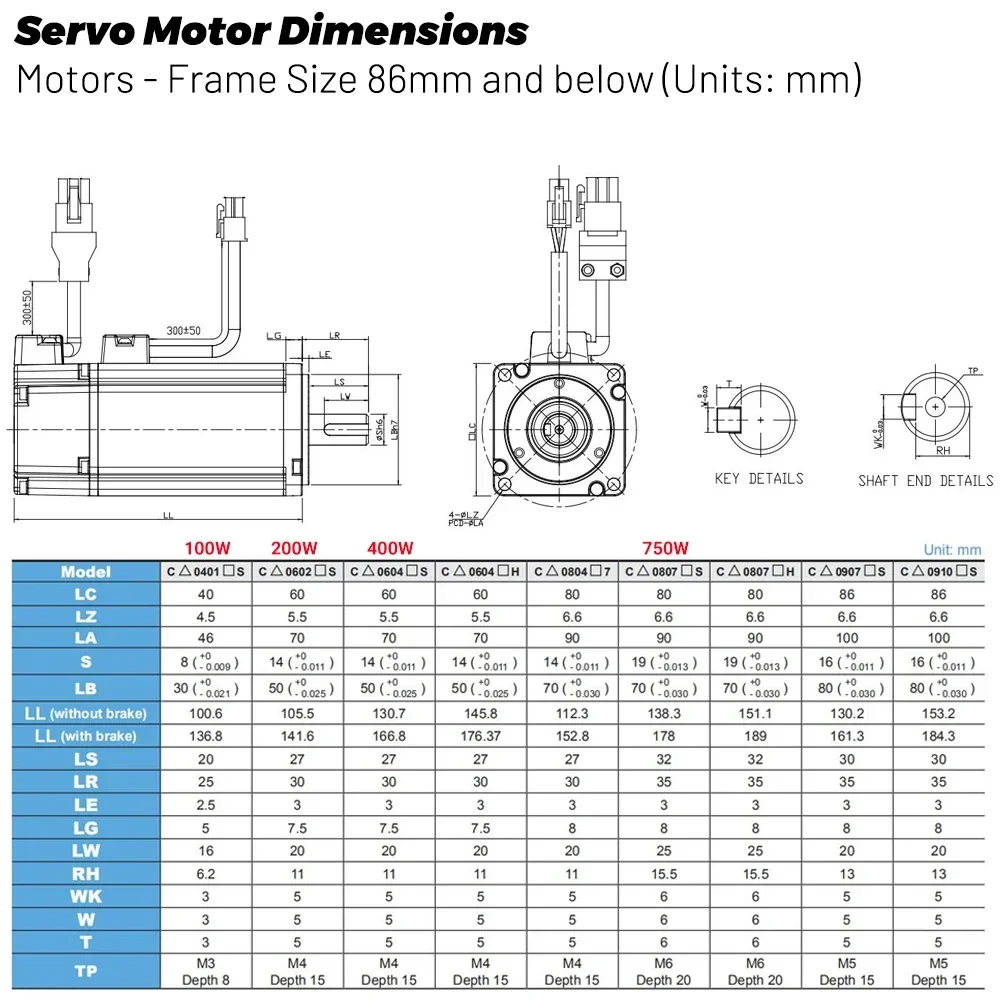

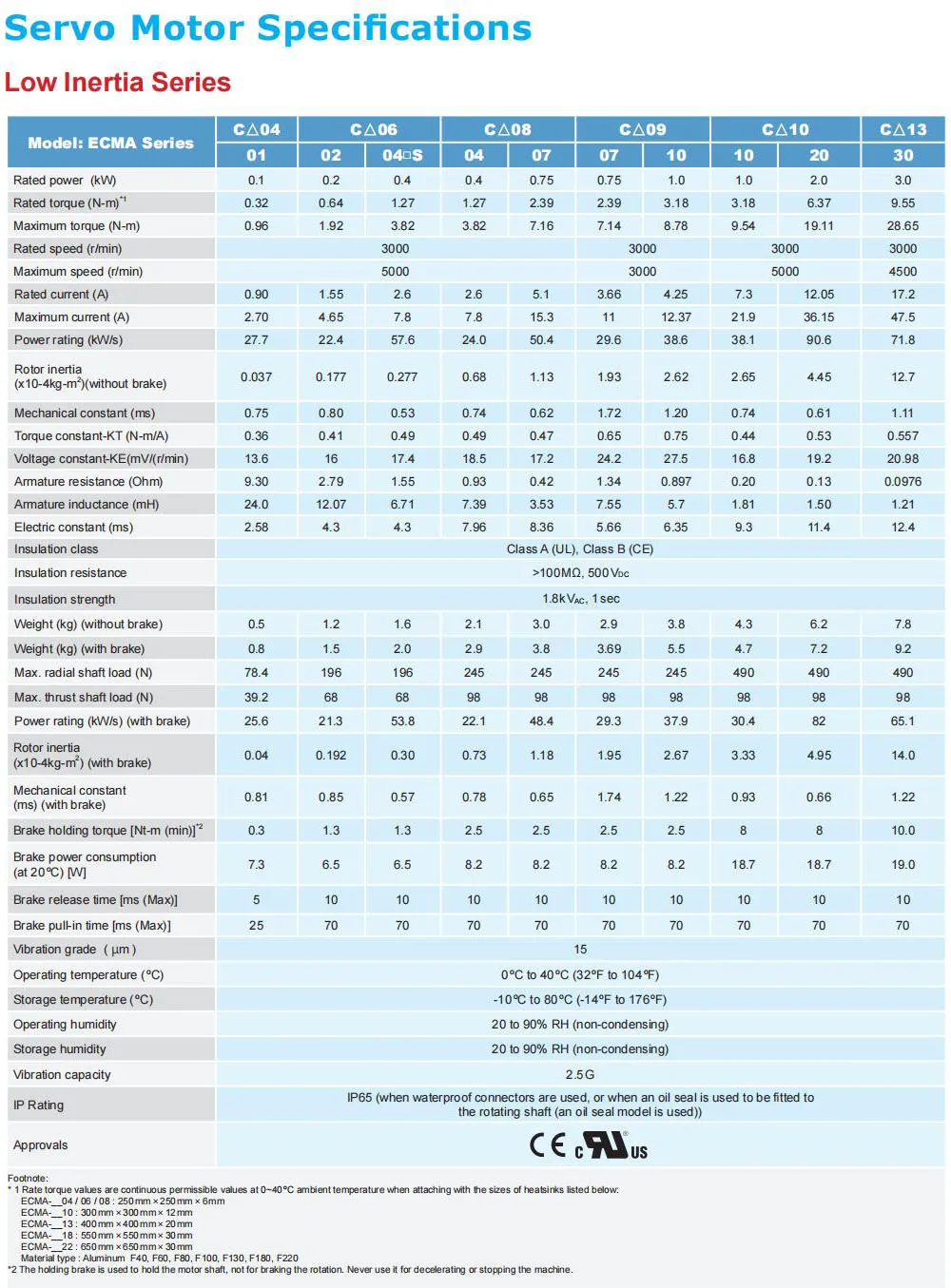

Motor Specifications
Motor Specifications
●Model: ECMA-C20807RS/ ECMA-C20807SS (with brake)
●Power: 750W
●Rated torque: 2.39N.m
●Maximum torque: 7.16N.m
●Rated speed: 3000r/min
●Maximum speed: 5000r/min
●Rated current: 5.1A
●Maximum current: 15.3A
●Power rating: 50.4kW/s
●Insulation class: Class A (UL), Class B (CE)
●Max. radial shaft load: 245N
●Max. thrust shaft load: 98N
●Vibration capacity: 2.5G

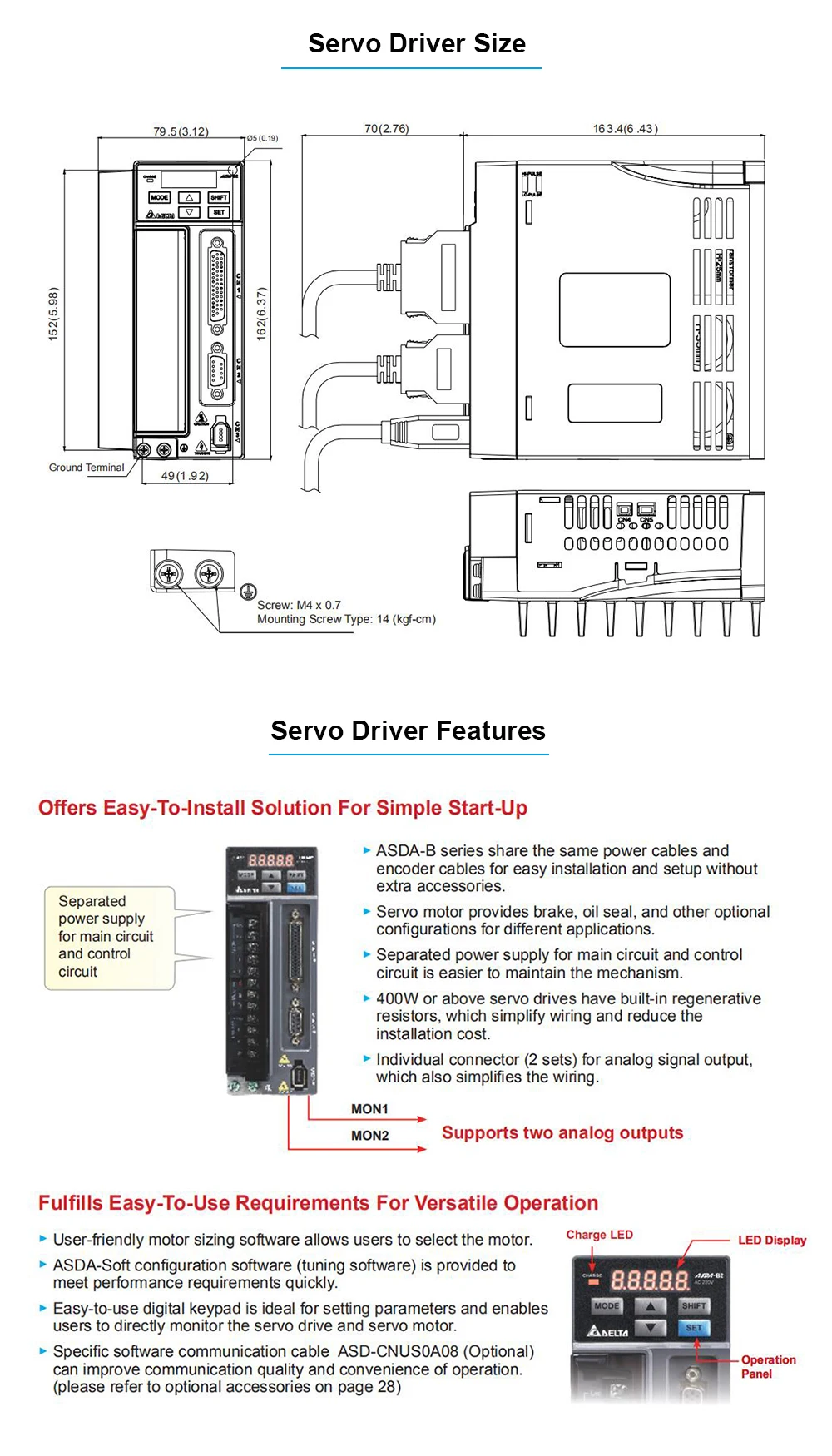

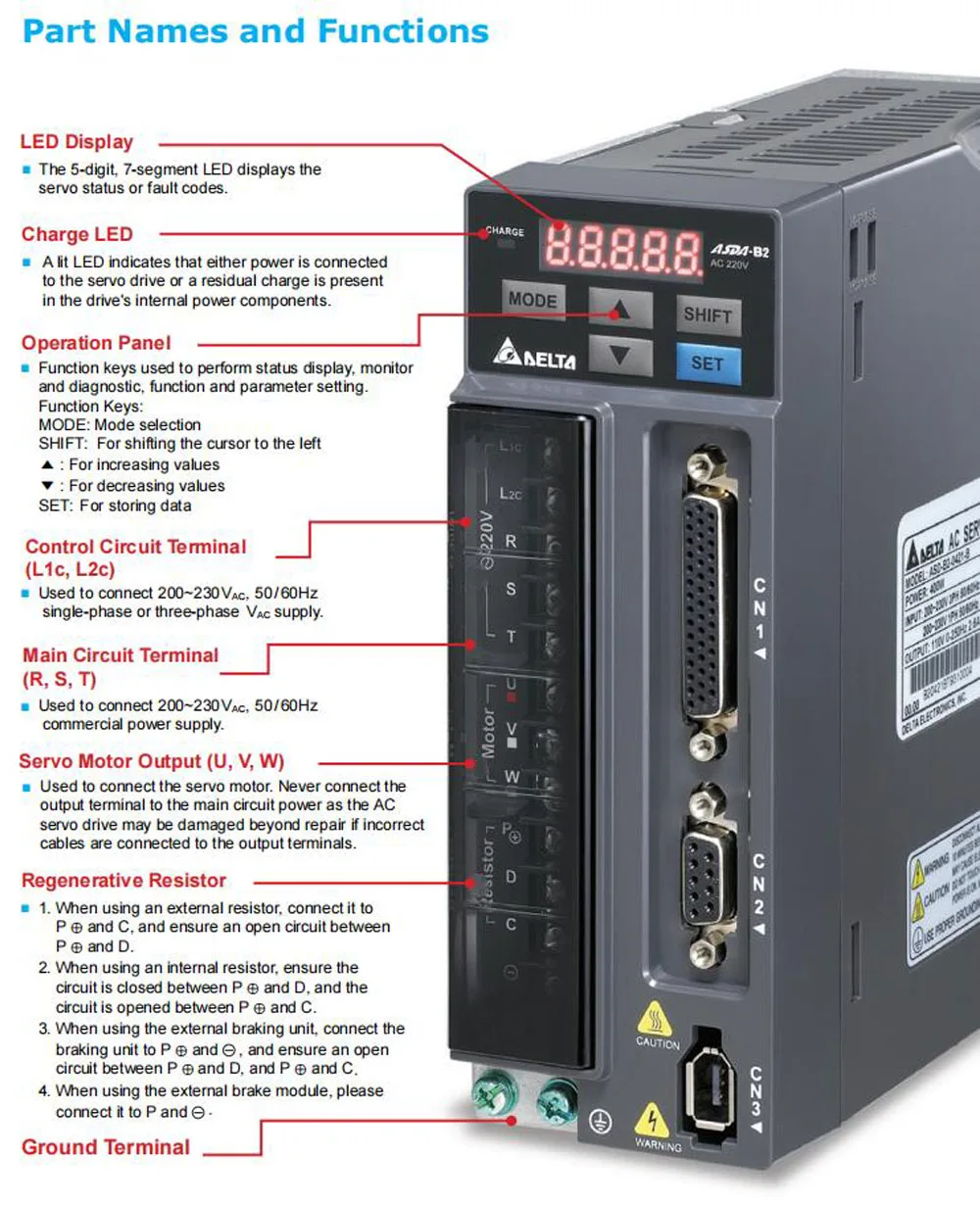

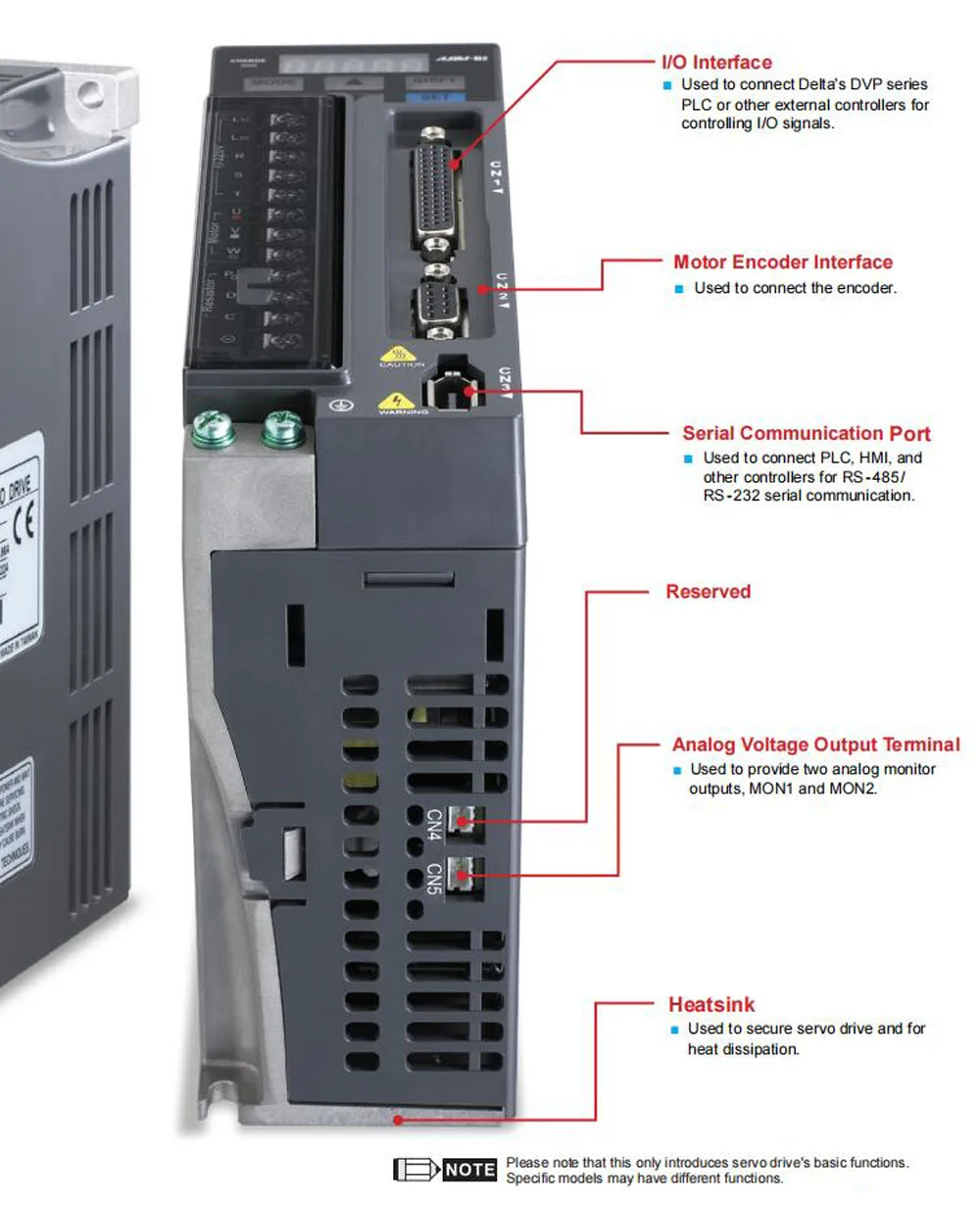

Drive Specifications :
●Power: 750W
●Power Supply Phase / Voltage:
3-phase: 170 ~ 255VAC, 50/60Hz ±5%
Single-phase: 200 ~ 255VAC, 50/60 Hz ±5%
●Input voltage: AC 220V, using single-phase/3 phase input
●Cooling System: Natural Air Circulation
● Communication Interface:
RS-232 / RS-485
●Encoder Resolution:
17-bit (160,000 p/rev)
●Main Circuit Control: SVPWM (Space Vector Pulse Width Modulation) Control
●Control Mode: Auto / Manual
●Regenerative Resistor: Built-in
●Receiving optical ruler and encoder signal support fully closed loop control
●Incremental rotary encoder 20-bit resolution, suitable for highprecision applications
●Providing high-speed communications networks
●The extension module can design a variety of functions to meetthe needs of customized products
●Builtin motion control function (powerful internal position mode)
●Electronic CAM function can set the optimal movement path of machinery;
Maximum planning 720 point position (for food processorsand sealers)
●Built-in Longmen Synchronous function (CNC wire Cutting GElectronic Industry machine)
●Main Circuit Control: SVPWM (Space Vector Pulse Width Modulation) Control
●Control Mode: Auto / Manual
●Regenerative Resistor: Built-in
●Receiving optical ruler and encoder signal support fully closed loop control
●Incremental rotary encoder 20-bit resolution, suitable for highprecision applications
●Providing high-speed communications networks
●The extension module can design a variety of functions to meetthe needs of customized products
●Builtin motion control function (powerful internal position mode)
●Electronic CAM function can set the optimal movement path of machinery;
Maximum planning 720 point position (for food processorsand sealers)
●Built-in Longmen Synchronous function (CNC wire Cutting GElectronic Industry machine)
