Specification
|
item
|
value
|
|
Condition
|
New
|
|
Range of Spindle Speed(r.p.m)
|
0rpm - 24000rpm
|
|
Number of Axes
|
6
|
|
Function
|
Carving Milling Cutting
|
|
Warranty
|
1 Year
|
|
Product name
|
Kuka carving robot arm
|
|
Spindle
|
7.5kw
|
|
Controller
|
KR C4
|
|
Max.envelope
|
2696mm
|
|
Load
|
210kgs
|
|
Voltage
|
380V/50-60Hz
|
|
Other parts
|
Positioner and Rail
|
Application Field
Plastic trimming
A robotic cell next to a 6-axis milling robot can be the ideal system for the manipulation of this material, it will provide a stable process and of optimum precision in the cut of milling, using a low power when trimming pieces of low volume, improving the
control of noise and dust, with faster and cheaper deliveries, minimal maintenance and putting the system back on track in less time.

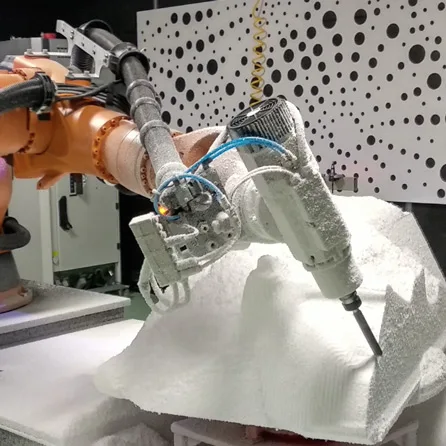

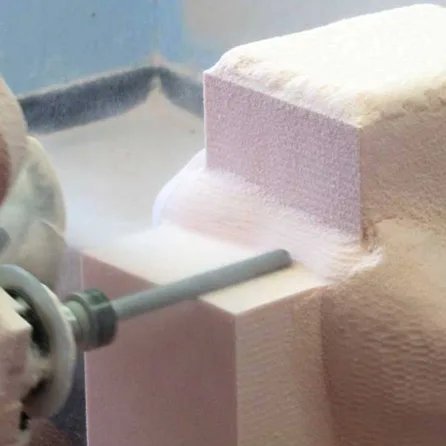

Polystyrene
This is one of the most used and lowest cost materials. The milling of this material with an industrial robot provides greater versatility and flexibility when performing complicated movements when carving the piece. This type of material can be processed
by water jet cutting and injection molding.

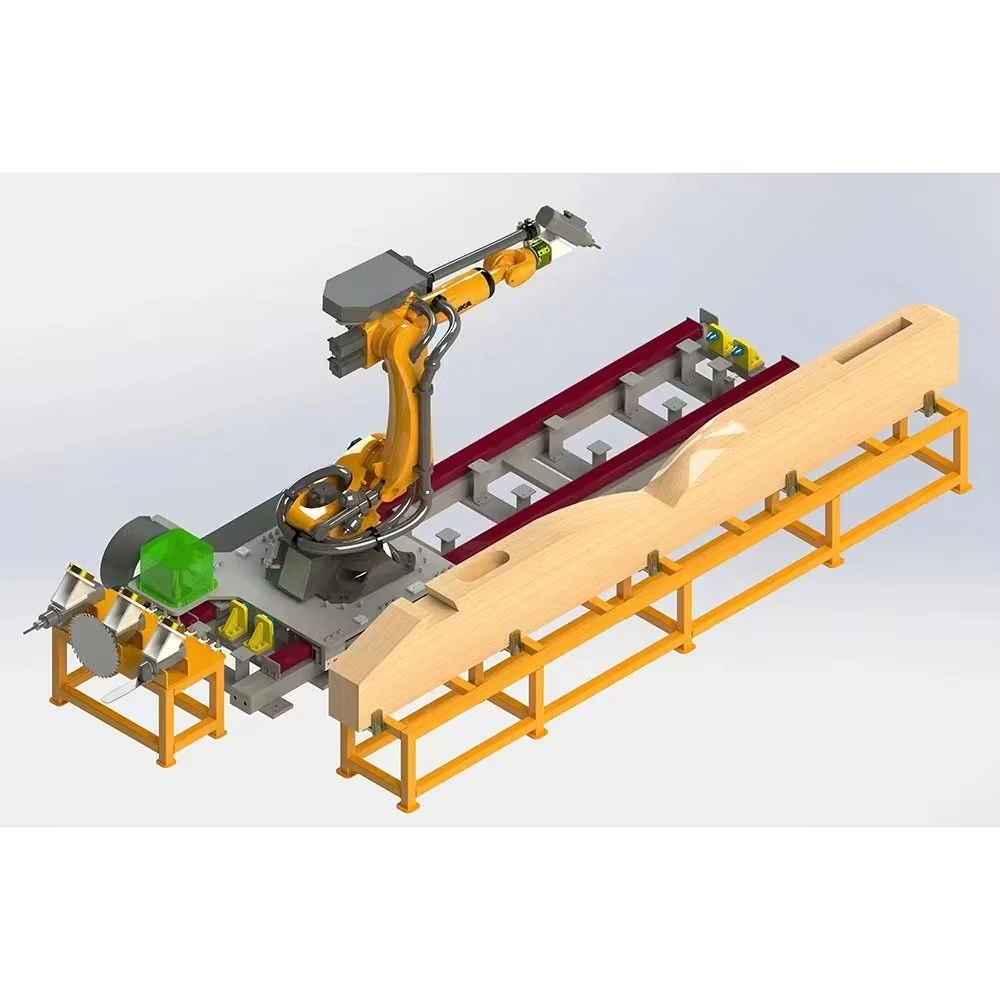

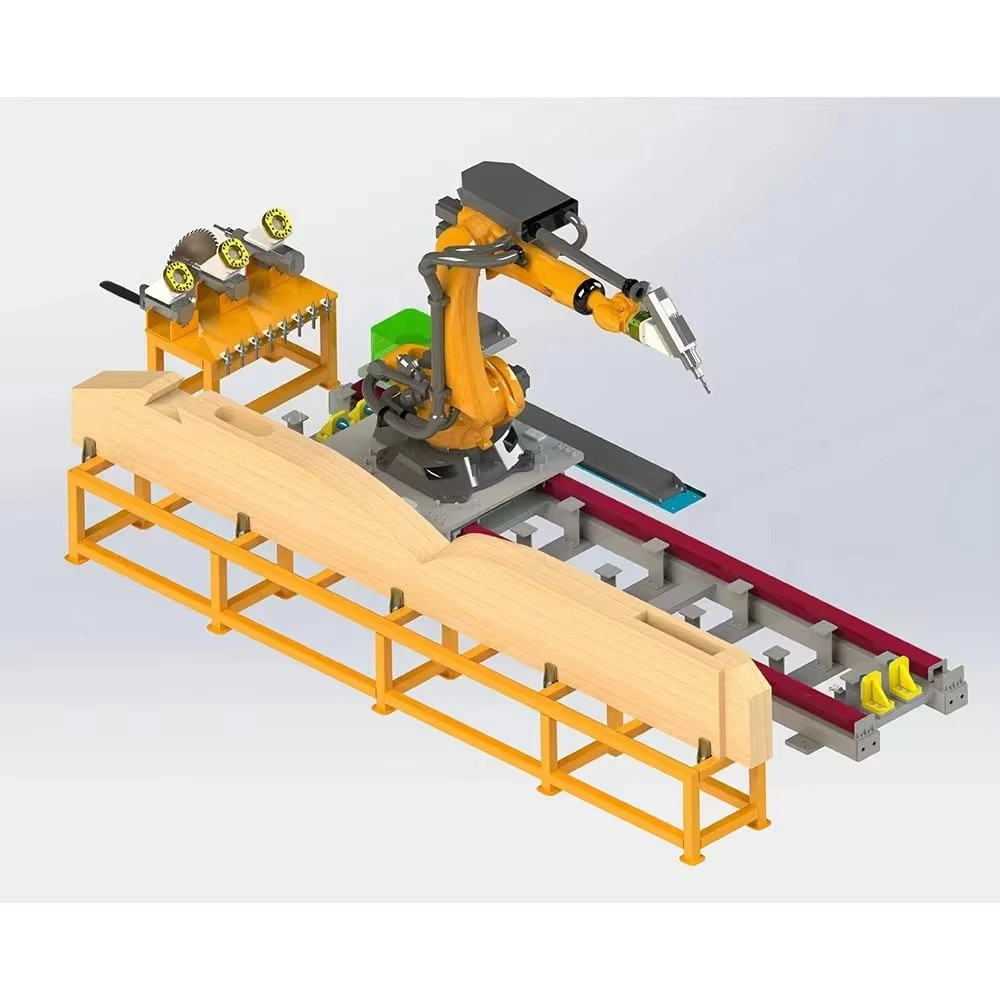

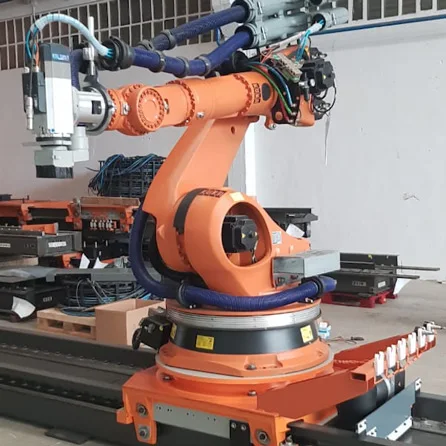

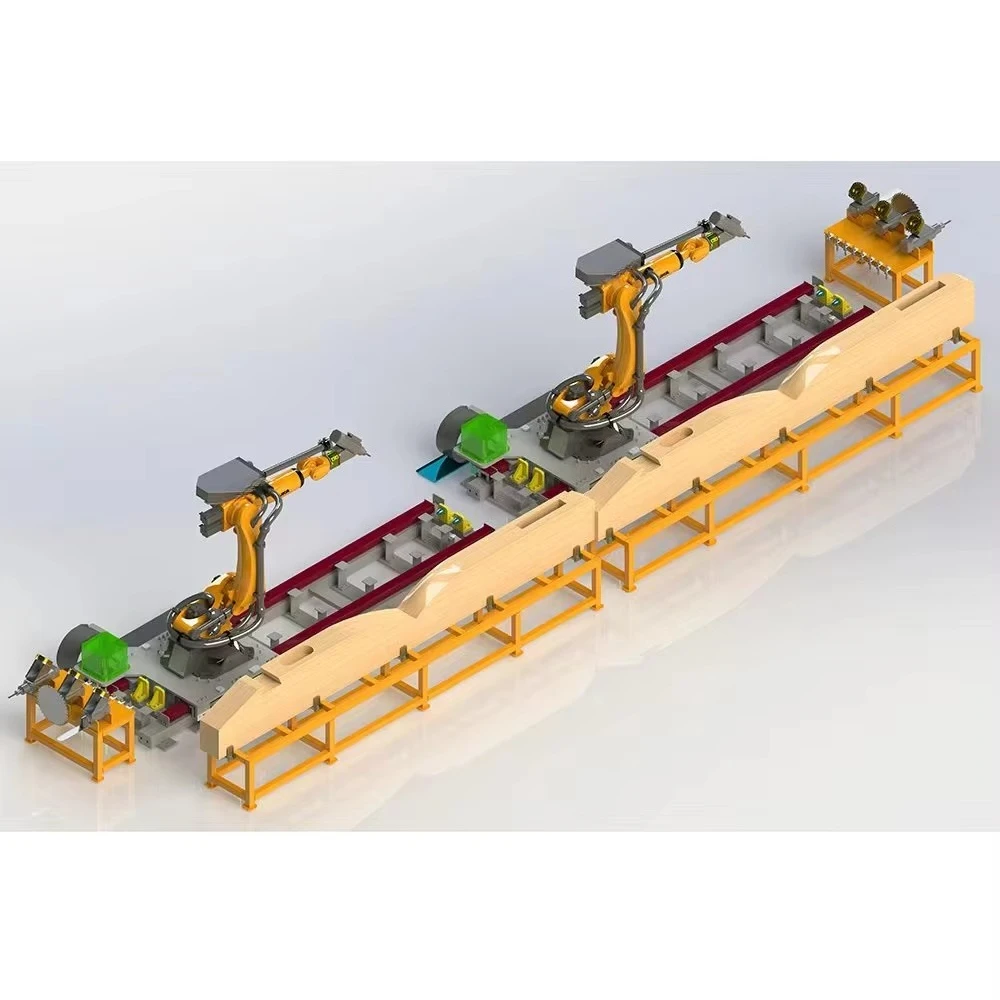

Robot on linear track
Perform milling on a linear track it provides stability and strength by providing production lines and work cells flexibility,speed and precision. These positioning systems (linear track) will allow the robot to perform several processes in different directions, motivating this seventh axis to minimize cycle time, maximize efficiency and save costs.

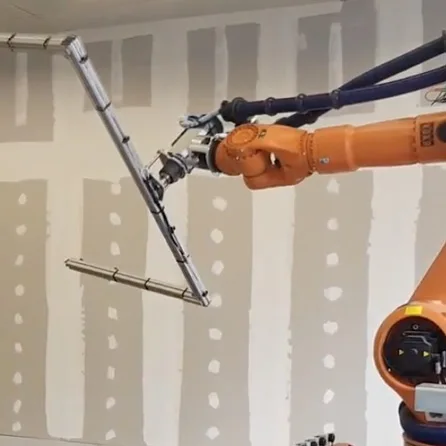

Robotic hot wire cutting
The hot cutting wire meets high machining standards because it is fast and efficient when it comes to forming a part; obtaining less waste of material and improving the time of machining, can be adapted to different lengths by adding a rotating table.

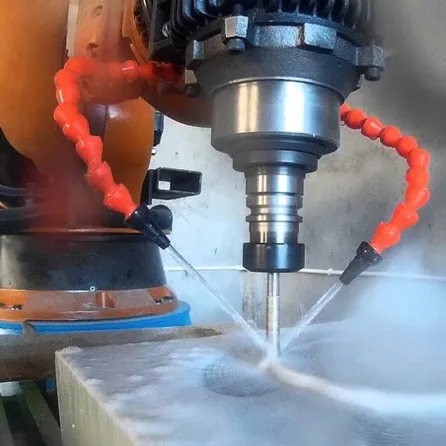

Marble machining
The robotic automation of the milling of the marble together with a simple software will allow to maximize the production especially in the finishing phase with high levels of precision that will save time in processes of manufacture of sculptures, engravings, restoration, etc.

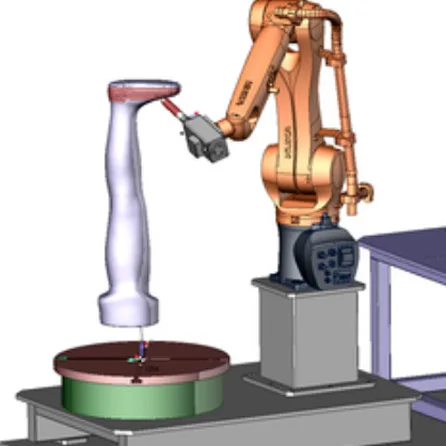

Medical
Modeling an orthopedic prosthesis is carried out by a milling system which is complemented by new technologies supported by CAD / CAM provides the advantage of making orthopedic functional prototypes of all kinds.

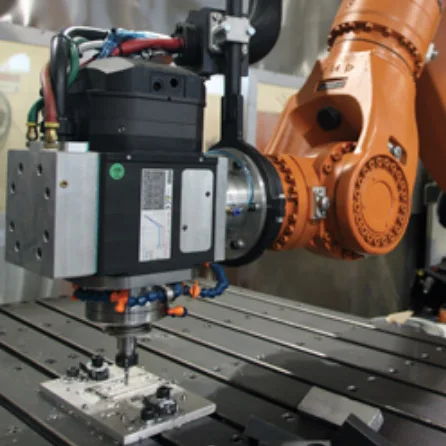

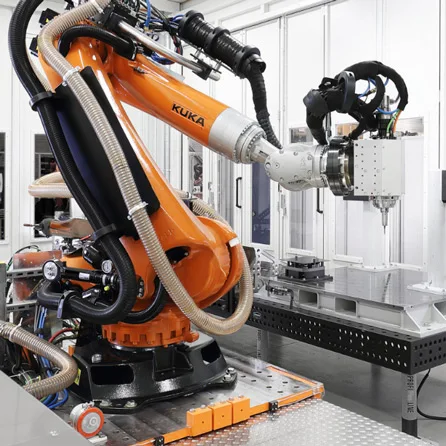

Metal milling
The solution of robotic milling in metals has had great advances adapting easily to the production lines offering a safe
machining, resistant, with greater flexibility and repeatability, achieving efficiency in the continuous cycle times, mainly when working on large parts.
Nautical/Boat milling
Using robotic automation of milling for the manufacture of yachts has allowed this industry from its production lines and with the collaboration of an interface that processes its information through CAD / CAM; designing and modifying prototypes faster,
reducing production time maintaining a high level of accuracy.
Architecture
The architectural designs made with robots have the ability to mill and create structures with very defined contours thanks to the use of cutting tools and modeling programs controlled by the robotic system adapting to any material and transition; promoting new technological developments for construction.

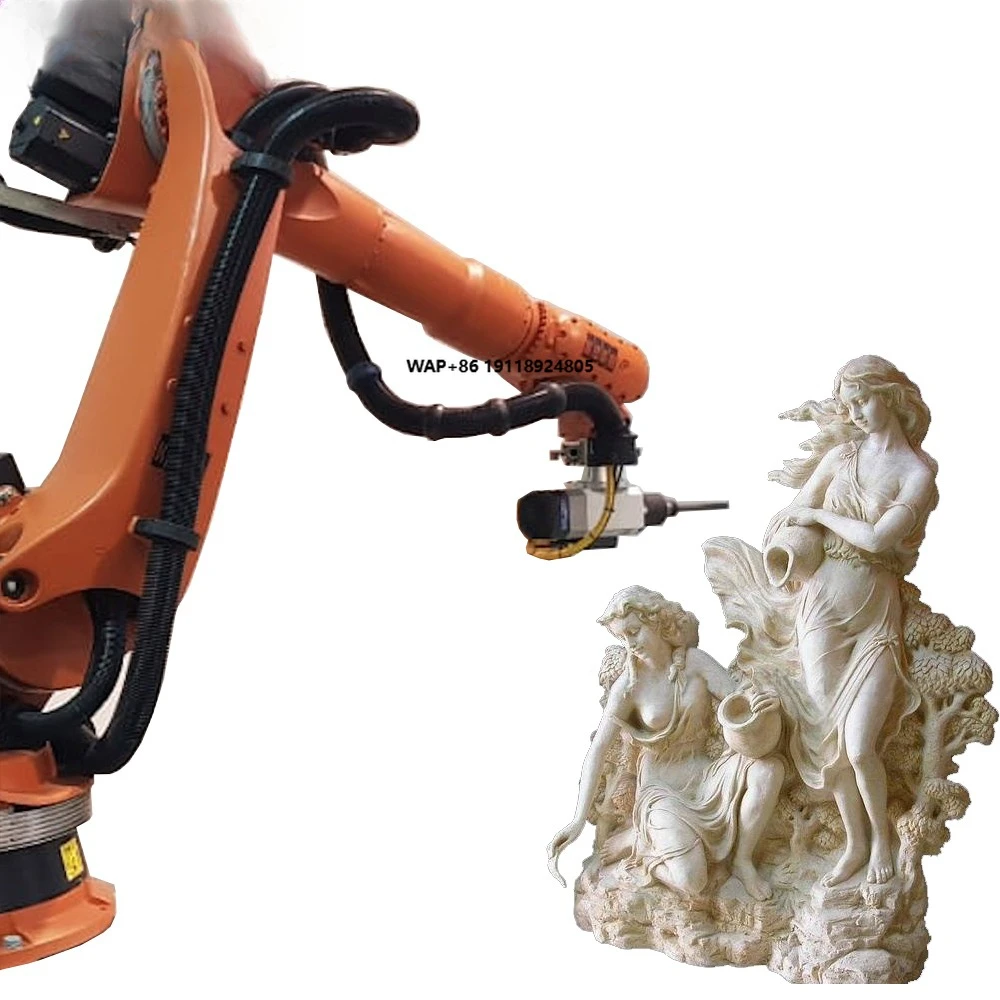

Art
Through the use of industrial robots, a computer-assisted system, the integration of a machining tool and devices that complements the milling system, it has been possible to create, manufacture and imitate all kinds of art from painting, drawing, writing and sculpture, taking care of every detail when shaping the finished piece with optimal precision.

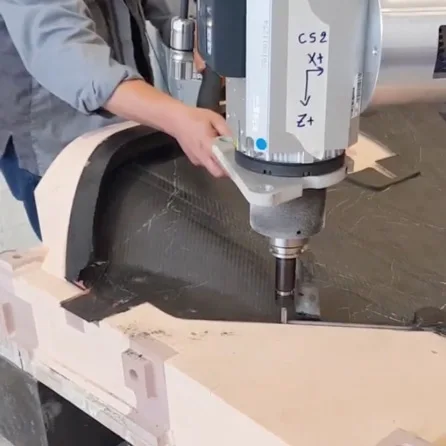

Carbon fiber trimming
A system of milling allows to work in pieces of forms and compound materials, light and resistant like the fiber of carbon, that can be drilled, contoured, mechanized or cut; With the right tool performing the process at high speed to achieve clean cutting
profiles and double the volume of machined products.

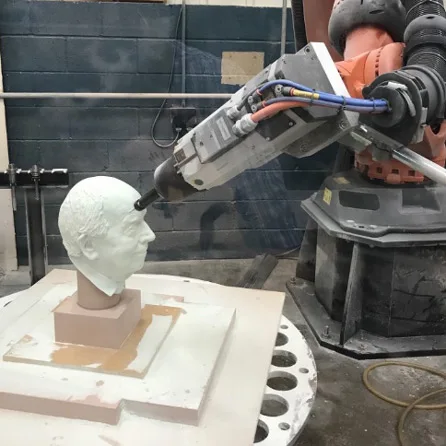

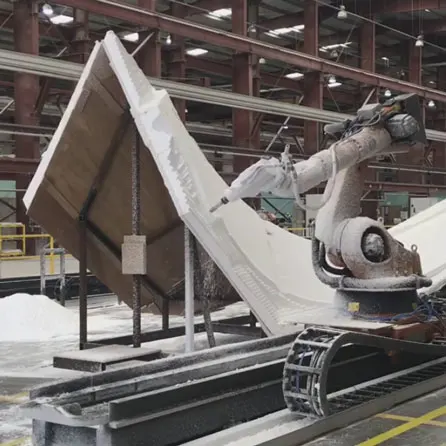

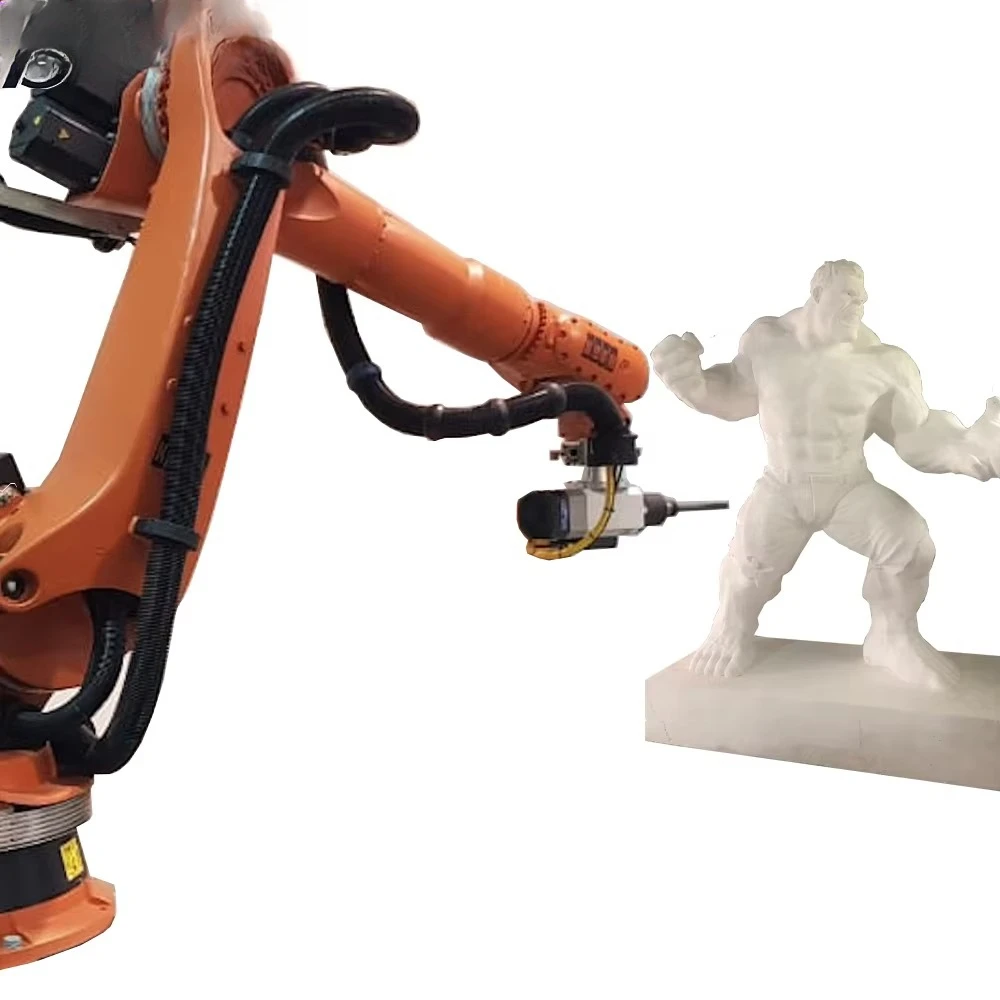

Foam sculpting
Robotic milling systems together with a cutting tool design that provides greater benefit, can offer flexibility to process materials such as foam and create large-scale sculptures up to 34 feet long, following a continuous path at high speed.

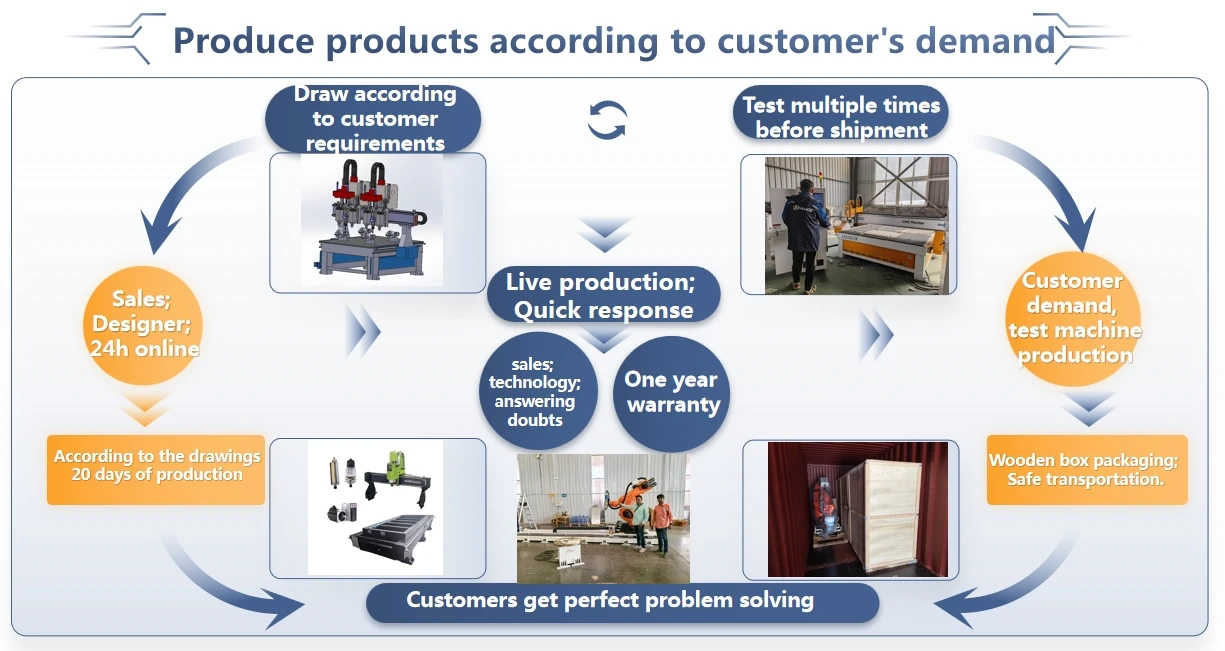

Production Process
