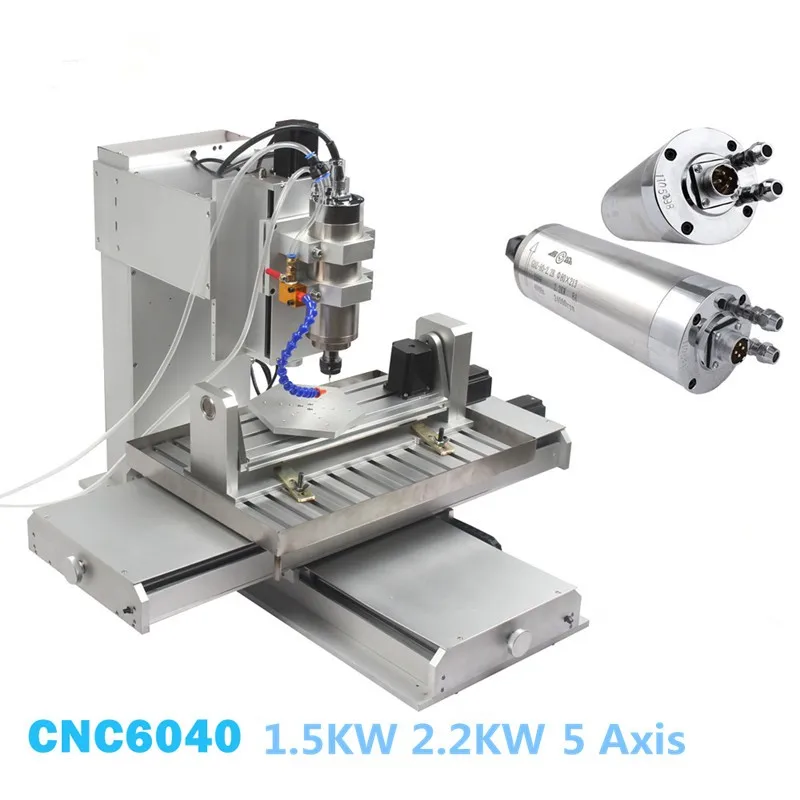

6040 1500W 2200W 5 axis CNC Router Engraving Machine with Ball Screw CNC Pillar Type CNC Wood Aluminum Copper Metal Milling Machine
|

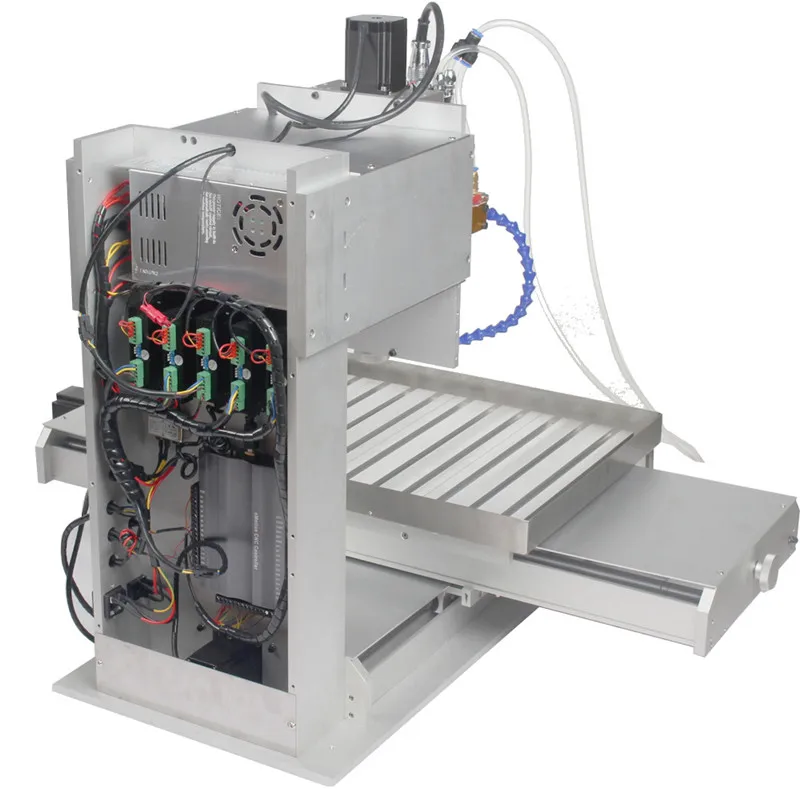

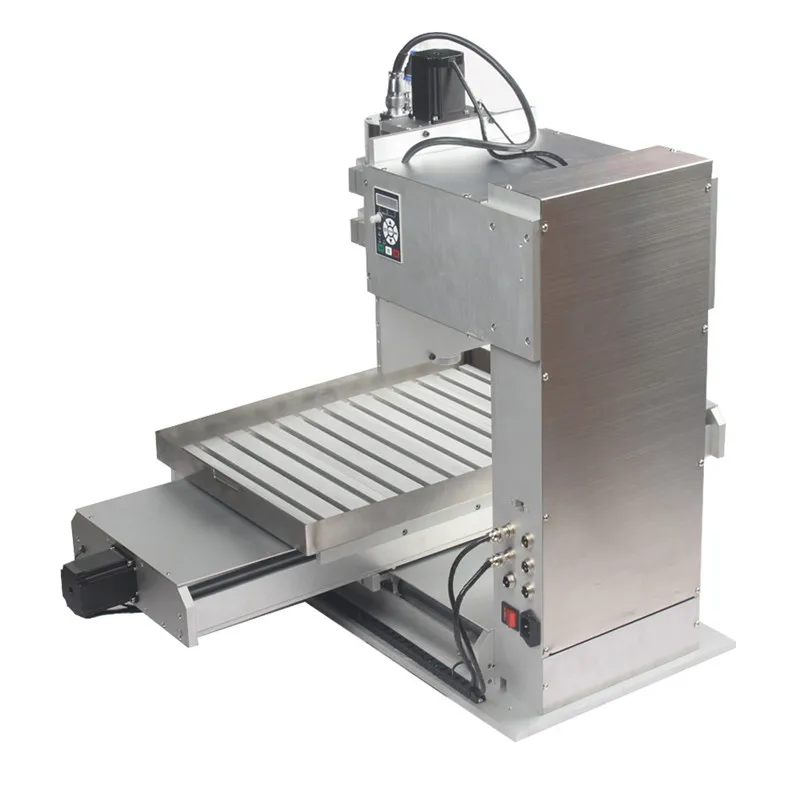

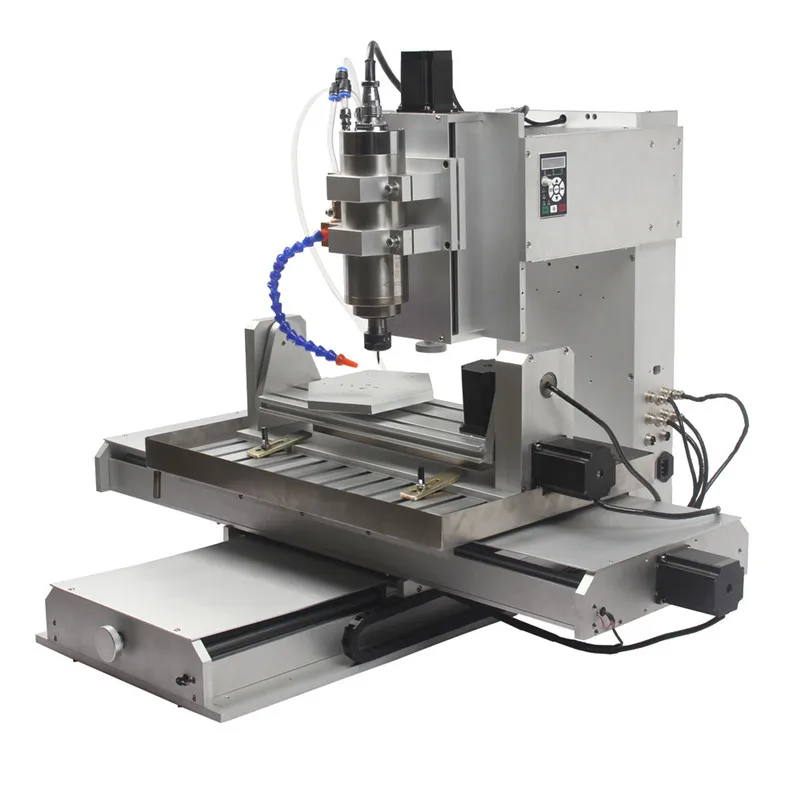

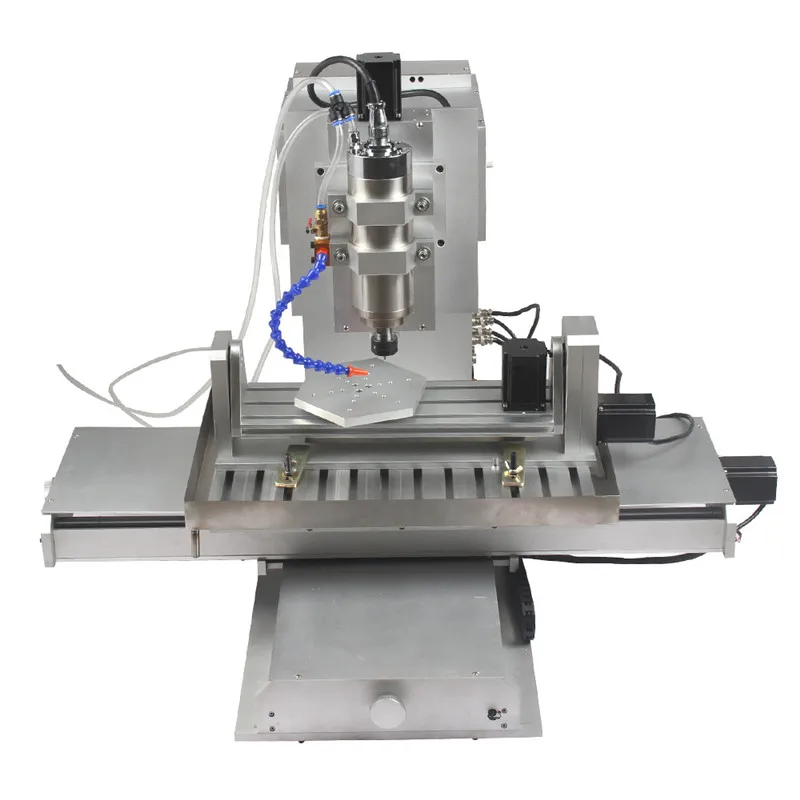

CNC6040 DIY 5 Axis CNC Router
|
|
Effective working travel
|
583(X)mm*420(Y)mm*145(Z)mm
|
|

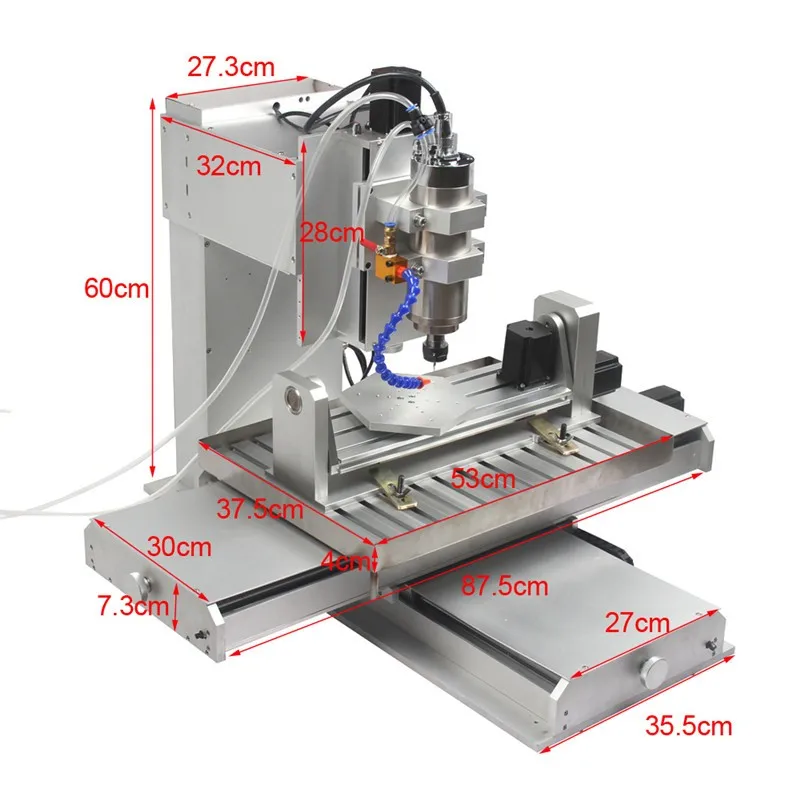

Shape dimension
|
855*875*600mm
|
|
Work table size
|
742*480mm
|
|
Frame material
|
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles.
|
|
Acceptable material thickness
|
<=150mm
|
|
Driving units x/y/z axis
|
SFUR1605-DFC7-PO ball screw
|
|
X axis
|
Dia. 20mm chrome plate shafts
|
|
Y axis
|
Dia. 16mm chrome plate shafts
|
|
Z axis
|
Dia. 13mm chrome plate shafts
|
|

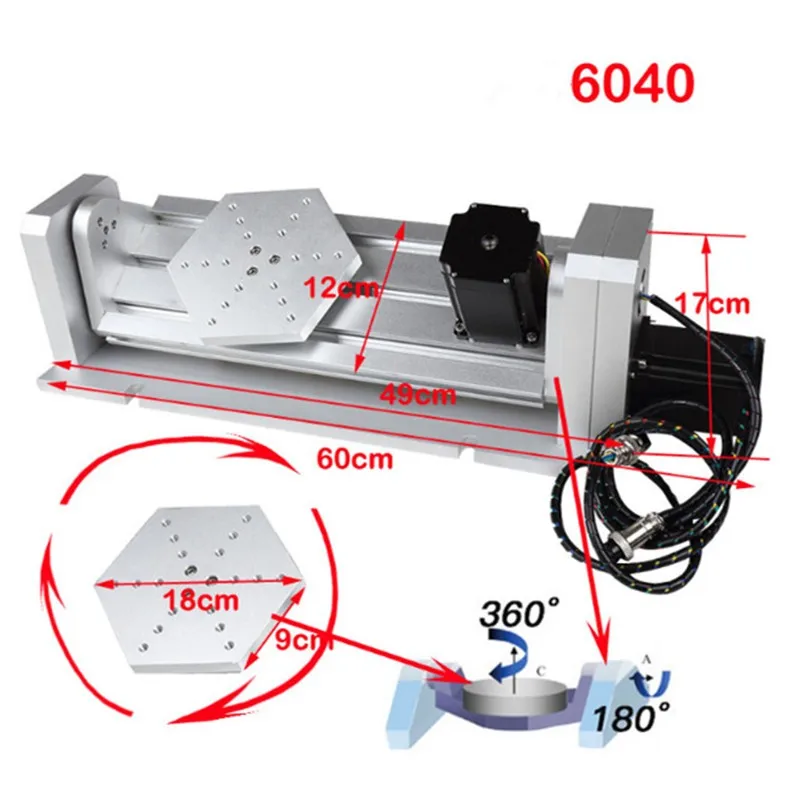

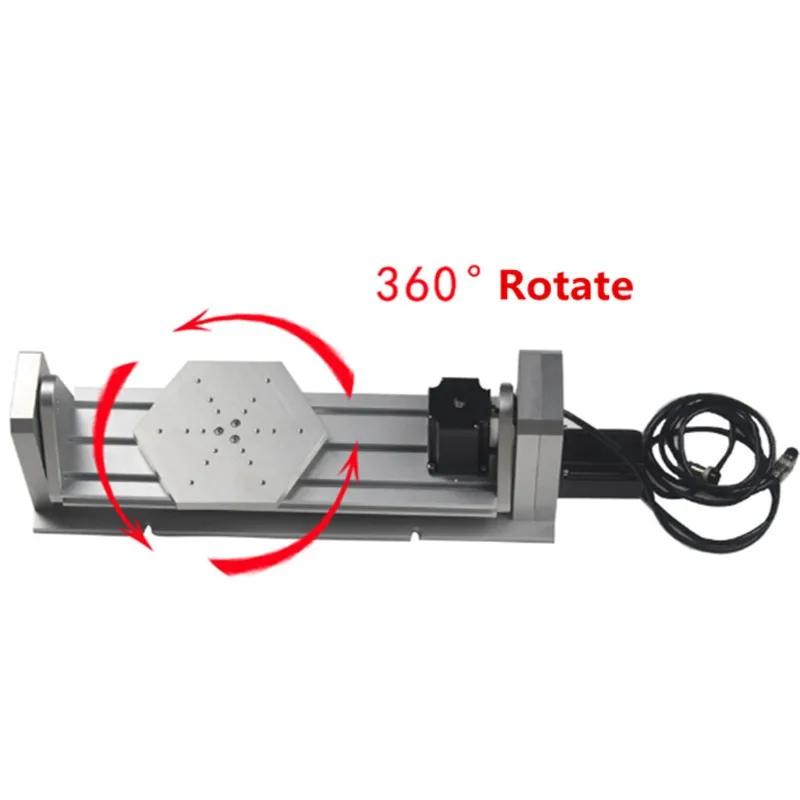

A axis (rotating shaft)
|
Unlimited rotation angle 360 degree
|
|
B axis (tilting axis)
|
Rotation angle +30/-90
|
|

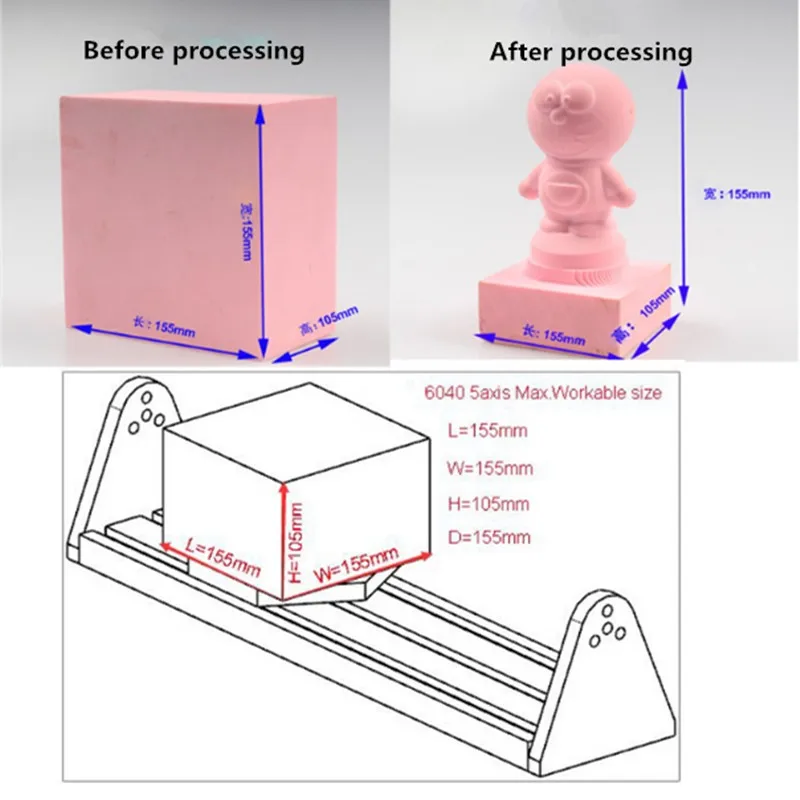

5 axis working area
|
155(X)mm*155(Y)mm*105(Z)mm 306degree 30-90degree Diameter180mm
|
|
Stepping motor type
|
57 two-phase 3A 180N.cm
|
|
Spindle motor
|
New 1500/2200w Water cooling spindle 24000 RPM
|
|
Spindle collet
|
ER-20 1-13mm
|
|
Repeated accuracy
|
0.05mm
|
|
Spindle accuracy
|
0.03mm
|
|
Software environment
|
WinXP/7/8/10
|
|
Maximum speed
|
0-4000mm/min
|
|
Computer connection
|
USB port
|
|
Code file format
|
x-t /stp/igs/catia/prt/Model format
|
|
Protection
|
Emergency stop button
|
|
Working voltage
|
AC 220V/110V
|
Main Features
Easy operating because:
It can work with 3 axis / 4 axis / 5 axis, just as you like !

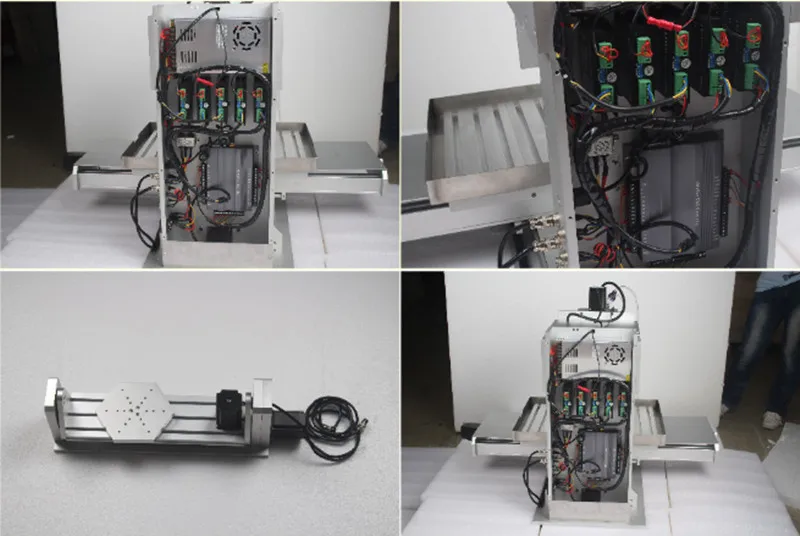

Independent high-speed micro computer intelligent controller.
Independent drivers for each axis.
Mach 3 software USB connection
Upgraded with more stable structure than old type
Built in frequency converter and without controller box.
Higher precision because:
Cross slippery platform design rather than gantry design.
Aluminum base sheet is heavy which can make sure less vibration when work.
With auto-checking function.
1500/2200w water-cooled spindle.
Ball screw
Stainless Steel sink for bits cooling
You can buy this machine from us without any worry because:
CE approved.
Video support.
English manual available.
Mach 3 software send with the machine as a CD.
Can engrave material which hardness below 45.
From reliable & trustable professional China CNC Router manufacturer
|

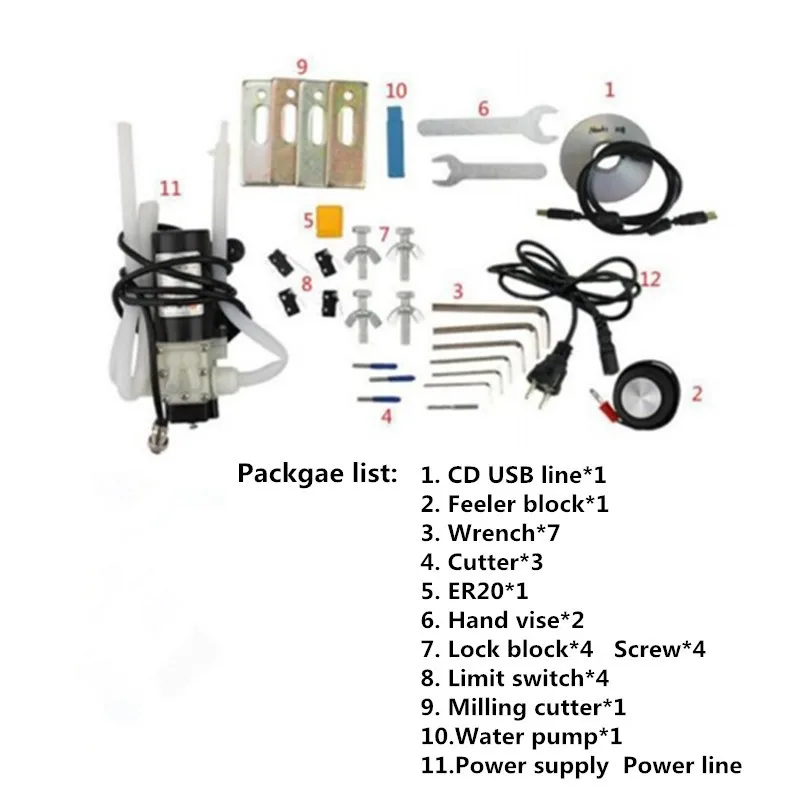

Packaging
|
|
|
wooden box package: 109*92*58cm
|
|
|
115kg
|
|
|
Machine*1
CD USB line*1
Feeler block*1
Wrench*7
Cutter*3
ER20*1

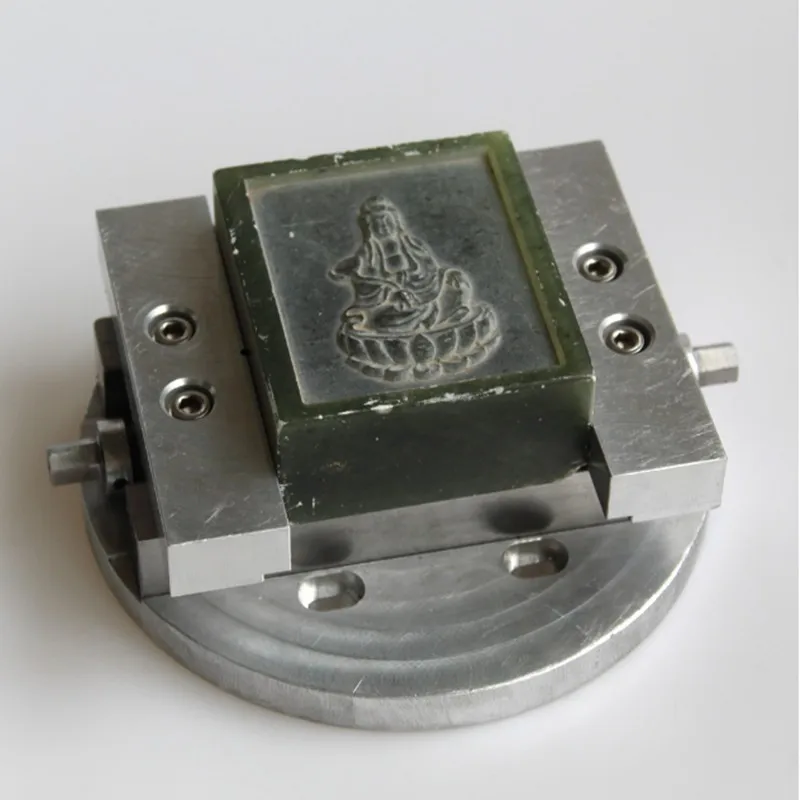

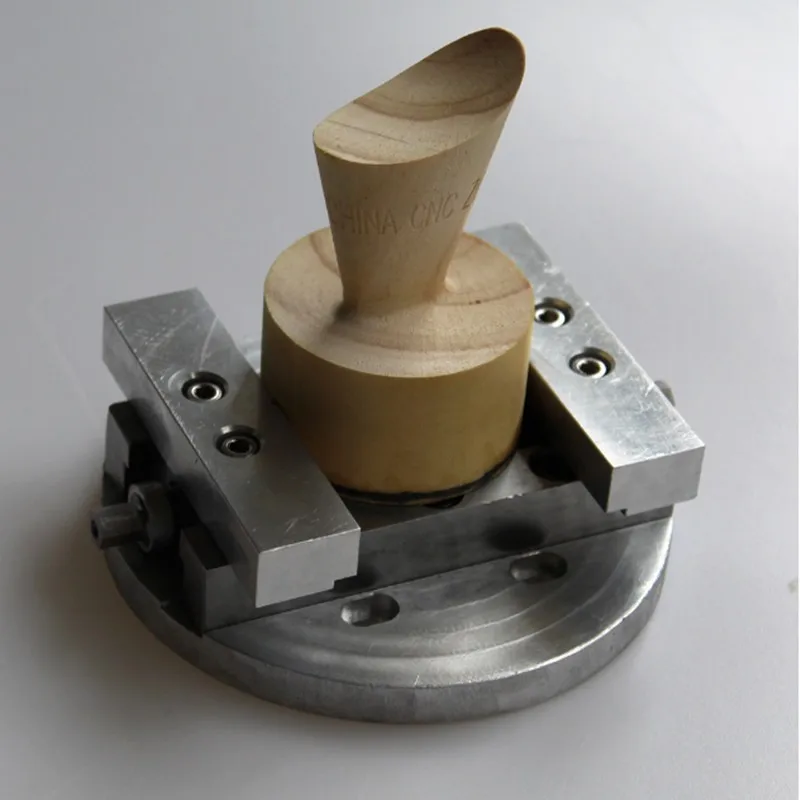

Hand vise*2
Lock block*4
Screw*4
Limit switch*4
Milling cutter*1
Water pump*1
Power supply*1
Power line*1
|

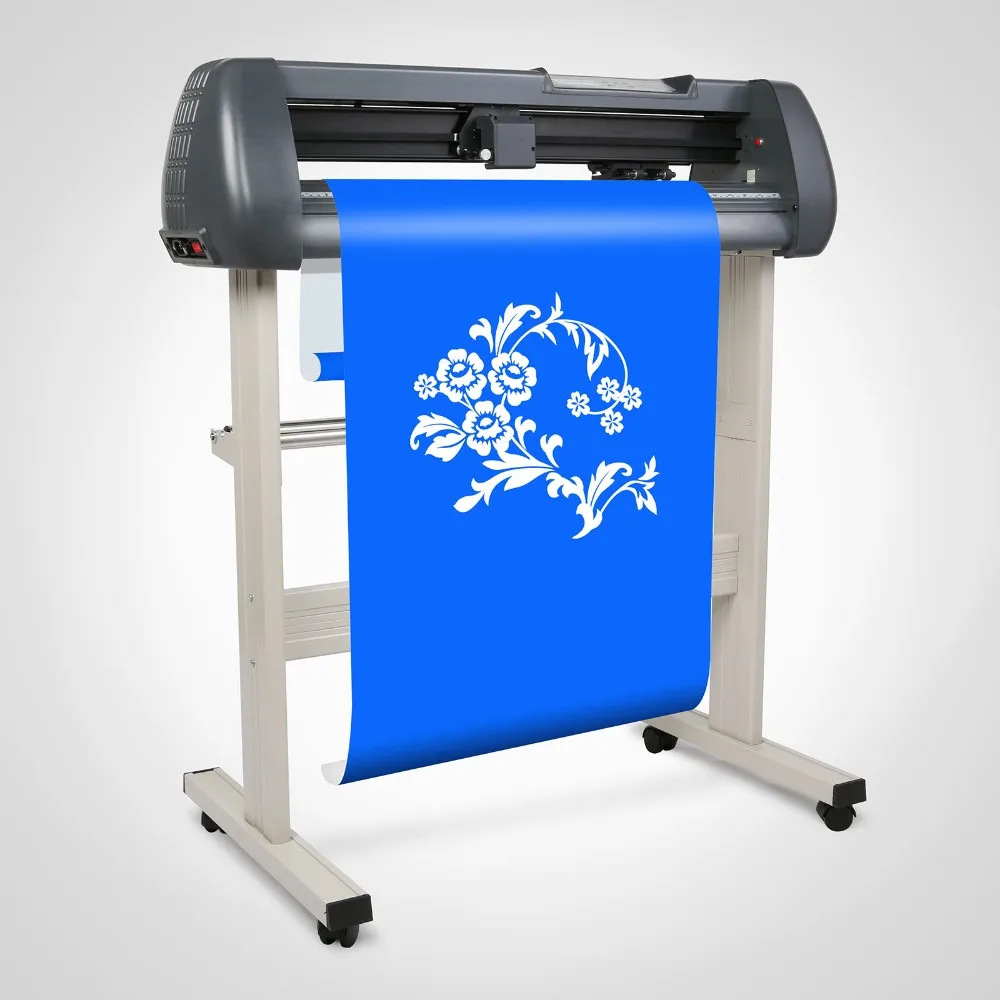

vinyl cutter ,vinyl cutter plotter, vinyl printer cutter for sale 870mm

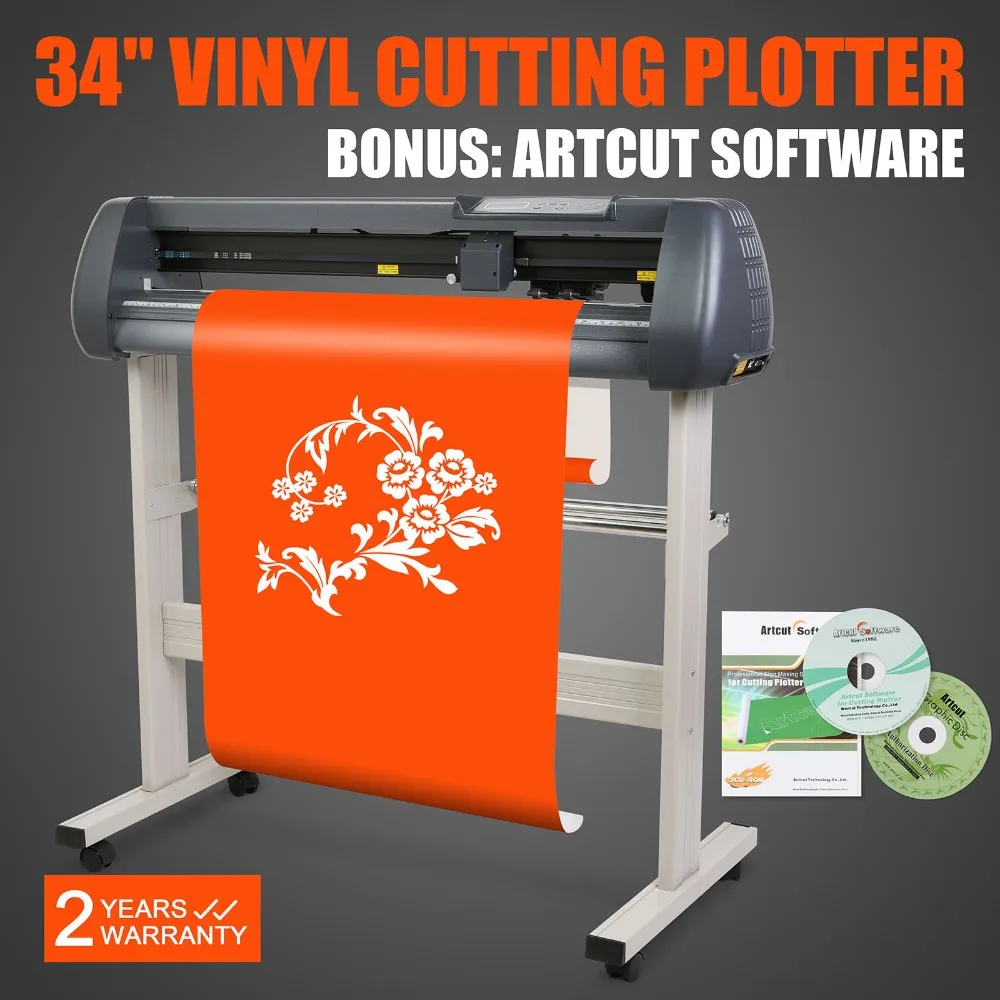

28" VINYL CUTTING PLOTTER SIGN CUTTER PRINTER STICKER Graph Plotter
