- Hign-concerned Chemical: None
- Security Mode: Fail Secure with Signal
- Model Number: A021
- Brand Name: RUNERYUE
- Origin: Mainland China
- Certification: CE
- Smart home platform: Other,Tuya
- type: AC sliding gate opener
- A2201: for 600kg gate
- A2202: for 800kg gate
- A2203: for 1200kg gate
- wifi controller: Xhouse App
- input: 110V/220V AC
600KG Electromagnetic Limit Gearbox Residential Heavy-Duty Electric Sliding Gate Motor AC220V Rail Door Drive System
Read before order:
1.This item sells a 220V motor kit.
2.Choose metal rack or nylon rack according to the material of your gate. The metal rack can be welded and fixed with screws. Nylon rack needs to be punched and fixed with screws. (this kit not include any Racks)
3.Please ensure that the total weight of your door is below 600KG and it is easy to push open by hand to ensure that the motor has sufficient power to drag it..
4.Choose accessories according to your needs.Different accessories for each kit are displayed in the choose photo.
5.Communication is very necessary, if you are not sure, please email or message the seller.

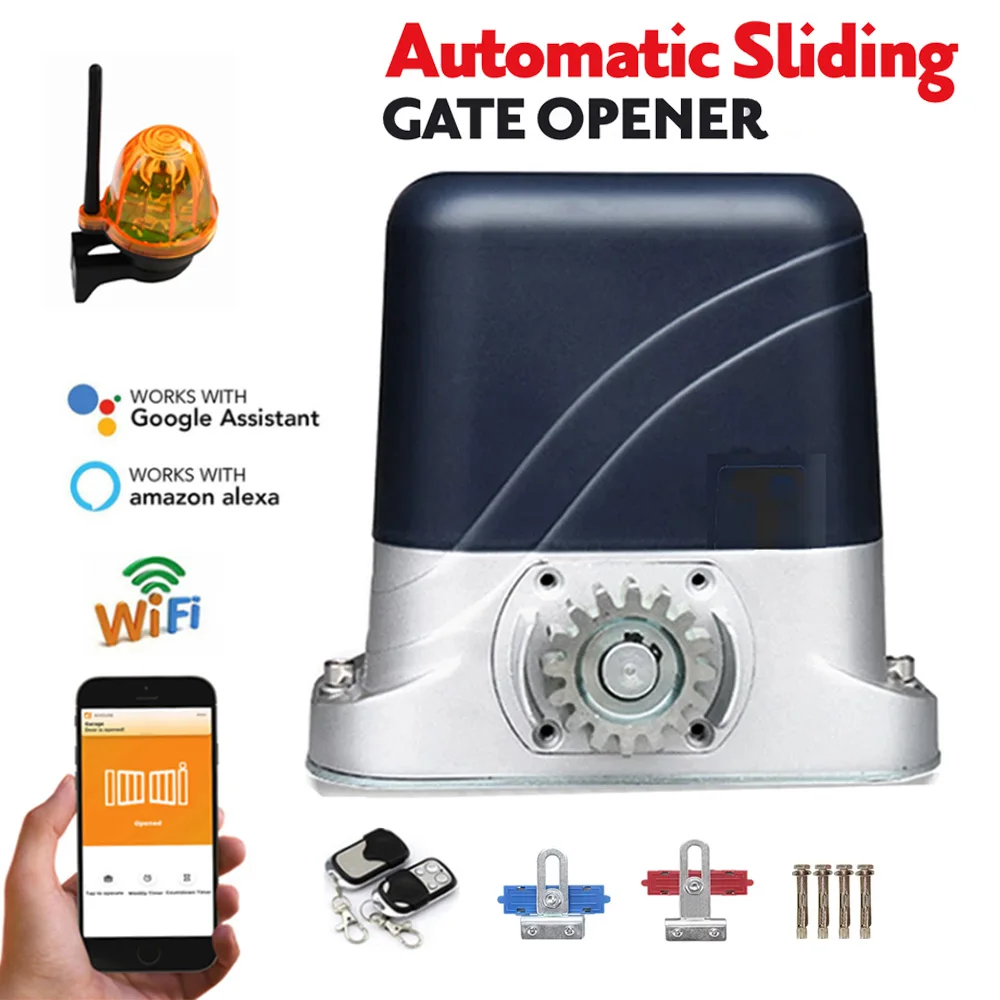

WiFi App Control Automatic SLIDING GATE OPENER Motor Move Engine AUTO DOOR CLOSER For Universal Home Gate Automated DC/AC Input
Ⅰ:Summary
This equipment is one of the auto gate openers launched by our company adopting a new design and integrated control system. Our new sliding gate opener has many features such as: low noise, light weight, powerful starting torque, stability, reliability and is compact and stylish. The motor will still work for a short period of time using lower voltage. The control board has overload protection. When there is a power failure, the motor drive can be separated by the use of the clutch, by using the specified key the user has the ability to disconnect the clutch enabling the gate to be opened or closed manually. Using the optional infrared photocells the gate will automatically stop and re-open if an obstacle is sensed.
Ⅱ:Parameters
1. Working temperature of motor -35°C～ +55°C
2. Working humidity≤85%
3. Power supply :220VAC±10% 50Hz/60Hz
4. Motor voltage: 220V AC type ,Motor Only

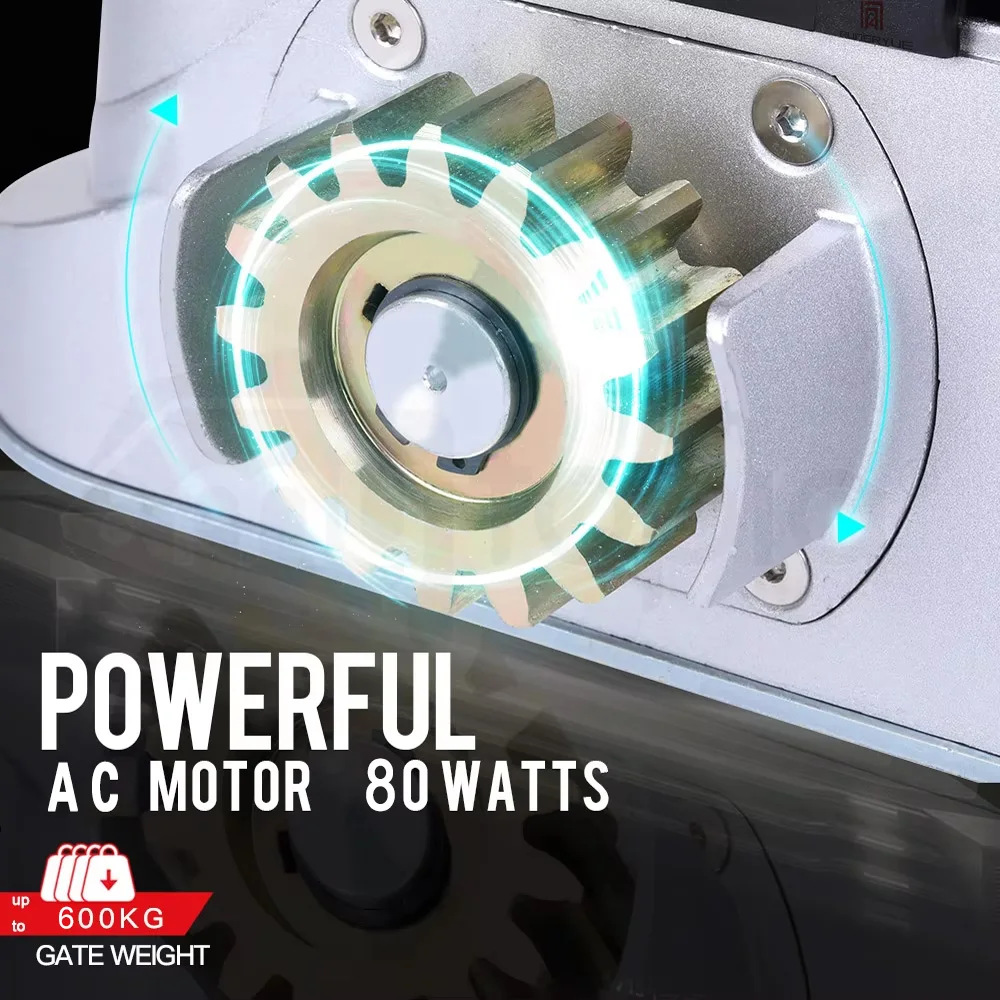

5. Rated power:80W/600KG Gate Weight motor
6. Output gear moduleM=4
7. Output gear numberZ=16
8. Open(close) speedv=12m/min
9. Rated speed : 1400RPM
10. Maximum pull:1100N
11. Maximum load:600kg
12. Net weight:11KG
13.Remote control distance : ≤50mete (Battery:27A12V not include)
14.Packing : In carton

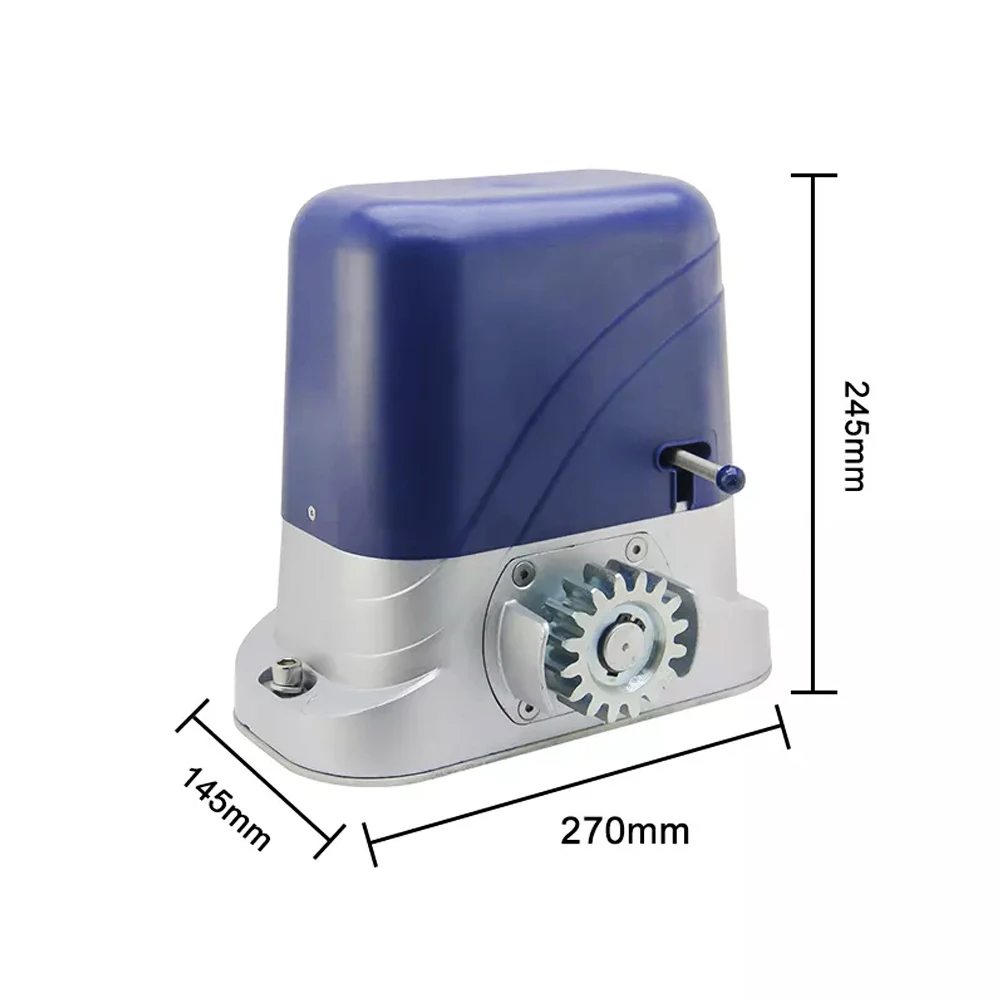

Ⅲ:Appearance and dimensions
AC Motor Kit
This AC powered sliding gate opener is designed to operate sliding gates up to 1400LBS 600kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.
1.Weatherproof
2.Manual Override
3.All Metal Gears
4.Motor Only, No Racks Include
5.All in one internal Motor and Weather Proof control panel input power AC220V(order mark best)
Product Description:
Note: If it is dual gate, you need two motors
Supports -40° ambient operation

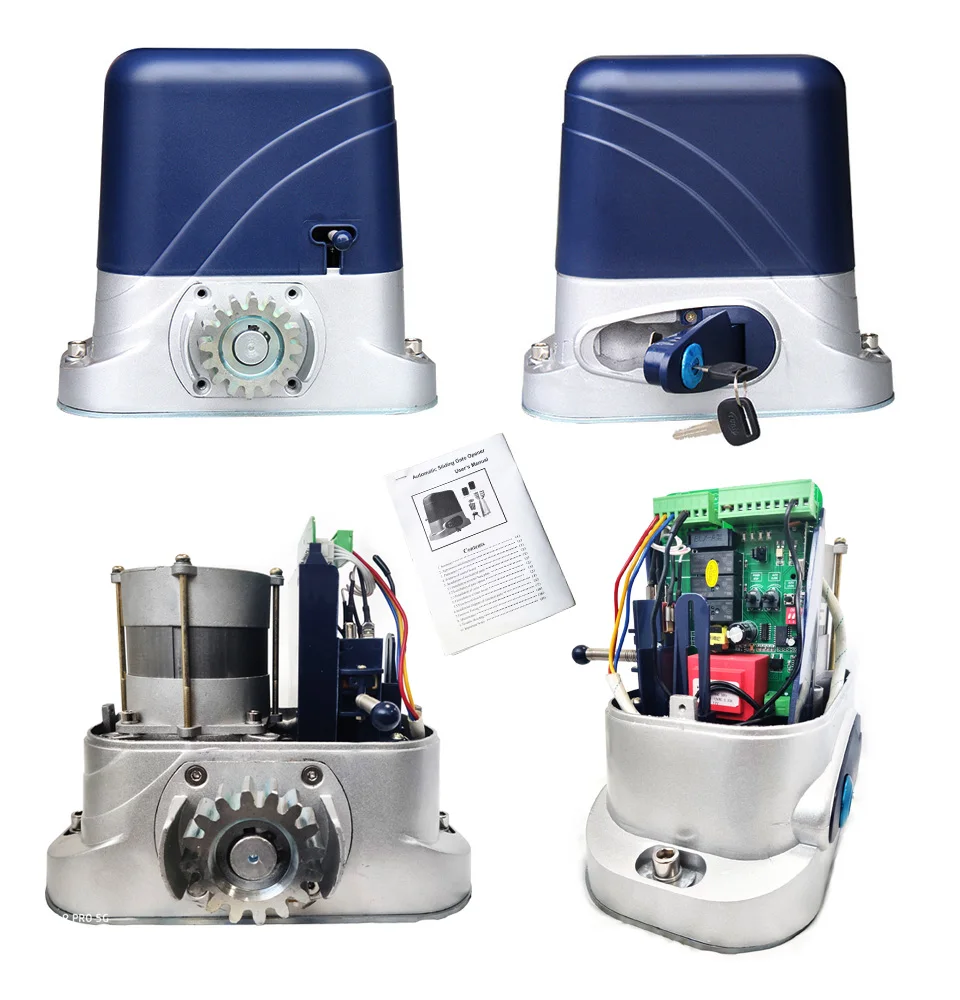

Internal structure display
This sliding gate opener has many features such as: low noise,light weight,powerful starting torque,stability,reliability and is compact and stylish.
1)Electromagnetic limit switch.
2)Low noise, high speed pure copper motor.
3)Intelligent control board.
For electronic installation manual, please contact the seller, Email: szgalo@21sina.com
Optional accessories
Choose color kit,package list will show on the photo.

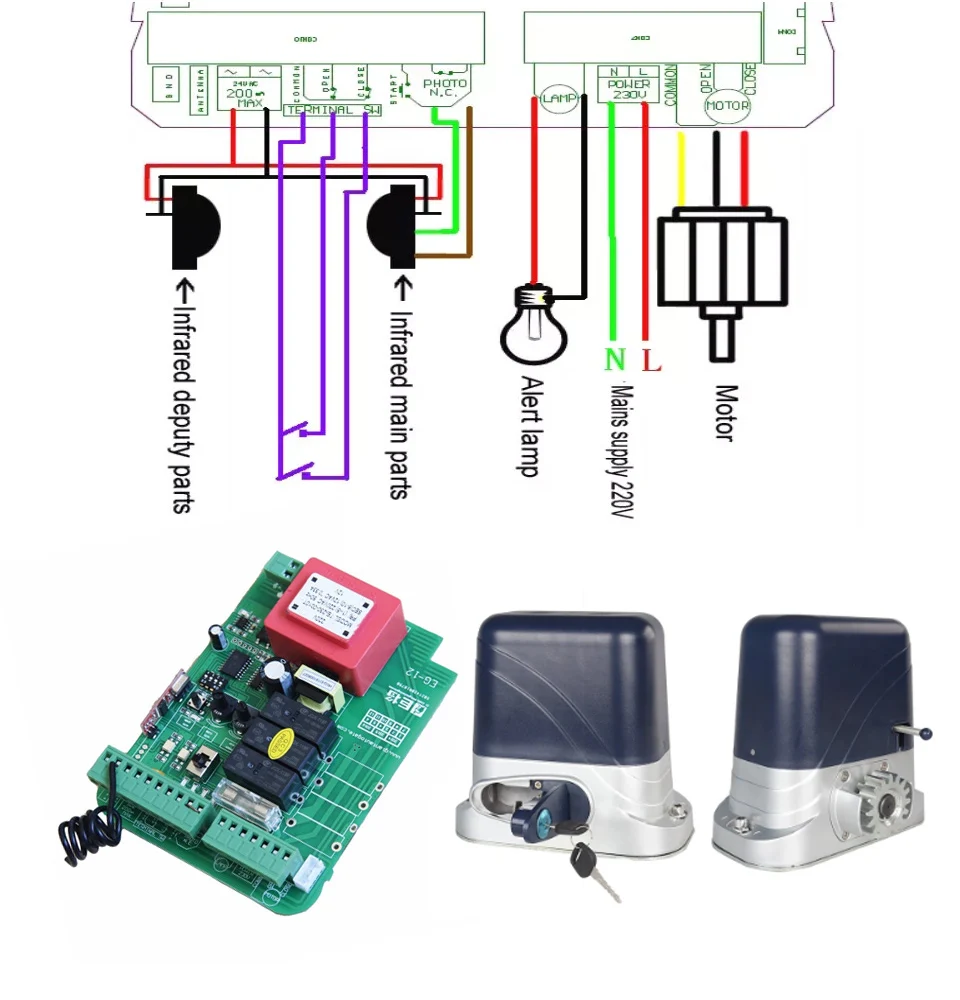

Wiring diagram
Because the product will be updated from time to time, if you encounter any technical problems with the connection, please directly inform the seller.

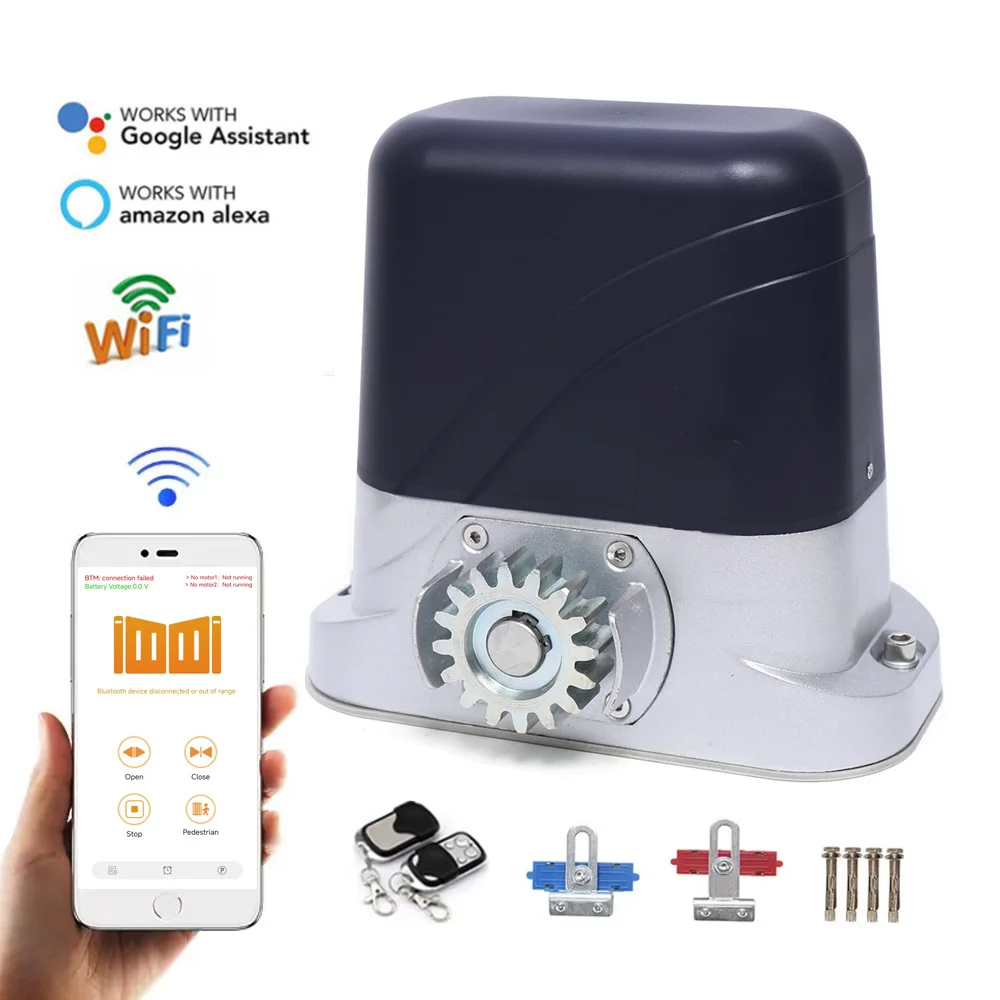

Support wifi control phone to open door
Select the wifi module, in the wireless network environment, you can use the phone to open the door, and the mobile app control.(If you choose wifi control, the wifi module will be connected inside the motor)
Support Car USB Sensor
Universal Car Wireless Transmitter And Receiver Remote Control, when your car at the door, The gate opens automatically, when your car is away from the gate, the gate closes automatically.
Recommend to use outdoor camera
The motor supports wifi control, you can open the door on the phone, if you have a camera, then you can clearly see that it is working, even if you are not at home, you can operate on the phone
Automatic motor allows you to enjoy life
I deserve such a wonderful auto in my life

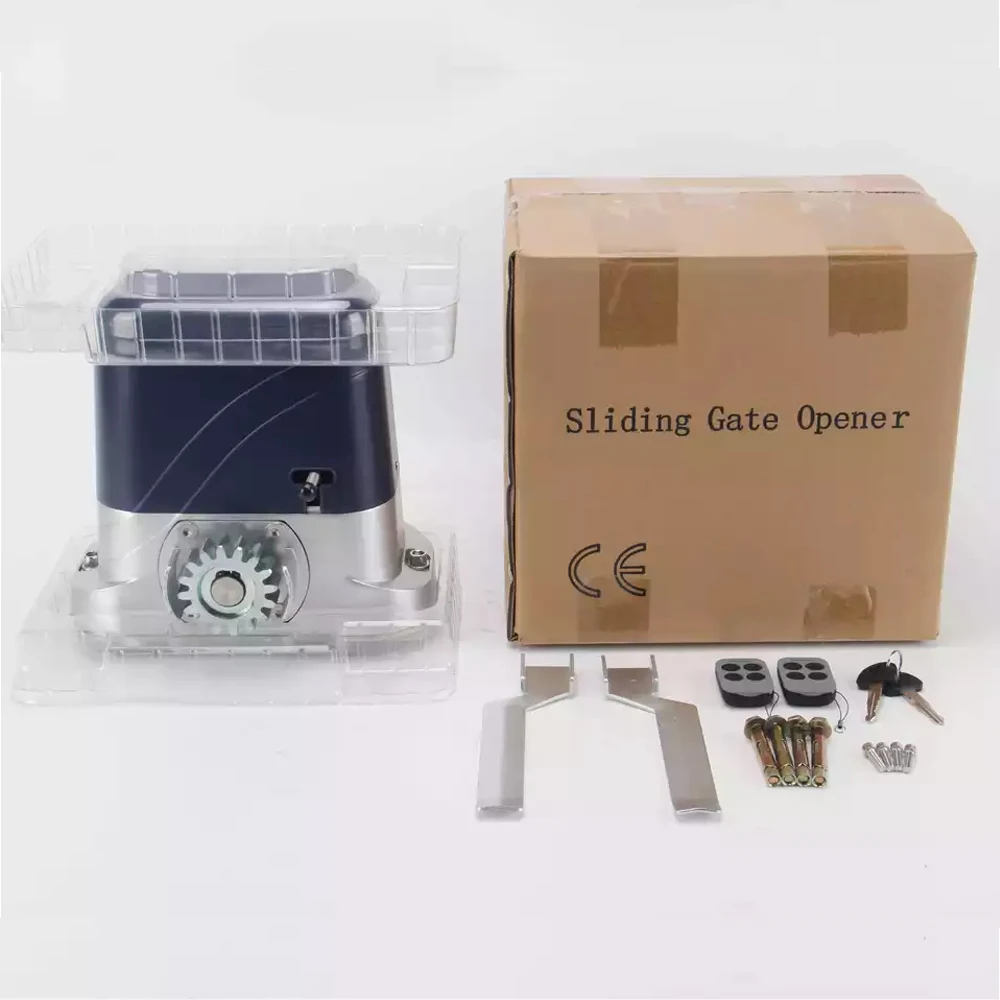

About the package:
Please note that due to product updates and iterations, specific accessory colors and appearances are subject to those received. The display image is an example of an old model.
Friendly Reminder
1. Technical services can be provided at any time;
2. Non-artificial damage is guaranteed for 12 months, (starting from the time of payment);
3. Please communicate with the seller in time for any installation or technical problems. Feedback to the seller and the installation renderings can extend the seller's technical service to 2 years.
4. According to the policy of the importing country, if the customs requires the buyer to pay the import cost, the buyer is obliged to obey the policy of his country.
5. Products are divided into: product price + shipping price. The seller only charges the price of the product, and the transportation fee is set and collected by the express. Any doubt about the transportation price can be verified on the transportation website.
6. If you do not get a quick reply, please send the message to the email: szgalo21@sina.com
